2XSEYQY Tunneling Cable

Introduction

The underground mining and tunneling industry operates under some of the most challenging conditions imaginable. Deep beneath the earth's surface, electrical systems must function reliably despite extreme temperatures, mechanical stress, potential fire hazards, and the constant threat of equipment failure that could endanger lives. In these demanding environments, the choice of electrical cable becomes not merely a technical consideration, but a critical safety decision that can determine the success or failure of entire operations.

The 2XSEYQY tunneling cable represents a sophisticated engineering solution specifically developed to meet these extraordinary demands. This specialized medium-voltage cable has been meticulously designed to provide reliable power transmission in underground environments where conventional cables would quickly fail. Understanding its construction, capabilities, and proper application requires examining the unique challenges of subterranean electrical installations and how this particular cable addresses each potential point of failure.

In underground operations, electrical systems face a perfect storm of hostile conditions. The confined spaces restrict ventilation and heat dissipation, while the presence of flammable gases and dust creates constant fire and explosion risks. Mechanical equipment operates in close proximity to cables, subjecting them to impacts, crushing forces, and continuous flexing. Temperature variations can be extreme, from freezing conditions in some tunnels to intense heat near machinery or geothermal sources. Perhaps most critically, any electrical failure underground can trap workers or disable life-safety systems, making reliability absolutely paramount.

The 2XSEYQY cable addresses these challenges through a multi-layered approach to protection and performance. Its design philosophy centers on the principle that underground cables must not merely survive their environment, but thrive in it while maintaining electrical integrity over extended service life. This comprehensive approach to cable engineering makes the 2XSEYQY an essential component in modern mining and tunneling operations where safety and reliability cannot be compromised.

Application Scenarios in Underground Operations

Understanding where and how the 2XSEYQY cable performs best requires examining the specific scenarios where its unique characteristics provide the greatest value. Each application scenario presents distinct challenges that the cable's design specifically addresses through its robust construction and carefully selected materials.

Underground Mining Operations

In underground mining environments, the 2XSEYQY cable serves as the electrical lifeline for mobile equipment that forms the backbone of modern mining operations. These applications present perhaps the most demanding conditions for any electrical cable, combining mechanical stress with environmental hazards that would quickly destroy conventional cables. The cable must power heavy machinery such as continuous miners, shuttle cars, roof bolters, and ventilation fans while withstanding the constant movement, vibration, and potential impact damage inherent in mining operations.

The mining environment presents unique electrical challenges beyond simple power transmission. Equipment frequently operates in areas with explosive gas concentrations, requiring cables that will not become ignition sources during fault conditions. The cable's flame-retardant properties and electromagnetic shielding become critical safety features, preventing both direct ignition and the electrical interference that could disrupt safety monitoring systems. Additionally, the high-voltage capability of the 2XSEYQY cable allows mining operations to utilize more efficient power distribution systems, reducing voltage drop over long underground runs and enabling the use of more powerful equipment.

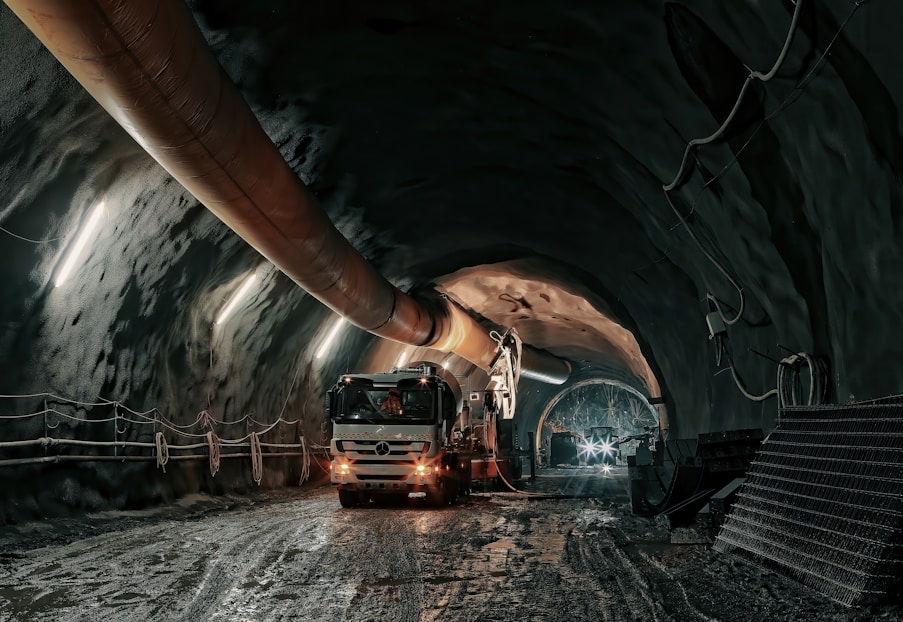

Tunneling Construction Projects

Tunneling operations create their own unique set of electrical challenges that the 2XSEYQY cable is specifically designed to address. During tunnel construction, electrical systems must be repeatedly relocated as work progresses, subjecting cables to constant handling, coiling, and repositioning. The cable's enhanced flexibility and mechanical strength become essential characteristics, allowing it to withstand the repetitive stress of installation and relocation without degrading electrical performance.

The confined nature of tunnel construction creates particular challenges for heat dissipation and ventilation. Electrical equipment operates in close quarters with limited air circulation, making the cable's thermal performance characteristics crucial for safe operation. The XLPE insulation system provides superior thermal stability compared to conventional materials, maintaining electrical integrity even when subjected to elevated temperatures from nearby equipment or ambient conditions. This thermal stability becomes particularly important in longer tunnels where ventilation may be limited and heat buildup can quickly become problematic.

Stationary High-Voltage Installations

While the 2XSEYQY cable excels in mobile applications, its robust construction also makes it ideal for stationary installations in underground environments. These applications typically involve connections to high-voltage transformers, main distribution panels, and permanent electrical infrastructure that must operate reliably for extended periods without maintenance access. The cable's armored construction provides long-term protection against environmental factors that could gradually degrade less robust cables.

In stationary applications, the cable's screening and electromagnetic compatibility characteristics become particularly important. Underground electrical installations often operate in close proximity to sensitive monitoring and communication equipment that could be disrupted by electromagnetic interference from power cables. The copper tape screening system in the 2XSEYQY cable provides excellent electromagnetic shielding, preventing power transmission from interfering with critical safety and communication systems.

Safety-Critical Applications in Hazardous Zones

Perhaps the most demanding application for the 2XSEYQY cable involves installation in areas classified as hazardous due to the presence of flammable gases, dust, or other explosive materials. These environments require cables that not only function reliably under normal conditions but also fail safely if subjected to overload or fault conditions. The cable's flame-retardant sheath and internal fire-resistant construction help prevent electrical faults from becoming ignition sources that could trigger catastrophic explosions.

The mechanical reinforcement provided by the galvanized steel wire braid becomes particularly important in hazardous environments where any physical damage to electrical equipment could create dangerous conditions. This armoring protects the cable from impact damage that could expose energized conductors, while also providing the mechanical strength needed for installations where the cable may be subjected to crushing forces or other mechanical stress.

Detailed Analysis of Electrical Parameters

The electrical characteristics of the 2XSEYQY cable reflect careful engineering decisions made to optimize performance in underground applications. Each parameter has been selected to provide the best possible balance of safety, performance, and reliability under the demanding conditions typical of mining and tunneling operations.

Voltage Ratings and System Compatibility

The 2XSEYQY cable operates at a rated voltage of 6/10 kV AC, positioning it firmly in the medium-voltage category that has become standard for underground power distribution systems. This voltage level provides an optimal balance between power transmission efficiency and safety considerations in confined underground spaces. The dual voltage rating (6/10 kV) indicates the cable's capability to operate in systems with different neutral grounding configurations, providing flexibility for various underground electrical system designs.

The test voltage of 17 kV AC demonstrates the cable's substantial electrical safety margin, operating at less than 60% of its tested dielectric strength under normal conditions. This safety margin becomes crucial in underground environments where cables may be subjected to moisture, contamination, and other factors that could compromise insulation integrity over time. The high test voltage ensures that temporary overvoltage conditions, which are common in industrial electrical systems, will not cause insulation failure.

The maximum permissible operating voltages of 6.9/12 kV AC and 9/18 kV DC reflect the cable's ability to handle both alternating and direct current applications. The DC voltage ratings are particularly important for modern mining operations that increasingly utilize DC drive systems for improved motor control and energy efficiency. The higher DC voltage capability recognizes that DC systems typically require higher voltage ratings due to the different stress patterns on insulation materials.

Current Carrying Capacity and Thermal Management

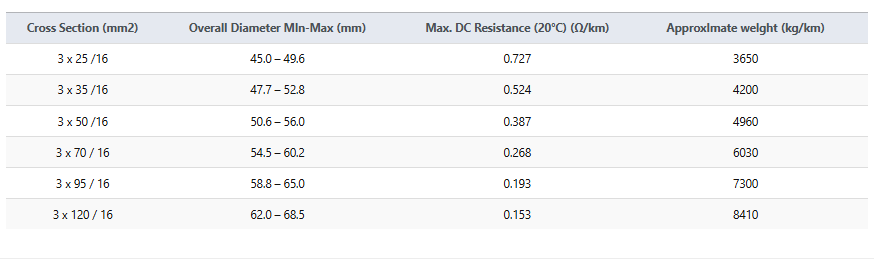

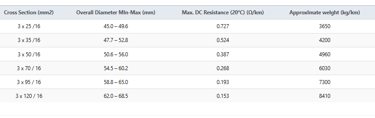

The current carrying capacity of the 2XSEYQY cable varies with conductor cross-sectional area, ranging from smaller sections suitable for control applications to larger conductors capable of powering heavy industrial equipment. The cable's current ratings are determined according to DIN VDE 0298 Part 4, which provides standardized calculation methods that account for the specific thermal characteristics of XLPE insulation and the cooling effects of the surrounding environment.

The maximum conductor temperature of 90°C represents a carefully chosen balance between current carrying capacity and insulation longevity. XLPE insulation can theoretically operate at higher temperatures, but the 90°C limit ensures extended service life even under continuous high-load conditions. This temperature limit becomes particularly important in underground applications where heat dissipation may be limited by confined spaces and poor ventilation.

During short circuit conditions, the cable can withstand conductor temperatures up to 250°C for brief periods. This short circuit rating ensures that the cable will not suffer permanent damage during fault conditions, allowing protective devices time to operate and clear the fault. The ability to withstand high short circuit temperatures is crucial in underground applications where fault currents may be high due to the robust nature of mining electrical systems.

Mechanical Strength and Flexibility Characteristics

The mechanical properties of the 2XSEYQY cable reflect its intended use in demanding underground environments where physical stress is unavoidable. The maximum tensile load rating of 15 N/mm² provides substantial mechanical strength while maintaining the flexibility needed for installation in confined spaces. This tensile strength rating considers both the strength of individual cable components and the integrated strength of the complete cable assembly.

The maximum torsion rating of 25/m allows the cable to withstand the twisting forces encountered during installation and operation in underground environments. This specification becomes particularly important for mobile applications where cables may be repeatedly coiled and uncoiled, or for installations where the cable must navigate around obstacles and through confined spaces with limited bend radii.

The minimum bending radius, calculated according to DIN VDE 0298 Part 3, ensures that the cable can be installed in typical underground configurations without compromising electrical or mechanical integrity. The standardized calculation method accounts for the specific construction characteristics of the cable, including conductor flexibility, insulation thickness, and armoring effects on bend performance.

Temperature Performance Range

The operating temperature range of the 2XSEYQY cable has been carefully engineered to accommodate the wide range of thermal conditions encountered in underground operations. For fixed installations, the cable operates reliably from -25°C to +80°C, covering the full range of temperatures typically encountered in underground mining and tunneling environments. The lower temperature limit ensures reliable operation in unheated underground spaces, while the upper limit provides adequate margin for operation near heat-generating equipment.

For mobile applications, the temperature range is more restricted, operating from +5°C to +80°C. This limitation reflects the additional mechanical stress imposed on cable materials during handling and movement at extremely low temperatures. The higher minimum temperature for mobile use prevents potential damage from attempting to flex or coil the cable when insulation and sheath materials may become brittle in extreme cold.

Cable Structure and Engineering Design

The internal structure of the 2XSEYQY cable represents a sophisticated approach to underground cable design, with each component carefully selected and positioned to contribute to overall performance and reliability. Understanding this structure provides insight into how the cable achieves its exceptional performance characteristics in demanding underground environments.

Conductor Design and Materials

The conductors in the 2XSEYQY cable utilize circular stranded plain annealed copper construction conforming to IEC 60228 Class 2 specifications. This conductor design provides an optimal balance between electrical conductivity, mechanical flexibility, and manufacturing cost. The stranded construction allows the cable to flex repeatedly without conductor breakage, while the annealed copper provides maximum electrical conductivity for efficient power transmission.

The Class 2 conductor specification ensures adequate flexibility for installation while maintaining the structural integrity needed for underground service. Each conductor strand is carefully sized and positioned to minimize electrical losses while providing the mechanical characteristics needed for the cable's intended applications. The copper material provides excellent corrosion resistance in underground environments where moisture and chemical exposure are common concerns.

Advanced Insulation System

The XLPE (cross-linked polyethylene) insulation system represents one of the most significant technological advances in the 2XSEYQY cable design. Cross-linking creates chemical bonds between polymer chains, dramatically improving thermal and electrical performance compared to conventional thermoplastic insulations. This cross-linked structure maintains its integrity at elevated temperatures while providing excellent dielectric properties across a wide range of operating conditions.

The insulation system includes extruded inner and outer semiconductive layers that provide electrical field control around the conductor. These semiconductive layers ensure uniform electrical stress distribution within the insulation, preventing the formation of electrical stress concentrations that could lead to premature insulation failure. The smooth, controlled electrical field distribution extends insulation life and improves reliability under varying load conditions.

Electromagnetic Shielding and Screening

Each core of the 2XSEYQY cable incorporates copper tape screening that provides both electromagnetic shielding and electrical safety functions. The copper tapes applied over each main core create a continuous conductive path that contains electromagnetic fields within the cable while providing a controlled path for fault currents. This screening system prevents the cable from generating electromagnetic interference that could disrupt sensitive electronic equipment common in modern mining operations.

The screening system also provides enhanced safety by ensuring that any insulation failure will result in a clear ground fault that protective devices can quickly detect and clear. This rapid fault clearing capability is crucial in underground applications where undetected electrical faults could create fire or explosion hazards in confined spaces with limited escape routes.

Mechanical Protection and Armoring

The galvanized steel wire braid (GSWB) armoring provides comprehensive mechanical protection while maintaining cable flexibility. The galvanized coating on the steel wires provides corrosion resistance in the humid underground environment, ensuring long-term mechanical integrity. The braid construction distributes mechanical loads across the entire cable circumference, preventing localized damage from impacts or crushing forces.

The armoring coverage of minimum 96% ensures nearly complete mechanical protection while allowing sufficient flexibility for installation and service. This high coverage percentage is particularly important in underground applications where cables may be subjected to impact from moving equipment or falling debris. The steel wire construction provides tear resistance and prevents propagation of mechanical damage along the cable length.

Protective Sheath System

The outer sheath utilizes a special flame-retardant PVC compound specifically formulated for underground applications. The flame-retardant properties prevent the cable from becoming a fuel source during fire conditions, while the PVC material provides chemical resistance against oils, acids, and other contaminants common in underground environments. The red color coding provides immediate visual identification, enhancing safety during installation and maintenance operations.

The sheath material includes additives that maintain flexibility at low temperatures while providing durability under continuous mechanical stress. The material formulation balances flame retardancy with mechanical properties, ensuring that safety characteristics do not compromise the cable's ability to withstand the physical demands of underground service.

Standards Compliance and Testing Protocols

The 2XSEYQY cable undergoes extensive testing to ensure compliance with multiple international standards, reflecting its design for use in safety-critical underground applications. This comprehensive testing approach provides confidence that the cable will perform reliably under the demanding conditions typical of mining and tunneling operations.

Design and Construction Standards

The cable design follows DIN VDE 0250-605 and IEC 60502-2 standards, which specify construction requirements for medium-voltage power cables. These standards ensure dimensional consistency, material quality, and manufacturing processes that deliver reliable electrical performance. Compliance with these international standards enables the cable to be used in projects worldwide while meeting local electrical code requirements.

The construction standards address every aspect of cable manufacturing, from conductor stranding patterns to insulation thickness tolerances. This standardization ensures that cables from different production runs will have consistent electrical and mechanical characteristics, enabling reliable system design and installation planning.

Electrical Testing and Verification

Electrical testing follows DIN VDE 0472 standards covering multiple test procedures including conductor resistance, insulation resistance, dielectric strength, and partial discharge measurements. These tests verify that the cable meets its electrical specifications and will provide reliable service under normal operating conditions. The testing protocols simulate both normal operating stresses and abnormal conditions that could occur during service.

Dielectric testing at 17 kV AC ensures adequate insulation strength for safe operation at rated voltage levels. The test voltage magnitude and duration are specified to detect insulation defects that could lead to service failures while avoiding damage to cables that meet specification requirements. Additional impulse testing may verify performance under transient overvoltage conditions common in industrial electrical systems.

Mechanical and Environmental Testing

Non-electrical testing according to DIN VDE 0472 standards verifies mechanical strength, environmental resistance, and long-term durability characteristics. These tests include tensile strength measurement, bend testing, impact resistance, and environmental exposure testing. The comprehensive mechanical testing ensures that the cable will withstand the physical demands of underground installation and service.

Environmental testing exposes cable samples to temperature cycling, humidity exposure, chemical resistance, and other conditions that simulate long-term underground service. These accelerated aging tests help predict cable service life and identify potential degradation mechanisms that could affect reliability over time.

Fire Safety and Flame Retardant Testing

Fire testing follows multiple standards including VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1, ensuring comprehensive evaluation of flame retardant properties. These tests verify that the cable will not propagate flame along its length and will self-extinguish when the ignition source is removed. The multiple test standards ensure compatibility with various international fire safety codes and regulations.

Flame retardant testing becomes particularly critical for underground applications where fire could trap personnel or damage life-safety systems. The testing protocols evaluate both individual cable performance and behavior when multiple cables are installed together, ensuring that fire safety characteristics are maintained in typical installation configurations.

Frequently Asked Questions and Technical Solutions

Mobile Equipment Applications

Question: Is the 2XSEYQY cable suitable for powering mobile mining equipment that must operate continuously while moving through underground tunnels?

Answer: The 2XSEYQY cable excels in mobile underground applications due to its carefully engineered mechanical characteristics and robust construction. The cable's maximum torsion rating of 25/m and tensile load capacity of 15 N/mm² provide the mechanical strength needed for continuous flexing and movement typical of mobile mining equipment. The XLPE insulation system maintains electrical integrity despite repeated bending cycles, while the galvanized steel wire braid armoring protects against impact damage from rocks, equipment, and other underground hazards.

The cable's design specifically addresses the challenges of mobile underground service through several key features. The stranded copper conductors resist fatigue failure from repeated flexing, while the flame-retardant sheath provides safety in confined underground spaces where fire presents extreme hazards. The copper tape screening prevents electromagnetic interference that could disrupt sensitive electronic control systems common in modern mining equipment. For optimal performance in mobile applications, proper cable management systems should be employed to minimize stress concentration and ensure adequate bend radius during operation.

Environmental Safety and Hazardous Areas

Question: What specific features make the 2XSEYQY cable safe for use in underground environments where explosive gases or combustible dust may be present?

Answer: The 2XSEYQY cable incorporates multiple safety features specifically designed for hazardous underground environments. The flame-retardant PVC sheath prevents the cable from becoming a fuel source during fire conditions and will self-extinguish when ignition sources are removed. The copper tape screening over each core provides electromagnetic shielding that prevents radio frequency emissions that could potentially ignite explosive gas mixtures in confined spaces.

The cable's robust insulation system using XLPE materials provides excellent electrical integrity that prevents the formation of electrical arcs or corona discharge that could serve as ignition sources. The galvanized steel wire braid armoring protects against mechanical damage that could expose energized conductors, while also providing a continuous grounding path for fault current detection. The high dielectric test voltage of 17 kV ensures substantial safety margin against insulation breakdown that could create dangerous electrical faults in explosive atmospheres.

Additionally, the cable's ability to operate reliably at elevated temperatures reduces the likelihood of overheating conditions that could create ignition sources. The comprehensive testing to multiple fire safety standards provides assurance that the cable meets the stringent safety requirements for hazardous location installations.

Temperature Performance and Thermal Management

Question: How does the 2XSEYQY cable maintain reliable operation in the extreme temperature variations common in underground mining operations?

Answer: The 2XSEYQY cable's thermal performance reflects careful material selection and design optimization for underground temperature extremes. The XLPE insulation system provides superior thermal stability compared to conventional materials, maintaining electrical properties across the full operating temperature range from -25°C to +80°C for fixed installations. The cross-linked molecular structure of XLPE prevents thermal degradation that could compromise electrical performance over time.

The cable's thermal design considers both steady-state and transient thermal conditions. The maximum conductor temperature of 90°C provides adequate current carrying capacity while ensuring long insulation life, even under continuous high-load conditions. During short circuit conditions, the cable can withstand conductor temperatures up to 250°C, ensuring survival of fault conditions without permanent damage.

For mobile applications, the slightly restricted temperature range of +5°C to +80°C reflects the additional mechanical stress imposed during handling at extreme low temperatures. The PVC sheath material is formulated to remain flexible at low temperatures while providing durability under mechanical stress. Proper installation practices, including adequate bend radii and stress relief, help ensure optimal thermal performance throughout the cable's service life.

Insulation Technology and Electrical Performance

Question: How does the XLPE insulation system in the 2XSEYQY cable provide superior performance compared to conventional cable insulation materials in underground applications?

Answer: The XLPE (cross-linked polyethylene) insulation system represents a significant technological advancement over conventional thermoplastic insulation materials for underground cable applications. Cross-linking creates chemical bonds between polymer chains that provide thermal stability, mechanical strength, and electrical performance characteristics impossible to achieve with conventional materials.

The cross-linked structure maintains its integrity at elevated temperatures, allowing higher current carrying capacity and better performance under overload conditions. Unlike thermoplastic materials that soften and flow at elevated temperatures, XLPE maintains its shape and electrical properties throughout its operating temperature range. This thermal stability becomes crucial in underground applications where heat dissipation may be limited and cables may operate at elevated temperatures for extended periods.

The XLPE insulation also provides superior resistance to environmental stress cracking and chemical degradation compared to conventional materials. Underground environments often expose cables to moisture, oils, acids, and other contaminants that can gradually degrade conventional insulation materials. The cross-linked structure of XLPE provides enhanced resistance to these environmental factors, extending cable service life and improving reliability.

The semiconductive layers that surround the XLPE insulation provide electrical field control that ensures uniform stress distribution within the insulation. This controlled electrical field prevents the formation of stress concentrations that could lead to premature insulation failure, particularly important in medium-voltage applications where electrical stress levels are substantial.

Short Circuit Protection and Fault Performance

Question: What happens when the 2XSEYQY cable experiences a short circuit condition in an underground installation, and how does it protect both equipment and personnel?

Answer: The 2XSEYQY cable is specifically designed to survive short circuit conditions safely while providing adequate time for protective devices to operate and clear faults. During short circuit conditions, the cable can withstand conductor temperatures up to 250°C for the brief duration typical of modern protective device operation. This short circuit withstand capability prevents cable damage during fault conditions and maintains system integrity.

The copper tape screening over each core provides a continuous conductive path for fault currents while containing electromagnetic effects within the cable structure. This screening ensures that ground faults are quickly detected by protective relays, enabling rapid fault clearing that minimizes damage and safety hazards. The galvanized steel wire braid armoring provides additional fault current path while protecting against mechanical damage that could create secondary hazards.

The flame-retardant sheath prevents the cable from becoming a fire source during fault conditions, critical in underground environments where fire presents extreme hazards to personnel and equipment. The cable's robust construction ensures that even severe fault conditions will not result in conductor exposure or other conditions that could create additional safety hazards.

Proper coordination between cable short circuit ratings and protective device settings ensures optimal system protection. The cable's high short circuit temperature rating provides flexibility in protective system design while ensuring reliable fault performance throughout its service life.

Conclusion

The 2XSEYQY tunneling cable represents a pinnacle of engineering achievement in underground electrical infrastructure, demonstrating how careful attention to material science, construction techniques, and application-specific design can create solutions that not only meet but exceed the demanding requirements of subterranean operations. Through its comprehensive approach to safety, reliability, and performance, this cable has established itself as an essential component in modern mining and tunneling projects where failure is not merely inconvenient but potentially catastrophic.

The cable's success stems from its integrated design philosophy that addresses every aspect of underground service conditions. From the carefully selected XLPE insulation system that provides thermal stability and electrical integrity, to the galvanized steel wire braid armoring that offers mechanical protection without sacrificing flexibility, each component contributes to a complete solution optimized for underground applications. The flame-retardant characteristics ensure safety in confined spaces where fire presents extreme hazards, while the electromagnetic shielding prevents interference with sensitive monitoring and control systems critical for safe underground operations.

Perhaps most importantly, the 2XSEYQY cable demonstrates the vital importance of application-specific engineering in electrical infrastructure. Generic cables that perform adequately in surface applications often fail catastrophically when subjected to the unique combination of mechanical stress, environmental hazards, and safety requirements encountered underground. The comprehensive testing protocols and standards compliance ensure that the cable will deliver consistent performance across diverse underground applications while meeting the stringent safety requirements necessary for protecting personnel and equipment in hazardous environments.

As underground operations continue to evolve with advancing technology and increasing depth, the electrical infrastructure must keep pace with ever-more demanding requirements. The 2XSEYQY cable provides a robust foundation for these advancing underground electrical systems, offering the reliability, safety, and performance characteristics needed to support the next generation of underground mining and tunneling operations. Its proven track record in demanding applications worldwide demonstrates the value of investing in purpose-built electrical infrastructure that prioritizes both performance and safety in equal measure.

The balance achieved between electrical performance, mechanical durability, and safety characteristics makes the 2XSEYQY cable an exemplary solution for underground applications where compromise is not acceptable. Its comprehensive design approach serves as a model for how electrical infrastructure can be engineered to not merely survive hostile environments, but to thrive in them while contributing to the overall safety and efficiency of underground operations.
