AS/NZS 1802 Type 209.3 Composite-Screened Cable: The Backbone of Australian Copper Mining Operations

Introduction: Understanding the Critical Role of Mining Cables

In the depths of Australia's copper mines, where temperatures soar and conditions test even the most robust equipment, one component stands as the silent guardian of electrical safety and operational efficiency: the AS/NZS 1802 Type 209.3 composite-screened cable. This specialised mining cable represents decades of engineering evolution, designed specifically to meet the harsh demands of underground mining operations whilst maintaining the highest safety standards.

The AS/NZS 1802 standard, developed jointly by Standards Australia and Standards New Zealand, establishes the technical requirements for insulated cables used in mining environments. Within this comprehensive standard, the Type 209.3 designation refers to a specific category of medium-voltage cables rated at 3.3/3.3 kV, engineered for general mining applications excluding shuttle cars. The "3.3/3.3 kV" rating indicates both the phase-to-phase and phase-to-earth voltage capabilities, making these cables ideally suited for powering substantial underground equipment whilst maintaining operational flexibility.

Understanding why Type 209.3 cables are essential requires grasping the unique challenges of copper mining operations. Unlike surface industrial applications, underground mining presents a perfect storm of environmental hazards: extreme temperature variations, high humidity, corrosive atmospheres, constant mechanical stress from equipment movement, and the ever-present risk of electrical faults that could endanger lives. The Type 209.3 cable design addresses each of these challenges through sophisticated engineering solutions that balance durability, flexibility, and electrical performance.

The significance of proper cable selection becomes evident when considering the scale of modern copper mining operations. A single underground mine may require kilometres of trailing cables to power drilling equipment, conveyor systems, ventilation fans, and processing machinery. The failure of a single cable section can halt production, endanger personnel, and cost millions in lost productivity. This reality has driven the development of increasingly sophisticated cable designs that can withstand the punishing conditions of Australian copper mines whilst providing reliable power transmission over extended periods.

Major Australian Copper Mining Operations: Where Type 209.3 Cables Excel

Australia's copper mining industry represents one of the world's most significant sources of this essential metal, with operations spanning from the arid expanses of South Australia to the tropical conditions of Queensland. Each mining location presents unique challenges that highlight the importance of robust cable systems like the Type 209.3 specification.

Olympic Dam in South Australia stands as perhaps the most impressive example of where Type 209.3 cables prove their worth. This massive underground operation, one of the world's largest copper-uranium-gold deposits, contains approximately 11 billion tonnes of ore grading 0.71% copper. The mine's extensive underground network requires thousands of metres of trailing cables to power the continuous fleet of equipment operating in conditions that would destroy ordinary electrical cables. The extreme heat generated by the mining process, combined with high humidity levels from water management systems, creates an environment where only the most robust cable designs can survive.

The Prominent Hill and Carrapateena mines, both operated by BHP in South Australia, showcase how Type 209.3 cables adapt to different mining methodologies. Prominent Hill operates as an open-cut mine with underground extensions, requiring cables that can transition seamlessly between surface and underground conditions. Carrapateena, as a fully underground operation, relies heavily on the flexibility and durability of Type 209.3 cables to power its sophisticated block-caving mining system. The constant movement of equipment and the need for rapid cable deployment and retrieval make the composite-screened design particularly valuable in these operations.

Queensland's mining landscape presents different challenges that further demonstrate the versatility of Type 209.3 cables. Mount Isa, one of Australia's most historic and productive mining centres, operates multiple underground mines in close proximity, creating a complex web of electrical infrastructure. The Type 209.3 cables used here must withstand not only the harsh underground conditions but also the electromagnetic interference created by multiple high-powered electrical systems operating simultaneously. The Ernest Henry mine, with its substantial reserves of approximately 167 million tonnes grading 1.1% copper, relies on Type 209.3 cables to power its underground operations planned to continue until at least 2040. The long-term nature of this operation emphasises the importance of cable durability and reliability.

The Eloise mine, which reopened in 2011 after periods of closure, demonstrates how Type 209.3 cables support the restoration and modernisation of mining operations. The ability to quickly deploy reliable electrical infrastructure using standardised cable systems proved crucial in bringing this mine back into production efficiently and safely.

New South Wales contributes significantly to Australia's copper production through operations like the Cadia mine, which produces approximately 85,000 tonnes of copper annually through a combination of underground and open-cut mining. The scale of Cadia's operations requires extensive cable networks that can adapt to both mining methodologies, making the versatility of Type 209.3 cables particularly valuable.

Western Australia, whilst more famous for iron ore and gold, hosts several notable copper operations including Nova, Golden Grove, DeGrussa, and Jaguar mines. These operations, though smaller than the eastern giants, often face unique challenges related to remote locations and extreme weather conditions. The reliability of Type 209.3 cables becomes even more critical in these isolated operations where equipment failures can have severe consequences due to the difficulty of obtaining replacements and conducting repairs.

Application Scenarios: Where Type 209.3 Cables Shine

The versatility of AS/NZS 1802 Type 209.3 cables becomes apparent when examining their diverse applications throughout copper mining operations. These cables serve as the electrical lifeline for medium-voltage equipment operating at 3.3 kV, representing the optimal balance between power transmission capability and operational flexibility that mining operations demand.

Underground drilling operations represent perhaps the most demanding application for Type 209.3 cables. Modern mining drills require substantial electrical power to operate their hydraulic systems, rotation mechanisms, and control electronics. The trailing cable must follow the drill as it advances through tunnels, experiencing constant flexing, twisting, and potential contact with abrasive rock surfaces. The composite-screened construction of Type 209.3 cables provides the necessary durability whilst maintaining the flexibility required for these dynamic applications.

Conveyor systems throughout copper mines rely heavily on Type 209.3 cables for power transmission. These systems often span considerable distances underground, requiring cables that can reliably transmit power over extended lengths without significant voltage drop. The 3.3 kV rating provides sufficient voltage to minimise transmission losses whilst remaining within safe operating parameters for mining equipment. The cables must withstand the constant vibration from conveyor operation and the harsh environmental conditions of underground transport routes.

Ventilation systems represent another critical application where Type 209.3 cables prove indispensable. Underground copper mines require massive ventilation fans to maintain air quality and temperature control. These fans operate continuously and draw substantial electrical power, making cable reliability paramount. The failure of ventilation system cables can create immediate safety hazards, making the robust construction of Type 209.3 cables essential for these applications.

Pumping systems for water management and slurry transport rely on Type 209.3 cables to power high-capacity pumps operating in extremely harsh conditions. Copper mining operations generate significant amounts of water that must be pumped to the surface, often through corrosive environments that would quickly degrade inferior cable systems. The heavy-duty elastomer sheath and composite screening of Type 209.3 cables provide the necessary protection against these challenging conditions.

The distinction between Type 209.3 and other cable types becomes important when considering specific applications. Type 209.1 cables, rated at 1.1/1.1 kV, suit lower-power applications but lack the voltage capability for major equipment. Type 209.6 cables, rated at 6.6/6.6 kV, provide higher voltage capability but sacrifice some flexibility due to thicker insulation requirements. Type 209.11 cables, rated at 11/11 kV, serve high-voltage applications but are less suitable for mobile equipment due to their reduced flexibility and increased weight.

Mobile equipment applications showcase the unique advantages of Type 209.3 cables. Underground mining vehicles, including load-haul-dump units, personnel carriers, and maintenance vehicles, require cables that can withstand the constant movement and mechanical stress of mobile operations. The composite screening provides excellent protection against electromagnetic interference whilst maintaining the flexibility necessary for trailing cable applications.

Electrical and Physical Parameters: Engineering Excellence in Detail

The electrical and physical specifications of AS/NZS 1802 Type 209.3 cables represent decades of engineering refinement aimed at optimising performance in mining environments. Understanding these parameters provides insight into why these cables have become the standard for medium-voltage mining applications across Australia.

The voltage rating of 3.3/3.3 kV represents a carefully chosen balance between power transmission capability and operational safety. This rating indicates that the cable can safely operate at 3.3 kV between phases and 3.3 kV between any phase and earth, providing adequate safety margins for mining operations whilst enabling efficient power transmission. The dual voltage specification ensures compatibility with both delta and wye-connected systems commonly used in mining applications.

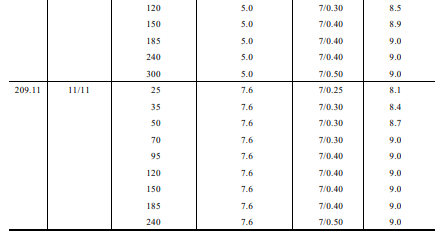

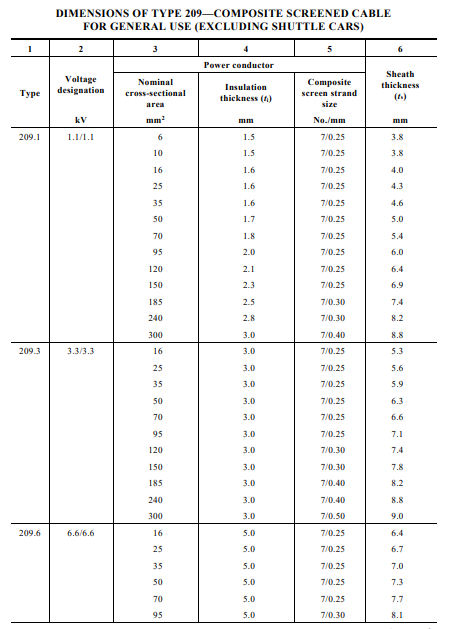

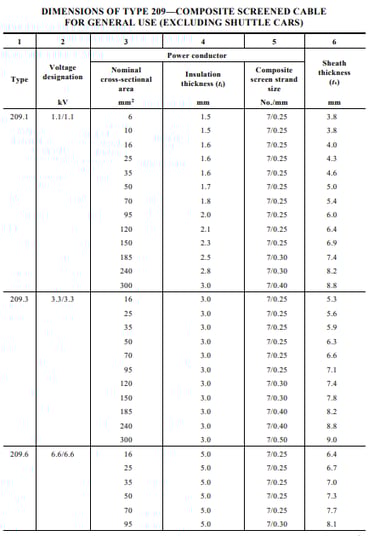

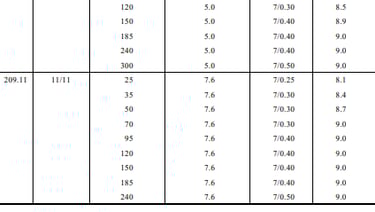

Conductor specifications vary significantly based on the power requirements of specific applications. Type 209.3 cables are available with conductor cross-sectional areas ranging from 16 mm² to 300 mm², accommodating everything from control circuits to high-power equipment. The conductors consist of tinned copper strands that provide excellent conductivity whilst resisting corrosion in the harsh mining environment. The tinning process creates a protective layer that prevents oxidation and ensures reliable electrical connections over extended periods.

The insulation system represents one of the most critical aspects of Type 209.3 cable design. All conductor sizes utilise a consistent 3.0 mm insulation thickness, engineered to withstand the electrical stresses associated with 3.3 kV operation whilst maintaining flexibility for mobile applications. This consistent insulation thickness simplifies installation procedures and ensures uniform electrical performance across different conductor sizes.

The composite screening system distinguishes Type 209.3 cables from conventional industrial cables. The screen consists of 7/0.25 mm strands for smaller conductor sizes, progressing to 7/0.50 mm strands for the largest 300 mm² conductors. This screening provides several critical functions: electromagnetic interference suppression, fault current protection, and enhanced mechanical strength. The composite construction combines the electrical benefits of metallic screening with the durability advantages of textile reinforcement.

Sheath specifications reflect the harsh realities of mining environments. The heavy-duty elastomer sheath varies in thickness from 5.3 mm for 16 mm² conductors to 9.0 mm for 300 mm² conductors, providing progressively greater protection for larger, more valuable cables. This elastomer construction resists oil, flame, ozone, and abrasion whilst maintaining flexibility across the operating temperature range of -25°C to +90°C.

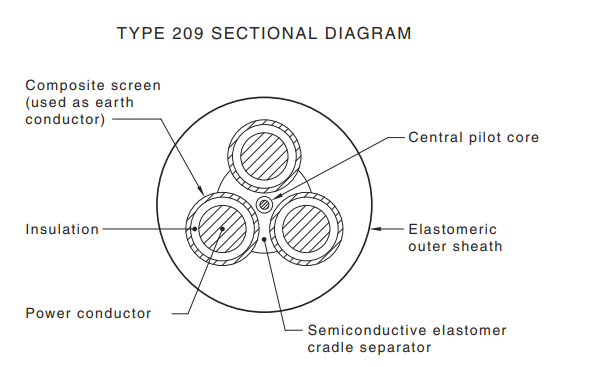

The inclusion of a central pilot core represents an innovative safety feature that enables continuous monitoring of cable integrity. This pilot core connects to cable fault monitoring systems that can detect insulation degradation, water ingress, or mechanical damage before they result in dangerous fault conditions. The pilot core system provides an early warning system that enhances both safety and operational reliability.

Physical construction details reveal the sophisticated engineering behind Type 209.3 cables. Semiconducting separators between conductor and insulation eliminate air gaps that could cause electrical breakdown. The careful layering of insulation, screening, and sheath materials creates a cable that maintains electrical integrity whilst withstanding the mechanical stresses of mining operations.

Testing requirements ensure that Type 209.3 cables meet rigorous performance standards. Cables must pass high-voltage tests at approximately 12 kV, demonstrating their ability to withstand electrical stresses well above normal operating conditions. Additional tests verify mechanical properties, environmental resistance, and flame retardancy, ensuring comprehensive performance validation.

Mining Conditions and Technical Requirements: Engineering for Extreme Environments

The development of AS/NZS 1802 Type 209.3 cables responds directly to the unique challenges presented by copper mining environments. These conditions push electrical equipment to its limits, requiring cable designs that can maintain performance and safety under circumstances that would quickly destroy conventional electrical cables.

Mechanical stress represents perhaps the most visible challenge facing mining cables. Underground equipment operates in confined spaces where cables experience constant flexing, twisting, and stretching. Mobile drilling equipment may drag cables over rough rock surfaces, around sharp corners, and through narrow passages. The composite-screened construction of Type 209.3 cables addresses these challenges through a combination of flexible conductor design, robust screening, and heavy-duty sheath materials that distribute mechanical stress whilst maintaining electrical integrity.

Temperature extremes create additional complications that require careful engineering consideration. Deep underground operations may experience temperatures exceeding 40°C due to geothermal heating and equipment operation, whilst surface connections in locations like the South Australian outback may face temperatures below -10°C during winter months. The elastomer sheath materials used in Type 209.3 cables maintain flexibility and electrical properties across this entire temperature range, ensuring reliable operation regardless of environmental conditions.

Humidity and water ingress present constant threats to electrical equipment in mining operations. Copper mining processes often involve significant water usage for dust suppression, ore processing, and cooling systems. The sealing integrity of Type 209.3 cables becomes critical in preventing water penetration that could cause electrical faults or corrosion. The heavy-duty sheath design incorporates water-resistant materials and construction techniques that maintain protection even when cables are exposed to high humidity or occasional water contact.

Chemical exposure represents another significant challenge in copper mining environments. The processing of copper ore involves various chemicals that can degrade conventional cable materials. Acidic conditions from ore processing, alkaline solutions from dust suppression systems, and hydrocarbon contamination from equipment operation create a chemical environment that requires specially formulated cable materials. The elastomer sheath of Type 209.3 cables resists degradation from these chemical exposures whilst maintaining mechanical and electrical properties.

Electromagnetic interference in mining operations creates unique challenges for electrical systems. The concentration of high-powered electrical equipment in confined spaces generates electromagnetic fields that can interfere with control systems and communication equipment. The composite screening of Type 209.3 cables provides effective electromagnetic shielding that protects both the cable itself and surrounding equipment from interference effects.

Electrical stability requirements in mining operations extend beyond simple power transmission. The pilot core system integrated into Type 209.3 cables enables continuous monitoring of cable condition, allowing maintenance personnel to identify potential problems before they result in dangerous fault conditions. This monitoring capability supports predictive maintenance programs that maximise equipment availability whilst minimising safety risks.

The requirement for earth fault detection capabilities reflects the critical safety considerations in mining operations. Underground electrical faults can create immediate life-threatening conditions, making rapid fault detection and isolation essential. The screening system in Type 209.3 cables provides a reliable earth fault current path that enables protective systems to quickly identify and isolate fault conditions.

Flame resistance requirements address the fire safety concerns inherent in mining operations. The concentration of electrical equipment and the presence of combustible materials create significant fire risks that require careful management. Type 209.3 cables incorporate flame-retardant materials and construction techniques that limit fire propagation whilst maintaining electrical functionality during emergency conditions.

Frequently Asked Questions: Addressing Common Mining Cable Concerns

Question 1: Can Type 209.3 cables withstand damage from abrasive rock surfaces and heavy mining machinery?

The durability of Type 209.3 cables against mechanical damage represents one of their primary design features. The heavy-duty elastomer sheath, ranging from 5.3 mm to 9.0 mm thickness depending on conductor size, provides substantial protection against abrasion from rock surfaces and contact with mining equipment. The composite screening system adds an additional layer of mechanical protection whilst maintaining electrical performance.

However, even the most robust cables benefit from proper installation practices. Cable protection systems, including cable troughs, guards, and standoff brackets, significantly extend cable life by preventing direct contact with abrasive surfaces. Maintaining proper cable support with appropriate free-span lengths prevents excessive mechanical stress that could lead to premature failure. Regular inspection programs enable early detection of wear patterns that might indicate the need for additional protection or cable replacement.

Question 2: How can operators detect faults in long Type 209.3 trailing cable runs before they become dangerous?

Fault detection in lengthy mining cable installations requires a combination of monitoring systems and inspection procedures. The central pilot core integrated into Type 209.3 cables provides the foundation for continuous cable monitoring systems. These systems can detect insulation degradation, water ingress, or mechanical damage by monitoring the electrical characteristics of the pilot core circuit.

Infrared thermography represents another valuable tool for fault detection. Regular thermal imaging of cable connections and high-stress areas can identify developing problems before they result in failures. Hot spots in cables often indicate loose connections, overloading, or insulation degradation that requires immediate attention.

Electrical testing procedures, including insulation resistance testing and high-voltage testing, provide comprehensive assessment of cable condition. These tests should be performed during scheduled maintenance periods and after any incident that might have damaged the cable. Trending of test results over time enables prediction of when cable replacement might be necessary.

Question 3: How should operators address voltage drop concerns in long underground cable runs?

Voltage drop in extended cable runs represents a significant concern in mining operations where equipment may be located kilometres from power sources. The selection of appropriate conductor sizes becomes critical in minimising voltage drop whilst maintaining economic viability. Type 209.3 cables are available with conductor sizes up to 300 mm², providing substantial current-carrying capacity for long runs.

Voltage drop calculations must consider both the steady-state operating current and the starting current requirements of mining equipment. Motors and other equipment often require substantially higher currents during startup, creating temporary voltage drops that could affect equipment operation. Proper cable sizing ensures that voltage remains within acceptable limits under all operating conditions.

The use of intermediate voltage transformation can provide an alternative approach to managing voltage drop in very long runs. Installing transformers at strategic locations along cable routes can reduce the conductor sizes required whilst maintaining adequate voltage regulation. This approach requires careful economic analysis to balance the costs of additional transformers against the savings from reduced conductor sizes.

Question 4: Are Type 209.3 cables suitable for powering shuttle cars in mining operations?

The AS/NZS 1802 standard specifically excludes shuttle cars from Type 209 cable applications. Shuttle cars require specialised cables designed for the unique demands of these mobile coal transport vehicles. Type 240 and Type 210 cables are specifically designed for shuttle car applications, incorporating features such as enhanced flexibility and specialised connector systems.

The distinction exists because shuttle cars operate under different conditions than other mining equipment. They require cables that can withstand frequent coiling and uncoiling, rapid acceleration and deceleration, and the specific electromagnetic environment created by their drive systems. Type 209.3 cables, whilst robust for general mining applications, lack the specific design features required for shuttle car operation.

Operators considering cable selection for mobile equipment should carefully review the specific requirements of their application against the capabilities of different cable types. The AS/NZS 1802 standard provides detailed guidance on the appropriate cable selection for various mining applications.

Question 5: Do Type 209.3 cables meet the requirements for both coal and metalliferous mining operations?

The AS/NZS 1802 standard was originally developed primarily for coal mining applications, but Type 209.3 cables have found widespread acceptance in metalliferous mining operations, including copper mines. The fundamental electrical and mechanical requirements for mining cables remain similar across different mining types, making Type 209.3 cables suitable for most underground mining applications.

However, operators should verify that cable installations meet any specific requirements for metalliferous mining operations. Junction boxes, connectors, and sealing systems may have different specifications for different mining environments. The higher voltages and power levels common in metalliferous mining may require additional safety considerations beyond those typically encountered in coal mining.

Local regulations and mine-specific safety requirements should always be consulted when selecting cable systems. Some jurisdictions may have specific requirements for metalliferous mining that differ from coal mining standards. Consultation with electrical safety authorities and mine safety inspectors can ensure compliance with all applicable regulations.

Summary and Recommendations: Best Practices for Type 209.3 Cable Implementation

The AS/NZS 1802 Type 209.3 composite-screened cable represents the culmination of decades of engineering development specifically targeted at the demanding requirements of Australian mining operations. These cables provide the optimal balance of electrical performance, mechanical durability, and safety features required for medium-voltage applications in copper mining environments.

The success of Type 209.3 cable implementations depends heavily on proper selection, installation, and maintenance practices. Conductor sizing must account for both normal operating conditions and the demanding startup requirements of mining equipment. The availability of conductor sizes from 16 mm² to 300 mm² provides flexibility to match cable specifications to specific application requirements whilst maintaining economic viability.

Installation practices significantly impact cable performance and longevity. Proper cable support systems, including appropriate free-span lengths and protection from abrasive surfaces, prevent premature mechanical failure. Cable routing should minimise exposure to extreme temperatures, chemical contamination, and mechanical damage whilst maintaining accessibility for inspection and maintenance.

The pilot core monitoring system integrated into Type 209.3 cables provides valuable opportunities for predictive maintenance programs. Continuous monitoring of cable condition enables early detection of developing problems before they result in dangerous fault conditions or costly equipment failures. Investment in appropriate monitoring systems and training for maintenance personnel maximises the value of this safety feature.

Regular inspection and testing programs ensure continued cable reliability throughout their service life. Visual inspections should focus on identifying wear patterns, chemical damage, or mechanical stress that might indicate the need for additional protection or cable replacement. Electrical testing programs should include insulation resistance testing, high-voltage testing, and pilot core monitoring to assess cable condition comprehensively.

Environmental considerations play a crucial role in cable selection and installation. The extreme temperature variations, humidity levels, and chemical exposures common in Australian copper mining operations require careful attention to cable specifications and installation practices. The -25°C to +90°C operating range of Type 209.3 cables accommodates the environmental conditions encountered in most Australian mining operations.

Documentation and record-keeping support effective cable management throughout the equipment lifecycle. Maintaining detailed records of cable specifications, installation dates, test results, and maintenance activities enables trend analysis that can predict when cable replacement might be necessary. This information proves invaluable for both safety management and economic planning.

The integration of Type 209.3 cables with other mining electrical systems requires careful consideration of compatibility and safety requirements. Connector systems, junction boxes, and protective devices must be compatible with the cable specifications and appropriate for the mining environment. Consultation with equipment manufacturers and electrical safety authorities ensures compliance with all applicable standards and regulations.

Looking forward, the continued evolution of mining operations will likely drive further development of cable technologies. Increased automation, higher power requirements, and more sophisticated monitoring systems will create new challenges for cable design and implementation. The solid foundation provided by the AS/NZS 1802 standard and the proven performance of Type 209.3 cables position them well to meet these future challenges.

The investment in proper cable systems represents a small fraction of overall mining operation costs but provides disproportionate value through enhanced safety, improved reliability, and reduced maintenance requirements. The robust design and comprehensive testing requirements of Type 209.3 cables justify their selection for critical applications where cable failure could have severe consequences.

In conclusion, AS/NZS 1802 Type 209.3 composite-screened cables provide the reliable electrical infrastructure foundation that enables safe and efficient copper mining operations throughout Australia. Their proven performance in the harsh conditions of Olympic Dam, Mount Isa, Cadia, and other major mining operations demonstrates their value as an essential component of modern mining electrical systems. Proper selection, installation, and maintenance of these cables ensures continued safe and productive mining operations whilst protecting both personnel and equipment investments.
