AS/NZS 1802 Type 210 1.1/1.1KV mining cable for Australia's Underground Mining Operations

Introduction: Why AS/NZS 1802 Type 210 Cable Matters in Australian Mining

In the depths of Australia's underground mines, where darkness meets danger and precision equipment operates under extreme conditions, the reliability of electrical infrastructure becomes a matter of life and safety. The AS/NZS 1802 Type 210 cable stands as a critical component in this challenging environment, specifically engineered to power handheld boring machines, drills, and other portable mining equipment that form the backbone of modern underground operations.

Understanding the importance of this cable begins with recognising the unique demands of underground mining. Unlike surface operations, underground mining environments present a perfect storm of challenges: moisture seepage, abrasive rock dust, temperature fluctuations, potential gas hazards, and the constant movement of heavy machinery. In this context, ordinary electrical cables simply cannot cope with the mechanical stress, environmental exposure, and safety requirements that define underground mining operations.

The AS/NZS 1802 standard, originally established in 2003 and subsequently revised in 2018, represents decades of engineering refinement and safety evolution specifically tailored for reeling and trailing cables in underground coal mines. This standard doesn't merely suggest specifications; it mandates rigorous performance criteria that ensure cables can withstand the punishing conditions found hundreds of metres below ground level. The Type 210 variant, with its 1.1/1.1 kV rating, strikes the perfect balance between power delivery capability and safety compliance, making it the go-to choice for portable equipment applications across Australia's diverse mining landscape.

What sets the Type 210 apart from conventional industrial cables is its composite screened construction, which provides multiple layers of protection against electrical faults, mechanical damage, and environmental degradation. This isn't simply about meeting minimum standards; it's about exceeding them in ways that translate to operational reliability, worker safety, and economic efficiency in some of the world's most demanding industrial environments.

Australia's Major Underground Mining Operations: Where Type 210 Cables Prove Their Worth

To truly appreciate the significance of AS/NZS 1802 Type 210 cables, we must examine the specific mining environments where they operate daily. Australia's underground mining sector encompasses a remarkable diversity of geological conditions, operational scales, and technical challenges, each demanding robust electrical infrastructure that can adapt to unique circumstances while maintaining unwavering reliability.

The Cadia-Ridgeway operation in New South Wales represents one of the most sophisticated underground mining complexes in the world. Located near Orange, this large-scale gold-copper operation includes both the Cadia East and Ridgeway underground mines, where Type 210 cables power the handheld drilling equipment essential for development work and production activities. The geological complexity of this site, with its varied rock formations and extensive underground infrastructure, creates an environment where cable flexibility and durability directly impact operational efficiency. Mining engineers working in these conditions rely on Type 210 cables to maintain consistent power delivery to portable equipment used in tunnel development, ore extraction, and infrastructure maintenance.

Moving to South Australia, the Olympic Dam mine presents an entirely different set of challenges. As one of the world's largest poly-metallic underground operations, extracting copper, uranium, gold, and silver from depths that continue to expand, Olympic Dam subjects electrical equipment to unique environmental stresses. The mine's extensive underground network, with its complex ventilation systems and varied humidity levels, demands cables that can perform reliably across different atmospheric conditions. Type 210 cables in this environment must withstand not only the mechanical stresses of daily operation but also the chemical exposure that comes with processing multiple metal types in a contained underground environment.

Queensland's mining landscape contributes significantly to Australia's underground mining sector, with operations like Moranbah North in the Bowen Basin representing the coking coal industry's reliance on advanced electrical infrastructure. Operating at depths of approximately 200 metres using longwall mining techniques, Moranbah North creates conditions where cable reliability directly impacts production continuity. The coal dust environment, combined with the constant movement of longwall equipment, subjects Type 210 cables to abrasive conditions that would quickly degrade lesser electrical infrastructure. Here, the cable's heavy-duty PCP sheath and composite screening system prove essential for maintaining electrical integrity under conditions that combine mechanical stress with environmental contamination.

Western Australia's Gwalia mine pushes the boundaries of depth in underground gold mining, currently operating at depths approaching 1,600 metres with plans to extend to 2,300 metres by 2031. At these extreme depths, the pressure differentials, temperature variations, and logistical challenges of equipment access create unique demands on electrical infrastructure. Type 210 cables used in Gwalia must not only withstand the mechanical stresses of deep mining but also maintain electrical performance under conditions where replacement or repair becomes increasingly complex and costly. The cable's temperature rating, ranging from -25°C to +90°C for normal operation, becomes particularly relevant in deep mining environments where temperature control systems must work against natural geothermal gradients.

Ernest Henry mine in Queensland, with its copper-gold underground operation extended to 2040, represents the long-term reliability requirements that define modern mining investments. The mine's transition to underground operations in 2011 required electrical infrastructure capable of supporting decades of continuous operation. Type 210 cables in this environment must demonstrate not just immediate performance but sustained reliability over extended operational periods. The cable's construction, with its EPR insulation and composite screening, provides the long-term stability that makes such extended mining operations economically viable.

Application Scenarios: Where Type 210 Cables Excel in Underground Mining

The versatility of AS/NZS 1802 Type 210 cables becomes apparent when examining their specific applications within underground mining operations. These cables aren't merely electrical conduits; they're engineered solutions designed to enable the precise, powerful, and safe operation of equipment that defines modern mining productivity.

Handheld boring machines represent perhaps the most demanding application for Type 210 cables. These powerful drilling units, essential for development work, roof bolting, and exploratory drilling, require electrical supply that can flex, bend, and move with the operator while maintaining consistent power delivery. The cable's composite screened construction becomes crucial in this application, as the constant movement and positioning of handheld equipment creates mechanical stresses that would quickly compromise cables designed for stationary installations. The EPR insulation system provides the flexibility needed for handheld applications while maintaining electrical integrity under the repeated flexing cycles that characterise this type of equipment use.

Trolley-mounted drilling equipment presents a different set of challenges, combining the mobility requirements of handheld equipment with the power demands of larger drilling operations. Type 210 cables used in these applications must accommodate both the mechanical stresses of equipment movement and the electrical demands of high-power drilling operations. The cable's 1.1/1.1 kV rating provides sufficient voltage capacity for substantial drilling equipment while maintaining the safety margins required for mobile applications where human operators work in close proximity to electrical systems.

Trailing and reeling feeder applications represent another critical use case for Type 210 cables. In these configurations, cables must provide power to mobile equipment while accommodating the constant winding and unwinding actions of cable reels. The mechanical properties of the cable, particularly its heavy-duty PCP sheath and optimised conductor configuration, become essential for withstanding the repeated stress cycles associated with reeling operations. The central pilot core feature enables simultaneous power delivery and control signal transmission, reducing the complexity of mobile equipment installations while maintaining the separation needed for safety and signal integrity.

The control cable applications of Type 210 cables often go unnoticed but represent critical infrastructure for modern mining operations. The central pilot core, constructed with EPR insulation and integrated into the cable's composite screening system, enables sophisticated control and monitoring capabilities for mobile equipment. This dual-purpose design reduces installation complexity while providing the reliability needed for safety-critical control systems. Mining operations increasingly rely on real-time monitoring and automated control systems, making the control capabilities of Type 210 cables essential for operational efficiency and safety compliance.

Environmental suitability represents another crucial application consideration. Underground coal mines, hard-rock operations, and poly-metallic extraction sites each present unique environmental challenges that demand specific cable characteristics. Type 210 cables' resistance to moisture, oil, and chemical exposure makes them suitable across this diverse range of mining environments. The cable's flame-resistant properties become particularly important in coal mining applications, where fire prevention and suppression represent constant safety concerns.

Electrical and Mechanical Parameters: The Technical Foundation of Reliability

Understanding the electrical and mechanical specifications of AS/NZS 1802 Type 210 cables requires examining how these parameters translate into real-world performance advantages. The cable's 1.1/1.1 kV voltage rating represents a carefully balanced compromise between power delivery capability and safety requirements. This voltage level provides sufficient capacity for substantial portable equipment while maintaining the safety margins essential for handheld applications where human operators work in direct contact with electrical systems.

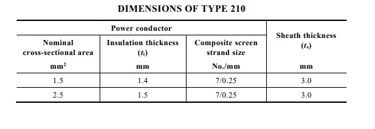

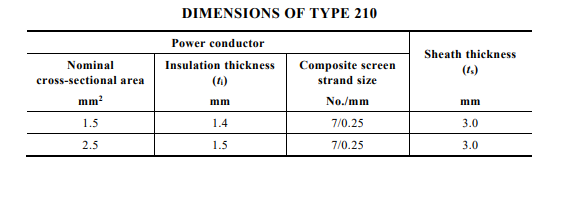

The conductor sizing options, available in 1.5 mm² and 2.5 mm² configurations, reflect the diverse power requirements of underground mining equipment. The 1.5 mm² conductor, with its 1.4 mm insulation thickness, provides optimal flexibility for handheld applications where cable movement and positioning represent primary concerns. The slightly larger 2.5 mm² conductor, with 1.5 mm insulation thickness, offers increased current-carrying capacity for higher-power applications while maintaining the flexibility needed for mobile equipment use.

The composite screening system represents one of the most sophisticated aspects of Type 210 cable construction. The 7/0.25 mm composite screen strand configuration provides multiple layers of electrical protection while maintaining mechanical flexibility. This screening system serves several critical functions: it provides a low-impedance path for fault currents, shields the power conductors from external electrical interference, and creates a controlled impedance environment that ensures consistent electrical performance across varying installation conditions.

Temperature ratings reveal the cable's ability to operate across the extreme conditions found in underground mining environments. The normal operating range of -25°C to +90°C encompasses the vast majority of underground conditions, from the chill of deep mines with aggressive ventilation systems to the heat generated by heavy equipment operation in confined spaces. The emergency rating of 130°C provides essential safety margins for abnormal operating conditions, while the short-circuit rating of 250°C for five seconds ensures that the cable can withstand the extreme thermal stresses associated with electrical fault conditions without creating additional safety hazards.

The mechanical properties of Type 210 cables directly impact their service life and reliability in underground applications. The heavy-duty PCP (Polychloroprene) sheath provides exceptional resistance to abrasion, oil, and chemical exposure while maintaining flexibility across the cable's operating temperature range. The maximum working tension specification of 0.02 kN/mm² ensures that the cable can withstand the mechanical stresses associated with mobile equipment operation, cable reeling, and the general handling requirements of underground mining operations.

PreConstruction Details: Engineering Excellence in Every Layer

The construction of AS/NZS 1802 Type 210 cables reflects decades of engineering refinement focused on creating electrical infrastructure capable of reliable performance in the world's most challenging industrial environments. Each component of the cable's construction serves specific functions that contribute to overall performance, safety, and longevity.

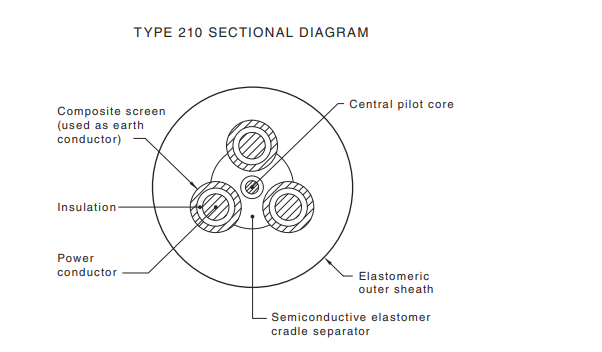

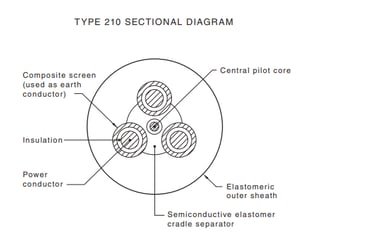

The core structure begins with copper conductors sized and configured to provide optimal electrical performance while maintaining the mechanical flexibility essential for mobile applications. The three EPR-insulated, semiconductively screened copper cores provide the primary power distribution capacity, while the central pilot core enables control and monitoring functions. This four-core configuration, with its central pilot design, optimises space utilisation while providing the electrical separation needed for safe operation of both power and control circuits.

EPR (Ethylene Propylene Rubber) insulation represents a critical component in the cable's performance profile. This insulation system provides excellent electrical properties across a wide temperature range while maintaining the mechanical flexibility needed for mobile applications. The semiconductive screening applied to each insulated core creates a controlled electrical environment that prevents corona discharge and ensures consistent insulation performance under varying environmental conditions. This screening system becomes particularly important in underground mining applications where dust, moisture, and chemical exposure can create conditions that would compromise lesser insulation systems.

The composite earth screen system integrates copper braid and polyester components to provide comprehensive electrical protection while maintaining mechanical flexibility. The copper braid component provides a low-impedance path for fault currents and effective shielding against electrical interference. The polyester component contributes to mechanical strength and provides additional protection against environmental contamination. This composite approach ensures that the screening system maintains its protective functions even under the mechanical stresses associated with mobile equipment operation.

The outer sheath system represents the cable's primary defence against environmental degradation and mechanical damage. The standard PCP sheath provides excellent resistance to abrasion, oil, moisture, and chemical exposure while maintaining flexibility across the cable's operating temperature range. Optional CPE (Chlorinated Polyethylene) or CSP (Chlorosulfonated Polyethylene) heavy-duty sheath options provide enhanced protection for applications where environmental exposure or mechanical stress exceed normal parameters.

Frequently Asked Questions: Addressing Common Mining Cable Concerns

Mining professionals working with AS/NZS 1802 Type 210 cables often encounter specific challenges and questions related to performance, safety, and application suitability. Understanding these concerns and their solutions helps ensure optimal cable performance and operational safety.

Can Type 210 cables withstand the muddy and wet conditions commonly found in underground mining operations? The answer lies in the cable's comprehensive environmental protection system. The PCP sheath provides excellent moisture resistance, while the composite screening system prevents water ingress from compromising electrical performance. The cable's construction includes multiple barriers against moisture penetration, ensuring that even in flooded conditions or areas with significant water seepage, electrical integrity remains intact. The EPR insulation system maintains its properties even when exposed to moisture, and the semiconductive screening prevents the formation of water treeing that could compromise insulation performance over time.

What happens when Type 210 cables experience electrical overloads or short-circuit conditions? The cable's thermal rating system provides multiple levels of protection against electrical fault conditions. Under emergency operating conditions, the cable can withstand temperatures up to 130°C, providing essential safety margins during abnormal operation. For short-circuit conditions, the cable can withstand temperatures up to 250°C for five seconds, ensuring that the cable structure remains intact during the time required for protective systems to operate. This thermal performance prevents the cable from becoming a secondary hazard during electrical fault conditions, maintaining the integrity needed for safe fault clearance.

Are Type 210 cables suitable for extremely cold underground environments? The cable's low-temperature rating of -25°C covers the vast majority of underground mining conditions, including operations in cold climates with aggressive ventilation systems. The EPR insulation maintains its flexibility and electrical properties across this temperature range, ensuring reliable performance even in challenging thermal conditions. For operations in extremely cold environments below -25°C, custom cable designs may be required, but such conditions are rare in underground mining applications.

How can mining operations detect insulation degradation or fault conditions before they become safety hazards? Regular electrical testing represents the most effective approach to early fault detection. Periodic insulation resistance testing can identify degradation trends before they reach critical levels. Withstand voltage testing, performed according to AS/NZS 1802 standards, provides verification of insulation integrity under stress conditions. Visual inspection of the cable sheath can identify mechanical damage or environmental degradation that might compromise electrical performance. Many mining operations implement scheduled testing programs that combine electrical measurements with visual inspections to ensure continued cable reliability.

Can Type 210 cables be used in areas with explosion risks or gas hazards? The non-armoured construction of Type 210 cables makes them suitable for many underground applications, but specific explosion-risk zones may require additional considerations. The cable's flame-resistant properties provide protection against fire hazards, but areas classified as having significant explosion risks may require armoured cable constructions such as Type 260 variants. Mining operations should verify specific safety regulations and hazard classifications for their operating areas to ensure appropriate cable selection.

What practices can extend the service life of Type 210 cables in underground mining applications? Proper installation and handling practices significantly impact cable longevity. Minimising sharp bends beyond the cable's specified bend radius prevents mechanical stress that could compromise conductor or insulation integrity. Avoiding dragging cables over abrasive surfaces reduces sheath wear and prevents damage that could lead to environmental exposure. Using protective measures such as rubber hose coverings in high-wear areas provides additional mechanical protection. Implementing scheduled inspection programs enables early identification of wear patterns or damage that might require corrective action.

How do Type 210 cables perform in chemically aggressive environments found in some mining operations? The cable's material selection specifically addresses chemical resistance requirements. The PCP sheath provides excellent resistance to oils, solvents, and many chemicals commonly found in mining environments. The EPR insulation maintains its properties when exposed to most industrial chemicals, ensuring continued electrical performance. However, specific chemical exposures may require material compatibility verification, particularly in operations involving unusual processing chemicals or extreme pH conditions.

What installation considerations are specific to underground mining applications? Cable installation in underground mining environments requires attention to several unique factors. Support systems must accommodate the dynamic loading associated with mobile equipment operation while providing adequate mechanical protection. Cable routing should consider the potential for equipment movement, rock falls, and operational changes that might affect cable positioning. Proper earthing connections become critical in underground environments where electrical safety depends on reliable fault current paths. Installation crews should be trained in the specific requirements of underground cable installation, including the use of appropriate tools and safety procedures.

Conclusion: The Foundation of Reliable Underground Mining Operations

AS/NZS 1802 Type 210 cables represent far more than electrical infrastructure; they embody the engineering excellence and safety commitment that enable Australia's underground mining industry to operate efficiently and safely in some of the world's most challenging environments. From the depths of Gwalia's gold mines to the complex poly-metallic operations at Olympic Dam, these cables provide the reliable power delivery that makes modern mining operations possible.

The technical specifications of Type 210 cables reflect decades of refinement and real-world testing in Australia's diverse mining environments. The 1.1/1.1 kV rating, composite screening system, EPR insulation, and heavy-duty PCP sheath combine to create electrical infrastructure capable of withstanding the mechanical stresses, environmental exposure, and electrical demands that define underground mining operations. These aren't merely technical specifications; they represent the foundation upon which mining operations build their safety and productivity strategies.

The application versatility of Type 210 cables, from handheld boring machines to sophisticated control systems, demonstrates their central role in modern mining operations. As mining technology continues to evolve toward greater automation and precision, the reliable power and control capabilities provided by these cables become increasingly critical. The central pilot core design, composite screening system, and environmental protection features position Type 210 cables to support the next generation of mining equipment and operational techniques.

Understanding the common challenges and solutions associated with Type 210 cable applications enables mining professionals to optimise their electrical infrastructure investments. Proper selection, installation, testing, and maintenance practices ensure that these cables deliver the reliability and safety performance that underground mining operations demand. The comprehensive FAQ guidance provided addresses the real-world concerns that mining professionals face daily, enabling informed decision-making and proactive maintenance strategies.

The future of Australian underground mining depends on infrastructure that can adapt to evolving operational demands while maintaining uncompromising safety standards. AS/NZS 1802 Type 210 cables, with their proven performance record and comprehensive technical capabilities, provide the electrical foundation that enables this evolution. From the challenging depths of established operations to the developing requirements of new mining projects, Type 210 cables continue to prove their worth as essential infrastructure for Australia's underground mining industry.

As mining operations continue to push the boundaries of depth, automation, and efficiency, the role of reliable electrical infrastructure becomes increasingly critical. Type 210 cables, with their combination of technical excellence and proven performance, represent the engineering foundation that enables Australian mining operations to maintain their position as global leaders in underground mining technology and safety. The investment in proper cable infrastructure pays dividends in operational reliability, safety performance, and long-term cost effectiveness that define successful mining operations.

In the demanding environment of underground mining, where equipment failure can have serious safety and economic consequences, AS/NZS 1802 Type 210 cables provide the reliability and performance that mining professionals depend on. Their comprehensive design, rigorous testing standards, and proven track record in Australian mining operations make them the preferred choice for powering the equipment that drives Australia's underground mining industry forward.
