AS/NZS 1802 Type 210 Mining Cables: Powering Australia's Open-Cut Operations

Introduction: Understanding AS/NZS 1802 Type 210 Cables

In the demanding environment of Australia's open-cut mining operations, electrical infrastructure must withstand extreme conditions whilst maintaining reliable power delivery to massive machinery. The AS/NZS 1802 Type 210 cable represents a specialised solution designed specifically for these challenging applications.

Type 210 cables are elastomer-insulated, elastomer-sheathed power cables with a voltage rating of 1.1/1.1 kV, meaning they can handle 1.1 kilovolts phase-to-phase and 1.1 kilovolts phase-to-earth. These cables fall under the AS/NZS 1802 standard, which was established in 2018 primarily for underground coal mining applications but has been adapted through AS/NZS 2802 specifications for surface mining operations.

The designation "reeling and trailing" refers to the cable's ability to be wound onto drum systems whilst maintaining flexibility for equipment that moves across mining sites. This dual capability makes Type 210 cables particularly valuable for powering mobile mining equipment such as draglines, excavators, and conveyor systems that require both stationary connection points and dynamic movement capability.

Understanding these cables requires appreciating the unique demands of Australian mining operations, where equipment operates continuously in harsh environmental conditions, from the scorching heat of Western Australian gold mines to the dust and moisture challenges of Queensland's coal fields.

Australia's Major Open-Cut Mining Operations

Australia's open-cut mining sector represents some of the world's most impressive industrial operations, each presenting unique challenges for electrical infrastructure. Understanding these operations helps illustrate why specialised cables like the Type 210 are essential for maintaining productivity and safety.

The Kalgoorlie Super Pit: Western Australia's Golden Giant

The Kalgoorlie Super Pit, officially known as the Fimiston Gold Mine, stands as one of Australia's most iconic mining operations. Stretching approximately 3.5 kilometres in length, 1.5 kilometres in width, and reaching depths of 600 metres, this massive open-cut operation has been extracting gold from Western Australia's goldfields for over a century.

The sheer scale of the Super Pit creates unique electrical challenges. Equipment must operate across multiple bench levels, with power cables trailing behind massive mining trucks and feeding stationary equipment positioned at various elevations throughout the pit. The extreme temperature variations, from scorching summer heat exceeding 45°C to cool winter mornings, place significant thermal stress on electrical systems.

Type 210 cables serve crucial roles in this environment, powering everything from the massive drilling rigs that prepare blast holes to the conveyor systems that transport ore to processing facilities. The cables' UV-resistant elastomeric sheathing proves particularly valuable in this sun-drenched environment, where unprotected cables would quickly degrade under intense solar radiation.

Cadia Ridgeway: New South Wales' Copper-Gold Powerhouse

Located in New South Wales, the Cadia Ridgeway operation represents Australia's second-largest open-pit mine by volume. This copper-gold operation processes enormous quantities of ore daily, requiring an extensive network of electrical infrastructure to maintain operations.

The Cadia operation demonstrates the importance of reliable trailing cables for mobile equipment. Large excavators and haul trucks operate continuously across the pit floor, requiring flexible power connections that can withstand the constant movement and mechanical stress inherent in such operations. Type 210 cables provide the necessary durability whilst maintaining electrical performance under these demanding conditions.

The mine's elevation and geographic location create additional challenges, including exposure to significant temperature variations and occasional severe weather events. The cables' robust construction and weather-resistant properties ensure continuous operation despite these environmental stresses.

Jimblebar: Iron Ore Operations in the Pilbara

The Jimblebar iron ore mine, operated by BHP, represents one of the key operations in Western Australia's Pilbara region. This area experiences some of Australia's harshest mining conditions, with extreme temperatures, dust storms, and intense solar radiation creating a uniquely challenging environment for electrical equipment.

Iron ore mining operations require massive conveyor systems to transport ore from pit floor to processing facilities and rail loading points. These conveyors often stretch for kilometres and require reliable power distribution systems capable of operating in desert conditions. Type 210 cables provide the necessary durability and environmental resistance to maintain these critical transport systems.

The Pilbara's remote location means that equipment failures can result in significant operational disruptions and costly repairs. The reliability of Type 210 cables becomes crucial in maintaining continuous operations and minimising downtime in this isolated environment.

Bowen Basin Coal Operations: Queensland's Coal Powerhouse

Queensland's Bowen Basin hosts numerous large-scale open-cut coal mining operations, including Peak Downs, Hail Creek, and the developing Olive Downs project. These operations collectively produce tens of millions of tonnes of coal annually, representing approximately 75% of Australia's black coal production.

Peak Downs alone produces around 37 million tonnes of coal per year, requiring massive draglines, excavators, and conveyor systems operating continuously across multiple shifts. The scale of these operations creates unique electrical infrastructure challenges, with power distribution systems supporting equipment spread across vast mining areas.

The Bowen Basin's subtropical climate presents specific challenges for cable systems, including high humidity, seasonal rainfall, and temperature variations. Type 210 cables' moisture-resistant properties and robust construction make them well-suited to these conditions, ensuring reliable power delivery throughout varying seasonal conditions.

Coal mining operations also present additional safety considerations, with the potential for explosive atmospheres and strict electrical safety requirements. The AS/NZS 1802 standard's comprehensive specifications ensure that Type 210 cables meet these enhanced safety requirements whilst maintaining operational flexibility.

Application Scenarios in Open-Cut Mining Operations

Understanding how Type 210 cables function in real-world mining applications helps illustrate their importance in maintaining productive and safe operations. These cables serve numerous critical functions across various types of mining equipment and infrastructure.

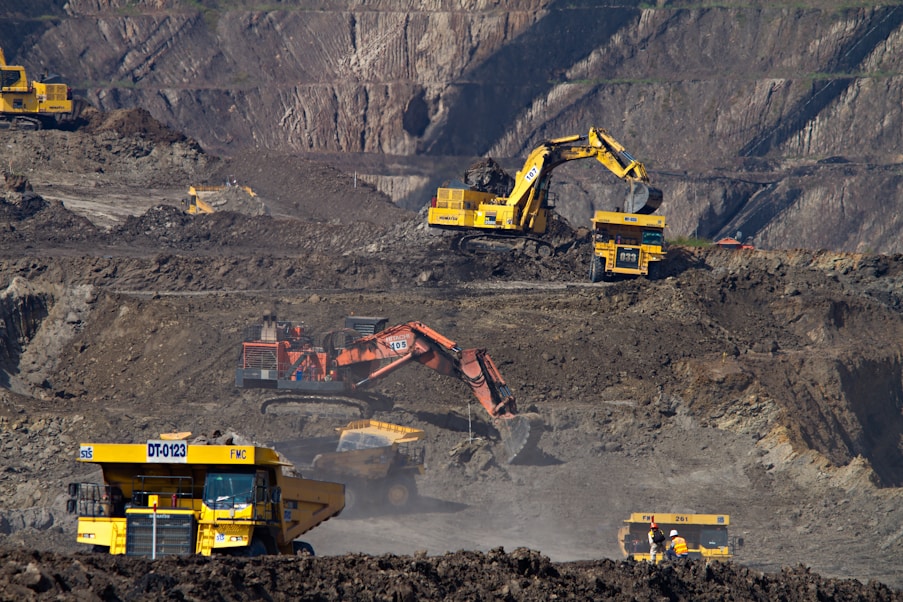

Powering Mobile Mining Equipment

Draglines represent some of the largest mobile equipment in open-cut mining operations, with some units weighing over 13,000 tonnes and capable of moving enormous volumes of overburden. These massive machines require reliable power connections that can accommodate their movement across the pit floor whilst maintaining continuous electrical supply.

Type 210 cables excel in dragline applications due to their combination of flexibility and durability. The cables must trail behind the dragline as it repositions, experiencing constant flexing and movement whilst maintaining electrical integrity. The elastomeric construction provides the necessary flexibility whilst the robust sheathing protects against mechanical damage from dragging across rough terrain.

Excavators and shovels present similar challenges, requiring power connections that can accommodate their operational movements whilst maintaining safety standards. These machines often work in close proximity to blasting operations, creating additional requirements for cable durability and safety compliance.

Stationary Equipment Applications

Conveyor systems represent another critical application for Type 210 cables in open-cut mining operations. These systems often stretch for kilometres, requiring reliable power distribution to drive motors, control systems, and safety equipment along their entire length.

The cables must resist environmental degradation whilst maintaining electrical performance over extended periods. UV resistance becomes particularly important for above-ground installations, where constant sun exposure would quickly degrade inferior cable materials.

Crushing and screening plants require robust power distribution systems capable of handling high starting currents and continuous operation under varying load conditions. Type 210 cables provide the necessary electrical performance whilst resisting the mechanical vibrations and environmental stresses associated with these operations.

Workshop and Maintenance Facilities

Mining operations require extensive workshop facilities for equipment maintenance and repair. These facilities often utilise portable power distribution systems that must accommodate the movement of large equipment and tools throughout the workspace.

Type 210 cables provide the flexibility needed for portable power applications whilst maintaining the durability required for industrial workshop environments. The cables' resistance to oil and hydraulic fluids makes them particularly suitable for maintenance applications where exposure to various lubricants and chemicals is common.

Technical Specifications and Electrical Parameters

Understanding the technical specifications of Type 210 cables requires examining both their electrical performance characteristics and physical construction details. These specifications determine the cable's suitability for specific mining applications and ensure compliance with Australian safety standards.

Voltage Classification and Electrical Performance

Type 210 cables carry a voltage rating of 1.1/1.1 kV, indicating their capability to handle 1.1 kilovolts phase-to-phase and 1.1 kilovolts phase-to-earth. This voltage classification makes them suitable for medium-voltage applications common in mining operations, where higher voltages enable more efficient power transmission over longer distances.

The voltage rating represents the cable's ability to safely operate under normal conditions whilst maintaining appropriate safety margins for transient voltage events. Mining environments often experience voltage variations due to starting large motors and switching operations, making this robust voltage rating essential for reliable operation.

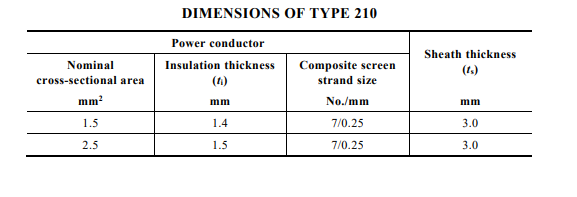

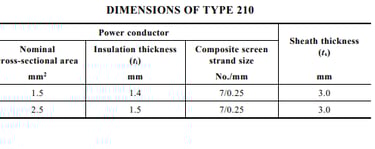

Conductor Specifications

Type 210 cables are available in two standard conductor sizes, each designed for specific current-carrying applications. The 1.5 square millimetre conductor utilises a 7/0.25 millimetre stranding configuration, meaning seven individual copper strands each measuring 0.25 millimetres in diameter.

This stranding configuration provides excellent flexibility whilst maintaining good electrical conductivity. The multiple small strands allow the cable to flex repeatedly without conductor fatigue, crucial for reeling and trailing applications where the cable experiences constant movement.

The 2.5 square millimetre conductor uses the same 7/0.25 millimetre stranding configuration, providing higher current-carrying capacity for applications requiring greater power transmission. Both conductor sizes utilise high-quality copper to ensure optimal electrical performance and longevity.

Insulation System Design

The insulation system represents a critical component in Type 210 cable construction, providing electrical isolation whilst maintaining flexibility and environmental resistance. Each conductor features 3.0 millimetres of elastomeric insulation, carefully engineered to provide reliable electrical isolation under varying temperature and environmental conditions.

The consistent 3.0-millimetre insulation thickness across both conductor sizes ensures uniform electrical performance and simplifies installation procedures. This standardisation also contributes to the cable's overall reliability by eliminating potential weak points that could arise from varying insulation thickness.

The elastomeric insulation material provides excellent flexibility whilst maintaining its electrical properties across the cable's operating temperature range. This flexibility proves crucial in mining applications where cables experience constant movement and varying environmental conditions.

Sheath Construction and Protection

The outer sheath provides the cable's primary protection against environmental hazards and mechanical damage. Type 210 cables utilise different sheath thicknesses depending on conductor size, with 1.5 square millimetre cables featuring 1.4-millimetre thick sheaths and 2.5 square millimetre cables incorporating 1.5-millimetre thick sheaths.

The sheath material typically consists of R-EP-90/HD-PCP compounds, indicating rubber-ethylene-propylene materials rated for continuous operation at 90°C. These materials provide excellent resistance to UV radiation, ozone, oil, and water, making them ideal for harsh mining environments.

The slightly thicker sheath on larger conductor cables provides additional mechanical protection to accommodate the higher forces and stresses associated with higher current applications. This graduated protection ensures optimal performance across the entire Type 210 cable range.

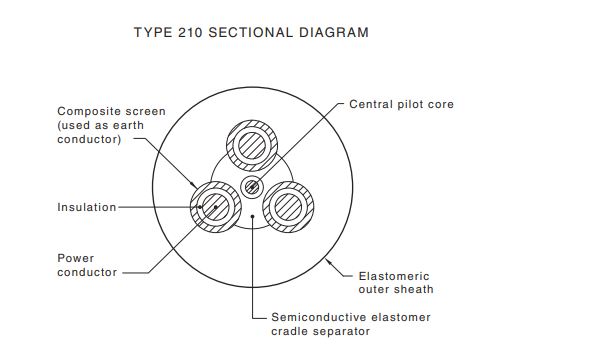

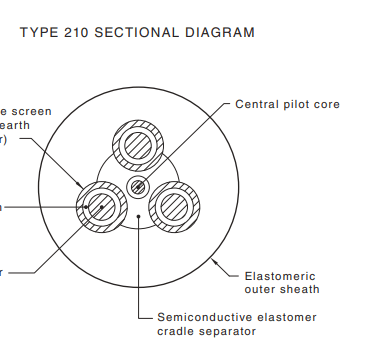

Composite Screen Technology

Type 210 cables incorporate composite screening systems designed to maintain electrical symmetry and provide earth fault protection. The screening system typically consists of semi-conductive elastomeric materials or specialised screening tapes applied over the insulated conductors.

This screening system serves multiple functions in mining applications. It provides electrical symmetry, ensuring consistent electrical performance across all conductors. The screen also enables effective earth fault detection, crucial for safety in mining environments where personnel may be exposed to electrical hazards.

The composite screen construction maintains flexibility whilst providing reliable electrical performance throughout the cable's service life. This durability proves essential in mining applications where cables experience constant movement and environmental stresses.

Temperature Performance Characteristics

Type 210 cables are designed for continuous operation at temperatures up to 90°C, providing significant safety margins for typical mining applications. This temperature rating ensures reliable operation even in the extreme heat conditions common in Australian mining operations.

The cables' thermal performance extends beyond simple temperature ratings to include thermal cycling capability. Mining operations often experience significant temperature variations between day and night shifts, requiring cables that can accommodate these thermal stresses without degradation.

The elastomeric materials used in Type 210 construction maintain their flexibility and electrical properties across the entire operating temperature range, ensuring consistent performance regardless of environmental conditions.

Mining-Specific Cable Challenges and Solutions

Open-cut mining operations present unique challenges for electrical infrastructure that require specialised solutions. Understanding these challenges helps illustrate why Type 210 cables incorporate specific design features and why proper selection and maintenance are crucial for safe and reliable operations.

Mechanical Wear and Damage Resistance

Mining equipment operates in extremely harsh mechanical environments where cables face constant threats from abrasion, impact, and crushing forces. Draglines and excavators drag cables across rough terrain, while conveyor systems subject cables to continuous vibration and mechanical stress.

Type 210 cables address these challenges through robust sheath construction and flexible conductor design. The elastomeric sheath provides excellent abrasion resistance whilst maintaining flexibility, allowing cables to withstand dragging across rocky surfaces without immediate damage. The minimum sheath thickness of 1.4 millimetres provides substantial protection against mechanical impact whilst maintaining the flexibility required for reeling applications.

The stranded conductor design contributes significantly to mechanical durability. Individual copper strands can accommodate flexing and movement without the conductor failure that might occur with solid conductors under similar conditions. This design proves particularly valuable in applications where cables experience constant movement and repositioning.

Regular inspection protocols help identify mechanical damage before it compromises cable integrity. Visual inspection can reveal cuts, abrasions, or deformation in the outer sheath, allowing for timely replacement before internal damage occurs.

Water and Chemical Ingress Protection

Mining operations expose cables to various liquids including water, hydraulic oils, fuel, and cleaning chemicals. Dust suppression systems create constantly moist environments, while equipment maintenance introduces exposure to lubricants and solvents.

The R-EP-90 insulation system provides excellent water resistance, maintaining electrical integrity even when exposed to moisture over extended periods. The material's chemical structure resists water absorption, preventing degradation of electrical properties that could lead to insulation failure.

Oil resistance proves equally important in mining applications where hydraulic systems are prevalent. Type 210 cables' elastomeric construction resists swelling and degradation when exposed to petroleum-based products, maintaining both electrical and mechanical performance.

The composite screen system includes provisions for water-resistant sealing, providing IPX7-like protection against water ingress. This protection level ensures that temporary submersion or high-pressure water exposure does not compromise the cable's electrical integrity.

Screen Damage and Electrical Fault Prevention

The composite screen system in Type 210 cables serves critical safety functions, providing earth fault detection and maintaining electrical symmetry. Damage to this screening system can create dangerous conditions and compromise the cable's protective functions.

Screen damage typically occurs through mechanical stress or installation errors that breach the screen's continuity. Such damage can lead to loss of earth fault protection, potentially creating unsafe conditions for mining personnel working near energised equipment.

Regular electrical testing protocols can identify screen damage before it creates hazardous conditions. Insulation resistance testing and earth fault loop impedance measurements help verify screen integrity and overall cable condition.

When screen damage occurs, immediate replacement becomes necessary to maintain safety standards. Attempting to repair damaged screens typically proves unsuccessful and may create additional hazards.

Environmental Degradation Resistance

Australian mining operations expose cables to intense UV radiation, ozone, and extreme temperature variations that can rapidly degrade inferior cable materials. The combination of high temperatures and intense solar radiation creates particularly challenging conditions for polymer-based cable systems.

Type 210 cables incorporate UV-stable elastomeric compounds specifically formulated to resist photodegradation. These materials maintain their physical and electrical properties even after extended exposure to intense sunlight, ensuring long service life in open-cut applications.

Ozone resistance proves equally important, particularly in areas where electrical equipment generates ozone or where atmospheric conditions concentrate naturally occurring ozone. The cable's elastomeric materials resist cracking and degradation that ozone exposure might cause in other polymer systems.

Temperature cycling resistance ensures that cables maintain their properties despite the significant temperature variations common in mining operations. Day-night temperature swings and seasonal variations create thermal stresses that inferior cables cannot accommodate without degradation.

Frequently Asked Questions About Type 210 Mining Cables

Q1: Can Type 210 cables be used with drum reeling systems?

Type 210 cables are specifically designed for reeling applications, making them well-suited for drum-mounted systems common in mining operations. The cable's flexible construction allows for slow to moderate reeling speeds whilst maintaining electrical integrity.

However, proper drum design and reeling procedures are crucial for maximising cable life. The drum diameter should be sufficient to prevent excessive bending stress, typically requiring a minimum diameter of at least 20 times the cable's outer diameter. Reeling speed should be controlled to prevent heat buildup from excessive flexing.

Regular inspection of reeled cables helps identify potential problems before they lead to failure. Areas where the cable experiences repeated flexing, particularly near the drum connection point, require particular attention during routine maintenance.

Q2: How frequently should Type 210 cables be inspected in mining operations?

Mining operations should implement comprehensive inspection protocols that include both routine visual inspections and periodic electrical testing. Daily visual inspections help identify obvious mechanical damage, while more detailed inspections should occur weekly or monthly depending on operating conditions.

Visual inspections should focus on identifying cuts, abrasions, or deformation in the outer sheath. Any damage that penetrates the sheath or exposes internal components requires immediate attention. Signs of overheating, such as discoloration or unusual odours, also warrant immediate investigation.

Electrical testing should occur at regular intervals determined by the specific application and operating conditions. Insulation resistance testing, earth fault loop impedance measurements, and continuity testing help verify electrical integrity. More frequent testing may be necessary in particularly harsh environments or for critical applications.

Documentation of inspection results helps identify patterns that might indicate systematic problems or areas requiring enhanced protection measures.

Q3: What are the key differences between Type 209 and Type 210 cables?

Type 209 and Type 210 cables serve different functions within the AS/NZS 1802 standard, each optimised for specific mining applications. Type 209 cables are designed as more flexible feeder cables, typically used for applications requiring greater flexibility and lighter weight.

Type 210 cables focus on hand-held and light machinery applications with specific conductor sizes and construction optimised for these uses. The specific conductor sizes (1.5 and 2.5 square millimetres) and standardised construction parameters make Type 210 cables ideal for consistent, reliable applications where standardisation is important.

The choice between Type 209 and Type 210 depends on the specific application requirements, including flexibility needs, current-carrying capacity, and environmental conditions. Consulting with cable manufacturers or electrical engineers helps ensure proper selection for specific applications.

Q4: What should be done if the insulation screen becomes damaged?

Damage to the insulation screen represents a serious safety concern that requires immediate action. The screen provides earth fault protection and maintains electrical symmetry, both crucial for safe mining operations.

When screen damage is suspected or identified, the affected cable section must be removed from service immediately. Attempting to continue operation with damaged screening creates potential hazards for personnel and equipment.

Repair of damaged screens typically proves ineffective and potentially dangerous. The complex nature of composite screen systems makes field repairs unreliable and potentially hazardous. Complete replacement of the affected cable section represents the only acceptable solution.

Prevention of screen damage through proper installation techniques, adequate protection measures, and regular inspection provides the most effective approach to maintaining screen integrity.

Q5: Can Type 210 cables operate effectively in extreme climate conditions?

Type 210 cables are designed to operate across a wide temperature range, typically from -40°C to +90°C, making them suitable for most Australian mining conditions. The R-EP-90 compound construction provides excellent thermal stability across this range.

However, extremely hot or humid conditions may require additional considerations. Operations in areas where ambient temperatures regularly exceed 45°C may need enhanced heat dissipation measures or cable derating to prevent overheating.

High humidity environments, such as those found in some tropical mining operations, may require enhanced moisture protection measures and more frequent inspection protocols.

Consultation with cable manufacturers or electrical engineers helps determine the most appropriate specifications and installation practices for specific extreme climate conditions.

Ensuring Optimal Performance and Safety

The successful implementation of Type 210 cables in mining operations requires understanding both their capabilities and limitations. Proper selection, installation, and maintenance practices ensure these cables provide reliable service whilst maintaining the safety standards essential in mining environments.

Regular training for electrical personnel helps ensure that those responsible for cable installation and maintenance understand the specific requirements of mining applications. This training should cover both the technical aspects of cable construction and the practical considerations of mining operations.

Establishing comprehensive maintenance protocols, including inspection schedules, testing procedures, and replacement criteria, helps maximise cable life whilst maintaining safety standards. These protocols should be tailored to specific operating conditions and regularly updated based on operational experience.

Type 210 cables represent a sophisticated solution to the challenging demands of Australian open-cut mining operations. Their combination of electrical performance, mechanical durability, and environmental resistance makes them essential components in maintaining the productivity and safety of these critical industrial operations. Understanding their capabilities and proper application ensures they continue to serve Australia's mining industry effectively whilst meeting the highest standards of safety and reliability.

The future of Australian mining depends on reliable electrical infrastructure capable of supporting increasingly sophisticated and demanding operations. Type 210 cables, with their proven performance in some of the world's most challenging mining environments, will continue to play a crucial role in powering Australia's mining industry forward.
