AS/NZS 1802 Type 241 Superflex 1.1 kV Mining Cable: The Complete Guide

1. Introduction

Mining operations depend heavily on reliable power distribution systems that can withstand harsh environments. At the heart of these systems are specialized mining cables designed to deliver consistent power under extreme conditions. The AS/NZS 1802 standards set forth by Australia and New Zealand establish rigorous requirements for cables used in mining applications, ensuring safety and performance in challenging underground and surface operations.

Among these specialized cables, the Type 241 Superflex 1.1 kV stands out as an exceptional solution engineered specifically for applications demanding extreme flexibility and durability. Unlike standard mining cables, the Superflex variant offers enhanced bending capabilities without compromising electrical integrity or mechanical strength, making it ideal for the most demanding mining environments.

2. Application Scenarios

The Type 241 Superflex 1.1 kV mining cable excels in various critical mining applications:

• Heavy-duty underground mining operations where cables must withstand constant stress, moisture, and abrasive conditions

• Longwall equipment including shearers, continuous miners, and shuttle cars that require reliable power during continuous operation

• Mobile and dynamic equipment necessitating frequent cable reeling and unreeling without fatigue or damage

• Tight space installations where standard cables would be prone to excessive wear due to sharp bending

• Surface mining applications where maximum flexibility is critical for equipment mobility and safety

The cable's exceptional flexibility makes it particularly valuable in environments where equipment mobility is essential and cable routing paths are complex or constrained.

3. Electrical and Mechanical Parameters

Voltage Rating

• 1.1 kV (AC) standard rating

• Higher voltage variants (up to 6.6 kV) available according to the AS/NZS 1802:2003 standard

Conductor

• Fine-stranded tinned annealed copper conductors

• Exceptional strand count for maximum flexibility (e.g., 361/0.50 for 70mm² variant)

• Available in sizes from 70mm² to 240mm²

Insulation

• EPR (Ethylene Propylene Rubber) insulation with excellent thermal and electrical properties

• Thickness ranging from 1.8mm to 5.0mm depending on voltage rating (Type 241.1, 241.3, or 241.6)

• Superior resistance to heat, moisture, and chemical exposure

Sheath

• Heavy-duty PCP (Polychloroprene) sheath with excellent mechanical and flame resistance

• Optional CPE/CSP (Chlorinated Polyethylene/Chlorosulfonated Polyethylene) sheath available

• Designed to withstand abrasion, impact, and environmental stressors

Temperature Range

• Operational range from -25°C to +90°C

• Maintains flexibility and electrical integrity across temperature extremes

Bending Radius

• Exceptionally small bending radius due to "Superflex" design

• Smaller "natural" bending radius than standard Type 241 cables

• Ideal for monorail applications with narrow cable loops

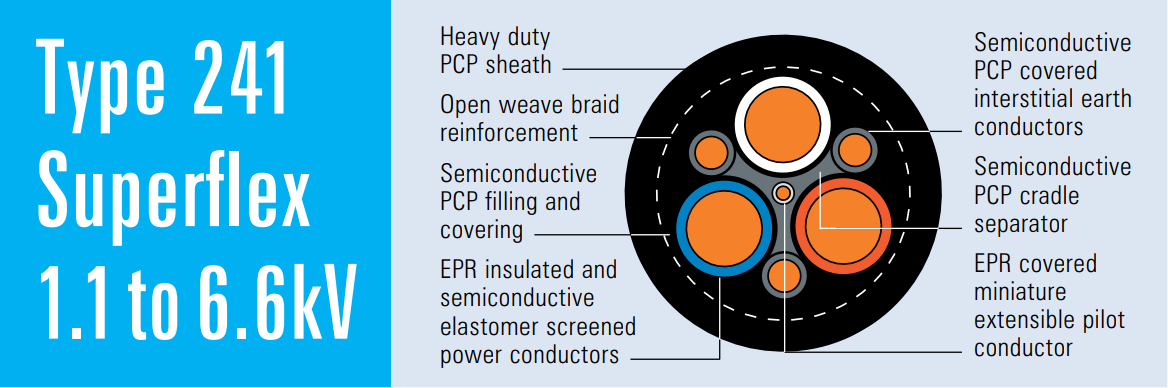

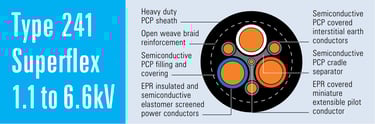

Construction Features

• Three power cores with semiconductive screens (for higher voltage variants)

• Three interstitial earth conductors with semiconductive PCP covering

• Central extensible pilot core for monitoring

• Semiconductive PCP filling and covering

• Textile reinforcement with open-weave braid for added mechanical strength

• Cradle separator made of semiconductive PCP

Compliance

• Fully compliant with AS/NZS 1802:2003 mining cable standards

• Meets requirements of AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.1

4. Frequently Asked Questions (FAQ)

Q1: What makes the Type 241 cable "Superflex" compared to standard mining cables?

A1: The Superflex designation comes from its ultra-fine stranded conductors (up to 1221 strands for the 240mm² variant) and specialized elastomeric compounds that allow for much tighter bending without damaging the cable structure. This construction provides a smaller natural bending radius while maintaining electrical integrity and mechanical protection.

Q2: Why is extra flexibility important in mining operations?

A2: Enhanced flexibility delivers multiple benefits in mining environments: it reduces cable wear during constant movement, minimizes the risk of conductor fatigue, allows installation in tight spaces, enables use with mobile equipment that requires frequent reeling, and improves overall safety by reducing tripping hazards and the likelihood of cable damage.

Q3: Can Type 241 cables handle water and chemical exposure underground?

A3: Yes, the elastomeric sheath provides excellent resistance to moisture, oils, and many chemicals encountered in mining environments. The EPR insulation and PCP (or optional CPE/CSP) sheath combine to create a robust barrier against environmental contaminants, including some acids commonly present in mining operations.

Q4: What is the main failure risk for Superflex mining cables?

A4: Despite their durability, mechanical damage from severe abrasion, crushing, or cutting remains the primary risk. The cables are designed to withstand significant mechanical stress, but regular inspections are crucial to identify and address potential damage before it leads to electrical failure or safety hazards.

Q5: How often should maintenance be done on Type 241 cables?

A5: In heavy-use areas, visual inspections should occur daily with particular attention to the outer sheath integrity. Full electrical testing, including insulation resistance tests, should be performed monthly or according to site-specific safety protocols. The extensible pilot core facilitates continuous monitoring of cable integrity in many installations.

5. Conclusion

The AS/NZS 1802 Type 241 Superflex 1.1 kV Mining Cable represents a specialized solution for mining operations where standard cables would be insufficient. Its unmatched flexibility, combined with exceptional durability and compliance with rigorous safety standards, makes it the preferred choice for demanding mining applications where reliability is non-negotiable.

When selecting mining cables, engineers and safety officers should carefully evaluate the specific requirements of each application, considering factors such as voltage needs, mechanical stress levels, environmental conditions, and flexibility requirements. The Type 241 Superflex provides an optimal balance of these factors for applications requiring maximum cable flexibility without compromising on safety or performance.

Always prioritize regular inspection and maintenance of mining cables, regardless of their durability rating, as part of a comprehensive electrical safety program that protects both personnel and equipment in challenging mining environments.
