AS/NZS 1802 Type 245 Cables in Open-Cut Operations

Introduction: The Electrical Backbone of Australian Mining

When you stand at the edge of Western Australia's Super Pit or gaze across the vast iron ore operations of Mount Whaleback, the sheer scale of these open-cut mines is breathtaking. What's less visible, but equally impressive, is the sophisticated electrical infrastructure that powers these industrial giants. At the heart of this infrastructure lies a specialised piece of technology that most people never see but absolutely cannot do without: the AS/NZS 1802 Type 245 mining cable.

These cables represent far more than simple electrical conductors. They serve as the vital arteries that deliver power to massive draglines capable of moving 100 cubic metres of earth in a single scoop, to conveyor systems that transport millions of tonnes of ore annually, and to crushers that break down rock formations into manageable pieces. The Type 245 cable, specifically designed for the harsh realities of open-cut mining environments, must withstand conditions that would destroy ordinary electrical cables within days.

The AS/NZS 1802 standard, which governs these specialised cables, represents decades of engineering refinement and real-world testing in some of the world's most demanding mining environments. This standard ensures that cables can endure the mechanical stresses of being dragged across rough terrain, the electrical demands of powering heavy machinery, and the environmental challenges of Australia's diverse climate zones, from the scorching heat of the Pilbara to the variable conditions of New South Wales coal fields.

Understanding these cables requires appreciating their role in Australia's mining ecosystem. Open-cut mining dominates the Australian landscape, accounting for approximately 75 to 80 percent of the nation's coal production and virtually all of its iron ore extraction. This mining method, while efficient for accessing large, relatively shallow ore bodies, creates unique electrical challenges that Type 245 cables are specifically engineered to address.

Australia's Open-Cut Mining Landscape: Where Giants Roam

To truly understand the importance of Type 245 mining cables, we must first explore the extraordinary scale of Australia's open-cut mining operations. These sites represent some of the largest industrial projects on Earth, where human engineering meets geological fortune to extract the raw materials that power global industry.

The historical development of open-cut mining in Australia reflects both the country's geological wealth and its technological innovation. Unlike many mining regions worldwide, where underground extraction predominates, Australia's mineral deposits often occur in formations that make open-cut methods both feasible and economical. This geological advantage, combined with Australia's vast landmass and relatively sparse population in mining regions, has enabled the development of truly massive operations.

Australia's open-cut mines can be categorised into several major commodity groups, each presenting unique electrical challenges. Iron ore operations in Western Australia's Pilbara region operate on a scale that defies easy comprehension, moving hundreds of millions of tonnes of material annually. Coal mines in Queensland and New South Wales combine high-volume extraction with complex processing requirements, demanding reliable power delivery across extensive sites. Gold and copper operations, while sometimes smaller in volume, often require precise electrical control for sophisticated processing equipment.

The Super Pit: Australia's Golden Giant

The Fimiston Open Pit, universally known as the Super Pit, stands as perhaps Australia's most iconic open-cut mine. Stretching 3.5 kilometres in length, 1.5 kilometres in width, and plunging over 600 metres into the earth, this Kalgoorlie operation was for many years Australia's largest gold mine. The scale of electrical infrastructure required to support such an operation is staggering.

Within the Super Pit, massive haul trucks with payload capacities exceeding 300 tonnes navigate roads carved into the pit walls, while drilling rigs prepare blast holes with the precision of surgical instruments. Each piece of equipment demands reliable electrical power, often delivered through trailing cables that must flex and bend thousands of times daily while maintaining perfect electrical integrity. The Type 245 cables serving this operation must withstand not only the mechanical stresses of constant movement but also the abrasive dust generated by continuous blasting and excavation.

The electrical demands of the Super Pit extend beyond mobile equipment to include fixed installations such as dewatering pumps that prevent the pit from flooding, ventilation systems that manage dust and fumes, and lighting systems that enable around-the-clock operations. The reliability of the electrical supply, delivered through appropriately specified Type 245 cables, directly impacts production efficiency and worker safety.

Boddington: Integrated Mining Excellence

The Boddington Gold Mine in Western Australia represents a different model of open-cut mining, combining gold and copper extraction in an integrated operation that produces millions of ounces annually. This site demonstrates how modern mining operations have evolved beyond simple excavation to become complex industrial processes requiring sophisticated electrical infrastructure.

At Boddington, the electrical system must support not only traditional mining equipment but also extensive processing facilities where ore undergoes crushing, grinding, flotation, and other beneficiation processes. Each stage of this process demands specific electrical characteristics, from the high starting torques required for massive grinding mills to the precise control needed for flotation cells that separate valuable minerals from waste rock.

The Type 245 cables at Boddington must therefore accommodate a wide range of electrical loads, from the steady draw of conveyor systems to the variable demands of processing equipment that adjusts its operation based on ore characteristics. This flexibility in application demonstrates the versatility built into the AS/NZS 1802 standard.

Mount Whaleback: Iron Ore on an Industrial Scale

Mount Whaleback, often cited as the world's largest iron ore open-cut mine, operates on a scale that challenges conventional understanding of industrial operations. The electrical infrastructure supporting this BHP operation must deliver power across a site that spans several square kilometres, with equipment ranging from 400-tonne haul trucks to draglines with boom lengths exceeding 100 metres.

The iron ore extracted at Mount Whaleback undergoes primary crushing within the pit before being transported via conveyor systems to port facilities hundreds of kilometres away. The electrical systems supporting these operations must maintain reliability despite exposure to iron ore dust that is both abrasive and conductive, presenting unique challenges for electrical insulation and cable sheathing.

Type 245 cables at Mount Whaleback must also accommodate the site's remote location and the logistical challenges this presents for maintenance and replacement. The cables' robust construction and reliable performance become even more critical when considering the costs and delays associated with equipment failures at such remote locations.

Eastern Australia's Coal Giants

Australia's eastern coal mining operations present different challenges for electrical infrastructure. Mines such as Mount Arthur in New South Wales, which produces approximately 20 million tonnes annually, operate in regions with more variable weather conditions and different geological characteristics compared to Western Australia's mineral provinces.

Coal mining operations often require more complex electrical systems than other commodities due to the nature of coal processing and the safety requirements associated with potentially explosive atmospheres. Type 245 cables in these environments must not only meet the standard requirements for mechanical durability and electrical performance but also comply with additional safety standards related to explosion prevention.

The Cadia-Ridgeway operation in New South Wales, recognised as one of the world's largest gold-copper open-cut mines, exemplifies the complexity of modern mining electrical systems. This operation combines traditional open-cut mining with underground development, requiring electrical infrastructure that can support both surface and subsurface operations seamlessly.

Specialised Operations: Copper and Multi-Commodity Sites

Operations such as Prominent Hill in South Australia and various Pilbara iron ore mines demonstrate the diversity within Australia's open-cut mining sector. Each site presents unique electrical challenges based on factors including ore characteristics, processing requirements, environmental conditions, and operational philosophy.

Prominent Hill's copper-gold operation requires electrical systems that can support both mining and complex metallurgical processing. The electrical loads in such operations can vary dramatically based on ore grade and processing requirements, demanding cables that can accommodate both steady-state operation and significant load variations.

The Pilbara region's numerous iron ore operations, including sites operated by Rio Tinto, BHP, and Fortescue Metals Group, collectively represent one of the world's largest concentrations of open-cut mining activity. The electrical infrastructure supporting these operations must coordinate not only individual mine sites but also integrated rail and port systems that move ore from mine to market.

Application Scenarios: Where Type 245 Cables Prove Their Worth

Understanding the specific applications of Type 245 cables within open-cut mining operations requires examining the diverse range of equipment and systems these cables must serve. Unlike industrial cables used in fixed installations, mining cables must accommodate the unique demands of mobile equipment, temporary installations, and constantly changing operational configurations.

Mobile Equipment: The Ultimate Cable Challenge

The most demanding application for Type 245 cables involves powering mobile mining equipment. Draglines, perhaps the most iconic pieces of open-cut mining equipment, present extraordinary challenges for electrical supply systems. These massive machines, with operating weights often exceeding 8,000 tonnes and boom lengths that can reach 100 metres, require continuous electrical power while constantly repositioning themselves within the mining area.

A dragline's electrical supply cable must accommodate not only the machine's substantial power requirements but also its continuous movement. As the dragline walks from position to position using its distinctive stepping motion, the trailing cable experiences complex mechanical stresses including tension, compression, bending, and torsion. The cable must maintain electrical integrity through thousands of these movement cycles while exposed to the abrasive environment of an active mining operation.

Electric rope shovels present similar challenges but with different characteristics. These machines, which can have bucket capacities exceeding 50 cubic metres, operate with rapid cycle times that create dynamic electrical loads. The cables serving these machines must accommodate the high starting currents required to initiate each digging cycle while maintaining flexibility for the shovel's continuous repositioning.

The trailing cables for mobile equipment must also consider the operational environment. In iron ore mines, fine dust can accumulate on cable surfaces, potentially creating tracking paths for electrical faults. In coal mines, the potential presence of explosive atmospheres requires additional safety considerations. Type 245 cables address these challenges through their robust construction and carefully specified materials.

Conveyor Systems: The Arteries of Mining Operations

Modern open-cut mines rely heavily on conveyor systems to transport material from extraction points to processing facilities or waste dumps. These systems, which can extend for several kilometres and include numerous transfer points, require extensive electrical infrastructure to power drive motors, maintain belt alignment, and operate safety systems.

Type 245 cables serving conveyor systems must accommodate both the steady electrical loads associated with continuous operation and the dynamic loads created during system startup and emergency stops. The cables must also withstand exposure to material spillage, weather conditions, and the mechanical stresses associated with thermal expansion and contraction of the conveyor structure.

In many mining operations, conveyor systems operate continuously, making electrical reliability absolutely critical. A single cable failure can shut down an entire production line, potentially costing millions of dollars in lost production. This operational reality drives the specification of Type 245 cables with their enhanced reliability and durability characteristics.

Crushing and Processing Equipment: Precision Power Delivery

Primary crushers within open-cut mines represent some of the most electrically demanding equipment in mining operations. These massive machines, capable of processing rocks several metres in diameter, require substantial electrical power delivered with high reliability. The electrical systems serving crushers must accommodate the extremely high starting torques required to initiate crushing operations and the variable loads created as different sizes and types of material are processed.

Type 245 cables serving crushing equipment must also consider the extremely harsh environment surrounding these operations. Crushers generate substantial dust and vibration, creating conditions that can damage electrical equipment. The cables must maintain their integrity despite constant exposure to these conditions while providing the precise electrical characteristics required for optimal crusher performance.

Secondary and tertiary processing equipment, including grinding mills and separation systems, present additional electrical challenges. These systems often require precise electrical control to optimise processing efficiency, demanding cables that can maintain signal integrity alongside power delivery. The multi-conductor capabilities of Type 245 cables make them well-suited for these complex applications.

Auxiliary Systems: The Hidden Electrical Infrastructure

Beyond the obvious applications powering major mining equipment, Type 245 cables serve numerous auxiliary systems that enable mining operations to function safely and efficiently. Dewatering systems, which prevent open-cut mines from flooding, require reliable electrical power for pumps that may operate continuously for months at a time. Ventilation systems that manage dust and fumes rely on electrical power delivered through cables that must withstand the same harsh conditions as the equipment they serve.

Lighting systems in open-cut mines present unique electrical challenges. These systems must provide adequate illumination across vast areas while withstanding weather conditions, dust, and potential damage from mining operations. The electrical infrastructure supporting mine lighting must balance the need for comprehensive coverage with the practical limitations of cable installation and maintenance in an active mining environment.

Communication and monitoring systems increasingly rely on electrical infrastructure to support modern mining operations. These systems, which may include everything from GPS tracking for mobile equipment to environmental monitoring stations, require electrical power delivered with high reliability despite their relatively modest power requirements.

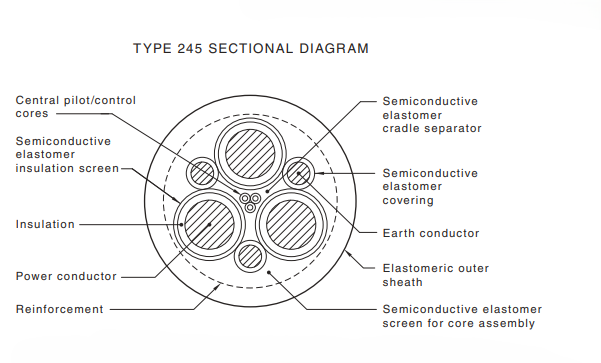

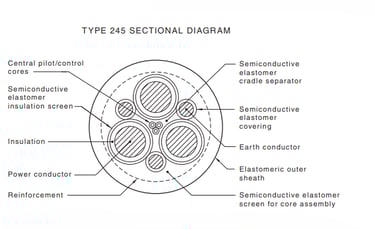

Technical Excellence: Understanding Type 245 Electrical and Physical Parameters

The AS/NZS 1802 Type 245 cable represents a sophisticated engineering solution that balances multiple competing requirements. Understanding its technical specifications requires examining both the electrical characteristics that enable reliable power delivery and the physical construction that ensures durability in mining environments.

Voltage Ratings and Electrical Design

Type 245 cables are available in two primary voltage configurations: Type 245.1 rated for 1.1/1.1 kV service and Type 245.3 designed for 3.3/3.3 kV applications. This voltage rating system follows Australian electrical standards where the first number represents the voltage between conductors and earth, while the second indicates the voltage between conductors in a three-phase system.

The 1.1 kV rating of Type 245.1 cables makes them suitable for a wide range of mining equipment, from smaller mobile machines to medium-sized processing equipment. This voltage level provides an optimal balance between power delivery capability and safety considerations, allowing substantial power transmission while maintaining manageable insulation requirements.

Type 245.3 cables, with their 3.3 kV rating, serve applications requiring higher power transmission capacity. These cables typically power large stationary equipment such as major crushers, large conveyor drives, and substantial processing equipment where the higher voltage enables more efficient power delivery over longer distances.

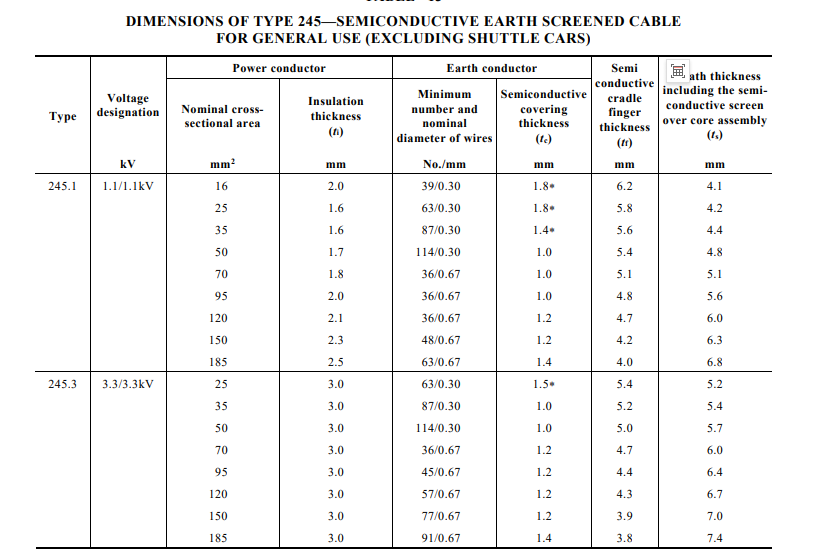

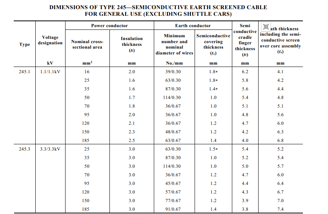

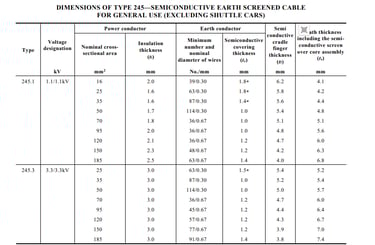

Conductor Configuration and Current Capacity

The conductor specifications for Type 245 cables reflect careful engineering to optimise both electrical performance and mechanical durability. The cables utilise stranded copper conductors with configurations specifically designed for mining applications where flexibility and vibration resistance are critical.

For Type 245.1 cables, conductor sizes range from 16 mm² to 185 mm², accommodating current requirements from smaller auxiliary equipment to substantial mobile machines. The stranding configurations vary with conductor size, with smaller conductors using fine wire stranding for maximum flexibility and larger conductors employing configurations that balance flexibility with current-carrying capacity.

The 16 mm² conductor variant utilises 39 strands of 0.30 mm wire, creating a highly flexible conductor suitable for applications requiring frequent movement or vibration resistance. This fine stranding configuration enables the cable to accommodate the complex mechanical stresses associated with trailing cable applications while maintaining excellent electrical conductivity.

Larger conductor sizes, such as the 185 mm² configuration, employ 63 strands of 0.67 mm wire. This stranding provides the current-carrying capacity required for high-power applications while maintaining sufficient flexibility for mining equipment installations. The larger individual wire size in these configurations also provides enhanced resistance to fatigue failure under repeated mechanical stress.

Type 245.3 cables, designed for higher voltage applications, incorporate additional insulation thickness to accommodate the increased electrical stress. The conductor configurations mirror those of Type 245.1 cables but with enhanced insulation systems that maintain the same flexibility characteristics while providing the dielectric strength required for 3.3 kV operation.

Insulation System Design

The insulation system of Type 245 cables represents one of their most critical design elements. The cables utilise Ethylene Propylene Rubber (EPR) insulation, a material specifically chosen for its excellent electrical properties and exceptional resistance to the environmental conditions encountered in mining operations.

EPR insulation provides superior resistance to ozone, ultraviolet radiation, and temperature extremes compared to traditional insulation materials. In the harsh environment of open-cut mines, where cables may experience temperature variations from below freezing during winter nights to over 50°C during summer days, this temperature stability becomes crucial for maintaining electrical integrity.

The insulation thickness varies with conductor size and voltage rating, with specifications carefully calculated to provide adequate dielectric strength while minimising overall cable diameter and weight. For Type 245.1 cables, insulation thickness ranges from 1.6 mm for smaller conductors to 2.5 mm for the largest sizes. Type 245.3 cables require substantially thicker insulation, with thickness values of 3.0 mm across all conductor sizes to accommodate the higher operating voltage.

Semiconductive System Integration

One of the most sophisticated aspects of Type 245 cable design involves the semiconductive layers that surround the conductor and insulation system. These layers serve multiple critical functions in ensuring reliable electrical performance under the demanding conditions of mining operations.

The semiconductive cradle, positioned between the conductor and insulation, ensures uniform electrical stress distribution around the conductor. This is particularly important in mining applications where cables experience significant mechanical deformation that could otherwise create electrical stress concentrations leading to premature failure.

The semiconductive covering over the insulation system serves to contain the electrical field within the cable while providing a uniform interface with the earth screen system. This design approach eliminates the possibility of electrical tracking along the insulation surface, a failure mode that can occur when cables are exposed to contamination and moisture.

The thickness of semiconductive layers varies with cable design, typically ranging from 1.0 mm to 1.8 mm for the cradle and similar dimensions for the covering. These seemingly modest dimensions represent critical engineering parameters that significantly impact cable performance and longevity.

Earth Screen System and Mechanical Protection

The earth screen system of Type 245 cables provides both electrical and mechanical protection functions. Electrically, the screen serves as the earth conductor, providing a low-impedance return path for fault currents while containing the cable's electrical field. Mechanically, the screen contributes to the cable's overall strength and provides protection against penetration damage.

The earth screen consists of multiple copper wires wound around the semiconductive covering, with the number and size of wires varying according to conductor size and electrical requirements. For smaller Type 245.1 cables, the screen typically consists of 39 wires of 0.30 mm diameter, while larger cables may utilise different configurations optimised for their specific requirements.

The earth screen design must balance several competing requirements. Sufficient wire cross-sectional area is needed to carry earth fault currents safely, while adequate coverage is required to contain electrical fields effectively. The screen must also provide mechanical strength without creating excessive cable stiffness that would impair flexibility.

Outer Sheath Construction and Environmental Protection

The outer sheath of Type 245 cables provides the primary protection against environmental hazards while maintaining the flexibility required for mining applications. The sheath material, typically Polychloroprene (PCP), is specifically chosen for its resistance to oils, flames, abrasion, and weather conditions encountered in mining environments.

PCP sheath material provides excellent resistance to the petroleum products commonly used in mining operations, from diesel fuel used in mobile equipment to hydraulic oils used in various machinery. This chemical resistance prevents sheath degradation that could compromise cable integrity over time.

The flame resistance characteristics of PCP sheathing are particularly important in mining applications where cables may be exposed to welding operations, hot surfaces, or other ignition sources. The material's self-extinguishing properties help prevent fire propagation along cable installations.

Sheath thickness specifications vary with cable size and construction, typically ranging from approximately 4.0 mm to 7.4 mm for different configurations. These dimensions represent a careful balance between providing adequate protection and maintaining cable flexibility and weight within practical limits.

Frequently Asked Questions: Solving Real-World Mining Challenges

The harsh realities of open-cut mining operations present numerous challenges that must be addressed through proper cable selection, installation, and maintenance practices. Understanding these challenges and their solutions provides insight into why Type 245 cables are engineered with their specific characteristics and how they perform in practice.

Mechanical Damage and Abrasion Resistance

Question: How do Type 245 cables withstand the extreme mechanical stresses of mining operations, particularly when heavy equipment travels over them or when they're dragged across rough terrain?

The mechanical durability of Type 245 cables results from multiple design features working in concert. The heavy-duty PCP outer sheath provides the primary protection against abrasion and impact damage, with thickness specifications that far exceed those of standard industrial cables. The material properties of PCP, including its excellent tear strength and elasticity, enable the sheath to deform under impact without permanent damage.

Beneath the outer sheath, the earth screen system contributes significant mechanical strength. The multiple copper wires in the screen create a flexible but strong barrier that can absorb considerable mechanical stress without compromising electrical integrity. This multi-layer approach ensures that even if the outer sheath sustains damage, the underlying electrical systems remain protected.

The cable construction also incorporates semiconductive layers that provide additional mechanical protection while serving their electrical functions. These layers help distribute mechanical stress across the cable cross-section, preventing localised damage that could propagate through the cable structure.

Proper installation practices further enhance mechanical durability. Cables should be routed to avoid sharp edges and areas of high traffic where possible. When crossing roads or equipment paths, protective covers or burial methods should be employed. Regular inspection schedules enable early detection of mechanical damage before it can progress to electrical failure.

Question: What happens when cables are crushed or pinched under heavy equipment, and how can these incidents be prevented or mitigated?

Crush and pinch damage represent serious risks to cable integrity, but Type 245 cables incorporate several design features that provide resistance to these failure modes. The round construction distributes crushing forces more evenly than flat cable designs, while the flexible construction allows some deformation without immediate electrical failure.

When crush damage does occur, the multiple protection layers often prevent immediate failure. The outer sheath may deform or even rupture without compromising the earth screen or insulation systems. This progressive failure mode provides warning signs that alert maintenance personnel to potential problems before catastrophic failure occurs.

Prevention strategies include proper cable routing design that considers equipment movement patterns, installation of physical protection where cables must cross traffic areas, and implementation of operational procedures that require equipment operators to verify cable positions before moving heavy machinery.

Emergency response procedures should be established for incidents involving potential cable damage. These procedures should include immediate electrical isolation, visual inspection of affected cable sections, and electrical testing to verify integrity before returning systems to service.

Environmental Challenges and Weather Resistance

Question: How do Type 245 cables perform in Australia's diverse climate conditions, from the extreme heat of the Pilbara to the variable weather of eastern coal regions?

Type 245 cables are specifically designed to operate across the full range of Australian climate conditions. The EPR insulation system maintains its electrical and mechanical properties across temperature ranges from -25°C to +90°C, accommodating both winter conditions in elevated mining areas and extreme summer heat in desert regions.

The PCP outer sheath provides excellent resistance to ultraviolet radiation, preventing degradation even under the intense solar conditions common in Australian mining regions. This UV resistance is particularly important for cables installed above ground or in partially exposed applications where direct sunlight exposure is unavoidable.

Moisture resistance is achieved through the combination of the earth screen system and the outer sheath, which together provide multiple barriers against water ingress. The semiconductive layers also contribute to moisture resistance by eliminating interfaces where water could potentially cause electrical tracking.

In regions with high humidity or frequent rainfall, additional protection measures may be necessary. These can include improved drainage around cable installations, the use of cable conduits in critical areas, and enhanced sealing at cable terminations and joints.

Temperature cycling, which is particularly severe in inland Australian mining regions, is accommodated through the cable's flexible construction and the thermal properties of its materials. The stranded conductor design prevents fatigue failure under thermal expansion and contraction, while the EPR insulation maintains its properties through repeated thermal cycles.

Question: What about resistance to oils, chemicals, and other contaminants common in mining operations?

Mining operations expose cables to various contaminants that could potentially cause degradation over time. Type 245 cables address these challenges through careful material selection and construction techniques.

The PCP outer sheath provides excellent resistance to petroleum products, including diesel fuel, hydraulic oils, and lubricants commonly used in mining equipment. This chemical resistance prevents softening or hardening of the sheath material that could compromise its protective function.

For applications where chemical exposure is particularly severe, additional protection measures may be necessary. These can include the use of chemical-resistant cable trays, improved housekeeping to minimise contamination, and more frequent inspection schedules to detect any signs of material degradation.

The earth screen system also provides some protection against chemical contamination by creating a barrier between the outer environment and the critical insulation system. Even if the outer sheath experiences some chemical attack, the underlying electrical systems often remain protected.

Electrical Performance and Fault Detection

Question: How can mining operations detect electrical faults or degradation in Type 245 cables before they cause equipment failures or safety hazards?

Early fault detection in mining cable systems requires a comprehensive approach combining routine electrical testing, visual inspections, and operational monitoring. Periodic insulation resistance testing can identify developing insulation problems before they progress to complete failure. These tests should be performed according to established schedules and whenever cables have been subjected to mechanical stress or environmental extremes.

Capacitance testing provides another valuable diagnostic tool, particularly for detecting water ingress or insulation deterioration. Changes in cable capacitance often precede other signs of electrical degradation, enabling proactive maintenance interventions.

Visual inspection remains one of the most effective fault detection methods. Regular examination of cable installations can identify mechanical damage, sheath deterioration, or contamination problems before they affect electrical performance. Inspection schedules should be based on operational conditions, with more frequent inspections in harsh environments or high-stress applications.

Thermographic inspection using infrared cameras can detect developing electrical problems through temperature variations. Hot spots in cable installations often indicate high-resistance connections or internal damage that requires immediate attention.

Advanced monitoring systems can provide continuous oversight of critical cable installations. These systems can monitor electrical parameters continuously and provide immediate alerts when conditions indicate developing problems.

Question: What are the typical failure modes of mining cables, and how does Type 245 construction address these risks?

Mining cable failures typically fall into several categories, each addressed through specific design features of Type 245 cables. Mechanical failures, often caused by abrasion, crushing, or fatigue, are addressed through the robust sheath construction and flexible conductor design. The multi-layer protection system ensures that mechanical damage must progress through several barriers before affecting electrical performance.

Electrical failures, including insulation breakdown and earth faults, are prevented through the sophisticated insulation and semiconductive systems. The EPR insulation provides excellent dielectric strength and environmental resistance, while the semiconductive layers ensure uniform electrical stress distribution.

Moisture-related failures are addressed through the comprehensive sealing provided by the earth screen and outer sheath systems. Multiple barriers prevent moisture ingress even under challenging environmental conditions.

Contamination-related failures are minimised through the chemical resistance properties of the sheath material and the barrier protection provided by the earth screen system.

Installation and Maintenance Considerations

Question: What special considerations apply to installing and maintaining Type 245 cables in mining environments?

Installation of Type 245 cables in mining operations requires careful planning and execution to ensure optimal performance and longevity. Cable routing should consider both current operational requirements and future expansion plans, while minimising exposure to mechanical damage and environmental hazards.

Support systems must accommodate the dynamic loads associated with mobile equipment while preventing excessive mechanical stress on the cables. This often requires specialised cable handling systems designed specifically for mining applications.

Termination and jointing of Type 245 cables requires particular attention to maintaining the integrity of the semiconductive systems. Improper termination can create electrical stress concentrations that lead to premature failure. Only trained personnel using appropriate techniques and materials should perform these operations.

Maintenance programs should be tailored to the specific operational environment and application requirements. High-stress applications require more frequent inspection and testing, while cables in less demanding service may follow standard maintenance schedules.

Documentation of cable installations, including routing diagrams, electrical test records, and maintenance histories, provides valuable information for troubleshooting and planning future modifications or replacements.

Conclusion: The Foundation of Australian Mining Excellence

As we conclude this comprehensive examination of AS/NZS 1802 Type 245 mining cables, it becomes clear that these seemingly simple electrical components represent far more than just power transmission devices. They embody decades of engineering refinement, real-world testing, and continuous improvement driven by the demanding requirements of Australian open-cut mining operations.

The Type 245 cable serves as a critical enabler of Australia's mining industry, providing the reliable electrical infrastructure that powers the equipment and systems extracting billions of dollars worth of minerals annually. From the massive draglines operating in Queensland coal mines to the sophisticated processing equipment at Western Australian gold operations, these cables form the electrical backbone that makes modern mining possible.

The technical sophistication embodied in Type 245 cables reflects the maturity of the Australian mining industry and its commitment to operational excellence. The careful balance achieved between electrical performance, mechanical durability, and environmental resistance demonstrates how engineering solutions can evolve to meet increasingly demanding operational requirements.

Looking toward the future, the mining industry faces new challenges that will continue to drive cable technology development. Increasing automation in mining operations demands enhanced reliability and performance from electrical infrastructure. The push toward electrification of mobile mining equipment, driven by environmental considerations and operational efficiency goals, will require cables capable of supporting higher power densities and more sophisticated control systems.

Sustainability considerations are also influencing cable design and selection. Mining operations increasingly focus on minimising environmental impact throughout the mining lifecycle, from initial development through eventual site rehabilitation. Type 245 cables contribute to these goals through their extended service life, reduced maintenance requirements, and robust construction that minimises the frequency of replacement operations.

The integration of digital technologies into mining operations presents both opportunities and challenges for electrical infrastructure. Smart mining systems require cables that can support both power transmission and high-speed data communication, potentially leading to hybrid cable designs that combine traditional power delivery with advanced communication capabilities.

As Australian mining operations continue to evolve in scale and sophistication, the electrical infrastructure supporting these operations must evolve accordingly. Type 245 cables, with their proven performance record and ongoing development, are well-positioned to meet these future challenges while continuing to provide the reliable foundation that Australian mining excellence demands.

The success of Australia's mining industry depends on numerous factors, from geological conditions to market dynamics to technological innovation. Among these factors, the reliable electrical infrastructure provided by appropriately specified and properly maintained Type 245 cables plays a crucial but often underappreciated role. Understanding these cables and their applications provides insight not only into mining technology but into the sophisticated engineering solutions that enable modern industrial operations.

For mining professionals, electrical engineers, and anyone involved in the complex world of mineral extraction, Type 245 cables represent a critical technology that deserves careful consideration and respect. Their continued evolution and application will undoubtedly play a significant role in shaping the future of Australian mining operations, ensuring that the electrical infrastructure keeps pace with the industry's ambitions and requirements.

The story of Type 245 mining cables is ultimately the story of Australian mining itself: a tale of engineering excellence, operational innovation, and the relentless pursuit of solutions to complex technical challenges. As the mining industry continues to evolve, these cables will undoubtedly evolve alongside it, providing the reliable electrical foundation upon which future mining achievements will be built.
