AS/NZS 1802 Type 260 1.1 kV Mining Cable for Open-Cut Mines

Introduction

Australia's mining industry operates some of the world's largest and most demanding open-cut operations, from the legendary Kalgoorlie Super Pit to the coal-rich expanses of Queensland's Bowen Basin. These massive industrial sites require electrical infrastructure that can withstand the harshest conditions imaginable whilst maintaining reliable power delivery to critical equipment worth millions of dollars.

At the heart of this electrical infrastructure lies a specialised piece of equipment that most people never see but which forms the backbone of modern mining operations: the AS/NZS 1802 Type 260 mining cable. This robust electrical cable system represents decades of engineering evolution, specifically designed to meet the unique challenges of Australian open-cut mining environments.

The AS/NZS 1802 Type 260 cable serves as the primary power distribution solution for semi-mobile mining equipment operating in open-cut mines across Australia. With its 1.1 kilovolt rating, composite screening system, and distinctive pliable steel armour construction, this cable addresses the fundamental challenge that has plagued mining engineers for generations: how to deliver reliable electrical power to massive mobile equipment operating in environments characterised by extreme temperatures, constant vibration, heavy mechanical stress, and exposure to corrosive mining chemicals.

Understanding the specifications and applications of Type 260 cables becomes crucial when we consider the scale of Australia's mining operations. These cables don't simply carry electricity from point A to point B; they form the circulatory system that keeps multi-billion dollar mining operations running smoothly, powering everything from massive draglines that can move 100 cubic metres of overburden in a single scoop to sophisticated conveyor systems that transport thousands of tonnes of material every hour.

The engineering challenges addressed by Type 260 cables become particularly apparent when we examine their construction details. The cable features ethylene propylene rubber (EPR) insulation that maintains flexibility across temperature ranges from minus 25 degrees Celsius during winter nights in Western Australia's Pilbara region to plus 90 degrees Celsius under the scorching Australian summer sun. The composite screening system, consisting of tinned copper braid, provides both electrical screening and mechanical protection, whilst the pliable galvanised steel wire armour offers unprecedented protection against the mechanical stresses that would destroy conventional electrical cables within days in a mining environment.

Australia's Major Open-Cut Mine Regions

Australia's open-cut mining landscape represents some of the most impressive industrial achievements in human history, with operations that dwarf entire cities and move mountains of material daily. Understanding these major mining regions provides essential context for appreciating why specialised cables like the AS/NZS 1802 Type 260 are absolutely critical for modern mining operations.

Kalgoorlie "Super Pit" (Fimiston Open Pit)

The Kalgoorlie Super Pit stands as perhaps Australia's most iconic mining operation, a testament to more than a century of continuous gold extraction in Western Australia's Eastern Goldfields. Measuring approximately 3.5 kilometres in length, 1.5 kilometres in width, and extending to depths exceeding 600 metres, the Super Pit represents one of the largest open-cut gold mines in the world by volume.

The scale of operations at the Super Pit creates unique electrical infrastructure challenges that Type 260 cables are specifically designed to address. The mine operates multiple massive haul trucks, each weighing over 400 tonnes when fully loaded, alongside drilling equipment, crushers, and processing facilities that require constant, reliable electrical power. The mine's electrical systems must support not only the primary extraction equipment but also the extensive lighting systems that enable 24-hour operations, ventilation systems for worker safety, and the sophisticated computer systems that coordinate the complex dance of equipment across the pit floor.

What makes the Super Pit particularly demanding from an electrical infrastructure perspective is the constant movement and repositioning of equipment. Unlike underground mines where electrical systems can be permanently installed, open-cut operations require flexible power distribution systems that can be relocated as mining faces advance and pit configurations change. Type 260 cables excel in this environment because their pliable steel armour construction allows them to be dragged across rough terrain, repositioned regularly, and even run over by heavy equipment without compromising their electrical integrity.

The Super Pit's workforce of over 600 employees depends on these electrical systems not just for productivity but for safety. Mining operations cannot afford electrical failures that might leave workers stranded in dangerous areas or disable critical safety systems. The composite screening system in Type 260 cables provides multiple layers of protection against electrical faults, whilst the integrated pilot conductors enable continuous monitoring of cable integrity, allowing maintenance teams to identify and address potential problems before they become critical failures.

New South Wales – Mount Arthur Coal Mine

Mount Arthur Coal Mine represents the pinnacle of coal extraction efficiency in New South Wales, operating as the state's largest coal mining operation with an annual production capacity exceeding 20 million tonnes. Located in the Hunter Valley, approximately 12 kilometres southwest of Muswellbrook, Mount Arthur demonstrates how modern open-cut mining operations have evolved into highly sophisticated industrial ecosystems.

The electrical demands at Mount Arthur illustrate why specialised mining cables are essential for large-scale coal operations. The mine operates some of the world's largest draglines, including massive bucket-wheel excavators that can move over 12,000 cubic metres of material per hour. These machines require electrical power measured in megawatts, delivered through cable systems that must withstand constant movement, vibration, and mechanical stress.

Mount Arthur's operations span multiple active mining areas simultaneously, with equipment constantly moving between different coal seams and overburden removal sites. This operational flexibility demands electrical infrastructure that can be rapidly reconfigured and relocated. Type 260 cables prove invaluable in this context because their robust construction allows them to be installed, relocated, and reinstalled repeatedly without degradation in performance.

The mine's commitment to environmental responsibility adds another layer of complexity to its electrical systems. Modern coal mining operations must minimise environmental impact through precise overburden management and rehabilitation programs. This requires sophisticated monitoring and control systems, all dependent on reliable electrical power delivered through cable systems designed to maintain integrity in harsh outdoor environments. The flame-retardant properties of Type 260 cables' EPR insulation provide additional safety benefits in environments where coal dust and methane gas may be present.

Employment at Mount Arthur exceeds 2,000 workers across multiple shifts, making workplace safety absolutely paramount. The mine's electrical systems must support not only production equipment but also extensive safety systems including emergency communications, evacuation lighting, and environmental monitoring equipment. The reliability of Type 260 cables contributes directly to worker safety by ensuring these critical systems remain operational even under adverse conditions.

Queensland – Bowen Basin Coal Operations

Queensland's Bowen Basin represents one of the world's most significant coal-producing regions, encompassing over 60,000 square kilometres and containing more than 50 major coal deposits. Within this vast region, operations like Hail Creek and Ensham demonstrate the scale and sophistication of modern Australian coal mining, with individual mines producing between 3 and 5 million tonnes annually.

The Bowen Basin's geological characteristics create unique challenges for electrical infrastructure. The region's coal deposits often occur in complex geological formations that require sophisticated extraction techniques. Mining operations must frequently adjust their approach based on changing ground conditions, coal quality, and overburden characteristics. This operational flexibility demands electrical systems that can be rapidly reconfigured to support changing equipment layouts and power requirements.

Dragline operations in the Bowen Basin showcase the extreme demands placed on mining electrical systems. These massive machines, some with booms extending over 100 metres and buckets capable of holding 80 cubic metres of material, require electrical power that must be delivered reliably despite the machines' constant movement around the pit. Type 260 cables excel in supporting dragline operations because their flexible construction allows them to trail behind these massive machines whilst their steel armour protection prevents damage from the rough handling inevitable in dragline operations.

The tropical climate of central Queensland adds another dimension to electrical system challenges. The region experiences extreme temperature variations, from scorching summer heat exceeding 40 degrees Celsius to winter conditions that can approach freezing. These temperature swings place tremendous stress on electrical cables, causing expansion and contraction that can lead to conductor fatigue and insulation failure in poorly designed systems. Type 260 cables address these challenges through their EPR insulation system, which maintains flexibility and electrical properties across the full range of Australian climatic conditions.

Water management represents a critical concern in Bowen Basin operations, particularly during Queensland's intense wet season. Mining operations must maintain functionality despite heavy rainfall, flooding, and high humidity conditions. The outer sheath construction of Type 260 cables provides excellent moisture resistance, preventing water ingress that could cause electrical faults or equipment damage.

Western Australia – Jimblebar Iron Ore Mine

Jimblebar Iron Ore Mine, operated by BHP as part of the massive Pilbara iron ore cluster, demonstrates the scale and complexity of modern iron ore extraction. With an annual production capacity approaching 67 million tonnes, Jimblebar represents one of the world's most productive iron ore operations, requiring electrical infrastructure on a scale that matches its enormous output.

The Pilbara region's extreme climate conditions place extraordinary demands on electrical systems. Summer temperatures routinely exceed 45 degrees Celsius, whilst winter nights can drop below freezing. These temperature extremes are compounded by intense solar radiation, severe dust storms, and cyclonic weather systems that can produce winds exceeding 200 kilometres per hour. Type 260 cables prove essential in this environment because their construction materials and design specifications account for these extreme conditions.

Iron ore mining operations require massive mobile equipment that must operate continuously to meet production targets. Jimblebar's fleet includes some of the world's largest haul trucks, with payload capacities exceeding 300 tonnes and engines producing over 3,000 horsepower. Supporting this equipment requires electrical systems that can deliver enormous amounts of power whilst withstanding the constant vibration and mechanical stress generated by heavy machinery operations.

The remote location of Pilbara mining operations adds another layer of complexity to electrical system design. Jimblebar operates hundreds of kilometres from major population centres, making equipment reliability absolutely critical. Equipment failures that might be quickly resolved in urban environments can result in costly production delays and safety concerns when they occur in remote mining locations. Type 260 cables contribute to operational reliability through their robust construction and built-in monitoring capabilities that enable predictive maintenance programs.

Dust control represents a major challenge in Pilbara iron ore operations. The fine iron ore dust generated by mining and processing operations can infiltrate electrical systems, causing short circuits, overheating, and equipment failures. Type 260 cables address dust ingress concerns through their comprehensive sheathing system, which provides multiple barriers against particulate contamination whilst maintaining the flexibility necessary for mobile equipment applications.

New South Wales – Cadia-Ridgeway Copper/Gold Mine

The Cadia-Ridgeway operation near Orange in New South Wales stands as Australia's second-largest open-cut mine by excavated volume, representing a sophisticated copper and gold extraction complex that demonstrates the cutting edge of modern mining technology. This operation showcases how contemporary mining has evolved beyond simple extraction to become a highly integrated industrial process requiring unprecedented electrical system sophistication.

Cadia-Ridgeway's operations encompass multiple simultaneous mining areas, sophisticated ore processing facilities, and extensive infrastructure for waste management and environmental protection. The electrical demands of this integrated operation require cable systems capable of supporting not only traditional mining equipment but also advanced processing systems, environmental monitoring equipment, and sophisticated control systems that optimise operations in real-time.

The mine's copper and gold extraction processes create unique electrical environment challenges. Copper processing involves various chemical treatments that can create corrosive atmospheres capable of degrading electrical systems. Type 260 cables' comprehensive sheathing system provides excellent chemical resistance, protecting electrical conductors from the harsh chemical environment whilst maintaining reliable power delivery to critical processing equipment.

Precision becomes crucial in copper and gold mining operations where ore grades and processing efficiency directly impact profitability. Modern mining operations like Cadia-Ridgeway rely on sophisticated control systems that monitor ore quality, adjust processing parameters, and optimise equipment performance continuously. These systems require absolutely reliable electrical power delivered through cable systems designed to maintain signal integrity and power quality under demanding conditions.

The economic significance of operations like Cadia-Ridgeway means that electrical system failures can result in enormous financial losses. When processing systems worth hundreds of millions of dollars depend on continuous electrical power, cable reliability becomes directly linked to operational profitability. Type 260 cables contribute to operational efficiency through their proven reliability and comprehensive monitoring capabilities that enable proactive maintenance programs.

Application Scenarios for Type 260 Cable

Understanding the practical applications of AS/NZS 1802 Type 260 cables requires appreciating the complex electrical infrastructure demands of modern open-cut mining operations. These cables serve as the critical link between stationary power sources and the mobile equipment that performs the actual work of resource extraction, operating in an environment that would quickly destroy conventional electrical cables.

Feeder Cable for Semi-Mobile Equipment

The most critical application of Type 260 cables lies in their role as feeder cables connecting stationary electrical substations to semi-mobile mining equipment. This application addresses one of the fundamental challenges in open-cut mining: how to deliver reliable electrical power to equipment that must constantly move around the mining site whilst maintaining the flexibility to relocate as mining operations progress.

Consider the operation of a massive dragline excavator, a machine that might weigh over 8,000 tonnes and consume electrical power measured in megawatts. These machines cannot operate from battery power due to their enormous energy requirements, yet they must be able to move freely around the mining site to follow ore bodies and maintain optimal positioning for overburden removal. Type 260 cables solve this challenge by providing a robust electrical connection that can trail behind the dragline whilst withstanding the mechanical stresses of constant movement.

The cable's pliable steel armour construction proves essential in dragline applications. Traditional electrical cables would quickly fail under the stress of being dragged across rough terrain, subjected to impact from falling rocks, and occasionally run over by other mining equipment. The steel wire armour in Type 260 cables distributes mechanical loads across the cable's structure, preventing localised damage that could compromise electrical integrity.

Conveyor systems represent another critical application where Type 260 cables excel as feeder cables. Modern mining operations employ extensive conveyor networks that can stretch for kilometres, transporting millions of tonnes of material annually. These conveyor systems require electrical power for drive motors, control systems, and safety equipment, delivered through cable systems that must accommodate the conveyor's movement and potential relocation as mining operations evolve.

The composite screening system in Type 260 cables provides crucial benefits in conveyor applications. The tinned copper braid screen serves multiple functions: it provides electromagnetic interference shielding that prevents conveyor control systems from being disrupted by electrical noise from other mining equipment, it offers additional mechanical protection for the inner conductors, and it enables effective grounding systems that enhance electrical safety.

Crushing and processing equipment presents unique challenges for feeder cable applications. These systems generate tremendous amounts of electrical noise due to their high-power motors and frequent starting and stopping cycles. Type 260 cables' screening system effectively contains this electrical noise, preventing interference with other mining systems whilst delivering clean, reliable power to the crushing equipment.

Temporary Supply Lines for Mobile Operations

Open-cut mining operations frequently require temporary electrical installations to support equipment during specific phases of the mining process. These temporary supply lines must be rapidly deployable, capable of withstanding harsh treatment, and easily relocatable as mining operations progress. Type 260 cables prove invaluable in these applications due to their robust construction and operational flexibility.

Exploration drilling represents a prime example of temporary supply line applications. As mining companies evaluate new ore deposits or extend existing operations, they deploy drilling equipment to collect geological samples and assess resource quality. This drilling equipment requires reliable electrical power, often in locations where permanent electrical infrastructure doesn't exist. Type 260 cables can be quickly deployed to provide temporary power supply lines that support drilling operations for weeks or months before being relocated to new sites.

The cable's ability to withstand frequent handling and relocation proves crucial in exploration applications. Drilling sites may change weekly as exploration programs progress, requiring electrical supply lines that can be disconnected, coiled, transported, and reinstalled repeatedly without degradation in performance. The pliable construction of Type 260 cables allows them to be coiled to relatively tight radii without damaging internal conductors or compromising electrical integrity.

Sand and gravel mining operations exemplify another important temporary supply line application. These operations often work through relatively small deposits before moving to new locations, requiring electrical infrastructure that can be quickly established and later relocated. Type 260 cables support mobile processing equipment, temporary lighting systems, and mobile office facilities that must be supplied with reliable electrical power throughout the extraction process.

Mine expansion projects create substantial demand for temporary electrical supply lines. When mining operations extend into new areas, temporary electrical infrastructure must be established before permanent systems can be installed. Type 260 cables provide the robust temporary power distribution needed to support construction equipment, temporary facilities, and early-stage mining operations whilst permanent electrical infrastructure is being developed.

Environmental remediation activities at concluded mining sites require temporary electrical systems to support rehabilitation equipment. Soil processing systems, water treatment equipment, and revegetation systems all require electrical power delivered through cable systems that can operate reliably in disturbed environments whilst supporting the gradual restoration of mining sites to productive use.

Resilience in Demanding Terrain Conditions

Australian open-cut mining operations occur in some of the world's most challenging terrain conditions, from the rocky landscapes of Western Australia's Pilbara region to the unstable overburden soils of Queensland coal mines. Type 260 cables excel in these demanding environments through their comprehensive protection systems and robust mechanical design.

Rocky terrain presents particular challenges for mining electrical systems. Sharp rocks can easily penetrate conventional cable sheaths, causing electrical faults and potentially dangerous conditions. The steel wire armour in Type 260 cables provides effective protection against rock damage, distributing impact forces across the cable structure and preventing penetration damage that could compromise electrical safety.

Unstable ground conditions, common in areas where overburden has been removed or where ground water affects soil stability, create additional challenges for electrical cables. Cables may be subjected to crushing forces if they become buried under shifting soil, or they may experience severe bending stress if the ground settles unevenly. Type 260 cables' flexible construction allows them to accommodate ground movement without conductor damage, whilst their robust armour protection prevents crushing damage in unstable soil conditions.

Heavy equipment traffic represents a constant threat to electrical cables in mining operations. Haul trucks weighing over 400 tonnes when loaded cannot always avoid crossing electrical cables, particularly in areas where mining operations are constantly reconfiguring equipment layouts. Type 260 cables can withstand occasional traffic loading without electrical failure, though proper installation practices still aim to minimise such occurrences through appropriate cable routing and protection measures.

Chemical contamination of soil occurs in many mining environments due to ore processing activities, fuel and lubricant spills, and the use of various chemicals in extraction processes. These chemicals can attack conventional cable sheathing materials, causing premature failure and potential safety hazards. Type 260 cables' outer sheath materials provide excellent chemical resistance, maintaining their protective properties even when exposed to various mining chemicals and contaminated soil conditions.

Extreme temperature cycling places significant stress on electrical cables through expansion and contraction effects. Mining operations in central Australia may experience temperature variations exceeding 60 degrees Celsius between summer and winter extremes. Type 260 cables accommodate these temperature variations through their flexible insulation system and robust conductor construction that prevents fatigue failure due to thermal cycling.

Electrical and Mechanical Specifications

The technical specifications of AS/NZS 1802 Type 260 cables represent the culmination of decades of engineering development specifically focused on meeting the demanding requirements of Australian mining operations. Understanding these specifications provides insight into why these cables perform so effectively in applications where conventional electrical cables would quickly fail.

Voltage Rating and Electrical Performance

The Type 260 cable system encompasses multiple voltage ratings designed to match the diverse electrical systems found in modern mining operations. The Type 260.1 variant operates at 1.1 kilovolts, making it suitable for many mobile equipment applications and distribution systems within mining operations. For applications requiring higher voltage capability, the system includes Type 260.3 (3.3 kV), Type 260.6 (6.6 kV), and Type 260.11 (11 kV) variants, providing comprehensive coverage of mining electrical system requirements.

The 1.1 kilovolt rating of Type 260.1 cables positions them perfectly for semi-mobile equipment applications where higher voltages might create safety concerns or where equipment design constraints favour lower voltage operation. This voltage level provides an excellent balance between power transmission capability and electrical safety, allowing substantial power delivery whilst maintaining manageable insulation requirements and safety protocols.

Electrical performance characteristics of Type 260 cables extend well beyond simple voltage ratings. The cable's conductor design, utilising stranded copper construction with cross-sectional areas ranging from 6 square millimetres to 300 square millimetres, enables power transmission capabilities suitable for everything from small portable equipment to massive stationary installations. The stranded conductor construction provides excellent flexibility whilst maintaining low electrical resistance essential for efficient power transmission.

The composite screening system represents a sophisticated approach to electrical performance optimisation. The inner screening consists of semiconductor material that provides smooth electrical field distribution around the conductor, preventing the electrical stress concentrations that could lead to insulation breakdown. The outer screen, constructed from tinned copper braid, provides electromagnetic shielding whilst also serving as an earth conductor for safety and fault detection purposes.

Insulation performance proves critical in mining applications where electrical systems may be exposed to moisture, chemicals, and mechanical stress simultaneously. The ethylene propylene rubber (EPR) insulation system maintains excellent dielectric properties across the full range of environmental conditions encountered in Australian mining operations, from the extreme heat of Pilbara summers to the freezing conditions that can occur during winter nights in elevated mining areas.

Mechanical Construction and Protection Systems

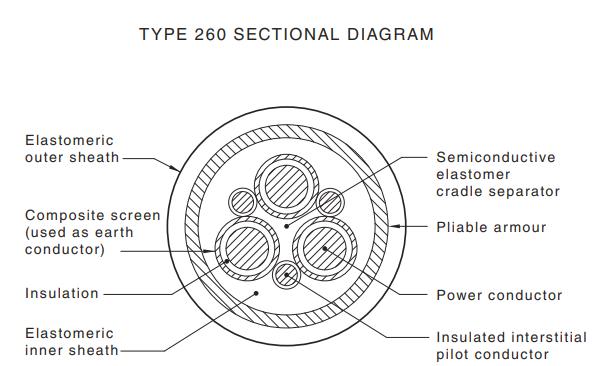

The mechanical design of Type 260 cables addresses the unique challenges faced by electrical systems in mining environments through multiple layers of protection and robust construction techniques. Understanding this construction reveals why these cables can survive conditions that would quickly destroy conventional electrical cables.

The conductor system utilises stranded copper construction that provides the flexibility necessary for mobile equipment applications whilst maintaining the electrical performance required for high-power applications. The stranding pattern, specified precisely in the AS/NZS 1802 standard, balances conductor flexibility with electrical efficiency, ensuring that the cable can be bent and flexed repeatedly without work-hardening the copper conductors.

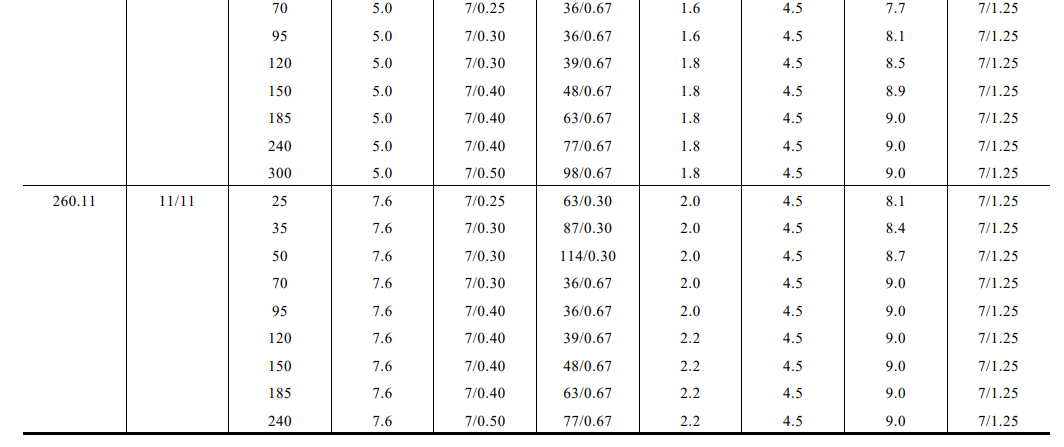

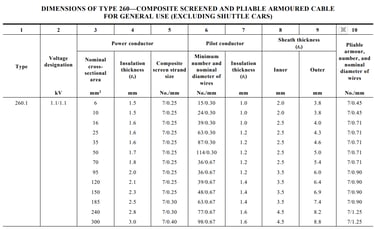

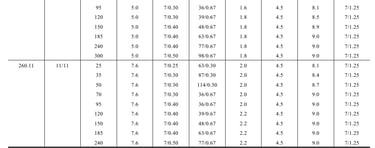

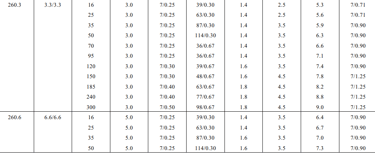

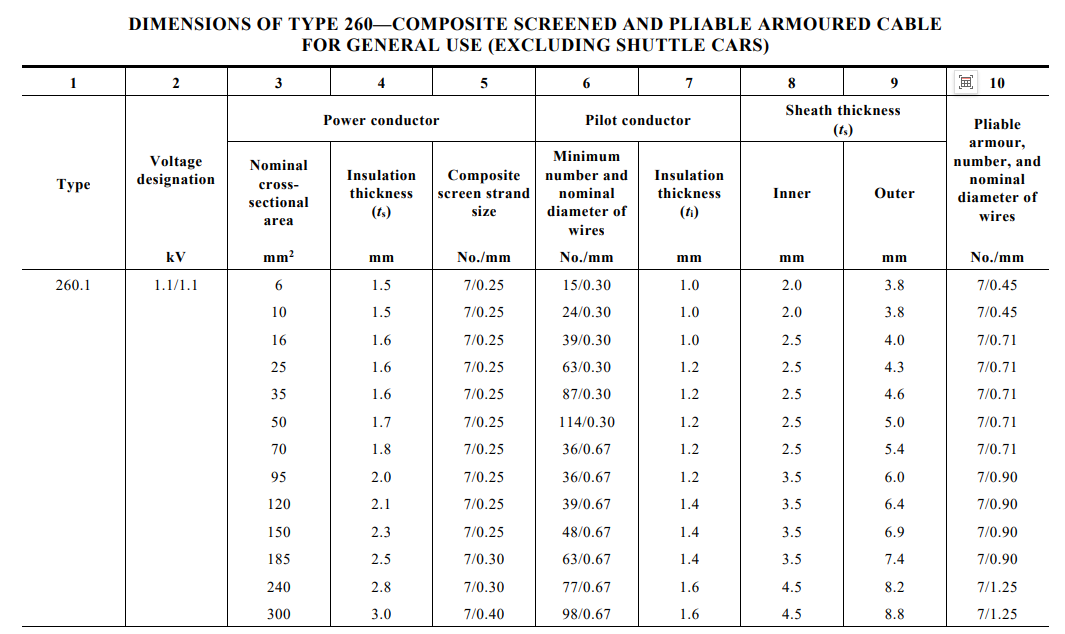

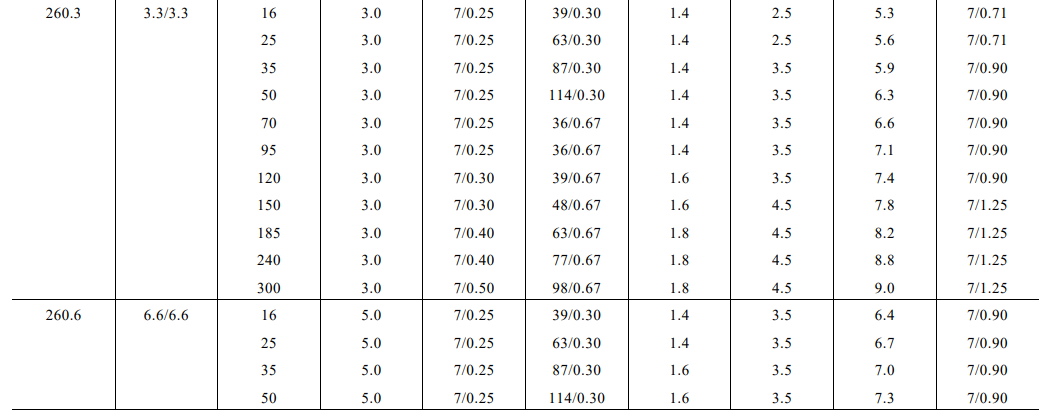

Insulation thickness varies according to conductor size and voltage rating, with larger conductors and higher voltages requiring proportionally thicker insulation systems. For Type 260.1 cables, insulation thickness ranges from 1.5 millimetres for smaller conductors to 3.0 millimetres for the largest 300 square millimetre conductors. This graduated approach optimises both electrical performance and mechanical flexibility across the conductor size range.

The composite screening system represents one of the most sophisticated aspects of Type 260 cable construction. The inner semiconductor screen, applied directly over the conductor insulation, ensures uniform electrical field distribution around the conductor. This inner screen prevents the electrical stress concentrations that could occur at irregularities in the insulation surface, significantly improving the cable's electrical reliability and service life.

The outer composite screen combines multiple functions within a single system. The tinned copper braid provides electromagnetic shielding, earth fault detection capability, and additional mechanical protection for the insulated conductor. The braid construction, specified as multiple strands of specific diameter, ensures both electrical continuity and mechanical flexibility essential for mobile equipment applications.

Sheathing systems provide the primary barrier against environmental hazards whilst maintaining the mechanical flexibility necessary for mining applications. The inner sheath, constructed from polychloroprene (PCP), provides chemical resistance and moisture protection. The outer sheath, also PCP, offers additional protection against abrasion, impact, and chemical attack. The specified sheath thickness varies according to conductor size and expected service conditions, with larger cables receiving proportionally thicker protection.

The pliable steel wire armour represents the most distinctive feature of Type 260 cables, providing mechanical protection that enables these cables to survive conditions impossible for conventional electrical cables. The armour consists of galvanised steel wires arranged in a helical pattern around the cable core. The number and diameter of armour wires varies according to cable size, with larger cables receiving more comprehensive armour protection.

Thermal Performance and Environmental Limits

Understanding the thermal performance characteristics of Type 260 cables proves essential for proper application in mining environments where equipment may operate continuously under demanding conditions. The cable's thermal design addresses both normal operating conditions and emergency scenarios that may occur in mining operations.

Normal operating temperature limits for Type 260 cables extend from minus 25 degrees Celsius to plus 90 degrees Celsius, encompassing the full range of conditions encountered in Australian mining operations. This temperature range accommodates everything from winter operations in elevated mining areas to summer conditions in Australia's hottest mining regions. The EPR insulation system maintains its electrical and mechanical properties throughout this temperature range, ensuring reliable cable performance regardless of climatic conditions.

Emergency operating conditions, which may occur during equipment malfunctions or abnormal operating conditions, allow cable operation up to 130 degrees Celsius for limited periods. This emergency rating provides valuable operational flexibility, allowing mining operations to continue during temporary abnormal conditions whilst maintenance teams address the underlying causes of elevated temperatures.

Short-circuit conditions represent the most demanding thermal stress that mining cables may encounter. During electrical faults, enormous currents may flow through the cable for brief periods, generating intense heat that could damage cable components. Type 260 cables can withstand conductor temperatures up to 250 degrees Celsius for periods up to 5 seconds, providing the thermal withstand capability necessary to maintain cable integrity during fault conditions until protective systems can clear the fault.

Heat dissipation characteristics become crucial when Type 260 cables operate in confined spaces or buried installations where natural air cooling may be limited. The cable's construction materials and configuration optimise heat transfer from the conductor to the surrounding environment, preventing dangerous temperature build-up that could compromise cable integrity or create fire hazards.

Thermal cycling effects, caused by repeated heating and cooling as electrical loads vary throughout mining operation cycles, place significant stress on cable components. Type 260 cables accommodate thermal cycling through their flexible construction and careful selection of materials with compatible thermal expansion characteristics, preventing the mechanical stress that could lead to conductor fatigue or insulation cracking.

Mechanical Performance Parameters

The mechanical performance specifications of Type 260 cables reflect their design for the demanding physical conditions encountered in mining operations. These specifications ensure that the cables can withstand the handling, installation, and operational stresses that would quickly destroy conventional electrical cables.

Tensile strength specifications define the cable's ability to withstand pulling forces that may occur during installation or when the cable trails behind mobile equipment. Type 260 cables can withstand tensile loads of approximately 0.02 kilonewtons per square millimetre of conductor cross-sectional area, providing substantial resistance to mechanical damage during handling and operation.

Bend radius limitations ensure that Type 260 cables maintain their electrical and mechanical integrity when routed around obstacles or stored on cable reels. The minimum bend radius, typically specified as a multiple of the cable's overall diameter, prevents excessive stress on internal components that could cause conductor damage or insulation failure. The flexible construction of Type 260 cables allows relatively tight bend radii compared to conventional power cables of similar capacity.

Impact resistance specifications address the cable's ability to withstand the shock loads that commonly occur in mining environments. Whether from falling rocks, equipment impacts, or rough handling during installation, Type 260 cables must survive impact loads that would cause immediate failure in conventional cables. The steel wire armour provides the primary impact protection, distributing impact forces across the cable structure.

Crush resistance becomes important when cables may be subjected to compressive loads, such as when buried under shifting overburden or when accidentally run over by mining equipment. The armour construction provides significant crush resistance whilst the flexible cable construction allows recovery from moderate compressive loads without permanent damage.

Abrasion resistance specifications ensure that Type 260 cables can withstand the sliding and scraping action that occurs when cables are dragged across rough surfaces or when they experience relative movement against rocky terrain. The outer sheath materials provide excellent abrasion resistance whilst the underlying armour system prevents abrasion damage from penetrating to critical cable components.

Mining Situation FAQs

The practical application of AS/NZS 1802 Type 260 cables in Australian mining operations raises numerous technical questions that mining engineers and maintenance professionals encounter regularly. Understanding these common concerns and their solutions provides valuable insight into the practical considerations that make these cables essential for modern mining operations.

Can Type 260 Cables Survive Heavy Vehicle Traffic?

The question of traffic resistance represents one of the most common concerns raised by mining professionals, particularly given that mining operations involve some of the world's heaviest mobile equipment. Haul trucks with gross weights exceeding 400 tonnes, bulldozers weighing over 100 tonnes, and other massive mining equipment cannot always avoid crossing electrical cables during normal operations.

Type 260 cables address traffic loading through their sophisticated steel wire armour construction, which distributes loads across the cable structure rather than allowing concentrated forces to damage internal components. When a heavy vehicle crosses a properly installed Type 260 cable, the steel armour spreads the load over a significant cable length, preventing the localised compression that would crush conventional cables.

The outer PCP sheath provides additional benefits in traffic situations by offering excellent resistance to petroleum products that may drip from mining equipment. Hydraulic oil, diesel fuel, and various lubricants commonly encountered in mining operations can quickly degrade conventional cable sheaths, but the chemical-resistant properties of PCP maintain protection even when cables are repeatedly exposed to these substances.

However, it's important to understand that whilst Type 260 cables can survive occasional traffic loading, proper installation practices still aim to minimise such occurrences. Cable routing should follow designated pathways where possible, and temporary protective measures such as cable ramps or burial should be employed in areas where heavy traffic is unavoidable. The cables' ability to withstand traffic represents a crucial safety feature rather than a normal operating condition.

Regular inspection protocols become essential in areas where cables may experience traffic loading. Visual inspection can identify damage to outer sheaths or armour wires, whilst electrical testing can detect any degradation in cable performance. The integrated pilot conductors in Type 260 cables enable continuous monitoring of cable integrity, providing early warning of any damage that might compromise electrical safety.

How Do These Cables Perform in Extreme Temperatures?

Australia's mining operations span climatic zones from tropical Queensland to the arid interior, creating temperature challenges that range from freezing winter nights to scorching summer days exceeding 45 degrees Celsius. Understanding how Type 260 cables perform across this temperature range proves crucial for ensuring reliable mining operations throughout the year.

The EPR insulation system in Type 260 cables maintains excellent electrical properties across the specified temperature range of minus 25 to plus 90 degrees Celsius. Unlike some insulation materials that become brittle at low temperatures or soften excessively at high temperatures, EPR maintains consistent flexibility and dielectric strength throughout the operational temperature range. This consistency ensures that cable performance remains predictable regardless of seasonal temperature variations.

Thermal expansion effects, which can place significant stress on electrical cables, are accommodated through the flexible construction of Type 260 cables. The stranded conductor construction allows for thermal expansion without creating mechanical stress concentrations, whilst the flexible sheath materials accommodate changes in cable length without compromising protective integrity.

Cold weather performance becomes particularly important in elevated mining areas where winter temperatures may approach or exceed the cable's minimum operating temperature. The EPR insulation system maintains flexibility even at extremely low temperatures, preventing the insulation cracking that could occur with less suitable materials. However, installation practices during cold weather require special attention to handling procedures, as cables become less flexible at low temperatures.

Hot weather operation presents different challenges, particularly when cables are exposed to direct solar radiation or when they operate in confined spaces with limited air circulation. The thermal design of Type 260 cables accounts for these conditions through careful selection of materials and thermal performance specifications that prevent dangerous temperature build-up under normal operating conditions.

Emergency temperature ratings provide crucial operational flexibility during abnormal conditions. The ability to operate at temperatures up to 130 degrees Celsius for limited periods allows mining operations to continue during temporary equipment malfunctions or abnormal loading conditions whilst maintenance teams address underlying problems. This emergency capability can prevent costly production shutdowns whilst ensuring continued electrical safety.

How Should Conductor Size Be Selected?

Selecting appropriate conductor sizes for Type 260 cables requires careful consideration of multiple factors including electrical load requirements, cable length, voltage drop limitations, and mechanical installation constraints. Understanding these selection criteria ensures optimal cable performance and operational economy.

Electrical load analysis forms the foundation of conductor size selection, requiring detailed evaluation of connected equipment power requirements, operating duty cycles, and potential future load growth. For mobile equipment applications, loads may include not only drive motors but also auxiliary systems such as lighting, control circuits, and communication equipment. Comprehensive load analysis ensures that selected conductor sizes can handle peak demand conditions without overheating.

Voltage drop calculations become particularly important in mining applications where cable lengths may extend for hundreds or even thousands of metres. Excessive voltage drop can cause equipment malfunction, reduced efficiency, and premature failure of electrical systems. Type 260 cables' low-resistance conductor construction minimises voltage drop, but proper conductor sizing remains essential for maintaining acceptable voltage levels at equipment terminals.

For typical mining applications, conductor sizes can be broadly categorised by application type. Smaller conductors in the 25 to 70 square millimetre range typically serve portable equipment, conveyor systems, and drilling equipment where power requirements are moderate and cable flexibility remains important. Larger conductors from 95 to 300 square millimetres support stationary installations, large mobile equipment, and main distribution feeders where power transmission capability takes precedence over flexibility.

Mechanical considerations influence conductor selection beyond purely electrical requirements. Larger conductors create heavier, less flexible cables that may be more difficult to install and handle in mobile equipment applications. Conversely, very small conductors may lack the mechanical strength necessary for demanding mining applications. Balancing electrical performance with mechanical suitability requires careful consideration of specific application requirements.

Future expansion planning should influence conductor size selection, particularly for semi-permanent installations that may need to support additional loads as mining operations evolve. Selecting conductors with moderate excess capacity can accommodate load growth without requiring complete cable replacement, providing long-term economic benefits despite higher initial costs.

What About Fire Safety and Fault Protection?

Fire safety represents a critical concern in mining operations where electrical systems operate in environments containing combustible materials, chemical vapours, and explosive dust concentrations. Understanding the fire safety features and fault protection capabilities of Type 260 cables proves essential for maintaining safe mining operations.

The EPR insulation system provides inherent flame-retardant properties that prevent cable fires from spreading along cable runs. Unlike some insulation materials that can support combustion, EPR insulation is formulated to resist ignition and self-extinguish when flame sources are removed. This characteristic proves particularly important in mining environments where ignition sources may include equipment malfunctions, welding operations, or electrical faults.

Fault detection capabilities built into Type 260 cables enable rapid identification and isolation of electrical problems before they can develop into serious safety hazards. The composite screening system provides effective earth fault detection, allowing protective systems to identify ground faults quickly and disconnect affected circuits before dangerous conditions can develop.

The integrated pilot conductors serve multiple safety functions beyond simple fault detection. These conductors enable continuous monitoring of cable integrity, allowing maintenance systems to identify developing problems such as moisture ingress, insulation degradation, or mechanical damage before they cause electrical failures. This predictive maintenance capability significantly enhances operational safety by preventing unexpected failures that could create hazardous conditions.

Short-circuit protection coordination becomes crucial in mining electrical systems where fault currents can reach enormous magnitudes due to the high-power electrical systems involved. Type 260 cables' short-circuit withstand capability ensures that cables can survive fault conditions long enough for protective systems to operate, preventing cable fires or explosions that could endanger personnel or equipment.

Chemical fire suppression systems commonly used in mining operations require electrical cables that won't produce toxic fumes when exposed to fire or chemical suppression agents. The materials used in Type 260 cable
