AS/NZS 1802 Type 260 Mining Cable: A Comprehensive Guide for Australian Copper Mining Operations

Introduction

In the rugged landscape of Australian mining, where copper extraction occurs alongside gold production in some of the world's most challenging underground environments, the selection of appropriate electrical infrastructure becomes absolutely critical. The AS/NZS 1802 Type 260 cable represents a sophisticated engineering solution specifically designed to meet the demanding requirements of underground mining operations across Australia's diverse geological conditions.

This comprehensive guide explores the technical specifications, practical applications, and real-world implementation of AS/NZS 1802 Type 260 cables within the context of Australian copper mining operations. Understanding these cables requires appreciating their unique construction as elastomer-insulated, elastomer-sheathed, composite-screened, pliable armoured copper cables rated from 1.1/1.1 kV up to 11/11 kV for power distribution applications.

The Type 260 cable stands as a testament to engineering excellence, specifically designed for underground mine fixed or semi-permanent supply lines where heavy mechanical protection becomes essential. These cables serve critical infrastructure including pumps that manage groundwater infiltration, conveyor systems that transport ore to the surface, and ventilation systems that maintain safe working environments hundreds of metres below ground level.

Australian Gold and Copper Mine Context

Major Mining Operations Across Australia

Australia's mining landscape encompasses some of the world's most significant gold and copper operations, many of which operate as dual-commodity mines where Type 260 cables find extensive application. Understanding these operations provides crucial context for appreciating the demanding environment these cables must withstand.

Boddington Mine in Western Australia stands as Australia's largest gold and copper operation, owned and operated by Newmont Corporation. This massive open-pit operation produces substantial quantities of both commodities, requiring extensive electrical infrastructure to support crushing, grinding, and flotation processes. The mine's scale demands robust electrical distribution systems capable of handling high-voltage applications across vast distances, making Type 260 cables ideal for connecting major processing equipment and infrastructure.

Cadia Valley Operations in New South Wales represents one of Australia's premier copper-gold mining complexes, consistently ranking among the nation's top producers. The underground block-cave mining method employed at Cadia creates unique electrical challenges, requiring cables that can withstand significant mechanical stress while maintaining reliable power distribution to critical underground equipment. The complex geological conditions and deep mining operations at Cadia exemplify the demanding environment for which Type 260 cables were specifically engineered.

Tanami Mine in the Northern Territory demonstrates the challenges of remote mining operations, where reliable electrical infrastructure becomes even more critical due to the distance from urban support networks. Newmont's continued expansion of Tanami operations requires electrical systems that can operate reliably in extreme heat, dust, and isolation conditions typical of Australia's interior mining regions.

Tropicana Mine in Western Australia showcases modern mining's evolution toward sustainable operations, incorporating hybrid renewable power systems alongside traditional electrical infrastructure. This integration requires cables capable of handling varying power loads and maintaining system stability across different operational modes, highlighting the versatility required in modern mining electrical systems.

Kalgoorlie Super Pit remains one of Australia's most iconic mining operations, representing over a century of continuous gold extraction. The Super Pit's massive scale and ongoing expansion require electrical infrastructure capable of supporting enormous earth-moving equipment, processing facilities, and support systems, all operating in one of Australia's most challenging climatic conditions.

Telfer Mine, recently acquired by Greatland Gold, represents a significant gold, copper, and silver operation in Western Australia's remote Pilbara region. The mine's multi-commodity focus and remote location create unique electrical challenges, requiring robust cable systems capable of supporting diverse processing requirements while maintaining reliability in extreme environmental conditions.

Relevance to Copper Mining Applications

The connection between these primarily gold-focused operations and copper mining applications becomes clear when examining the electrical infrastructure requirements. Many Australian gold operations, including Boddington, Cadia, and Telfer, also produce significant copper quantities, creating electrical systems that must support both commodity processing streams simultaneously.

These multi-commodity operations require electrical infrastructure capable of handling the specific demands of copper processing, including high-current applications for electrowinning, substantial power requirements for crushing and grinding copper-bearing ore, and reliable distribution systems for pumping and dewatering operations essential in copper extraction processes.

The remote location of many Australian mining operations amplifies the importance of reliable electrical infrastructure. Type 260 cables serve as the backbone of power distribution systems that must operate continuously in environments where equipment failure can result in significant production losses and safety concerns.

Application Scenarios in Copper Mining Operations

Understanding the specific application scenarios for AS/NZS 1802 Type 260 cables in copper mining operations requires examining the unique electrical demands of underground copper extraction and processing. These cables excel in applications where robust construction, reliable performance, and resistance to mechanical stress become paramount considerations.

Fixed Equipment Power Distribution represents the primary application domain for Type 260 cables in copper mining operations. These cables serve as feeders for stationary equipment including primary crushers, grinding mills, flotation cells, and thickeners that process copper ore. The cables' robust construction makes them ideal for connecting transformer banks to major processing equipment, where consistent power delivery directly impacts production efficiency and equipment longevity.

Semi-Permanent Installation Applications encompass scenarios where equipment may require periodic relocation but does not involve continuous movement. In copper mining, this includes portable crushing stations, temporary dewatering systems, and modular processing equipment that may be relocated as mining operations progress through different ore bodies. The Type 260 cable's pliable armoured construction provides the mechanical protection necessary for these applications while maintaining electrical integrity during installation and occasional repositioning.

Interconnection Systems between in-bye transformer units and gate-end boxes represent another critical application area. In underground copper mining operations, electrical distribution must often traverse significant distances through challenging geological conditions. Type 260 cables provide the mechanical protection and electrical performance necessary for these long-distance power transmission applications, ensuring reliable power delivery to remote underground locations.

Ventilation and Environmental Control Systems in copper mining operations require robust electrical infrastructure to maintain safe working conditions. Type 260 cables serve ventilation fans, air conditioning systems, and environmental monitoring equipment that operate continuously in challenging underground environments. The cables' composite screening and elastomer sheathing provide the environmental protection necessary for these critical safety systems.

Pumping and Dewatering Applications represent perhaps the most demanding application scenario for Type 260 cables in copper mining. Underground water management requires powerful pumping systems operating continuously in wet, corrosive environments. The cables' elastomer sheathing and armoured construction provide essential protection against water ingress and mechanical damage while maintaining electrical performance under high-load conditions.

It's crucial to understand that Type 260 cables are specifically not suitable for constant reeling applications such as shuttle cars, draglines, or other mobile equipment requiring continuous cable movement. This limitation stems from the cable's construction, which prioritises mechanical protection and electrical performance in stationary applications over the flexibility required for continuous movement.

Technical and Electrical Parameters

The technical specifications of AS/NZS 1802 Type 260 cables reflect sophisticated engineering designed to meet the demanding requirements of Australian mining operations. Understanding these parameters requires examining the relationship between construction details, electrical performance, and practical application requirements.

Voltage Classifications and Sub-Types

The Type 260 cable system encompasses four distinct voltage classifications, each optimised for specific application requirements within mining operations. Type 260.1 operates at 1.1/1.1 kV, providing reliable power distribution for lower-voltage applications including lighting systems, small motors, and control circuits commonly found in mining operations. This voltage level suits applications where safety considerations require lower electrical potential while maintaining adequate power delivery capacity.

Type 260.3 cables operate at 3.3/3.3 kV, representing the most common voltage level for medium-power mining applications. This voltage classification serves conveyor systems, medium-sized pumps, and processing equipment motors that form the backbone of many mining operations. The 3.3 kV level provides an optimal balance between power transmission capability and safety considerations in underground environments.

Type 260.6 cables rated at 6.6/6.6 kV support high-power applications including large grinding mills, primary crushers, and major pumping systems. This voltage level enables efficient power transmission over longer distances while maintaining acceptable voltage drop characteristics, making it ideal for connecting remote equipment to central power distribution points.

Type 260.11 cables operating at 11/11 kV represent the highest voltage classification within the Type 260 system, designed for major power distribution applications and long-distance transmission within mining operations. These cables connect main transformers to distribution substations and serve the largest mining equipment requiring substantial power input.

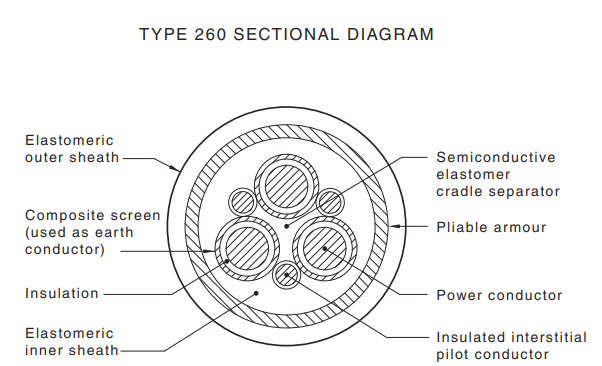

Construction Parameters and Specifications

The conductor sizes available across the Type 260 range span from 6 mm² to 300 mm², providing flexibility to match cable capacity with specific load requirements. Smaller conductor sizes serve control circuits and auxiliary equipment, while larger conductors handle the substantial current requirements of major mining equipment.

Insulation thickness varies significantly across voltage classifications, reflecting the electrical stress requirements at different operating voltages. Type 260.1 cables feature insulation thickness ranging from 1.5 mm to 3.0 mm depending on conductor size, while Type 260.11 cables require insulation thickness from 7.6 mm to ensure adequate electrical clearance at 11 kV operating voltage.

Composite screening represents a critical design element that distinguishes Type 260 cables from simpler mining cable designs. The composite screen consists of textile and copper braid layers surrounding the insulated conductors, providing both electrical symmetry and electromagnetic containment. This screening system ensures reliable operation in the electrically noisy environment typical of mining operations, where multiple high-power motors and switching equipment can create electromagnetic interference.

Sheath thickness parameters range from 1.0 mm for smaller Type 260.1 cables to 2.2 mm for larger Type 260.11 configurations. The elastomer sheath material provides essential protection against moisture ingress, chemical attack, and mechanical damage while maintaining flexibility necessary for installation in underground environments.

Pliable armour construction utilises multiple wire layers to provide mechanical protection while maintaining cable flexibility. The armour wire configuration varies from 15 wires of 0.30 mm diameter for smaller cables to 98 wires of 0.67 mm diameter for larger configurations, with the number and size of armour wires optimised for each cable size and voltage rating.

Pilot Conductor Systems

Pilot conductors integrated within Type 260 cables serve critical auxiliary functions including equipment monitoring, control signal transmission, and protective relay operation. These conductors feature separate insulation systems with thickness ranging from 2.0 mm to 4.5 mm, ensuring reliable operation of control and monitoring systems essential for safe mining operations.

The pilot conductor system enables remote monitoring of equipment status, transmission of control signals for automated systems, and operation of protective devices that ensure safe equipment operation. In copper mining applications, pilot conductors might carry signals from level sensors in flotation cells, temperature monitors in grinding mills, or vibration sensors on major rotating equipment.

Frequently Asked Questions: Mining Applications and Technical Considerations

Q1: Can Type 260 cables be used with mobile equipment such as shuttle cars or draglines?

Answer: Type 260 cables are specifically designed for fixed or semi-permanent installations and are not suitable for applications involving constant cable movement or reeling operations. The cable's construction prioritises mechanical protection and electrical performance in stationary applications over the flexibility required for continuous movement.

For mobile equipment applications, alternative cable types such as Type 240 or Type 241 may be more appropriate, as these designs incorporate construction features specifically intended for reeling and continuous movement applications. The pliable armour and composite screening of Type 260 cables, while excellent for fixed installations, can suffer fatigue damage under continuous flexing conditions typical of mobile equipment operation.

Mining operations requiring power supply to mobile equipment should consider dedicated reeling cable systems or alternative power supply methods such as trailing cables specifically designed for mobile applications.

Q2: What environmental resistance properties make Type 260 cables suitable for Australian mining conditions?

Answer: Type 260 cables incorporate several design features that provide exceptional environmental resistance essential for Australian mining operations. The elastomer sheath material offers superior resistance to oil, heat, moisture, and chemical attack commonly encountered in mining environments.

The composite screening system provides protection against electromagnetic interference while the pliable armour offers mechanical protection against impact, crushing, and abrasion. These construction features enable reliable operation in the harsh conditions typical of Australian mines, including extreme temperature variations, high humidity, corrosive groundwater, and mechanical stress from mining equipment operation.

The cable's construction specifically addresses challenges such as the high temperatures common in Australian underground operations, the corrosive effects of mineral-laden groundwater, and the mechanical stress imposed by continuous mining equipment operation. Regular inspection and maintenance schedules should be established to ensure continued reliable operation in these demanding conditions.

Q3: How should conductor size be selected for specific mining applications?

Answer: Conductor size selection for Type 260 cables requires careful consideration of several factors including load current requirements, voltage drop limitations, installation distance, and environmental operating conditions. The available conductor sizes ranging from 6 mm² to 300 mm² provide flexibility to optimise cable selection for specific applications.

Load current calculation forms the foundation of conductor sizing, requiring analysis of connected equipment power requirements, starting currents for motor applications, and diversity factors for multiple connected loads. Mining equipment often features high starting currents that must be considered in conductor sizing calculations.

Voltage drop analysis becomes particularly important in mining applications where cables may span considerable distances between power sources and connected equipment. Australian mining operations often require power transmission over hundreds of metres, making voltage drop a critical consideration in conductor selection.

Environmental factors including ambient temperature, installation method, and cable grouping effects must be considered when determining current-carrying capacity. Underground mining environments often feature elevated temperatures that reduce cable current-carrying capacity, requiring conductor upsizing to maintain adequate performance.

Mining engineers should consult detailed cable catalogues and electrical design standards to ensure proper conductor selection for specific applications, considering both normal operating conditions and emergency or fault conditions that may impose additional electrical stress on the cable system.

Q4: What is the purpose of pilot conductors in Type 260 cables?

Answer: Pilot conductors serve essential auxiliary functions that enhance the safety and operational efficiency of mining electrical systems. These conductors provide dedicated pathways for control signals, monitoring systems, and protective device operation separate from the main power conductors.

Control signal transmission enables remote operation of mining equipment, allowing operators to control pumps, conveyors, and processing equipment from central control rooms. This capability is particularly valuable in underground mining operations where direct operator access to equipment may be limited or dangerous.

Equipment monitoring applications utilise pilot conductors to transmit sensor signals including temperature, vibration, pressure, and flow measurements from remote equipment locations. These monitoring systems enable predictive maintenance programs and early detection of equipment problems that could lead to costly failures or safety hazards.

Protective relay operation depends on pilot conductors to transmit fault detection signals and coordinate protective device operation across the electrical system. In mining applications, coordinated protection systems help prevent electrical faults from propagating through the system and causing widespread equipment damage or safety hazards.

The separate insulation system for pilot conductors ensures reliable operation even under electrical fault conditions affecting the main power conductors, maintaining critical control and monitoring functions during emergency conditions.

Q5: What specific installation challenges exist in Australian mining operations?

Answer: Australian mining operations present unique installation challenges that must be addressed through careful planning and appropriate cable selection. The remote location of many Australian mines creates logistical challenges for cable installation and maintenance, requiring robust systems that can operate reliably with limited support infrastructure.

Extreme environmental conditions including high temperatures, dust, and corrosive groundwater require special consideration during cable installation and ongoing maintenance. Mines in locations such as the Pilbara region or central Australian operations face extreme temperature variations that can affect cable performance and longevity.

Geological challenges including unstable ground conditions, seismic activity, and corrosive mineral deposits create unique installation requirements. Cable routing must consider ground movement, water infiltration, and chemical attack from mineral-laden groundwater common in Australian mining operations.

Access limitations in underground mining operations require careful planning of cable routes and installation methods. Limited access during installation and maintenance phases demands robust cable systems that can operate reliably with minimal maintenance intervention.

Regulatory compliance with Australian mining safety regulations requires adherence to strict installation standards and ongoing inspection requirements. Type 260 cables must be installed and maintained according to AS/NZS standards and relevant mining safety regulations to ensure continued safe operation.

Mining operations should establish comprehensive installation procedures, regular inspection schedules, and maintenance protocols to ensure continued reliable operation of Type 260 cable systems in these demanding environments.

Q6: What are the requirements for cable jointing and termination in mining applications?

Answer: Cable jointing and termination in mining applications require strict adherence to AS/NZS standards and specialised techniques appropriate for the demanding mining environment. All joints and terminations must be rated for the same voltage class as the cable system and provide equivalent environmental protection.

Joint construction typically utilises heat-shrink or cold-applied insulation systems specifically designed for mining applications. These joints must maintain the cable's mechanical strength, electrical performance, and environmental protection while providing reliable long-term operation in challenging conditions.

Termination requirements include proper strain relief, environmental sealing, and electrical clearance appropriate for the operating voltage. Mining applications often require terminations that can withstand vibration, mechanical stress, and environmental contamination while maintaining safe electrical clearances.

Installation techniques must consider the mechanical stress imposed by mining equipment operation, ground movement, and thermal cycling. Proper cable support, stress relief, and protection from mechanical damage are essential for reliable joint and termination performance.

Testing and commissioning procedures should include insulation resistance testing, continuity verification, and environmental seal integrity testing to ensure proper installation quality. Regular inspection and maintenance of joints and terminations are essential for continued reliable operation in mining environments.

All jointing and termination work should be performed by qualified personnel using materials and techniques specifically approved for mining applications, ensuring compliance with relevant safety regulations and electrical standards.

Conclusion

The AS/NZS 1802 Type 260 cable system represents a sophisticated engineering solution specifically designed to meet the demanding requirements of Australian mining operations. Through its robust construction featuring elastomer insulation, composite screening, and pliable armoured protection, these cables provide reliable power distribution for the challenging conditions encountered in copper and gold mining operations across Australia.

The cable's versatility across voltage ranges from 1.1/1.1 kV to 11/11 kV, combined with conductor sizes spanning 6 mm² to 300 mm², enables optimal matching of cable characteristics to specific application requirements. This flexibility proves particularly valuable in the diverse operational requirements of major Australian mining operations including Boddington, Cadia Valley, Tanami, and other significant copper-gold operations.

Understanding the technical specifications, application limitations, and installation requirements of Type 260 cables enables mining engineers to make informed decisions about electrical infrastructure that directly impacts operational safety, reliability, and efficiency. The cable's design specifically addresses the unique challenges of Australian mining operations, including extreme environmental conditions, remote locations, and demanding mechanical requirements.

The comprehensive FAQ section addresses common concerns and technical questions that arise during cable selection and installation, providing practical guidance for real-world applications. From conductor sizing considerations to environmental resistance properties, these insights help ensure successful implementation of Type 260 cable systems in mining applications.

As Australian mining operations continue to evolve toward greater automation, higher production demands, and enhanced safety requirements, the role of reliable electrical infrastructure becomes increasingly critical. Type 260 cables provide the robust foundation necessary to support these advancing operational requirements while maintaining the safety and reliability standards essential for successful mining operations.

The continued development and refinement of mining cable technology, exemplified by the AS/NZS 1802 Type 260 system, demonstrates the mining industry's commitment to operational excellence and safety. Through proper selection, installation, and maintenance of these sophisticated cable systems, Australian mining operations can maintain their position as global leaders in safe, efficient, and environmentally responsible mineral extraction.

Future developments in mining cable technology will likely focus on enhanced environmental resistance, improved monitoring capabilities, and integration with digital mining systems. However, the fundamental principles embodied in the Type 260 design—robust construction, reliable performance, and comprehensive protection—will continue to form the foundation of successful mining electrical systems for years to come.

This comprehensive guide provides essential information for mining engineers, electrical contractors, and safety professionals involved in the selection and implementation of electrical infrastructure in Australian mining operations. Continued reference to current AS/NZS standards and consultation with qualified professionals ensures optimal system performance and compliance with evolving regulatory requirements.
