AS/NZS 1802 Type 260 Mining Cables: Essential Infrastructure for Australia's Gold Mining Industry

Introduction

Australia's gold mining industry relies heavily on robust electrical infrastructure to power the massive machinery and equipment that extract precious metals from some of the world's most challenging environments. At the heart of this electrical network are specialised mining cables that must withstand extreme conditions whilst delivering reliable power transmission. Among these critical components, the AS/NZS 1802 Type 260 composite screened, pliable armoured cables stand out as essential infrastructure for medium-voltage applications ranging from 1.1 to 11 kilovolts.

Understanding the significance of these cables requires appreciating the unique demands of mining operations. Unlike conventional industrial applications, mining environments present extraordinary challenges including mechanical stress from heavy machinery, abrasive conditions from rock and dust, temperature extremes, and the constant risk of physical damage from equipment movement. The AS/NZS 1802 standard specifically addresses these challenges by establishing rigorous requirements for mechanical robustness, electrical symmetry, and fault protection that are absolutely essential for safe and efficient mining operations.

Type 260 cables represent a sophisticated engineering solution that balances flexibility with durability. These cables feature a composite screened design that provides excellent fault detection capabilities, whilst the pliable armour construction offers superior mechanical protection without sacrificing the flexibility needed for trailing applications. This combination makes them particularly suitable for powering mobile equipment, transportable substations, and underground feeders where traditional rigid cables would fail under the constant movement and harsh conditions typical of mining operations.

The importance of electrical symmetry in mining cables cannot be overstated. In underground environments where worker safety depends on reliable earth-fault protection systems, the symmetrical conductor arrangement of Type 260 cables ensures that protective relays can quickly detect and isolate dangerous fault conditions. This design feature, combined with the integrated pilot cores for monitoring purposes, creates a comprehensive safety system that protects both equipment and personnel in Australia's demanding mining environments.

Australia's Major Gold Mines: Context and Application Sites

Australia's gold mining landscape is dominated by several world-class operations that showcase the diverse geological and operational challenges where Type 260 cables prove their worth. Understanding these mining environments provides crucial context for appreciating why specialised cables like the Type 260 are absolutely essential for safe and efficient operations.

The Boddington Gold Mine in Western Australia stands as one of the country's largest gold producers, operating as both an open-pit and underground operation. Located approximately 130 kilometres southeast of Perth, Boddington processes over 40 million tonnes of ore annually, requiring an extensive electrical infrastructure to power crushing circuits, conveyor systems, and processing facilities. The combination of open-pit and underground operations creates unique challenges for cable installations, as equipment must transition between surface and underground environments whilst maintaining reliable power delivery.

The legendary Kalgoorlie Super Pit, operated by Kalgoorlie Consolidated Gold Mines (KCGM), represents one of Australia's most iconic mining operations. This massive open-pit mine, stretching over 3.5 kilometres long and 1.5 kilometres wide, relies on enormous mobile equipment including some of the world's largest haul trucks and excavators. The scale of operations at the Super Pit demands robust electrical infrastructure capable of supporting high-power mobile equipment across vast distances, making Type 260 cables with their trailing capabilities and mechanical protection essential for reliable operations.

Cadia Mine, located in New South Wales, operates as one of the world's largest gold-copper mines, utilising both open-pit and underground mining methods. The operation's use of large-scale block caving techniques underground requires sophisticated electrical systems to power ventilation fans, crushers, and materials handling equipment. The combination of high-voltage requirements and the need for flexible cable installations in challenging underground environments makes Type 260 cables particularly valuable for Cadia's operations.

The Tropicana Gold Mine, a joint venture between AngloGold Ashanti and Independence Group, operates in the remote Great Western Woodlands region of Western Australia. This operation demonstrates the challenges of maintaining reliable electrical infrastructure in isolated locations where equipment reliability is paramount. The mine's reliance on mobile equipment and the need for flexible electrical connections to support ongoing mining operations highlight the importance of mechanically robust cables like the Type 260.

Northern Star Resources operates several significant gold mines including the Tanami operation in the Northern Territory, St Ives near Kambalda, and the Kalgoorlie operations. Each of these mines presents unique challenges, from the remote location of Tanami requiring exceptional equipment reliability, to the underground focus of St Ives demanding cables capable of handling the confined spaces and mechanical stresses of underground mining. The diversity of these operations demonstrates why a standardised cable solution like Type 260 is so valuable across different mining environments.

The Telfer Gold Mine in the Pilbara region of Western Australia, operated by Newcrest Mining, combines open-pit and underground operations in one of Australia's most remote and challenging environments. The extreme temperatures, dust conditions, and logistical challenges of operating in the Pilbara make equipment reliability absolutely critical. Type 260 cables provide the durability and reliability essential for maintaining operations in such demanding conditions.

Wiluna Mining Corporation's operations in Western Australia and the Agnew Gold Mine represent mid-tier operations that nonetheless require the same level of electrical infrastructure reliability as their larger counterparts. These operations often face tighter budget constraints, making the long-term reliability and reduced maintenance requirements of properly specified cables like Type 260 even more crucial for operational success.

The Gwalia underground mine, part of St Barbara Limited's operations, represents a modern underground mining operation that relies heavily on automated equipment and sophisticated electrical systems. The confined spaces and continuous operation requirements of underground mining create unique challenges for electrical infrastructure, where cable failure can result in significant production losses and safety risks.

Application Scenarios for Type 260 in Gold Mines

The versatility of AS/NZS 1802 Type 260 cables makes them suitable for numerous critical applications across Australian gold mining operations. Understanding these specific use cases helps demonstrate why these cables are considered essential infrastructure for modern mining operations.

Feeder cables for heavy machinery represent one of the most demanding applications for Type 260 cables. In open-pit operations like the Kalgoorlie Super Pit or Boddington, massive excavators and haul trucks require reliable power connections that can withstand the constant movement and vibration inherent in mining operations. The pliable armour construction of Type 260 cables provides the mechanical protection necessary to prevent damage from crushing or abrasion whilst maintaining the flexibility needed for equipment that must move continuously throughout the mining operation.

Transportable substations present another critical application where Type 260 cables excel. These mobile power distribution units must be relocated frequently as mining operations progress, requiring cables that can be repeatedly connected and disconnected without degrading performance. The robust construction of Type 260 cables, combined with their standardised termination requirements, makes them ideal for these applications where reliability during frequent handling is paramount.

Underground feeder applications in mines like Cadia and St Ives require cables capable of handling the unique challenges of confined spaces and limited access for maintenance. The composite screening system of Type 260 cables provides superior fault detection capabilities, whilst the pliable armour protects against mechanical damage from rock falls or equipment contact. These features are particularly valuable in underground environments where cable failure can result in extended downtime and significant safety risks.

Mobile equipment power supplies, including drill rigs, mobile crushers, and conveyor systems, rely heavily on Type 260 cables for reliable operation. The trailing capability of these cables, combined with their mechanical robustness, makes them suitable for equipment that must operate in harsh conditions whilst maintaining power connections. This application is particularly common in the Pilbara region where mobile equipment operates in extremely dusty and abrasive conditions.

Surface installations connecting processing facilities, workshops, and administrative areas also benefit from Type 260 cables, particularly in locations where mechanical protection is required. The cables' ability to withstand harsh environmental conditions, including UV exposure, temperature extremes, and chemical exposure from processing operations, makes them suitable for permanent installations that must operate reliably for extended periods.

Emergency power systems and backup generators often utilise Type 260 cables to ensure reliable connections during critical situations. The fault detection capabilities provided by the composite screening system are particularly valuable in these applications, where power system reliability can be a matter of life and death in underground mining environments.

The standardised nature of Type 260 cables also makes them valuable for maintenance and expansion applications. Mining operations frequently require electrical system modifications as operations evolve, and having a standardised cable solution reduces inventory requirements whilst ensuring compatibility across different applications and equipment types.

Electrical and Mechanical Parameters of Type 260 Cables

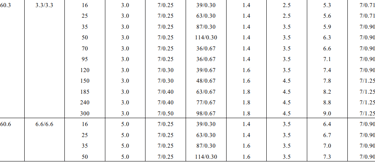

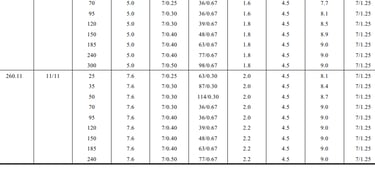

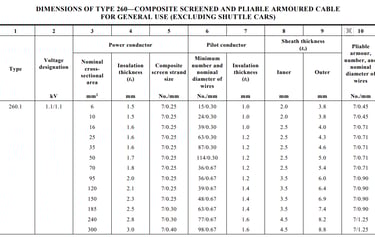

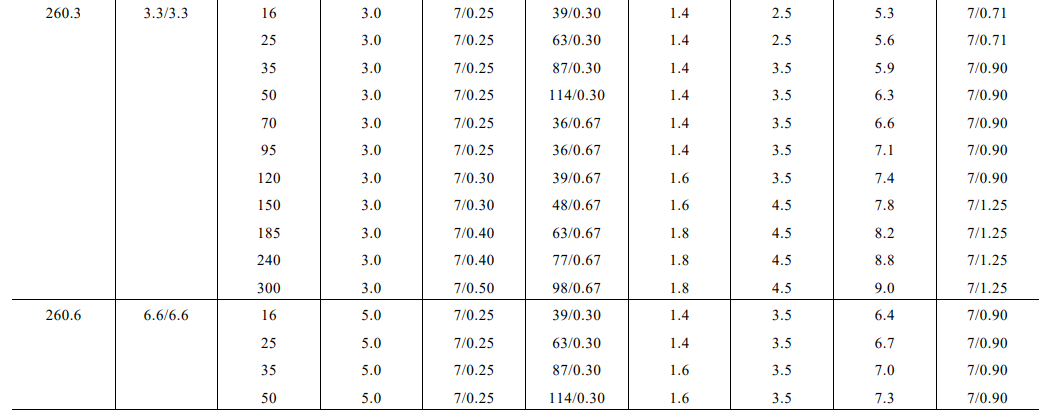

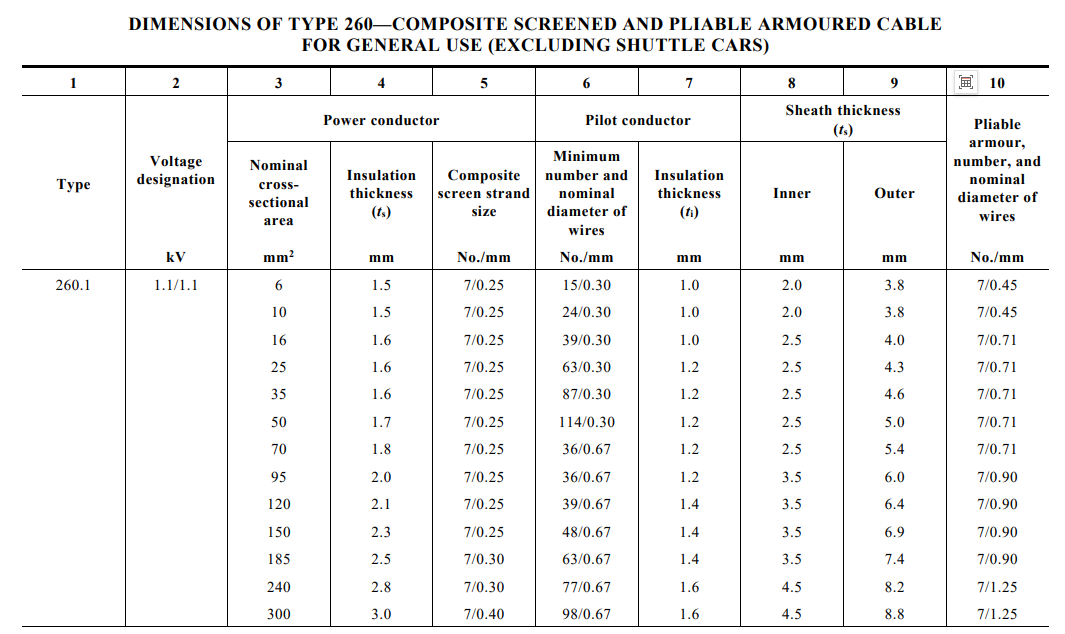

The technical specifications of AS/NZS 1802 Type 260 cables reflect the sophisticated engineering required to meet the demanding requirements of mining applications. Understanding these parameters is crucial for proper cable selection and installation in mining environments.

The voltage ratings of Type 260 cables span from 1.1/1.1 kV to 11/11 kV, providing flexibility for various mining applications. The dual voltage designation indicates both the conductor-to-conductor voltage and the conductor-to-earth voltage, ensuring clear specification for different system configurations. The 1.1 kV rating is commonly used for local distribution and mobile equipment, whilst the 11 kV rating serves high-power applications including main feeders and large stationary equipment.

The conductor sizing options range from 6 square millimetres to 300 square millimetres, providing solutions for applications from small control circuits to high-power feeders. The smallest sizes, typically 6 to 25 square millimetres, are commonly used for control circuits and small equipment connections. Medium sizes from 35 to 120 square millimetres serve general-purpose applications including mobile equipment and local distribution. The largest sizes, from 150 to 300 square millimetres, are reserved for high-power applications such as main feeders and large stationary equipment where voltage drop must be minimised over long distances.

The insulation system of Type 260 cables uses cross-linked polyethylene (XLPE) or similar materials to provide excellent electrical properties and mechanical durability. The insulation thickness varies according to voltage rating, with 1.1 kV cables using 1.5 to 3.0 millimetre insulation thickness, whilst 11 kV cables require 7.6 millimetre insulation thickness to ensure adequate dielectric strength. This graduated approach ensures optimal performance whilst avoiding unnecessary bulk and weight.

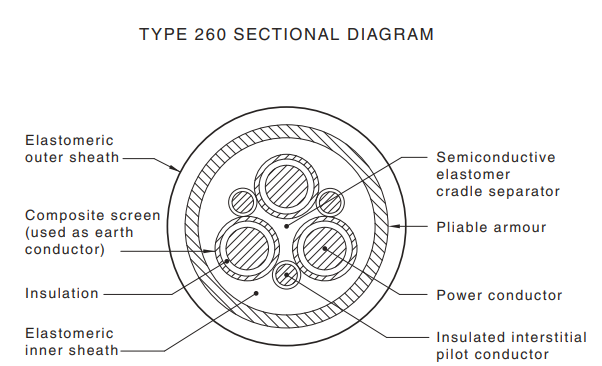

The composite screening system represents a key feature of Type 260 cables, providing both electrical screening and mechanical protection. The screen consists of multiple layers including semiconducting screens, metallic screens, and binding tapes that work together to control electrical stresses and provide a low-impedance path for fault currents. The screen construction varies with voltage rating, with higher voltage cables requiring more sophisticated screening systems to handle the increased electrical stresses.

Pilot conductors are integrated into the cable construction to provide monitoring capabilities for the screening system and cable condition. These small conductors, typically 7/0.25 millimetre to 7/0.50 millimetre stranded construction, allow monitoring equipment to detect screen damage or insulation deterioration before catastrophic failure occurs. This predictive capability is particularly valuable in mining applications where unplanned downtime can be extremely costly.

The pliable armour construction uses galvanised steel wires arranged in a helical pattern around the cable core. The armour wire configuration varies with cable size and voltage rating, ranging from 7/0.45 millimetre wires for smaller cables to 7/1.25 millimetre wires for larger sizes. This construction provides excellent mechanical protection against crushing, cutting, and abrasion whilst maintaining sufficient flexibility for trailing applications.

The outer sheath typically uses a chloroprene or similar elastomeric compound that provides excellent resistance to oils, chemicals, and environmental conditions common in mining applications. The sheath thickness varies from 2.0 millimetres for smaller cables to 4.5 millimetres for larger sizes, providing adequate protection whilst maintaining flexibility.

Temperature ratings for Type 260 cables typically allow continuous operation at 90 degrees Celsius conductor temperature, with short-term overload capability to 130 degrees Celsius. These ratings ensure adequate capacity for the high ambient temperatures and thermal cycling common in mining applications.

The current-carrying capacity of Type 260 cables depends on installation conditions, ambient temperature, and grouping factors. Typical values range from approximately 50 amperes for 6 square millimetre conductors to over 400 amperes for 300 square millimetre conductors under standard conditions. However, mining applications often require derating for high ambient temperatures, cable grouping, and installation in confined spaces.

Advantages and Limitations of Type 260 Cables

Type 260 cables offer numerous advantages that make them particularly suitable for mining applications, though understanding their limitations is equally important for proper application selection and system design.

The primary advantage of Type 260 cables lies in their exceptional mechanical robustness. The pliable armour construction provides outstanding protection against the crushing forces, impact damage, and abrasion that are inevitable in mining environments. Unlike conventional industrial cables that may fail rapidly under such conditions, Type 260 cables can withstand repeated mechanical stress whilst maintaining electrical performance. This mechanical protection translates directly into reduced maintenance costs and improved system reliability in harsh mining conditions.

The composite screening system provides superior fault detection capabilities compared to unscreened cables. The integrated pilot conductors and metallic screens enable monitoring systems to detect insulation deterioration, screen damage, and moisture ingress before catastrophic failure occurs. This predictive capability is invaluable in mining applications where unplanned downtime can cost hundreds of thousands of dollars per day in lost production.

The flexibility of Type 260 cables, despite their robust construction, makes them suitable for trailing applications where equipment must move continuously. The carefully designed balance between mechanical protection and flexibility allows these cables to be dragged, coiled, and manipulated without damage, making them ideal for mobile equipment and temporary installations common in mining operations.

The standardised construction according to AS/NZS 1802 ensures compatibility across different manufacturers and applications. This standardisation reduces inventory requirements, simplifies maintenance procedures, and ensures consistent performance across different mining sites. The standard also provides assurance that cables will meet the safety and performance requirements necessary for mining applications.

Environmental resistance is another significant advantage of Type 260 cables. The elastomeric sheath provides excellent resistance to oils, chemicals, UV radiation, and temperature extremes common in mining environments. This resistance ensures long service life even under harsh conditions that would quickly degrade conventional cables.

However, Type 260 cables also have limitations that must be considered in application design. The robust construction that provides mechanical protection also results in increased weight and bulk compared to non-armoured cables. This additional weight can be problematic in applications where cable weight is a significant factor, such as overhead installations or mobile equipment where weight balance is critical.

The cost of Type 260 cables is significantly higher than conventional industrial cables due to their sophisticated construction and materials. Whilst this cost is typically justified by improved reliability and reduced maintenance requirements, it can be a significant factor in budget-constrained applications or where large quantities of cable are required.

The flexibility of Type 260 cables, whilst superior to rigid armoured cables, is still limited compared to unarmoured flexible cables. This limitation may be problematic in applications requiring extreme flexibility or tight bending radii, such as some mobile equipment connections or installations in confined spaces.

The complexity of Type 260 cables also requires more sophisticated installation and termination procedures compared to simple industrial cables. Proper installation requires trained personnel and appropriate tools, which can increase installation costs and complexity. The screening system and pilot conductors must be properly terminated to ensure optimal performance, requiring additional time and expertise during installation.

The composite screening system, whilst providing excellent fault detection capabilities, also requires compatible monitoring equipment to realise its full potential. This monitoring equipment represents additional cost and complexity that must be considered in system design.

Common Mining Challenges and Comprehensive FAQ

Mining environments present unique challenges that require careful consideration when selecting and installing electrical infrastructure. Understanding these challenges and their solutions helps ensure successful implementation of Type 260 cables in mining applications.

Challenge: Cable Abrasion and Crushing

Mining operations inevitably involve cables being dragged across rough surfaces, crushed by heavy equipment, and subjected to impact damage from falling rocks or debris. Conventional cables fail rapidly under these conditions, leading to frequent replacements and costly downtime.

The pliable armour construction of Type 260 cables provides exceptional protection against these mechanical hazards. The helical arrangement of galvanised steel wires distributes crushing forces across the cable surface, whilst the flexible construction allows the cable to deform without damage. The outer sheath provides additional protection against abrasion, ensuring long service life even under severe mechanical stress.

Challenge: Earth Fault Detection and Safety

Underground mining environments pose significant safety risks, with earth faults potentially creating dangerous conditions for personnel. Traditional cables without proper screening may not provide adequate fault detection capabilities, leading to undetected hazardous conditions.

The composite screening system of Type 260 cables addresses this challenge by providing a low-impedance path for fault currents and enabling rapid fault detection. The integrated pilot conductors allow monitoring systems to detect screen damage or insulation deterioration before dangerous conditions develop. This predictive capability ensures that safety systems can respond quickly to prevent accidents.

Challenge: Flexibility Requirements for Mobile Equipment

Mining operations rely heavily on mobile equipment that must maintain power connections whilst moving continuously. Traditional rigid cables cannot accommodate this movement, whilst overly flexible cables lack the mechanical protection necessary for mining environments.

Type 260 cables are specifically designed for trailing applications, providing the optimal balance between mechanical protection and flexibility. The pliable armour construction allows the cable to bend and flex without damage, whilst maintaining the mechanical strength necessary for harsh mining conditions.

Challenge: Voltage Drop in Long Feeder Circuits

Large mining operations often require power distribution over considerable distances, leading to significant voltage drop if cables are undersized. This voltage drop can affect equipment performance and efficiency, particularly for motor-driven equipment.

Type 260 cables are available in conductor sizes up to 300 square millimetres, providing low-resistance paths for high-power applications. The range of available sizes allows engineers to select the appropriate conductor size to minimise voltage drop whilst considering cost and installation constraints.

Challenge: Environmental Exposure

Mining operations expose cables to extreme environmental conditions including UV radiation, temperature extremes, chemicals, and moisture. Conventional cables may deteriorate rapidly under these conditions, requiring frequent replacement.

The elastomeric sheath material used in Type 260 cables provides excellent resistance to environmental degradation. The sheath is specifically formulated to withstand UV radiation, temperature cycling, chemical exposure, and moisture ingress, ensuring long service life even under harsh conditions.

Challenge: Equipment Compatibility

Mining operations often involve equipment from multiple manufacturers, requiring cables that can interface with various connection systems and voltage levels. Incompatible cables can create maintenance and inventory challenges.

The standardised construction of Type 260 cables according to AS/NZS 1802 ensures compatibility across different equipment types and manufacturers. The standard conductor sizes and insulation thicknesses facilitate integration with existing systems, reducing inventory requirements and simplifying maintenance procedures.

Frequently Asked Questions

Can Type 260 cables be used in underground mining applications?

Yes, Type 260 cables are well-suited for underground mining applications, though they are designed for general mining use rather than specific shuttle car applications. The composite screening system provides excellent fault detection capabilities essential for underground safety, whilst the pliable armour offers protection against mechanical damage common in confined underground spaces. The cables meet all relevant safety standards for underground use, including earth fault protection and flame retardancy requirements.

What is the maximum operating voltage for Type 260 cables?

Type 260 cables are designed for operation up to 11 kV line-to-line voltage, as specified in the AS/NZS 1802 standard. This voltage rating covers the majority of mining applications, from low-voltage mobile equipment at 1.1 kV to high-power feeders at 11 kV. The voltage rating is conservative, providing adequate safety margin for normal operating conditions and transient overvoltages.

What conductor sizes are available for Type 260 cables?

Type 260 cables are available in conductor sizes ranging from 6 square millimetres to 300 square millimetres. The smallest sizes are typically used for control circuits and small equipment connections, whilst the largest sizes serve high-power applications such as main feeders and large stationary equipment. The complete range of sizes ensures that appropriate cables are available for virtually any mining application.

How does the earth fault monitoring system work?

The earth fault monitoring system utilises the composite screening system and integrated pilot conductors to detect insulation failures and screen damage. The metallic screen provides a low-impedance return path for fault currents, whilst monitoring equipment connected to the pilot conductors can detect changes in screen continuity or insulation resistance. This system enables early detection of cable deterioration before catastrophic failure occurs, allowing planned maintenance rather than emergency repairs.

Can Type 260 cables be frequently re-spooled for storage?

Whilst Type 260 cables are designed for trailing applications and can withstand reasonable amounts of coiling and uncoiling, they are not optimised for frequent reeling applications. The pliable armour construction provides excellent mechanical protection but may be susceptible to fatigue under repeated tight bending. For applications requiring frequent reeling, AS/NZS 1802 Type 275 cables may be more suitable as they are specifically designed for reeling applications.

What are the temperature limitations for Type 260 cables?

Type 260 cables are typically rated for continuous operation at 90 degrees Celsius conductor temperature, with short-term overload capability to 130 degrees Celsius. The ambient temperature rating depends on the specific sheath material but is typically suitable for operation in temperatures up to 50 degrees Celsius ambient. For extreme temperature applications, special sheath materials may be required.

How do Type 260 cables compare to other mining cable types?

Type 260 cables offer superior mechanical protection compared to unarmoured cables, whilst providing better flexibility than rigid armoured cables. The composite screening system provides better fault detection capabilities than simple earthed screen cables. However, they are heavier and more expensive than basic mining cables, making them most suitable for applications where their superior performance characteristics justify the additional cost.

What installation considerations are important for Type 260 cables?

Proper installation of Type 260 cables requires attention to minimum bending radii, adequate support, and proper termination of the screening system. The composite screen and pilot conductors must be properly terminated to ensure optimal performance. Installation should be performed by qualified personnel using appropriate tools and procedures. The cables should be protected from mechanical damage during installation and should not be subjected to excessive pulling forces.

Are Type 260 cables suitable for permanent installations?

Yes, Type 260 cables are suitable for both permanent and temporary installations. The robust construction and environmental resistance make them excellent for permanent installations where long service life is required. The standardised construction also facilitates future maintenance and expansion. However, the higher cost may make them less attractive for permanent installations where the harsh conditions that justify their use are not present.

What maintenance is required for Type 260 cables?

Regular inspection of Type 260 cables should include visual examination for physical damage, testing of the screening system integrity, and monitoring of insulation resistance. The pilot conductors enable continuous monitoring of screen condition, allowing predictive maintenance rather than reactive repairs. Proper storage and handling procedures should be followed to prevent damage during maintenance operations.

Conclusion

AS/NZS 1802 Type 260 cables represent a sophisticated engineering solution that addresses the unique challenges of Australia's gold mining industry. These cables successfully balance the competing requirements of mechanical robustness and operational flexibility, providing reliable power distribution in some of the world's most demanding industrial environments.

The comprehensive technical specifications of Type 260 cables, ranging from 1.1 kV to 11 kV with conductor sizes up to 300 square millimetres, ensure that appropriate solutions are available for virtually any mining application. The composite screening system provides essential safety features through superior fault detection capabilities, whilst the pliable armour construction offers the mechanical protection necessary for harsh mining conditions.

Australia's major gold mining operations, from the massive scale of the Kalgoorlie Super Pit to the sophisticated underground operations at Cadia and St Ives, rely on robust electrical infrastructure to maintain safe and efficient operations. Type 260 cables provide the reliability and performance necessary to support these critical operations, contributing to Australia's position as one of the world's leading gold producers.

The standardised construction according to AS/NZS 1802 ensures consistent performance across different manufacturers and applications, reducing inventory requirements and simplifying maintenance procedures. This standardisation is particularly valuable in the mining industry, where equipment compatibility and maintenance efficiency directly impact operational costs and safety.

Whilst Type 260 cables represent a significant investment compared to conventional industrial cables, their superior performance characteristics typically justify the additional cost through reduced maintenance requirements, improved reliability, and enhanced safety. The ability to provide predictive maintenance through the screening system monitoring can prevent costly unplanned downtime and extend cable service life.

The future of Australia's gold mining industry depends on continued investment in reliable infrastructure that can support increasingly sophisticated mining operations. Type 260 cables, with their proven performance in harsh conditions and comprehensive safety features, will continue to play a crucial role in supporting this vital industry.

Understanding the proper selection, installation, and maintenance of Type 260 cables is essential for mining engineers, electrical contractors, and operations personnel involved in Australia's gold mining industry. The comprehensive technical specifications and proven performance of these cables make them an indispensable component of modern mining electrical systems.

As mining operations continue to evolve with advancing technology and increasing automation, the importance of reliable electrical infrastructure becomes even more critical. Type 260 cables, with their robust construction and advanced monitoring capabilities, provide the foundation for safe and efficient mining operations that will continue to drive Australia's economic prosperity through gold production for years to come.
