AS/NZS 1802 Type 275 1.1/1.1 kV Mining Cable for Open-Cut Mines in Australia

Introduction

Understanding the critical role of electrical infrastructure in modern mining operations requires a deep appreciation of the harsh environments these systems must endure. The AS/NZS 1802 Type 275 1.1/1.1 kV mining cable represents a pinnacle of engineering designed specifically for the demanding conditions found in Australia's vast open-cut mining operations.

The AS/NZS 1802 standard establishes the benchmark for mining cables across Australia and New Zealand, ensuring that electrical systems can withstand the extreme mechanical stresses, environmental challenges, and operational demands that characterise large-scale mining operations. Type 275 cables, in particular, have been engineered to address the unique requirements of shuttle cars, draglines, shovels, and other heavy mobile equipment that form the backbone of open-cut mining productivity.

For mining engineers, electrical contractors, and mine operators, selecting the appropriate cable technology isn't merely a technical decision—it's a critical safety and operational choice that impacts everything from equipment reliability to worker safety and operational efficiency. The Type 275 cable's 1.1/1.1 kV rating makes it ideally suited for medium-voltage applications where flexibility, durability, and consistent performance are paramount.

This comprehensive examination will guide you through the technical specifications, real-world applications, and practical considerations that make Type 275 cables an essential component in Australia's mining infrastructure. We'll explore how these cables perform in some of the country's most challenging mining environments, from the gold fields of Western Australia to the coal basins of Queensland and New South Wales.

Australia's Major Open-Cut Mining Operations

To truly understand the demanding environment where Type 275 cables must perform, we need to examine the scale and conditions of Australia's premier open-cut mining operations. These sites represent some of the most challenging electrical infrastructure environments on Earth, where equipment operates continuously under extreme conditions of dust, vibration, temperature variation, and mechanical stress.

Kalgoorlie Super Pit - Western Australia's Golden Giant

The Fimiston Open Pit, universally known as the Kalgoorlie Super Pit, stands as Australia's most iconic open-cut mine and one of the world's largest gold mines. Spanning approximately 3.5 kilometres in length, 1.5 kilometres in width, and descending over 600 metres below the surface, this massive operation presents unique challenges for electrical infrastructure.

The Super Pit's scale demands robust electrical systems that can reliably power enormous haul trucks, excavators, and drilling equipment operating on multiple benches throughout the pit. The extreme temperature variations—from scorching summer days exceeding 45°C to winter nights approaching freezing—create thermal cycling stresses that standard cables simply cannot withstand. Type 275 cables excel in this environment because their Ethylene Propylene Rubber (EPR) insulation maintains flexibility and electrical integrity across these temperature extremes.

The pit's depth creates additional challenges, as cables must maintain consistent performance across significant elevation changes whilst supporting the weight and movement of massive mobile equipment. The constant dust and abrasive conditions require cable sheaths that can resist wear whilst maintaining their protective properties over extended operational periods.

Cadia Mine - New South Wales Engineering Marvel

Located in New South Wales, the Cadia Valley Operations represents Australia's second-largest open-cut gold and copper mining complex. This operation demonstrates how modern mining integrates multiple extraction methods, with both open-cut and underground operations requiring sophisticated electrical infrastructure.

Cadia's hybrid nature means that Type 275 cables must perform reliably both on the surface and in transitional areas where open-cut operations interface with underground workings. The mine's copper production adds complexity, as equipment operates in environments where electrical conductivity and grounding considerations become critical safety factors.

The site's mountainous terrain creates unique challenges for cable installation and maintenance. Steep haul roads, varying grades, and seasonal weather variations demand cables that maintain flexibility and electrical integrity across diverse operating conditions. Type 275 cables' reinforced construction and weather-resistant sheathing make them particularly suitable for these challenging geographic conditions.

Mount Arthur Coal Mine - Hunter Valley Powerhouse

BHP's Mount Arthur Coal Mine in New South Wales represents one of Australia's largest open-cut coal operations, producing approximately 20 million tonnes annually. Coal mining presents distinct electrical challenges compared to metallic ore extraction, particularly regarding explosive atmosphere considerations and the continuous operation of massive draglines and bucket-wheel excavators.

The Hunter Valley's coal mining environment subjects cables to continuous mechanical stress from heavy equipment movement, coupled with the abrasive nature of coal dust that can penetrate and damage inadequately protected electrical systems. Type 275 cables' Chlorosulphonated Polyethylene (CSP) sheath provides superior resistance to both mechanical abrasion and chemical attack from coal-related compounds.

The mine's scale requires extensive cable runs across varying terrain, from pit floors to rim-mounted equipment. This application demands cables that can handle significant voltage drops across long distances whilst maintaining safety margins for equipment protection and operational reliability.

Bowen Basin Operations - Queensland's Coal Heartland

The Bowen Basin's Hail Creek and Blackwater operations represent some of Australia's most productive coking coal mines, supplying metallurgical coal to steel producers worldwide. These operations face unique challenges related to Queensland's tropical climate, with intense heat, high humidity, and severe weather events including cyclones and flooding.

Type 275 cables in these environments must withstand not only the mechanical stresses of continuous mining operations but also extreme weather conditions that can include temperature swings, high humidity, intense UV radiation, and occasional flooding. The cables' UV-resistant sheathing and moisture-resistant design make them particularly suitable for these tropical mining environments.

The Bowen Basin's remote location means that cable failures can result in significant downtime and costly repairs. Type 275 cables' proven reliability and extended service life make them an economical choice for operations where maintenance access may be limited and operational continuity is critical.

Application Scenarios in Open-Cut Mining

Understanding how Type 275 cables integrate into mining operations requires examining the specific equipment and applications where their unique properties provide operational advantages. These cables excel in scenarios where conventional fixed installation cables would fail due to mechanical stress, environmental exposure, or operational flexibility requirements.

Shuttle Car and Mobile Equipment Applications

Shuttle cars represent one of the most demanding applications for mining cables, requiring electrical systems that can endure continuous movement, vibration, and mechanical stress whilst maintaining reliable power delivery. These vehicles operate in continuous cycles, loading materials from extraction points and transporting them to processing or loading areas.

Type 275 cables' flexible construction allows them to handle the constant flexing and reeling action required for shuttle car operations. The cable's core configuration, featuring three power conductors, three earth conductors, and one pilot conductor, provides both the power delivery capacity and safety monitoring capabilities essential for mobile equipment operations.

The pilot conductor serves a critical safety function, enabling continuous monitoring of the cable's integrity and providing immediate fault detection. In shuttle car applications, this feature allows operators to detect potential cable damage before catastrophic failure occurs, preventing equipment damage and maintaining operational safety.

Dragline and Excavator Trailing Cables

Large draglines and electric rope shovels require massive amounts of electrical power delivered through trailing cables that must withstand extreme mechanical stresses. These machines operate with bucket capacities measured in cubic metres and require precise control systems that depend on reliable electrical connections.

Type 275 cables excel in these applications because their reinforced construction can handle the significant mechanical loads imposed by heavy equipment movement. The cables' abrasion-resistant sheath protects against damage from contact with rough surfaces, rocks, and debris commonly encountered in open-cut operations.

The cable's flexibility remains crucial for dragline operations, where the trailing cable must accommodate the machine's complex movement patterns whilst maintaining electrical integrity. The EPR insulation maintains its properties under the mechanical stress and temperature variations encountered during continuous operation.

Pump Station and Dewatering Systems

Open-cut mines require extensive dewatering systems to manage groundwater infiltration and surface water accumulation. These systems often employ large submersible pumps and surface-mounted pumping stations that require reliable electrical power delivery in challenging environments.

Type 275 cables provide the moisture resistance and mechanical durability required for dewatering applications. The cables must often traverse wet or muddy areas, withstand periodic submersion, and maintain electrical integrity in high-moisture environments. The CSP sheath's moisture resistance and mechanical protection make these cables ideal for such applications.

Pump station applications often require cables to remain stationary for extended periods, then endure sudden mechanical stresses during equipment relocation or maintenance activities. Type 275 cables' construction balances flexibility for occasional movement with long-term stability for fixed installations.

Surface Conveyor and Materials Handling

Modern open-cut mines employ extensive conveyor systems to transport materials from extraction points to processing facilities or loading areas. These systems require electrical power for drive motors, control systems, and safety equipment distributed across significant distances.

Type 275 cables support these applications by providing reliable power delivery across varying terrain and environmental conditions. The cables' weather resistance ensures consistent performance despite exposure to extreme temperatures, UV radiation, and moisture variations common in outdoor mining environments.

Electrical and Mechanical Specifications

The technical specifications of Type 275 cables reflect decades of engineering refinement focused on meeting the specific demands of mining applications. Understanding these specifications helps engineers select appropriate cable configurations and installation methods for specific operational requirements.

Voltage Rating and System Compatibility

The 1.1/1.1 kV voltage rating represents the cable's insulation strength and operating voltage range. This rating indicates the cable can operate safely at voltages up to 1.1 kV between conductors and 1.1 kV between any conductor and earth. This specification provides safety margins for normal voltage variations whilst ensuring reliable operation under varying load conditions.

The voltage rating makes Type 275 cables particularly suitable for medium-voltage distribution systems common in mining operations. These systems typically operate at voltages that provide efficient power transmission across moderate distances whilst maintaining safety standards for mobile equipment applications.

System compatibility extends beyond voltage considerations to include harmonics, transient voltages, and fault current capabilities. Type 275 cables' construction handles these electrical stresses through robust insulation systems and effective grounding arrangements provided by the multiple earth conductors.

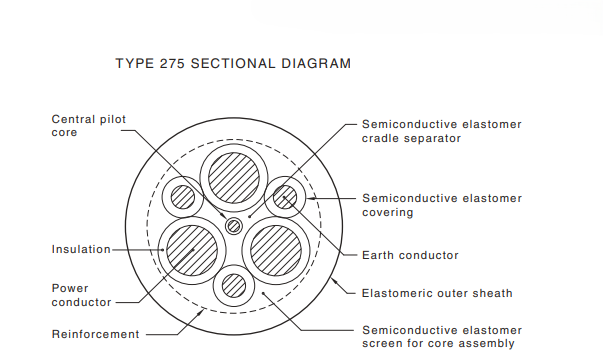

Core Configuration and Conductor Arrangement

The Type 275 cable's seven-core configuration reflects the specific requirements of mining equipment applications. The three power conductors provide three-phase power delivery, whilst the three earth conductors ensure effective grounding and fault protection. The pilot conductor enables continuous monitoring of cable integrity and provides communication capabilities for advanced control systems.

This configuration offers several advantages over conventional four-core cables. The multiple earth conductors provide redundancy for safety-critical grounding functions and enable more effective fault current distribution. The pilot conductor allows implementation of sophisticated monitoring systems that can predict cable failures before they occur.

The conductor arrangement within the cable considers both electrical performance and mechanical durability. The cores are arranged to minimise electromagnetic interference whilst ensuring balanced mechanical properties that prevent preferential wear or stress concentration during flexing operations.

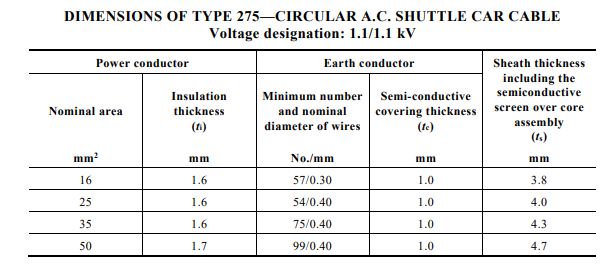

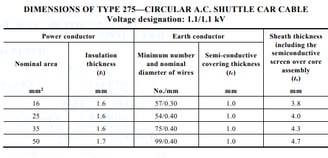

Detailed Conductor Specifications

Understanding the specific conductor configurations available in Type 275 cables enables engineers to select appropriate sizes for different applications based on current-carrying capacity, voltage drop considerations, and mechanical requirements.

For 16 mm² conductors, the specification includes 57 individual strands of 0.30 mm diameter wire, providing excellent flexibility whilst maintaining adequate current-carrying capacity for smaller equipment applications. The 1.6 mm insulation thickness provides robust electrical protection with minimal impact on overall cable diameter.

The 25 mm² configuration employs 54 strands of 0.40 mm wire, offering increased current capacity whilst maintaining flexibility. This size suits medium-power applications where equipment mobility remains important but higher power delivery is required.

Moving to 35 mm² conductors, the specification increases to 75 strands of 0.40 mm wire. This configuration provides significantly higher current-carrying capacity whilst the increased strand count maintains flexibility for reeling and trailing applications.

The largest standard configuration, 50 mm² conductors, employs 99 strands of 0.40 mm wire with 1.7 mm insulation thickness. This specification suits high-power applications such as large draglines or major pumping systems where maximum current delivery is required.

Insulation System Design

The Ethylene Propylene Rubber (EPR) insulation system represents a critical component of Type 275 cables' performance capabilities. EPR provides excellent electrical properties combined with superior mechanical and environmental resistance compared to conventional insulation materials.

EPR's molecular structure provides inherent resistance to water treeing, a degradation mechanism that can compromise conventional insulation systems in high-moisture environments. This property ensures long-term electrical integrity in mining applications where moisture exposure is inevitable.

The insulation system includes semiconductive screens that ensure uniform electric field distribution around the conductors. These screens prevent corona formation and hot spots that could lead to premature insulation failure. The screens also facilitate effective fault detection by the pilot conductor monitoring system.

Temperature ratings for the EPR insulation system range from -25°C to +90°C, covering the extreme temperature variations encountered in Australian mining environments. The insulation maintains its flexibility and electrical properties across this entire temperature range, ensuring reliable operation in diverse climatic conditions.

Sheath Construction and Protection

The Chlorosulphonated Polyethylene (CSP) outer sheath provides the primary mechanical and environmental protection for Type 275 cables. CSP offers superior resistance to abrasion, oil, chemicals, flame, UV radiation, and ozone compared to conventional cable sheathing materials.

The sheath thickness varies with conductor size, ranging from 3.8 mm for 16 mm² conductors to 4.7 mm for 50 mm² configurations. These thicknesses provide adequate mechanical protection whilst maintaining cable flexibility for reeling and trailing applications.

Reinforcement within the sheath includes polyamide braiding that provides additional mechanical strength and tear resistance. This reinforcement distributes mechanical stresses across the cable structure, preventing stress concentration that could lead to sheath damage or conductor exposure.

The CSP sheath formulation includes UV stabilisers that prevent degradation from prolonged sun exposure common in open-cut mining operations. Flame-retardant additives ensure the sheath will not support combustion, meeting safety requirements for mining applications.

Compliance and Testing Standards

The rigorous testing and compliance requirements for Type 275 cables ensure they meet the demanding safety and performance standards required for mining applications. These standards represent accumulated knowledge from decades of mining industry experience and provide confidence in cable performance under extreme operating conditions.

AS/NZS 1802 Standard Requirements

The AS/NZS 1802:2003 standard specifically addresses flexible cables for mining applications, establishing comprehensive requirements for construction, testing, and performance verification. This standard recognises the unique challenges of mining environments and establishes testing protocols that simulate actual operating conditions.

Mechanical testing under AS/NZS 1802 includes flexing tests that simulate the continuous movement experienced in reeling and trailing applications. These tests verify that cables maintain electrical integrity and mechanical strength through thousands of flex cycles equivalent to years of operational service.

Environmental testing encompasses exposure to oils, chemicals, flame, UV radiation, and extreme temperatures commonly encountered in mining operations. The standard requires cables to maintain their properties after extended exposure to these conditions, ensuring long-term reliability in service.

Additional Compliance Standards

Beyond the primary AS/NZS 1802 requirements, Type 275 cables meet additional international standards that provide confidence in their global applicability and performance consistency. AS/NZS 1125 addresses general cable construction requirements, ensuring consistency with broader electrical infrastructure standards.

IEC standards provide international benchmarks for cable performance, enabling specification consistency across multinational mining operations. VDE standards add European testing protocols that address specific performance aspects not covered by other standards.

These multiple compliance requirements ensure that Type 275 cables meet or exceed performance expectations regardless of the specific operating environment or application requirements. The comprehensive testing provides confidence in cable selection for critical mining applications.

Testing Protocols and Performance Verification

The testing protocols for Type 275 cables encompass both routine production testing and type testing that verifies design performance. Routine testing ensures that every cable meets minimum performance standards, whilst type testing validates the overall design approach.

Electrical testing includes insulation resistance measurements, high-voltage testing, and conductor resistance verification. These tests ensure that cables provide reliable electrical performance and adequate safety margins for mining applications.

Mechanical testing encompasses flexing endurance, abrasion resistance, and impact testing that simulate the physical stresses encountered in mining operations. Environmental testing includes oil resistance, flame testing, UV exposure, and ozone resistance verification.

Frequently Asked Questions: Mining-Specific Concerns

The practical application of Type 275 cables in mining operations raises numerous questions about performance, selection, and maintenance. These frequently asked questions address the most common concerns expressed by mining engineers, electrical contractors, and maintenance personnel.

Can Type 275 cables withstand outdoor exposure in open-cut environments?

Type 275 cables are specifically designed for outdoor operation in the harsh conditions typical of open-cut mining. The Chlorosulphonated Polyethylene (CSP) sheath provides comprehensive protection against UV radiation, ozone, temperature extremes, and moisture exposure that characterise outdoor mining environments.

The cable's temperature rating from -25°C to +90°C covers the extreme temperature variations encountered across Australia's diverse mining regions, from the tropical conditions of Queensland's Bowen Basin to the arid environments of Western Australia's goldfields. The UV-resistant formulation prevents degradation even under intense solar radiation exposure common in open-cut operations.

Moisture resistance ensures reliable operation during wet weather, high humidity conditions, and occasional flooding that can occur in open-cut mines. The sheath construction prevents moisture ingress that could compromise electrical integrity or create safety hazards.

Field experience from major Australian mining operations confirms the cables' ability to maintain performance and reliability over extended service periods despite continuous outdoor exposure. Regular inspection and proper installation practices maximise service life and maintain operational safety.

Are these cables suitable for reeling and pulling applications on heavy machinery?

Type 275 cables are specifically engineered for reeling and trailing applications that characterise heavy mining equipment operations. The cable construction balances mechanical strength with flexibility, enabling it to withstand the continuous mechanical stresses of reeling whilst maintaining electrical integrity.

The multi-strand conductor construction provides flexibility whilst maintaining adequate current-carrying capacity for high-power applications. The EPR insulation maintains its properties under the mechanical stress and temperature variations encountered during continuous flexing operations.

Reinforcement within the cable structure, including polyamide braiding and optimised core arrangement, distributes mechanical stresses to prevent stress concentration that could lead to premature failure. The cable design considers both the immediate mechanical loads and the cumulative fatigue effects of repeated flexing cycles.

Testing protocols specifically address reeling applications, with flexing endurance tests that simulate thousands of operational cycles. These tests verify that cables maintain electrical continuity and mechanical integrity throughout their expected service life under normal operating conditions.

What is the typical service life and durability expectation?

Service life for Type 275 cables depends on specific application conditions, installation practices, and maintenance procedures. Under normal mining operating conditions with proper installation and routine maintenance, these cables typically provide service lives measured in years rather than months.

The robust construction materials, including EPR insulation and CSP sheathing, provide inherent resistance to the environmental and mechanical stresses that limit service life in mining applications. The cables' proven performance in demanding Australian mining environments, including the Bowen Basin's harsh conditions, demonstrates their durability advantages.

Factors that influence service life include installation quality, operating environment severity, mechanical stress levels, and maintenance practices. Proper cable handling, appropriate support systems, and regular inspection programmes significantly extend service life and prevent premature failures.

Predictive maintenance programmes using pilot conductor monitoring can identify developing problems before they result in cable failure, maximising equipment availability and preventing costly downtime. This proactive approach often extends service life beyond initial expectations.

How should engineers select the appropriate conductor size?

Conductor size selection requires consideration of electrical, mechanical, and economic factors specific to each application. The primary electrical considerations include load current requirements, allowable voltage drop, and short-circuit current capacity.

Load current calculations must consider both normal operating currents and peak demands that may occur during equipment startup or overload conditions. The cable's current-carrying capacity varies with installation conditions, ambient temperature, and grouping with other cables.

Voltage drop calculations ensure that equipment receives adequate voltage for proper operation across the entire cable length. Mining applications often involve significant cable lengths, making voltage drop a critical consideration for maintaining equipment performance and efficiency.

Mechanical considerations include the cable's ability to withstand installation stresses and operational mechanical loads. Larger conductors provide greater mechanical strength but reduce flexibility and increase installation complexity.

Economic analysis should consider both initial cable costs and lifecycle costs including installation, maintenance, and replacement expenses. Proper sizing ensures reliable operation whilst avoiding unnecessary costs from oversizing.

What are the common failure modes and prevention strategies?

Understanding common failure modes enables implementation of effective prevention strategies that maximise cable service life and operational reliability. The most frequent failure modes in mining applications include mechanical damage, environmental degradation, and electrical breakdown.

Mechanical damage typically results from abrasion, impact, crushing, or excessive tension during installation or operation. Prevention strategies include proper cable routing, adequate support systems, protective conduits in high-risk areas, and careful handling during installation and maintenance.

Environmental degradation can occur from prolonged exposure to chemicals, oils, extreme temperatures, or UV radiation. While Type 275 cables resist these conditions, prevention strategies include proper installation practices, regular inspection programmes, and prompt repair of minor damage before it progresses.

Electrical breakdown may result from insulation degradation, moisture ingress, or electrical overstress. Prevention includes proper installation techniques, regular electrical testing, and pilot conductor monitoring systems that provide early warning of developing problems.

Successful prevention programmes combine proper cable selection with appropriate installation practices, comprehensive maintenance procedures, and proactive monitoring systems. This integrated approach maximises cable reliability whilst minimising operational disruption from unexpected failures.

Conclusion

The AS/NZS 1802 Type 275 1.1/1.1 kV mining cable represents a sophisticated engineering solution specifically developed to meet the demanding requirements of Australia's open-cut mining operations. Through our comprehensive examination of specifications, applications, and performance characteristics, it becomes clear that these cables offer significant advantages for operations requiring reliable electrical power delivery in challenging environments.

The cable's technical specifications, from its EPR insulation system to its CSP protective sheath, reflect decades of engineering refinement focused on mining applications. The seven-core configuration provides both power delivery and safety monitoring capabilities essential for modern mining equipment operations, whilst the robust construction materials ensure reliable performance across Australia's diverse climatic conditions.

Real-world applications across Australia's premier mining operations, from the Kalgoorlie Super Pit to the Bowen Basin coal fields, demonstrate the cable's versatility and reliability in demanding operational environments. The cable's performance in these challenging conditions provides confidence for engineers specifying electrical infrastructure for critical mining applications.

The comprehensive compliance with AS/NZS 1802 and additional international standards ensures that Type 275 cables meet the highest safety and performance requirements for mining applications. Rigorous testing protocols verify that these cables maintain their properties under the extreme conditions encountered in open-cut mining operations.

For mining engineers, electrical contractors, and mine operators, Type 275 cables offer a proven solution that balances technical performance with operational reliability. The cables' ability to withstand mechanical stress, environmental exposure, and electrical demands makes them an ideal choice for applications where conventional cables would fail.

The investment in proper cable selection pays dividends through reduced maintenance costs, improved equipment reliability, and enhanced operational safety. Type 275 cables' extended service life and proven performance in Australian mining conditions make them an economically sound choice for critical electrical infrastructure.

As Australia's mining industry continues to evolve with larger equipment, more demanding operational requirements, and increased focus on safety and reliability, Type 275 cables provide the electrical infrastructure foundation necessary to support these advancing operational needs.

Technical Consultation and Further Information

For engineers and operators seeking detailed technical specifications, installation guidance, or application-specific recommendations, comprehensive technical documentation is available to support proper cable selection and implementation. Professional consultation services can provide customised recommendations based on specific operational requirements and site conditions.

The mining industry's complexity demands careful attention to electrical infrastructure selection, and Type 275 cables represent a proven solution that meets the challenging requirements of Australia's open-cut mining operations. Their combination of technical performance, operational reliability, and compliance with rigorous mining standards makes them an essential component in modern mining electrical systems.
