AS/NZS 1802 Type 280B Mining Cable: Essential Power Solutions for Australia's Underground Copper Operations

Introduction: Understanding the Critical Role of Type 280B Cables in Australian Mining

In the depths of Australia's copper mines, where massive shuttle cars navigate narrow tunnels and electric loaders extract precious ore from underground chambers, reliable electrical power transmission becomes a matter of both productivity and safety. The AS/NZS 1802 Type 280B mining cable represents a crucial technological advancement in this challenging environment, providing the robust electrical infrastructure that keeps Australia's copper mining operations running smoothly and safely.

The AS/NZS 1802 standard, developed specifically for Australian and New Zealand mining conditions, establishes comprehensive requirements for cables used in mining applications. Within this framework, Type 280B cables serve as the backbone of medium-voltage power distribution systems, particularly for mobile equipment operating in underground environments. These cables must withstand not only the electrical demands of powerful mining machinery but also the harsh physical conditions that characterise underground mining operations.

Understanding why Type 280B cables matter for copper mines requires appreciating the unique challenges of underground mining. Unlike surface operations where equipment can be more easily maintained and replaced, underground mining presents a complex web of constraints. Equipment must operate in confined spaces with limited ventilation, high humidity, abrasive dust, and potential exposure to various chemicals used in ore processing. The electrical systems powering this equipment must therefore demonstrate exceptional reliability, as cable failures can result in costly downtime, safety hazards, and complex repair operations in difficult-to-access locations.

The development of Type 280B cables specifically addresses these challenges through advanced engineering solutions. These cables incorporate semiconductive screening technology that provides superior electrical field control, reducing the risk of corona discharge and electromagnetic interference that can compromise both equipment performance and operator safety. The robust construction combines flexibility needed for mobile applications with durability required for harsh environmental conditions, making them particularly suitable for the demanding requirements of Australian copper mining operations.

Australia's Major Copper Mines: The Industrial Context

Australia stands as one of the world's leading copper producers, with several major mining operations that collectively contribute significantly to global copper supply. Understanding these operations provides crucial context for appreciating the specific requirements that Type 280B cables must meet in real-world applications.

Olympic Dam in South Australia represents perhaps Australia's most significant copper operation, ranking among the world's largest copper-uranium-gold mines. This massive underground operation extends deep beneath the surface, where shuttle cars and mobile equipment navigate an extensive network of tunnels and chambers. The scale of Olympic Dam's operations demands electrical infrastructure capable of supporting heavy-duty mobile equipment across vast underground distances, making reliable cable systems absolutely essential for maintaining productivity and safety standards.

In New South Wales, the Cadia and Northparkes mines represent major underground copper-gold operations that showcase the sophisticated engineering required for modern underground mining. These operations utilise advanced mining techniques such as block caving and sub-level stoping, where mobile equipment must operate with precise coordination in confined spaces. The electrical systems supporting these operations must provide consistent power delivery while accommodating the constant movement and repositioning of equipment throughout the mining cycle.

Other significant copper producers across Australia, including Prominent Hill and various operations around Cobar, demonstrate the diversity of mining conditions that Type 280B cables must accommodate. Each operation presents unique challenges related to geology, mine depth, environmental conditions, and operational requirements. What remains consistent across all these operations is the need for electrical infrastructure that can support mobile equipment reliably and safely in underground environments.

While many Australian copper mines include open-cut operations, Type 280B cables find their primary application in underground sections where mobile equipment operates beyond the reach of fixed power infrastructure. These applications represent some of the most demanding electrical environments in industrial operations, where cable failures can have cascading effects on production, safety, and operational efficiency.

Application Scenarios in Copper Mining: Where Type 280B Cables Make a Difference

Understanding the specific applications of Type 280B cables in copper mining operations reveals why these specialised cables represent such a critical component of modern mining infrastructure. The primary applications centre around mobile equipment that must operate with both power and flexibility in challenging underground environments.

Shuttle cars represent perhaps the most demanding application for Type 280B cables in underground copper mining. These heavy-duty vehicles transport ore from extraction points to processing or transportation systems, following routes that change as mining progresses. The electrical systems powering these vehicles must accommodate constant movement, frequent starts and stops, and the mechanical stresses associated with loading and unloading operations. Type 280B cables provide the combination of electrical capacity and mechanical durability required for these applications, while their semiconductive screening reduces electromagnetic interference that could affect vehicle control systems.

Electric loaders and other mobile extraction equipment present similar but distinct challenges. These machines operate in confined spaces where cable routing must accommodate tight turning radii and frequent repositioning. The cables must provide reliable power delivery while withstanding the mechanical stresses of equipment operation, including vibration, flexing, and occasional impact from debris or equipment contact. The robust construction of Type 280B cables, with their heavy-duty elastomer sheath and reinforced design, provides the durability required for these demanding applications.

Reeling and trailing equipment applications represent another crucial use case for Type 280B cables. In these systems, cables must wind and unwind repeatedly as equipment moves throughout the mining operation. This application places particular demands on cable flexibility and resistance to fatigue, as the constant winding and unwinding motion can cause premature failure in cables not specifically designed for such service. The Type 280B construction, with its ethylene-propylene rubber insulation and carefully engineered conductor configuration, provides the flexibility and durability required for extended service in reeling applications.

The medium-voltage power distribution capability of Type 280B cables, rated at 1.1/1.1 kV, makes them particularly suitable for supporting the high-power requirements of modern mining equipment. This voltage level provides an optimal balance between power delivery capability and safety considerations in underground environments. The cables can support substantial current loads while maintaining the safety margins required for mobile applications where operators work in close proximity to electrical equipment.

Underground mining techniques such as sub-level stoping and block caving create additional specific requirements for electrical infrastructure. In sub-level stoping operations, equipment must access multiple levels of the mine, often requiring cable systems that can accommodate significant vertical movement. Block caving operations involve controlled collapse of ore bodies, creating environments where electrical equipment must continue operating despite changing physical conditions. Type 280B cables provide the reliability and durability required for these sophisticated mining techniques.

Technical and Electrical Parameters: Understanding the Engineering Behind Type 280B Cables

The technical specifications of Type 280B cables reflect decades of engineering development focused on meeting the specific requirements of mining applications. Understanding these parameters provides insight into why these cables perform effectively in challenging underground environments and how they compare to alternative solutions.

The voltage designation of 1.1/1.1 kV represents a carefully chosen specification that balances power delivery capability with safety considerations. This voltage level provides sufficient capacity for powering substantial mining equipment while maintaining safety margins appropriate for mobile applications in underground environments. The dual voltage notation reflects the cable's ability to handle both phase-to-phase and phase-to-earth voltage requirements, ensuring safe operation even under fault conditions.

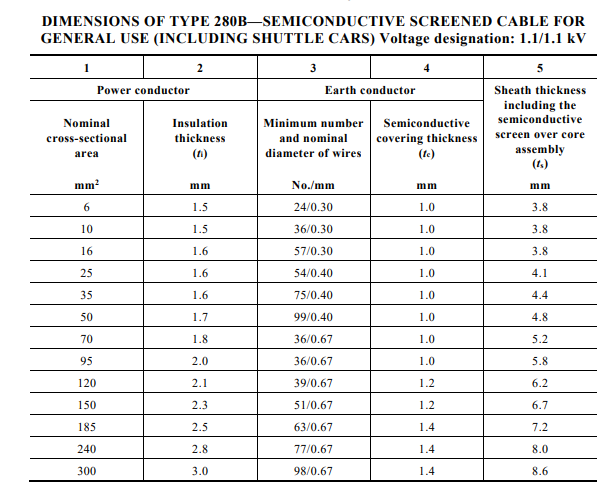

The range of nominal cross-sectional areas available for Type 280B cables spans from 6 mm² to 300 mm², providing flexibility to match cable specifications to specific application requirements. Smaller conductor sizes such as 6 mm², 10 mm², and 16 mm² typically serve control and auxiliary power applications, while larger sizes from 25 mm² to 300 mm² support main power distribution for heavy-duty equipment. The comprehensive range ensures that system designers can optimise cable selection for both electrical performance and economic considerations.

Understanding the relationship between conductor size and cable construction reveals the sophisticated engineering behind Type 280B cables. For a 50 mm² conductor, the specification calls for 1.7 mm insulation thickness, 99 strands of 0.40 mm diameter wire for the earth conductor, 1.0 mm sheath thickness, and approximately 4.8 mm semiconductive covering thickness. These dimensions reflect careful optimisation of electrical performance, mechanical properties, and manufacturing considerations.

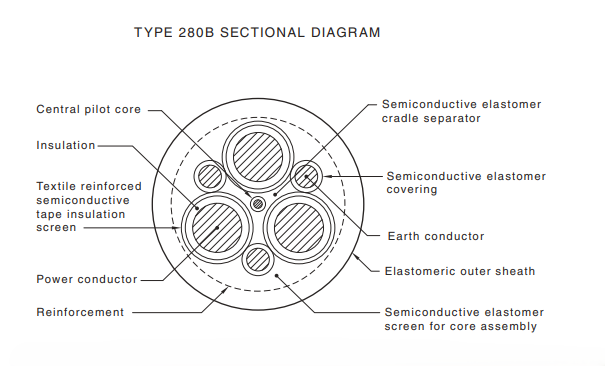

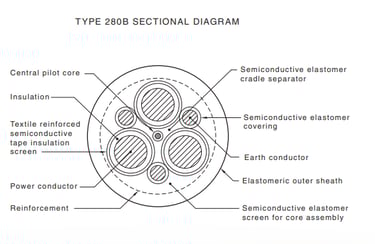

The construction details of Type 280B cables demonstrate advanced cable engineering principles. The textile-reinforced semiconductive tape insulation screen provides crucial electrical field control, preventing corona discharge and reducing electromagnetic interference. This feature becomes particularly important in underground mining applications where multiple cables may run in close proximity and electromagnetic compatibility becomes a significant concern.

Individual screening of power cores represents another sophisticated design element that enhances cable performance in mining applications. This construction provides superior electrical isolation between conductors, reducing the risk of cross-talk and interference that could affect equipment operation. The interstitial earth conductors provide multiple paths for fault current, enhancing safety and system reliability.

The central pilot core included in Type 280B cable construction serves multiple purposes in mining applications. This core can carry control signals, communication data, or monitoring information, reducing the need for separate control cables and simplifying installation in constrained underground environments. The integration of power and control functions within a single cable assembly reduces installation complexity and potential failure points.

The heavy-duty elastomer sheath material, typically PCP (Polychloroprene), provides exceptional resistance to the environmental challenges of underground mining. This material demonstrates superior performance against moisture, abrasion, chemical exposure, and temperature extremes commonly encountered in mining applications. The material selection reflects extensive testing and experience with the specific conditions encountered in Australian mining operations.

Insulation material selection focuses on ethylene-propylene rubber (EPR), typically in R-EP-90 grade specifications. This material provides excellent electrical properties combined with mechanical durability and environmental resistance. The EPR insulation maintains its properties across the temperature range encountered in mining applications and provides reliable performance even under mechanical stress.

The sheath materials, specified as HD-85 or XHD-85 PCP, represent high-performance elastomer compounds specifically formulated for mining applications. These materials provide exceptional tear resistance, abrasion resistance, and chemical compatibility, ensuring long service life even in the harsh conditions of underground mining operations.

Benefits and Advantages: Why Type 280B Cables Excel in Copper Mining Applications

The selection of Type 280B cables for copper mining applications reflects several key advantages that make these cables particularly well-suited to the demanding requirements of underground mining operations. Understanding these benefits provides insight into why these cables represent a preferred solution for mining engineers and electrical system designers.

Enhanced electrical field control represents one of the most significant advantages of Type 280B cables in mining applications. The semiconductive screening system provides uniform electrical field distribution around each conductor, preventing the formation of corona discharge that can lead to insulation degradation and electromagnetic interference. In the close quarters of underground mining operations, where multiple electrical systems operate in proximity, this electromagnetic compatibility becomes crucial for maintaining reliable operation of sensitive control and communication systems.

The corona protection provided by Type 280B cables becomes particularly important in mining applications where cables may be exposed to moisture, dust, and other contaminants that can exacerbate corona formation. The semiconductive screen effectively eliminates surface irregularities that could serve as corona initiation points, providing consistent electrical performance even in challenging environmental conditions.

Electromagnetic interference (EMI) reduction achieved through the semiconductive screening system provides benefits beyond electrical performance. Modern mining equipment increasingly relies on sophisticated electronic control systems, communication networks, and monitoring equipment that can be sensitive to electromagnetic interference. Type 280B cables help maintain electromagnetic compatibility throughout the mining operation, ensuring that electrical power distribution doesn't interfere with other critical systems.

The high flexibility engineered into Type 280B cables addresses one of the most challenging aspects of mobile mining applications. The cable construction must accommodate repeated flexing, coiling, and uncoiling without degrading electrical or mechanical performance. The conductor design, insulation system, and sheath materials work together to provide the flexibility required for reeling and trailing applications while maintaining the structural integrity needed for long service life.

Resistance to moisture represents a critical advantage in underground mining environments where high humidity and potential water exposure are common concerns. The PCP sheath material and EPR insulation system provide excellent moisture resistance, maintaining electrical performance even when cables are exposed to wet conditions. This moisture resistance extends beyond simple water exposure to include resistance to various aqueous solutions encountered in mining operations.

Abrasion resistance becomes crucial in mining applications where cables may be exposed to rough surfaces, debris, and mechanical contact with equipment or rock surfaces. The heavy-duty elastomer sheath provides exceptional resistance to abrasion and mechanical damage, reducing the risk of cable failure due to external mechanical stress. This durability translates directly into reduced maintenance requirements and improved system reliability.

Chemical exposure resistance addresses another significant challenge in mining environments where cables may be exposed to various chemicals used in ore processing, equipment maintenance, and environmental control. The Type 280B construction materials demonstrate compatibility with the range of chemicals commonly encountered in copper mining operations, maintaining performance characteristics even after exposure to these substances.

The reliable performance achieved through Type 280B cable design provides perhaps the most important benefit in mining applications. Cable failures in underground mining operations can result in significant downtime, costly repair operations, and potential safety hazards. The robust construction and proven performance of Type 280B cables help minimise these risks, providing the reliability essential for maintaining productive mining operations.

Safety improvements associated with Type 280B cables reflect both improved electrical performance and enhanced mechanical durability. The semiconductive screening system reduces the risk of electrical faults, while the robust construction minimises the likelihood of mechanical damage that could create safety hazards. These safety improvements have contributed to regulatory preferences for Type 280B cables over older designs such as Type 275 cables.

Common Issues and Practical Solutions: Frequently Asked Questions

Understanding the common challenges and practical considerations associated with Type 280B cables in mining applications helps operators and maintenance personnel maximise cable performance and service life. The following questions and answers address the most frequently encountered issues and provide practical guidance for optimal cable utilisation.

Question: What should be done if a Type 280B cable shows damage or wear on the outer sheath?

When external damage occurs to the cable sheath, immediate assessment becomes crucial for maintaining safe operation. Surface damage to the sheath may expose underlying semiconductive layers, potentially compromising both electrical insulation and safety systems. The first step involves de-energising the affected cable section and conducting a thorough visual inspection to assess the extent of damage. Any exposure of semiconductive layers or insulation materials requires immediate replacement of the affected cable section, as these components are essential for proper electrical field control and safety.

Regular visual inspection protocols should include checking for cuts, abrasions, unusual wear patterns, or signs of chemical attack on the sheath material. Additionally, electrical testing including insulation resistance measurements and conductor continuity checks should be performed on any cable showing signs of external damage. The sophisticated construction of Type 280B cables means that damage to outer layers can affect internal components in ways that may not be immediately visible, making comprehensive testing essential for safety assessment.

Question: Can Type 280B cables operate safely in wet conditions or flooded mining areas?

Type 280B cables are specifically designed to withstand wet conditions commonly encountered in underground mining operations. The PCP sheath material and EPR insulation system provide excellent moisture resistance, allowing continued operation even when cables are exposed to water. However, proper installation practices remain crucial for achieving optimal performance in wet conditions.

When cables are installed in areas with potential water exposure, proper ingress protection measures must be implemented at connection points and terminations. While the cable itself can withstand moisture exposure, electrical connections require appropriate sealing and protection to maintain system integrity. Following exposure to flooding conditions, cables should be de-energised and subjected to comprehensive electrical testing, including insulation resistance measurements, before returning to service.

Water exposure can also affect the mechanical properties of cable installations, particularly in reeling and trailing applications where wet conditions may increase mechanical stress on cable components. Regular inspection and testing protocols should account for these factors, with particular attention to connection points and areas where cables may be subject to mechanical movement while wet.

Question: What earth conductor sizing requirements apply to Type 280B cables?

The AS/NZS 1802 standard establishes specific requirements for earth conductor sizing that enhance safety compared to earlier standards. For conductor sizes up to 50 mm², the earth conductor must provide conductance equal to at least 75% of the power conductor conductance. This represents a significant increase from earlier 50% requirements and reflects improved understanding of safety requirements in mining applications.

The enhanced earth conductor sizing provides improved fault current handling capability, ensuring that protective devices can operate effectively in the event of ground faults. This becomes particularly important in mobile mining applications where equipment operators work in close proximity to electrical systems and reliable fault protection is essential for personnel safety.

For larger conductor sizes above 50 mm², the standard continues to require substantial earth conductor capacity, with specific requirements based on the power conductor size and configuration. System designers must carefully consider earth conductor sizing during cable selection to ensure compliance with safety standards and optimal protection system performance.

Question: What are the temperature and current rating limitations for Type 280B cables?

Type 280B cables typically operate with continuous temperature ratings up to 90°C, reflecting the thermal capabilities of the EPR insulation system. However, actual current ratings depend on multiple factors including conductor size, installation conditions, ambient temperature, and thermal environment. The cable's ability to dissipate heat becomes crucial for determining safe operating current levels.

Current rating calculations must consider the specific installation environment, including factors such as cable grouping, ambient temperature, and thermal conductivity of surrounding materials. Underground mining environments often present challenging thermal conditions, with limited ventilation and potential heat sources from equipment operation. These factors must be incorporated into current rating calculations to ensure safe operation.

Consultation with AS 3007 and manufacturer-specific data provides detailed current rating information for various installation conditions. System designers should consider both steady-state and transient thermal conditions when selecting cable sizes, ensuring adequate capacity for both normal operation and potential overload conditions that may occur during equipment startup or unusual operating conditions.

Question: How do Type 280B cables perform under ultraviolet (UV) exposure or direct sunlight?

Type 280B cables are primarily designed for underground or mobile applications where direct sunlight exposure is minimal. The PCP sheath material provides limited UV resistance, making these cables unsuitable for prolonged exposure to direct sunlight without additional protection. When cables must be routed through areas with potential UV exposure, appropriate shielding or protective covering should be implemented.

For applications where cables may be temporarily exposed to sunlight during installation or maintenance operations, short-term exposure generally does not cause immediate damage. However, prolonged UV exposure can cause degradation of the outer sheath material, potentially leading to cracking, hardening, or other mechanical property changes that could affect cable performance and service life.

When surface routing becomes necessary, UV-resistant cable tray systems, conduits, or protective covering should be employed to shield cables from direct sunlight. Alternative cable types specifically designed for outdoor applications may be more appropriate for installations involving significant UV exposure.

Question: Do Type 280B cables create electromagnetic interference concerns in mining operations?

The semiconductive core screening system in Type 280B cables is specifically designed to minimise electromagnetic emissions and reduce interference with other electrical and electronic systems. This screening system provides effective containment of electromagnetic fields generated by power transmission, preventing interference with communication systems, control equipment, and monitoring devices commonly used in modern mining operations.

The screening system also provides benefits for the cable itself by preventing external electromagnetic fields from affecting cable performance. In mining environments where multiple electrical systems operate in proximity, this electromagnetic compatibility becomes crucial for maintaining reliable operation of all systems.

However, proper installation practices remain important for achieving optimal electromagnetic performance. Cable routing should avoid unnecessary proximity to sensitive electronic equipment, and proper grounding of cable screens must be maintained throughout the installation. Connection and termination practices should follow manufacturer recommendations to ensure continued electromagnetic performance throughout the system.

Conclusion and Recommendations: Maximising Performance of Type 280B Cables in Mining Applications

The AS/NZS 1802 Type 280B mining cable represents a sophisticated solution to the challenging requirements of underground copper mining operations in Australia. Through advanced engineering incorporating semiconductive screening, robust construction materials, and optimised electrical design, these cables provide the reliability, safety, and performance characteristics essential for modern mining operations.

For mining engineers and electrical system designers, several key recommendations emerge from understanding Type 280B cable capabilities and limitations. First, proper cable selection should consider not only electrical requirements but also mechanical demands, environmental conditions, and installation constraints specific to each application. The comprehensive range of conductor sizes and sophisticated construction features of Type 280B cables provide flexibility for optimising system design, but this flexibility must be utilised thoughtfully to achieve optimal performance.

Procurement professionals should recognise that Type 280B cables represent a premium solution justified by the demanding requirements of mining applications. While initial costs may exceed simpler cable alternatives, the reliability, safety, and performance advantages provide significant value over the service life of mining operations. The reduced maintenance requirements, improved safety margins, and enhanced electromagnetic compatibility contribute to total cost of ownership advantages that extend well beyond initial procurement costs.

Safety officers and maintenance personnel should understand that Type 280B cables require specific handling, installation, and maintenance practices to achieve optimal performance. Regular inspection protocols should account for the sophisticated construction of these cables, with particular attention to sheath integrity, connection quality, and electrical performance testing. The advanced features of Type 280B cables provide enhanced safety margins, but these benefits depend on proper installation and maintenance practices.

For mining operations managers, Type 280B cables represent an investment in operational reliability and safety that directly supports production objectives. The enhanced performance characteristics of these cables contribute to reduced downtime, improved equipment reliability, and enhanced safety margins that support both productivity and regulatory compliance objectives.

The future of mining operations in Australia will likely involve increasing automation, more sophisticated equipment, and enhanced safety requirements. Type 280B cables provide a foundation for these developments, offering the electromagnetic compatibility, reliability, and performance characteristics needed to support advanced mining technologies. Understanding and properly implementing these cables today positions mining operations for success in an increasingly demanding and technologically sophisticated industry.

Through proper selection, installation, and maintenance of Type 280B cables, Australian copper mining operations can achieve the electrical infrastructure reliability essential for maintaining competitive, safe, and productive mining operations in some of the world's most challenging underground environments.
