AS/NZS 1972:2006 Type 1 1.1/1.1 kV Individually Screened Mining Cables: The Backbone of Australian Gold Mine Power Distribution

Introduction

Australia's gold mining industry stands as one of the world's most technologically advanced and safety-conscious sectors, generating billions in revenue annually while maintaining strict operational standards. At the heart of every successful gold mining operation lies a critical yet often overlooked component: the electrical infrastructure that powers everything from massive excavators to sophisticated ventilation systems. The AS/NZS 1972:2006 Type 1 1.1/1.1 kV Individually Screened cables represent a specialised solution engineered specifically for the demanding conditions found in Australian gold mines.

Understanding the importance of reliable power distribution in mining operations requires recognising that any electrical failure can result in production shutdowns costing thousands of dollars per hour, potential safety hazards for workers, and environmental compliance issues. These individually screened cables serve as the electrical nervous system of mining operations, ensuring consistent power delivery whilst providing protection against electromagnetic interference and earth faults that could otherwise compromise both equipment performance and worker safety.

The AS/NZS 1972:2006 standard establishes the technical requirements for these cables, ensuring they meet the specific demands of Australian mining environments. This includes considerations for temperature variations, moisture exposure, mechanical stress, and the unique electrical characteristics required for mining equipment. The "individually screened" designation indicates that each conductor within the cable has its own protective screen, providing superior electromagnetic compatibility and fault protection compared to conventional cables.

Overview of Major Australian Gold Mines

To appreciate the practical applications of AS/NZS 1972:2006 Type 1 cables, it's essential to understand the scale and diversity of Australia's gold mining landscape. Each major operation presents unique electrical challenges that these specialised cables are designed to address.

Boddington Gold Mine (Western Australia) represents Australia's largest gold and copper production facility, operating as an open-pit mine with processing facilities capable of handling over 40 million tonnes of ore annually. The sheer scale of Boddington's operations requires extensive electrical infrastructure to power crushing equipment, conveyor systems, and processing plants. The mine's open-pit configuration exposes electrical systems to varying weather conditions, dust, and mechanical stresses that demand robust cable solutions. The individually screened cables play a crucial role in maintaining reliable power distribution across the vast site, particularly in fixed installations where consistent electrical performance is paramount.

Cadia-Ridgeway (New South Wales) operates as one of the world's largest gold-copper mining complexes, combining both underground and open-cut operations. The underground portions of this operation present unique electrical challenges, including higher moisture levels, limited ventilation, and the need for cables that can withstand the mechanical stresses associated with underground mining equipment. The complex's sophisticated block caving operations require precise electrical control systems, making the electromagnetic interference protection provided by individually screened cables particularly valuable.

Kalgoorlie Super Pit (Western Australia), operated by Kalgoorlie Consolidated Gold Mines, stands as one of Australia's most iconic mining operations. This massive open-pit mine extends over 3.5 kilometres in length and continues to expand, requiring extensive electrical infrastructure to support its fleet of mining equipment. The harsh, arid conditions of the Western Australian goldfields create unique challenges for electrical systems, including extreme temperature variations and dust exposure. The PVC insulation and screening of AS/NZS 1972:2006 Type 1 cables provide essential protection against these environmental factors.

Telfer Mine (Western Australia) operates as a combined open-pit and underground gold-copper-silver operation, presenting the full spectrum of mining electrical challenges. The transition between surface and underground operations requires electrical systems that can adapt to varying environmental conditions whilst maintaining consistent performance. The mine's remote location in the Pilbara region emphasises the importance of reliable electrical infrastructure, as equipment failures can result in extended downtime due to the logistics of obtaining replacement components.

St Ives and Agnew Mines (Western Australia), both operated by Gold Fields, represent significant underground gold operations that rely heavily on sophisticated electrical systems for ventilation, pumping, and materials handling. These underground environments present particular challenges for electrical cables, including exposure to moisture, potential chemical contamination from mining processes, and the need for cables that can withstand the mechanical stresses associated with underground equipment operations.

Application Scenarios in Gold Mines

The versatility of AS/NZS 1972:2006 Type 1 1.1/1.1 kV Individually Screened cables makes them suitable for a wide range of mining applications, each presenting unique electrical and environmental demands that these cables are specifically designed to address.

In fixed wiring applications, these cables serve as the permanent electrical infrastructure connecting various pieces of mining equipment. Unlike flexible cables designed for mobile applications, these fixed installation cables prioritise long-term reliability and consistent electrical performance. They're commonly used to connect stationary equipment such as crushing plants, ore processing facilities, and ventilation systems. The individually screened design ensures that each conductor maintains its electrical integrity even in the electromagnetically noisy environment typical of large mining operations.

Power distribution between machinery represents another critical application area. Mining operations require sophisticated electrical distribution systems to manage the enormous power demands of modern mining equipment. These cables form the backbone of these distribution systems, carrying power from mine substations to individual pieces of equipment. The 1.1/1.1 kV rating makes them particularly suitable for intermediate voltage applications where higher voltages would be unnecessarily complex but standard low-voltage cables would be inadequate.

Conveyor systems in gold mines present unique electrical challenges due to their extended length and continuous operation requirements. These systems often span kilometres and must operate reliably around the clock. The individually screened cables provide the electrical consistency required for sophisticated conveyor control systems whilst offering protection against the electromagnetic interference generated by large motor drives and variable frequency drives commonly used in modern conveyor systems.

Pumping systems in mining operations, particularly in underground mines, require robust electrical connections capable of handling both the electrical demands of large pumps and the harsh environmental conditions associated with water management in mining operations. The PVC insulation and screening of these cables provide essential protection against moisture whilst maintaining electrical performance in demanding applications.

Ventilation systems represent a critical safety application where electrical reliability is paramount. These systems must operate continuously to maintain safe air quality in underground mining operations. The electromagnetic compatibility provided by individually screened cables ensures that ventilation control systems operate without interference from other electrical equipment, maintaining the precise control required for effective mine ventilation.

Technical & Electrical Characteristics

Understanding the technical specifications of AS/NZS 1972:2006 Type 1 cables requires examining both the applicable standards and the detailed construction characteristics that make these cables suitable for mining applications.

Applicable Standards

The primary standard governing these cables is AS/NZS 1972:2006, which establishes the specific requirements for mining cables used in Australian and New Zealand operations. This standard builds upon broader electrical safety principles whilst addressing the unique challenges presented by mining environments. The standard covers construction requirements, electrical performance criteria, testing procedures, and marking requirements that ensure cables meet the demanding conditions found in mining operations.

Supporting standards include AS/NZS 1125, which provides general requirements for electrical cables, and AS/NZS 3808, which establishes performance criteria for cables used in industrial applications. These supporting standards ensure that mining cables meet broader electrical safety requirements whilst maintaining the specialised characteristics required for mining applications.

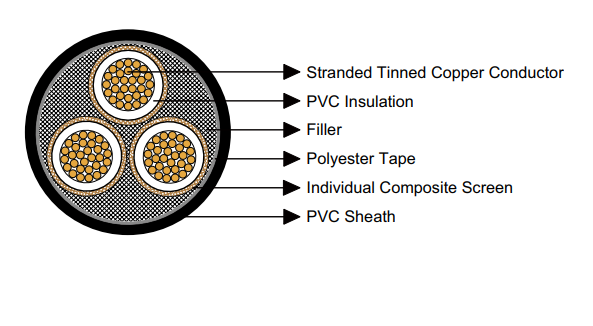

Construction Details

The construction of AS/NZS 1972:2006 Type 1 cables reflects decades of experience in mining electrical systems, with each component designed to address specific challenges encountered in mining environments.

The conductors utilise stranded copper construction, providing the flexibility required for installation whilst maintaining excellent electrical conductivity. The stranding pattern distributes mechanical stress across multiple wire strands, reducing the risk of conductor failure due to vibration or thermal cycling. The use of copper ensures optimal electrical performance with minimal voltage drop, critical for maintaining equipment performance in mining applications.

Insulation utilises PVC (polyvinyl chloride) material selected for its excellent electrical properties and resistance to the environmental conditions commonly encountered in mining operations. PVC insulation provides reliable electrical isolation whilst offering good resistance to moisture, chemicals, and mechanical abrasion. The insulation thickness varies according to conductor size and voltage requirements, ensuring adequate electrical clearance whilst minimising overall cable dimensions.

The individual composite screen represents the most distinctive feature of these cables, consisting of tinned annealed copper braiding interwoven with polyester yarn. This construction provides both electrical screening and mechanical protection for each conductor. The copper braiding offers excellent electrical conductivity for fault current protection and electromagnetic interference shielding, whilst the polyester yarn provides mechanical reinforcement and helps maintain the screen's integrity during installation and operation.

Binding tape, typically constructed from polyester material, provides mechanical protection for the screened conductors whilst maintaining the cable's overall structural integrity. This binding ensures that the individual screens remain properly positioned and protected during installation and operation.

The outer sheath utilises PVC material to provide environmental protection for the entire cable assembly. The sheath protects against moisture ingress, chemical exposure, and mechanical damage whilst providing additional electrical insulation. The sheath thickness varies according to cable size and application requirements, ensuring adequate protection whilst maintaining reasonable cable flexibility for installation.

Electrical Ratings & Dimensions

The electrical and physical characteristics of AS/NZS 1972:2006 Type 1 cables are carefully engineered to provide optimal performance in mining applications whilst maintaining practical installation requirements.

For three-core configurations with 1.5 mm² conductors, the cable utilises 30 individual 0.25 mm diameter strands per conductor, providing excellent flexibility whilst maintaining electrical performance. The insulation thickness of 0.8 mm ensures adequate electrical clearance, whilst the individual screen consists of 0.20 mm² copper braiding. The overall cable diameter reaches 10.1 mm with a weight of 16 kg per 100 metres, making it suitable for applications requiring smaller cable sizes with excellent electromagnetic compatibility.

Four-core configurations with 1.5 mm² conductors maintain the same conductor and insulation specifications whilst accommodating the additional conductor. The overall diameter increases to 11.1 mm with a proportional weight increase to 21 kg per 100 metres, providing the additional conductor capacity required for certain mining applications whilst maintaining the same electrical and screening characteristics.

For higher power applications, three-core configurations with 10 mm² conductors utilise 77 individual 0.40 mm diameter strands per conductor. The increased conductor size requires thicker insulation at 1.0 mm, whilst the individual screen area increases to 6.8 mm². The overall diameter reaches 18.6 mm with a weight of 59 kg per 100 metres, providing the increased current carrying capacity required for larger mining equipment whilst maintaining excellent electromagnetic compatibility.

Four-core configurations with 10 mm² conductors follow similar principles, reaching an overall diameter of 20.5 mm with a weight of 75 kg per 100 metres. These configurations provide the flexibility required for applications needing multiple conductors whilst maintaining the electrical performance characteristics essential for mining operations.

The largest standard configurations utilise 16 mm² conductors constructed from 126 individual 0.40 mm diameter strands. Three-core configurations reach an overall diameter of 21.6 mm with a weight of 84 kg per 100 metres, whilst four-core configurations extend to 23.7 mm diameter with a weight of 110 kg per 100 metres. These larger configurations provide the current carrying capacity required for the most demanding mining equipment whilst maintaining the individually screened construction that ensures electromagnetic compatibility.

FAQs: Mining-Specific Issues & Expert Answers

Mining operations present unique electrical challenges that require specialised knowledge and carefully considered solutions. The following frequently asked questions address the most common concerns encountered when specifying and installing AS/NZS 1972:2006 Type 1 cables in mining applications.

Question: Can these cables withstand moisture or mild flooding conditions commonly encountered in mining operations?

The PVC insulated and individually screened design of these cables provides good tolerance for damp conditions typical in many mining environments. The PVC insulation offers excellent moisture resistance, whilst the individual copper screens provide additional protection against moisture ingress. However, it's important to understand that these cables are not designed for prolonged submersion or exposure to standing water. In applications where permanent wet conditions are expected, such as underground sumps or areas prone to flooding, engineers should consider cables with higher environmental ratings or additional protective measures such as conduit systems or waterproof cable glands.

Question: Is mechanical damage a significant concern when installing these cables in mining environments?

Mining environments present substantial mechanical hazards including heavy equipment traffic, falling rocks, and exposure to mining machinery. Whilst AS/NZS 1972:2006 Type 1 cables incorporate robust construction with PVC sheathing and individual screening, they are not mechanically armoured cables. In applications where significant mechanical protection is required, such as areas with heavy vehicle traffic or potential impact hazards, engineers should specify additional protection measures including steel conduit, cable trays, or mechanical guards. Alternatively, armoured cable variants should be considered for applications with extreme mechanical exposure.

Question: Can these cables be used for mobile plant and equipment applications?

These cables are specifically designed for fixed installation applications and are not suitable for trailing or continuous flexing applications such as mobile plant connections. The construction prioritises long-term reliability in fixed installations over the flexibility required for mobile applications. Mining operations requiring power connections to mobile equipment should specify cables designed to AS/NZS 1802 or similar standards that provide the enhanced flexibility and durability required for continuous movement and reeling applications.

Question: How should engineers address voltage drop concerns over long cable runs typical in mining operations?

Voltage drop calculations become particularly critical in mining applications due to the extended cable runs often required and the high power demands of mining equipment. For extended cable lengths, engineers must conduct detailed voltage drop calculations considering both the cable resistance and the load characteristics of connected equipment. Solutions include upsizing conductors beyond the minimum current requirements, installing intermediate distribution points, or utilising voltage boosting transformers. The excellent conductivity of copper conductors in these cables helps minimise voltage drop, but careful calculation remains essential for optimal system performance.

Question: Do these cables provide adequate protection against electromagnetic interference in mining environments?

The individually screened construction of these cables provides excellent electromagnetic compatibility protection, with each conductor having its own copper screen connected to the cable's earth system. This design provides superior EMI protection compared to cables with overall screening only, as it ensures that each conductor maintains its electrical integrity even in the electromagnetically noisy environment typical of mining operations. The copper braiding offers low impedance paths for interference currents, whilst the individual screening prevents crosstalk between conductors within the same cable.

Question: What measures ensure compliance with mining electrical safety requirements?

Ensuring compliance requires multiple verification steps throughout the procurement and installation process. Cables must be clearly marked with AS/NZS 1972:2006 compliance markings and accompanied by test certificates from accredited testing laboratories. Installation must follow approved procedures with appropriate cable supports, protection measures, and termination techniques. Regular electrical testing including insulation resistance and continuity testing should be conducted according to mining electrical safety procedures. Additionally, cable installations should be inspected and tested by qualified electrical personnel before commissioning and at regular intervals throughout their service life.

Application Examples by Gold Mine

Each major Australian gold mine presents unique electrical challenges that demonstrate the versatility and importance of AS/NZS 1972:2006 Type 1 cables in modern mining operations.

At Boddington Gold Mine, the massive scale of open-pit operations requires extensive electrical infrastructure to support crushing and conveyor systems. The mine's primary crushers and conveyor systems utilise fixed electrical connections that must operate reliably despite exposure to dust, temperature variations, and mechanical vibration. The individually screened cables provide the electromagnetic compatibility required for sophisticated control systems whilst offering the environmental protection necessary for open-pit operations. The cables' ability to maintain electrical performance in dusty conditions makes them particularly suitable for the conveyor systems that transport ore from the pit to processing facilities.

Cadia-Ridgeway's underground operations present different challenges, with higher moisture levels and limited ventilation requiring cables that can maintain performance in challenging environmental conditions. The mine's sophisticated block caving operations rely on precise electrical control systems that must operate without electromagnetic interference from other equipment. The individually screened construction ensures that control signals remain clear and reliable, whilst the PVC insulation provides protection against the moisture and chemical exposure common in underground mining environments. The cables are particularly valuable in ventilation system applications where reliable operation is critical for worker safety.

The Kalgoorlie Super Pit's massive open-pit operations require robust electrical connections between substations and major equipment. The harsh, arid conditions of the Western Australian goldfields create unique challenges including extreme temperature variations and dust exposure. The cables' PVC construction provides excellent protection against these environmental factors whilst maintaining electrical performance across the extended cable runs required in such large operations. The individually screened construction ensures that sophisticated equipment control systems operate reliably despite the electromagnetic interference generated by large mining equipment.

Telfer Mine's combination of open-pit and underground operations demonstrates the versatility of these cables across different mining environments. The cables must perform reliably in both the exposed conditions of open-pit operations and the more controlled but potentially more challenging conditions of underground mining. The ability to maintain consistent electrical performance across these varied environments makes these cables particularly valuable for mining operations that combine multiple extraction methods.

St Ives and Agnew Mines' underground operations rely heavily on ventilation and pumping systems that require absolute electrical reliability. The cables' individually screened construction provides the electromagnetic compatibility required for sophisticated control systems whilst offering protection against the moisture and chemical exposure common in underground mining. The cables are particularly critical in ventilation applications where electrical failure could compromise worker safety.

Conclusion

AS/NZS 1972:2006 Type 1 1.1/1.1 kV Individually Screened cables represent a crucial component in the electrical infrastructure of Australian gold mining operations. Their specialised construction, combining stranded copper conductors, PVC insulation, individual copper screening, and robust outer sheathing, provides the reliability and performance required for the demanding conditions encountered in modern mining operations.

The success of Australia's gold mining industry depends on the reliable operation of sophisticated electrical systems, from massive crushing equipment to critical safety systems. These cables provide the foundation for this electrical infrastructure, ensuring consistent power distribution whilst offering protection against the electromagnetic interference and environmental challenges that could otherwise compromise equipment performance and worker safety.

Understanding the proper selection, installation, and maintenance of these cables is essential for mining electrical engineers and technicians. The cables' design addresses the specific challenges of mining environments whilst providing the flexibility required for diverse applications across different mining operations. From the massive open-pit operations of Boddington to the sophisticated underground systems of Cadia-Ridgeway, these cables continue to prove their value in supporting Australia's position as a global leader in gold mining technology and safety.

The continued development and refinement of mining electrical standards, including AS/NZS 1972:2006, ensures that Australian mining operations maintain their competitive advantage whilst providing safe working environments for mining personnel. As mining operations continue to evolve with new technologies and increasing automation, the importance of reliable electrical infrastructure will only continue to grow, making the proper specification and installation of cables like these Type 1 individually screened cables increasingly critical for successful mining operations.

Future developments in mining electrical systems will likely place even greater demands on electrical infrastructure, requiring cables that can support increasingly sophisticated control systems whilst maintaining the reliability and safety standards that have made Australian mining operations among the world's safest and most productive. The AS/NZS 1972:2006 Type 1 cables represent current best practice in mining electrical infrastructure, providing a foundation for the continued success of Australia's gold mining industry.
