AS/NZS 2802 Type 409 Mining Cable: Essential Guide for Australia's Open-Cut Mines

Australia's Major Open-Cut Mining Regions

Australia's open-cut mining landscape encompasses diverse geological formations and climatic conditions, each presenting unique challenges for electrical infrastructure. Understanding these regional characteristics helps explain why Type 409 cables have become the standard choice across the continent's major mining operations.

The Bowen Basin in Queensland represents Australia's largest coal-producing region, stretching across approximately 60,000 square kilometres. Major operations like Saraji and Hail Creek exemplify the scale of modern open-cut coal mining, with some pits extending several kilometres in length and hundreds of metres in depth. The region's tropical climate brings intense UV radiation, high humidity, and seasonal flooding, creating demanding conditions for electrical equipment. The Bowen Basin's coking coal operations require particularly robust electrical systems due to the scale of equipment involved, with draglines and bucket wheel excavators demanding high-voltage power distribution that can move with the advancing mining faces.

Moving south to New South Wales, the Hunter Valley presents a different set of challenges. Operations like Mount Arthur, with its 20 million tonnes per annum capacity, showcase the industrial scale of Australian thermal coal mining. The Hunter Valley's more temperate climate still presents significant UV exposure and temperature variations, whilst the region's established infrastructure demands reliable electrical systems that can integrate with existing power networks. The proximity to populated areas also increases the emphasis on safety and environmental considerations in cable selection.

Western Australia's mining regions present perhaps the most extreme conditions for electrical infrastructure. The Super Pit at Kalgoorlie, measuring 3.5 kilometres long, 1.5 kilometres wide, and 600 metres deep, represents one of the world's largest open-cut gold mining operations. The extreme desert conditions, with temperatures exceeding 45°C in summer and minimal rainfall, create intense thermal cycling and UV degradation challenges. The Kimberley and Pilbara regions, home to massive iron ore operations like Jimblebar, add the complexity of remote locations where equipment reliability becomes even more critical due to limited maintenance access.

South Australia's mining operations, exemplified by the Prominent Hill copper-gold mine, demonstrate how Type 409 cables adapt to different mineral extraction processes. Copper mining often involves different chemical exposures compared to coal or iron ore operations, requiring cable sheaths that can resist specific corrosive environments whilst maintaining electrical integrity.

Each of these regions has contributed to the evolution of the AS/NZS 2802 standard, with real-world performance data from Australia's diverse mining environments informing the cable's design requirements. The standard's comprehensive approach reflects this geographical diversity, ensuring that Type 409 cables perform reliably whether deployed in the tropical humidity of Queensland or the arid heat of Western Australia.

Application Scenarios in Open-Cut Mining

The versatility of Type 409 cables becomes apparent when examining their diverse applications across open-cut mining operations. Understanding these applications helps explain the cable's design features and assists in proper selection for specific mining environments.

Heavy mobile equipment represents the most demanding application for Type 409 cables. Draglines, the massive excavating machines that can move 100 cubic metres of overburden in a single operation, require substantial electrical power delivered through trailing cables that must withstand constant movement across rough terrain. These machines typically operate on 6.6 kV or 11 kV systems, demanding cables with conductor sizes ranging from 120 mm² to 300 mm². The trailing nature of these applications means the cables experience continuous flexing, abrasion against rocks and debris, and exposure to the full range of environmental conditions.

Electric rope shovels present similar challenges but with different movement patterns. These machines, capable of handling 40-tonne loads, require cables that can accommodate the repetitive swing motions whilst maintaining electrical integrity under high mechanical stress. The power requirements often necessitate multiple cables working in parallel, making reliability even more critical since the failure of one cable can compromise the entire system.

Drilling operations, whether for blast hole preparation or exploration, demand cables that combine flexibility with durability. Blast hole drilling rigs, which must precisely position holes for explosive charges, require responsive electrical systems that can maintain power delivery even under the vibration and movement associated with drilling operations. The cables must also resist the oils and hydraulic fluids commonly present in drilling environments.

Smaller applications, whilst requiring less power, often present unique challenges. Handheld drilling equipment, pumps, and auxiliary machinery typically operate on 1.1 kV systems with smaller conductor sizes, but these cables often experience more frequent handling and repositioning. The flexibility requirements for portable equipment exceed those of larger installations, demanding cable constructions that can withstand tight bending radii without compromising electrical performance.

Water management systems in open-cut mines rely heavily on trailing cables for pump operations. These applications often involve exposure to water, mud, and chemicals used in dust suppression and ore processing. The cables must maintain electrical integrity whilst submerged or exposed to spray conditions, requiring exceptional sheath performance and careful attention to sealing at termination points.

Conveyor systems, whilst often considered fixed installations, frequently require flexible connections to accommodate thermal expansion, settling, and maintenance access. Type 409 cables provide the necessary flexibility whilst maintaining the electrical performance required for consistent material handling operations.

The distinction between trailing and reeling applications becomes crucial in cable selection. Trailing cables, like the Type 409 series, are designed for applications where the cable moves with the equipment, experiencing continuous flexing and abrasion. Reeling cables, in contrast, are designed for controlled winding and unwinding on cable reels. The Type 409's construction optimises flexibility and abrasion resistance at the expense of the tight coiling capability that characterises reeling cables.

Construction and Electrical Parameters

The construction of Type 409 cables represents a sophisticated balance between electrical performance, mechanical durability, and manufacturing practicality. Each component serves specific functions that contribute to the cable's overall performance in mining applications.

The conductor system forms the electrical heart of the cable. Type 409 cables utilise flexible stranded tinned annealed copper conductors arranged in a rope-lay configuration. The tinning process provides enhanced corrosion resistance, particularly important in mining environments where moisture and chemical exposure are common. The stranding patterns vary with conductor size, with smaller conductors using configurations like 84/0.30 (84 strands of 0.30 mm diameter wire) whilst larger conductors employ patterns like 854/0.67 (854 strands of 0.67 mm diameter wire). This progression ensures optimal flexibility across the entire size range whilst maintaining current-carrying capacity.

The conductor screening system, applied to cables rated 3.3 kV and above, serves multiple critical functions. The semiconductive compound applied directly over the conductor provides a smooth interface with the insulation, eliminating air voids that could lead to partial discharge and eventual insulation failure. This screening also helps distribute electrical stress evenly across the insulation system, particularly important in the high-stress environment of trailing cable applications where mechanical deformation can create stress concentrations.

Ethylene Propylene Rubber (EPR) insulation provides the primary electrical barrier between the conductor and ground. EPR's selection for mining applications reflects its excellent electrical properties combined with superior mechanical performance. Unlike PVC or XLPE insulation, EPR maintains flexibility across a wide temperature range, from -25°C to +90°C, essential for cables that must function in diverse Australian climatic conditions. The insulation thickness varies with voltage rating, with 1.1 kV cables typically using 1.5-1.6 mm thickness whilst 22 kV applications require 10.5 mm insulation thickness.

The insulation screening system, applied over the EPR insulation, serves as the return path for charging current and provides equipotential grounding. The semiconductive elastomer material ensures intimate contact with the insulation surface, preventing air gaps that could lead to partial discharge activity. This screening system also provides some mechanical protection for the insulation during cable handling and installation.

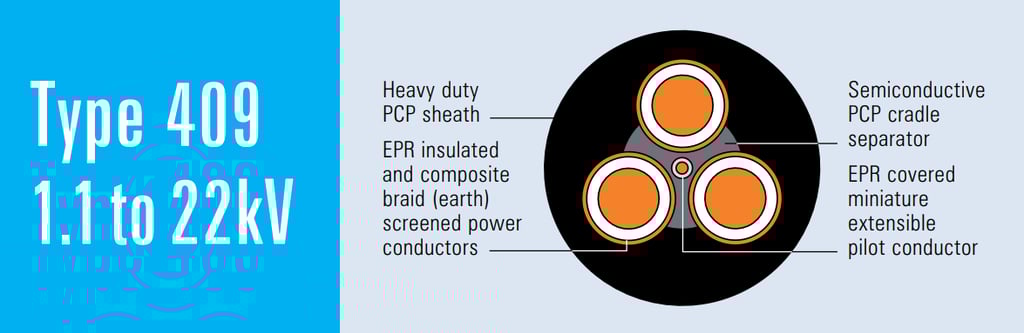

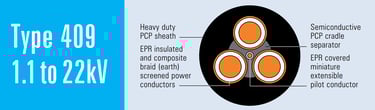

The composite screen represents one of the most innovative features of Type 409 cables. This system combines tinned annealed copper braiding with polyester yarn, creating a structure that serves both as an earth conductor and mechanical protection. The copper braiding provides the low-resistance path required for fault current and normal earthing functions, whilst the polyester yarn adds mechanical strength and helps maintain the braid's integrity under the mechanical stresses of trailing applications. The interwoven construction ensures that mechanical damage to individual copper strands doesn't compromise the overall earthing performance.

The central extensible pilot conductor serves multiple functions in mining applications. This EPR-covered flexible conductor provides a communication path for monitoring systems and can serve as a pilot wire for protective relay systems. The extensible design allows the pilot to accommodate the stretching that occurs during cable deployment without compromising electrical continuity. This feature proves particularly valuable in dragline applications where cable lengths can vary significantly during operation.

The cradle separator, constructed from semiconductive PCP (Polychloroprene), maintains the geometric relationship between the three main conductors whilst providing a degree of mechanical protection. The semiconductive properties help manage electrical stress distribution, particularly important in higher voltage applications where field management becomes critical.

The outer sheath represents the cable's primary defence against environmental conditions. Heavy-duty PCP (Polychloroprene) provides exceptional resistance to oils, UV radiation, ozone, and abrasion. The material's inherent flexibility ensures that the sheath doesn't crack or separate under the mechanical stresses of trailing applications. Alternative sheath materials like CPE (Chlorinated Polyethylene) or CSP (Chlorosulfonated Polyethylene) can be specified for applications requiring enhanced chemical resistance or different mechanical properties.

The electrical parameters of Type 409 cables reflect their intended applications. Voltage ratings progress from 1.1/1.1 kV for portable equipment through 3.3/3.3 kV, 6.6/6.6 kV, and 11/11 kV for medium-voltage applications, up to 22/22 kV for high-voltage mining systems. The voltage designation follows the standard Uo/U convention, where Uo represents the voltage between conductor and earth, and U represents the voltage between conductors.

Current-carrying capacity varies with conductor size, installation conditions, and ambient temperature. A 50 mm² conductor in a 1.1 kV cable typically carries 200-250 amperes under standard conditions, whilst a 240 mm² conductor can handle 500-600 amperes. These ratings assume specific installation conditions, and actual capacity may vary based on factors like ambient temperature, grouping with other cables, and the thermal characteristics of the installation environment.

The cable's impedance characteristics affect both its electrical performance and protective system design. Typical values for Type 409 cables range from approximately 0.5 ohms per kilometre for larger conductors to 3.0 ohms per kilometre for smaller sizes. These values must be considered when designing protective systems and calculating fault currents for mining electrical systems.

Environmental and Mining-Specific Considerations

The Australian mining environment presents a unique combination of challenges that influence every aspect of Type 409 cable design. Understanding these environmental factors helps explain the cable's construction features and assists in proper application and maintenance practices.

Ultraviolet radiation exposure represents one of the most significant environmental challenges in Australian open-cut mining. The intense solar radiation, particularly in regions like the Pilbara and central Queensland, can degrade polymer materials through photochemical reactions. Type 409 cables address this challenge through careful sheath material selection and the incorporation of UV stabilisers. The PCP outer sheath includes carbon black and other UV-absorbing compounds that protect the underlying polymer structure. However, even with these protections, proper cable handling practices that minimise UV exposure during storage and installation remain essential.

Temperature extremes create multiple challenges for mining cables. Daily temperature variations in desert mining regions can exceed 40°C, creating thermal cycling that stresses all cable components. The expansion and contraction associated with these temperature changes can fatigue conductor strands, stress insulation bonds, and affect the integrity of sheath materials. Type 409 cables utilise materials selected for their thermal stability, with EPR insulation maintaining flexibility across the required temperature range and conductor tinning providing corrosion protection even under thermal stress.

Mechanical abrasion represents perhaps the most visible challenge in mining cable applications. Cables trailing across rough terrain encounter rocks, metal debris, and other sharp objects that can damage the outer sheath and potentially compromise internal components. The heavy-duty PCP sheath provides excellent abrasion resistance, but proper cable handling practices remain essential. This includes using appropriate cable protectors where cables cross sharp edges, maintaining proper cable tensions to prevent dragging, and regular inspection for signs of sheath damage.

Chemical exposure in mining environments varies significantly with the type of operation and processing methods employed. Coal mining operations often involve exposure to coal dust, which can be mildly abrasive but generally doesn't present significant chemical challenges. However, coal preparation plants may use various chemicals for cleaning and separation processes. Metal mining operations can involve more aggressive chemical environments, particularly where acid leaching or other chemical extraction processes are employed. Type 409 cables' PCP sheath provides resistance to most common mining chemicals, but specific applications may require testing to ensure compatibility.

Moisture exposure creates both electrical and mechanical challenges. Water ingress can lead to insulation degradation, corrosion of conductor strands, and reduced electrical performance. Whilst Type 409 cables are not designed for continuous submersion, they must withstand spray conditions, temporary flooding, and high humidity environments. The cable's construction includes barriers to moisture ingress, but proper termination practices and regular maintenance remain essential for long-term performance.

Crush and impact resistance become critical in mining environments where heavy equipment operates in close proximity to electrical cables. Type 409 cables incorporate several design features to address these challenges, including the composite screen construction that provides mechanical protection and the flexible conductor design that can accommodate some deformation without electrical failure. However, proper installation practices that route cables away from traffic areas and provide mechanical protection where necessary remain essential.

The remote nature of many mining operations affects maintenance practices and reliability requirements. Equipment failures in remote locations can result in extended downtime whilst replacement parts and personnel are mobilised. This reality places premium importance on cable reliability and the ability to perform field repairs when necessary. Type 409 cables are designed to accommodate field termination and repair procedures, with construction details that facilitate these operations under field conditions.

Electrical safety considerations in mining environments require careful attention to earthing and fault protection systems. The composite screen construction of Type 409 cables provides an effective earthing path, but proper installation and maintenance of terminations remain essential. The central pilot conductor enables sophisticated monitoring systems that can detect developing faults before they become safety hazards.

Frequently Asked Questions: Type 409 Cables in Open-Cut Mining

Q1: Why should mining operations choose Type 409 cables over standard reeling cables for dragline and shovel applications?

Type 409 cables are specifically engineered for trailing applications where the cable must move continuously with the equipment across rough terrain. Unlike reeling cables, which are optimised for controlled winding and unwinding on cable reels, Type 409 cables prioritise flexibility and abrasion resistance. The key differences lie in the construction details: Type 409 cables use more flexible conductor stranding, enhanced outer sheath materials for abrasion resistance, and mechanical design features that accommodate the stretching and flexing associated with trailing applications. Reeling cables, whilst excellent for their intended application, would experience premature failure under the mechanical stresses of continuous trailing across mining sites.

Q2: Can a single Type 409 cable specification handle the diverse power requirements from handheld drills to massive draglines?

The Type 409 series encompasses a comprehensive range of conductor sizes and voltage ratings specifically designed to address this diversity. Smaller applications, such as handheld drilling equipment and portable pumps, typically utilise 1.1 kV cables with conductor sizes ranging from 6 mm² to 35 mm². These cables provide the flexibility required for frequent handling whilst delivering adequate power for portable equipment. Larger applications, including draglines and electric rope shovels, require higher voltage ratings (6.6 kV to 22 kV) and larger conductor sizes (120 mm² to 300 mm²) to handle the substantial power requirements. The beauty of the Type 409 system lies in its scalability—the same construction principles and quality standards apply across the entire range, ensuring consistent performance regardless of application size.

Q3: What voltage levels are available in the Type 409 series, and how do they align with standard mining electrical systems?

Type 409 cables are available in voltage ratings of 1.1/1.1 kV, 3.3/3.3 kV, 6.6/6.6 kV, 11/11 kV, and 22/22 kV, covering the complete spectrum of mining electrical systems. The 1.1 kV rating serves portable equipment and smaller fixed installations. The 3.3 kV rating accommodates medium-sized equipment and is commonly used in coal mining operations. The 6.6 kV rating represents the most common voltage level for large mining equipment, including many draglines and shovels. The 11 kV rating is increasingly popular for very large equipment and longer cable runs where voltage drop considerations become significant. The 22 kV rating serves the largest mining installations and provides the most efficient power transmission for very high-power applications. These voltage levels align with standard mining transformer and distribution equipment, ensuring compatibility with existing electrical infrastructure.

Q4: How do Type 409 cables handle the extreme climatic conditions found across Australia's diverse mining regions?

Type 409 cables incorporate several design features specifically addressing Australia's challenging climatic conditions. The PCP outer sheath includes UV stabilisers and carbon black to resist the intense solar radiation found in regions like the Pilbara and central Queensland. The material selection ensures flexibility across the temperature range from -25°C to +90°C, accommodating both the extreme heat of desert mining operations and the occasional cold conditions in southern regions. The EPR insulation maintains its electrical properties across this temperature range, preventing the brittleness that can affect other insulation materials in cold conditions or the softening that can occur in extreme heat. The conductor tinning provides enhanced corrosion resistance in high-humidity coastal regions, whilst the overall construction resists the thermal cycling that results from daily temperature variations exceeding 40°C in some mining areas.

Q5: What fault protection and monitoring features are built into Type 409 cables?

Type 409 cables incorporate several features that enhance electrical safety and enable sophisticated monitoring systems. The composite screen, consisting of tinned copper braiding interwoven with polyester yarn, provides a low-resistance path for fault currents and normal earthing functions. This construction ensures that ground faults are quickly detected and cleared by protective systems. The central extensible pilot conductor serves multiple monitoring functions, including communication with equipment monitoring systems and providing a pilot wire for protective relay systems. Some applications utilise the pilot conductor for continuous insulation monitoring, enabling early detection of developing faults before they become safety hazards. The semiconductive screening systems on higher voltage cables help prevent partial discharge activity that could lead to insulation failure, whilst the overall construction provides multiple barriers to electrical failure.

Q6: Are Type 409 cables suitable for field repair, and what procedures are recommended for maintaining them in remote mining locations?

Type 409 cables are designed with field repair capabilities in mind, recognising the remote nature of many mining operations. The cable construction facilitates field termination and repair procedures using standard mining electrical techniques. Field repairs typically involve cutting away damaged sections, preparing conductor ends using standard stripping techniques, and installing appropriate terminations or joints. The key to successful field repair lies in maintaining the cable's electrical integrity, particularly the screening systems that provide safety and performance benefits. Proper field repair kits should include semiconductive tapes for screen restoration, waterproof joining compounds, and appropriate mechanical protection. Regular maintenance should include visual inspection for sheath damage, thermal imaging to detect developing hot spots, and electrical testing to monitor insulation integrity. The cable's construction allows for partial repairs where only the outer sheath is damaged, potentially extending service life without complete cable replacement.

Q7: What is the expected lifespan of Type 409 cables under typical mining conditions, and what factors most significantly affect service life?

The service life of Type 409 cables varies significantly based on application conditions and maintenance practices, but properly selected and maintained cables typically provide multiple years of reliable service even under demanding mining conditions. Factors most significantly affecting service life include mechanical handling practices, environmental exposure, and electrical loading. Cables subjected to excessive bending, dragging over sharp objects, or improper tension will experience reduced service life. Environmental factors such as UV exposure, chemical contact, and thermal cycling contribute to gradual degradation, but proper cable selection and installation practices can minimise these effects. Electrical factors, including overcurrent conditions, voltage transients, and poor power quality, can accelerate insulation ageing and reduce service life. Conversely, cables operated within their design parameters, properly installed with appropriate mechanical protection, and maintained through regular inspection and testing can provide service life measured in decades rather than years. The key to maximising service life lies in understanding the specific conditions of each application and implementing appropriate installation and maintenance practices.

Conclusion and Recommendations

The AS/NZS 2802 Type 409 mining cable represents the culmination of decades of Australian mining experience, incorporating design features that address the specific challenges encountered in open-cut mining operations across the continent. From the tropical conditions of Queensland's Bowen Basin to the arid extremes of Western Australia's Pilbara region, these cables provide the reliable electrical infrastructure that underpins Australia's mining industry.

The cable's success stems from its comprehensive approach to the mining environment's challenges. The flexible conductor construction accommodates the constant movement required in trailing applications, whilst the robust outer sheath provides protection against abrasion, UV radiation, and chemical exposure. The electrical design ensures reliable performance across the voltage range from 1.1 kV portable equipment to 22 kV high-power systems, with current-carrying capacities that match the demands of modern mining equipment.

Proper cable selection remains crucial for optimal performance and safety. Mining operations must carefully consider their specific requirements, including voltage levels, current demands, environmental conditions, and mechanical stresses. The Type 409 series' comprehensive size range enables precise matching of cable specifications to application requirements, but this flexibility requires careful engineering analysis to ensure optimal selection.

Installation practices significantly influence cable performance and service life. Proper routing to avoid sharp edges and high-traffic areas, appropriate mechanical protection where necessary, and correct termination procedures all contribute to reliable operation. The cable's design facilitates field installation and repair procedures, but these operations require proper training and equipment to maintain the cable's safety and performance characteristics.

Maintenance programs should include regular visual inspection for sheath damage, thermal monitoring to detect developing problems, and electrical testing to assess insulation integrity. The cable's construction enables partial repairs in many cases, potentially extending service life and reducing replacement costs.

For Australia's diverse mining operations, Type 409 cables provide a proven solution that balances electrical performance, mechanical durability, and economic considerations. Their track record across the continent's major mining regions demonstrates their effectiveness in addressing the unique challenges of Australian open-cut mining operations.

The future of mining cable technology continues to evolve, with developments in materials science and manufacturing techniques promising even greater performance and reliability. However, the fundamental design principles embodied in the Type 409 series—flexibility, durability, and electrical integrity—remain as relevant today as when the standard was first developed.

Mining operations investing in Type 409 cables can expect reliable electrical infrastructure that supports productivity whilst maintaining the safety standards essential in modern mining operations. The cable's proven performance across Australia's diverse mining environments makes it an essential component of the electrical systems that power the nation's mining industry.
