AS/NZS 2802 Type 409 Mining Cables: A Comprehensive Guide for Australian Gold-Copper Operations

Introduction: Understanding Australia's Mining Cable Standards

The Australian mining industry operates under some of the world's most demanding conditions, from the scorching heat of Western Australia's goldfields to the complex underground environments of major copper-gold operations. At the heart of these operations lies a critical component that often goes unnoticed yet enables the massive machinery that extracts billions of dollars worth of precious metals annually: specialized mining cables.

The AS/NZS 2802 Type 409 series represents a sophisticated family of trailing and reeling cables designed specifically for mining applications, providing reliable power transmission from 1.1 kilovolts up to 22 kilovolts. These cables serve as the electrical lifelines for the draglines, shovels, drills, and other heavy machinery that form the backbone of Australia's mining operations.

Understanding these cables becomes crucial when we consider that Australian gold production reached approximately 330 tonnes in 2023, with copper production exceeding 900,000 tonnes. Behind these impressive figures lies an intricate network of electrical infrastructure, with Type 409 cables playing a vital role in maintaining the continuous operation of mining equipment worth hundreds of millions of dollars.

The AS/NZS 2802:2000 standard specifically addresses the unique challenges faced in mining environments, including extreme temperatures, chemical exposure, mechanical stress, and the need for reliable earth fault protection. Unlike standard industrial cables, Type 409 series cables incorporate specialized features such as semi-conductive screens, composite earth conductors, and heavy-duty sheaths designed to withstand the harsh conditions found in Australian mines.

Australia's Major Gold-Copper Mining Operations

To appreciate the significance of Type 409 cables, we must first understand the scale and complexity of Australia's major mining operations where these cables are deployed. Each of these operations presents unique challenges that influence cable selection and installation requirements.

Kalgoorlie Super Pit: The Golden Mile Legacy

The Kalgoorlie Super Pit stands as perhaps Australia's most iconic mining operation, representing over 130 years of continuous gold extraction in Western Australia's Eastern Goldfields. Currently operated by Kalgoorlie Consolidated Gold Mines (KCGM), a joint venture between Northern Star Resources and Saracen Mineral Holdings, this massive open-cut operation extends 3.5 kilometers long, 1.5 kilometers wide, and reaches depths exceeding 600 meters.

The Super Pit's scale demands an extensive network of electrical infrastructure to power its fleet of massive machinery. The operation relies on numerous draglines, electric shovels, and drill rigs that require flexible, high-voltage power feeds capable of following equipment movement across the vast pit floor. Type 409 cables serve as trailing feeders for these mobile units, providing power ratings from 6.6kV to 22kV depending on equipment specifications.

The extreme conditions at Kalgoorlie present particular challenges for cable performance. Summer temperatures regularly exceed 40°C, while winter nights can drop below freezing. The dusty, alkaline environment created by ore processing activities places additional stress on cable sheaths, making the chemical resistance properties of Type 409 cables essential for reliable operation.

Cadia-Ridgeway: Underground Innovation

Located near Orange in New South Wales, the Cadia-Ridgeway operation represents one of Australia's largest underground mining complexes. Now owned by Newmont following the acquisition of Newcrest Mining, this operation combines both open-pit and underground panel cave mining techniques to extract copper and gold from a massive orebody.

The underground environment at Cadia presents unique electrical challenges that highlight the importance of proper cable selection. The operation extends to depths exceeding 1,000 meters, creating conditions where cables must perform reliably in high-humidity environments with potential exposure to groundwater. The panel cave mining method involves creating controlled collapses of rock, generating significant vibration and mechanical stress that cables must withstand.

Type 409 cables at Cadia serve multiple functions, from powering underground load-haul-dump vehicles to providing flexible feeds for drilling equipment and ventilation systems. The cables' construction with tinned copper conductors and EPR insulation provides excellent performance in these demanding conditions, while the composite screen design ensures reliable earth fault protection crucial for underground safety.

Boddington: Scale and Efficiency

Newmont's Boddington operation in Western Australia represents one of the largest gold mines in the country, producing over 745,000 ounces of gold in 2023. This massive open-pit operation processes approximately 55 million tonnes of ore annually, requiring an extensive fleet of mobile equipment that depends on reliable electrical power.

The scale of Boddington's operations creates unique challenges for electrical infrastructure. The pit covers an area of several square kilometers, with equipment constantly moving to new locations as mining progresses. This mobility requirement makes trailing cables essential, as fixed installations would be impractical and potentially dangerous as the pit expands.

Type 409 cables at Boddington must withstand the constant flexing associated with equipment movement while maintaining electrical integrity under high-voltage conditions. The cables' heavy-duty PCP sheath provides excellent resistance to the oil and hydraulic fluid exposure common in heavy machinery operations, while the flexible stranded conductor design ensures reliable performance despite continuous movement.

Telfer: Remote Operations Excellence

Greatland Gold's Telfer operation, located in Western Australia's Great Sandy Desert, exemplifies the challenges of remote mining operations. This combined open-pit and underground operation produces gold, copper, and silver in one of Australia's most isolated mining locations, approximately 400 kilometers from the nearest town.

The remote location of Telfer places additional importance on electrical reliability, as equipment failures can result in extended downtime due to the difficulty of obtaining replacement parts and specialized services. Type 409 cables contribute to operational reliability by providing robust power transmission that withstands the extreme temperature variations and dust exposure characteristic of desert environments.

The operation's combination of surface and underground mining creates diverse cable application requirements. Surface operations require cables capable of withstanding direct sunlight and temperature extremes, while underground applications demand performance in confined spaces with potential exposure to mine water and chemical treatments.

Applications and Use Scenarios in Mining Operations

Understanding the specific applications of Type 409 cables requires examining how these cables integrate with various types of mining equipment and operational requirements. The flexibility and durability of these cables make them suitable for a wide range of applications, each with unique technical demands.

Mobile Equipment Power Feeds

The primary application of Type 409 cables lies in providing flexible power feeds to mobile mining equipment. Unlike fixed installations where cables remain stationary, trailing cable applications require continuous flexing as equipment moves throughout mining operations. This creates unique technical challenges that influence cable design and construction.

Electric rope shovels represent one of the most demanding applications for Type 409 cables. These massive machines, weighing up to 1,500 tonnes, require power feeds capable of delivering several megawatts of electrical power while following the shovel's movement around the pit. The cables must maintain electrical integrity despite constant coiling and uncoiling as the shovel moves between loading positions.

Draglines present similar challenges but with even greater complexity due to their extended range of movement. Modern draglines can have boom lengths exceeding 100 meters and operate on benches up to 60 meters high. The trailing cables must accommodate this extended range while maintaining proper electrical characteristics throughout the full range of motion.

Drilling Equipment Applications

Mining drill rigs require specialized cable considerations due to their unique operational patterns. Blast hole drilling involves creating precisely positioned holes for explosive charges, requiring drills to move frequently between locations while maintaining continuous power for both propulsion and drilling operations.

Type 409 cables serve drilling equipment in multiple configurations. Smaller conductor sizes, typically in the 409.1 and 409.3 voltage classes, provide power for drill mobility and auxiliary systems. Larger conductor sizes may be required for the drilling motors themselves, particularly in rotary drilling applications where high torque requirements demand significant electrical power.

The cyclical nature of drilling operations creates specific stress patterns on cables. Unlike continuous movement applications, drilling involves periods of stationary operation followed by rapid repositioning. This intermittent flexing pattern requires cables designed to withstand stress concentration at connection points while maintaining flexibility for movement phases.

Underground Mining Applications

Underground mining environments present unique challenges that influence cable selection and installation practices. The confined spaces, potential exposure to mine water, and safety requirements for underground electrical installations create specific technical requirements for Type 409 cables.

Load-haul-dump vehicles represent a critical application for underground Type 409 cables. These vehicles require flexible power feeds that can accommodate the tight turning radii and variable terrain encountered in underground haulage ways. The cables must maintain electrical integrity while being subjected to the mechanical stress of vehicle movement in confined spaces.

Ventilation systems in underground mines often require flexible power feeds to accommodate the adjustment of airflow patterns as mining progresses. Type 409 cables provide the flexibility needed for repositioning ventilation equipment while maintaining the electrical reliability crucial for mine safety systems.

Surface Processing Applications

While Type 409 cables find their primary application in mobile equipment, they also serve important functions in surface processing operations where flexibility and durability are required. Conveyor systems, particularly those with variable positioning requirements, benefit from the flexibility of Type 409 cables.

Crusher and mill operations may require flexible power feeds for equipment that must be repositioned as ore characteristics change or as processing requirements evolve. The chemical resistance properties of Type 409 cables become particularly important in these applications where exposure to process chemicals and reagents is common.

Construction and Electrical Parameters

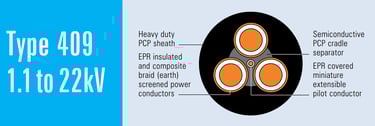

The technical sophistication of Type 409 cables becomes apparent when examining their construction details and electrical characteristics. Every component of these cables is engineered to address specific challenges encountered in mining applications, from the conductor stranding to the outer sheath materials.

Standards Compliance and Certification

Type 409 cables must comply with multiple Australian and New Zealand standards, each addressing different aspects of cable performance and safety. The primary standard, AS/NZS 2802:2000, specifically addresses trailing and reeling cables for mining applications, establishing requirements for electrical performance, mechanical properties, and environmental resistance.

Compliance with AS/NZS 1125 ensures that cable insulation materials meet the stringent requirements for electrical integrity under the temperature and voltage stress conditions encountered in mining applications. This standard specifically addresses the performance of EPR insulation systems, which form the foundation of Type 409 cable electrical integrity.

AS/NZS 3808 compliance addresses the earth fault protection requirements crucial for mining safety. This standard ensures that the composite screen design provides reliable earth fault detection and protection, enabling rapid disconnection of power in fault conditions to prevent electrical hazards.

AS/NZS 5000.1 compliance ensures that overall cable design meets the broader requirements for electrical installations in mining environments, addressing issues such as electromagnetic compatibility and electrical safety in potentially explosive atmospheres.

Conductor Design and Materials

The conductor system of Type 409 cables represents a sophisticated engineering approach to providing reliable electrical transmission under demanding mechanical conditions. The use of flexible stranded tinned annealed copper conductors provides the combination of electrical conductivity and mechanical flexibility essential for trailing cable applications.

The stranding pattern of Type 409 conductors varies with cable size and voltage rating, but all configurations prioritize flexibility while maintaining electrical integrity. Smaller cables typically use fine wire stranding with individual wire diameters of 0.30 to 0.40 millimeters, while larger cables may use slightly larger individual wires to achieve the required cross-sectional area.

Tinning of the copper conductors provides crucial protection against corrosion in the humid and chemically aggressive environments common in mining operations. The tin coating prevents oxidation of the copper strands, maintaining electrical conductivity and preventing the formation of high-resistance connections that could lead to overheating.

The three-conductor configuration of Type 409 cables provides balanced three-phase power transmission while maintaining compact overall dimensions. This configuration enables efficient power transmission to mining equipment while minimizing cable weight and bulk, important considerations for mobile applications.

Insulation Systems and Screening

The insulation system of Type 409 cables incorporates multiple layers designed to provide reliable electrical isolation under the demanding conditions encountered in mining applications. Ethylene-Propylene Rubber (EPR) insulation forms the primary electrical barrier, offering excellent dielectric properties combined with mechanical flexibility and environmental resistance.

EPR insulation provides superior performance compared to traditional rubber compounds, offering better resistance to ozone, UV radiation, and chemical exposure while maintaining flexibility over a wide temperature range. The material's excellent electrical properties ensure reliable performance at the high voltages required for mining equipment operation.

For cables rated at 3.3kV and above, semi-conductive conductor screens provide crucial electrical stress control. These screens ensure uniform electrical field distribution around the conductor, preventing stress concentrations that could lead to insulation breakdown. The semi-conductive material maintains intimate contact with both the conductor and insulation, providing effective stress grading throughout the cable's operational life.

Insulation screens on higher voltage cables provide additional electrical stress control at the outer boundary of the insulation system. These screens, typically constructed from semi-conductive elastomer materials, ensure uniform electrical field distribution and provide a defined boundary for electrical stress calculations.

Composite Screen and Earth Protection

The composite screen system of Type 409 cables represents an innovative approach to providing both mechanical protection and electrical earth fault protection. The combination of tinned copper braiding interwoven with polyester yarn creates a robust shield that serves multiple functions simultaneously.

The copper braiding component provides the electrical conductivity necessary for effective earth fault protection, ensuring that fault currents can be safely conducted to ground without creating dangerous voltage potentials. The tinned copper construction provides corrosion resistance while maintaining low electrical resistance crucial for protective relay operation.

Polyester yarn interwoven with the copper braiding provides mechanical reinforcement that enhances the screen's resistance to mechanical damage during cable handling and installation. This hybrid construction approach provides superior performance compared to conventional copper screens, particularly in applications involving significant mechanical stress.

The composite screen design enables the cable to function as both a power transmission medium and a protective earth conductor, eliminating the need for separate earth cables in many applications. This integration simplifies cable installation and reduces overall system complexity while maintaining safety standards.

Sheath Materials and Environmental Protection

The outer sheath of Type 409 cables provides the primary defense against environmental hazards encountered in mining applications. The standard heavy-duty PCP (Polychloroprene) sheath offers excellent resistance to oil, chemicals, ozone, and UV radiation while maintaining flexibility over a wide temperature range.

PCP sheath material provides superior flame resistance compared to conventional rubber compounds, an important safety consideration in mining environments where fire hazards may be present. The material's self-extinguishing properties help prevent fire propagation along cable runs, contributing to overall mine safety.

For applications requiring enhanced chemical resistance, heavy-duty CPE (Chlorinated Polyethylene) or CSP (Chlorosulfonated Polyethylene) sheaths are available upon request. These materials provide superior performance in environments with exposure to aggressive chemicals or extreme temperature conditions.

The heavy-duty construction of Type 409 cable sheaths provides enhanced mechanical protection compared to standard industrial cables. The increased wall thickness and improved material properties ensure reliable performance in applications involving significant mechanical stress or abrasion.

Voltage Classifications and Technical Specifications

Type 409 cables are available in five distinct voltage classifications, each designed to meet specific application requirements in mining operations. Understanding these classifications is crucial for proper cable selection and ensures optimal performance in diverse mining applications.

Type 409.1: 1.1kV Applications

Type 409.1 cables serve applications requiring moderate voltage levels, typically for auxiliary equipment and smaller mining machinery. These cables find extensive use in powering drill rigs, pumps, and hand-held equipment where mobility and flexibility are essential.

The 1.1kV rating makes these cables suitable for applications connected to mine distribution systems operating at this voltage level. The lower voltage rating allows for simplified insulation systems while maintaining the mechanical robustness required for mining applications.

Conductor sizes for Type 409.1 cables range from 6mm² to 300mm², providing flexibility in matching cable capacity to specific load requirements. The smaller conductor sizes serve portable equipment applications, while larger sizes accommodate fixed installations requiring flexibility for maintenance access.

Type 409.3: 3.3kV Medium Voltage

Type 409.3 cables represent the entry level for medium voltage mining applications, providing power transmission at 3.3kV for a wide range of mining equipment. This voltage level has become increasingly common in mining operations as equipment manufacturers seek to improve efficiency and reduce conductor sizes.

The 3.3kV rating requires the incorporation of semi-conductive screens for electrical stress control, adding complexity to the cable construction but ensuring reliable performance under medium voltage conditions. These screens prevent electrical stress concentrations that could lead to insulation failure.

Applications for Type 409.3 cables include medium-sized mining equipment such as smaller draglines, conveyor drives, and processing equipment. The voltage level provides a good balance between transmission efficiency and system complexity, making it suitable for a wide range of mining applications.

Type 409.6: 6.6kV Standard Mining Voltage

Type 409.6 cables operate at 6.6kV, a voltage level that has become standard in many Australian mining operations. This voltage provides excellent transmission efficiency for medium to large mining equipment while remaining within the capabilities of standard mining electrical systems.

The 6.6kV rating requires enhanced insulation systems and more sophisticated screening arrangements compared to lower voltage cables. The insulation thickness increases significantly, and the screening systems become more complex to ensure reliable performance under medium voltage conditions.

Large mining equipment such as electric shovels, draglines, and major processing equipment commonly operate at 6.6kV. The voltage level provides efficient power transmission while maintaining compatibility with standard mining electrical infrastructure.

Type 409.11: 11kV High Voltage

Type 409.11 cables serve high voltage applications at 11kV, typically used for the largest mining equipment and long-distance power transmission within mining operations. This voltage level requires sophisticated insulation and screening systems to ensure reliable performance.

The 11kV rating demands increased insulation thickness and enhanced screening arrangements compared to lower voltage cables. The electrical stress control requirements become more stringent, requiring precise control of electrical field distribution throughout the cable structure.

Applications for Type 409.11 cables include large draglines, major crusher installations, and distribution feeders for mining substations. The high voltage rating enables efficient power transmission over extended distances while maintaining acceptable voltage regulation.

Type 409.22: 22kV Ultra-High Voltage

Type 409.22 cables represent the highest voltage rating in the Type 409 series, operating at 22kV for the most demanding mining applications. These cables incorporate the most sophisticated insulation and screening systems available in the series.

The 22kV rating requires maximum insulation thickness and the most advanced screening arrangements to ensure reliable performance under high voltage conditions. The electrical stress control requirements become critical, demanding precise engineering of all cable components.

Applications for Type 409.22 cables are typically limited to the largest mining equipment and major distribution feeders. The high voltage rating enables maximum transmission efficiency but requires enhanced safety precautions and specialized handling procedures.

Dimensional Specifications and Weight Considerations

The physical dimensions and weight characteristics of Type 409 cables significantly impact their practical application in mining operations. Understanding these parameters is crucial for proper cable selection, handling procedures, and installation planning.

Conductor Cross-Sectional Areas

Type 409 cables are available in conductor cross-sectional areas ranging from 6mm² to 300mm², providing flexibility to match cable capacity to specific load requirements. The conductor size selection depends on the electrical load, voltage drop requirements, and mechanical stress considerations.

Smaller conductor sizes, typically 6mm² to 35mm², serve applications such as portable equipment, lighting systems, and control circuits. These cables provide the flexibility needed for frequent repositioning while maintaining adequate current carrying capacity for moderate loads.

Medium conductor sizes, ranging from 50mm² to 120mm², accommodate applications such as medium-sized mining equipment, conveyor drives, and processing equipment. These sizes provide a balance between current carrying capacity and cable flexibility.

Large conductor sizes, from 150mm² to 300mm², serve the highest current applications such as large draglines, major crushers, and high-capacity distribution feeders. These cables require special handling procedures due to their size and weight.

Overall Cable Dimensions

The overall diameter of Type 409 cables varies significantly with voltage rating and conductor size, ranging from approximately 30mm for the smallest cables to over 114mm for the largest configurations. These dimensions impact cable handling, installation requirements, and termination procedures.

Smaller cables with overall diameters under 50mm can typically be handled manually during installation, though proper lifting techniques remain important to prevent injury. These cables are suitable for applications requiring frequent repositioning or installation in confined spaces.

Medium-sized cables with diameters from 50mm to 80mm require mechanical handling assistance for installation and repositioning. These cables are suitable for semi-permanent installations where occasional repositioning is required.

Large cables with diameters exceeding 80mm require specialized handling equipment for all installation and maintenance operations. These cables are typically used in permanent or semi-permanent installations where their size and weight can be accommodated.

Weight Characteristics and Handling

The weight of Type 409 cables varies dramatically with size and voltage rating, ranging from approximately 129 kg/100m for the smallest cables to over 2,120 kg/100m for the largest configurations. These weight characteristics significantly impact handling procedures and installation planning.

Lightweight cables under 500 kg/100m can typically be handled using standard cable handling equipment and techniques. These cables are suitable for applications requiring frequent repositioning or installation in areas with limited access.

Medium-weight cables from 500 to 1,500 kg/100m require specialized handling equipment and careful planning for installation and maintenance operations. These cables are suitable for semi-permanent installations where their weight can be accommodated.

Heavy cables exceeding 1,500 kg/100m require specialized heavy-duty handling equipment and extensive planning for all operations. These cables are typically used only in permanent installations where their weight characteristics can be properly accommodated.

Mining-Specific Challenges and Solutions

The unique environment of mining operations creates specific challenges for cable performance that require specialized solutions. Understanding these challenges and their solutions is crucial for successful cable application in mining environments.

Mechanical Stress and Abrasion Resistance

Mining environments subject cables to severe mechanical stress that would quickly destroy standard industrial cables. The constant movement of mobile equipment, exposure to sharp rock fragments, and potential contact with heavy machinery create demanding conditions for cable survival.

The heavy-duty sheath construction of Type 409 cables provides enhanced resistance to mechanical damage compared to standard cables. The increased wall thickness and improved material properties ensure reliable performance under the mechanical stress conditions encountered in mining applications.

Proper cable routing and protection systems are essential for maximizing cable life in mechanically demanding applications. Cable guides, protective covers, and proper support systems help minimize mechanical stress and prevent damage from contact with sharp objects or heavy equipment.

Regular inspection and maintenance programs are crucial for identifying mechanical damage before it leads to cable failure. Visual inspection of cable sheaths, electrical testing of conductor integrity, and monitoring of earth fault protection systems help ensure continued reliable operation.

Chemical Exposure and Environmental Resistance

Mining operations expose cables to a wide range of chemical hazards that can degrade cable materials and compromise electrical performance. These hazards include acidic mine water, alkaline processing chemicals, hydraulic fluids, and fuel spills.

The PCP sheath material used in Type 409 cables provides excellent resistance to most chemicals encountered in mining operations. The material's chemical resistance helps prevent degradation that could compromise electrical safety or mechanical integrity.

For applications involving exposure to particularly aggressive chemicals, upgraded sheath materials such as CPE or CSP are available. These materials provide enhanced chemical resistance for the most demanding applications.

Proper cable installation techniques can minimize chemical exposure by routing cables away from known chemical hazards and providing protective barriers where exposure is unavoidable. Regular inspection helps identify chemical damage before it compromises cable performance.

Temperature Extremes and Thermal Management

Mining operations often subject cables to extreme temperature conditions that can affect both electrical and mechanical performance. Surface operations in Australia may experience temperatures exceeding 50°C, while underground operations may encounter both high temperatures from geothermal activity and low temperatures from ventilation systems.

The EPR insulation system used in Type 409 cables provides excellent performance over a wide temperature range, typically from -25°C to +90°C. This temperature range accommodates most mining applications while maintaining electrical integrity.

Proper thermal management becomes crucial for applications involving high ambient temperatures or high electrical loads. Cable derating calculations help ensure that cables are not overloaded under high temperature conditions, preventing thermal damage.

Installation techniques that promote heat dissipation, such as proper spacing between cables and adequate ventilation, help maintain cable temperatures within acceptable limits. Thermal monitoring systems may be appropriate for critical applications involving high temperatures.

Moisture and Water Ingress Prevention

Mining operations frequently expose cables to moisture from various sources, including groundwater, process water, and atmospheric humidity. Water ingress can compromise electrical insulation and lead to dangerous fault conditions.

The construction of Type 409 cables includes multiple barriers to water ingress, including the outer sheath, insulation screens, and proper sealing at termination points. These barriers help prevent water from reaching the electrical components of the cable.

Proper installation techniques are crucial for preventing water ingress. This includes proper sealing of cable terminations, adequate drainage around cable installations, and protection of cables from direct water exposure where possible.

Regular monitoring of insulation resistance helps identify water ingress before it leads to electrical faults. Insulation resistance testing should be performed as part of routine maintenance programs to ensure continued electrical integrity.

Frequently Asked Questions: Troubleshooting Mining Cable Issues

Understanding common problems and their solutions helps ensure reliable operation of Type 409 cables in mining applications. These frequently asked questions address the most common issues encountered in mining operations.

Q1: What should I do if the cable sheath shows signs of abrasion or cutting damage?

Abrasion and cutting damage represent the most common mechanical failures in mining cable applications. Early detection and proper response are crucial for preventing more serious problems.

Minor abrasion that does not penetrate the sheath completely can often be monitored and addressed through protective measures such as cable guards or rerouting. However, any damage that exposes the underlying cable components requires immediate attention.

For damage that penetrates the sheath but does not compromise the electrical components, temporary repairs using appropriate cable repair materials may be possible. However, these repairs should be considered temporary solutions pending proper cable replacement.

Any damage that compromises the electrical integrity of the cable requires immediate removal from service and replacement. Continuing to operate damaged cables creates serious safety hazards and may lead to catastrophic failure.

Prevention remains the best approach to managing abrasion damage. This includes proper cable routing, use of protective guards, regular inspection programs, and training of personnel in proper cable handling techniques.

Q2: How can I maintain cable flexibility while ensuring adequate protection against mechanical damage?

Balancing flexibility requirements with mechanical protection needs represents a common challenge in mining cable applications. The solution involves careful selection of cable specifications and proper installation techniques.

For applications requiring maximum flexibility, smaller conductor sizes and thinner sheath constructions may be appropriate, provided the mechanical stress levels are manageable. However, these choices must be balanced against the need for adequate current carrying capacity and mechanical protection.

Installation techniques that minimize mechanical stress on cables help preserve flexibility while maintaining protection. This includes proper cable support systems, adequate bend radii, and protection from sharp objects or heavy equipment.

Regular inspection and maintenance programs help identify flexibility problems before they lead to cable failure. Signs of flexibility loss include visible cracking of the sheath, increased stiffness, or difficulty in cable movement.

In some cases, more frequent cable replacement may be necessary to maintain adequate flexibility in demanding applications. This should be considered a normal operating cost for applications involving severe mechanical stress.

Q3: What are the best practices for monitoring earth fault protection and pilot conductor continuity?

Effective monitoring of earth fault protection and pilot conductor continuity is crucial for maintaining electrical safety in mining operations. These monitoring systems provide early warning of potential electrical hazards.

The composite screen design of Type 409 cables provides both mechanical protection and earth fault detection capabilities. Regular testing of screen continuity ensures that this protection remains effective throughout the cable's operational life.

The central pilot conductor can serve multiple functions, including earth fault monitoring, equipment control signals, and communication circuits. Proper testing and maintenance of this conductor ensures continued functionality of these systems.

Regular testing protocols should include insulation resistance testing, continuity testing of earth and pilot conductors, and verification of protective relay operation. These tests help identify potential problems before they lead to electrical hazards.

Documentation of test results and trending of electrical parameters helps identify gradual degradation that might not be apparent from individual test results. This approach enables proactive maintenance and replacement decisions.

Q4: How should I handle extreme environmental conditions such as high temperatures or chemical exposure?

Extreme environmental conditions require careful consideration of cable specifications and installation techniques to ensure reliable operation. Understanding the specific environmental challenges is crucial for proper cable selection.

For high temperature applications, cable derating calculations help ensure that cables are not overloaded under extreme conditions. These calculations consider both ambient temperature and internal heating from electrical load.

Chemical exposure requires careful selection of sheath materials and installation techniques that minimize contact with aggressive chemicals. Regular inspection helps identify chemical damage before it compromises cable performance.

For applications involving multiple extreme conditions, enhanced cable specifications may be necessary. This might include upgraded sheath materials, enhanced insulation systems, or specialized protective measures.

Environmental monitoring systems can provide early warning of conditions that might compromise cable performance. These systems enable proactive responses to changing environmental conditions.

Q5: What maintenance practices will maximize the service life of Type 409 cables?

Comprehensive maintenance programs are essential for maximizing the service life of Type 409 cables in mining applications. These programs should address both preventive maintenance and corrective actions.

Visual inspection programs should be conducted regularly to identify mechanical damage, chemical deterioration, or other visible problems. The frequency of inspection should be based on the severity of the application and the criticality of the equipment served.

Electrical testing programs should include insulation resistance testing, continuity testing, and verification of protective system operation. These tests help identify electrical problems before they lead to equipment failure or safety hazards.

Proper handling and storage procedures help prevent damage during installation and maintenance operations. This includes proper lifting techniques, adequate support during installation, and protection from environmental hazards during storage.

Documentation of maintenance activities and test results enables trending of cable performance and helps identify patterns that might indicate impending problems. This information supports proactive maintenance decisions.

Training programs for personnel involved in cable installation, operation, and maintenance ensure that proper procedures are followed and that problems are identified early. Well-trained personnel are essential for successful cable maintenance programs.

Summary and Recommendations

Type 409 cables represent a sophisticated engineering solution to the demanding requirements of mining electrical systems. Their design incorporates multiple features specifically developed to address the unique challenges encountered in mining operations, from extreme mechanical stress to harsh environmental conditions.

The success of Type 409 cables in major Australian mining operations demonstrates their effectiveness in providing reliable power transmission under demanding conditions. Operations such as the Kalgoorlie Super Pit, Cadia-Ridgeway, Boddington, Telfer, St Ives, and Agnew rely on these cables to maintain continuous operation of critical mining equipment.

Proper selection of cable specifications remains crucial for achieving optimal performance in specific applications. This selection process must consider electrical requirements, mechanical stress levels, environmental conditions, and safety requirements. The five voltage classifications of Type 409 cables provide flexibility to match cable specifications to specific application requirements.

Installation and maintenance practices significantly impact cable performance and service life. Proper installation techniques, regular inspection programs, and proactive maintenance help ensure reliable operation and maximize return on investment. Training of personnel involved in cable installation and maintenance is essential for success.

The future of mining cable technology will likely focus on enhanced environmental resistance, improved monitoring capabilities, and integration with digital mine management systems. Type 409 cables provide a solid foundation for these future developments while meeting current operational requirements.

For mining operations considering Type 409 cables, a comprehensive evaluation of application requirements, environmental conditions, and operational procedures is recommended. This evaluation should consider both current needs and future operational plans to ensure optimal cable selection and installation.

The investment in proper cable selection, installation, and maintenance pays dividends through improved equipment reliability, reduced downtime, and enhanced safety. Type 409 cables represent a proven solution for meeting the electrical power transmission needs of modern mining operations while maintaining the reliability and safety standards required in these demanding environments.
