AS/NZS 2802 Type 409 Mining Cables for Australian Underground Mining Operations

Introduction: Understanding Type 409 Mining Cables

When you venture into the depths of Australian underground mines, you'll encounter a sophisticated network of electrical infrastructure that keeps these massive operations running smoothly. At the heart of this network lies a critical component that many take for granted yet cannot function without: the Type 409 flexible trailing cable system.

The AS/NZS 2802 Type 409 cable represents a specialised piece of engineering designed specifically for the harsh realities of underground mining environments. These cables serve as flexible feeders rated from 1.1 kilovolts up to 22 kilovolts, providing the electrical lifeline that powers everything from handheld drilling equipment to massive draglines and shovels that extract Australia's mineral wealth.

Understanding these cables becomes crucial when you consider that Australian mining operations contribute over $300 billion annually to the nation's economy, with underground mining representing a significant portion of this output. The Type 409 cable system ensures that power reaches mobile equipment reliably, even in the most challenging subterranean conditions where traditional fixed wiring simply cannot survive the constant movement, vibration, and environmental stresses.

This comprehensive guide will take you through the technical specifications, real-world applications, and practical considerations that make Type 409 cables indispensable for Australian underground mining operations. We'll explore how these cables perform across the continent's diverse geological conditions, from the gold-rich depths of Western Australia to the polymetallic deposits of South Australia, and address the common challenges that mining engineers face when selecting and maintaining these critical power transmission systems.

Australia's Underground Mining Landscape: Where Type 409 Cables Make Their Mark

To truly appreciate the importance of Type 409 cables, we must first understand the scale and diversity of Australia's underground mining operations. The continent hosts some of the world's most significant underground mines, each presenting unique challenges that require robust, flexible power solutions.

Cadia-Ridgeway in New South Wales stands as one of Australia's most impressive gold and copper operations. Originally an open-cut mine, Cadia has expanded into deep underground territories where Type 409 cables prove essential for powering the sophisticated equipment required for deep shaft operations. The mine's underground expansion requires flexible power solutions that can adapt to the changing layout of tunnels and galleries as mining progresses deeper into the earth.

Moving to South Australia, Olympic Dam represents perhaps the most complex underground mining challenge in the country. This polymetallic giant extracts copper, uranium, silver, and gold from depths that require increasingly sophisticated electrical infrastructure. The mine's unique processing requirements demand cables that can handle multiple voltage levels while maintaining reliability in an environment where downtime costs millions of dollars per day. Type 409 cables excel in this environment because their flexible construction allows them to be repositioned as mining activities shift, while their robust screening provides the electromagnetic protection necessary for sensitive electronic equipment.

Queensland's Ernest Henry mine showcases how Type 409 cables adapt to evolving mining operations. Initially an open-cut operation, Ernest Henry transitioned to underground mining in 2011, requiring a complete redesign of its electrical infrastructure. The Type 409 cables' ability to handle both small-scale equipment power (for exploration and development work) and large-scale production machinery makes them ideal for operations that must maintain flexibility as mining plans evolve.

Western Australia's Gwalia mine presents perhaps the most extreme test of cable durability. Operating at depths approaching 1,600 metres, Gwalia represents one of the deepest gold mining operations globally. At these depths, the combination of heat, pressure, and mechanical stress creates an environment where only the most robust cable systems can survive. Type 409 cables meet this challenge through their heavy-duty PCP (Polychloroprene) sheath construction, which maintains flexibility while providing exceptional resistance to the harsh conditions found at extreme depths.

The underground coal mining sector, particularly in Queensland's Bowen Basin, presents different challenges altogether. Operations like Ulan West, Moranbah North, and Curragh's Mammoth require power solutions that can support longwall mining systems, continuous miners, and shuttle cars. While Type 409 cables excel in metalliferous mining environments, it's important to note that they require specific certification for coal mining applications due to the unique safety requirements surrounding methane gas and explosive atmospheres.

Each of these mining environments demonstrates why a one-size-fits-all approach to mining cables simply doesn't work. The geological diversity across Australia, from the iron-rich Pilbara to the gold-bearing rocks of the Yilgarn Craton, creates unique electrical and mechanical challenges that Type 409 cables address through their modular design approach and multiple voltage ratings.

Application Scenarios: How Type 409 Cables Power Underground Operations

Understanding where and how Type 409 cables function in underground mining operations reveals the sophisticated thinking behind their design. These cables serve as the flexible arteries that deliver power to mobile equipment, distinguishing them from fixed installation cables that remain stationary throughout their service life.

The primary application for smaller Type 409 cables, typically ranging from 6 to 50 square millimetres in conductor cross-section, involves powering handheld and portable equipment. Underground mining operations rely heavily on pneumatic drills, ventilation fans, lighting systems, and communication equipment that must move with the mining crews as they advance through tunnels and galleries. These smaller cables excel in this role because their flexible stranded copper construction allows them to bend and flex repeatedly without conductor fatigue, while their heavy-duty sheath protects against the abrasion that occurs when cables are dragged across rough tunnel floors.

Larger Type 409 cables, ranging from 70 to 300 square millimetres, serve an entirely different purpose in underground operations. These substantial cables power the heavy machinery that forms the backbone of modern mining operations: draglines that move overburden, electric shovels that load ore, and shuttle cars that transport material through underground galleries. The key advantage of Type 409 cables in these applications lies in their trailing capability rather than reeling functionality.

This distinction between trailing and reeling applications represents a fundamental aspect of underground mining cable selection. Trailing cables, like the Type 409 series, are designed to be pulled behind moving equipment across the mine floor. The cable's construction anticipates this harsh treatment, incorporating a robust outer sheath that can withstand constant abrasion against rock surfaces, while maintaining the flexibility necessary to navigate around obstacles and through tight spaces.

The voltage requirements for different applications reveal another layer of sophistication in Type 409 cable design. Lower voltage applications, typically 1.1kV systems, handle lighting, small tools, and communication equipment. As we move up the voltage scale to 3.3kV and 6.6kV systems, we encounter the power requirements for medium-sized equipment like conveyor systems and ventilation fans. The highest voltage Type 409 cables, rated for 11kV and 22kV, serve the massive electrical loads of primary mining equipment and long-distance power transmission within underground facilities.

The central pilot conductor represents one of the most ingenious features of Type 409 cable design. This additional conductor, running parallel to the main power conductors, enables remote power disconnection and equipment control. In underground mining operations, where worker safety depends on the ability to quickly shut down equipment in emergency situations, this pilot conductor provides the control circuit that allows operators to cut power from safe distances. This feature becomes particularly critical when working with high-voltage equipment in confined spaces where rapid evacuation might be necessary.

Technical Excellence: Understanding Type 409 Construction and Electrical Parameters

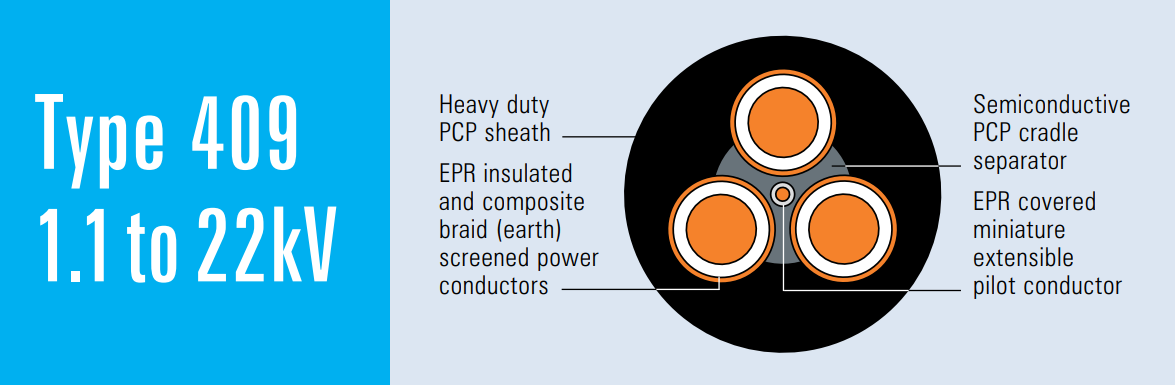

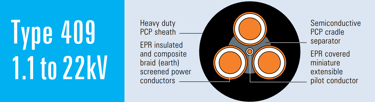

The engineering sophistication of Type 409 cables becomes apparent when we examine their construction layer by layer. Each component serves a specific purpose in ensuring reliable power transmission under the extreme conditions encountered in underground mining operations.

At the core of every Type 409 cable lie three main conductors constructed from flexible stranded tinned annealed copper. The choice of tinned copper over standard copper represents a crucial design decision that significantly impacts cable longevity. The tin coating provides superior corrosion resistance in the humid, chemically aggressive environment typical of underground mines, where moisture combines with various minerals to create corrosive conditions that would quickly degrade unprotected copper.

The stranding pattern of these conductors deserves particular attention. Rather than using solid conductors, which would be prone to fatigue failure under constant flexing, Type 409 cables employ multiple fine strands that distribute mechanical stress across numerous individual conductors. This design philosophy extends throughout the cable construction, with different strand counts and wire diameters optimised for specific conductor sizes and voltage ratings.

Surrounding each conductor, we find a semiconductor compound that serves as the conductor screen for cables rated 3.3kV and above. This semiconductive layer plays a crucial role in managing the electrical stress that develops at the conductor-insulation interface. Without this screening layer, electrical stress would concentrate at sharp points or irregularities on the conductor surface, potentially leading to partial discharge activity that could gradually degrade the insulation system.

The primary insulation system utilises Ethylene Propylene Rubber (EPR), a material chosen specifically for its excellent electrical properties and mechanical durability. EPR maintains its insulating properties across a wide temperature range, from the sub-zero conditions that might be encountered in high-altitude mining operations to the elevated temperatures found in deep underground workings. The insulation thickness varies according to the voltage rating, with higher voltage cables requiring proportionally thicker insulation to maintain the same safety margins.

An insulation screen of semiconductive elastomer surrounds the EPR insulation, providing a smooth, uniform surface that eliminates electrical stress concentrations at the insulation-metallic screen interface. This design approach ensures that electrical stress distributes evenly across the insulation system, maximising the cable's electrical life even under challenging operating conditions.

The composite screen system represents perhaps the most innovative aspect of Type 409 cable construction. Rather than using a simple metallic screen, the design incorporates tinned annealed copper braiding interwoven with polyester yarn. This hybrid approach provides the electrical conductivity necessary for earth fault protection while adding mechanical strength and flexibility that pure metallic screens cannot match. The polyester reinforcement helps the screen maintain its integrity under the stretching and compression forces that occur during cable installation and operation.

The central extensible pilot conductor runs through the geometric centre of the cable, surrounded by its own EPR covering. This pilot conductor must maintain its integrity even when the main cable experiences significant stretching or compression, hence the "extensible" designation. The pilot conductor's position at the cable's neutral axis minimises the mechanical stress it experiences during cable flexing.

A semiconductive PCP (Polychloroprene) cradle separator maintains the proper spacing between the main conductors and the central pilot, ensuring consistent electrical performance while providing additional mechanical protection. This separator also contributes to the cable's overall flexibility by preventing the conductors from binding against each other during flexing.

The outer sheath typically consists of heavy-duty PCP, chosen for its exceptional resistance to oil, flame, and abrasion. The PCP formulation used in Type 409 cables incorporates flame-retardant compounds that meet the stringent fire safety requirements of underground mining operations. Alternative sheath materials, including CPE (Chlorinated Polyethylene) and CSP (Chlorosulfonated Polyethylene), are available for applications requiring enhanced chemical resistance or extreme temperature performance.

The thermal performance specifications of Type 409 cables reflect their intended operating environment. Normal operating temperatures can range from -25°C to +90°C, accommodating everything from surface operations in alpine regions to the moderate temperatures found in most underground workings. Emergency overload conditions allow conductor temperatures up to 130°C, providing operational flexibility during peak demand periods. Most importantly, the cables can withstand short-circuit temperatures up to 250°C for five seconds, ensuring that protective devices have sufficient time to operate during fault conditions without compromising cable integrity.

Electrical Performance in Australian Mining Conditions

The electrical performance characteristics of Type 409 cables reflect decades of refinement based on real-world experience in Australian mining operations. Understanding these performance parameters helps mining engineers select the appropriate cable specifications for their specific applications and operating conditions.

Voltage ratings from 1.1kV to 22kV provide the flexibility necessary to match cable selection to equipment requirements and transmission distances. The lower voltage ratings, particularly 1.1kV systems, excel in applications where equipment mobility is paramount and transmission distances are relatively short. These systems typically power handheld tools, local lighting, and mobile ventilation equipment where the combination of safety and flexibility takes precedence over power transmission efficiency.

Medium voltage systems, particularly 3.3kV and 6.6kV configurations, represent the workhorses of underground mining operations. These voltage levels provide an optimal balance between power transmission capability and safety considerations for most mining equipment. The 3.3kV rating suits medium-sized equipment like conveyor drives and moderate-capacity pumps, while 6.6kV systems handle larger loads including primary ventilation fans and main haulage equipment.

High voltage Type 409 cables, rated for 11kV and 22kV operation, serve specialized applications where long transmission distances or high power requirements justify the additional complexity and safety considerations. These cables typically feed major underground substations or power the largest mining equipment where the improved efficiency of higher voltage operation offsets the increased installation and maintenance requirements.

The conductor sizing philosophy underlying Type 409 cable design recognises that Australian mining operations often involve long transmission distances combined with high ambient temperatures. Conductor sizes ranging from 6 square millimetres to 300 square millimetres provide the flexibility to optimise both voltage drop and thermal performance for specific applications. Smaller conductors excel in applications where flexibility and weight are primary concerns, while larger conductors handle the high current requirements of major mining equipment.

Current-carrying capacity calculations for Type 409 cables must account for the unique thermal environment of underground mining operations. Unlike building installations where ambient temperature rarely exceeds 30°C, underground mines can experience ambient temperatures ranging from near-freezing in high-altitude operations to over 40°C in deep workings. The cable's thermal design incorporates these challenging conditions, with current ratings that maintain appropriate safety margins even under adverse thermal conditions.

The fault current performance of Type 409 cables represents a critical safety consideration in underground mining operations. The composite screen system must safely carry earth fault currents back to the source, enabling protective devices to operate quickly and reliably. The combination of copper braiding and polyester reinforcement provides both the electrical conductivity and mechanical strength necessary to maintain circuit integrity during fault conditions, even when the cable experiences the mechanical stresses associated with fault current magnetic forces.

Insulation resistance performance provides a key indicator of cable condition and suitability for continued service. Type 409 cables maintain high insulation resistance values even in the humid conditions typical of underground mining operations, thanks to the inherent moisture resistance of EPR insulation and the barrier properties of the heavy-duty outer sheath. Regular insulation resistance testing provides mining engineers with an effective tool for monitoring cable condition and scheduling preventive maintenance.

Addressing Common Mining Challenges: Frequently Asked Questions

Underground mining operations present unique challenges that require specialised knowledge and careful consideration of cable selection and maintenance practices. The following questions represent the most common concerns encountered by mining engineers working with Type 409 cables in Australian operations.

Can Type 409 cables be used in underground coal mining operations? This question touches on one of the most critical safety considerations in mining cable selection. Type 409 cables are generally not approved for use in underground coal mines due to the specific safety requirements associated with methane gas and potentially explosive atmospheres. Underground coal mining operations require cables that meet additional certification standards for use in explosive atmospheres, typically designated as "intrinsically safe" or meeting specific flame propagation and gas emission requirements. However, Type 409 cables excel in metalliferous mining operations including gold, copper, iron ore, and other non-coal mining applications where the explosive atmosphere considerations do not apply.

How frequently should trailing cables be inspected and what determines replacement intervals? Cable inspection frequency depends on several factors including operating environment, equipment duty cycle, and installation conditions. Visual inspections should occur daily for cables in harsh trailing applications, looking for cuts, abrasion damage, kinking, or other mechanical damage that might compromise cable integrity. Electrical testing, including insulation resistance measurements and continuity checks, should be performed monthly or after any significant mechanical damage. The pilot conductor requires particular attention, as damage to this circuit can compromise equipment safety systems. Replacement intervals typically range from several years in moderate-duty applications to annual replacement in severe trailing applications where cables experience significant mechanical abuse.

What happens during a short-circuit fault and how do Type 409 cables respond? Short-circuit protection represents a fundamental safety consideration in underground mining operations. Type 409 cables are designed to withstand short-circuit conditions with conductor temperatures reaching 250°C for up to five seconds, providing sufficient time for protective devices to clear the fault without compromising cable integrity. The composite screen system ensures that earth fault currents have a reliable return path to enable protective devices to operate quickly and reliably. The semiconductive screening system helps manage the electrical stresses that develop during fault conditions, preventing partial discharge activity that could lead to insulation breakdown.

How do different sheath materials perform in typical mining environments? The standard PCP (Polychloroprene) sheath provides excellent resistance to oil, moderate chemicals, flame, and mechanical abrasion typical of most underground mining operations. This sheath material maintains flexibility across a wide temperature range while providing good resistance to the cutting and tearing forces encountered in trailing applications. For more demanding applications, CPE (Chlorinated Polyethylene) and CSP (Chlorosulfonated Polyethylene) sheath options provide enhanced chemical resistance and improved performance at temperature extremes. The choice between sheath materials should consider the specific chemicals present in the mining environment, expected temperature ranges, and the severity of mechanical abuse the cable will experience.

Why is the pilot conductor necessary and how should it be maintained? The pilot conductor serves multiple critical functions in mining cable systems. Primarily, it provides the control circuit that enables remote disconnection of equipment power, allowing operators to shut down machinery from safe distances during emergency situations. The pilot conductor also monitors cable integrity, as damage to the main cable often affects the pilot conductor first, providing early warning of potential problems. Maintenance of the pilot conductor requires the same attention as the main conductors, with particular focus on connection integrity at equipment terminations where vibration and movement can cause connection problems.

Are Type 409 cables suitable for use on cable reeling systems? Type 409 cables are optimised for trailing applications rather than frequent reeling operations. While they can function on reeling systems for occasional use, cables designed specifically for reeling applications, such as Type 440 or Type 450 cables, provide superior performance in applications requiring frequent winding and unwinding. The difference lies in construction details that optimise either flexibility for trailing (Type 409) or fatigue resistance for repeated reeling cycles (Type 440/450). Mining operations that require frequent cable reeling should consider dedicated reeling cables to maximise equipment reliability and cable service life.

How do environmental factors in different Australian mining regions affect cable selection? Australia's diverse geological and climatic conditions create varying challenges for mining cable systems. Operations in tropical regions like Queensland must consider high humidity and temperature effects on cable performance, while alpine mining operations may encounter sub-zero temperatures that affect cable flexibility. Desert mining operations in Western Australia present challenges related to dust ingress and extreme temperature variations. The Type 409 cable design accommodates these diverse conditions through its temperature rating range and robust sheath construction, but site-specific factors may influence sheath material selection and installation practices.

Optimising Type 409 Cable Performance in Australian Mining Operations

Success with Type 409 cables in Australian underground mining operations requires understanding not only their technical specifications but also the practical considerations that affect their long-term performance and reliability. This knowledge enables mining engineers to maximise the return on their cable investment while maintaining the highest safety standards.

Installation practices significantly influence cable performance and service life. Proper cable support during installation prevents excessive tension that could damage conductors or strain relief systems. The flexible nature of Type 409 cables makes them forgiving during installation, but excessive pulling forces can cause permanent damage that may not become apparent until the cable enters service. Installation teams should use appropriate pulling techniques, including the use of pulling eyes or cable socks that distribute forces evenly across the cable structure rather than concentrating stress at connection points.

Cable routing and protection represent critical factors in maximising service life. While Type 409 cables are designed for direct burial and trailing applications, strategic routing can significantly extend cable life. Avoiding sharp edges, minimising exposure to chemical spills, and protecting cables from vehicle traffic where possible all contribute to longer service intervals. The robust PCP sheath provides excellent protection, but no cable can withstand unlimited abuse without eventual failure.

Connection techniques and hardware selection play crucial roles in overall system reliability. High-quality connectors designed specifically for mining applications provide reliable connections that can withstand the vibration and movement typical of mobile mining equipment. Connection integrity becomes particularly important for the pilot conductor, where poor connections can compromise safety systems that depend on reliable pilot circuit operation.

Maintenance scheduling should balance operational requirements with the need to identify potential problems before they result in equipment downtime. Condition-based maintenance, using insulation resistance measurements and visual inspections to assess cable condition, provides the most effective approach to maintenance scheduling. This approach focuses maintenance resources on cables that actually need attention rather than following arbitrary time-based schedules that may result in unnecessary cable replacement or, conversely, allow damaged cables to remain in service too long.

Environmental monitoring helps predict cable performance and identify conditions that may accelerate cable aging. Temperature monitoring at cable installation locations can reveal thermal conditions that exceed design parameters, allowing corrective action before cable damage occurs. Chemical monitoring becomes particularly important in mining operations where processing chemicals may contact cables, potentially causing sheath degradation if incompatible materials are present.

Documentation and record-keeping provide the foundation for effective cable management programs. Maintaining records of cable installation dates, inspection results, and maintenance activities enables mining engineers to identify trends that may indicate systemic problems or opportunities for improvement. This information also supports warranty claims and helps justify cable replacement decisions based on documented performance history rather than subjective assessments.

Training programs for installation and maintenance personnel ensure that theoretical cable knowledge translates into practical performance improvements. Personnel who understand cable construction and failure modes are better equipped to identify potential problems during routine inspections and avoid installation practices that may compromise cable performance. Regular training updates help maintain awareness of evolving best practices and new technologies that may improve cable system reliability.

Conclusion: Powering Australia's Underground Mining Future

The AS/NZS 2802 Type 409 cable system represents more than just a power transmission solution for Australian underground mining operations. These cables embody decades of engineering refinement based on real-world experience in some of the world's most challenging mining environments. From the gold-rich depths of Western Australia to the polymetallic complexities of Olympic Dam, Type 409 cables provide the reliable, flexible power transmission that keeps Australia's underground mining industry competitive in global markets.

The technical sophistication of Type 409 cables, with their multi-layer construction and carefully selected materials, addresses the unique combination of electrical, mechanical, and environmental challenges encountered in underground mining operations. The voltage range from 1.1kV to 22kV provides the flexibility necessary to match cable selection to specific equipment requirements, while the robust construction ensures reliable operation even under the harsh conditions that characterise underground mining environments.

Looking toward the future, Type 409 cables are well-positioned to support the evolving needs of Australian underground mining operations. As mines go deeper and equipment becomes more sophisticated, the need for reliable, flexible power transmission becomes even more critical. The proven performance of Type 409 cables in existing operations provides confidence that these systems will continue to meet the challenges of next-generation mining equipment and operating practices.

For mining engineers and operations managers, the key to success with Type 409 cables lies in understanding their capabilities and limitations, then applying this knowledge to select the appropriate cable specifications for specific applications. The trailing cable design excels in applications requiring flexibility and durability, while the multiple voltage ratings and conductor sizes provide the flexibility necessary to optimise both electrical performance and economic considerations.

The investment in high-quality cable systems like Type 409 pays dividends through reduced maintenance costs, improved equipment reliability, and enhanced safety performance. In an industry where downtime costs can reach millions of dollars per day, the reliability advantage of properly selected and maintained cable systems provides tangible economic benefits that far exceed the initial cable cost.

As Australia's mining industry continues to evolve, driven by global demand for mineral resources and advancing mining technologies, Type 409 cables will continue to play a crucial role in powering the underground operations that contribute so significantly to the nation's economic prosperity. Understanding these cables and applying best practices in their selection, installation, and maintenance ensures that Australian mining operations maintain their competitive advantage while providing the safe, reliable working environment that mining personnel deserve.

The future of Australian underground mining depends on the seamless integration of advanced technologies with proven, reliable infrastructure components. Type 409 cables represent exactly this type of foundational technology: sophisticated enough to meet modern mining requirements while robust enough to perform reliably in the challenging conditions that define underground mining operations. For mining professionals committed to operational excellence, Type 409 cables provide the power transmission foundation upon which successful mining operations are built.
