AS/NZS 2802 Type 412 Mining Cable for Australia's Underground Operations

Introduction

Australia's underground mining industry represents one of the world's most demanding electrical environments, where power cables must withstand crushing forces, extreme temperatures, constant movement, and harsh chemical conditions. In this challenging landscape, the AS/NZS 2802 Type 412 cable has emerged as a critical component for powering mobile mining equipment across the continent's vast network of underground operations.

Type 412 cable is a Class 2 trailing and reeling cable designed specifically for underground mining applications, rated at 1.1kV/1.1kV with robust armoured construction. This cable system provides the mechanical protection and electrical reliability essential for powering mobile machinery in Australia's major underground mines, from the copper-gold operations in New South Wales to the deep gold mines of Western Australia.

Understanding the technical specifications, proper applications, and limitations of Type 412 cable is crucial for mining engineers, electrical contractors, and safety professionals working in Australia's underground mining sector. This comprehensive guide explores the cable's construction, examines its role in major Australian mining operations, details its electrical parameters, and addresses common questions about installation, maintenance, and troubleshooting.

The importance of selecting appropriate cable systems cannot be overstated in underground mining environments. Poor cable selection can lead to catastrophic failures, costly downtime, and serious safety hazards. Type 412 cable addresses these concerns through its specialised construction, but understanding when and where to use it requires careful consideration of both its capabilities and limitations.

Overview of Australia's Major Underground Mines

Australia's underground mining landscape encompasses diverse geological formations, mineral deposits, and operational challenges that demand sophisticated electrical infrastructure. The country's major underground operations showcase the varied applications where Type 412 cable systems prove essential for reliable power distribution.

Cadia-Ridgeway Operations, New South Wales

The Cadia-Ridgeway complex in New South Wales represents one of Australia's most significant copper-gold mining operations, with underground workings extending deep beneath the surface. This operation demonstrates the demanding electrical requirements typical of modern underground mining, where mobile equipment must operate continuously in challenging conditions.

The underground infrastructure at Cadia requires extensive power distribution systems to support drilling equipment, mobile crushers, and materials handling machinery. The constant movement of equipment through narrow tunnels and steep inclines creates mechanical stresses that ordinary industrial cables simply cannot withstand. Type 412 cable's armoured construction provides the mechanical protection necessary for trailing applications where equipment moves frequently between mining faces.

Power demands at Cadia are substantial, with mobile equipment requiring reliable 1.1kV power distribution for optimal performance. The cable's flexible construction allows it to follow equipment movement while maintaining electrical integrity, crucial for maintaining production schedules in this high-value operation.

Olympic Dam, South Australia

Olympic Dam stands as one of the world's largest poly-metallic deposits, containing copper, uranium, gold, and silver in a fully underground operation. The scale and complexity of this operation present unique challenges for electrical infrastructure, particularly regarding power distribution to mobile mining equipment.

The underground environment at Olympic Dam is characterised by extensive tunnel networks, significant depths, and the presence of multiple mineral processing activities. Mobile equipment must operate in confined spaces while maintaining connectivity to power systems, making trailing cable reliability absolutely critical for operational continuity.

Type 412 cable's resistance to mechanical damage proves particularly valuable in Olympic Dam's environment, where equipment frequently moves through tight spaces and encounters potential crushing hazards. The cable's heavy-duty construction ensures reliable power delivery even under the mechanical stresses common in large-scale underground operations.

Moranbah North and Mammoth Mines, Bowen Basin, Queensland

The Bowen Basin represents Australia's premier coal mining region, hosting major underground operations including Moranbah North and Mammoth mines. These operations utilise longwall mining techniques that create specific electrical challenges, particularly regarding power distribution to mobile mining equipment.

It's important to note that Type 412 cable is not certified for coal mining applications, where explosive atmospheres require specialised cable systems meeting AS/NZS 1972 Type A or B standards. However, understanding these operations provides valuable context for the types of mechanical and electrical challenges that armoured trailing cables must address in underground environments.

The longwall mining equipment used in these operations, including shearers and powered supports, requires flexible power distribution systems capable of following equipment movement while maintaining electrical integrity. While Type 412 cable cannot be used directly in coal mining applications, similar mechanical protection principles apply to cable systems used in these environments.

Gwalia Gold Mine, Western Australia

Gwalia represents Australia's deepest trucking-style gold mine, with operations extending approximately 1.6 kilometres below surface and plans for extension to 2.3 kilometres depth. This operation demonstrates the extreme conditions where Type 412 cable systems must perform reliably.

The depth of Gwalia's operations creates unique challenges for electrical infrastructure, including significant vertical cable runs, extreme rock pressures, and the need for power distribution systems that can support equipment at various levels throughout the mine. Mobile drilling equipment, materials handling systems, and auxiliary machinery all require reliable power distribution despite the challenging underground environment.

Type 412 cable's construction specifically addresses the mechanical stresses common in deep underground operations. The pliable galvanised steel armour provides protection against rock falls and crushing forces, while the heavy-duty outer sheath resists abrasion from constant contact with rock surfaces and mining equipment.

Forrestania Nickel Operations, Western Australia

Forrestania represents a smaller-scale but technically sophisticated underground nickel mining operation that showcases the versatility of Type 412 cable systems in mechanised mining environments. This operation demonstrates how appropriate cable selection can support efficient mining operations even in more compact underground workings.

The mechanised nature of nickel mining operations requires flexible power distribution systems capable of supporting various types of mobile equipment, from drilling rigs to materials handling systems. Type 412 cable's flexibility and mechanical protection make it well-suited for these applications, where equipment must navigate complex underground layouts while maintaining power connectivity.

Application Scenarios

Understanding the specific applications where Type 412 cable excels is crucial for proper system design and installation. The cable's construction and electrical characteristics make it particularly suitable for certain underground mining scenarios while being inappropriate for others.

Feeder and Trailing Cable Applications

Type 412 cable serves as both feeder cable for fixed installations and trailing cable for mobile equipment applications. In feeder applications, the cable provides power distribution from main electrical substations to local distribution points throughout underground workings. The armoured construction protects against mechanical damage during installation and provides long-term reliability in harsh underground environments.

Trailing cable applications represent the most demanding use case for Type 412 cable systems. Mobile mining equipment, including jumbo drills, load-haul-dump units, and mobile crushers, requires flexible power connections that can follow equipment movement while maintaining electrical integrity. The cable's construction specifically addresses the mechanical stresses inherent in these applications.

The flexible stranded copper conductors allow the cable to bend and flex repeatedly without conductor damage, essential for equipment that moves frequently throughout underground workings. The EPR insulation provides excellent electrical properties while maintaining flexibility under mechanical stress, ensuring reliable power delivery even during demanding operational cycles.

Reeling System Applications

Reeling systems present particularly challenging requirements for underground mining cables, as they must withstand constant winding and unwinding cycles while maintaining electrical integrity. Type 412 cable's construction specifically addresses these requirements through its flexible conductor design and robust insulation system.

Drill rigs equipped with reeling systems require cables that can extend and retract repeatedly while supporting drilling operations. The cable must maintain electrical continuity despite constant movement and mechanical stress, making the robust construction of Type 412 cable essential for reliable operation.

Raise boring equipment and mobile crushers equipped with reeling systems similarly benefit from Type 412 cable's mechanical protection and electrical reliability. The cable's ability to withstand repeated flexing cycles while maintaining power delivery ensures continuous operation of critical mining equipment.

Mechanised Mining Environment Applications

The mechanised nature of modern underground mining creates specific requirements for electrical infrastructure, particularly regarding power distribution to mobile equipment. Type 412 cable's armoured construction provides essential mechanical protection in environments where equipment frequently encounters crushing hazards, abrasion, and impact forces.

The cable's green and yellow earth conductors provide essential safety grounding in underground environments where electrical faults can pose serious hazards. The armoured construction not only protects the power conductors but also ensures reliable earth continuity, crucial for personnel safety and equipment protection.

Heavy-duty mobile equipment requires reliable power distribution systems that can support high current loads while maintaining flexibility for equipment movement. Type 412 cable's construction balances mechanical protection with electrical performance, ensuring reliable power delivery even under demanding operational conditions.

Limitations and Inappropriate Applications

Understanding where Type 412 cable should not be used is equally important for proper system design. The cable is specifically not certified for underground coal mining applications, where explosive atmospheres require specialised cable systems meeting different safety standards.

Coal mining operations require cables certified to AS/NZS 1972 Type A or B standards, which include specific requirements for flame resistance and low smoke emission in explosive atmospheres. Using Type 412 cable in these environments would create serious safety hazards and regulatory non-compliance.

Similarly, applications requiring higher voltage ratings or different environmental protections may require alternative cable systems. Understanding these limitations ensures appropriate cable selection for specific mining applications and maintains operational safety standards.

Electrical and Construction Specifications

The technical specifications of Type 412 cable reflect decades of engineering development specifically focused on underground mining applications. Understanding these specifications is essential for proper cable selection, installation, and maintenance in mining environments.

Cable Structure and Construction

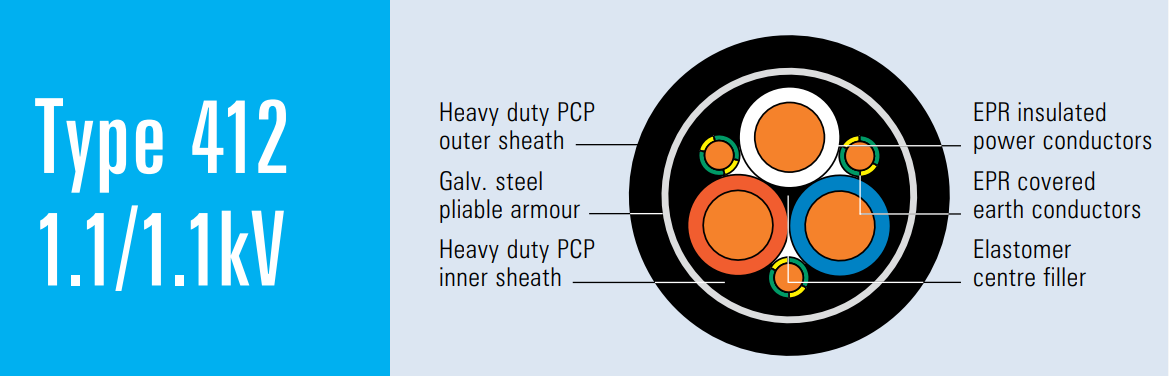

The construction of Type 412 cable represents a carefully engineered balance between mechanical protection, electrical performance, and operational flexibility. Each component of the cable system serves specific functions in the demanding underground mining environment.

The conductor system utilises flexible stranded tinned annealed copper construction conforming to AS/NZS 1125 standards. This construction provides excellent electrical conductivity while maintaining the flexibility essential for mobile equipment applications. The tinned copper construction provides enhanced corrosion resistance in the humid and chemically aggressive underground environment.

The three main power conductors are complemented by three interstitial earth conductors, also constructed from flexible stranded tinned copper. These earth conductors provide essential safety grounding while maintaining flexibility for mobile applications. The earth conductors are covered with EPR insulation to prevent inadvertent contact while maintaining electrical integrity.

Ethylene Propylene Rubber (EPR) insulation provides excellent electrical properties while maintaining flexibility under mechanical stress. This insulation system meets Class 2 requirements per AS/NZS 3808, ensuring reliable electrical performance in the demanding underground environment. EPR insulation provides superior resistance to heat, ozone, and chemical attack compared to alternative insulation systems.

The semiconductive elastomer screen provides electrical field control around each conductor, ensuring uniform electrical stress distribution and preventing partial discharge that could lead to insulation failure. This screening system is particularly important in underground mining applications where electrical reliability is critical for operational safety.

Elastomer centre filler maintains the cable's round cross-section while providing mechanical support for the conductor assembly. This filler system ensures that the cable maintains its structural integrity under mechanical stress while providing a foundation for the protective systems.

Armour and Sheath Systems

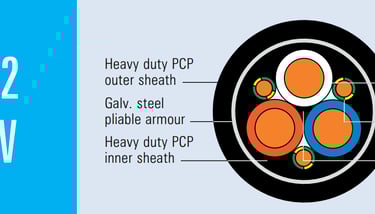

The armour system represents one of the most critical aspects of Type 412 cable construction, providing essential mechanical protection in the demanding underground mining environment. The pliable galvanised mild steel armour conforms to AS/NZS 3863 standards, ensuring appropriate mechanical protection while maintaining cable flexibility.

The galvanised steel construction provides excellent corrosion resistance in underground environments where moisture and chemical attack are common. The pliable nature of the armour allows the cable to flex and bend while maintaining mechanical protection, essential for mobile equipment applications.

The inner PCP (Polychloroprene) sheath provides a protective barrier between the cable core and the armour system, preventing mechanical damage to the insulated conductors while providing environmental protection. This sheath system can be replaced with CPE (Chlorinated Polyethylene) or CSP (Chlorosulfonated Polyethylene) materials upon request for applications requiring enhanced chemical resistance.

The outer heavy-duty sheath provides the final layer of environmental protection, ensuring long-term reliability in harsh underground conditions. This sheath system protects against abrasion, chemical attack, and environmental degradation while maintaining flexibility for mobile applications.

Voltage Rating and Electrical Performance

Type 412 cable is rated at 1.1kV/1.1kV for three-phase applications, providing appropriate voltage ratings for typical underground mining equipment. This voltage rating ensures reliable operation of mobile mining equipment while maintaining safety margins appropriate for underground environments.

The cable's electrical performance characteristics ensure reliable power delivery under the varying load conditions typical of mobile mining equipment. The copper conductor system provides low resistance and excellent current-carrying capacity, essential for powering high-demand mining equipment.

The EPR insulation system provides excellent dielectric properties, ensuring reliable electrical performance even under mechanical stress. This insulation system maintains its electrical characteristics over wide temperature ranges, important for equipment operating in varying underground conditions.

Physical Dimensions and Weight Specifications

Understanding the physical characteristics of Type 412 cable is essential for proper installation planning and equipment selection. The cable is available in various conductor sizes to accommodate different power requirements and installation constraints.

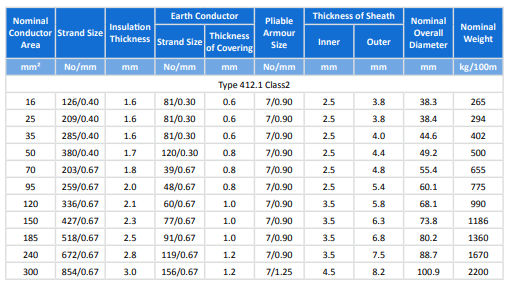

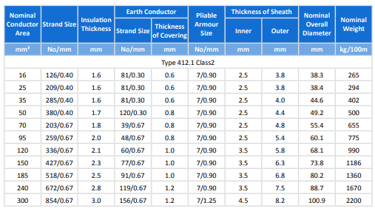

Smaller conductor sizes, such as 16mm², provide a nominal overall diameter of 38.3mm with a weight of approximately 265kg per 100 metres. These smaller sizes are appropriate for lower-power applications where cable flexibility and handling are primary concerns.

Medium conductor sizes, including 95mm², offer a nominal overall diameter of 60.1mm with a weight of approximately 775kg per 100 metres. These sizes provide balanced performance for typical underground mining applications where moderate power requirements must be balanced with installation and handling considerations.

Larger conductor sizes, such as 300mm², provide a nominal overall diameter of 100.9mm with a weight of approximately 2200kg per 100 metres. These larger sizes are appropriate for high-power applications where maximum current-carrying capacity is required despite the increased weight and handling challenges.

The progression of conductor sizes allows system designers to select appropriate cable specifications based on specific power requirements, installation constraints, and operational considerations. Understanding these physical characteristics is essential for proper cable handling, installation, and support system design.

Frequently Asked Questions

What makes Type 412 cable suitable for underground mining applications?

Type 412 cable's suitability for underground mining stems from its robust construction that addresses the specific challenges of these environments. The pliable galvanised steel armour provides essential mechanical protection against crushing forces, rock falls, and abrasion that are common in underground mining operations.

The cable's flexible construction allows it to follow mobile equipment movement while maintaining electrical integrity, crucial for powering drilling rigs, mobile crushers, and materials handling equipment. The EPR insulation system provides excellent electrical performance while maintaining flexibility under mechanical stress, ensuring reliable power delivery even during demanding operational cycles.

The integrated earth conductor system provides essential safety grounding in underground environments where electrical faults can pose serious hazards. The armoured construction not only protects the power conductors but also ensures reliable earth continuity, crucial for personnel safety and equipment protection.

Can Type 412 cable be used in coal mining operations?

Type 412 cable is specifically not certified for underground coal mining applications, where explosive atmospheres require specialised cable systems meeting AS/NZS 1972 Type A or B standards. Coal mining operations present unique hazards related to methane gas and coal dust that require specific safety measures not addressed by Type 412 cable construction.

Using Type 412 cable in coal mining environments would create serious safety hazards and regulatory non-compliance. Coal mining operations require cables with specific flame resistance characteristics, low smoke emission properties, and construction details that prevent ignition sources in explosive atmospheres.

Mining operations in coal environments must utilise properly certified cable systems designed specifically for these hazardous locations. The consequences of using inappropriate cable systems in coal mining can include catastrophic explosions, serious injuries, and regulatory penalties.

What mechanical stresses can Type 412 cable withstand?

The armoured construction of Type 412 cable provides protection against a wide range of mechanical stresses common in underground mining operations. The pliable galvanised steel armour protects against crushing forces from rock falls, equipment contact, and ground movement that frequently occur in underground environments.

The cable's construction resists abrasion from constant contact with rock surfaces, equipment housings, and other underground infrastructure. The heavy-duty outer sheath provides additional protection against surface damage while maintaining flexibility for mobile applications.

Impact resistance is provided through the combination of armour and sheath systems, allowing the cable to withstand sudden mechanical forces without compromising electrical integrity. However, proper installation practices, including appropriate cable support and protection at vulnerable points, remain essential for maximising cable service life.

The cable's flexibility allows it to accommodate the bending and flexing requirements of mobile equipment applications while maintaining mechanical protection. This balance between protection and flexibility is crucial for applications where equipment must navigate complex underground layouts while maintaining power connectivity.

What are the best practices for Type 412 cable installation?

Proper installation of Type 412 cable requires careful attention to mechanical protection, electrical connections, and environmental considerations. The cable should be installed with appropriate support systems that prevent excessive mechanical stress while allowing for equipment movement in mobile applications.

Sharp bends and kinks must be avoided during installation, as these can damage the conductor system and reduce cable service life. The cable should be routed to avoid contact with sharp edges, moving equipment, and other potential damage sources where possible.

Crush guards and protective conduits should be installed at points where the cable crosses roadways, passes through walls, or encounters other potential crushing hazards. These protective measures extend cable service life and reduce the risk of costly failures.

Electrical connections must be made using appropriate techniques and materials suitable for underground mining environments. All connections should be properly sealed against moisture ingress and mechanically supported to prevent damage from vibration and movement.

Regular inspection of cable condition, including sheath integrity, earth conductor continuity, and armour condition, should be incorporated into maintenance procedures. Early detection of potential problems allows for planned maintenance rather than emergency repairs that can disrupt mining operations.

What electrical faults can occur with Type 412 cable?

Several types of electrical faults can occur with Type 412 cable systems, typically related to environmental conditions, mechanical damage, or installation issues. Moisture ingress into the armour system can cause earth leakage currents that may trip protective devices and create safety hazards.

Insulation damage from mechanical stress, chemical attack, or excessive heat can lead to phase-to-phase or phase-to-earth faults. These faults can cause equipment damage, power interruptions, and safety hazards if not promptly detected and corrected.

Conductor damage from excessive mechanical stress or poor installation practices can result in high resistance connections, voltage drops, and equipment performance problems. These issues may develop gradually, making regular electrical testing important for early detection.

Earth conductor continuity problems can compromise personnel safety and equipment protection systems. Regular testing of earth conductor integrity is essential for maintaining safe operating conditions in underground mining environments.

Preventive measures include proper installation techniques, regular inspection and testing, environmental protection at vulnerable points, and prompt correction of identified problems. Implementing comprehensive cable monitoring programs can significantly reduce the risk of unexpected failures and their associated consequences.

What is the expected service life and maintenance requirements?

The service life of Type 412 cable typically ranges from three to five years, depending on usage patterns, environmental conditions, and maintenance practices. Cables subjected to frequent flexing cycles, harsh chemical exposure, or extreme mechanical stress may require earlier replacement.

Regular maintenance requirements include visual inspection of cable condition, electrical testing of insulation integrity, and verification of earth conductor continuity. Thermal scanning can identify developing problems such as high resistance connections or conductor damage before they cause system failures.

Sheath monitoring is particularly important for detecting moisture ingress or mechanical damage that could compromise cable performance. Regular inspection of cable supports, protective devices, and connection points helps identify potential problems before they result in failures.

Environmental factors such as ground water exposure, chemical contamination, and extreme temperatures can significantly impact cable service life. Implementing appropriate environmental protection measures and monitoring can help maximise cable performance and reliability.

Planned replacement programs based on cable age, condition assessments, and operational requirements help avoid unexpected failures that can disrupt mining operations. Keeping detailed records of cable installation dates, maintenance activities, and performance history supports effective cable management programs.

Summary and Recommendations

Type 412 cable represents a carefully engineered solution for the demanding requirements of underground mining power distribution, specifically designed to address the mechanical and electrical challenges inherent in these environments. Its robust construction, featuring pliable galvanised steel armour and heavy-duty sheath systems, provides essential protection against the crushing forces, abrasion, and impact that characterise underground mining operations.

The cable's 1.1kV/1.1kV rating and flexible construction make it ideally suited for powering mobile mining equipment in copper, gold, nickel, and uranium mining operations across Australia. Major mining sites including Cadia-Ridgeway, Olympic Dam, Gwalia, and Forrestania demonstrate the diverse applications where Type 412 cable systems provide reliable power distribution for critical mining equipment.

However, understanding the limitations of Type 412 cable is equally important for maintaining operational safety and regulatory compliance. The cable's lack of certification for coal mining applications means that alternative cable systems meeting AS/NZS 1972 Type A or B standards must be used in coal mining environments where explosive atmospheres present additional hazards.

Proper installation practices, including appropriate mechanical protection, electrical connections, and environmental considerations, are essential for maximising cable performance and service life. Regular maintenance programs incorporating visual inspection, electrical testing, and condition monitoring help identify potential problems before they result in costly failures or safety hazards.

The selection of appropriate cable systems for specific mining applications requires careful consideration of electrical requirements, environmental conditions, mechanical stresses, and regulatory requirements. Type 412 cable provides an excellent solution for many underground mining applications, but proper application requires understanding both its capabilities and limitations.

Mining operations investing in Type 412 cable systems should implement comprehensive installation standards, maintenance procedures, and monitoring programs to ensure reliable performance throughout the cable's service life. These measures, combined with proper cable selection and application, support safe and efficient underground mining operations across Australia's diverse mining landscape.

The future of underground mining power distribution will continue to evolve with advancing technology and changing operational requirements. Type 412 cable represents current best practice for many applications, but ongoing evaluation of new technologies and standards will ensure that power distribution systems continue to meet the demanding requirements of Australia's underground mining industry.

Glossary

EPR (Ethylene Propylene Rubber): A synthetic rubber insulation material that provides excellent electrical properties while maintaining flexibility under mechanical stress. EPR insulation is particularly suitable for underground mining applications due to its resistance to heat, ozone, and chemical attack.

PCP (Polychloroprene): A synthetic rubber material used for cable sheaths that provides good resistance to oil, weathering, and moderate chemical exposure. PCP sheaths are commonly used in mining cable applications for their balance of mechanical protection and environmental resistance.

CPE (Chlorinated Polyethylene): An alternative sheath material that provides enhanced chemical resistance compared to PCP, particularly suitable for applications involving exposure to aggressive chemicals or solvents.

CSP (Chlorosulfonated Polyethylene): A high-performance sheath material offering superior resistance to chemical attack, weathering, and mechanical damage, used in the most demanding mining applications.

Class 2 Cable: A cable classification per AS/NZS 3808 that defines specific construction and performance requirements for 1.1kV trailing and reeling cables used in demanding industrial applications.

Trailing Cable: A flexible cable designed to follow mobile equipment movement while maintaining electrical connectivity, specifically constructed to withstand the mechanical stresses inherent in mobile applications.

Reeling Cable: A cable designed for applications involving constant winding and unwinding cycles, requiring enhanced flexibility and fatigue resistance compared to standard industrial cables.

Armoured Cable: Cable construction that includes a protective metallic layer (armour) designed to provide mechanical protection against crushing, impact, and abrasion forces common in industrial applications.

Interstitial Earth Conductor: Earth conductors located in the spaces between main power conductors, providing enhanced safety grounding while maintaining cable flexibility and construction efficiency.
