AS/NZS 2802 Type 440 Mining Cables for Australian Underground Operations

Introduction

Mining operations across Australia rely on sophisticated electrical infrastructure to power the heavy machinery that extracts valuable resources from deep underground workings and expansive open-pit sites. At the heart of this electrical network are specialised trailing cables designed to withstand the harsh conditions found in mining environments. The AS/NZS 2802 Type 440 cable series represents a critical component in this infrastructure, providing reliable power distribution for voltages ranging from 1.1 to 22 kilovolts.

The AS/NZS 2802 standard specifically addresses reeling and trailing cables used in general mining applications, though it's important to note that these cables are not approved for underground coal mining operations, which require different certification under AS/NZS 1802. Type 440 cables excel in underground metal mines, open-pit operations, and various industrial applications where flexible, durable power transmission is essential.

Understanding the technical specifications, proper applications, and maintenance requirements of Type 440 cables is crucial for mining engineers, electricians, and operations managers who need to ensure safe, reliable power delivery to mobile equipment operating in challenging underground environments. This comprehensive guide examines the construction, electrical parameters, and practical applications of these essential mining cables whilst addressing common technical questions encountered by professionals in the field.

Overview of Major Australian Underground Mining Operations

Australia's mining industry encompasses some of the world's most significant underground operations, each presenting unique challenges for electrical infrastructure. Understanding these environments helps illustrate where Type 440 cables provide optimal performance and reliability.

Cadia Operations, New South Wales represents one of Australia's most impressive copper and gold mining complexes, located near Orange in the central west of the state. The underground workings at Cadia extend to considerable depths, with the operation utilising both block caving and sublevel caving mining methods. The challenging underground environment, characterised by high rock stress and complex geology, demands robust electrical systems capable of powering heavy mobile equipment including underground loaders, drilling rigs, and conveyor systems. The flexible nature of Type 440 cables makes them particularly suitable for the reeling applications required by mobile equipment operating throughout Cadia's extensive underground network.

Olympic Dam in South Australia stands as one of the world's largest known deposits of copper, uranium, gold, and silver. This underground operation, located in the remote South Australian outback, presents unique challenges including extreme heat, dust, and the need for reliable power distribution across vast underground workings. The mine's operations extend deep underground with complex ventilation and cooling systems that must be supported by dependable electrical infrastructure. Type 440 cables provide the flexibility and durability required for the mobile equipment essential to Olympic Dam's continuous mining operations.

Ernest Henry Mine in Queensland transitioned from open-pit to underground operations in 2011, creating a hybrid mining environment that showcases the versatility required of modern mining cables. Located in the mineral-rich Mount Isa region of northwestern Queensland, Ernest Henry's copper and gold operations utilise sophisticated underground mining techniques that rely heavily on mobile equipment requiring flexible power solutions. The transition from surface to underground operations demonstrates the adaptability of Type 440 cables across different mining environments.

Moranbah North Coal Mine, whilst primarily a coal operation, illustrates the diverse underground environments found across Australian mining. Located in Queensland's Bowen Basin at depths reaching approximately 200 metres, this operation highlights the importance of proper cable selection, as coal mining environments require different certification standards than those applicable to Type 440 cables.

Additional significant underground operations across Australia, including the Gwalia gold mine in Western Australia and the Beta Hunt nickel and gold mine, further demonstrate the critical role that properly specified trailing cables play in maintaining safe, efficient underground mining operations.

Application Scenarios and Operational Requirements

Type 440 cables serve as flexible feeder and trailing cables specifically designed for power supply to mobile machinery and equipment in demanding mining environments. Their construction incorporates three large pilot conductors and a central semiconductive cradle that provides support and protection for the power cores, making them ideally suited for applications requiring frequent movement and reeling.

The primary application for Type 440 cables centres on powering mobile underground equipment including drilling rigs, load-haul-dump vehicles, continuous miners, shuttle cars, and conveyor systems. These applications demand cables that can withstand the mechanical stresses associated with continuous reeling and unreeling whilst maintaining electrical integrity under challenging environmental conditions. The flexible stranded construction of Type 440 cables allows them to accommodate the tight bend radii often encountered when cables are wound onto equipment reels or routed through confined underground spaces.

In underground metal mining operations, Type 440 cables frequently power primary ventilation fans, pumping systems, and conveyor networks that form the backbone of mine infrastructure. The cables' ability to operate reliably across temperature ranges from minus 25 degrees Celsius to 90 degrees Celsius under normal conditions makes them suitable for the varying thermal environments encountered in deep underground workings, where geothermal gradients can create significant temperature variations.

Open-pit mining operations also benefit from Type 440 cables, particularly for powering mobile equipment such as large excavators, draglines, and crushing systems that require flexible power connections. The heavy-duty PCP (polychloroprene) sheath provides excellent resistance to abrasion, oil, and weather exposure, making these cables suitable for the harsh surface conditions encountered in open-pit mines.

It's crucial to understand that whilst Type 440 cables excel in underground metal mining and open-pit applications, they are not certified for use as main cables in underground coal mining operations. Coal mining requires cables certified under different standards due to the specific safety requirements associated with potentially explosive atmospheres. This distinction is fundamental to proper cable selection and regulatory compliance in Australian mining operations.

Construction Details and Electrical Parameters

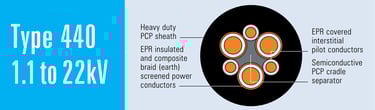

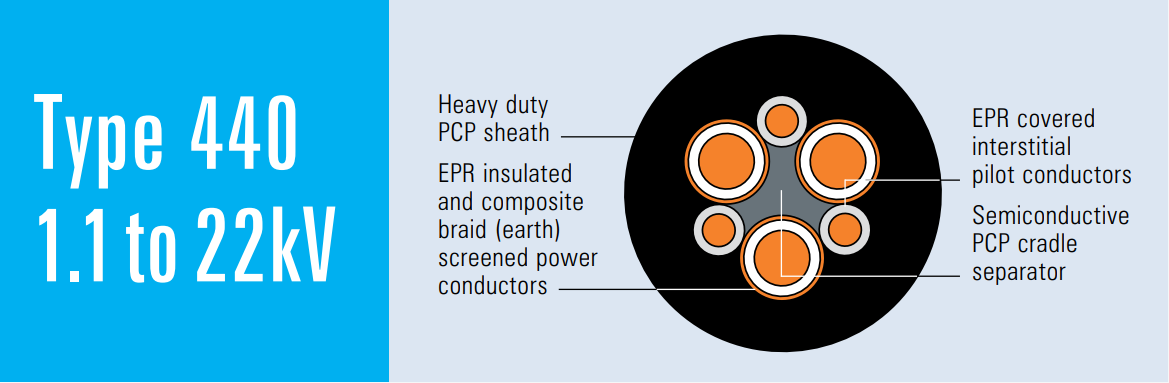

The sophisticated construction of Type 440 cables reflects decades of engineering refinement aimed at creating cables capable of withstanding the extreme mechanical and electrical stresses encountered in mining applications. Understanding this construction is essential for proper selection, installation, and maintenance of these critical power distribution components.

Conductor Construction and Specifications

The heart of every Type 440 cable consists of three flexible stranded tinned annealed copper conductors designed to provide reliable power transmission whilst accommodating the mechanical flexing required in trailing cable applications. The use of tinned copper offers superior corrosion resistance compared to bare copper, particularly important in the humid, chemically aggressive environments often encountered in underground mining operations.

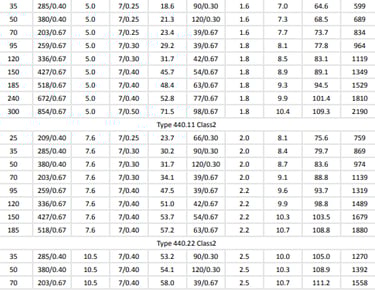

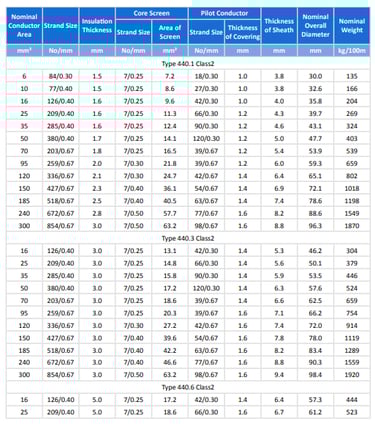

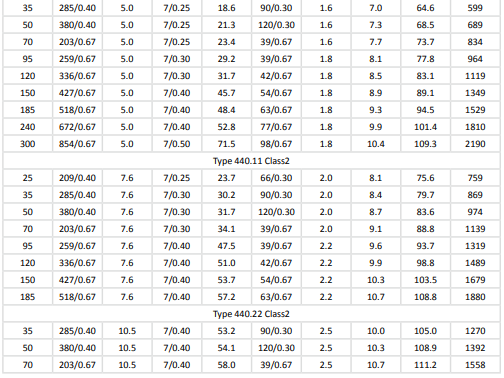

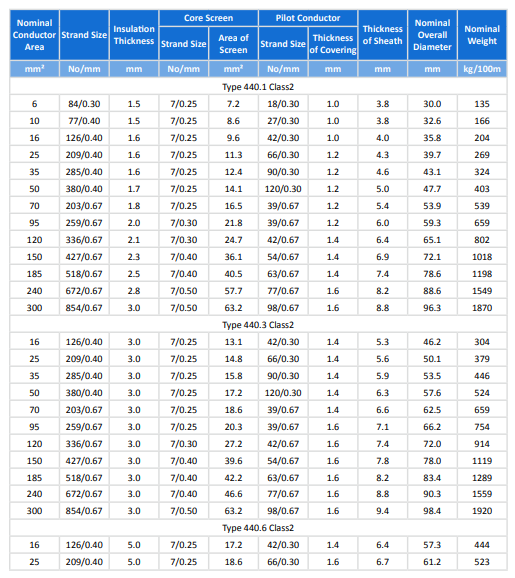

Conductor sizes range from 6 square millimetres for smaller applications up to 300 square millimetres for high-power requirements. The stranding configuration varies with conductor size, with smaller conductors utilising 84 strands of 0.30 millimetre wire for the 6 square millimetre size, progressing to 854 strands of 0.67 millimetre wire for the largest 300 square millimetre conductors. This fine stranding provides the flexibility essential for reeling applications whilst maintaining the current-carrying capacity required for high-power mining equipment.

Insulation and Screening Systems

Each power conductor is surrounded by EPR (ethylene propylene rubber) insulation, chosen for its excellent electrical properties and resistance to thermal degradation. The insulation thickness varies according to the voltage rating and conductor size, ranging from 1.5 millimetres for lower voltage applications to 10.5 millimetres for the highest 22-kilovolt configurations.

For cables rated at 3.3 kilovolts and above, a semiconductive conductor screen is applied directly over the conductor surface. This screen ensures uniform electric field distribution around the conductor, preventing the formation of localised high-stress areas that could lead to insulation breakdown. Similarly, an insulation screen of semiconductive elastomer is applied over the EPR insulation to maintain field uniformity at the insulation-screen interface.

Composite Screening and Earthing

The composite screen system represents one of the most critical safety features of Type 440 cables. This system consists of tinned annealed copper braiding interwoven with polyester yarn, creating a flexible yet robust earthing conductor that maintains continuity even under the mechanical stresses associated with reeling operations. The screen provides both electrical protection through effective earthing and mechanical protection for the inner conductors.

The area of the composite screen varies with cable size and voltage rating, ranging from 7.2 square millimetres for smaller cables to over 70 square millimetres for the largest configurations. This substantial cross-sectional area ensures adequate fault current capacity whilst providing the mechanical strength required for demanding mining applications.

Pilot Conductor Integration

A distinguishing feature of Type 440 cables is the incorporation of three interstitial pilot conductors, strategically positioned within the cable structure to provide auxiliary functions essential to modern mining operations. These pilots typically consist of flexible stranded tinned copper conductors ranging from 18 to 98 strands depending on the overall cable size, each covered with EPR insulation.

The pilot conductors serve multiple critical functions including remote control signalling, equipment monitoring, communication systems, and fault detection. Their integration within the main cable structure ensures that control and power circuits remain coordinated, reducing the complexity of cable management systems on mobile mining equipment.

Cradle Separator and Mechanical Protection

The central semiconductive PCP (polychloroprene) cradle separator provides mechanical support for the power cores whilst maintaining the cable's flexibility. This component is crucial for maintaining the cable's structural integrity during the continuous flexing associated with reeling operations, preventing core deformation that could lead to premature failure.

Outer Sheath Construction

The heavy-duty PCP outer sheath represents the cable's primary defence against the harsh environmental conditions encountered in mining operations. PCP offers excellent resistance to abrasion, oil, ozone, and a wide range of chemicals commonly found in mining environments. The sheath thickness varies from 3.8 millimetres for smaller cables to over 10 millimetres for the largest configurations, providing mechanical protection proportional to the cable's size and expected service conditions.

For particularly aggressive environments, heavy-duty CPE (chlorinated polyethylene) or CSP (chlorosulfonated polyethylene) sheaths can be supplied upon request, offering enhanced chemical resistance and flame retardancy.

Voltage Ratings and Temperature Performance

Type 440 cables are available in voltage ratings of 1.1, 3.3, 6.6, 11, and 22 kilovolts, with the specific construction varying according to the electrical stress requirements of each voltage level. Higher voltage ratings require increased insulation thickness and enhanced screening systems to manage the higher electric field stresses.

The temperature rating of Type 440 cables reflects their robust construction, with continuous operation permitted from minus 25 degrees Celsius to plus 90 degrees Celsius. Emergency operation at 130 degrees Celsius is permissible for limited periods, whilst short-circuit conditions can be withstood at temperatures up to 250 degrees Celsius for durations up to five seconds. These temperature ratings ensure reliable operation across the full range of conditions encountered in Australian mining operations.

Standards Compliance and Regulatory Framework

The design and manufacture of Type 440 cables must comply with multiple Australian and New Zealand standards that collectively ensure their safety, reliability, and suitability for mining applications. Understanding these standards is crucial for proper specification and regulatory compliance.

AS/NZS 2802:2000 serves as the primary standard governing reeling and trailing cables for general mining applications. This comprehensive standard specifies construction requirements, electrical performance parameters, and testing procedures that ensure cables can withstand the demanding conditions encountered in mining operations. Compliance with AS/NZS 2802:2000 is mandatory for Type 440 cables used in Australian mining operations.

AS/NZS 1125 addresses conductor requirements, specifying the materials, construction, and performance characteristics of the copper conductors used in mining cables. This standard ensures that conductors provide adequate current-carrying capacity whilst maintaining the flexibility required for reeling applications.

AS/NZS 3808 covers insulation and screening requirements, establishing the performance criteria for EPR insulation systems and semiconductive screens. Compliance with this standard ensures that Type 440 cables can withstand the electrical stresses associated with medium-voltage mining applications.

AS/NZS 5000.1 provides comprehensive requirements for cable construction, testing, and performance verification. This standard encompasses mechanical, electrical, and environmental testing procedures that validate cable performance under simulated mining conditions.

These standards work together to create a comprehensive regulatory framework that ensures Type 440 cables meet the stringent safety and performance requirements of Australian mining operations whilst providing the reliability essential for continuous industrial service.

Frequently Asked Questions: Technical Issues and Solutions

Question 1: Can Type 440 cables be used in underground coal mining operations?

This question represents one of the most common misconceptions regarding Type 440 cable applications. Type 440 cables manufactured to AS/NZS 2802:2000 are specifically designated for general mining applications and are not certified for use in underground coal mining operations. Underground coal mines present unique safety challenges due to the potential presence of explosive gases and coal dust, requiring cables certified under AS/NZS 1802 standards.

Coal mining operations must utilise cables specifically designed and tested for potentially explosive atmospheres, incorporating additional safety features such as enhanced flame retardancy and reduced surface temperatures under fault conditions. The use of non-coal-approved cables in underground coal mining operations represents a serious safety violation that could result in catastrophic consequences.

Mining engineers and electrical contractors must carefully verify the intended application when specifying Type 440 cables, ensuring they are used only in appropriate underground metal mining, open-pit, or general industrial applications where their robust construction provides optimal performance and safety.

Question 2: How do Type 440 cables perform under extreme temperature conditions or short-circuit events?

Type 440 cables are engineered to provide reliable performance across a wide range of thermal conditions encountered in mining operations. Under normal operating conditions, these cables can function continuously in ambient temperatures ranging from minus 25 degrees Celsius to plus 90 degrees Celsius, covering the full spectrum of conditions found in Australian mining environments from the cold of high-altitude operations to the heat of deep underground workings.

During emergency conditions, Type 440 cables can operate at temperatures up to 130 degrees Celsius for limited periods, providing operational flexibility during equipment malfunctions or unusual environmental conditions. This emergency rating ensures that critical mining operations can continue even when thermal conditions exceed normal parameters.

Short-circuit performance represents a critical safety consideration, as fault conditions can generate extremely high temperatures in a matter of seconds. Type 440 cables are designed to withstand conductor temperatures up to 250 degrees Celsius for durations up to five seconds, providing adequate time for protective devices to operate and clear fault conditions before cable damage occurs.

The EPR insulation system used in Type 440 cables offers superior thermal stability compared to alternative insulation materials, maintaining its electrical and mechanical properties even after exposure to elevated temperatures. This thermal stability is crucial for maintaining long-term reliability in the demanding thermal environments encountered in mining operations.

Question 3: What is the expected durability of Type 440 cables when subjected to continuous reeling and abrasion?

The mechanical durability of Type 440 cables represents one of their most important performance characteristics, as mining applications frequently involve continuous reeling and unreeling cycles that can quickly degrade inferior cables. The heavy-duty PCP outer sheath provides exceptional resistance to abrasion, cut-through, and mechanical damage, ensuring extended service life even under demanding mechanical conditions.

The flexible stranded conductor construction and specialised cradle separator work together to maintain conductor integrity during repeated flexing cycles. Unlike rigid cables that can suffer conductor breakage after relatively few flex cycles, Type 440 cables are designed to withstand thousands of reeling cycles whilst maintaining electrical continuity and mechanical integrity.

For applications involving particularly aggressive mechanical conditions, the heavy-duty CPE or CSP sheath options provide enhanced cut resistance and mechanical protection. These upgraded sheath materials offer superior performance in applications involving sharp rock surfaces, steel edges, or other mechanical hazards that could damage standard PCP sheaths.

The pilot conductor integration within the cable structure ensures that control and monitoring circuits remain intact even under severe mechanical stress, maintaining the communication links essential for safe equipment operation. Regular inspection of pilot continuity provides an early warning system for potential cable degradation before power circuit failure occurs.

Question 4: How should Type 440 cables be selected for applications involving potentially hazardous atmospheres?

Whilst Type 440 cables are suitable for many underground mining applications, their use in potentially hazardous atmospheres requires careful consideration of the specific atmospheric conditions and applicable safety regulations. In underground metal mining operations where explosive gases are not typically present, Type 440 cables provide excellent performance and reliability.

However, applications involving potential exposure to flammable gases, vapours, or dust require additional safety considerations that may necessitate cables with enhanced flame retardancy or explosion-proof characteristics. Mining operations must conduct thorough hazard assessments to determine the appropriate cable specifications for each specific application.

The semiconductive screens and earthing systems incorporated in Type 440 cables provide effective protection against static electricity buildup and electrical faults, contributing to overall operational safety. However, these features alone may not be sufficient for applications in atmospheres classified as potentially explosive under relevant Australian standards.

When uncertainty exists regarding atmospheric hazards, consultation with qualified electrical engineers and regulatory authorities is essential to ensure proper cable selection and compliance with applicable safety standards.

Question 5: What factors should guide voltage rating selection for Type 440 cable applications?

Voltage rating selection for Type 440 cables depends on multiple technical and economic factors that must be carefully evaluated for each specific application. The available voltage ratings of 1.1, 3.3, 6.6, 11, and 22 kilovolts provide flexibility to match diverse mining equipment requirements whilst optimising system performance and cost.

Lower voltage applications, typically 1.1 kilovolts, are commonly used for smaller mobile equipment such as underground utility vehicles, smaller drilling rigs, and auxiliary equipment. These applications benefit from the simpler electrical systems and reduced insulation requirements associated with lower voltages whilst providing adequate power for equipment requirements.

Medium voltage applications utilising 3.3, 6.6, and 11-kilovolt ratings are frequently employed for larger mobile equipment such as continuous miners, large drilling rigs, and primary ventilation systems. Higher voltages allow reduced conductor sizes for equivalent power transmission, resulting in lighter, more manageable cables that reduce the mechanical load on equipment reeling systems.

The highest 22-kilovolt rating is typically reserved for high-power applications involving large stationary equipment or long cable runs where voltage drop considerations become significant. Higher voltages enable power transmission over greater distances with reduced conductor sizes, providing economic advantages for large mining installations.

System earthing arrangements, fault level calculations, and protective device coordination must all be considered when selecting voltage ratings to ensure safe, reliable operation under all operating and fault conditions.

Question 6: What is the purpose of pilot conductors in Type 440 cables, and how should they be utilised?

The three interstitial pilot conductors incorporated in Type 440 cables serve multiple critical functions that enhance both operational capability and safety in mining applications. Understanding their proper utilisation is essential for maximising the operational benefits these conductors provide.

Primary applications for pilot conductors include remote control systems that allow operators to control equipment functions from safe locations, particularly important in underground environments where direct operator access may be hazardous or impractical. The pilots can carry control signals for equipment starting, stopping, speed control, and other operational parameters essential for efficient mining operations.

Communication systems represent another important pilot conductor application, enabling voice communication, data transmission, and telemetry between mobile equipment and central control facilities. This communication capability is crucial for coordinating complex mining operations and maintaining situational awareness in underground environments where radio communication may be impaired.

Equipment monitoring and diagnostic systems utilise pilot conductors to transmit real-time information about equipment condition, performance parameters, and fault conditions. This monitoring capability enables predictive maintenance strategies that can prevent equipment failures and reduce operational downtime.

The pilots also serve as a cable integrity monitoring system, as their electrical continuity provides an indication of overall cable condition. Regular testing of pilot continuity can identify developing cable problems before they affect the main power circuits, enabling proactive maintenance that prevents costly equipment failures.

Proper utilisation of pilot conductors requires appropriate signal conditioning, isolation, and protective devices to ensure reliable operation in the electrically noisy environment typically associated with high-power mining equipment.

Question 7: What maintenance procedures should be implemented to ensure optimal Type 440 cable performance and longevity?

Effective maintenance of Type 440 cables requires a comprehensive approach that addresses both preventive and predictive maintenance strategies. Regular visual inspections represent the foundation of any effective cable maintenance programme, focusing on identification of physical damage, contamination, or degradation that could compromise cable performance.

Visual inspections should examine the outer sheath for cuts, abrasions, oil contamination, or other physical damage that could allow moisture ingress or compromise mechanical protection. Particular attention should be paid to areas subject to mechanical stress such as cable entry points, sharp bends, and contact surfaces with equipment or structures.

Electrical testing forms a critical component of cable maintenance, with insulation resistance testing providing valuable information about insulation condition and potential moisture contamination. Testing should be conducted using appropriate high-voltage insulation testers with results compared to baseline measurements and manufacturer specifications.

Pilot conductor continuity testing ensures that auxiliary circuits remain functional and provides early warning of potential cable degradation. Changes in pilot resistance or intermittent continuity issues often indicate developing problems that could eventually affect main power circuits.

Mechanical inspection of reeling systems, cable guides, and support structures helps identify factors that could contribute to premature cable wear or damage. Proper alignment of reeling systems and adequate lubrication of mechanical components contribute significantly to cable longevity.

Documentation of inspection results, test measurements, and maintenance activities provides valuable trend information that enables predictive maintenance strategies and informed decisions regarding cable replacement timing.

Summary and Professional Recommendations

Type 440 cables manufactured to AS/NZS 2802:2000 standards represent a sophisticated, purpose-built solution for the demanding power distribution requirements encountered in Australian underground metal mining operations. Their robust construction, incorporating flexible stranded conductors, EPR insulation, comprehensive screening systems, and heavy-duty protective sheaths, provides the reliability and durability essential for continuous mining operations.

The versatility of Type 440 cables makes them particularly suitable for major Australian mining operations such as Cadia's deep underground copper and gold workings, Olympic Dam's complex polymetallic extraction operations, and Ernest Henry's hybrid surface and underground mining environment. Their ability to withstand extreme temperature variations, mechanical stress, and environmental contamination whilst maintaining electrical integrity makes them an excellent choice for these challenging applications.

Proper selection of Type 440 cables requires careful consideration of voltage requirements, conductor sizing, environmental conditions, and regulatory compliance. The availability of multiple voltage ratings from 1.1 to 22 kilovolts, combined with conductor sizes ranging from 6 to 300 square millimetres, provides the flexibility necessary to match diverse mining equipment requirements whilst optimising system performance and cost.

Understanding the limitations of Type 440 cables is equally important, particularly the restriction on their use in underground coal mining operations where different certification standards apply. This distinction is fundamental to regulatory compliance and operational safety in Australian mining operations.

The integration of pilot conductors within Type 440 cable construction provides valuable auxiliary functions including remote control, communication, monitoring, and cable integrity assessment. Proper utilisation of these pilots can significantly enhance operational efficiency and safety whilst providing early warning of potential cable problems.

Effective maintenance programmes incorporating regular visual inspection, electrical testing, and mechanical assessment are essential for maximising Type 440 cable service life and reliability. The harsh conditions encountered in mining operations make proactive maintenance particularly important for preventing costly equipment failures and operational disruptions.

As Australian mining operations continue to evolve toward deeper, more mechanised extraction methods, the role of reliable power distribution systems becomes increasingly critical. Type 440 cables, with their proven performance in demanding mining environments, will continue to play an essential role in powering the mobile equipment and infrastructure systems that form the backbone of modern mining operations across Australia's diverse mineral extraction industry.
