AS/NZS 2802 Type 440 Mining Cables: The Electrical Lifeline of Australian Gold Mines

Introduction: The Invisible Heroes of Gold Mining

Deep beneath the red earth of Western Australia and across the mining landscapes of New South Wales, a sophisticated network of electrical cables forms the nervous system of Australia's gold mining industry. Among these crucial components, AS/NZS 2802 Type 440 cables stand as silent workhorses, delivering reliable power to the massive machinery that extracts billions of dollars worth of gold annually.

These aren't your ordinary electrical cables. Type 440 cables represent a specialised breed of flexible reeling and trailing cables, engineered to withstand the harsh realities of mining operations while maintaining electrical integrity across voltage ratings from 1.1 to 22 kilovolts. Picture them as the arteries of a mining operation, carrying the electrical lifeblood that keeps excavators digging, conveyors moving, and processing plants humming around the clock.

What makes these cables truly remarkable is their sophisticated construction. Each Type 440 cable contains three main power cores surrounded by three smaller pilot cores, all cradled within a semiconductive support structure. This intricate design allows them to flex and bend thousands of times as they're reeled and unreeled from massive cable drums, following mobile equipment across mining sites that can stretch for kilometres.

To understand why these cables are so critical, imagine trying to power a suburban neighbourhood, but instead of fixed houses, all your electrical loads are constantly moving. Mining equipment like massive excavators, drilling rigs, and conveyor systems must relocate frequently as operations progress. Traditional fixed wiring simply won't work in this environment. That's where Type 440 cables shine, providing the flexibility and durability needed to keep Australia's gold mines operational in some of the world's most challenging industrial environments.

Australia's Golden Landscape: Major Mining Operations

Australia's position as the world's second-largest gold producer rests on several iconic mining operations, each presenting unique electrical challenges that Type 440 cables help solve. Understanding these mines provides context for why such sophisticated cable technology is essential.

The Boddington Gold Mine in Western Australia stands as Australia's largest gold producer, operated by Newmont Corporation. This massive open-pit operation produces over 700,000 ounces of gold annually, requiring an enormous fleet of mobile equipment. The mine's electrical infrastructure must support everything from 400-tonne haul trucks to massive draglines, all requiring flexible power connections that can withstand the constant movement and harsh environmental conditions of the Western Australian goldfields.

Further east, the Cadia Valley Operations near Orange, New South Wales, represents another electrical engineering marvel. This operation combines both open-pit and underground mining, creating complex power distribution challenges. The transition between surface and underground operations requires cables that can handle dramatic changes in environmental conditions, from scorching surface temperatures to the controlled climate of underground workings.

The legendary Kalgoorlie Super Pit, operated by Kalgoorlie Consolidated Gold Mines, presents perhaps the most visually striking example of mining electrical infrastructure. This massive open-pit operation, visible from space, requires power distribution across terraced levels that descend over 600 metres into the earth. The constant blasting, dust, and temperature variations demand cables with exceptional durability and environmental resistance.

The Tropicana Gold Mine, located in the remote Great Western Woodlands, showcases how modern mining operations integrate renewable energy sources. This joint venture between AngloGold Ashanti and Regis Resources has incorporated solar and wind power into their operations, requiring cables that can handle variable power sources and switching between different electrical systems. This integration demonstrates how Type 440 cables must evolve to support sustainable mining practices.

Other significant operations including the Tanami Mine in the Northern Territory, St Ives in Western Australia, and the Telfer Mine in the remote Pilbara region each present unique electrical challenges. The Tanami operation, for instance, must deal with extreme temperature variations between day and night, while Telfer's remote location means cable failures can result in extended downtime due to the difficulty of obtaining replacement materials.

Applications: Where Type 440 Cables Prove Their Worth

The versatility of AS/NZS 2802 Type 440 cables becomes apparent when examining their diverse applications across Australian mining operations. These cables serve as flexible feeders for mobile equipment, a role that demands exceptional mechanical and electrical performance.

Consider the massive electric rope shovels used in open-pit mining operations. These behemoths, weighing hundreds of tonnes, must move continuously as they load haul trucks with ore. Each shovel requires substantial electrical power, often drawing several megawatts during peak operation. The Type 440 cable connecting these machines to the power grid must flex and bend repeatedly as the shovel swings through its loading cycle, all while maintaining electrical integrity under high voltage conditions.

Drilling operations present another critical application. Modern mining drill rigs are sophisticated machines that require precise electrical control for optimal performance. The cables supplying these rigs must provide both power and control signals, often through the pilot cores integrated into the Type 440 design. As drilling progresses and rigs move to new locations, the cables must coil and uncoil smoothly from drum systems without degrading performance.

Conveyor systems in mining operations often span kilometres, requiring power distribution that can accommodate elevation changes and curve around natural obstacles. While some conveyor sections use fixed wiring, mobile conveyor systems rely on Type 440 cables to maintain power connections as they're relocated to follow mining progress. The cables must resist the constant vibration and movement while providing stable electrical supply.

Underground mining applications, while outside the scope of coal mining due to AS/NZS 2802 restrictions, include numerous metalliferous operations. In these environments, Type 440 cables power everything from underground loaders to ventilation systems. The confined spaces and potential for cable damage from rock fall or equipment impact require cables with robust construction and reliable screening systems.

Pump systems represent another crucial application area. Mining operations require massive dewatering systems to manage groundwater and process water. These pumps often operate in harsh environments where cables may be exposed to moisture, chemicals, and mechanical stress. The heavy-duty PCP (Polychloroprene) sheath of Type 440 cables provides excellent resistance to these environmental challenges.

The flexibility requirements extend beyond simple bending. Mining cables must withstand torsional stress as equipment turns and maneuvers, tensile stress from their own weight when suspended, and compression forces when equipment travels over them. The semiconductive cradle separator in Type 440 cables helps distribute these mechanical stresses while maintaining proper spacing between conductors.

Standards and Compliance: The Regulatory Framework

The AS/NZS 2802:2000 standard provides the foundation for Type 440 cable specifications, establishing rigorous requirements that ensure safe and reliable operation in mining environments. This standard represents a collaborative effort between Australian and New Zealand electrical engineering experts, incorporating decades of mining industry experience.

Understanding the broader regulatory context helps explain why compliance is so critical. AS/NZS 1125 governs conductor requirements, ensuring that the flexible stranded tinned annealed copper conductors meet specific mechanical and electrical performance criteria. The tinning process, often overlooked by casual observers, provides crucial corrosion resistance in mining environments where cables may be exposed to moisture and chemical contaminants.

AS/NZS 3808 addresses insulation requirements, particularly important for the EPR (Ethylene Propylene Rubber) insulation used in Type 440 cables. This standard ensures that insulation can withstand the temperature extremes commonly encountered in mining operations, from sub-zero conditions in some underground mines to the extreme heat of surface operations in Australia's interior.

AS/NZS 5000.1 provides the overarching framework for electrical installations in mining operations, establishing safety requirements that Type 440 cables must meet. This standard addresses everything from voltage ratings to installation methods, ensuring that cables are deployed in ways that minimise risk to personnel and equipment.

The international context is equally important. While AS/NZS 2802 is specifically tailored to Australian and New Zealand conditions, similar standards exist globally. Understanding these relationships helps mining companies operating internationally maintain consistent safety and performance standards across their operations.

Compliance verification involves rigorous testing protocols that examine every aspect of cable performance. Electrical tests verify insulation resistance, conductor continuity, and voltage withstand capabilities. Mechanical tests assess flex life, tensile strength, and resistance to impact and crushing forces. Environmental tests evaluate performance under temperature extremes, moisture exposure, and chemical resistance.

The pilot conductor requirements deserve special attention. These smaller conductors, typically ranging from 7 to 98 square millimetres depending on the main conductor size, provide crucial control and monitoring capabilities. They must maintain signal integrity even when the main power conductors are under full load, requiring careful attention to screening and electromagnetic compatibility.

Cable Construction: Engineering Excellence in Every Layer

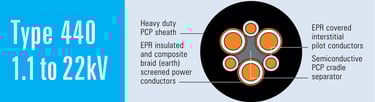

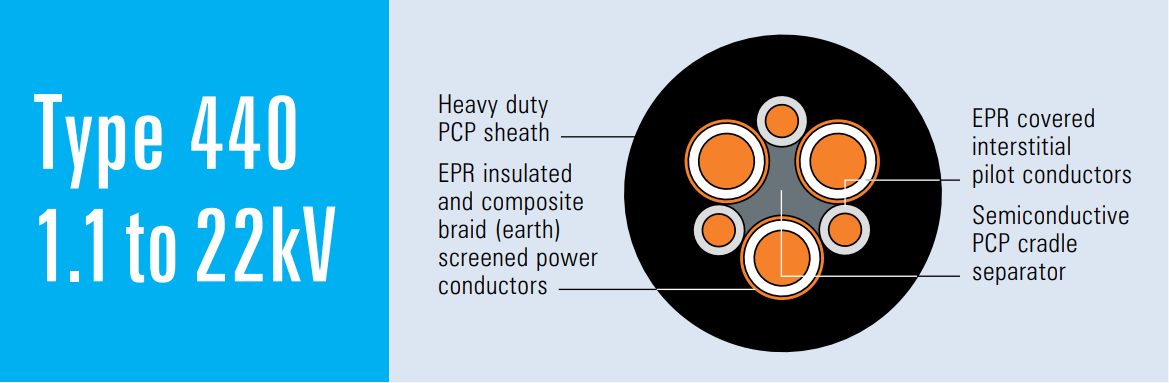

The construction of AS/NZS 2802 Type 440 cables represents a masterclass in electrical engineering, with each layer serving specific purposes that contribute to overall performance and reliability. Understanding this construction helps explain why these cables can withstand the demanding conditions of mining operations.

The heart of each Type 440 cable consists of three flexible stranded tinned annealed copper conductors. The stranding pattern is crucial for flexibility, with hundreds of individual copper strands twisted together in precise geometric arrangements. The conductor sizes range from 6 square millimetres for light-duty applications up to 300 square millimetres for heavy industrial loads. The tinning process, while adding cost, provides essential corrosion resistance that extends cable life in harsh mining environments.

Surrounding each conductor is a semiconductive screen, required for cables operating at 3.3 kilovolts and above. This screen serves multiple purposes: it provides a uniform electric field around the conductor, reduces stress concentrations that could lead to insulation breakdown, and helps contain electromagnetic interference. The semiconductive material is carefully formulated to have specific electrical properties that enhance cable performance while maintaining flexibility.

The insulation layer uses EPR (Ethylene Propylene Rubber), chosen for its excellent electrical properties and environmental resistance. EPR can operate reliably across a wide temperature range, from minus 25 degrees Celsius to plus 90 degrees Celsius, making it ideal for Australian mining conditions. The insulation thickness varies with voltage rating, from 1.5 millimetres for low-voltage applications to over 10 millimetres for high-voltage systems.

An insulation screen of semiconductive elastomer surrounds each insulated conductor. This screen provides a smooth, uniform surface that eliminates air gaps between the insulation and the outer layers. Air gaps can lead to partial discharge and eventual insulation failure, so this screen plays a crucial role in long-term reliability.

The composite screen represents one of the most sophisticated aspects of Type 440 construction. This screen combines tinned annealed copper braiding with polyester yarn, creating a structure that provides both electrical screening and mechanical strength. The copper braiding carries fault currents and provides electromagnetic shielding, while the polyester yarn adds tensile strength and helps distribute mechanical stresses.

Three interstitial pilot conductors are positioned between the main power conductors, each with its own EPR covering. These pilots provide control and monitoring capabilities, allowing remote monitoring of cable condition and equipment status. The pilot conductors must maintain signal integrity even in the presence of high power currents in the main conductors.

The semiconductive cradle separator represents an innovative design feature that sets Type 440 cables apart from simpler constructions. This central support structure maintains proper spacing between conductors and provides mechanical support that prevents deformation under the cable's own weight. The semiconductive material ensures that the cradle doesn't create electrical stress concentrations.

The outer sheath uses heavy-duty PCP (Polychloroprene), though alternative materials like CPE (Chlorinated Polyethylene) or CSP (Chlorosulfonated Polyethylene) can be specified for specific applications. The sheath must resist moisture, chemicals, UV radiation, and mechanical damage while remaining flexible enough to support repeated flexing cycles.

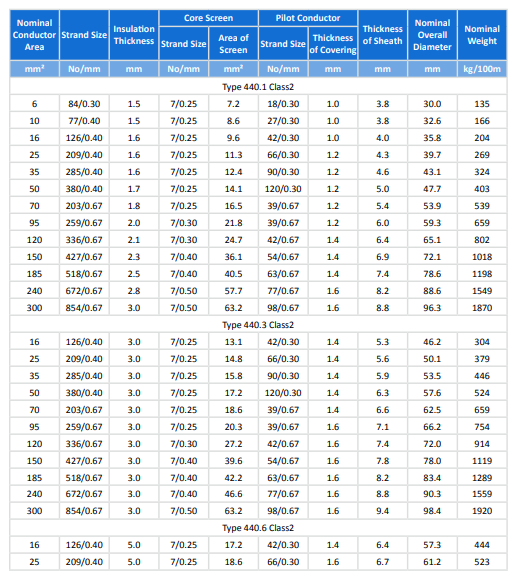

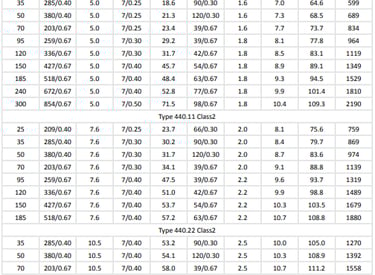

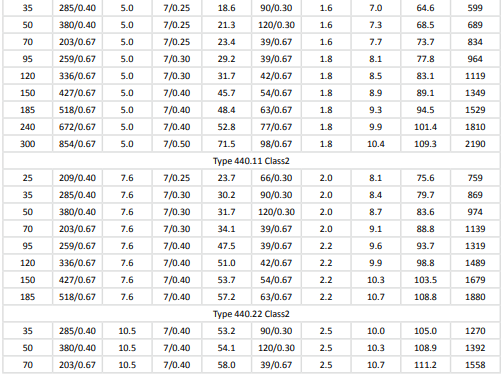

Electrical Specifications: The Technical Heart

The electrical performance of AS/NZS 2802 Type 440 cables reflects sophisticated engineering that balances multiple competing requirements. Understanding these specifications helps explain why these cables can reliably power mining operations under challenging conditions.

Voltage ratings span from 1.1/1.1 kilovolts up to 22 kilovolts, with the dual notation indicating both the voltage between conductors and the voltage to earth. This range covers virtually all mining equipment applications, from small mobile tools to massive excavators and processing equipment. The voltage rating determines insulation thickness, with higher voltages requiring proportionally thicker insulation to prevent breakdown.

Current carrying capacity varies dramatically with conductor size and installation conditions. A 6 square millimetre conductor might carry 50 amperes under ideal conditions, while a 300 square millimetre conductor can handle over 500 amperes. However, mining applications often involve less-than-ideal conditions, requiring derating calculations that account for ambient temperature, cable grouping, and installation method.

The flexible nature of Type 440 cables requires special attention to conductor resistance. The stranded construction, while essential for flexibility, results in slightly higher resistance than solid conductors of equivalent cross-sectional area. This resistance affects both voltage drop calculations and heating under load. Mining engineers must carefully calculate these effects to ensure adequate voltage reaches equipment under all operating conditions.

Temperature ratings deserve particular attention in mining applications. The EPR insulation can operate continuously at 90 degrees Celsius, but emergency overload conditions may permit higher temperatures for short periods. In mining environments where ambient temperatures can exceed 40 degrees Celsius, proper derating becomes crucial for reliable operation.

The pilot conductors, ranging from 7 to 98 square millimetres depending on main conductor size, must maintain signal integrity under challenging conditions. These conductors carry control signals, monitoring data, and sometimes low-level power for equipment control systems. The screening provided by the main cable construction helps protect these signals from electromagnetic interference.

Short-circuit performance represents another critical specification. Mining equipment can draw enormous starting currents, and fault conditions can result in short-circuit currents of tens of thousands of amperes. The cable construction must withstand these conditions without damage, requiring careful attention to conductor thermal capacity and mechanical strength.

Insulation resistance measurements provide crucial indicators of cable condition. New Type 440 cables typically show insulation resistance values in the hundreds of megohms per kilometre, but this value decreases with age, moisture exposure, and contamination. Regular testing helps identify potential problems before they result in failures.

The screening system performance affects both safety and electromagnetic compatibility. The composite screen must provide low-resistance paths for fault currents while minimising electromagnetic emissions that could interfere with sensitive mining equipment. The effectiveness of this screening depends on proper installation and maintenance of screen continuity.

Environmental Challenges and Solutions

Australian mining operations expose Type 440 cables to some of the world's most challenging environmental conditions, requiring sophisticated engineering solutions to ensure reliable performance. Understanding these challenges helps explain the cable's sophisticated construction and specification requirements.

Temperature extremes represent perhaps the most significant environmental challenge. Surface mining operations in Australia's interior can experience temperatures exceeding 50 degrees Celsius during summer days, while underground operations might encounter sub-zero conditions in some locations. The EPR insulation system is specifically designed to handle this temperature range, but proper installation and derating calculations remain essential.

Moisture exposure occurs in multiple forms in mining operations. Direct water contact can result from mine dewatering operations, while high humidity conditions are common in underground workings. The PCP sheath provides excellent moisture resistance, but cable terminations and connections require special attention to prevent moisture ingress. The semiconductive screens help prevent moisture-induced electrical stress concentrations.

Chemical exposure varies significantly between mining operations. Gold mining processes often involve cyanide solutions, while copper mining may expose cables to acidic conditions. The sheath material selection becomes crucial in these applications, with different formulations available for specific chemical environments. Regular inspection and testing help identify chemical damage before it compromises cable performance.

Mechanical stress from mining operations can be extreme. Cables may be driven over by heavy equipment, subjected to impact from falling rock, or damaged by sharp edges on mining equipment. The cable construction includes multiple layers of protection, but proper installation techniques and protective measures remain essential for long service life.

Dust and particulate contamination can affect cable performance, particularly at terminations and connections. The fine dust generated by mining operations can conduct electricity when combined with moisture, creating potential flashover paths. Regular cleaning and proper sealing of electrical connections help prevent these problems.

Solar radiation and UV exposure affect surface-installed cables in Australia's intense sunlight. The PCP sheath includes UV stabilisers, but prolonged exposure can still cause degradation. Where possible, cables are installed in conduits or cable trays that provide protection from direct sunlight.

Vibration from mining equipment and blasting operations can cause fatigue failures in cable conductors and connections. The flexible stranded construction of Type 440 cables helps resist vibration damage, but proper support and installation techniques remain crucial for long service life.

Frequently Asked Questions: Addressing Common Mining Cable Concerns

Can Type 440 cables be used in underground coal mining operations?

Type 440 cables are specifically excluded from coal mining applications under AS/NZS 2802 requirements. Coal mining presents unique hazards, particularly the risk of explosive gas mixtures, that require specially certified equipment and cables. Coal mining operations must use cables that meet additional flame propagation and gas-tightness requirements that Type 440 cables are not designed to meet. For coal mining applications, you'll need cables certified to AS 1934 or similar coal-specific standards that include flame-resistant sheaths and constructions designed to prevent ignition of explosive atmospheres.

How do I select the correct cable size for a Super Pit excavator or similar large equipment?

Selecting cable size for large mining equipment requires careful analysis of several factors. First, determine the equipment's maximum power demand, which for large excavators can exceed several megawatts. A 400-tonne excavator might require 2-3 megawatts of power, suggesting conductor sizes in the 120-300 square millimetre range. However, you must also consider the cable length, as longer cables experience greater voltage drop. Additionally, the harsh mining environment often requires derating the cable's current-carrying capacity due to high ambient temperatures, cable grouping, and installation in conduits. Always consult with electrical engineers who can perform detailed load calculations and apply appropriate derating factors. The cable manufacturer's technical specifications provide detailed current-carrying capacity tables for various installation conditions.

What maintenance and testing schedule should be followed for Type 440 cables?

A comprehensive maintenance program for Type 440 cables should include both routine visual inspections and periodic electrical testing. Daily visual checks should look for obvious damage, such as cuts, abrasions, or signs of overheating. Weekly inspections should examine cable supports, drum winding, and terminations for signs of mechanical stress or corrosion. Monthly electrical testing should include insulation resistance measurements between conductors and to earth, using a megohmmeter appropriate for the cable's voltage rating. Insulation resistance values below 1 megohm per kilovolt of operating voltage warrant investigation. Annual testing should include detailed inspection of all terminations, measurement of conductor resistance to identify developing problems, and testing of pilot conductor continuity. Any cable showing declining insulation resistance or other signs of deterioration should be investigated promptly, as cable failures in mining operations can result in extended downtime and safety hazards.

What environmental hazards most commonly affect cable lifespan in Australian mining operations?

Several environmental factors significantly impact Type 440 cable lifespan in Australian mining conditions. Abrasion from contact with mining equipment, rock surfaces, and cable drums represents the most common cause of premature failure. This can be mitigated through proper cable routing, adequate drum design, and protective covering in high-wear areas. Chemical exposure, particularly from mining process chemicals and groundwater, can degrade the cable sheath over time. Selecting the appropriate sheath material (PCP, CPE, or CSP) for the specific chemical environment is crucial. Temperature extremes, both high surface temperatures and rapid temperature changes, can cause thermal stress in the cable insulation. Proper derating and installation techniques help address these challenges. UV radiation from Australia's intense sunlight can degrade cable sheaths over time, making protective covering or burial important for surface installations. Moisture ingress at terminations and connections can cause corrosion and electrical failure, requiring proper sealing and regular inspection.

Can Type 440 cables integrate effectively with hybrid power systems incorporating renewable energy sources?

Modern mining operations increasingly incorporate renewable energy sources, and Type 440 cables can effectively support these hybrid systems. The cables' voltage ratings and construction make them suitable for connecting solar inverters, wind turbines, and battery storage systems to mining equipment. However, renewable energy integration introduces some unique considerations. Variable power sources can cause voltage fluctuations that the cable system must handle without degradation. The pilot conductors in Type 440 cables can carry control signals needed for sophisticated power management systems. Energy storage systems may require cables capable of handling bidirectional power flow, which Type 440 cables can accommodate. The key is ensuring that the entire electrical system, including protection systems and control equipment, is designed to handle the variable nature of renewable energy sources. Several Australian mines, including Tropicana and Agnew, have successfully integrated renewable energy using appropriate cable systems, demonstrating that Type 440 cables can support sustainable mining operations.

How do Type 440 cables perform in extreme weather conditions common to Australian mining regions?

Type 440 cables are specifically designed to handle the extreme weather conditions prevalent in Australian mining regions, but understanding their limitations helps ensure reliable operation. The EPR insulation system operates effectively from minus 25 to plus 90 degrees Celsius, covering the temperature range encountered in most Australian mining operations. However, surface temperatures on dark cable sheaths can exceed air temperature by 20-30 degrees Celsius, requiring consideration in cable selection and installation. Cyclonic conditions in northern Australia can subject cables to extreme wind and rain, making secure installation and proper drainage crucial. Flash flooding, common in some mining regions, requires cables to withstand temporary submersion without damage. The PCP sheath provides excellent moisture resistance, but terminations and connections need special attention in flood-prone areas. Dust storms can create conductive paths across insulators and connections, requiring regular cleaning and proper sealing. The key to successful operation in extreme weather is combining appropriate cable selection with proper installation techniques and regular maintenance.

Case Studies: Real-World Applications

The Tropicana Gold Mine provides an excellent example of how Type 440 cables support innovative mining operations. Located in one of Australia's most remote mining areas, Tropicana has implemented a hybrid power system combining diesel generation with renewable energy sources. The mine's electrical infrastructure includes Type 440 cables connecting solar inverters to the main power distribution system, supporting both fixed installations and mobile equipment. The cables must handle the variable power output from solar systems while maintaining stable power delivery to critical mining equipment. The remote location makes cable reliability crucial, as replacement parts and repair personnel may be days away from the mine site.

The Agnew Gold Mine represents another success story in sustainable mining electrical infrastructure. This operation has implemented a comprehensive renewable energy system including wind turbines, solar panels, and battery storage. Type 440 cables play a crucial role in connecting these diverse power sources to mining equipment. The cables must handle power flow in both directions, as the battery storage system can both charge from renewable sources and discharge to power mining equipment. The pilot conductors in the Type 440 cables carry control signals that help manage this complex power system, ensuring optimal energy utilisation and equipment performance.

The Kalgoorlie Super Pit presents unique challenges due to its massive scale and continuous operation. The pit's electrical infrastructure includes kilometres of Type 440 cables supporting everything from massive excavators to conveyor systems. The cables must operate reliably in the harsh conditions of open-pit mining, including exposure to dust, temperature extremes, and mechanical stress from heavy equipment. The pit's 24-hour operation schedule means that cable failures can result in significant production losses, making reliability absolutely critical. Regular maintenance and testing programs help ensure that the cable system continues to perform reliably despite these challenging conditions.

Future Trends and Innovations

The mining industry's evolution toward increased automation and electrification is driving new requirements for Type 440 cables. Autonomous mining equipment requires sophisticated control systems that depend on reliable data transmission through pilot conductors. Future cable designs may incorporate optical fibres for high-speed data transmission alongside traditional copper conductors.

Sustainability considerations are becoming increasingly important in mining operations. Type 440 cables with improved recyclability and reduced environmental impact during manufacturing are becoming more common. The integration of renewable energy sources will continue to grow, requiring cables that can handle variable power sources and bidirectional power flow.

Smart cable systems incorporating embedded sensors for monitoring cable condition in real-time represent an emerging trend. These systems can detect developing problems before they result in failures, reducing downtime and maintenance costs. The integration of these monitoring systems with mine-wide control systems will enable more sophisticated maintenance scheduling and resource allocation.

Conclusion and Best Practices

AS/NZS 2802 Type 440 cables represent a critical component of Australia's mining electrical infrastructure, enabling the reliable operation of equipment worth billions of dollars. Their sophisticated construction and rigorous testing ensure performance in some of the world's most challenging industrial environments.

Success with Type 440 cables requires attention to several key factors. Proper cable selection based on detailed load analysis and environmental conditions forms the foundation of reliable operation. Installation techniques that minimise mechanical stress and provide adequate protection from environmental hazards are equally important. Regular maintenance and testing programs help identify potential problems before they result in costly failures.

The integration of renewable energy sources and increasing automation in mining operations will continue to drive cable technology evolution. Type 440 cables, with their proven reliability and sophisticated construction, are well-positioned to support these emerging trends while maintaining the high performance standards required in Australian mining operations.

Understanding the relationship between cable construction, electrical specifications, and operational requirements enables mining engineers to make informed decisions about cable selection and installation. The investment in proper cable systems pays dividends through reduced downtime, improved safety, and enhanced operational efficiency.

As Australia's mining industry continues to evolve, Type 440 cables will remain essential components of the electrical infrastructure that keeps the golden heart of the Australian economy beating strong. Their combination of electrical performance, mechanical durability, and environmental resistance makes them indispensable tools in the ongoing quest to extract Australia's mineral wealth safely and efficiently.
