AS/NZS 2802 Type 440 Trailing Cables: Powering Australia's Gold and Copper Mining Operations

Introduction: The Backbone of Mining Power Distribution

When you observe the massive scale of Australia's mining operations, from the sprawling open pits of Western Australia to the deep underground networks of New South Wales, one critical component often goes unnoticed yet remains absolutely essential: the trailing cables that deliver power to mobile mining equipment. These robust electrical lifelines represent the difference between productive mining operations and costly downtime, particularly in Australia's demanding mining environments where equipment operates around the clock in harsh conditions.

The AS/NZS 2802 standard specifically addresses the unique requirements of reeling and trailing cables used in mining operations, with Type 440 cables representing the pinnacle of flexible power transmission technology. These cables are engineered to withstand the extraordinary mechanical stresses, environmental challenges, and electrical demands that characterise modern mining operations. Understanding their construction, capabilities, and proper application becomes crucial for mining engineers, electrical contractors, and operations managers who must ensure reliable power delivery to equipment worth millions of dollars.

Type 440 cables serve as flexible feeder trailing cables, designed to supply power to mobile machinery and equipment across voltage ranges from 1.1 kilovolts to 22 kilovolts. What distinguishes these cables from standard industrial power cables is their sophisticated internal construction, which includes three large pilot conductors and a central semiconductive cradle that provides both support and protection for the power cores. This design philosophy reflects decades of engineering refinement specifically tailored to meet the demanding requirements of Australian mining operations.

Australia's Major Gold and Copper Mining Operations

To appreciate the significance of Type 440 trailing cables, we must first understand the scale and complexity of Australia's major mining operations where these cables perform their critical functions. Australia's mining industry represents one of the world's most technologically advanced and economically significant sectors, with gold and copper operations leading the charge in both production volumes and technological innovation.

The Boddington Mine in Western Australia stands as a testament to modern mining engineering, representing one of the world's largest open-pit gold and copper operations. This massive operation, which produced approximately 590,000 ounces of gold in 2024, relies heavily on large-scale mobile equipment including draglines, shovels, and haul trucks that require continuous, reliable power through trailing cable systems. The mine's infrastructure demands cables capable of withstanding extreme temperature variations, from scorching summer heat exceeding 40 degrees Celsius to winter conditions that can stress cable materials through thermal cycling.

Similarly, the Cadia Valley operations in New South Wales demonstrate the complexity of modern underground and open-pit mining combinations. Following Newmont's acquisition of Newcrest, these operations have become even more integrated and technologically sophisticated. The underground components of Cadia require trailing cables that can navigate confined spaces while maintaining electrical integrity, while the open-pit sections demand cables capable of extended reaches and exposure to weathering elements.

The iconic Kalgoorlie Super Pit, operated by Northern Star Resources, represents Australia's most recognisable gold mining operation. This massive open-pit mine requires trailing cables that can span enormous distances while powering equipment that operates continuously in one of Australia's most challenging mining environments. The sheer scale of operations at KCGM demands cable systems that can handle not only the electrical loads but also the mechanical stresses associated with equipment movement across varied terrain.

The Telfer Mine in remote Western Australia presents perhaps the most challenging environment for trailing cable operations. This multi-commodity operation, producing gold, copper, and silver, operates in one of Australia's most isolated locations where equipment reliability becomes paramount. The extreme remoteness means that cable failures can result in extended downtime while replacement parts are transported across vast distances, making the selection of appropriate trailing cables absolutely critical.

Other significant operations including Agnew, St Ives, Gwalia, and Plutonic mines each present unique challenges that underscore the importance of properly specified trailing cables. These operations span both underground and open-pit configurations, with some transitioning between mining methods as ore bodies are developed. This diversity in mining approaches requires trailing cables that can adapt to varying operational requirements while maintaining consistent electrical performance.

Application Scenarios: Where Type 440 Cables Excel

The primary application of Type 440 trailing cables lies in their role as flexible feeder systems for mobile mining equipment. Understanding these applications helps illuminate why the cable's sophisticated construction becomes necessary rather than merely desirable. In surface mining operations, particularly in large open-pit mines like Boddington and the Super Pit, trailing cables must power draglines that can weigh over 8,000 tonnes and operate with bucket capacities exceeding 80 cubic metres. These massive machines require not only substantial electrical power but also cables that can accommodate the continuous movement patterns associated with dragline operations.

Electric rope shovels represent another demanding application where Type 440 cables prove indispensable. These machines, which can have bucket capacities ranging from 20 to 60 cubic metres, require cables that can handle both the electrical demands of the shovel motors and the mechanical stresses associated with the repetitive loading cycles. The cables must maintain electrical integrity while accommodating the complex movement patterns as shovels position themselves relative to haul trucks and move between different working faces.

Conveyor systems in mining operations present unique challenges for trailing cable applications. While conveyors themselves may be stationary, the mobile equipment used to maintain, extend, and reconfigure conveyor systems requires flexible power connections. Type 440 cables excel in these applications because they can provide power to mobile conveyor components while withstanding the vibrations, dust, and environmental conditions associated with material handling operations.

Underground mining applications demand even more sophisticated cable performance characteristics. In operations like the underground components of Cadia or the deep workings at Agnew, trailing cables must navigate confined spaces while maintaining electrical integrity in environments characterised by high humidity, temperature variations, and potential exposure to groundwater. The cables must also accommodate the movement of underground mobile equipment including load-haul-dump vehicles, underground drills, and specialised mining machinery that operates in spaces with limited clearance.

Reeling drum machinery represents perhaps the most demanding application for Type 440 cables. These systems, which automatically manage cable deployment and retrieval as equipment moves throughout mining operations, subject cables to repeated flexing, tension variations, and mechanical stress cycles. The cables must maintain their electrical properties while accommodating thousands of deployment and retrieval cycles over their operational lifetime.

Standards and Technical Construction: Engineering Excellence

The AS/NZS 2802:2000 standard represents the culmination of decades of engineering experience in Australian mining operations. This standard works in conjunction with AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.1 to ensure that trailing cables meet the specific requirements of Australian mining environments. Understanding these standards helps explain why Type 440 cables incorporate their sophisticated construction features.

The conductor system forms the electrical heart of Type 440 cables, utilising flexible stranded tinned annealed copper conductors that provide optimal electrical performance while maintaining the mechanical flexibility essential for trailing applications. The use of tinned copper provides enhanced corrosion resistance compared to bare copper, particularly important in mining environments where cables may be exposed to moisture, chemicals, and corrosive substances. The stranding configuration, with wire sizes ranging from 0.30mm to 0.67mm depending on the conductor cross-section, ensures optimal flexibility while maintaining current-carrying capacity.

For cables operating at 3.3 kilovolts and above, the conductor screen system becomes critical for electrical performance. This semiconductive compound layer ensures uniform electric field distribution around the conductor, preventing the formation of partial discharges that could lead to insulation degradation. The conductor screen represents sophisticated electrical engineering, utilising materials that conduct electricity sufficiently to equalise potential differences while maintaining mechanical properties that complement the cable's flexibility requirements.

The insulation system utilises Ethylene Propylene Rubber (EPR), chosen specifically for its excellent electrical properties and mechanical characteristics. EPR provides superior resistance to ozone, weathering, and thermal cycling compared to traditional insulation materials. This becomes particularly important in Australian mining operations where cables may be exposed to extreme temperature variations, ultraviolet radiation, and environmental stresses that would degrade less sophisticated insulation systems.

The insulation screen, constructed from semiconductive elastomer, provides another critical layer in the cable's electrical design. This layer ensures that the electric field remains uniformly distributed around the insulation, preventing the concentration of electrical stress that could lead to premature failure. The elastomeric properties ensure that the screen maintains its integrity even under the mechanical stresses associated with repeated flexing and movement.

The composite screen system represents one of the most sophisticated aspects of Type 440 cable construction. This system combines tinned annealed copper braiding interwoven with polyester yarn to provide both electrical screening and mechanical protection. The copper braiding provides a low-resistance path for fault currents while the polyester yarn enhances mechanical strength and provides cushioning for the internal cable components. This hybrid approach ensures optimal performance under both electrical and mechanical stress conditions.

The cradle separator system utilises semiconductive PCP (Polychloroprene) to provide mechanical support and protection for the power cores. This central support structure prevents the power cores from migrating within the cable during movement, which could lead to mechanical damage or electrical performance degradation. The semiconductive properties ensure that the cradle does not interfere with the cable's electrical characteristics while providing essential mechanical support.

The three interstitial pilot conductors represent a unique feature of Type 440 cables. These EPR-covered flexible stranded tinned copper conductors serve multiple functions including earth continuity monitoring, pilot protection schemes, and control circuit applications. The pilot conductors are positioned to provide optimal mechanical protection while maintaining electrical isolation from the main power conductors.

The outer sheath system utilises heavy-duty PCP (Polychloroprene) as the standard configuration, with heavy-duty CPE (Chlorinated Polyethylene) or CSP (Chlorosulfonated Polyethylene) available upon request. The PCP sheath provides excellent resistance to abrasion, oil, and weathering while maintaining flexibility across a wide temperature range. The alternative CPE/CSP sheath materials offer enhanced resistance to ultraviolet radiation and ozone, making them particularly suitable for applications where cables may be exposed to extended periods of sunlight or ozone-generating equipment.

Voltage Classifications and Technical Specifications

The Type 440 cable family encompasses five distinct voltage classifications, each optimised for specific mining applications and electrical requirements. Understanding these classifications helps mining engineers select the appropriate cable for their specific operational needs while ensuring compliance with Australian electrical standards.

Type 440.1 cables, designed for 1.1 kilovolt applications, represent the entry level of the Type 440 family but should not be considered basic in their construction or capabilities. These cables find extensive use in mining operations where lower voltage distribution systems provide power to smaller mobile equipment, lighting systems, and auxiliary machinery. The 1.1 kilovolt rating makes these cables suitable for applications where electrical safety considerations favour lower voltage systems while still requiring the mechanical robustness associated with mining operations.

Type 440.3 cables, rated for 3.3 kilovolt operation, represent perhaps the most commonly used configuration in Australian mining operations. The 3.3 kilovolt rating aligns with many mining electrical distribution systems and provides an optimal balance between power transmission capability and electrical safety considerations. These cables incorporate full conductor and insulation screening systems, representing a significant step up in electrical sophistication compared to their 1.1 kilovolt counterparts.

Type 440.6 cables, designed for 6.6 kilovolt applications, serve medium-voltage mining operations where higher power transmission becomes necessary. The 6.6 kilovolt rating allows for more efficient power transmission over longer distances while still maintaining compatibility with mining equipment voltage requirements. These cables incorporate enhanced insulation thickness and screening systems to accommodate the higher voltage operation while maintaining the mechanical flexibility essential for trailing applications.

Type 440.11 cables, rated for 11 kilovolt operation, represent high-voltage mining applications where power transmission efficiency becomes paramount. These cables find use in large-scale mining operations where the distances between power sources and equipment demand higher voltage transmission to maintain acceptable voltage regulation. The 11 kilovolt rating requires sophisticated insulation and screening systems while maintaining the mechanical properties necessary for mobile equipment applications.

Type 440.22 cables, designed for 22 kilovolt operation, represent the highest voltage rating in the Type 440 family and serve the most demanding mining applications. These cables enable power transmission over extended distances while maintaining excellent voltage regulation characteristics. The 22 kilovolt rating requires the most sophisticated insulation and screening systems in the Type 440 family, representing the pinnacle of trailing cable technology for mining applications.

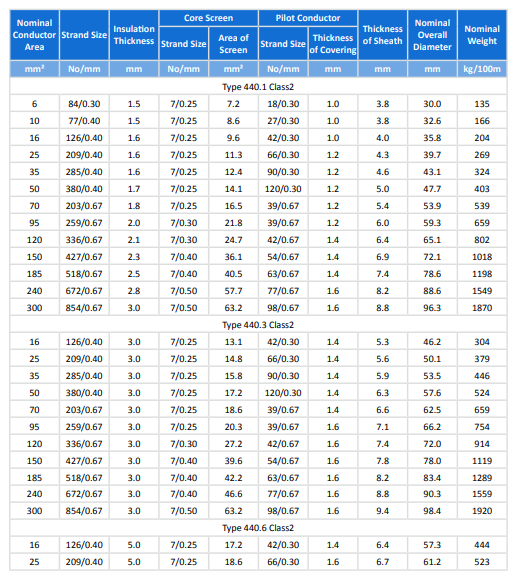

Dimensional Characteristics and Weight Considerations

The physical dimensions and weight characteristics of Type 440 cables significantly impact their practical application in mining operations. Understanding these parameters helps mining engineers evaluate installation requirements, cable handling systems, and operational constraints that may affect cable selection and deployment.

Consider the progression from smaller to larger conductor sizes within the Type 440.1 family. A 6 square millimetre conductor cable has a nominal overall diameter of 30.0 millimetres and weighs approximately 135 kilograms per 100 metres. This relatively compact size makes it suitable for applications where space constraints exist or where cable handling must be accomplished without heavy lifting equipment. As conductor sizes increase to 35 square millimetres, the overall diameter increases to 43.1 millimetres with a weight of 324 kilograms per 100 metres, reflecting the additional conductor material and proportionally increased insulation thickness.

The progression continues dramatically as conductor sizes increase to meet higher current requirements. A 120 square millimetre conductor cable in the Type 440.1 family has an overall diameter of 65.1 millimetres and weighs 802 kilograms per 100 metres. This represents a substantial increase in both size and weight that impacts cable handling, installation equipment requirements, and operational considerations. The largest conductor size in the Type 440.1 family, 300 square millimetres, results in an overall diameter of 96.3 millimetres and a weight of 1,870 kilograms per 100 metres, requiring substantial cable handling systems and installation equipment.

The impact of voltage rating on cable dimensions becomes apparent when comparing similar conductor sizes across different voltage classifications. A 35 square millimetre conductor cable in the Type 440.3 family has an overall diameter of 53.5 millimetres compared to 43.1 millimetres for the equivalent Type 440.1 cable. This 10.4 millimetre increase in diameter reflects the additional insulation thickness required for 3.3 kilovolt operation compared to 1.1 kilovolt operation. The weight increase from 324 kilograms per 100 metres to 446 kilograms per 100 metres demonstrates the significant impact of higher voltage ratings on cable mass.

The progression becomes even more pronounced at higher voltage levels. A 35 square millimetre conductor cable in the Type 440.6 family has an overall diameter of 64.6 millimetres and weighs 599 kilograms per 100 metres, while the same conductor size in the Type 440.22 family results in an overall diameter of 105.0 millimetres and a weight of 1,270 kilograms per 100 metres. These dimensional progressions highlight the engineering challenges associated with higher voltage trailing cables and the importance of proper cable selection for specific applications.

Practical Applications in Australian Mining Operations

The real-world application of Type 440 cables in Australian mining operations demonstrates their critical role in maintaining productive and safe mining operations. At the Boddington Mine, trailing cables power massive draglines that operate continuously in the open-pit environment. These draglines, among the largest mobile equipment in the world, require cables capable of delivering hundreds of amperes of current while accommodating the complex movement patterns associated with dragline operations. The cables must maintain electrical integrity while being subjected to continuous flexing, tension variations, and exposure to dust, moisture, and temperature extremes.

The Cadia Valley operations present unique challenges that demonstrate the versatility of Type 440 cables. The combination of open-pit and underground mining methods requires cables that can perform reliably in both environments. In the underground sections, cables must navigate confined spaces while maintaining electrical performance in high-humidity environments with potential exposure to groundwater. The open-pit sections demand cables capable of extended reaches and exposure to weathering elements while maintaining mechanical integrity under varying load conditions.

At the Kalgoorlie Super Pit, the scale of operations demands cable systems that can handle enormous electrical loads while spanning vast distances. The pit's dimensions, exceeding 3.5 kilometres in length and 1.5 kilometres in width, require trailing cables that can accommodate equipment movement across varied terrain while maintaining reliable power transmission. The cables must withstand the mechanical stresses associated with haul truck operations, drill movement, and the continuous activity that characterises one of the world's most active mining operations.

The Telfer Mine's remote location presents unique challenges that emphasise the importance of cable reliability. Operating in one of Australia's most isolated mining locations, equipment downtime due to cable failures can result in extended production interruptions while replacement parts are transported across vast distances. The extreme environmental conditions, including temperature variations exceeding 50 degrees Celsius between seasonal extremes, demand cables that can maintain their electrical and mechanical properties under the most challenging conditions.

Underground operations at mines like Agnew and St Ives require cables that can navigate the confined spaces of underground workings while maintaining electrical integrity. The high humidity, potential exposure to groundwater, and temperature variations associated with underground mining create demanding conditions for cable performance. The cables must also accommodate the movement of underground mobile equipment including load-haul-dump vehicles and underground drills while maintaining reliable power transmission.

Frequently Asked Questions: Addressing Common Mining Challenges

Question 1: Can Type 440 cables be used safely in underground coal mining operations?

This question addresses a critical safety consideration that often arises in mining operations. Type 440 cables are specifically designed and certified for hard-rock mining applications and are not suitable for underground coal mining operations. Underground coal mining requires cables that meet specific flame propagation, smoke emission, and toxic gas generation standards that differ significantly from those applicable to hard-rock mining. Coal mining environments present unique fire and explosion hazards that require cables certified to specialised standards addressing these specific risks. Mining engineers working in coal operations must select cables specifically designed and certified for coal mining applications to ensure compliance with safety regulations and operational requirements.

Question 2: What steps should be taken when pilot conductor resistance increases or pilot circuits fail?

Pilot conductor integrity represents a critical safety consideration in mining operations, as these conductors often serve essential functions in protective relay systems and earth continuity monitoring. When pilot resistance increases beyond acceptable limits, it typically indicates mechanical damage to the conductor strands, moisture ingress, or connector degradation. The first step involves systematic testing to isolate the location of the resistance increase, followed by inspection of cable sections, connectors, and terminations. If pilot resistance requirements cannot be met with standard Type 440 construction, mining engineers should consider Type 441 cables, which feature a central pilot conductor configuration that may provide enhanced reliability for critical pilot circuit applications.

Question 3: How should mining operations choose between PCP and CSP outer sheath materials?

The choice between PCP (Polychloroprene) and CSP (Chlorosulfonated Polyethylene) outer sheath materials depends on specific environmental conditions and operational requirements. PCP sheaths provide excellent flexibility and abrasion resistance, making them suitable for most mining applications where cables experience regular movement and mechanical stress. CSP sheaths offer enhanced resistance to ultraviolet radiation, ozone, and certain chemical exposures, making them preferable for applications where cables may be exposed to extended periods of sunlight or ozone-generating equipment. Mining operations should evaluate their specific environmental conditions, including exposure to chemicals, oils, ultraviolet radiation, and temperature extremes, to determine the most appropriate sheath material for their applications.

Question 4: What maintenance practices are essential for maximising trailing cable service life?

Comprehensive maintenance programs represent the foundation of reliable trailing cable performance in mining operations. Regular visual inspections should focus on identifying abrasion, cuts, heat damage, and mechanical deformation that could compromise cable integrity. Reel management practices must ensure proper cable spooling to prevent twist accumulation and mechanical stress concentration. Cable routing should be evaluated regularly to identify and eliminate sharp edges, pinch points, and areas where excessive mechanical stress may occur. Electrical testing should include insulation resistance measurements, pilot conductor continuity verification, and partial discharge testing for higher voltage cables. Preventive maintenance schedules should be established based on operational intensity, environmental conditions, and manufacturer recommendations to ensure optimal cable performance throughout the service life.

Question 5: Can Type 440 cables withstand the shock loads and mechanical stresses associated with harsh open-pit mining conditions?

Type 440 cables incorporate sophisticated mechanical protection systems specifically designed to withstand the demanding conditions of open-pit mining operations. The semiconductive cradle separator provides mechanical cushioning for the power cores, while the composite screen system combines copper braiding with polyester yarn to provide both electrical screening and mechanical protection. However, even these robust construction features have limitations, and mining operations should implement additional protective measures including cable burial in high-traffic areas, use of drag chains or cable rollers to manage cable movement, and careful attention to cable routing to avoid sharp edges and pinch points. The combination of sophisticated cable construction and proper installation practices ensures optimal performance under the most demanding mining conditions.

Question 6: How should mining engineers determine the appropriate cable size and voltage rating for specific equipment applications?

Proper cable sizing requires comprehensive analysis of electrical loads, voltage drop requirements, and environmental conditions. The process begins with determining maximum load current requirements based on equipment specifications and operational profiles. Voltage drop calculations must consider cable length, conductor resistance, and acceptable voltage regulation limits to ensure equipment receives adequate voltage under all operating conditions. Temperature correction factors must be applied based on ambient conditions and cable installation methods, as elevated temperatures reduce current-carrying capacity. Mining engineers should consult comprehensive cable sizing tables and relevant Australian standards to ensure selections meet both electrical performance requirements and safety regulations. Additionally, consideration should be given to future expansion requirements and operational flexibility when selecting cable specifications.

Conclusion: Engineering Excellence for Australian Mining

The role of AS/NZS 2802 Type 440 trailing cables in Australian mining operations represents far more than simple power transmission; these cables embody decades of engineering refinement specifically tailored to meet the extraordinary demands of modern mining operations. From the massive open-pit operations at Boddington and the Super Pit to the sophisticated underground workings at Cadia and Agnew, Type 440 cables provide the electrical backbone that enables safe, efficient, and productive mining operations.

The comprehensive voltage range from 1.1 kilovolts to 22 kilovolts ensures that mining operations can select cables optimised for their specific electrical requirements while maintaining the mechanical characteristics essential for mobile equipment applications. The sophisticated construction features, including semiconductive screening systems, composite earth screens, and interstitial pilot conductors, reflect the engineering excellence necessary to meet the demanding requirements of Australian mining environments.

The importance of proper cable selection, installation, and maintenance cannot be overstated in mining operations where equipment downtime can result in significant economic losses and safety concerns. Mining engineers, electrical contractors, and operations managers must understand the technical characteristics and application requirements of Type 440 cables to ensure optimal performance throughout their service life.

As Australian mining operations continue to evolve toward increasingly sophisticated and automated systems, the role of reliable power transmission becomes even more critical. Type 440 trailing cables represent proven technology that has evolved alongside the mining industry to meet ever-increasing performance demands while maintaining the safety and reliability standards essential for successful mining operations.

The combination of Australian standards compliance, sophisticated construction features, and proven performance in demanding mining environments positions Type 440 cables as the preferred choice for mining operations seeking reliable power transmission solutions. Whether powering massive draglines in open-pit operations or supporting underground mobile equipment in confined spaces, these cables provide the electrical foundation upon which Australia's mining success continues to build.

For mining professionals seeking to optimise their electrical systems, the selection of appropriate Type 440 cables represents a critical decision that impacts operational efficiency, safety, and long-term reliability. The comprehensive technical specifications, proven performance characteristics, and extensive application experience make Type 440 cables an essential component of successful mining operations throughout Australia.
