AS/NZS 2802 Type 441 Class 1 Mining Cable: The Backbone of Australian Open-Cut Mining Operations

Introduction

Australia's open-cut mining industry represents the cornerstone of the nation's resource sector, contributing billions to the economy whilst powering global commodity markets. At the heart of these massive operations lies a critical yet often overlooked component: the electrical infrastructure that keeps the heavy machinery running. The AS/NZS 2802 Type 441 Class 1 cable stands as the electrical lifeline for open-cut mining operations across the continent, designed specifically to withstand the harsh Australian mining environment whilst delivering reliable power to draglines, shovels, drills, and mobile plant equipment.

Type 441 Class 1 cables are engineered with a unique semi-conductive cradle system and central pilot conductor, making them exceptionally resistant to the crushing and squashing forces common in mining operations. Unlike their Class 2 counterparts, these cables feature optimised insulation and sheath radials that balance protection with flexibility, making them ideal for both trailing and reeling applications across Australia's diverse mining landscape.

The importance of proper cable selection cannot be overstated in Australian mining operations. With sites spanning from the coal fields of Queensland and New South Wales to the iron ore deposits of Western Australia's Pilbara region, mining companies require electrical infrastructure that can handle extreme temperatures, UV exposure, mechanical stress, and the demanding operational cycles that characterise modern open-cut mining.

Overview of Australia's Major Open-Cut Mines

Australia's open-cut mining sector encompasses some of the world's largest and most productive mining operations, each presenting unique electrical infrastructure challenges that Type 441 Class 1 cables are specifically designed to address.

Eastern States: Coal Powerhouses

Queensland and New South Wales dominate Australia's black coal production, with approximately 75% of the nation's black coal extracted through open-cut methods. The Bowen Basin in Queensland hosts numerous large-scale operations, including mines like Curragh, Kestrel, and Moranbah North. These operations typically utilise massive draglines and electric rope shovels that require robust electrical connections capable of handling high voltages whilst maintaining operational flexibility.

The Hunter Valley in New South Wales represents another critical coal mining region, home to operations such as Mount Thorley Warkworth, Ravensworth, and Liddell. These mines often operate around the clock, placing enormous demands on their electrical infrastructure. The trailing cables must withstand constant movement, dust exposure, and the mechanical stresses associated with large-scale earth-moving equipment.

Western Australia: Iron Ore and Gold Giants

Western Australia's Pilbara region houses some of the world's largest iron ore operations, including Rio Tinto's Mount Tom Price, Paraburdoo, and BHP's Mount Whaleback mines. These operations utilise enormous electric rope shovels and autonomous haul trucks that require sophisticated electrical systems. The extreme heat, dust, and UV exposure in the Pilbara create particularly challenging conditions for electrical cables.

The goldfields of Western Australia present their own unique challenges. The Super Pit at Kalgoorlie-Boulder, officially known as the Fimiston Open Pit, stands as one of Australia's most iconic mining operations. This massive pit, measuring approximately 3.5 kilometres long, 1.5 kilometres wide, and over 600 metres deep, relies on extensive electrical infrastructure to power its fleet of mining equipment.

Boddington Gold Mine, located south-east of Perth, represents one of Australia's largest gold operations, producing approximately 745,000 ounces in 2023. The mine's combination of gold and copper extraction requires diverse electrical infrastructure, from processing plant equipment to mobile mining machinery, all connected through robust cable systems.

Northern Territory and South Australia

The Northern Territory's McArthur River Mine and South Australia's Olympic Dam operation represent additional challenges for mining cable systems. These remote locations often experience extreme weather conditions, from tropical cyclones in the north to desert conditions in the south, requiring electrical infrastructure that can maintain performance across diverse environmental conditions.

Application Context and Operational Requirements

Type 441 Class 1 cables serve as the electrical backbone for numerous critical applications across Australian open-cut mining operations. Understanding these applications is essential for proper cable selection and installation.

Primary Equipment Applications

Draglines: These massive machines, some with boom lengths exceeding 100 metres, require trailing cables that can handle both the electrical load and the constant movement associated with their operation. The semi-conductive cradle design of Type 441 Class 1 cables provides essential protection against the crushing forces that can occur when cables are inadvertently run over or caught beneath equipment.

Electric Rope Shovels: Modern mining shovels operate at high voltages and require cables that can deliver consistent power whilst withstanding the cyclical loading and unloading operations. The flexible stranded copper conductors in Type 441 cables ensure reliable electrical connectivity even under mechanical stress.

Drill Rigs: Rotary blast hole drills used in open-cut operations require mobile electrical connections that can adapt to changing drilling positions. The reeling capability of Type 441 cables makes them ideal for these applications, providing power whilst maintaining mechanical integrity during cable winding and unwinding operations.

Mobile Plant Equipment: Conveyor systems, stackers, reclaimers, and other mobile processing equipment rely on trailing cable systems for power delivery. The extra-heavy duty PCP sheath construction provides essential protection against abrasion from contact with rocks, machinery, and other mining infrastructure.

Environmental Durability Requirements

Australian mining operations expose electrical cables to some of the harshest conditions imaginable. Type 441 Class 1 cables are specifically designed to address these challenges:

UV Resistance: The intense Australian sun, particularly in regions like the Pilbara, can degrade cable materials over time. The PCP (Polychloroprene) sheath provides excellent UV resistance, maintaining its mechanical properties even after extended exposure to direct sunlight.

Temperature Extremes: Mining operations in Australia can experience temperatures ranging from below freezing in winter to over 50°C in summer. The EPR (Ethylene Propylene Rubber) insulation maintains its electrical properties across this entire range, ensuring reliable operation regardless of ambient conditions.

Chemical Resistance: Mining environments often involve exposure to various chemicals, from processing solutions to equipment lubricants. The PCP sheath provides excellent resistance to oils, acids, and alkalis commonly encountered in mining operations.

Mechanical Durability: The constant movement of mining equipment places enormous mechanical stress on electrical cables. The semi-conductive cradle design distributes these forces across the cable structure, preventing localised damage that could lead to electrical failure.

Standards and Compliance Framework

The AS/NZS 2802:2000 standard represents the cornerstone of mining cable specifications in Australia and New Zealand, establishing comprehensive requirements for the design, construction, and testing of cables intended for mining applications.

Core Standards Compliance

AS/NZS 2802:2000 serves as the primary standard governing mining cable construction and performance. This standard specifies requirements for conductor design, insulation materials, sheath construction, and electrical performance parameters. Compliance with this standard ensures that Type 441 Class 1 cables meet the stringent safety and performance requirements of Australian mining operations.

AS/NZS 1125 addresses the specific requirements for flexible cables, ensuring that Type 441 cables maintain their electrical and mechanical properties under the dynamic loading conditions common in mining applications.

AS/NZS 3808 covers earthing and bonding requirements, critical for the safe operation of electrical systems in mining environments. The multiple earth conductors in Type 441 cables support compliance with these earthing requirements.

AS/NZS 5000.1 provides the overarching electrical safety framework, establishing the foundation for safe electrical installation and operation in Australian mining facilities.

Class 1 Rating Specifications

The Class 1 designation indicates that these cables feature optimised insulation and sheath thickness designed for specific voltage ranges whilst maintaining flexibility for trailing and reeling applications. Unlike Class 2 cables, which feature thicker insulation for higher voltage applications, Class 1 cables balance protection with operational flexibility.

The voltage rating system for Type 441 Class 1 cables encompasses several standard configurations:

• Type 441.3: 3.3kV/3.3kV systems

• Type 441.6: 6.6kV/6.6kV systems

• Type 441.11: 11kV/11kV systems

• Type 441.22: 22kV/22kV systems

Each configuration undergoes rigorous testing at voltages significantly exceeding their operational rating, with test voltages ranging from 30kV for 3.3kV cables up to 45kV for 22kV systems, ensuring reliable operation under fault conditions.

Construction and Electrical Parameters

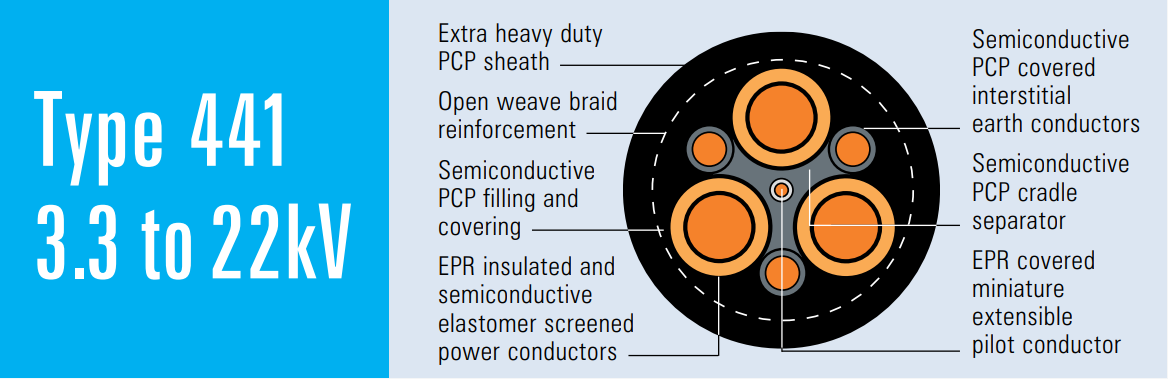

The sophisticated construction of Type 441 Class 1 cables reflects decades of engineering development specifically focused on mining applications. Understanding this construction is essential for proper cable selection and installation.

Core Structure and Components

Power Conductors: The three main conductors utilise flexible stranded tinned annealed copper construction, providing excellent electrical conductivity whilst maintaining flexibility under mechanical stress. The tinning process enhances corrosion resistance, critical in the harsh mining environment. Conductor sizes range from 16mm² for smaller applications up to 300mm² for high-power equipment.

Conductor Screen: For cables rated 3.3kV and above, a semi-conductive compound surrounds each conductor, providing a controlled electrical field that prevents partial discharge and enhances long-term reliability. This screening is particularly important in mining applications where cables may be subject to moisture and contamination.

EPR Insulation: Ethylene Propylene Rubber provides the primary electrical insulation, chosen for its excellent electrical properties across extreme temperature ranges. EPR maintains its flexibility and electrical integrity from -25°C to +90°C, covering the full range of conditions encountered in Australian mining operations.

Insulation Screen: A semi-conductive elastomer screen surrounds the insulation, providing additional electrical field control and enhancing the cable's ability to withstand electrical stress.

Semi-Conductive Cradle: This unique feature sets Type 441 cables apart from standard industrial cables. The cradle provides mechanical protection whilst maintaining electrical continuity, distributing crushing forces across the cable structure rather than concentrating them on individual conductors.

Earth Conductors: Three interstitial earth conductors, constructed from flexible stranded tinned copper and covered with semi-conductive PCP, provide multiple earth paths essential for mining safety requirements. These conductors also serve as pilot wires for equipment monitoring systems.

Central Pilot Conductor: The extensible pilot conductor, insulated with EPR, serves multiple functions including equipment control signals and earth fault detection. The extensible design accommodates the stretching forces that can occur during cable deployment and operation.

Sheath Construction: The extra-heavy duty PCP sheath provides the final layer of protection against mechanical damage, chemical exposure, and environmental conditions. The sheath thickness varies with cable size and voltage rating, optimised to provide maximum protection whilst maintaining flexibility.

Electrical Performance Parameters

The electrical characteristics of Type 441 Class 1 cables are carefully engineered to meet the demanding requirements of mining applications:

Voltage Ratings: Standard configurations include 3.3/3.3kV, 6.6/6.6kV, 11/11kV, and 22/22kV, with test voltages ranging from 9.9kV to 66kV respectively, providing substantial safety margins above operational voltages.

Current Carrying Capacity: Varies with conductor size and installation conditions, typically ranging from 63A for 16mm² conductors to 415A for 300mm² conductors under standard mining conditions.

Insulation Resistance: Minimum values exceed 4000 GΩ·m at 20°C, ensuring excellent electrical isolation even in contaminated environments.

Earth Conductor Resistance: Low resistance earth paths are essential for both safety and equipment protection, with maximum values specified for each conductor size.

Dimensional Specifications

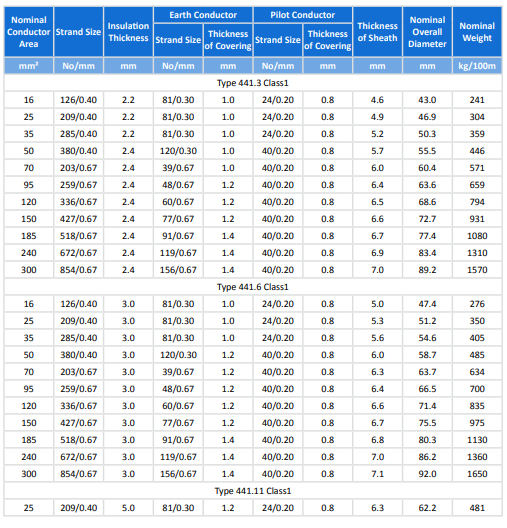

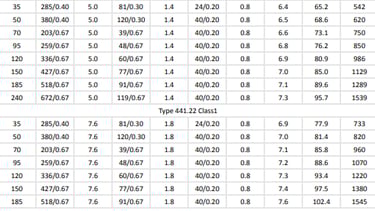

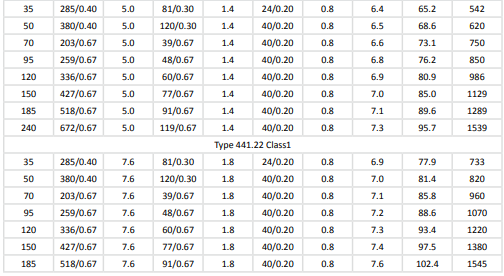

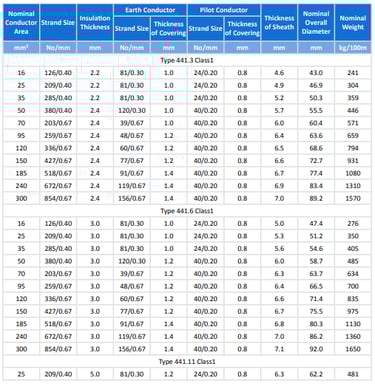

The physical dimensions of Type 441 Class 1 cables are optimised for mining applications, balancing electrical performance with mechanical durability:

Conductor Construction Examples:

• 16mm²: 126 strands × 0.40mm diameter

• 35mm²: 285 strands × 0.40mm diameter

• 70mm²: 203 strands × 0.67mm diameter

• 185mm²: 518 strands × 0.67mm diameter

Overall Dimensions:

• 35mm² Type 441.3: 50.3mm overall diameter, 359kg/100m

• 70mm² Type 441.6: 63.7mm overall diameter, 634kg/100m

• 150mm² Type 441.11: 85.0mm overall diameter, 1129kg/100m

These specifications demonstrate the substantial construction required to meet mining application requirements whilst maintaining the flexibility necessary for trailing and reeling operations.

Performance Considerations and Operational Characteristics

The unique operating environment of open-cut mining places extraordinary demands on electrical cables, requiring careful consideration of multiple performance factors that distinguish mining cables from standard industrial applications.

Crush and Squash Resistance

The semi-conductive cradle design represents perhaps the most critical innovation in Type 441 Class 1 cable construction. Traditional cables can suffer catastrophic failure when subjected to crushing forces, as the concentrated stress on individual conductors can cause insulation failure or conductor breakage. The cradle system distributes these forces across the entire cable structure, maintaining electrical integrity even when the cable is temporarily compressed.

This protection is particularly important in mining operations where cables may be accidentally run over by mobile equipment, caught between machinery components, or subjected to falling rocks. The cradle design doesn't prevent all damage, but it significantly extends the cable's ability to maintain electrical continuity under adverse conditions, often providing sufficient time for operators to recognise and address potential problems before complete failure occurs.

Electrical Integrity and Fault Management

Mining operations require exceptional electrical safety standards due to the combination of high voltages, harsh environments, and the potential for equipment damage. Type 441 Class 1 cables incorporate multiple features specifically designed to enhance electrical safety:

Multiple Earth Paths: The three interstitial earth conductors provide redundant earth connections, ensuring that even if one earth path is compromised, adequate earthing remains available. This redundancy is critical in mining applications where earth fault currents can be substantial.

Screen Systems: The combination of conductor screens, insulation screens, and the semi-conductive cradle creates a comprehensive electrical field management system. These screens prevent partial discharge, reduce electrical stress concentrations, and provide controlled paths for fault currents.

Fault Detection Capabilities: The central pilot conductor can be used for sophisticated fault detection systems that monitor cable integrity in real-time, allowing operators to identify developing problems before they result in equipment failure or safety hazards.

Temperature Performance and Thermal Management

Australian mining operations must contend with some of the world's most extreme temperature conditions. Type 441 Class 1 cables are designed to maintain performance across this entire range:

EPR Insulation Temperature Range: The -25°C to +90°C operational range covers virtually all conditions encountered in Australian mining, from the cold winter nights in elevated regions to the extreme heat of summer operations in desert environments.

Thermal Cycling Resistance: Mining cables often experience significant temperature cycling as equipment loads vary and environmental conditions change. The EPR insulation and PCP sheath materials are specifically chosen for their ability to withstand repeated thermal cycling without degradation.

Heat Dissipation: The cable construction includes features that enhance heat dissipation, preventing the buildup of internal temperatures that could compromise insulation integrity during high-load operations.

Chemical and Environmental Resistance

The mining environment exposes cables to a wide range of potentially damaging substances:

Oil and Fuel Resistance: Mining equipment requires various lubricants and fuels that can attack cable materials. The PCP sheath provides excellent resistance to petroleum-based products commonly encountered in mining operations.

Chemical Processing Exposure: Many mining operations involve chemical processing that can create corrosive atmospheres. The combination of tinned copper conductors and chemically resistant sheath materials ensures long-term reliability in these environments.

UV and Ozone Degradation: The intense UV radiation in Australian mining regions can rapidly degrade many cable materials. The PCP sheath formulation includes UV stabilisers that maintain material properties even after years of direct sun exposure.

Frequently Asked Questions: Mining Cable Challenges and Solutions

Mining operations present unique challenges that require specialised knowledge and careful planning. The following frequently asked questions address common concerns encountered when implementing Type 441 Class 1 cable systems in Australian open-cut mining operations.

Q1: Can Type 441 Class 1 cables be used in underground mining operations?

Answer: Type 441 Class 1 cables are specifically designed and certified for open-cut mining applications and should not be used in underground coal mining operations without separate certification. Underground mining, particularly in coal mines, requires cables that meet additional stringent flame retardancy and fire safety standards due to the enclosed environment and potential for methane accumulation.

For underground applications, specialised cables meeting AS/NZS 1125 flame retardant requirements or international standards such as IEC 60332 are typically required. These cables incorporate different sheath materials and construction techniques specifically designed to limit flame propagation and toxic gas emission in confined spaces.

However, some underground hard rock mining operations may permit the use of Type 441 cables in specific applications, subject to local regulatory approval and risk assessment. Mine operators should always consult with local mining authorities and electrical engineers before specifying cable types for underground use.

Q2: What should be done if a Type 441 cable shows signs of mechanical damage or crushing?

Answer: While the semi-conductive cradle design provides significant protection against crushing forces, any visible damage to a Type 441 cable requires immediate attention. The recommended response protocol includes:

Immediate Actions:

• De-energise the affected circuit immediately to prevent electrical hazards

• Isolate the damaged area and prevent personnel access until assessment is complete

• Document the damage with photographs and incident reports

Assessment Procedures:

• Conduct visual inspection of the entire cable length, paying particular attention to areas near the visible damage

• Perform electrical testing including insulation resistance, conductor continuity, and earth conductor integrity

• Use appropriate test equipment to verify that insulation values meet minimum standards

Repair or Replacement Decisions:

• Minor sheath damage without conductor exposure may be repairable using appropriate cable jointing techniques

• Any damage involving conductor deformation, insulation compromise, or earth conductor damage typically requires cable replacement

• Consider the cable's operating history and overall condition when making repair versus replacement decisions

The semi-conductive cradle design often allows the cable to continue operating even after sustaining damage that would disable conventional cables, but this should never be considered a permanent solution.

Q3: How do Type 441 cables handle earth faults and what protective measures are incorporated?

Answer: Type 441 Class 1 cables incorporate multiple design features specifically intended to manage earth faults safely and effectively:

Multiple Earth Paths: The three interstitial earth conductors provide redundant earth connections, ensuring that earth fault currents have multiple paths to return to the source. This redundancy is critical because individual earth conductors may be damaged during the same incident that creates the earth fault.

Semi-Conductive Elements: The various semi-conductive screens and cradle provide controlled paths for fault currents whilst maintaining the electrical field distribution that prevents partial discharge and voltage breakdown.

Fault Current Distribution: The cable construction distributes fault currents across multiple conductors and screens, preventing the concentration of fault energy that could lead to cable failure or fire.

Protection System Integration: Type 441 cables are designed to work with modern mining protection systems that can detect earth faults quickly and isolate affected circuits before damage occurs. The central pilot conductor can be used for sophisticated earth fault detection schemes.

Installation Considerations: Proper earthing of cable screens and metallic components at both ends of the cable run is essential for effective fault management. This earthing must be designed to handle potential fault currents without creating hazardous touch voltages.

Q4: What maintenance practices are recommended to address UV exposure and weather-related degradation?

Answer: While Type 441 Class 1 cables are designed to withstand harsh Australian mining conditions, proactive maintenance practices can significantly extend cable life and prevent unexpected failures:

Regular Visual Inspections:

• Conduct monthly visual inspections of all exposed cable sections, paying particular attention to areas with maximum sun exposure

• Look for signs of sheath chalking, cracking, or hardening that may indicate UV degradation

• Inspect cable supports and guides to ensure proper cable positioning and stress relief

Environmental Protection Measures:

• Where practical, provide shade structures or cable trays to reduce direct UV exposure during extended stationary periods

• Ensure adequate drainage around cable routes to prevent water pooling that could accelerate degradation

• Maintain proper cable routing to avoid contact with sharp edges or abrasive surfaces

Electrical Testing:

• Perform annual insulation resistance testing to identify degradation before it reaches critical levels

• Conduct earth conductor continuity testing to ensure protective systems remain effective

• Monitor pilot conductor integrity for cables equipped with condition monitoring systems

Preventive Replacement:

• Establish cable replacement schedules based on service conditions, with shorter intervals for cables exposed to extreme UV or chemical conditions

• Consider proactive replacement of critical cables before they reach end-of-service-life to prevent unplanned downtime

The PCP sheath material used in Type 441 cables typically provides 10-15 years of service life under normal Australian mining conditions, but this can vary significantly based on specific environmental factors and usage patterns.

Q5: Can Type 441 Class 1 cables be used for voltage systems above 22kV?

Answer: Type 441 Class 1 cables are specifically rated for voltage systems up to 22kV and should not be used for higher voltage applications. For mining operations requiring voltages above 22kV, alternative cable types are available:

Type 450/455 Cables: These are designed for voltage ratings up to 33kV and incorporate thicker insulation and enhanced screen systems appropriate for higher voltage applications. They maintain the mechanical durability required for mining applications whilst providing the electrical performance necessary for higher voltages.

Application Considerations: Higher voltage mining applications typically involve:

• Large draglines with extended boom lengths requiring power transmission over greater distances

• High-power processing equipment where higher voltages improve efficiency

• Transmission systems connecting remote mining equipment to central power sources

Selection Criteria: When selecting cables for higher voltage applications, consider:

• Increased insulation thickness requirements

• Enhanced earthing and screening requirements

• Larger overall cable dimensions and weight

• Specialised jointing and termination requirements

Engineering Support: Higher voltage mining cable applications should always involve qualified electrical engineers familiar with mining electrical systems. The complexity of these systems requires careful consideration of protection coordination, earthing design, and cable routing to ensure safe and reliable operation.

For any application above 22kV, consult with certified mining cable manufacturers who can provide detailed specifications and application guidance for the specific operational requirements of your mining operation.

Conclusion and Recommendations

Type 441 Class 1 cables represent a critical technological solution specifically engineered for the unique demands of Australian open-cut mining operations. Their sophisticated construction, incorporating semi-conductive cradle protection, multiple earth conductors, and environmentally resistant materials, makes them ideally suited for the harsh conditions encountered across Australia's diverse mining landscape.

The success of mining operations from the coal fields of Queensland to the iron ore deposits of Western Australia depends on reliable electrical infrastructure that can withstand mechanical stress, environmental extremes, and the demanding operational cycles characteristic of modern mining equipment. Type 441 Class 1 cables provide this reliability whilst maintaining the flexibility necessary for trailing and reeling applications.

Selection Guidelines

When selecting Type 441 Class 1 cables for mining applications, several key factors must be considered:

Load Requirements: Careful analysis of equipment power requirements, starting currents, and operational duty cycles ensures selection of appropriate conductor sizes. Under-sizing can lead to excessive heating and premature failure, whilst over-sizing increases costs and handling difficulties.

Environmental Conditions: Consider the specific environmental challenges of your mining site, including temperature extremes, UV exposure, chemical contamination, and mechanical hazards. While Type 441 cables are designed for harsh conditions, site-specific factors may influence cable routing and protection requirements.

Operational Flexibility: The balance between mechanical protection and operational flexibility must be carefully evaluated. Different mining operations may prioritise different aspects of cable performance based on their specific equipment and operational requirements.

Installation and Maintenance Recommendations

Successful implementation of Type 441 Class 1 cable systems requires attention to proper installation and maintenance practices:

Professional Installation: Engage certified electrical contractors with specific experience in mining cable installation. The unique requirements of mining operations, including earthing systems, protection coordination, and cable routing, require specialised knowledge.

Regular Monitoring: Implement comprehensive cable monitoring programs that include both visual inspections and electrical testing. Early detection of developing problems prevents catastrophic failures and reduces operational downtime.

Spare Cable Management: Maintain appropriate spare cable inventory based on critical equipment requirements and expected service life. The remote location of many Australian mining operations makes rapid cable replacement challenging, making proactive spare parts management essential.

Future Considerations

The Australian mining industry continues to evolve, with increasing automation, higher power requirements, and enhanced safety standards driving changes in electrical infrastructure requirements. Type 441 Class 1 cables are well-positioned to meet these evolving needs, with their robust construction and comprehensive safety features supporting the industry's continued development.

Mining operations planning electrical infrastructure upgrades should consider not only current requirements but also future expansion plans and technological developments. The long service life of properly installed and maintained Type 441 cables makes them a sound investment in the electrical infrastructure that supports Australia's critical mining industry.

By partnering with certified suppliers who understand both the technical requirements and the operational realities of Australian mining, operations can ensure that their electrical infrastructure supports reliable, safe, and efficient mining operations for years to come. The combination of proper cable selection, professional installation, and proactive maintenance creates the foundation for electrical systems that enhance rather than limit mining operational capabilities.
