AS/NZS 2802 Type 450 Mining Cables: Powering Australia's Gold Mining Revolution

Introduction: The Backbone of Modern Gold Mining

In the harsh and demanding environment of Australian gold mining, electrical infrastructure represents the critical nervous system that keeps operations running around the clock. Among the most essential components of this infrastructure are the specialised cables that deliver power to everything from massive draglines to precision drilling equipment. The AS/NZS 2802 Type 450 cable series, designed for medium-voltage applications ranging from 3.3 to 33 kilovolts, has emerged as a cornerstone technology in Australia's gold mining industry.

These cables represent a sophisticated engineering solution that addresses the unique challenges of mining operations. Unlike standard industrial cables, Type 450 cables incorporate flexible copper screening, dual earth conductors, and a dedicated pilot wire system, all wrapped in an extra-heavy duty protective sheath. This design philosophy reflects decades of accumulated knowledge about what works in the punishing conditions of Australian mining sites, where equipment must withstand extreme temperatures, corrosive environments, constant movement, and the mechanical stresses of continuous reeling and trailing operations.

The importance of reliable electrical infrastructure in gold mining cannot be overstated. When you consider that Australia produces approximately 10% of the world's gold, with an annual output valued at over $20 billion, the economic implications of electrical failures become clear. A single power outage can halt operations worth millions of dollars per day, making the choice of appropriate cabling systems a critical business decision that impacts both safety and profitability.

Australia's Gold Mining Landscape: Where Type 450 Cables Make Their Mark

Boddington Gold Mine: Australia's Golden Crown Jewel

Located in Western Australia's Darling Range, the Boddington Gold Mine stands as Australia's largest gold producer, consistently yielding over 590,000 ounces annually. This massive open-pit operation, owned by Newmont Corporation, presents exactly the kind of challenging environment where Type 450 cables demonstrate their value. The mine's scale is truly impressive, with operations extending across a pit that continues to expand as mining progresses deeper into the earth.

The electrical infrastructure at Boddington must support an enormous array of equipment, including some of the world's largest mining trucks, each capable of carrying 400 tonnes of ore. The mine's primary crusher alone requires substantial electrical power, processing over 60 million tonnes of ore annually. In this environment, the flexibility and durability of Type 450 cables become essential, as they must power equipment that operates continuously while being subjected to the constant vibration, dust, and temperature variations characteristic of large-scale mining operations.

Cadia-Ridgeway Operations: Where Innovation Meets Tradition

The Cadia-Ridgeway operations in New South Wales represent a fascinating blend of open-cut and underground mining techniques, producing approximately 561,000 ounces of gold annually. This dual-approach operation creates unique electrical challenges that highlight the versatility of Type 450 cables. The transition zones between surface and underground operations require cables that can handle both the mechanical stress of surface reeling applications and the more controlled but equally demanding environment of underground installations.

At Cadia-Ridgeway, the electrical system must power sophisticated automated equipment, including advanced drilling systems that use precise computer control to optimize ore extraction. The pilot wire system inherent in Type 450 cables becomes particularly valuable in this context, providing continuous monitoring capabilities that help prevent equipment damage and ensure operator safety in an environment where rapid response to electrical faults can mean the difference between a minor maintenance issue and a major incident.

Kalgoorlie Super Pit: An Icon of Australian Mining

The Kalgoorlie Super Pit, officially known as the Fimiston Open Pit, represents one of the most recognizable symbols of Australian mining prowess. This massive excavation, measuring 3.5 kilometres long, 1.5 kilometres wide, and over 600 metres deep, requires an electrical infrastructure capable of supporting operations on an almost incomprehensible scale. The pit's electrical system must power everything from the massive trucks that carry ore up the spiral road system to the sophisticated processing equipment that extracts gold from the ore.

The challenging aspect of the Super Pit's electrical infrastructure lies in the constant evolution of the mining operation. As the pit continues to deepen, electrical systems must be regularly reconfigured and extended, creating a perfect application for the reeling and trailing capabilities of Type 450 cables. The cables' ability to withstand repeated coiling and uncoiling while maintaining electrical integrity makes them ideal for powering mobile equipment that must be repositioned as mining progresses.

Tropicana and Tanami: Remote Operations Excellence

The Tropicana mine in Western Australia and various operations in the Tanami region present unique challenges related to remote location mining. These operations, which collectively produce around 500,000 ounces of gold annually post-expansion, must maintain sophisticated electrical infrastructure in some of Australia's most challenging environments. The remoteness of these operations means that cable failures can have extended consequences, as replacement parts and specialized repair crews may be days away from the site.

In these remote locations, the reliability and longevity of Type 450 cables become even more critical. The cables' robust construction, including their composite copper braiding and semiconductive screening, provides the redundancy and fault tolerance necessary for operations that cannot afford extended downtime. The dual earth conductor system provides additional safety margins that are particularly important when operating far from major population centers and emergency services.

Application Scenarios: Where Type 450 Cables Excel

Dragline Operations: Moving Mountains of Earth

Draglines represent some of the most impressive pieces of mining equipment ever constructed, and they exemplify the type of application where Type 450 cables truly shine. These massive machines, which can weigh over 13,000 tonnes and have booms extending more than 100 metres, require enormous amounts of electrical power delivered through cables that must withstand constant movement and stress. The walking motion of draglines, combined with their swinging operations, creates a complex mechanical environment that demands cables with exceptional flexibility and durability.

The reeling and trailing capabilities of Type 450 cables make them ideal for dragline applications. As these machines move across the mining site, their power cables must be continuously wound and unwound from large reels, a process that can occur thousands of times during the cable's service life. The stranded tinned copper conductors and elastomer center filler of Type 450 cables provide the mechanical flexibility necessary to withstand this repeated stress while maintaining electrical performance.

Conveyor Systems: The Circulatory System of Mining

Conveyor systems in major gold mining operations can extend for kilometers, carrying millions of tonnes of ore from extraction points to processing facilities. These systems require electrical infrastructure that can reliably deliver power across vast distances while accommodating the thermal expansion and contraction that occurs as environmental conditions change throughout the day and across seasons.

Type 450 cables excel in conveyor applications because of their excellent voltage regulation characteristics and their ability to handle the mechanical stress associated with long cable runs. The composite screening system provides excellent electromagnetic compatibility, preventing interference between the power cables and the sophisticated control systems that manage modern conveyor operations. This is particularly important in gold mining, where precise control of material flow directly impacts processing efficiency and gold recovery rates.

Drilling Operations: Precision Power Delivery

Modern gold mining relies heavily on sophisticated drilling equipment that requires precise electrical control to optimize ore extraction and minimize waste. These drilling systems often incorporate computer-controlled positioning systems, diamond-tipped drill bits, and real-time ore analysis equipment, all of which demand clean, stable electrical power. The semiconductive screening system in Type 450 cables helps ensure that electrical noise and interference do not compromise the performance of these precision systems.

The pilot wire system integrated into Type 450 cables provides additional value in drilling applications by enabling continuous monitoring of the electrical system's integrity. This monitoring capability is particularly important in drilling operations, where equipment operates under extreme mechanical stress and early detection of electrical faults can prevent catastrophic equipment failure.

Electrical and Mechanical Specifications: Engineering Excellence in Detail

Voltage Ratings and Electrical Performance

The Type 450 cable series covers a comprehensive range of voltage ratings, from 3.3/3.3 kV for lower-voltage applications up to 33 kV for high-voltage distribution systems. This range reflects the diverse electrical requirements of modern mining operations, where different equipment and applications may require different voltage levels for optimal performance and safety.

The electrical design of Type 450 cables incorporates several sophisticated features that ensure reliable performance under challenging conditions. The semiconductive compound used for conductor screening on cables rated 3.3 kV and above helps ensure uniform electric field distribution around the conductor, reducing the risk of partial discharge and extending cable life. The EPR (Ethylene Propylene Rubber) insulation system provides excellent electrical properties combined with superior resistance to thermal aging and environmental stress.

Conductor Construction and Performance

The conductor construction of Type 450 cables represents a careful balance between electrical performance and mechanical durability. The flexible stranded tinned copper conductors provide excellent electrical conductivity while maintaining the flexibility necessary for reeling and trailing applications. The tinning process adds an additional layer of corrosion protection, which is particularly important in the harsh chemical environment of mining operations.

The conductor sizes available in the Type 450 series range from 16 mm² for smaller applications up to 300 mm² for high-current applications. This range ensures that the cable series can accommodate everything from control circuits to main power distribution systems. The larger conductor sizes, such as the 240 mm² and 300 mm² options, incorporate modifications to the strand configuration that optimize both electrical performance and mechanical flexibility.

Screening and Shielding Systems

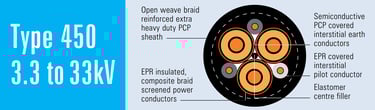

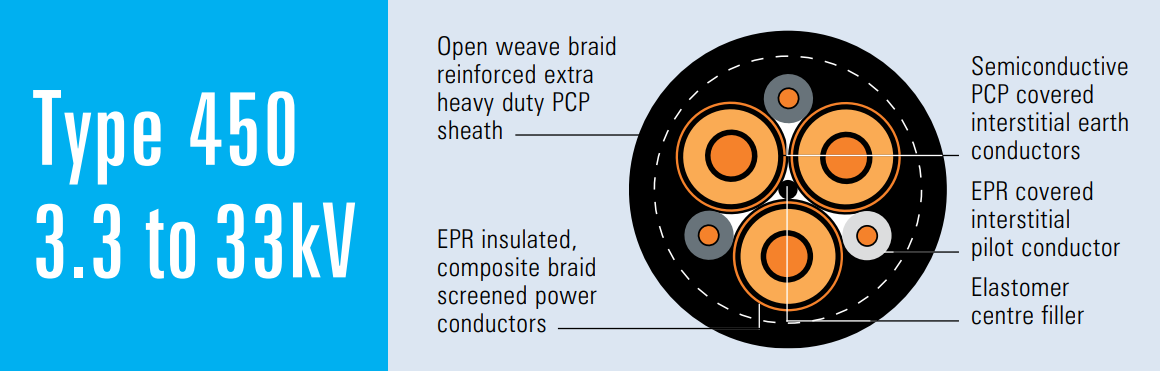

The composite screening system used in Type 450 cables represents one of the most sophisticated aspects of their design. This system combines tinned annealed copper braiding with polyester yarn reinforcement, creating a screen that provides excellent electromagnetic shielding while maintaining mechanical flexibility. The screen is covered with semiconductive tape that ensures uniform electrical contact and prevents the formation of air gaps that could lead to partial discharge.

This screening system serves multiple purposes beyond simple electromagnetic compatibility. It provides a low-impedance path for fault currents, ensuring that protective devices can operate quickly in the event of an insulation failure. The screen also helps contain electromagnetic emissions from the cable, preventing interference with sensitive electronic equipment that may be operating in the vicinity.

Mechanical Protection and Environmental Resistance

The extra-heavy duty PCP (Polychloroprene) sheath represents the final line of defense protecting Type 450 cables from the harsh realities of mining operations. This sheath material provides excellent resistance to oils, chemicals, abrasion, and UV radiation, all of which are common threats in mining environments. The sheath thickness varies depending on the cable size and voltage rating, with larger cables receiving proportionally thicker protection.

The textile reinforcement system incorporated into the cable design provides additional mechanical protection against crushing and impact damage. This open-weave braid reinforcement distributes mechanical stress across the cable's cross-section, preventing localized damage that could compromise the cable's integrity. The reinforcement also provides additional protection against rodent damage, which can be a significant issue in some mining environments.

Why Type 450: The Technical Advantages

Weight and Size Optimization

One of the primary advantages of Type 450 cables compared to traditional mining cables lies in their optimized weight and size characteristics. The engineering team responsible for developing these cables recognized that reducing cable weight and diameter without compromising electrical or mechanical performance could provide significant operational benefits. Lighter cables reduce the load on reeling equipment, potentially extending equipment life and reducing maintenance requirements.

The size optimization also provides practical benefits in terms of installation and routing. Smaller diameter cables can be routed through tighter spaces, simplifying installation in crowded equipment areas. This is particularly important in retrofit applications, where existing cable trays and conduits may have limited spare capacity. The reduced size also means that fewer support structures may be required for overhead installations, reducing installation costs and complexity.

Dual Earth Conductor Safety System

The dual earth conductor system incorporated into Type 450 cables represents a significant safety enhancement compared to single earth systems. This redundant grounding approach ensures that even if one earth conductor fails, the system maintains a safe ground reference. In mining applications, where personnel safety is paramount, this redundancy can be literally lifesaving.

The dual earth system also provides operational benefits beyond safety. By providing multiple paths for fault current, the system can continue operating even if one earth conductor develops a fault. This can prevent unplanned shutdowns and allow maintenance to be scheduled during planned outages rather than forcing emergency repairs during production periods.

Pilot Wire Monitoring Capabilities

The integrated pilot wire system in Type 450 cables provides sophisticated monitoring capabilities that enable proactive maintenance and fault detection. This pilot wire can be used to monitor insulation resistance, detect ground faults, and even provide communication pathways for remote monitoring systems. The ability to continuously monitor cable condition represents a significant advancement over traditional "run to failure" approaches.

The pilot wire system becomes particularly valuable in large mining operations where cable runs may extend for kilometers. Traditional methods of testing these long cable runs can be time-consuming and may require significant portions of the electrical system to be shut down. The pilot wire system enables continuous monitoring without interrupting normal operations, providing early warning of developing problems.

Potential Challenges and Frequently Asked Questions

Environmental Resistance and Longevity

Question: How well do Type 450 cables withstand the extreme environmental conditions found in Australian mining operations, including intense UV radiation, chemical exposure, and temperature extremes?

Answer: Type 450 cables are specifically engineered to excel in the harsh Australian mining environment. The extra-heavy duty PCP sheath provides exceptional resistance to UV radiation, which is particularly important in the intense Australian sun where surface temperatures can exceed 50°C. The sheath material has been formulated to resist degradation from oils, hydraulic fluids, and the various chemicals commonly encountered in mining operations, including the cyanide solutions used in gold processing.

The temperature performance of these cables extends well beyond typical industrial applications. The EPR insulation system maintains its electrical properties across a wide temperature range, from the sub-zero temperatures that can occur during winter nights in some mining regions to the extreme heat generated by electrical equipment and reflected from sun-heated surfaces. The semiconductive screening materials are similarly designed to maintain their properties across this temperature range, ensuring consistent electrical performance regardless of environmental conditions.

Mechanical Durability and Reeling Performance

Question: Can Type 450 cables reliably handle the continuous reeling and trailing cycles required in mining operations, and what is the expected service life under these conditions?

Answer: The mechanical design of Type 450 cables specifically addresses the demanding requirements of continuous reeling and trailing operations. The flexible stranded conductor construction, combined with the elastomer center filler, provides the mechanical flexibility necessary to withstand repeated bending cycles without conductor fatigue. The composite screening system maintains its electrical integrity even under repeated flexing, ensuring that electromagnetic compatibility is maintained throughout the cable's service life.

The expected service life depends on several factors, including the frequency of reeling cycles, the minimum bend radius maintained during operation, and the environmental conditions. Under typical mining conditions, Type 450 cables can withstand thousands of reeling cycles while maintaining their electrical and mechanical properties. The Class 1 EPR insulation system provides excellent resistance to mechanical stress, while the reinforced sheath construction protects against abrasion and impact damage that can occur during reeling operations.

Voltage Drop and Power Quality Considerations

Question: What are the maximum practical cable lengths before voltage drop becomes a limiting factor, and how do Type 450 cables maintain power quality over long distances?

Answer: The maximum practical length for Type 450 cables depends on several factors, including the conductor size, operating voltage, load current, and acceptable voltage drop limits. For applications using the larger conductor sizes (240-300 mm²), cable runs of several kilometers are practical while maintaining acceptable voltage regulation. The excellent conductor design and low-loss insulation system help minimize voltage drop compared to alternative cable designs.

Power quality considerations extend beyond simple voltage drop to include issues such as harmonics, electromagnetic interference, and power factor. The composite screening system in Type 450 cables provides excellent electromagnetic compatibility, helping to maintain clean power delivery even in electrically noisy environments. The semiconductive screening materials help contain electromagnetic emissions from the cable itself, preventing interference with sensitive electronic equipment such as mine automation systems and communication equipment.

Fault Detection and Diagnostic Capabilities

Question: How can operators effectively detect and diagnose faults in Type 450 cables, particularly in underground or remote applications where access may be limited?

Answer: Type 450 cables incorporate several features that facilitate fault detection and diagnosis. The pilot wire system provides a dedicated path for diagnostic signals, enabling techniques such as time-domain reflectometry (TDR) for locating faults along the cable length. This capability is particularly valuable in long cable runs where visual inspection may be impractical or impossible.

The dual earth conductor system provides additional diagnostic capabilities. By monitoring the impedance between the two earth conductors, operators can detect developing insulation problems before they result in complete failure. This enables proactive maintenance that can prevent unplanned outages and equipment damage. Periodic insulation resistance testing, as recommended by AS/NZS 2802, can identify gradual degradation of the insulation system, allowing cables to be replaced during planned maintenance windows rather than during emergency repairs.

Underground Mining Applications and Certification

Question: Are Type 450 cables suitable for underground gold mining operations, and what additional certifications or considerations apply?

Answer: While AS/NZS 2802 primarily addresses surface mining applications, Type 450 cables may be suitable for certain underground gold mining applications with appropriate certification and site-specific evaluation. The standard specifically excludes underground coal mining applications due to the unique explosion risk environment, but gold mining operations typically present different risk profiles.

For underground gold mining applications, operators should consult with the relevant certifying authorities to ensure compliance with local regulations and safety requirements. The cable's flame-retardant properties, low smoke emission characteristics, and resistance to chemical attack may make it suitable for certain underground applications, but this must be verified through proper testing and certification processes. The pilot wire system becomes even more valuable in underground applications, where early fault detection can prevent more serious safety incidents.

Maintenance and Repair Considerations

Question: What options are available for field repair of Type 450 cables, and how can operators minimize downtime when cable maintenance is required?

Answer: The modular construction of Type 450 cables facilitates field repair in many situations. The extra-heavy duty PCP sheath can often be repaired using appropriate patching materials and techniques, provided the damage has not penetrated to the electrical components. For more extensive damage, the cable's design allows for the installation of properly rated splice boxes that can restore full electrical and mechanical integrity.

The key to minimizing downtime lies in proactive maintenance and the strategic use of the pilot wire monitoring system. By continuously monitoring cable condition, operators can identify developing problems before they result in complete failure. This enables maintenance to be scheduled during planned outages rather than forcing emergency repairs during production periods. Many operations maintain spare cable sections and portable splice equipment to enable rapid restoration of service while permanent repairs are completed.

Standards Compliance and Quality Assurance

The Type 450 cable series demonstrates comprehensive compliance with multiple Australian and New Zealand standards, reflecting the rigorous requirements of the mining industry. AS/NZS 2802:2000 provides the primary framework for reeling and trailing cables, establishing requirements for electrical performance, mechanical construction, and safety features. This standard represents the accumulated wisdom of decades of mining experience, codifying the lessons learned from countless installations and operational experiences.

AS/NZS 1125 addresses the specific requirements for electrical cables in mining applications, including provisions for flame retardancy, chemical resistance, and mechanical durability. The standard recognizes that mining cables operate in environments that are significantly more challenging than typical industrial applications, requiring enhanced performance in virtually every aspect of cable design and construction.

AS/NZS 3808 provides guidelines for the installation and maintenance of electrical systems in mining operations, while AS/NZS 5000.1 addresses general requirements for electrical installations. The comprehensive compliance with these standards ensures that Type 450 cables not only meet current requirements but are also positioned to meet future regulatory developments as the mining industry continues to evolve.

Future Developments and Industry Trends

The mining industry continues to evolve rapidly, driven by advances in automation, digitalization, and environmental sustainability. These trends are creating new requirements for electrical infrastructure that will influence the next generation of mining cables. The increasing use of autonomous equipment, for example, requires cables that can support high-speed data communication in addition to power delivery, potentially leading to hybrid cable designs that integrate fiber optic communication systems with traditional power conductors.

Environmental considerations are also driving innovation in cable design. The mining industry is under increasing pressure to reduce its environmental impact, creating demand for cables that are more easily recyclable and that use materials with lower environmental impact. The development of alternative insulation and sheathing materials that provide equivalent performance with improved environmental profiles represents an active area of research and development.

The trend toward larger, more centralized mining operations is creating requirements for longer cable runs and higher voltage levels. This trend may drive the development of new voltage ratings within the Type 450 series, potentially extending the range beyond the current 33 kV maximum. The increasing use of renewable energy sources in mining operations may also create new requirements for cables that can handle the variable power flows associated with solar and wind power integration.

Conclusion: The Essential Role of Type 450 Cables in Australian Gold Mining

The AS/NZS 2802 Type 450 cable series represents a sophisticated engineering solution that addresses the unique challenges of Australian gold mining operations. From the massive scale of operations like Boddington and the Kalgoorlie Super Pit to the remote challenges of Tropicana and Tanami, these cables provide the reliable electrical infrastructure that enables modern mining operations to function safely and efficiently.

The technical advantages of Type 450 cables, including their optimized weight and size characteristics, dual earth conductor safety system, and integrated pilot wire monitoring capabilities, make them ideally suited for the demanding requirements of gold mining operations. The comprehensive compliance with Australian and New Zealand standards ensures that these cables meet the rigorous safety and performance requirements of the mining industry.

As the Australian mining industry continues to evolve, driven by technological advancement and environmental considerations, the Type 450 cable series provides a robust foundation for electrical infrastructure that can adapt to changing requirements while maintaining the reliability and safety that are essential for successful mining operations. The investment in proper electrical infrastructure, including the selection of appropriate cables like the Type 450 series, represents a critical factor in the long-term success and sustainability of gold mining operations across Australia.

The success of Australia's gold mining industry depends on the reliable operation of countless systems and components, but few are as critical as the electrical infrastructure that powers these operations. Type 450 cables represent the culmination of decades of engineering experience and operational feedback, providing a solution that meets the unique challenges of Australian mining while positioning operations for future success in an increasingly complex and demanding industry environment.
