AS/NZS 2802 Type 455 Mining Cables for Australia's Underground Mining Operations

Introduction

Deep beneath the Australian landscape, where sunlight never penetrates and conditions challenge even the most robust equipment, a critical component quietly ensures the continuous flow of power that keeps our mining operations running. The AS/NZS 2802 Type 455 cable, designed specifically for voltages ranging from 3.3 to 33 kilovolts, represents a remarkable feat of engineering that addresses the unique challenges of underground mining environments across Australia.

These specialised cables serve as the electrical lifelines for some of the world's most demanding mining operations, from the copper-uranium depths of Olympic Dam in South Australia to the gold-rich tunnels of Gwalia in Western Australia. Unlike standard industrial cables, Type 455 cables are engineered with reduced insulation and sheath thickness, incorporating two earth cores and one pilot core strategically positioned within the cable's outer interstices. This thoughtful design creates a cable that maintains electrical integrity while offering the flexibility and reduced weight essential for reeling and trailing applications in confined underground spaces.

Understanding the importance of these cables requires appreciating the extraordinary conditions they must endure. Underground mining environments present a perfect storm of challenges including extreme temperatures, corrosive atmospheres, mechanical stress from constant movement, and the ever-present risk of moisture ingress. The Type 455 cable's design philosophy centres on creating a robust yet flexible solution that can withstand these harsh conditions while providing reliable power transmission for mobile mining equipment such as stacker-reclaimers, shuttle cars, and drilling jumbos.

Australia's Major Underground Mining Operations: A Continental Perspective

To truly understand the critical role of Type 455 cables, we must first examine the diverse and challenging environments of Australia's premier underground mining operations. Each site presents unique geological, environmental, and operational challenges that demand carefully engineered power solutions.

Olympic Dam, South Australia stands as one of the world's largest poly-metallic deposits, located approximately 550 kilometres north of Adelaide in the heart of South Australia's mining region. Operated by BHP since 1988, this extraordinary operation extracts copper, uranium, gold, and silver from depths that continue to expand as the mine develops. The underground environment at Olympic Dam presents particular challenges for electrical infrastructure, with high humidity levels, corrosive conditions from various metal ores, and the need for extensive mobile equipment operations. The mine's transition towards increased underground production has created substantial demand for flexible, reliable power cables that can support the complex logistics of modern underground mining.

Moving east to New South Wales, the Cadia-Ridgeway operation near Orange represents a sophisticated blend of open-cut and underground mining techniques. This gold and copper mine has increasingly relied on underground block-cave methods, creating extensive tunnel networks that require reliable power distribution systems. The operation's commitment to automation and advanced mining technologies places exceptional demands on electrical infrastructure, requiring cables that can support both traditional mining equipment and cutting-edge automated systems. The challenging terrain and varying ground conditions at Cadia demand power cables that can adapt to diverse installation requirements while maintaining consistent performance.

In Queensland, Ernest Henry showcases the evolution of modern underground mining. Originally an open-cut operation, the mine successfully transitioned to underground methods in 2011, with operations now planned to continue until 2040. This copper-gold mine demonstrates how Type 455 cables support the complex logistics of underground operations, powering everything from ventilation systems to mobile drilling equipment. The Queensland climate adds additional challenges, with high humidity and temperature variations that test the limits of cable performance.

Also in Queensland, Moranbah North represents the unique challenges of underground coal mining. Operating at depths of approximately 200 metres using longwall mining methods, this operation requires power cables that can support the intensive mechanical demands of coal extraction while meeting stringent safety requirements related to methane gas environments. The constant movement of longwall equipment places exceptional stress on power cables, making the flexible design of Type 455 cables particularly valuable in this application.

Finally, Gwalia Gold in Western Australia pushes the boundaries of underground mining depth, operating as Australia's deepest trucking gold mine at approximately 1.6 kilometres below surface. Operated by Genesis Minerals, Gwalia presents extreme challenges including high ground pressures, elevated temperatures, and the logistical complexity of moving equipment and materials across such significant vertical distances. The power distribution requirements at these depths demand cables that can maintain electrical integrity under extreme conditions while providing the flexibility necessary for complex underground logistics.

Application Scenarios: Where Flexibility Meets Durability

The design philosophy behind Type 455 cables becomes clear when examining their primary application scenarios in underground mining environments. These cables excel in situations where traditional fixed installation methods prove inadequate, providing the flexibility and durability necessary for dynamic mining operations.

Reeling and trailing applications represent perhaps the most demanding use case for Type 455 cables. In these applications, cables must constantly wind and unwind from drum systems while powering mobile equipment such as shuttle cars, scissor lifts, and stacker-reclaimers. The reduced diameter and weight of Type 455 cables prove essential in these applications, as they reduce the strain on reeling mechanisms while maintaining the electrical capacity necessary to power heavy mining equipment. The cable's construction with flexible stranded tinned copper conductors ensures that repeated flexing doesn't compromise electrical integrity, while the extra-heavy duty PCP sheath provides protection against the abrasion that inevitably occurs during reeling operations.

Drum and reel operations in underground mining present unique challenges that Type 455 cables are specifically designed to address. In the confined spaces of underground drifts and tunnels, equipment must often operate with limited clearance and restricted access for maintenance. The reduced overall diameter of Type 455 cables allows for more compact reel systems, while their enhanced flexibility enables tighter bending radii without compromising cable integrity. This becomes particularly important in emergency situations where equipment must be quickly repositioned or evacuated from underground areas.

The harsh environment resilience of Type 455 cables addresses the fundamental reality of underground mining conditions. These environments typically combine high humidity with corrosive atmospheres created by various minerals and chemical processes. The cables' tinned copper conductors provide enhanced corrosion resistance compared to standard copper, while the EPR insulation offers superior performance in high-moisture environments. The extra-heavy duty sheath construction provides mechanical protection against the rocks, debris, and equipment that characterise underground mining environments.

Portable power supply applications showcase another critical use case for Type 455 cables. Underground mining operations frequently require temporary power connections for maintenance activities, emergency repairs, and the operation of portable equipment such as drilling jumbos and ventilation fans. The flexibility and reduced weight of Type 455 cables make them ideal for these applications, allowing maintenance crews to quickly establish power connections in confined spaces without requiring specialised handling equipment.

Standards and Cable Construction: Engineering for Excellence

The construction of Type 455 cables reflects decades of engineering evolution and adherence to rigorous Australian and New Zealand standards. The primary governing standard, AS/NZS 2802:2000, establishes comprehensive requirements for mining cables, ensuring that these critical components can withstand the extraordinary demands of underground mining environments. This standard works in conjunction with AS/NZS 1125, AS/NZS 3808, and AS/NZS 5000.1 to create a comprehensive framework for cable design, testing, and installation.

Understanding the construction of Type 455 cables requires examining each component and its specific contribution to overall performance. The cable begins with three flexible stranded tinned copper conductors that form the heart of the power transmission system. The use of tinned copper rather than bare copper provides enhanced corrosion resistance, which proves critical in the humid, chemically active environments typical of underground mining. The flexible stranding ensures that the conductors can withstand the constant flexing associated with reeling and trailing applications without developing stress fractures that could lead to electrical failure.

Surrounding each conductor, the semiconductor compound screen serves a critical role in cables rated for 3.3 kilovolts and above. This layer ensures uniform electric field distribution around the conductor, preventing the formation of electrical stress concentrations that could lead to insulation breakdown. The semiconductive nature of this material allows it to conduct small amounts of current while maintaining the electrical integrity of the primary insulation system.

The EPR (Ethylene Propylene Rubber) insulation represents one of the most important components in the cable's construction. EPR offers superior performance compared to traditional insulation materials, providing excellent electrical properties while maintaining flexibility across a wide temperature range. This insulation material demonstrates exceptional resistance to moisture ingress, ozone attack, and the various chemical compounds encountered in mining environments. The specific thickness of the EPR insulation varies depending on the voltage rating, from 2.2 millimetres in lower voltage applications to 10.5 millimetres in 33-kilovolt applications.

The semiconductive elastomer insulation screen provides another layer of electrical field control, ensuring smooth transition between the high-voltage insulation and the earthed components of the cable. This design approach minimises electrical stress concentrations and contributes to the cable's long-term reliability under challenging operating conditions.

At the cable's core, an elastomer centre filler provides mechanical stability and helps maintain the cable's circular cross-section under the mechanical stresses of installation and operation. This component also contributes to the cable's flexibility by providing a stable foundation around which the other components can flex without compromising their individual integrity.

The two interstitial earth conductors represent a sophisticated approach to electrical safety and system monitoring. These conductors, constructed from CSP-covered flexible stranded tinned copper, provide redundant earthing paths that ensure safe operation even if one earth path becomes compromised. The positioning of these conductors in the cable's outer interstices maximises their effectiveness while minimising the overall cable diameter.

The single interstitial pilot conductor serves multiple critical functions in mining applications. This EPR-covered flexible stranded tinned copper conductor enables remote monitoring of cable condition, provides communication pathways for control systems, and can serve as an emergency power source for essential systems. The pilot conductor's strategic positioning and robust construction ensure reliable performance even under extreme operating conditions.

Textile reinforcement in the form of open-weave braid provides mechanical strength and helps distribute mechanical stresses across the cable's structure. This reinforcement proves particularly important in reeling applications where the cable experiences significant tension and compression forces during winding and unwinding operations.

Finally, the extra-heavy duty PCP (Polychloroprene) sheath provides the cable's primary protection against the harsh realities of underground mining environments. This sheath material offers exceptional resistance to abrasion, cutting, and chemical attack while maintaining flexibility across a wide temperature range. The "extra-heavy duty" designation indicates enhanced thickness and composition specifically designed for the most demanding mining applications. Alternative CPE/CSP sheath materials can be provided upon request for specific environmental conditions or customer requirements.

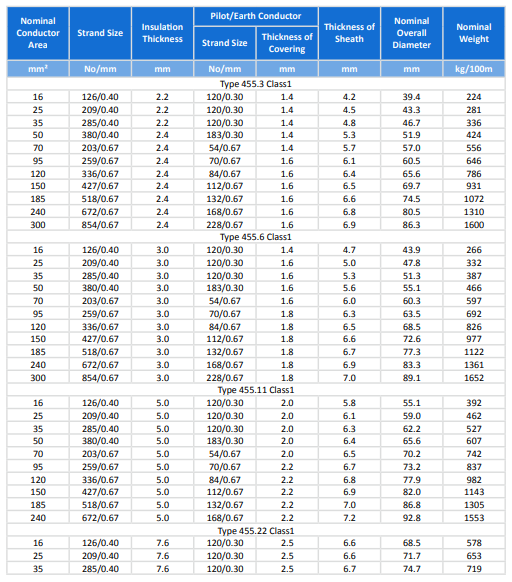

Electrical and Physical Parameters: Precision Engineering in Numbers

The electrical and physical specifications of Type 455 cables reflect careful engineering optimisation for underground mining applications. Understanding these parameters helps explain why these cables perform so effectively in demanding mining environments and guides proper selection for specific applications.

The voltage range of 3.3 to 33 kilovolts encompasses the primary voltage levels used in underground mining power distribution systems. The 3.3-kilovolt rating serves local distribution applications, powering individual pieces of equipment and local distribution panels. The 6.6-kilovolt rating addresses medium-distance power transmission within mine complexes, while the 11-kilovolt rating serves longer underground power circuits. The 22-kilovolt and 33-kilovolt ratings enable efficient power transmission across extensive underground networks, minimising power losses while maintaining safe operating conditions.

Conductor sizing ranges from 16 square millimetres to 300 square millimetres, providing flexibility to match electrical capacity with specific application requirements. The smaller conductor sizes prove ideal for portable equipment and local distribution applications, while larger conductor sizes support high-power equipment such as main ventilation fans, major conveyor systems, and primary underground substations. The relationship between conductor size and current-carrying capacity follows established engineering principles while accounting for the thermal constraints of underground installations.

The flexibility classes represent one of the most sophisticated aspects of Type 455 cable design. The Type 455.3 designation indicates cables designed for 3.3-kilovolt applications with insulation thickness of approximately 2.2 millimetres. This relatively thin insulation provides maximum flexibility while maintaining adequate electrical integrity for lower voltage applications. As voltage ratings increase through Types 455.6, 455.11, 455.22, and 455.33, insulation thickness increases correspondingly to 3.0, 5.0, 7.6, and 10.5 millimetres respectively. This graduated approach ensures optimal performance at each voltage level while maintaining the flexibility essential for reeling applications.

Physical dimensions reflect the careful balance between electrical performance and mechanical practicality. Overall diameter ranges from approximately 40 millimetres for smaller, lower-voltage cables to over 100 millimetres for the largest, highest-voltage configurations. These dimensions represent significant reductions compared to traditional mining cables with equivalent electrical ratings, achieved through the reduced insulation and sheath thickness approach that defines Type 455 design philosophy.

Weight considerations prove critical in reeling and trailing applications where cable weight directly impacts equipment performance and operational efficiency. Type 455 cables range from approximately 200 kilograms per 100 metres for smaller configurations to over 1,700 kilograms per 100 metres for the largest sizes. While these weights may seem substantial, they represent significant reductions compared to equivalent traditional mining cables, enabling the use of lighter reel systems and reducing the power required for cable handling operations.

Electrical performance characteristics encompass fault current ratings, earth current capabilities, and insulation resistance values that ensure safe operation under both normal and emergency conditions. The cables are designed to withstand specified symmetrical fault currents and earth fault currents, typically ranging from 1 to 8 kiloamperes for 1 second, depending on the specific voltage and conductor size configuration. These ratings ensure that the cables can safely handle electrical faults without creating safety hazards or causing damage to connected equipment.

Why Choose Type 455: The Compelling Advantages

The decision to specify Type 455 cables for underground mining applications reflects a careful evaluation of performance advantages that directly address the challenges of modern mining operations. These advantages extend beyond simple electrical specifications to encompass operational efficiency, safety enhancement, and long-term reliability considerations.

Lightweight construction represents perhaps the most immediately apparent advantage of Type 455 cables. The reduced weight compared to traditional mining cables translates directly into operational benefits including reduced strain on reeling equipment, lower power consumption for cable handling operations, and improved worker safety during manual handling operations. In underground environments where every component must be transported through restricted access routes, weight reduction becomes a critical operational advantage.

Enhanced flexibility enables Type 455 cables to perform effectively in applications where traditional cables would prove impractical or unreliable. The ability to wind onto smaller diameter reels and navigate tighter bending radii opens new possibilities for equipment design and installation approaches. This flexibility proves particularly valuable in emergency situations where rapid equipment repositioning may be necessary.

Uncluttered design achieved through the strategic positioning of earth and pilot conductors within the cable's outer interstices eliminates the need for separate auxiliary cables in many applications. This consolidation reduces installation complexity, minimises the risk of damage to auxiliary circuits, and simplifies maintenance operations. The integrated approach also reduces the total cross-sectional area required for cable installations, which can be significant in confined underground spaces.

Superior corrosion resistance provided by tinned copper conductors and carefully selected insulation and sheath materials ensures reliable performance in the chemically aggressive environments typical of many underground mining operations. This resistance extends cable service life and reduces the frequency of replacement operations, which can be particularly costly and disruptive in underground environments.

Regulatory compliance with Australian mining regulations provides assurance that Type 455 cables meet the stringent safety and performance requirements established for underground mining applications. This compliance extends beyond simple electrical standards to encompass fire performance, mechanical durability, and environmental resistance requirements specifically developed for mining environments.

Optimised reel operation capabilities enable the use of more compact, efficient reel systems that can operate effectively in the confined spaces typical of underground mining. The reduced diameter and enhanced flexibility of Type 455 cables allow for more efficient use of available space while providing the electrical capacity necessary for demanding mining applications.

Frequently Asked Questions: Addressing Common Challenges

Question 1: Why do Type 455 cables use reduced sheath and insulation thickness compared to standard mining cables?

The reduced sheath and insulation thickness in Type 455 cables represents a carefully engineered approach to optimising cable performance for specific reeling and trailing applications. This design philosophy recognises that many underground mining applications prioritise flexibility and reduced weight over the maximum possible mechanical protection. The reduction in material thickness is achieved without compromising electrical integrity through the use of superior materials and enhanced manufacturing techniques. The EPR insulation used in Type 455 cables provides better electrical performance per unit thickness compared to traditional insulation materials, while the extra-heavy duty PCP sheath offers superior mechanical protection despite reduced thickness. This approach enables significant reductions in overall cable diameter and weight while maintaining compliance with AS/NZS electrical safety requirements.

Question 2: How do Type 455 cables resist moisture and corrosion in underground mining environments?

Moisture and corrosion resistance in Type 455 cables is achieved through multiple complementary design elements. The extra-heavy duty PCP or CPE sheath provides the primary barrier against moisture ingress, utilising materials specifically selected for their impermeability and chemical resistance. The tinned copper conductors offer superior corrosion resistance compared to bare copper, as the tin coating provides a sacrificial layer that protects the underlying copper from oxidation and chemical attack. The EPR insulation demonstrates excellent moisture resistance and maintains its electrical properties even in high-humidity environments. Additionally, the semiconductive screens help prevent moisture-induced electrical tracking by maintaining uniform electrical field distribution even if minor moisture ingress occurs. The strategic positioning of earth and pilot conductors provides early warning of any moisture-related degradation, enabling proactive maintenance before failures occur.

Question 3: Can Type 455 cables safely handle fault currents in underground mining electrical systems?

Type 455 cables are specifically designed and tested to handle the fault current levels typical of underground mining electrical systems. The cables comply with AS/NZS standards that specify fault current withstand capabilities typically ranging from 1 to 8 kiloamperes for 1 second, depending on the specific voltage rating and conductor size. The cable's construction enables safe fault current handling through several design elements including adequately sized earth conductors that provide low-impedance fault current paths, robust conductor construction that can withstand the thermal and mechanical stresses of fault conditions, and insulation systems designed to maintain integrity during electrical fault conditions. The dual earth conductor arrangement provides redundancy that ensures safe fault current handling even if one earth path becomes compromised. Regular testing and inspection procedures can verify continued fault current handling capability throughout the cable's service life.

Question 4: What service life can be expected from Type 455 cables in underground mining applications?

The service life of Type 455 cables in underground mining applications depends on multiple factors including installation quality, operating conditions, maintenance practices, and specific application requirements. Under typical underground mining conditions with proper installation and maintenance, Type 455 cables can be expected to provide reliable service for 5 to 10 years, which aligns well with the operational cycles of mobile underground mining equipment. However, service life can vary significantly based on specific operating conditions. Cables used in high-stress reeling applications may require more frequent replacement than those used in more static installations. Environmental factors such as temperature extremes, chemical exposure, and mechanical stress levels directly impact service life. Proper installation techniques, regular inspection programs, and adherence to manufacturer recommendations for handling and storage can significantly extend cable service life. Many mining operations implement predictive maintenance programs that monitor cable condition and enable replacement before failures occur, maximising both safety and operational efficiency.

Question 5: What maintenance procedures are recommended for Type 455 cables?

Effective maintenance of Type 455 cables requires a comprehensive approach that addresses both preventive and predictive maintenance techniques. Visual inspection forms the foundation of any maintenance program, with regular checks for signs of mechanical damage, sheath deterioration, or unusual wear patterns. These inspections should focus particularly on areas subject to high mechanical stress such as reel connection points and areas where cables pass through guides or pulleys. Insulation resistance testing using appropriate high-voltage test equipment provides early indication of insulation system degradation, enabling proactive replacement before failures occur. Reel tension monitoring ensures that cables are not subjected to excessive mechanical stress during operation, while proper tension settings help prevent mechanical damage and extend cable life. Sheath condition inspection should focus on identifying areas of wear, cuts, or chemical attack that could compromise the cable's protective envelope. Documentation of all maintenance activities enables trending analysis that can identify developing problems and optimise replacement schedules.

Question 6: What are the key differences when upgrading from 3.3-kilovolt to 33-kilovolt Type 455 cables?

Upgrading from 3.3-kilovolt to 33-kilovolt Type 455 cables involves several important considerations that extend beyond simple voltage rating differences. The most obvious difference lies in insulation thickness, which increases from approximately 2.2 millimetres in 3.3-kilovolt cables to 10.5 millimetres in 33-kilovolt cables. This increased insulation thickness results in significantly larger overall cable diameter and substantially increased weight, which may require upgrades to reel systems and handling equipment. The higher voltage rating enables more efficient power transmission over longer distances with reduced current levels, which can result in smaller required conductor sizes for equivalent power levels. However, the electrical installation requirements become more stringent, requiring enhanced earthing systems, improved electrical clearances, and more sophisticated protection equipment. Safety procedures must also be enhanced to address the increased electrical hazards associated with higher voltage levels. The economic benefits of reduced power losses and improved system efficiency must be balanced against the increased costs of higher voltage equipment and more stringent installation requirements.

Question 7: Are Type 455 cables suitable for use in methane-prone underground mining environments?

Type 455 cables are designed to operate safely in methane-prone underground mining environments, but their use requires careful consideration of applicable safety regulations and proper installation practices. The EPR insulation used in Type 455 cables is non-flammable and does not contribute to methane ignition risks under normal operating conditions. However, electrical equipment used in methane-prone areas must typically be certified for use in potentially explosive atmospheres, which may require additional protection measures such as intrinsically safe electrical systems or explosion-proof enclosures for electrical connections. The cable construction itself does not generate sparks under normal operating conditions, but proper installation and maintenance practices are essential to prevent the development of electrical faults that could create ignition sources. Mining operations in methane-prone areas typically implement comprehensive gas monitoring systems and emergency shutdown procedures that can quickly isolate electrical systems if dangerous gas concentrations are detected. The selection and installation of Type 455 cables in methane-prone environments should always be conducted in consultation with qualified electrical engineers familiar with mining safety regulations and potentially explosive atmosphere requirements.

Conclusion: Powering the Future of Australian Underground Mining

Type 455 cables represent more than just electrical infrastructure; they embody a sophisticated engineering solution that enables the efficient, safe operation of Australia's critical underground mining industry. Through their optimised design that balances electrical performance with mechanical practicality, these cables provide the reliable power transmission essential for modern mining operations while addressing the unique challenges of underground environments.

The success of Type 455 cables in Australia's major underground mining operations, from the multi-metallic depths of Olympic Dam to the extreme depths of Gwalia Gold, demonstrates their effectiveness across diverse geological and operational conditions. Their ability to provide reliable power transmission while withstanding the mechanical stresses of reeling and trailing applications makes them an indispensable component of modern mining infrastructure.

As Australian mining operations continue to evolve towards greater depths, increased automation, and enhanced environmental responsibility, the role of sophisticated electrical infrastructure becomes ever more critical. Type 455 cables, with their proven track record and continued development, are well-positioned to support these evolving requirements while maintaining the safety and reliability standards essential for underground mining operations.

The investment in proper cable selection, installation, and maintenance pays dividends through reduced downtime, improved operational efficiency, and enhanced safety performance. As mining operations become increasingly complex and demanding, the importance of reliable electrical infrastructure cannot be overstated. Type 455 cables provide the foundation upon which Australia's underground mining industry can continue to build its future success.

Looking ahead, the continued development of Type 455 cable technology promises further improvements in performance, reliability, and environmental compatibility. As Australia's mining industry continues to play a vital role in the global economy, these sophisticated electrical solutions will remain essential components in the complex infrastructure that keeps our mines operating safely and efficiently in some of the world's most challenging environments.

References and Further Reading

For readers seeking additional technical information about Type 455 cables and their applications in underground mining, several authoritative sources provide comprehensive coverage of relevant standards, specifications, and best practices. The AS/NZS 2802 standard serves as the primary reference for mining cable requirements and should be consulted for detailed technical specifications and testing procedures.

Manufacturer technical documentation from established suppliers provides detailed product specifications, application guidelines, and installation recommendations specific to Type 455 cables. These resources often include case studies from actual mining installations that illustrate real-world performance and application considerations.

Industry publications focusing on mining electrical systems regularly feature articles discussing advances in cable technology, installation techniques, and maintenance best practices relevant to underground mining applications. Professional associations such as the Institution of Engineers Australia and the Australasian Institute of Mining and Metallurgy provide forums for the exchange of technical information and best practices among mining professionals.

For specific information about individual mining operations mentioned in this article, company websites and published technical papers provide detailed information about operational challenges and infrastructure solutions implemented at these sites. This information provides valuable context for understanding the real-world applications and performance requirements that drive Type 455 cable development and specification.
