AS/NZS 2802 Type 455 Mining Cables: Powering Australia's Open-Cut Mines

Introduction: The Backbone of Australian Open-Cut Mining

Picture standing at the rim of Western Australia's Super Pit in Kalgoorlie, watching massive excavators move tonnes of earth while draglines stretch across landscapes that dwarf suburban neighbourhoods. These colossal machines don't run on diesel alone—they depend on sophisticated electrical systems that deliver reliable power through some of the harshest industrial environments on Earth. At the heart of this power delivery system lies a crucial but often overlooked component: the AS/NZS 2802 Type 455 mining cable.

Australia's mining industry represents one of the world's most demanding electrical environments. With over 350 operational mines scattered across the continent, approximately 75% of the nation's black coal production comes from open-cut operations that never sleep. The scale is breathtaking—mines like Mount Whaleback in the Pilbara region move over 80 million tonnes of iron ore annually, while Queensland's coal operations feed power stations across Asia and beyond.

Understanding how electricity reaches these massive machines requires us to explore not just the cables themselves, but the unique Australian mining landscape they serve. From the red dust of Western Australia's iron ore mines to the black earth of Queensland's coal fields, Type 455 cables have become the electrical lifeline connecting power sources to the mobile equipment that keeps Australia's mining economy moving.

Australia's Open-Cut Mining Landscape: Where Giants Roam

To truly appreciate the engineering behind Type 455 cables, we must first understand the environments they inhabit. Australia's open-cut mining landscape spans a continent, with each region presenting unique challenges that have shaped cable design requirements over decades.

Western Australia dominates iron ore production through the legendary Pilbara region, where mines like Mount Whaleback and Jimblebar create moonscape vistas visible from space. The Super Pit at Kalgoorlie extends 3.5 kilometres long, 1.5 kilometres wide, and plunges 600 metres deep—a man-made canyon where temperatures soar above 45°C in summer and equipment operates around the clock. These conditions demand cables that can withstand extreme heat, ultraviolet radiation, and the constant mechanical stress of mobile equipment traversing uneven terrain.

Queensland's coal operations present different but equally demanding challenges. Mines like Mount Arthur and Saraji span thousands of hectares, with draglines whose boom lengths exceed 100 metres. The subtropical climate brings intense humidity, sudden temperature changes, and seasonal flooding that can submerge equipment for days. Here, cables must resist moisture penetration while maintaining flexibility in conditions that can shift from scorching heat to torrential downpours within hours.

South Australia and Queensland's copper-gold operations, including Prominent Hill and Ernest Henry, add another dimension to cable requirements. These mines often operate at higher voltages to power increasingly sophisticated processing equipment, while the presence of sulphide minerals creates chemically aggressive environments that can corrode inadequately protected electrical systems.

The common thread connecting all these operations is the need for cables that can deliver reliable power to mobile equipment—excavators that move like mechanical dinosaurs, conveyor systems stretching for kilometres, and stacker-reclaimers that build and reclaim stockpiles with mathematical precision. This is where Type 455 cables prove their worth, designed specifically for the dynamic, high-stress world of mobile mining equipment.

Application Scenarios: Where Flexibility Meets Power

The "reeling and trailing" designation of Type 455 cables tells only part of their story. These cables represent a specialised solution for one of mining's most challenging electrical problems: how to deliver high-voltage power to equipment that never stops moving.

Traditional fixed electrical installations work well for stationary equipment, but mobile mining machinery requires a different approach. Imagine a dragline whose bucket wheel can excavate 240,000 cubic metres of material per day while moving across terrain that would challenge a four-wheel-drive vehicle. The electrical connection between this machine and its power source must flex thousands of times daily, resist abrasion from contact with rocky surfaces, and maintain electrical integrity despite mechanical stresses that would destroy conventional cables within days.

Type 455 cables excel in these applications because their construction specifically addresses the challenges of dynamic power delivery. The reduced insulation thickness mentioned in the technical specifications isn't a compromise—it's a deliberate design choice that maintains electrical performance while maximising flexibility. When a cable must coil and uncoil from a reel dozens of times per shift, every millimetre of diameter reduction translates to reduced mechanical stress and longer service life.

Stacker-reclaimer applications represent perhaps the most demanding use case for these cables. These massive machines travel on rails while their boom assemblies swing through wide arcs, simultaneously building stockpiles and reclaiming material for processing. The electrical cable must accommodate not just linear motion but complex three-dimensional movements that would quickly fatigue rigid designs. Type 455 cables handle these movements through their flexible stranded conductors and elastomeric centre fillers, which distribute mechanical stress across the cable's cross-section rather than concentrating it at individual points.

The voltage range from 3.3kV to 33kV covers the full spectrum of mobile mining equipment. Smaller excavators and auxiliary equipment typically operate at 3.3kV, while the largest draglines and conveyor drives require the full 33kV capability. This versatility allows mine operators to standardise on a single cable family while scaling voltage levels to match equipment requirements.

Electrical Design and Construction: Engineering for Extremes

The internal architecture of Type 455 cables reflects decades of learning from mining failures and successes. Unlike standard industrial cables that prioritise either power delivery or mechanical durability, these cables must excel at both simultaneously.

The heart of any cable lies in its conductors, and Type 455 cables use stranded tinned copper conductors that reveal sophisticated engineering thinking. Copper provides excellent electrical conductivity, but pure copper corrodes rapidly in mining environments where moisture, salt, and chemical contaminants are constant threats. The tin coating creates a protective barrier that maintains conductivity while resisting corrosion—a lesson learned from early mining operations where unprotected copper conductors failed within months.

The stranding pattern itself deserves attention. Rather than using a few large strands, Type 455 cables employ many smaller strands—for example, a 50mm² conductor uses 380 individual 0.40mm strands. This approach serves multiple purposes: it increases flexibility by allowing individual strands to move independently during bending, distributes current more evenly to reduce heating, and provides redundancy so that individual strand failures don't immediately compromise the entire conductor.

The insulation system represents perhaps the most critical aspect of cable design. Ethylene Propylene Rubber (EPR) was chosen for its unique combination of properties that address specific mining challenges. EPR maintains flexibility across temperature ranges from -40°C to +90°C, resists ozone and ultraviolet radiation that would degrade other materials, and provides excellent dielectric strength even when contaminated with moisture or dust.

The semiconductive screens surrounding each conductor demonstrate how high-voltage engineering principles apply to mobile applications. These screens, made from carbon-loaded elastomeric compounds, create uniform electric field distribution around the conductor. Without proper screening, voltage stress concentrates at cable irregularities, creating corona discharge that progressively degrades insulation. In mining environments where cables experience constant flexing, these stress concentrations become failure points that can cause catastrophic failures during operation.

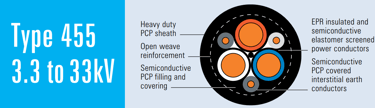

The three-core-plus-two-earth-plus-one-pilot configuration reflects lessons learned from mining accidents. Traditional three-phase power systems use the earth as a return path for fault currents, but soil conditions in mining environments can create high-resistance paths that delay protective relay operation. The dedicated earth conductors provide a reliable fault current return path that ensures rapid circuit breaker operation, while the pilot conductor enables remote monitoring of cable conditions and machinery status.

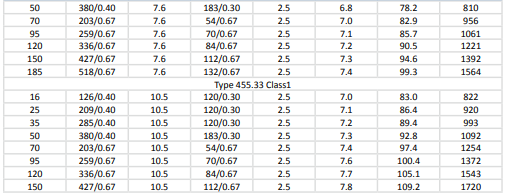

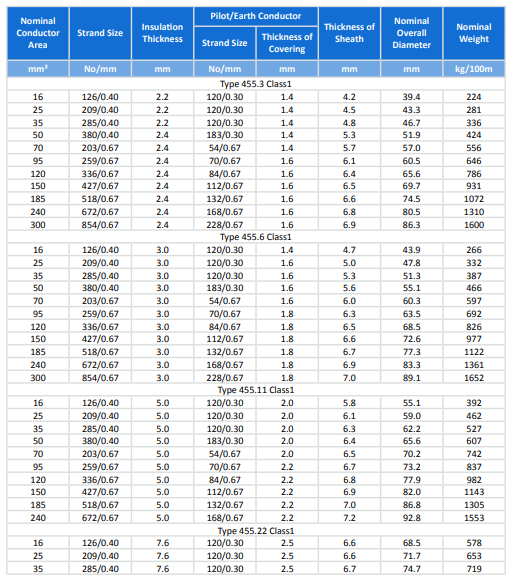

Dimensional Specifications and Electrical Parameters: The Numbers Behind Performance

The relationship between cable dimensions and electrical performance reveals the engineering compromises necessary for mobile mining applications. Each Type 455 variant represents a carefully balanced solution for specific voltage and application requirements.

Type 455.3, designed for 3.3kV operation, uses 2.2mm insulation thickness that provides adequate dielectric strength while maintaining flexibility. A 50mm² conductor in this configuration weighs 424 kilograms per 100 metres with a 51.9mm overall diameter. These numbers might seem academic, but they translate directly to operational capabilities. The relatively low weight reduces mechanical stress on cable reels and support systems, while the compact diameter allows smaller bend radii that extend cable life in tight-loop applications.

Moving up the voltage scale, Type 455.33 for 33kV operation requires 10.5mm insulation thickness—nearly five times thicker than the 3.3kV variant. This dramatic increase reflects the exponential relationship between voltage and insulation requirements. High-voltage insulation must withstand not just normal operating voltage but also transient overvoltages caused by switching operations, lightning strikes, and fault conditions that can exceed normal voltage by factors of three or more.

The pilot and earth conductors maintain consistent sizing across voltage ranges, reflecting their different functional requirements. Earth conductors must carry fault currents that can reach thousands of amperes for brief periods, while pilot conductors handle only control signals and monitoring data. The 54 to 228 strand count for earth conductors provides the current-carrying capacity needed for protective system operation, while their 1.4 to 2.5mm covering thickness protects against mechanical damage during cable handling and installation.

Cable weight increases dramatically with voltage rating, from 224 kg/100m for 16mm² Type 455.3 to over 1720 kg/100m for 150mm² Type 455.33. This weight progression reflects not just insulation thickness but also the mechanical reinforcement necessary to support higher-voltage cables during handling and operation. Mine operators must consider these weights when designing cable reel systems, support structures, and mobile equipment specifications.

The strand configurations reveal another layer of engineering sophistication. Lower cross-section conductors use 0.40mm individual strands that provide maximum flexibility, while larger conductors transition to 0.67mm strands that better support the mechanical loads imposed by heavier cables. The transition point occurs around 70mm² conductor area, where the benefits of increased flexibility give way to the need for mechanical strength in larger installations.

Mining Challenges and Solutions: A Practical FAQ

Real-world mining operations generate questions that textbook specifications cannot anticipate. Understanding these challenges and their solutions provides insight into why Type 455 cables have evolved their current design characteristics.

Why does Type 455 use a 3+2+1 core configuration instead of standard 3-core power cables?

This question addresses one of the most fundamental aspects of mining cable design. Standard industrial installations can rely on earth stakes and metallic structures to provide fault current return paths, but mobile mining equipment operates in environments where earth resistance varies dramatically. A dragline sitting on dry rock might have earth resistance of hundreds of ohms, while the same machine on wet clay could achieve less than one ohm. These variations make earth-return fault protection unreliable and potentially dangerous.

The two dedicated earth conductors in Type 455 cables solve this problem by providing a metallic return path with predictable resistance characteristics. When a phase conductor faults to the cable sheath or equipment frame, fault current flows through these earth conductors back to the supply transformer, ensuring rapid protective relay operation regardless of soil conditions. The dual earth configuration provides redundancy—if one earth conductor fails, the second continues to provide protection.

The pilot conductor serves multiple functions that have evolved with mining technology. Originally intended for basic control signals, modern pilot conductors carry sophisticated monitoring data including cable temperature, insulation resistance, and mechanical stress measurements. This information enables predictive maintenance programs that prevent failures before they occur, reducing both safety risks and production losses.

How does EPR insulation perform under the extreme conditions found in open-cut mines?

EPR (Ethylene Propylene Rubber) represents a materials science success story in mining applications. Unlike PVC or XLPE insulations that become brittle in cold weather or soften excessively in heat, EPR maintains consistent mechanical properties across the temperature ranges encountered in mining operations. This stability proves crucial when cables must operate at -20°C during winter night shifts and +60°C in summer equipment compartments.

The ozone resistance of EPR addresses a specific mining challenge that became apparent only after years of cable failures. High-voltage electrical equipment generates ozone as a byproduct of corona discharge and arcing, while diesel engines produce additional ozone precursors. In the confined spaces of equipment compartments, ozone concentrations can reach levels that rapidly crack conventional rubber insulations. EPR's chemical structure resists ozone attack, preventing the surface cracking that leads to moisture penetration and eventual insulation failure.

UV resistance becomes critical in open-pit operations where cables may be exposed to direct sunlight for extended periods. The Australian sun, particularly in northern mining regions, delivers UV intensities that can degrade unprotected materials within months. EPR formulations include UV stabilisers that maintain material properties even after years of exposure, though cable sheaths provide the primary UV protection in normal installations.

What design features enable Type 455 cables to withstand repeated reeling and unreeling cycles?

The mechanical durability of reeling cables depends on managing stress concentrations that develop during bending. When a cable bends around a reel, the outer circumference stretches while the inner circumference compresses. In rigid cables, this differential strain concentrates at the interface between conductors and insulation, leading to delamination and eventual failure.

Type 455 cables address this challenge through several design features. The semiconductive screens that surround each conductor are formulated to maintain adhesion to both conductor and insulation during repeated flexing. This adhesion prevents void formation that would concentrate electrical stress and initiate insulation breakdown. The elastomeric centre filler distributes mechanical loads across the cable cross-section, preventing individual cores from bearing disproportionate stress during bending.

The textile reinforcement provides global structural support that maintains cable roundness during handling and installation. Round cables distribute bending stress more evenly than oval or flat configurations, reducing peak stress levels that cause fatigue failures. The extra-heavy-duty sheath protects against abrasion and provides additional mechanical support, but its thickness is optimised to avoid excessive stiffness that would increase bending stress.

Are Type 455 cables suitable for underground coal mining applications?

This question highlights important distinctions between different mining environments and their regulatory requirements. While Type 455 cables excel in open-cut operations, underground coal mines present additional hazards that require specialised cable designs.

Underground coal operations involve explosive atmospheres where methane gas can accumulate to dangerous levels. Cables operating in these environments must meet flame-retardant requirements specified in AS/NZS 3808, including specific tests for flame propagation, smoke generation, and toxic gas emission. Standard Type 455 cables may not meet these enhanced safety requirements without modification.

The confined spaces and emergency evacuation challenges in underground mines also influence cable selection. Emergency situations may require rapid cable disconnection or cutting, while escape routes must remain clear of toxic smoke from burning cables. These requirements often favour specialised underground cable designs over standard reeling and trailing cables.

However, surface facilities at underground mines, including conveyor galleries, preparation plants, and load-out facilities, can effectively use Type 455 cables where their flexibility and durability provide operational advantages over fixed installations.

What installation and maintenance practices maximise Type 455 cable service life?

Proper installation begins with understanding the mechanical limits of cable design. Type 455 cables specify minimum bend radii that prevent damage during installation and operation. These limits aren't arbitrary—they reflect the physical properties of insulation and conductor materials under stress. Exceeding minimum bend radii, even briefly during installation, can create permanent damage that reduces cable life.

Cable reel design significantly impacts cable longevity. Reels must provide adequate core diameter to prevent excessive bending stress while offering sufficient capacity for the application. The transition from reel to free-hanging cable requires careful attention to prevent sharp bends that concentrate stress. Many installations use guide systems that gradually transition the cable from the reel radius to the required operating configuration.

Regular inspection programs should focus on early indicators of potential problems. Sheath abrasion reveals inadequate protection against mechanical damage, while changes in cable flexibility might indicate insulation deterioration. Electrical testing, including insulation resistance and partial discharge measurements, can detect developing problems before they cause failures.

Environmental protection measures often determine cable service life in mining applications. Cables should be protected from direct contact with sharp rocks, metal edges, and chemical spills whenever possible. Regular cleaning removes accumulations of dust and contaminants that can retain moisture and accelerate degradation.

How do different Type 455 variants compare in terms of cost and performance trade-offs?

The progression from Type 455.3 to Type 455.33 represents increasing capability at higher cost and complexity. Lower voltage variants offer cost advantages through reduced material requirements and simpler termination procedures, while higher voltage variants enable longer power transmission distances and larger equipment applications.

The economic analysis must consider total system costs rather than just cable price. Higher voltage systems require more expensive switchgear and protection equipment but can reduce copper requirements in long cable runs. The choice between variants often depends on specific mine layouts and equipment configurations rather than simple cost comparisons.

Performance differences extend beyond voltage rating to include current-carrying capacity, mechanical durability, and installation requirements. Higher voltage variants typically include enhanced mechanical protection that improves durability in severe service applications, potentially justifying higher initial costs through extended service life.

Standards and Compliance: The Regulatory Framework

Australian mining operations operate within a comprehensive regulatory framework that ensures both worker safety and equipment reliability. The standards governing Type 455 cables reflect decades of industry experience and international best practices adapted to Australian conditions.

AS/NZS 2802:2000 provides the fundamental requirements for reeling and trailing cables used in mining operations. This standard specifies construction requirements, performance criteria, and testing procedures that ensure cables can withstand the demanding conditions encountered in mobile mining applications. The standard addresses not just electrical performance but also mechanical durability, environmental resistance, and safety considerations specific to mining operations.

AS/NZS 1125 covers electrical installations in explosive atmospheres, addressing the potential for gas accumulations in mining environments. While primarily focused on underground coal mining, these requirements also apply to surface operations where fuel handling, chemical processing, or geological conditions create explosive atmosphere risks. Compliance involves specific cable construction requirements, installation practices, and maintenance procedures designed to prevent ignition sources.

AS/NZS 3808 specifically addresses cables for underground coal mines, establishing flame-retardant requirements and toxic gas emission limits that protect workers during emergency situations. Understanding this standard helps clarify why standard Type 455 cables may require modification for underground applications, even though they excel in surface operations.

AS/NZS 5000.1 provides the overarching safety framework for electrical installations in Australian mining operations. This standard establishes the risk management approach that guides cable selection, installation design, and maintenance practices. Compliance requires demonstrating that cable systems provide adequate safety margins under both normal and fault conditions.

The interaction between these standards creates a comprehensive framework that addresses the unique challenges of mining electrical systems. Cable manufacturers must demonstrate compliance through extensive testing programs that verify performance under conditions that simulate actual mining environments. These tests include mechanical cycling to simulate reeling operations, environmental exposure to verify material durability, and electrical testing under fault conditions to ensure protective system operation.

Conclusion: Powering Australia's Mining Future

The evolution of AS/NZS 2802 Type 455 mining cables represents more than incremental technological improvement—it embodies the Australian mining industry's commitment to safety, reliability, and operational excellence. From the massive iron ore operations of the Pilbara to the coal fields of Queensland, these cables provide the electrical lifeline that keeps the world's most demanding mobile equipment operating safely and efficiently.

The sophisticated engineering behind Type 455 cables reflects lessons learned from decades of mining operations in some of Earth's harshest environments. Every design feature, from the tinned copper conductors to the semiconductive screens, addresses specific challenges that can only be understood through experience with real-world mining operations. The three-plus-two-plus-one conductor configuration, the EPR insulation system, and the extra-heavy-duty sheath protection all contribute to a cable design that consistently delivers reliable performance where failure is not an option.

Looking forward, Australian mining operations continue to evolve toward larger, more sophisticated equipment operating at higher power levels. Autonomous mining systems, electrification of mobile equipment, and integration of renewable energy sources all create new demands on electrical infrastructure. Type 455 cables, with their proven track record of reliability and adaptability across voltage ranges, provide a foundation for these technological advances.

The economic impact extends far beyond cable procurement costs. Reliable electrical systems enable the continuous operation that drives mining productivity, while predictable maintenance requirements support efficient resource planning. In an industry where a single equipment failure can cost hundreds of thousands of dollars in lost production, the proven reliability of Type 455 cables represents genuine value that justifies careful specification and proper installation practices.

For mining engineers, electrical technicians, and equipment operators, understanding Type 455 cable technology provides insights into broader principles of industrial electrical system design. The challenges addressed by these cables—power delivery to mobile equipment, operation in harsh environments, and integration with protective systems—apply across many industries but reach their most demanding expression in mining operations.

The Australian mining industry's success depends on countless technological innovations working together seamlessly. While mining cables may seem like minor components compared to massive excavators and processing plants, their reliable operation enables everything else to function. Type 455 cables exemplify the engineering excellence that keeps Australia's mining operations running safely and efficiently, day after day, in some of the world's most challenging industrial environments.

As Australia's mining industry continues to expand and evolve, the lessons embedded in Type 455 cable design will inform future innovations in mobile power delivery systems. The fundamental principles—flexibility without compromising electrical performance, durability without excessive weight, and safety without operational complexity—will guide the development of next-generation electrical systems that support Australia's position as a global mining leader.

This comprehensive understanding of Type 455 mining cables provides the foundation for informed decision-making in cable selection, installation design, and maintenance planning. Whether specifying cables for a new mining operation or troubleshooting issues in existing installations, the principles and practices outlined here offer practical guidance for achieving optimal electrical system performance in Australia's demanding mining environments.
