AS/NZS 2802:2000 Type 440 1.1–22 kV Mining Cable for Australian Open-Cut Mines

Introduction

Australia's mining industry stands as one of the world's most demanding operational environments, where equipment reliability can mean the difference between productive extraction and costly downtime. At the heart of this industry's electrical infrastructure lies a critical component that often goes unnoticed by those outside the sector: the AS/NZS 2802:2000 Type 440 mining cable system. These high-voltage trailing cables represent the electrical lifeline that powers the massive machinery responsible for extracting billions of dollars worth of resources from Australian soil each year.

The AS/NZS 2802:2000 standard specifically addresses the unique requirements of reeling and trailing cables used in mining operations. Unlike standard industrial cables, these specialised power conductors must withstand extraordinary mechanical stresses, extreme environmental conditions, and continuous movement while maintaining reliable electrical performance. The Type 440 designation refers to a specific category within this standard, designed for voltage ratings from 1.1 kilovolts up to 22 kilovolts, making them suitable for powering everything from mobile drilling equipment to massive dragline excavators.

Understanding why these cables are so crucial requires appreciating the scale and harshness of Australian open-cut mining operations. Picture a dragline excavator with a boom extending over 100 metres, capable of moving 300 tonnes of earth in a single scoop. This machine operates continuously in temperatures that can soar above 45 degrees Celsius in Western Australia's summer heat or plummet below freezing during winter nights in New South Wales highlands. The electrical cable supplying power to this behemoth must flex thousands of times per day, resist abrasion from dust and debris, withstand ultraviolet radiation from the intense Australian sun, and maintain electrical integrity despite exposure to oils, chemicals, and moisture.

The engineering challenge becomes even more complex when we consider that these cables must also incorporate safety features to protect human life in an environment where electrical faults could prove catastrophic. The AS/NZS 2802:2000 Type 440 specification addresses these challenges through sophisticated design elements including semiconductive screening systems, composite earthing arrangements, and specialised insulation materials that work together to create a robust, reliable power transmission system.

Australia's Major Open-Cut Mine Sites

To truly understand the importance of Type 440 cables, we must first examine where they operate. Australia's open-cut mining landscape is dominated by several world-class operations that showcase both the scale of modern mining and the extreme conditions these cables must endure.

Western Australia hosts approximately one-third of Australia's major open-cut operations, with the legendary Super Pit in Kalgoorlie representing the pinnacle of Australian gold mining. This extraordinary excavation stretches approximately 3.5 kilometres in length, 1.5 kilometres in width, and plunges over 600 metres deep, making it visible from space and earning its place as one of the largest open-cut gold mines globally. The electrical infrastructure supporting operations of this magnitude requires thousands of metres of specialised trailing cable, with Type 440 systems powering everything from the massive haul trucks that navigate the pit's spiral roads to the drilling equipment that prepares blast sites.

Queensland contributes roughly one-quarter of Australia's open-cut mining capacity, with the Bowen Basin representing one of the world's premier coking coal regions. Operations like Blackwater mine demonstrate the critical role of dragline excavators in coal extraction, where machines weighing over 8,000 tonnes use bucket capacities exceeding 100 cubic metres to strip overburden and expose coal seams. The electrical demands of these giants require high-voltage Type 440 cables capable of delivering megawatts of power while enduring the constant flexing and dragging motion inherent to dragline operations.

New South Wales accounts for approximately one-fifth of major open-cut sites, with operations like Cadia near Orange representing the second-largest open-cut mine in Australia. This copper and gold operation showcases modern mining's evolution toward larger, more automated equipment, where precise electrical control systems depend on reliable power delivery through sophisticated cable networks. Mount Arthur in the Hunter Valley demonstrates how coal mining operations integrate multiple cable systems, with Type 440 installations supporting everything from continuous miners to overland conveyor systems that transport material across vast distances.

Each of these locations presents unique environmental challenges that influence cable selection and installation practices. Western Australia's extreme heat and intense solar radiation demand cables with superior ultraviolet resistance and thermal stability. Queensland's tropical climate introduces humidity and seasonal flooding concerns that require enhanced moisture protection. New South Wales' varied topography and temperature ranges call for cables that maintain flexibility across wide thermal cycles while resisting the mechanical stresses of operation in mountainous terrain.

Cable Applications in Open-Cut Mining

The versatility of AS/NZS 2802:2000 Type 440 cables becomes apparent when examining their diverse applications across modern mining operations. These specialised conductors serve as flexible feeder trailing cables, designed specifically to provide mobile power supply to the enormous variety of machinery and equipment that makes open-cut mining possible.

Excavators represent perhaps the most demanding application for Type 440 cables. These machines, ranging from modest 100-tonne units to colossal 800-tonne monsters, require continuous power delivery while executing complex digging patterns that place extreme mechanical stress on their trailing cables. The cable must flex through multiple planes simultaneously as the excavator's upper works rotate, the boom extends and retracts, and the entire machine moves to new working positions. This three-dimensional movement pattern creates a unique challenge that Type 440 cables address through their sophisticated conductor strand design and protective screening systems.

Dragline excavators present an even more extreme application scenario. These massive machines, some with booms exceeding 100 metres in length, operate on a principle of casting their bucket far from the machine and then dragging it back through the material. This operation places enormous tensile loads on the trailing cable, which must support not only its own considerable weight but also withstand the dynamic forces generated during the dragging operation. The Type 440 specification incorporates a central semiconductive cradle specifically designed to provide structural support and protect the power conductors from these mechanical stresses.

Bucket-wheel excavators, commonly used in coal mining operations, create another specialised application environment. These continuous mining machines feature massive rotating wheels equipped with buckets that scrape material from the working face and deposit it onto conveyor systems. The trailing cable must accommodate the machine's forward advance while maintaining power to both the wheel drive systems and the integrated conveyor network. Type 440 cables excel in this application due to their engineered balance of flexibility and durability.

Crushers and processing equipment, while stationary during operation, often require repositioning as mining faces advance. Mobile crushing plants, in particular, demand trailing cables that can support the enormous power requirements of primary crushers while accommodating the frequent moves necessary to maintain optimal positioning relative to the extraction point. The high-voltage variants of Type 440 cables, rated up to 22 kilovolts, prove essential for these applications where power transmission efficiency becomes critical over extended cable runs.

Conveyor systems present unique challenges due to their linear nature and the need for power distribution along their entire length. While individual conveyor drives might use standard industrial cables, the feeder systems that supply power to conveyor networks often employ Type 440 cables, particularly in applications where conveyors must be relocated frequently to follow changing mining patterns.

Technical and Electrical Specifications

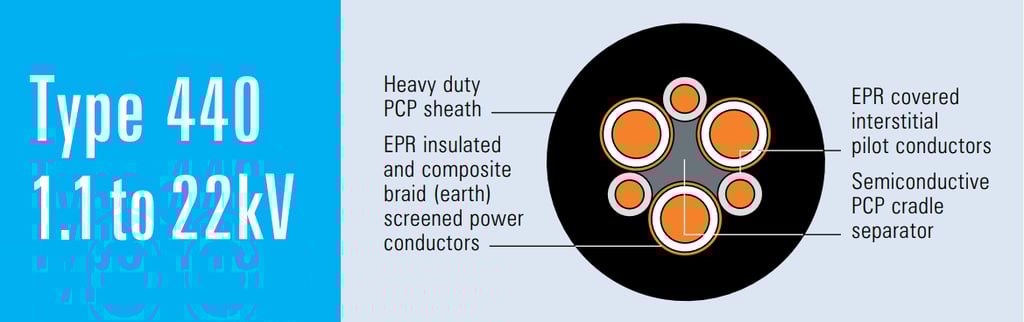

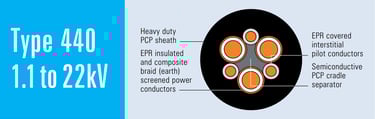

Understanding the technical sophistication of AS/NZS 2802:2000 Type 440 cables requires examining their construction in detail, as each component serves specific functions crucial to reliable operation in mining environments. The specification covers voltage ratings from 1.1 kilovolts through 22 kilovolts, with Class 2 classification indicating the cables incorporate semiconductive screening systems essential for medium voltage applications.

The conductor system forms the foundation of cable performance, utilising flexible stranded tinned annealed copper construction that provides the mechanical flexibility essential for trailing cable applications while maintaining excellent electrical conductivity. The tinning process creates a protective layer that prevents copper oxidation, particularly important in the dusty, chemically aggressive environment of open-cut mines. Conductor sizes range from 6 square millimetres for light-duty applications up to 300 square millimetres for heavy-duty dragline installations, with the number and diameter of individual strands carefully engineered to optimise both flexibility and current-carrying capacity.

For cables rated at 3.3 kilovolts and above, a semiconductive conductor screen surrounds each power conductor. This screen serves multiple critical functions, including providing a smooth, uniform surface that eliminates air voids between the conductor and insulation, distributing electrical stress evenly around the conductor circumference, and providing a conductive path that enhances fault detection capabilities. The semiconductive compound used in this application must maintain its electrical properties across the wide temperature range encountered in mining operations while remaining flexible enough to accommodate cable movement.

The insulation system employs Ethylene Propylene Rubber (EPR), chosen for its exceptional electrical properties and mechanical durability. EPR provides excellent resistance to ozone, ultraviolet radiation, and chemical attack while maintaining flexibility across temperature extremes from minus 25 degrees Celsius to plus 90 degrees Celsius. The insulation thickness varies according to voltage rating, with precise engineering ensuring adequate electrical breakdown strength while minimising cable diameter and weight.

An insulation screen of semiconductive elastomer surrounds the EPR insulation on medium voltage cables. This screen serves functions complementary to the conductor screen, providing uniform electrical stress distribution at the insulation outer surface and creating a defined electrical boundary that enhances the effectiveness of earth fault protection systems. The semiconductive properties must remain stable throughout the cable's operating life despite exposure to mechanical stress and environmental extremes.

The composite screen system represents one of the most sophisticated aspects of Type 440 cable design. Rather than using conventional copper tape or wire screening, these cables employ tinned annealed copper braiding interwoven with polyester yarn. This construction provides several advantages including superior flexibility compared to solid metallic screens, excellent resistance to mechanical damage, effective electromagnetic shielding, and reliable earth fault current path even when subjected to the stretching forces encountered in dragline applications.

The central cradle separator, constructed from semiconductive PCP (Polychloroprene), provides crucial mechanical support for the three power conductors while accommodating the cable's flexibility requirements. This cradle distributes mechanical stresses evenly among the conductors and prevents the individual cores from migrating within the cable during flexing operations. The semiconductive properties of the cradle material also contribute to the cable's overall electrical performance by providing additional stress relief.

Three interstitial pilot conductors, each consisting of EPR-covered flexible stranded tinned copper, serve multiple functions within the cable assembly. These pilots can carry control signals for equipment operation, provide monitoring circuits for cable condition assessment, or serve as backup earth paths in fault conditions. Their positioning between the main power conductors optimises space utilisation while maintaining the cable's circular cross-section.

The outer sheath, typically constructed from heavy-duty PCP with CPE/CSP variants available for specialised applications, provides the primary protection against environmental hazards. This sheath must resist abrasion from contact with rough surfaces, protect against chemical attack from oils and solvents, prevent moisture ingress that could compromise insulation integrity, withstand ultraviolet radiation exposure, and maintain flexibility across the operating temperature range.

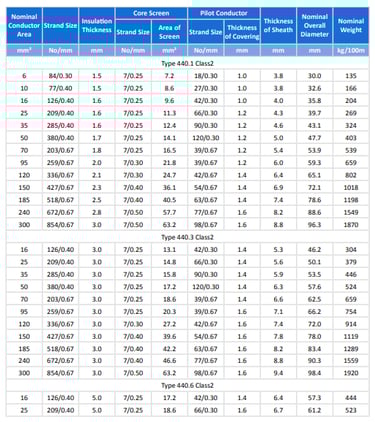

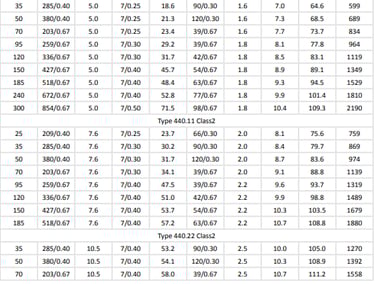

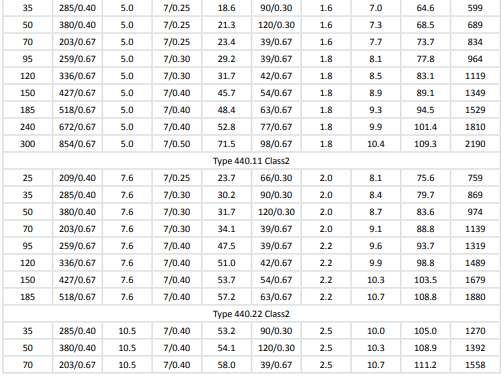

Physical dimensions and weights vary significantly across the conductor size range. A typical 16 square millimetre Type 440.1 cable measures approximately 36 millimetres in overall diameter and weighs roughly 204 kilograms per 100 metres. At the upper end of the range, a 300 square millimetre Type 440.1 cable expands to about 96 millimetres diameter and weighs nearly 1,900 kilograms per 100 metres. These substantial weights highlight the importance of proper cable handling equipment and support systems in mining installations.

The electrical parameters of Type 440 cables reflect their sophisticated design. Conductor resistance varies with cross-sectional area, following standard copper conductor calculations, while the capacitance and inductance characteristics are influenced by the cable's geometric configuration and insulation materials. The semiconductive screening systems create controlled electrical fields that enable reliable operation at medium voltage levels while providing enhanced sensitivity for earth fault detection systems.

Mining-Specific Challenges and Frequently Asked Questions

The extreme operating environment of open-cut mining creates unique challenges that standard industrial cables simply cannot address. Understanding these challenges and their solutions helps explain why AS/NZS 2802:2000 Type 440 cables have become essential infrastructure in Australian mining operations.

Can Type 440 cables withstand the mechanical stresses of dragline and reeling operations?

This question addresses one of the most demanding applications for mining cables. Dragline excavators create extraordinary mechanical loads on their trailing cables, combining static weight support with dynamic forces from the dragging operation and cyclic flexing as the boom moves through its working range. Type 440 cables specifically address these challenges through several design features. The reinforced strand construction distributes mechanical loads across multiple small conductors rather than concentrating stress in fewer large ones. The central semiconductive cradle provides structural backbone that prevents conductor deformation while maintaining flexibility. The composite screening system, with its copper braid and polyester yarn construction, provides mechanical reinforcement while maintaining electrical performance. Field experience in Australian mines has demonstrated that properly installed Type 440 cables routinely achieve service lives exceeding five years in dragline applications, representing millions of operational cycles.

How do these cables perform in extreme environmental conditions including UV exposure, oil contamination, and temperature variations?

Australian mining environments present some of the world's most challenging conditions for electrical equipment. Ultraviolet radiation levels in locations like the Pilbara region of Western Australia can exceed 14 on the UV index, while temperatures regularly surpass 45 degrees Celsius. Type 440 cables address these challenges through careful material selection and construction techniques. The heavy-duty PCP outer sheath incorporates UV stabilisers and antioxidants that prevent degradation from solar exposure. Oil resistance comes from the chemical inertness of both the PCP sheath and EPR insulation materials, which resist swelling and deterioration when exposed to hydraulic fluids, diesel fuel, and lubricating oils commonly found in mining equipment. Temperature performance spans from minus 25 degrees Celsius to plus 90 degrees Celsius, accommodating both the extreme cold of winter mornings in elevated mine sites and the intense heat generated by equipment operation in summer conditions.

Are Type 440 cables suitable for bucket-wheel excavator applications?

Bucket-wheel excavators represent a specialised mining application where continuous material removal requires both high reliability and exceptional mechanical durability. These machines operate continuously, with their rotating bucket wheels creating vibration and their forward advance creating constant cable movement. Type 440 cables prove ideal for this application due to their engineered balance of flexibility and durability. The stranded conductor construction accommodates the continuous flexing required as the machine advances, while the composite screening system provides vibration resistance. The central cradle design prevents conductor migration that could lead to electrical imbalance, and the heavy-duty sheath construction resists the abrasion encountered in coal mining environments where bucket-wheel excavators are commonly employed.

What happens when an earth fault occurs, and how quickly can it be detected?

Earth fault protection represents a critical safety consideration in mining operations where personnel work in close proximity to high-voltage equipment. Type 440 cables incorporate sophisticated screening systems that enable rapid fault detection and isolation. The semiconductive conductor and insulation screens create a controlled electrical environment where earth faults can be detected at very low current levels, typically less than 500 milliamps. Modern mining electrical systems can detect and isolate earth faults within 10 milliseconds, well before dangerous voltages can develop on equipment frames or enclosures. The composite screening system provides multiple fault current paths, ensuring reliable operation of protection systems even when the cable has experienced mechanical damage.

What maintenance practices are recommended for Type 440 cables?

Preventive maintenance plays a crucial role in maximising cable service life and preventing costly equipment failures. Regular visual inspection should focus on identifying signs of sheath wear, particularly at points where the cable contacts the ground or equipment structures. Abrasion patterns, cuts, or swelling of the outer sheath indicate potential problems that require attention before they compromise cable integrity. Electrical testing should include insulation resistance measurements between conductors and between conductors and earth, performed with the cable disconnected from equipment. These tests can identify insulation deterioration before it progresses to complete failure. Proper storage practices become critical for spare cable lengths, with recommendations including storage on appropriate reels to prevent kinking, protection from direct sunlight exposure, and maintaining storage temperatures within specified ranges.

How should voltage ratings be selected for different mining applications?

Voltage selection depends on both the electrical requirements of the connected equipment and the practical considerations of cable installation and operation. Lower voltage ratings, typically 1.1 kilovolts, suit mobile drilling equipment, smaller excavators, and auxiliary systems where cable lengths remain relatively short. Medium voltage applications, using 3.3 to 6.6 kilovolt ratings, commonly power larger excavators, processing equipment, and conveyor drive systems where electrical efficiency becomes important over longer cable runs. High voltage installations, utilising 11 to 22 kilovolt ratings, typically serve the largest dragline excavators and major processing facilities where power transmission efficiency and equipment starting requirements justify the additional complexity of medium voltage systems. The selection process must also consider the available mine electrical infrastructure and the maintenance capabilities of site personnel.

What special considerations apply to cable installation and handling?

The substantial weight and size of Type 440 cables create unique installation challenges. Proper cable handling equipment becomes essential, with cable pulling systems designed specifically for the forces involved in installing large mining cables. Installation practices must account for minimum bending radius requirements, which vary with cable construction but typically require bend radii of at least 12 times the cable diameter for permanent installations and 8 times for temporary installations during cable pulling operations. Support systems must accommodate both the static weight of the cable and the dynamic forces created during equipment operation, with particular attention to transition points where the cable changes direction or elevation.

Conclusion

AS/NZS 2802:2000 Type 440 cables represent far more than simple electrical conductors in Australia's mining landscape. They embody decades of engineering evolution, refined through the demanding requirements of one of the world's most challenging industrial environments. These sophisticated power transmission systems serve as the electrical lifelines that enable the massive machinery of modern mining to operate reliably in conditions that would quickly destroy conventional cables.

The engineering sophistication evident in Type 440 cable construction reflects the critical nature of their role. Every component, from the stranded conductor design through the semiconductive screening systems to the composite earth arrangement, serves specific functions that contribute to reliable operation under extreme conditions. The central semiconductive cradle, the three interstitial pilot conductors, and the heavy-duty sheath construction all work together to create a cable system capable of withstanding the mechanical stresses, environmental extremes, and electrical demands of Australian open-cut mining.

The importance of proper specification selection cannot be overstated. The voltage rating must match both equipment requirements and installation characteristics, while conductor sizing must accommodate both steady-state current requirements and the thermal effects of intermittent overload conditions common in mining applications. Mechanical considerations, including cable weight, flexibility requirements, and installation constraints, must be balanced against electrical performance requirements to achieve optimal system design.

Equally important is the recognition that these cables operate as part of larger electrical systems where earth fault protection, monitoring systems, and maintenance practices all contribute to safe, reliable operation. The sophisticated screening systems incorporated in Type 440 cables enable rapid fault detection and isolation, providing the safety margins essential in environments where electrical accidents could prove catastrophic.

As Australia's mining industry continues to evolve toward larger, more automated equipment operating in increasingly remote and challenging locations, the role of specialised cable systems like the AS/NZS 2802:2000 Type 440 will only grow in importance. Understanding their capabilities, limitations, and proper application remains essential for anyone involved in the design, installation, operation, or maintenance of mining electrical systems.

The investment in proper cable specification, installation, and maintenance practices pays dividends through reduced downtime, improved safety, and extended equipment life. In an industry where a single day of lost production can cost millions of dollars, the reliability provided by properly engineered cable systems represents value far exceeding their initial cost. Type 440 cables continue to prove themselves as indispensable components in the infrastructure that supports Australia's position as one of the world's leading mining nations.
