BS 6708 TYPE 14 Mining Cable

Introduction

The BS 6708 TYPE 14 mining cable represents a critical component in modern mining operations, serving as the electrical lifeline that powers essential equipment whilst maintaining the highest safety standards in some of the world's most challenging environments. This specialised cable system has been engineered specifically to meet the demanding requirements of both underground and surface mining applications, where traditional electrical cables would simply fail to provide adequate performance or safety margins.

Understanding the intricacies of BS 6708 TYPE 14 mining cable becomes essential for mining engineers, electrical contractors, and procurement specialists who must ensure reliable power distribution in environments characterised by explosive atmospheres, mechanical stress, chemical exposure, and extreme operational conditions. The cable's design philosophy centres around the principle that electrical safety in mining cannot be compromised, as any failure could result in catastrophic consequences ranging from equipment damage to loss of life.

This comprehensive guide aims to provide mining professionals with detailed insights into the cable's construction, electrical parameters, application scenarios, and practical considerations that influence long-term performance. We shall explore how the cable's unique design features address specific mining challenges, examine the technical specifications that determine its suitability for various applications, and provide practical guidance for proper selection and installation practices.

The importance of BS 6708 TYPE 14 mining cable extends beyond mere power transmission, as it serves as a critical safety barrier in potentially explosive atmospheres whilst delivering the robust performance required for heavy-duty mining equipment. Understanding these dual requirements helps explain why mining cables command such specific design attention and why generic industrial cables cannot substitute for purpose-built mining solutions.

Application Scenarios and Environmental Considerations

The primary application domain for BS 6708 TYPE 14 mining cable encompasses underground mining environments where explosive gas and dust concentrations create potentially dangerous conditions. These subterranean workings present unique challenges that demand cables capable of maintaining electrical integrity whilst providing intrinsic safety features that prevent ignition sources in volatile atmospheres.

Underground mining applications require cables that can withstand the mechanical stresses associated with mobile equipment operations, including draglines, continuous miners, longwall systems, and shuttle cars. The cable must maintain flexibility for equipment mobility whilst providing sufficient mechanical strength to resist crushing forces, abrasion from rough surfaces, and tensile loads during equipment repositioning. The confined nature of underground workings means that cables often experience repeated flexing cycles as equipment navigates through narrow passages and around obstacles.

Surface mining operations present different but equally demanding challenges for electrical cables. Open-pit mining environments expose cables to extreme weather conditions, including temperature variations, ultraviolet radiation, moisture ingress, and chemical contamination from processing operations. The cables must demonstrate exceptional resistance to abrasion from conveyor systems, crushing equipment, and mobile machinery whilst maintaining electrical performance in dusty conditions that would compromise lesser cable designs.

Mining equipment commonly supplied by BS 6708 TYPE 14 cables includes excavators requiring high starting currents, drilling machines operating in continuous duty cycles, crushing units subjected to shock loads, and cutting machines demanding precise power control. Each application presents specific electrical and mechanical requirements that influence cable selection parameters, including conductor sizing, insulation thickness, and mechanical protection levels.

The cable's suitability for explosive atmospheres stems from its compliance with BS 6708 standards, which specify construction requirements that minimise ignition risks through careful material selection, manufacturing processes, and design features. The use of tinned copper conductors prevents corrosion-induced resistance increases that could create hot spots, whilst the EPR insulation system provides superior arc resistance compared to alternative insulation materials.

Chemical resistance becomes particularly important in mining applications where cables may encounter exposure to acids, alkalis, oils, and solvents used in ore processing operations. The chloroprene outer sheath provides excellent resistance to these chemicals whilst maintaining flexibility at low temperatures commonly encountered in underground workings or high-altitude surface mining operations.

Cable Construction and Structural Analysis

The construction of BS 6708 TYPE 14 mining cable reflects decades of engineering evolution aimed at addressing the specific challenges encountered in mining applications. Each component within the cable structure serves multiple purposes, contributing to electrical performance, mechanical durability, and safety characteristics that distinguish mining cables from conventional industrial variants.

The conductor system utilises electrolytic, stranded, tinned copper wire conforming to IEC 60228 Class 5 specifications. This classification indicates the highest degree of flexibility available in standard conductor constructions, achieved through fine wire stranding that permits tight bending radii without conductor damage. The tinning process applies a thin layer of tin to individual copper strands, providing corrosion protection that prevents oxidation-induced resistance increases over the cable's operational lifetime.

The choice of stranded construction becomes critical in mining applications where cables experience frequent flexing during equipment operation. Solid conductors would suffer fatigue failure under such conditions, whilst the stranded design distributes mechanical stress across multiple conductor elements, significantly extending operational life. The Class 5 stranding provides superior flexibility compared to Class 2 or Class 1 constructions typically used in fixed installations.

EPR (Ethylene Propylene Rubber) insulation represents the optimal balance between electrical performance, mechanical properties, and chemical resistance for mining applications. This insulation system demonstrates exceptional resistance to ozone, ultraviolet radiation, and elevated temperatures whilst maintaining flexibility at low temperatures. The material's excellent dielectric properties ensure reliable performance at the cable's rated voltage of 640/1100V, with sufficient margin to withstand transient overvoltages commonly encountered in mining electrical systems.

The separator system employs coloured textile tape for core identification, providing visual distinction between phase conductors whilst serving as a mechanical barrier that prevents insulation damage during cable manufacturing and installation processes. This seemingly simple component plays a crucial role in maintaining cable integrity by preventing conductor migration and providing additional mechanical protection during bending operations.

Screening arrangements in BS 6708 TYPE 14 cables follow a selective approach where only phase conductors receive tinned copper wire and nylon braid screening. This design philosophy recognises that phase conductors carry unbalanced currents that generate electromagnetic interference, whilst pilot and earth conductors typically carry minimal current under normal operating conditions. The screening system provides electromagnetic compatibility whilst minimising cable complexity and cost.

The bedding compound utilises rubber-based materials that provide mechanical cushioning between the cable core and outer sheath whilst filling interstices to create a smooth, round cable profile. This component prevents point loading of the outer sheath during installation and operation, distributing mechanical stresses evenly across the cable cross-section.

The outer sheath construction employs heavy-duty chloroprene specifically formulated for mining applications. This material provides exceptional resistance to flame propagation, oil penetration, chemical attack, and mechanical damage whilst maintaining flexibility across the temperature range encountered in mining operations. The sheath thickness varies with cable size to provide appropriate mechanical protection whilst maintaining reasonable cable diameter and weight characteristics.

Electrical Parameters and Performance Characteristics

The electrical performance of BS 6708 TYPE 14 mining cable reflects careful optimisation between current-carrying capacity, voltage drop characteristics, and safety margins required for mining applications. Understanding these parameters becomes essential for proper cable selection and installation design that ensures reliable equipment operation whilst maintaining safety standards.

The nominal voltage rating of 640/1100V indicates the cable's suitability for three-phase systems operating at 440V phase-to-phase voltage with neutral earthing arrangements commonly employed in mining installations. The 1100V rating provides adequate margin for system voltage variations and transient conditions whilst the 640V rating ensures safe operation under fault conditions where voltage distribution may become unbalanced.

The test voltage specification of 3kV represents the AC voltage applied during manufacturing quality control testing and periodic maintenance testing. This test voltage provides confidence that the insulation system will withstand operational stresses with appropriate safety margins, including considerations for insulation ageing, contamination, and mechanical damage that may occur during service life.

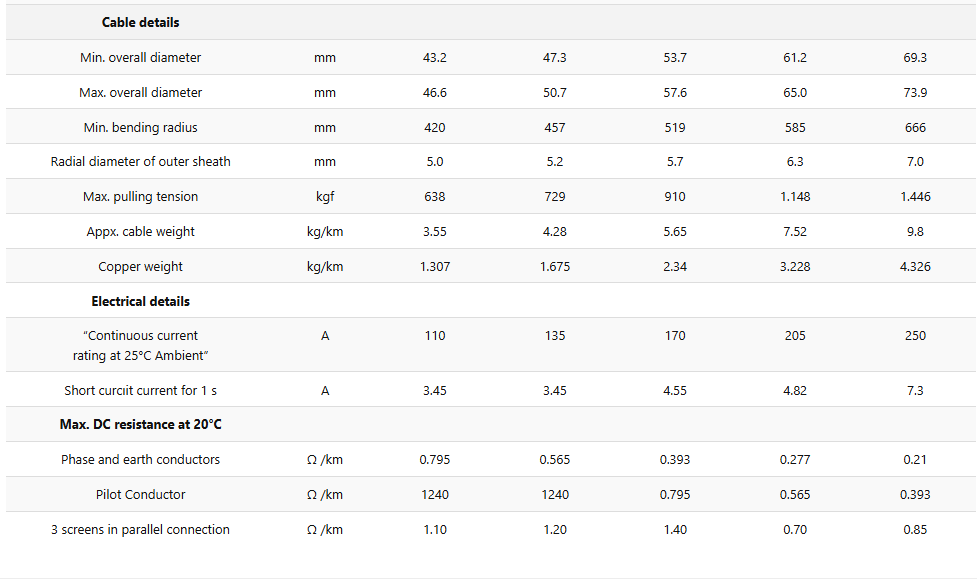

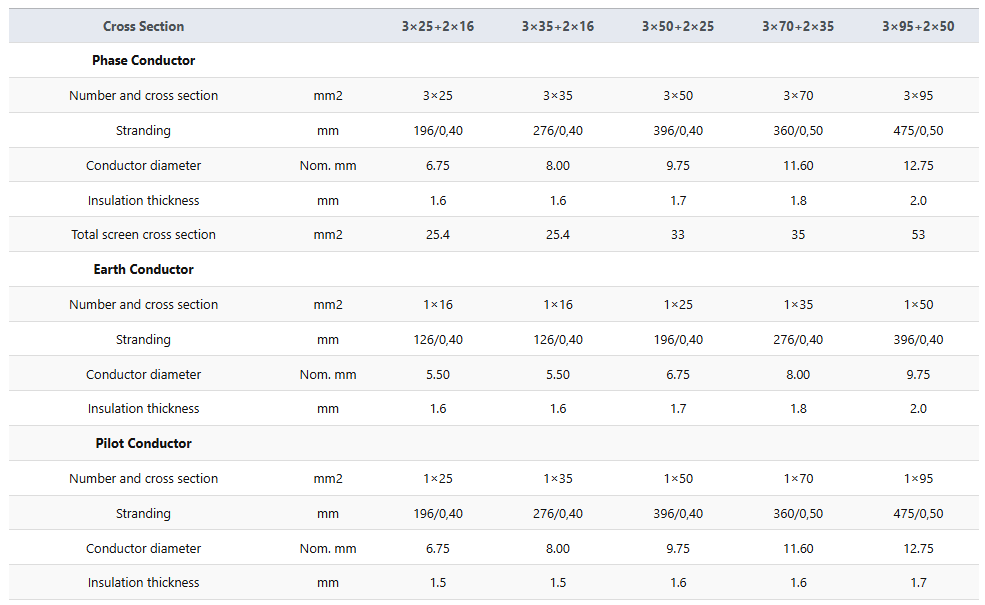

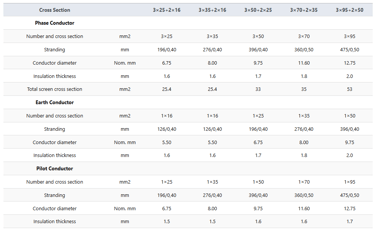

Conductor sizing options ranging from 3x25+2x16 to 3x95+2x50 mm² accommodate various power requirements commonly encountered in mining equipment applications. The notation indicates three phase conductors plus two auxiliary conductors, where one serves as the equipment earthing conductor and the other functions as a pilot conductor for control and monitoring purposes. This configuration provides both power transmission and safety functions within a single cable assembly.

Current-carrying capacity calculations consider ambient temperature conditions of 25°C, which represents typical underground mining temperatures whilst providing conservative ratings for surface applications where higher ambient temperatures may be encountered. The ratings account for thermal characteristics of the EPR insulation system and heat dissipation properties of the cable construction, ensuring that conductor temperatures remain within safe operating limits.

The continuous current ratings demonstrate the cable's capability to supply substantial power loads, with the largest size (3x95+2x50) capable of carrying 250 amperes continuously. This capacity suits heavy-duty mining equipment including large excavators, conveyor drive systems, and processing equipment that demand high power levels for reliable operation.

Short-circuit current ratings specify the maximum fault current that the cable can withstand for one second without sustaining damage to conductors or insulation systems. These ratings become critical for coordination with protective device settings, ensuring that circuit protection operates before cable damage occurs during fault conditions.

The DC resistance values provided at 20°C enable accurate voltage drop calculations for cable installations, ensuring that equipment receives adequate voltage for proper operation. The resistance values differ between phase conductors, pilot conductors, and screening systems, reflecting their different construction and intended functions within the cable assembly.

Screen resistance characteristics for three-screen parallel configuration provide data necessary for electromagnetic compatibility calculations and fault current distribution analysis. Understanding these parameters helps engineers design installations that minimise electromagnetic interference whilst ensuring safe fault current paths.

Advantages and Suitability Assessment

The design features incorporated into BS 6708 TYPE 14 mining cable deliver specific advantages that address the unique challenges encountered in mining applications. These advantages stem from careful material selection, construction techniques, and quality control processes that distinguish mining cables from conventional industrial variants.

Mechanical durability represents perhaps the most significant advantage of this cable design, achieved through the combination of flexible conductor construction, resilient insulation materials, and robust outer sheath protection. The cable demonstrates exceptional resistance to crushing forces, abrasion damage, and repeated flexing cycles that would rapidly destroy conventional cables in mining environments.

The Class 5 conductor stranding provides mechanical flexibility that permits installation in confined spaces whilst accommodating the dynamic movement requirements of mobile mining equipment. This flexibility prevents conductor fatigue failure whilst maintaining electrical continuity under mechanical stress conditions that exceed the capabilities of less flexible conductor constructions.

Safety performance in explosive atmospheres represents a critical advantage that stems from compliance with BS 6708 standards specifically developed for mining applications. The cable's construction minimises ignition risks through careful attention to material selection, manufacturing processes, and design features that prevent the generation of hazardous energy levels during normal operation and fault conditions.

The tinned copper conductor system provides long-term reliability through corrosion resistance that maintains electrical performance throughout the cable's operational lifetime. This feature becomes particularly important in mining environments where moisture, chemical contamination, and temperature variations would accelerate corrosion in unprotected copper conductors.

Chemical resistance characteristics of the chloroprene outer sheath enable operation in environments where exposure to oils, acids, alkalis, and solvents would degrade conventional cable sheaths. This resistance maintains cable integrity and safety performance despite exposure to harsh chemical conditions commonly encountered in ore processing operations.

Temperature performance capabilities enable operation across the wide temperature range encountered in mining applications, from cold surface conditions to elevated temperatures in deep underground workings. The EPR insulation system maintains its electrical and mechanical properties across this temperature range, ensuring reliable performance regardless of environmental conditions.

Installation convenience results from the cable's flexible construction and reasonable weight characteristics that facilitate handling during installation processes. The smooth outer sheath reduces pulling forces during cable installation whilst the flexible construction permits routing through complex cable ways without damage to cable components.

Operational life expectancy for properly selected and installed BS 6708 TYPE 14 cables typically exceeds that of mining equipment, providing economic advantages through reduced maintenance requirements and replacement costs. The cable's robust construction withstands the mechanical and environmental stresses that limit the life of lesser cable designs.

Frequently Asked Questions and Technical Solutions

Can this cable be used in wet or chemically aggressive environments?

Yes, BS 6708 TYPE 14 mining cable has been specifically designed to operate in wet and chemically aggressive environments commonly encountered in mining operations. The chloroprene outer sheath provides excellent resistance to water ingress, preventing moisture from reaching internal cable components where it could cause insulation degradation or conductor corrosion. The material composition also demonstrates superior resistance to oils, acids, alkalis, and organic solvents typically found in ore processing facilities.

The cable's water resistance stems from the chloroprene sheath's molecular structure, which creates an effective barrier against moisture penetration whilst maintaining flexibility across the operational temperature range. However, it's important to note that whilst the cable provides excellent moisture resistance, proper installation practices including appropriate cable supports, drainage provisions, and entry sealing remain essential for optimal performance in wet environments.

For applications involving direct burial or submersion, additional protective measures may be required depending on soil conditions, groundwater chemistry, and installation duration. Consultation with cable manufacturers regarding specific environmental conditions ensures optimal cable selection and installation practices.

What makes this cable suitable for explosive environments?

The suitability of BS 6708 TYPE 14 cable for explosive environments results from its compliance with BS 6708 standards, which specify construction requirements that minimise ignition risks in potentially explosive atmospheres. Several design features contribute to this safety performance, beginning with the use of tinned copper conductors that prevent corrosion-induced resistance increases which could create dangerous hot spots.

The EPR insulation system provides superior arc resistance compared to alternative insulation materials, reducing the likelihood of insulation failure that could generate ignition sources. The material's chemical stability prevents the formation of conductive paths that could compromise electrical integrity under fault conditions.

The screening system design minimises electromagnetic emissions that could interfere with safety systems whilst providing controlled paths for fault currents. The robust outer sheath construction prevents mechanical damage that could expose internal components and create potential ignition sources.

Additionally, the cable's construction prevents the accumulation of static electricity through proper earthing arrangements, whilst the materials selected demonstrate appropriate flame propagation characteristics that limit fire spread in the event of ignition from external sources.

Why are only the phase conductors screened?

The selective screening approach used in BS 6708 TYPE 14 cables reflects careful engineering analysis of electromagnetic interference sources and mitigation requirements. Phase conductors carry unbalanced load currents that generate electromagnetic fields capable of interfering with sensitive control equipment and communication systems commonly used in modern mining operations.

The screening system around phase conductors provides effective electromagnetic shielding whilst creating controlled impedance characteristics that improve power quality. The tinned copper wire and nylon braid construction offers excellent screening effectiveness across the frequency range of concern for mining equipment applications.

Pilot and earth conductors typically carry minimal current under normal operating conditions, generating negligible electromagnetic interference that doesn't warrant the complexity and cost of screening systems. The pilot conductor primarily carries control signals and monitoring information at low current levels, whilst the earth conductor normally carries only residual currents unless fault conditions occur.

This selective approach optimises cable performance whilst controlling manufacturing costs and cable complexity. Adding unnecessary screening would increase cable diameter, weight, and cost without providing proportional benefits in electromagnetic compatibility performance.

How should I choose the correct cable size?

Selecting the appropriate BS 6708 TYPE 14 cable size requires careful analysis of several interconnected factors that influence both electrical performance and mechanical suitability. The process begins with determining the maximum continuous current requirement of the connected equipment, including consideration of starting currents for motors and peak demand periods for variable load equipment.

Load current analysis must account for the operational duty cycle of connected equipment, as intermittent high-current operation may permit smaller cable sizes than continuous duty applications. Mining equipment often experiences variable loading conditions that require careful evaluation to determine representative current levels for cable sizing purposes.

Installation length significantly influences cable selection through voltage drop considerations. Longer cable runs require larger conductor sizes to maintain adequate voltage at equipment terminals, particularly for equipment sensitive to voltage variations such as electronic motor drives and control systems.

Ambient temperature conditions affect current-carrying capacity, with higher temperatures requiring cable de-rating or larger conductor sizes to maintain safe operating temperatures. Underground mining environments typically provide more stable temperature conditions than surface installations, which may experience extreme temperature variations.

Short-circuit current requirements must be evaluated to ensure that the selected cable can withstand fault currents until protective devices operate. The cable's short-circuit current rating must exceed the prospective fault current at the installation location, considering impedance characteristics of the complete electrical system.

Mechanical considerations include installation routing, support arrangements, and flexing requirements that may influence minimum conductor size regardless of electrical requirements. Mobile equipment applications typically require more flexible cable constructions that may dictate larger conductor sizes to achieve necessary mechanical properties.

What happens if the cable is bent below the minimum bending radius?

Exceeding the minimum bending radius specifications for BS 6708 TYPE 14 cable can result in several types of damage that compromise both electrical performance and safety characteristics. Understanding these failure modes helps explain why bending radius limitations exist and emphasises the importance of proper installation practices.

Conductor damage represents the most immediate concern when cables are bent too tightly. The stranded copper conductors may experience individual wire breakage that increases electrical resistance and creates localised heating. Progressive conductor damage can lead to complete circuit failure whilst creating potential ignition sources in explosive atmospheres.

Insulation damage occurs when excessive bending stresses exceed the mechanical properties of the EPR insulation system. This damage may manifest as compression cracking on the inside of the bend or tension cracking on the outside, creating pathways for moisture ingress and reducing dielectric strength. Such damage may not be immediately apparent but can lead to premature cable failure.

The screening system may suffer damage when tight bending disrupts the braided conductor arrangement, reducing screening effectiveness and potentially creating impedance discontinuities that affect electromagnetic compatibility performance. Damaged screening can also create fault current concentration points that pose safety hazards.

The outer sheath may develop surface cracking or internal separation that compromises chemical resistance and mechanical protection. Whilst superficial surface marking may be acceptable, deep cracking that penetrates the sheath thickness creates moisture ingress paths that accelerate cable degradation.

Prevention of bending damage requires proper installation planning, including adequate cable support spacing, appropriate pulling tensions, and installation techniques that maintain recommended bending radii throughout the installation process.

Can this cable be reused after relocation?

The reusability of BS 6708 TYPE 14 cable after relocation depends on several factors related to the cable's condition following removal and the requirements of the new installation. A systematic evaluation process helps determine whether relocated cable can provide reliable service in its new application.

Visual inspection represents the first step in assessing cable condition, examining the outer sheath for cuts, abrasions, chemical damage, or deformation that could compromise performance. Particular attention should be paid to areas where the cable experienced tight bending, mechanical stress, or chemical exposure during its previous installation.

Electrical testing becomes essential to verify that the cable's insulation system maintains adequate dielectric strength. Insulation resistance testing at appropriate DC voltages can reveal insulation deterioration that may not be apparent through visual inspection alone. The results should be compared with manufacturer specifications and industry standards to determine acceptability.

Conductor resistance measurements help identify potential conductor damage that could affect current-carrying capacity or create localised heating. Significant increases in resistance compared to manufacturer specifications may indicate conductor damage that precludes reuse in demanding mining applications.

The screening system integrity should be verified through continuity testing to ensure that electromagnetic compatibility performance remains adequate for the new installation requirements. Damaged screening may be acceptable for some applications but could create problems in installations with sensitive electronic equipment.

Installation history analysis should consider the environmental conditions, mechanical stresses, and electrical loading experienced during the cable's previous service. Cables that operated in particularly harsh conditions or experienced overloading may have suffered degradation that limits their suitability for reuse.

The new installation requirements must be compared with the cable's remaining capability to ensure adequate safety margins. Cables approaching the end of their expected service life may not provide sufficient reliability for critical applications, even if they pass basic electrical tests.

Conclusion

BS 6708 TYPE 14 mining cable represents a sophisticated engineering solution that addresses the complex requirements of modern mining operations through careful attention to electrical performance, mechanical durability, and safety characteristics. The cable's success in demanding mining applications stems from its purpose-built construction that incorporates decades of experience in mining electrical systems.

The comprehensive understanding of this cable system's capabilities and limitations enables mining professionals to make informed decisions regarding cable selection, installation practices, and maintenance requirements. Proper application of these principles ensures reliable equipment operation whilst maintaining the safety standards essential for mining operations.

The key attributes that distinguish BS 6708 TYPE 14 cable include its flexible conductor construction, resilient insulation system, selective screening arrangement, and robust outer sheath protection. These features work together to provide performance characteristics that exceed the capabilities of conventional industrial cables in mining environments.

Reliability and safety represent the fundamental objectives that drive mining cable design, with compliance to BS 6708 standards ensuring that electrical installations meet the rigorous requirements for operation in potentially explosive atmospheres. The cable's construction provides multiple layers of protection against the various failure modes that could compromise safety or operational continuity.

Proper selection and maintenance practices play crucial roles in achieving the cable's design life expectancy whilst maintaining safety performance throughout its operational period. Understanding the cable's specifications, installation requirements, and environmental limitations enables mining professionals to maximise the return on their electrical infrastructure investments.

The future of mining cable technology will likely incorporate advanced materials and construction techniques that further improve performance and reliability. However, the fundamental principles embodied in BS 6708 TYPE 14 cable design will continue to influence mining cable development, ensuring that safety and reliability remain paramount considerations in mining electrical systems.

Mining operations that prioritise proper cable selection, installation practices, and maintenance programmes will benefit from reduced downtime, lower maintenance costs, and enhanced safety performance. The investment in quality mining cables such as BS 6708 TYPE 14 represents sound engineering practice that supports efficient and safe mining operations.
