BS 6708 Type 16 Mining Cable

Introduction

The mining industry operates in some of the most challenging and hazardous environments on Earth, where electrical safety and reliability are not merely preferences but absolute necessities. Underground mining operations, in particular, present unique challenges that standard electrical cables simply cannot address adequately. The presence of explosive gases, extreme temperatures, mechanical stress, and corrosive environments demands specialised equipment that can maintain both safety and performance under these demanding conditions.

The British Standard BS 6708 represents a critical framework for ensuring that electrical cables used in mining applications meet the stringent requirements necessary for safe operation in potentially explosive atmospheres. This standard encompasses various cable types, each designed for specific applications within the mining environment. Among these, the Type 16 cable stands out as a particularly versatile and robust solution for powering heavy-duty mining equipment.

BS 6708 Type 16 mining cable represents a sophisticated engineering solution that balances electrical performance, mechanical durability, and safety requirements. This cable type has been specifically developed to address the complex challenges faced by mining operations, where traditional cables would quickly fail or, worse, create dangerous situations. The cable's design incorporates advanced materials and construction techniques that enable it to withstand the harsh conditions whilst maintaining reliable electrical performance.

Understanding the intricacies of BS 6708 Type 16 cable is essential for mining engineers, electrical contractors, and safety professionals who work in this demanding industry. This comprehensive guide will explore the cable's construction, electrical parameters, application scenarios, and practical considerations that influence its selection and implementation in mining operations.

Application Scenarios

Underground Mining Environments

Underground mining operations present perhaps the most challenging environments for electrical equipment. The confined spaces, limited ventilation, and potential presence of explosive gases create conditions where cable failure can have catastrophic consequences. BS 6708 Type 16 cables are specifically engineered to operate safely in these hazardous environments, where methane, coal dust, and other combustible materials may be present.

The cable's construction incorporates features that minimise the risk of creating ignition sources. The screening system over the phase conductors helps prevent electromagnetic interference whilst reducing the likelihood of electrical arcing that could ignite explosive atmospheres. The robust outer sheath provides mechanical protection against the constant abrasion and impact that cables experience in underground mining operations, where they may be dragged across rocky surfaces or compressed by heavy machinery.

Deep mines present additional challenges related to temperature variations and pressure changes. As miners descend deeper underground, temperatures typically increase, and the mechanical stresses on cables become more severe. The EPR insulation used in BS 6708 Type 16 cables maintains its electrical properties across a wide temperature range, ensuring consistent performance even in these extreme conditions.

The cable's flexibility is crucial in underground applications where space is at a premium and cables must navigate tight bends around mining equipment and through narrow passages. The stranded copper conductors and flexible outer sheath allow the cable to conform to the irregular surfaces and confined spaces typical of underground mining operations without compromising electrical performance or mechanical integrity.

Surface Mining Operations

Surface mining operations, including open-pit mines and quarries, present their own unique set of challenges for electrical cables. Whilst these environments may not have the explosive atmosphere concerns of underground operations, they subject cables to extreme weather conditions, UV radiation, and significant mechanical stress from large-scale earthmoving equipment.

BS 6708 Type 16 cables demonstrate excellent performance in surface mining applications due to their robust construction and weather-resistant properties. The chloroprene outer sheath provides exceptional resistance to ozone, UV radiation, and temperature extremes, making it ideal for outdoor applications where cables may be exposed to direct sunlight and varying weather conditions for extended periods.

The cable's ability to maintain performance in dusty environments is particularly important in surface mining operations, where fine particulate matter can infiltrate electrical connections and cause failures. The screening system and robust insulation help protect the electrical integrity of the cable even when subjected to the abrasive dust common in quarrying and open-pit mining operations.

Quarrying operations often involve the use of water for dust suppression and material processing, creating additional challenges for electrical equipment. The water-resistant properties of BS 6708 Type 16 cables make them suitable for use in these wet conditions, where moisture ingress could otherwise cause short circuits or ground faults.

Equipment Compatibility

The versatility of BS 6708 Type 16 cables extends to their compatibility with a wide range of mining equipment. These cables are specifically designed to power excavating machinery, including hydraulic excavators, draglines, and bucket-wheel excavators that form the backbone of modern mining operations. The cable's current-carrying capacity and voltage ratings are well-matched to the power requirements of these large machines.

Crushing and processing equipment presents particular challenges due to the high starting currents and variable loads associated with this machinery. BS 6708 Type 16 cables are designed to handle these demanding electrical conditions, with short-circuit current ratings that ensure safe operation even under fault conditions. The cable's construction allows it to dissipate heat efficiently, preventing overheating during periods of high electrical load.

Drilling equipment requires cables that can withstand constant vibration and movement whilst maintaining reliable electrical connections. The stranded conductor construction and flexible insulation of BS 6708 Type 16 cables make them ideal for these dynamic applications, where rigid cables would quickly suffer from fatigue failure.

The integration of pilot cores within the cable design is particularly valuable for modern mining equipment that incorporates sophisticated control systems. These pilot cores provide reliable signal transmission for equipment monitoring, safety systems, and remote control functions, all within a single cable assembly that simplifies installation and maintenance.

Electrical Parameters

Voltage Ratings

The electrical design of BS 6708 Type 16 cables centres around a rated voltage of 640/1100V, which represents the voltage between phase and earth (640V) and the voltage between phases (1100V). This voltage rating is specifically chosen to match the electrical systems commonly used in mining operations, where higher voltages are necessary to efficiently transmit power over long distances whilst minimising current levels and associated losses.

The test voltage specifications provide crucial insight into the cable's electrical integrity and safety margins. Phase conductors are tested at 3kV, which represents nearly three times the operating voltage, ensuring that the insulation system can withstand voltage surges and transients that may occur during normal operation. The reduced test voltage of 1.5kV for pilot and earth cores reflects their different roles within the electrical system and their typically lower operating voltages.

These test voltage levels are not arbitrary but are carefully calculated to ensure that the cables can withstand the electrical stresses encountered in mining operations. Mining equipment often operates in environments where electrical noise, voltage spikes, and power quality issues are common, making robust insulation systems essential for reliable operation.

The voltage rating also influences the cable's application range and compatibility with different electrical systems. The 640/1100V rating makes these cables suitable for medium-voltage applications whilst remaining compatible with the protection and control systems commonly used in mining operations.

Current Carrying Capacity

The current-carrying capacity of BS 6708 Type 16 cables varies significantly with conductor size and is specified at a standard ambient temperature of 25°C. This temperature reference point is crucial for proper cable selection, as higher ambient temperatures will reduce the cable's current-carrying capacity, whilst lower temperatures may allow for higher current levels.

For the smallest configuration (3x25+3x10 mm²), the continuous current rating is 110A, which is suitable for smaller mining equipment or auxiliary systems. As the conductor size increases, the current-carrying capacity rises proportionally, reaching 250A for the largest standard configuration (3x95+3x35 mm²). This scalability allows engineers to select the appropriate cable size for specific applications whilst maintaining consistent construction and performance characteristics.

The short-circuit current ratings are equally important, as they determine the cable's ability to withstand fault conditions without sustaining damage. These ratings, specified for one-second durations, range from 3,450A for smaller cables to 7,300A for larger configurations. These high short-circuit ratings reflect the robust construction of the cables and their ability to handle the extreme electrical stresses that occur during fault conditions.

Understanding these current ratings is crucial for proper cable selection and electrical system design. Undersized cables can lead to overheating, voltage drops, and potential fire hazards, whilst oversized cables represent unnecessary cost and installation complexity. The comprehensive range of available sizes allows engineers to optimise their cable selections for specific applications.

Resistance and Conductivity

The DC resistance characteristics of BS 6708 Type 16 cables are specified at 20°C and provide important information about the cable's electrical efficiency and voltage drop characteristics. Lower resistance values indicate better conductivity and reduced power losses during transmission, which is particularly important in mining operations where cables may span considerable distances.

Phase conductor resistance ranges from 0.795 Ω/km for 25 mm² conductors to 0.21 Ω/km for 95 mm² conductors, demonstrating the inverse relationship between conductor size and resistance. This relationship is fundamental to electrical engineering and reflects the increased cross-sectional area available for current flow in larger conductors.

The pilot and earth conductor resistance values are generally higher than those of the phase conductors due to their smaller cross-sectional areas. However, these conductors typically carry much smaller currents, so their higher resistance values do not significantly impact overall system performance. The earth conductor resistance is particularly important for safety considerations, as it affects the effectiveness of protective earthing systems.

The screening system resistance is also specified, reflecting its role in providing electromagnetic compatibility and potentially serving as an additional earthing path. The parallel connection of three screens results in a lower overall resistance than individual screen wires, improving the effectiveness of the screening system.

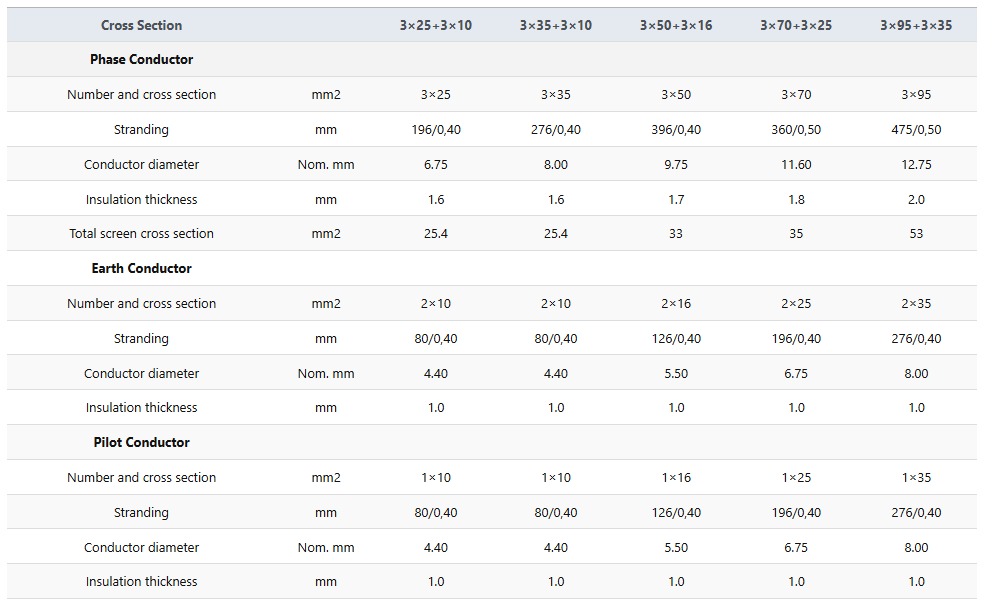

Cable Construction and Materials

Conductor Design

The foundation of any electrical cable lies in its conductor design, and BS 6708 Type 16 cables utilise electrolytic copper conductors that conform to IEC 60228 Class 5 specifications. This classification indicates that the conductors are made from stranded copper wires, which provide the flexibility necessary for mining applications whilst maintaining excellent electrical conductivity.

The use of tinned copper wire represents a crucial design decision that significantly enhances the cable's performance and longevity. The tin coating provides corrosion resistance, preventing the formation of copper oxides that could increase resistance and create hot spots. In mining environments, where moisture, chemicals, and abrasive conditions are common, this corrosion resistance is essential for maintaining long-term electrical performance.

The stranding configuration varies with conductor size but is designed to optimise both electrical performance and mechanical flexibility. Larger conductors utilise more individual strands to maintain flexibility whilst providing the necessary current-carrying capacity. The stranding pattern is carefully engineered to minimise the overall conductor diameter whilst ensuring that individual strands are not overstressed during cable installation and operation.

The Class 5 designation indicates that these conductors are suitable for flexible applications where the cable may be subjected to regular movement or vibration. This flexibility is crucial in mining operations where cables must accommodate the movement of mobile equipment whilst maintaining reliable electrical connections.

Insulation System

The insulation system of BS 6708 Type 16 cables utilises Ethylene Propylene Rubber (EPR), which offers superior performance characteristics compared to traditional insulation materials. EPR combines excellent electrical properties with outstanding resistance to thermal aging, ozone, and chemical attack, making it ideal for the harsh conditions encountered in mining operations.

The thermal properties of EPR are particularly important in mining applications where cables may be subjected to elevated temperatures from equipment heat, direct sunlight, or underground thermal conditions. EPR maintains its electrical properties across a wide temperature range, ensuring consistent performance even under thermal stress.

The electrical properties of EPR include high dielectric strength and low dielectric loss, which contribute to the cable's ability to operate efficiently at its rated voltage. The material's resistance to tracking and erosion helps maintain insulation integrity even when subjected to contamination from dust, moisture, or chemical exposure.

The flexibility of EPR insulation is crucial for mining applications where cables must bend around equipment and through confined spaces. Unlike rigid insulation materials that can crack under mechanical stress, EPR maintains its integrity even when subjected to repeated flexing and vibration.

Screening and Identification

The screening system employed in BS 6708 Type 16 cables serves multiple critical functions. The tinned copper and nylon braided screen over the phase conductors provides electromagnetic interference (EMI) shielding, which is essential for preventing interference with sensitive electronic equipment and communication systems commonly used in modern mining operations.

The decision to screen only the phase conductors whilst leaving the pilot and earth cores unscreened reflects the different roles these conductors play within the electrical system. Phase conductors carry the primary power and are the most likely sources of electromagnetic interference, whilst pilot cores typically carry low-level signals that benefit from the EMI protection provided by the overall cable screening.

The coloured textile tape separator system provides a simple but effective means of core identification during installation and maintenance. Each core is identified by a specific colour code that allows electricians to quickly and accurately identify individual conductors, reducing the risk of wiring errors that could lead to equipment damage or safety hazards.

The screening system also provides an additional earthing path that can enhance the safety of the electrical installation. In the event of insulation failure, the screen can help conduct fault currents safely to earth, facilitating the operation of protective devices and reducing the risk of electric shock.

Layup and Assembly

The layup configuration of BS 6708 Type 16 cables is carefully engineered to optimise both electrical performance and mechanical properties. The phase cores are laid up in contact with each other, which helps balance the electromagnetic fields within the cable and reduces inductance. This configuration is particularly important for three-phase power transmission where balanced electrical characteristics are essential.

The interleaving of two earth cores and one pilot core between the phase cores serves multiple purposes. This arrangement helps maintain the circular cross-section of the cable, which is important for mechanical strength and ease of handling. It also ensures that the earth cores are well-distributed around the cable circumference, providing effective earthing regardless of how the cable is oriented.

The rubber-based bedding compound serves as a cushioning layer that protects the internal components from mechanical stress and helps maintain the cable's structural integrity. This bedding material also helps fill any voids within the cable assembly, preventing the ingress of moisture or contaminants that could compromise electrical performance.

Outer Sheath Protection

The heavy-duty chloroprene outer sheath represents the cable's primary defence against the harsh conditions encountered in mining operations. Chloroprene offers exceptional resistance to abrasion, impact, and chemical attack, making it ideal for applications where cables may be dragged across rocky surfaces or exposed to industrial chemicals.

The weather resistance of chloroprene is particularly important for surface mining applications where cables may be exposed to UV radiation, temperature extremes, and precipitation. Unlike some synthetic materials that become brittle when exposed to UV radiation, chloroprene maintains its flexibility and mechanical properties even after prolonged outdoor exposure.

The flame-resistant properties of chloroprene contribute to the overall safety of the cable system. In the event of fire, the material does not support combustion and produces minimal toxic fumes, which is crucial in confined underground mining environments where smoke and toxic gases can pose serious hazards to personnel.

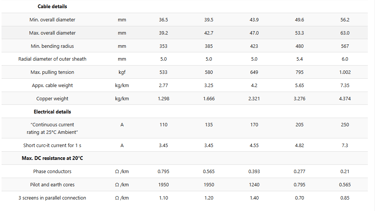

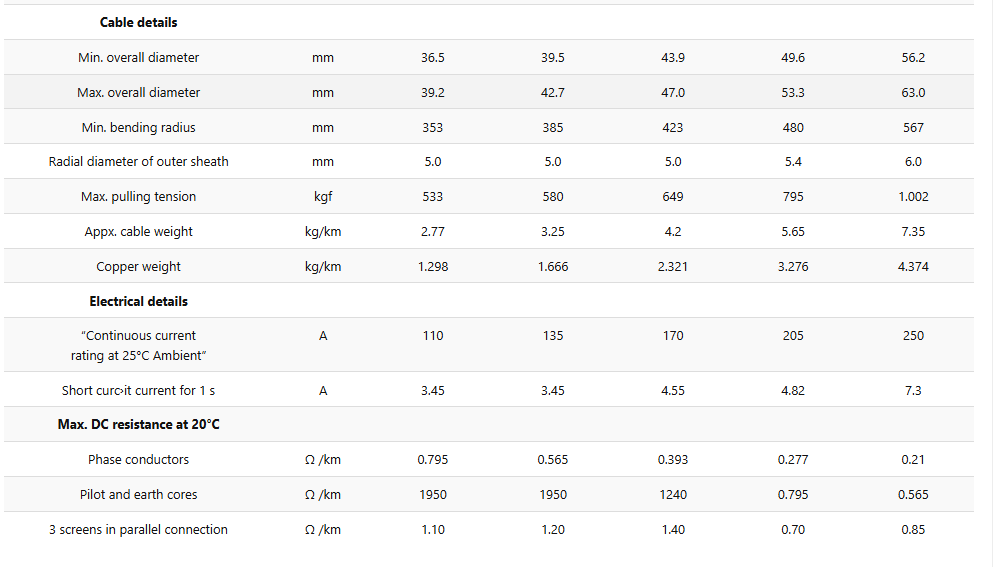

Technical Specifications

Conductor Configurations and Sizing

The range of available conductor configurations for BS 6708 Type 16 cables reflects the diverse power requirements of mining equipment. The smallest configuration, 3x25+3x10 mm², provides 110A continuous current capacity and is suitable for smaller auxiliary equipment, conveyor systems, or lighting circuits that require reliable power in hazardous environments.

Moving up the size range, the 3x35+3x10 mm² configuration offers 135A capacity and represents a common choice for medium-sized mining equipment such as smaller excavators, pumps, or ventilation fans. The increase in current capacity comes with a proportional increase in cable size and weight, requiring careful consideration of installation constraints and support requirements.

The 3x50+3x16 mm² configuration, with its 170A capacity, bridges the gap between smaller auxiliary systems and large primary equipment. This size is often chosen for equipment that requires moderate power levels but operates in demanding conditions where reliability is paramount.

For heavy-duty applications, the 3x70+3x25 mm² configuration provides 205A capacity and is suitable for large excavators, draglines, or major processing equipment. The increased earth conductor size in this configuration (25 mm² compared to 10 mm² in smaller cables) reflects the higher fault currents that may occur with larger electrical loads.

The largest standard configuration, 3x95+3x35 mm², offers 250A capacity and represents the choice for the most demanding mining applications. This cable size is typically used for main power feeds to large equipment or for distribution systems that serve multiple loads.

Physical Dimensions and Handling

The physical dimensions of BS 6708 Type 16 cables are carefully engineered to balance electrical performance with practical installation considerations. The overall diameter ranges from 36.5-39.2 mm for the smallest configuration to 56.2-63.0 mm for the largest, with the variation reflecting manufacturing tolerances and the precise layup of internal components.

The minimum bending radius specifications are crucial for proper installation and long-term reliability. These values, ranging from 353 mm to 567 mm depending on cable size, represent the tightest bend that the cable can accommodate without damaging internal components or compromising electrical performance. Exceeding these limits can cause conductor breakage, insulation damage, or screening failures.

Cable weight is an important practical consideration, particularly for installations involving long cable runs or difficult access areas. The weights range from approximately 2,770 kg/km for the smallest cable to 7,350 kg/km for the largest configuration. These weights include not only the copper conductors but also the insulation, screening, and protective sheath materials.

The copper weight specifications are valuable for cost estimation and recycling considerations. The copper content ranges from 1,298 kg/km to 4,374 kg/km, representing a significant portion of the cable's overall weight and value. Understanding these weights is important for transportation planning, installation equipment selection, and end-of-life cable disposal.

Mechanical Properties

The maximum pulling tension specifications define the limits for cable installation and handling. These values, ranging from 533 kgf to 1,002 kgf depending on cable size, represent the maximum force that can be applied to the cable during installation without causing damage to internal components.

Exceeding these pulling tension limits can result in conductor stretching, insulation compression, or screening damage that may not be immediately apparent but can lead to premature cable failure. Proper installation techniques, including the use of appropriate pulling grips and tension monitoring equipment, are essential for maintaining cable integrity during installation.

The radial thickness of the outer sheath varies from 5.0 mm to 6.0 mm depending on cable size. This thickness is carefully calculated to provide adequate mechanical protection whilst maintaining cable flexibility. Thicker sheaths offer better protection but reduce flexibility and increase overall cable diameter.

Frequently Asked Questions

What makes BS 6708 Type 16 suitable for explosive environments?

The suitability of BS 6708 Type 16 cables for explosive environments stems from several carefully engineered design features that work together to minimise ignition risks whilst maintaining reliable electrical performance. The fundamental principle behind this suitability lies in the cable's ability to prevent the creation of ignition sources that could trigger explosions in atmospheres containing combustible gases or dust.

The screening system over the phase conductors plays a crucial role in preventing electromagnetic interference and reducing the likelihood of electrical arcing, which could serve as an ignition source. The tinned copper and nylon braided screen effectively contains electromagnetic fields whilst providing a controlled path for fault currents, preventing the formation of dangerous voltage gradients that could lead to flashover or arcing.

The insulation system utilises EPR, which offers superior resistance to thermal degradation and maintains its electrical properties even under stress. This reliability is crucial in explosive environments where insulation failure could create hot spots or electrical faults that might ignite surrounding gases or dust. The material's resistance to tracking and erosion helps ensure long-term electrical integrity even when exposed to contamination.

The robust outer sheath construction provides mechanical protection that prevents physical damage to internal components. In explosive environments, even minor cable damage can create conditions for electrical faults or overheating. The chloroprene sheath's resistance to abrasion, impact, and chemical attack helps maintain cable integrity throughout its service life.

The cable's construction also incorporates proper earthing provisions through multiple earth conductors and the screening system. Effective earthing is essential in explosive environments as it provides a safe path for fault currents and helps prevent the buildup of static electricity that could serve as an ignition source.

Can this cable be used with mobile mining equipment?

BS 6708 Type 16 cables are exceptionally well-suited for mobile mining equipment applications, and their design specifically addresses the unique challenges presented by equipment that must move regularly during operation. The cable's flexibility characteristics make it ideal for applications where regular movement and repositioning are required.

The stranded copper conductor construction provides the mechanical flexibility necessary for mobile applications whilst maintaining excellent electrical conductivity. The Class 5 stranding specification ensures that the conductors can withstand the repeated flexing and vibration associated with mobile equipment without suffering from fatigue failure that could interrupt power supply.

The EPR insulation system maintains its properties even when subjected to the dynamic mechanical stresses associated with mobile equipment. Unlike rigid insulation materials that can crack or degrade under repeated flexing, EPR retains its electrical integrity and flexibility throughout the cable's operational life.

The cable's ability to handle the electrical demands of mobile equipment is demonstrated by its current-carrying capacity and short-circuit ratings. Mobile mining equipment often requires high starting currents and may be subjected to variable loading conditions that can stress electrical systems. The cable's robust electrical specifications ensure reliable performance under these demanding conditions.

For mobile applications, proper cable management becomes crucial to prevent damage from dragging, crushing, or excessive bending. The cable's minimum bending radius specifications must be observed, and appropriate cable reels or trailing systems should be employed to protect the cable during equipment movement.

The pilot core provision within the cable design is particularly valuable for modern mobile equipment that incorporates sophisticated control and monitoring systems. These cores can carry control signals, feedback information, and safety system communications, all within a single cable assembly that simplifies installation and reduces the risk of connection failures.

How does the cable's screening affect performance?

The screening system in BS 6708 Type 16 cables significantly enhances performance in several critical areas that are particularly important in mining operations. The primary function of the screening is to provide electromagnetic interference (EMI) protection, which is essential in modern mining operations where sensitive electronic equipment and control systems are commonplace.

Mining equipment increasingly incorporates sophisticated electronic controls, variable frequency drives, and computerised monitoring systems that can be susceptible to electromagnetic interference. The tinned copper and nylon braided screen over the phase conductors effectively contains the electromagnetic fields generated by power transmission, preventing these fields from interfering with nearby sensitive equipment.

The screening also works in reverse, protecting the power conductors from external electromagnetic interference that could affect power quality or create unwanted electrical noise. This bidirectional protection is particularly important in mining environments where multiple electrical systems operate nearby and electromagnetic compatibility is crucial for overall system reliability.

From a safety perspective, the screening system provides an additional earthing path that can enhance fault protection. In the event of insulation failure, the screen can help conduct fault currents to earth, facilitating the rapid operation of protective devices and reducing the risk of electric shock or fire. This redundancy in earthing paths is particularly valuable in hazardous mining environments.

The screening also contributes to the cable's ability to maintain signal integrity in the pilot cores. By providing electromagnetic shielding around the entire cable assembly, the screen helps ensure that control signals and communications transmitted through the pilot cores remain clear and reliable, even in electrically noisy environments.

However, proper installation and termination of the screening system are crucial for realising these benefits. The screen must be properly connected to earth at appropriate points, and care must be taken to maintain screen continuity throughout the installation. Poorly terminated screens can actually degrade performance and may create safety hazards.

What maintenance practices are recommended for these cables?

Proper maintenance of BS 6708 Type 16 cables is essential for ensuring long-term reliability and safety in mining operations. A comprehensive maintenance programme should encompass regular inspections, proper handling procedures, and prompt attention to any signs of damage or degradation.

Regular visual inspections should be conducted to identify signs of physical damage such as cuts, abrasions, or deformation of the outer sheath. Particular attention should be paid to areas where cables are subjected to mechanical stress, such as connection points, areas where cables pass through structures, or locations where they may contact moving equipment. Any damage to the outer sheath should be evaluated and repaired promptly to prevent moisture ingress or further deterioration.

Electrical testing should be performed periodically to verify insulation integrity and conductor continuity. Insulation resistance testing can identify deterioration before it leads to complete failure, allowing for planned replacement rather than emergency repairs. The frequency of testing should be based on operating conditions, with more frequent testing in harsh environments or for critical applications.

Proper installation practices are crucial for minimising maintenance requirements. Cables should be installed with adequate support to prevent excessive mechanical stress, and bending radius limitations must be strictly observed. The use of appropriate cable management systems, such as cable trays, conduits, or protective sleeves, can significantly extend cable life by reducing exposure to mechanical damage.

Connection points require particular attention as they are often the weakest link in cable systems. Connections should be kept clean and dry, with appropriate sealing compounds used to prevent moisture ingress. Regular inspection and retightening of connections may be necessary, particularly in environments subject to vibration or temperature cycling.

Environmental factors should be monitored and controlled where possible. Excessive heat, moisture, or chemical exposure can accelerate cable degradation. Proper ventilation, drainage, and chemical compatibility should be considered in installation design to minimise these environmental stresses.

Documentation and record-keeping are important aspects of cable maintenance. Maintaining records of installation dates, inspection results, repairs, and replacements helps establish maintenance patterns and can guide decisions about cable replacement before failures occur.

Conclusion

BS 6708 Type 16 mining cables represent a sophisticated engineering solution that addresses the complex challenges of electrical power distribution in mining operations. Through careful attention to material selection, construction techniques, and electrical design, these cables provide reliable performance in some of the most demanding industrial environments.

The cable's versatility across both underground and surface mining applications makes it a valuable asset for mining operations that require consistent electrical performance across diverse operating conditions. From the explosive atmosphere protection required in underground coal mines to the weather resistance needed for surface quarrying operations, BS 6708 Type 16 cables deliver the reliability that mining operations demand.

The comprehensive range of conductor sizes and configurations ensures that engineers can select appropriate cables for applications ranging from auxiliary equipment to primary power distribution. The consistent construction and performance characteristics across this range simplify specification, installation, and maintenance procedures whilst ensuring compatibility within integrated electrical systems.

The electrical specifications of these cables, including their voltage ratings, current-carrying capacity, and short-circuit performance, are well-matched to the requirements of modern mining equipment. The provision of pilot cores within the same cable assembly addresses the growing need for integrated control and monitoring systems in mining operations.

Safety considerations are paramount in mining operations, and BS 6708 Type 16 cables contribute significantly to overall electrical safety through their robust construction, effective screening systems, and appropriate earthing provisions. The cables' ability to operate safely in explosive atmospheres whilst maintaining reliable electrical performance makes them an essential component of mining electrical systems.

Looking forward, the mining industry continues to evolve with increasing automation, remote monitoring, and sophisticated control systems. BS 6708 Type 16 cables are well-positioned to support these developments through their reliable electrical performance and integrated pilot core capabilities that can accommodate advanced communication and control requirements.

The importance of proper installation, maintenance, and handling cannot be overstated. These cables represent significant investments in mining operations, and their long-term performance depends on adherence to proper engineering practices throughout their service life. Regular inspection, appropriate installation techniques, and prompt attention to maintenance requirements are essential for realising the full potential of these sophisticated cable systems.

For mining professionals, understanding the capabilities and limitations of BS 6708 Type 16 cables is crucial for making informed decisions about electrical system design and implementation. The comprehensive specifications and proven performance of these cables make them a reliable choice for the demanding requirements of modern mining operations.
