BS 6708 Type 211 Mining Cable

Introduction

The BS 6708 Type 211 mining cable represents a pinnacle of engineering excellence designed specifically for the demanding world of underground mining operations. This specialised cable system addresses the unique challenges faced in mining environments where explosive gases, dust, mechanical stress, and harsh environmental conditions create requirements far beyond those of standard industrial cables.

Understanding the intricacies of this cable system becomes crucial when we consider that mining operations often involve life-critical equipment operating in potentially hazardous environments. The BS 6708 Type 211 cable serves as the vital electrical lifeline that powers excavators, crushers, drilling equipment, and cutting machines deep underground, where reliability isn't just about operational efficiency—it's about safety and survival.

The British Standard BS 6708 establishes comprehensive requirements for flexible cables intended for use in coal mines and other mining applications where methane and coal dust may be present. This standard ensures that cables can withstand not only the electrical demands of heavy machinery but also the environmental challenges that characterise underground mining operations.

Application Scenarios and Operating Environments

To truly appreciate the engineering behind the BS 6708 Type 211 cable, we must first understand the extraordinary conditions it faces in real-world applications. Mining environments present a unique combination of challenges that would quickly destroy conventional electrical cables.

Underground Mining Operations

Underground mining represents one of the most challenging environments for electrical equipment. Deep beneath the earth's surface, mining operations encounter conditions that test every aspect of cable design. The presence of explosive gases, particularly methane, creates an environment where electrical equipment must operate without creating ignition sources. Coal dust, which can also be explosive when suspended in air, adds another layer of complexity to the safety requirements.

The BS 6708 Type 211 cable addresses these concerns through its specialised construction and materials selection. The cable's design ensures that even under mechanical stress or damage, it won't create sparks or heat concentrations that could ignite explosive atmospheres. This safety characteristic makes it indispensable for powering equipment like continuous miners, shuttle cars, and conveyor systems that operate in the heart of underground mining operations.

Temperature variations in underground environments can be extreme, ranging from the natural geothermal heat found at greater depths to the cooling effects of ventilation systems. The cable must maintain its electrical properties and mechanical integrity across these temperature ranges while continuing to operate reliably.

Surface Mining Applications

While underground mining presents obvious challenges, surface mining operations also create demanding conditions for electrical cables. Open-pit mining exposes equipment to weather extremes, from scorching sun to freezing temperatures, and from heavy rainfall to dust storms. The BS 6708 Type 211 cable's robust construction enables it to function reliably in these varied conditions.

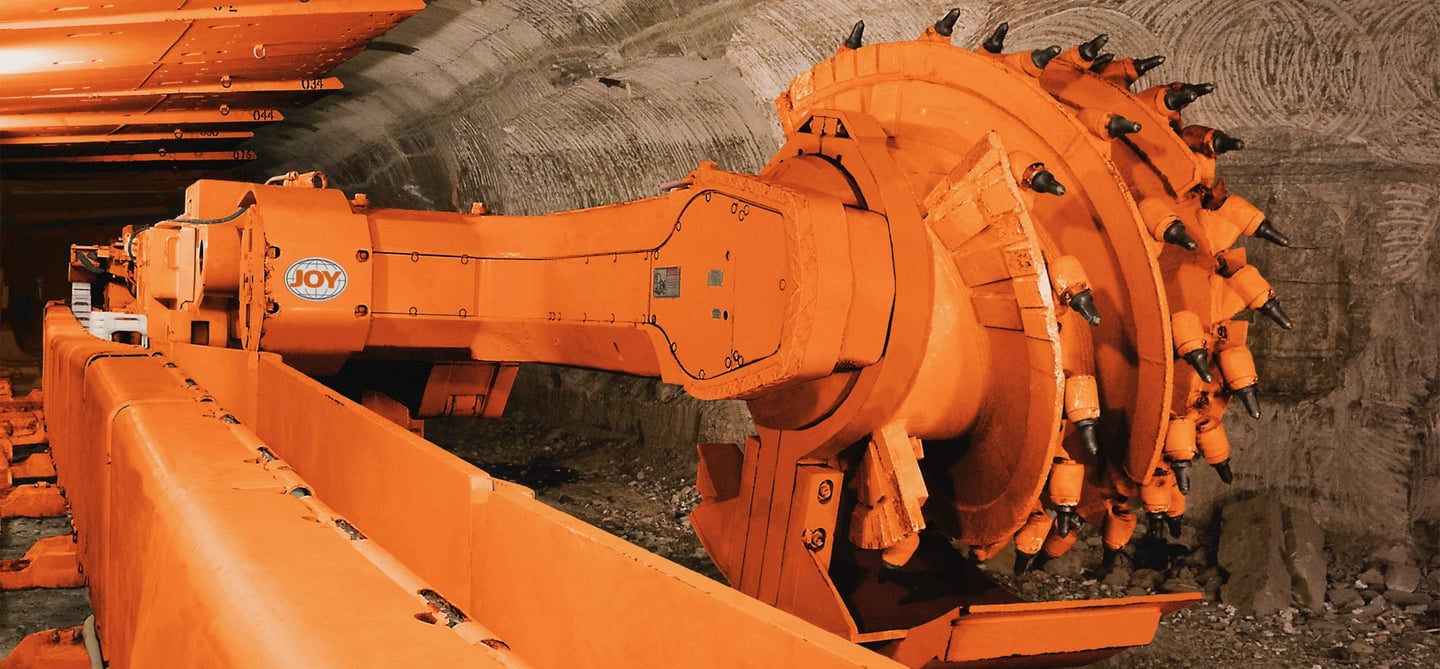

Large-scale surface mining equipment, such as electric shovels, draglines, and massive haul trucks, require substantial electrical power delivery. The cable must handle high currents while maintaining flexibility for equipment movement. The mechanical stresses from equipment operation, combined with the abrasive nature of mining environments, demand exceptional durability from the cable's outer protection systems.

Equipment Compatibility and Power Requirements

Mining equipment represents some of the most power-hungry machinery in industrial applications. Electric excavators can draw hundreds of amperes during peak operation, while rock crushers and ball mills require consistent, reliable power delivery to maintain operational efficiency. The BS 6708 Type 211 cable's current ratings, ranging from 63 amperes to 295 amperes depending on conductor size, accommodate these demanding applications.

The cable's flexibility becomes particularly important when powering mobile mining equipment. Unlike stationary industrial installations, mining equipment frequently moves, creating dynamic loading conditions that can quickly fatigue rigid cable designs. The EPR insulation and specialised construction of the BS 6708 Type 211 cable provide the flexibility needed for these applications while maintaining electrical integrity.

Detailed Cable Construction Analysis

The construction of the BS 6708 Type 211 cable represents a masterpiece of electrical engineering, where each component serves specific functions in creating a system capable of surviving in mining environments. Let's examine each layer and understand its contribution to the cable's overall performance.

Conductor Design and Materials

The foundation of any electrical cable lies in its conductor system, and the BS 6708 Type 211 cable employs electrolytic copper conductors that meet the stringent requirements of IEC 60228 Class 5. This classification indicates a stranded conductor design that provides the flexibility necessary for mining applications while maintaining excellent electrical conductivity.

The decision to use tinned copper rather than bare copper reflects the challenging environmental conditions the cable faces. Tinning provides a protective barrier against corrosion, which becomes critical in mining environments where moisture, chemical vapours, and corrosive substances are common. The tin coating ensures that the conductor maintains its electrical properties over the cable's operational lifetime, even when exposed to harsh chemical environments.

The stranding pattern follows precise specifications, with configurations ranging from 80 strands of 0.40mm wire for smaller conductors to 608 strands of 0.50mm wire for larger sizes. This fine stranding provides the flexibility needed for installation and operation while distributing mechanical stresses across multiple wire elements, reducing the likelihood of conductor failure due to fatigue.

Insulation System

The choice of EPR (Ethylene Propylene Rubber) for insulation represents a careful balance of electrical, mechanical, and environmental properties. EPR insulation offers superior performance compared to traditional PVC or rubber compounds in several critical areas that directly impact mining applications.

From an electrical perspective, EPR maintains excellent dielectric properties across a wide temperature range, ensuring consistent insulation performance whether the cable operates in the cool depths of a mine or near heat-generating equipment. The material's resistance to electrical degradation over time helps maintain safety margins throughout the cable's service life.

Mechanically, EPR provides the flexibility needed for installation and operation while resisting the crushing forces that mining cables often encounter. The material's resistance to cracking under repeated flexing ensures that the insulation integrity remains intact even after thousands of operational cycles.

Environmental resistance becomes particularly important in mining applications. EPR's resistance to ozone, moisture, and many chemicals found in mining environments prevents premature deterioration of the insulation system. This resistance extends the cable's operational life and maintains safety margins even in challenging conditions.

Screening System

The screening system in the BS 6708 Type 211 cable employs tinned copper braid over the phase conductors, creating an electromagnetic shield that serves multiple purposes in mining applications. The screen helps contain electromagnetic interference generated by the high-current switching operations common in mining equipment, preventing interference with sensitive control systems and communication equipment.

Importantly, the design specifically excludes screening from the earth conductor. This design choice reflects the specific requirements of mining applications where the earth conductor serves critical safety functions. The unscreened earth conductor ensures that ground fault currents can flow efficiently to protective devices, enabling rapid detection and isolation of electrical faults.

The use of tinned copper for the screening provides the same corrosion resistance benefits as the main conductors while ensuring excellent electrical continuity of the shield. The braided construction maintains screen integrity even under the mechanical stresses encountered in mining operations.

Core Assembly and Bedding

The assembly of individual cores within the cable follows a contact lay-up arrangement where all conductors touch each other. This design choice maximises the use of available space within the cable cross-section while providing mutual support between cores. In mining applications where space constraints often influence installation routes, this compact design provides significant advantages.

The rubber-based bedding compound serves multiple functions within the cable assembly. It provides cushioning that helps distribute mechanical loads across the core assembly, reducing stress concentrations that could lead to premature failure. The bedding also helps maintain the cable's round cross-section under external pressure, ensuring consistent electrical spacing between conductors.

The bedding compound's formulation must balance several competing requirements. It must remain flexible across the temperature range encountered in mining operations while providing sufficient mechanical support. The material must also resist degradation from oils, chemicals, and moisture that may penetrate the outer protective layers.

Armour Protection System

The galvanised steel wire armour represents the cable's primary defence against the mechanical hazards encountered in mining operations. The seven-strand wire construction provides flexibility while delivering exceptional crush resistance and impact protection. Each armour wire is galvanised to provide corrosion resistance, ensuring that the mechanical protection remains effective throughout the cable's operational life.

The armour design must balance protection with flexibility. Too heavy an armour system would make the cable unwieldy and difficult to install, while insufficient protection would leave the cable vulnerable to damage from the rocks, debris, and heavy equipment common in mining environments. The BS 6708 Type 211 cable's armour specifications represent an optimised balance of these competing requirements.

Outer Sheath Protection

The heavy-duty chloroprene outer sheath provides the final barrier between the cable's internal components and the harsh mining environment. Chloroprene was chosen for its exceptional resistance to oils, flames, abrasion, and environmental degradation. These properties are essential in mining applications where cables may be exposed to hydraulic fluids, fuel oils, and other petroleum products.

The flame resistance of chloroprene becomes particularly important in mining applications where fire hazards exist. The sheath's ability to resist ignition and limit flame spread provides an additional safety margin in environments where fire could have catastrophic consequences.

Abrasion resistance ensures that the cable can withstand the scraping and rubbing that occurs when cables are dragged across rough surfaces or when equipment moves over cable runs. The sheath thickness varies with cable size, providing appropriate protection levels for different installation requirements.

Electrical Parameters and Performance Characteristics

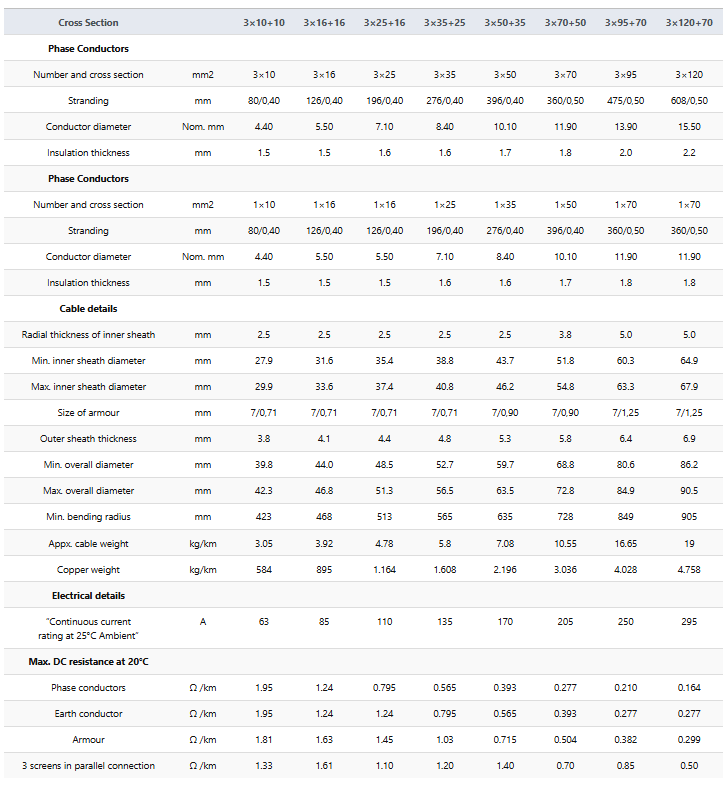

Understanding the electrical characteristics of the BS 6708 Type 211 cable requires examining how its design translates into real-world performance. The cable's electrical parameters directly impact its suitability for various mining applications and influence installation and operational considerations.

Voltage Ratings and Insulation Coordination

The cable's rated voltage of 640/1100V reflects the standard voltage levels used in mining operations. The first figure (640V) represents the voltage between any conductor and earth, while the second figure (1100V) represents the voltage between any two conductors. This rating system ensures that the cable can safely operate in three-phase systems with earthed neutral configurations commonly used in mining applications.

The test voltage of 3kV provides a safety margin well above the operating voltage, ensuring that the insulation system can withstand the overvoltages that may occur during switching operations or fault conditions. This test voltage reflects the demanding safety requirements of mining applications where electrical failures can have serious consequences.

Current Carrying Capacity

The current ratings for BS 6708 Type 211 cables range from 63 amperes for the smallest conductor size (3×10+10mm²) to 295 amperes for the largest (3×120+70mm²). These ratings assume an ambient temperature of 25°C, which represents typical underground mining conditions.

Current carrying capacity depends on several factors including conductor size, installation method, ambient temperature, and grouping with other cables. In mining applications, cables are often installed in cable trays or underground ducts where heat dissipation may be limited. Understanding these derating factors becomes crucial for proper cable selection and installation.

The relationship between conductor size and current capacity isn't linear due to the increasing importance of heat dissipation as conductor size grows. Larger conductors generate more heat per unit length, requiring proportionally better heat dissipation to maintain safe operating temperatures.

Resistance Characteristics

The DC resistance values provided in the specification serve multiple purposes in mining cable applications. Phase conductor resistance directly impacts voltage drop calculations, which become critical in long cable runs common in mining operations. Excessive voltage drop can cause equipment to operate inefficiently or fail to start properly, particularly for motor-driven equipment.

Earth conductor resistance affects the performance of protective systems designed to detect and clear earth faults. Lower earth conductor resistance ensures that sufficient fault current flows to operate protective devices quickly, minimising the duration of potentially dangerous fault conditions.

Armour resistance becomes important when the armour is used as part of the earthing system. In some mining installations, the cable armour provides an additional earth path that can carry fault currents. Understanding armour resistance helps engineers design effective earthing systems.

Copper Content and Material Efficiency

The copper weight specifications, ranging from 584 kg/km to 4,758 kg/km, reflect the substantial material content required for mining cables. This copper content represents a significant portion of the cable's cost and affects both its electrical performance and mechanical properties.

Higher copper content generally correlates with better electrical performance through lower resistance and higher current carrying capacity. However, it also increases cable weight, affecting installation requirements and support systems. The balance between electrical performance and practical installation considerations influences conductor sizing decisions.

Installation Considerations and Mechanical Properties

Bending Radius Requirements

The minimum bending radius specifications are critical for maintaining cable integrity during installation and operation. These values, ranging from 423mm for the smallest cable to 905mm for the largest, reflect the need to prevent damage to internal components during handling and installation.

Exceeding the minimum bending radius can cause several types of damage. The insulation may crack, particularly at low temperatures, creating potential failure points. The armour wires may buckle or break, reducing mechanical protection. In extreme cases, the conductors themselves may be damaged, affecting electrical performance.

In mining installations, respecting bending radius requirements can be challenging due to space constraints and installation obstacles. Proper planning and the use of appropriate installation techniques ensure that cables are installed within their design limits.

Weight Considerations

Cable weight affects every aspect of installation from transportation to final support requirements. The BS 6708 Type 211 cables range from approximately 3kg/km to 19kg/km, requiring substantial support systems for long runs.

In underground mining applications, cable weight affects the design of support systems and may influence the choice of installation routes. Overhead installations require stronger support structures, while underground cable runs may need additional mechanical protection to prevent damage from the cable's own weight.

Frequently Asked Questions About BS 6708 Type 211 Mining Cables

Why is tinned copper used instead of plain copper conductors?

The decision to tin the copper conductors stems from the unique environmental challenges present in mining operations. Unlike conventional industrial environments, mines expose cables to high humidity, corrosive gases, and various chemical contaminants that can rapidly degrade bare copper surfaces.

Tinning creates a protective barrier that prevents corrosion while maintaining excellent electrical conductivity. The tin coating forms a stable oxide that resists further corrosion, ensuring that the conductor maintains its electrical properties throughout its service life. This protection becomes particularly important in mining environments where cable replacement is expensive and potentially dangerous.

The tinning process also improves the conductor's resistance to galvanic corrosion that can occur when copper comes into contact with other metals in the cable construction, such as the steel armour system. This electrochemical protection helps maintain the integrity of connections and terminations over the cable's operational lifetime.

Can BS 6708 Type 211 cables operate safely in explosive atmospheres?

The BS 6708 Type 211 cable is specifically designed for use in mining environments where explosive gases and combustible dust may be present. The cable's construction incorporates several features that make it suitable for these hazardous locations.

The cable's design ensures that it does not become an ignition source under normal or abnormal operating conditions. The insulation system prevents electrical breakdown that could create sparks, while the construction materials resist degradation that could lead to dangerous failures. The flame-resistant outer sheath helps prevent fire propagation even if external ignition sources are present.

However, proper installation and maintenance remain critical for safe operation in explosive atmospheres. The cable must be installed according to applicable codes and standards, with appropriate protection devices and earthing systems. Regular inspection and testing help ensure that the cable continues to meet safety requirements throughout its service life.

What makes the mechanical protection system so robust?

The mechanical protection system of the BS 6708 Type 211 cable represents a multi-layered approach to surviving the harsh mechanical environment of mining operations. The galvanised steel wire armour provides the primary defence against crushing forces, impact damage, and penetration by sharp objects.

The seven-strand construction of each armour wire provides an optimal balance between mechanical strength and flexibility. This construction allows the cable to bend and flex during installation and operation while maintaining its protective capability. The galvanised coating on each wire prevents corrosion that could weaken the armour over time.

The heavy-duty chloroprene outer sheath works in conjunction with the armour to provide comprehensive protection. While the armour resists mechanical damage, the sheath protects against chemical attack, abrasion, and environmental degradation. Together, these systems create a cable capable of surviving in environments that would quickly destroy conventional electrical cables.

Why is EPR insulation preferred over other materials?

EPR (Ethylene Propylene Rubber) insulation offers a unique combination of properties that make it ideal for mining cable applications. Unlike PVC insulation, EPR remains flexible at low temperatures and doesn't become brittle with age. This flexibility is crucial in mining applications where cables may be installed in cold environments or subjected to repeated flexing.

The thermal properties of EPR allow it to operate at higher temperatures than many alternative materials while maintaining its electrical and mechanical properties. This capability provides safety margins during overload conditions and allows for higher current densities in the conductor.

EPR's resistance to ozone and environmental degradation ensures long service life even in challenging mining environments. The material's resistance to moisture absorption prevents degradation of electrical properties in high-humidity conditions common in underground mining operations.

How do I select the appropriate conductor size for my application?

Selecting the correct conductor size requires careful consideration of several interrelated factors. The primary consideration is the current requirement of the connected equipment, but this must be evaluated alongside installation conditions, cable length, and voltage drop limitations.

Current capacity must account for the actual installation conditions, including ambient temperature, grouping with other cables, and heat dissipation characteristics of the installation environment. Mining installations often involve challenging heat dissipation conditions that may require derating of the cable's current capacity.

Voltage drop calculations become particularly important in mining applications where cable runs may be extensive. Excessive voltage drop can prevent equipment from operating properly, particularly motors and other inductive loads. The cable's resistance characteristics must be evaluated against the length of the installation to ensure adequate voltage regulation.

Safety factors should be incorporated to account for future load growth and to provide margins for unexpected operating conditions. Mining environments can subject cables to conditions beyond their normal ratings, making conservative sizing appropriate for critical applications.

Does the cable create electromagnetic interference concerns?

The BS 6708 Type 211 cable's design includes screening over the phase conductors that significantly reduces electromagnetic emissions. This screening confines the electromagnetic fields generated by high-current switching operations, preventing interference with sensitive electronic equipment commonly used in modern mining operations.

The braided copper screen provides effective shielding across a wide frequency range, addressing both power frequency magnetic fields and higher frequency emissions from variable speed drives and other electronic equipment. Proper earthing of the screen is essential for effective EMI suppression.

However, the earth conductor remains unscreened by design. This configuration ensures that earth fault currents can flow efficiently to protective devices while maintaining EMI control for the power conductors. The unscreened earth conductor doesn't significantly compromise the overall EMI performance of the cable system.

Conclusion

The BS 6708 Type 211 mining cable represents the culmination of decades of engineering development focused on meeting the unique challenges of mining operations. Its sophisticated construction combines high-quality materials with proven design principles to create a cable system capable of reliable operation in some of the world's most demanding environments.

From the tinned copper conductors that resist corrosion in harsh chemical environments to the heavy-duty chloroprene sheath that provides the final barrier against mechanical and environmental damage, every aspect of the cable's design serves a specific purpose in ensuring reliable power delivery to critical mining equipment.

The cable's electrical characteristics, ranging from modest 63-ampere capacity in smaller sizes to robust 295-ampere capacity in larger configurations, provide options suitable for a wide range of mining applications. The comprehensive specification of electrical parameters enables proper engineering analysis and ensures that installations meet both performance and safety requirements.

Understanding the construction, capabilities, and limitations of the BS 6708 Type 211 cable enables mining engineers to make informed decisions about power distribution systems that are critical to safe and efficient mining operations. As mining operations continue to evolve with advancing technology and increasing safety requirements, cables like the BS 6708 Type 211 will continue to play vital roles in enabling reliable, safe, and efficient mineral extraction operations around the world.

The investment in high-quality cables represents a small fraction of the total cost of mining operations but provides the foundation upon which all other systems depend. The BS 6708 Type 211 cable's proven design and comprehensive specification ensure that this foundation remains solid throughout the demanding operational life of mining installations.
