BS 6708 Type 307 Mining Cable

Introduction

The mining industry operates in some of the most challenging and hazardous environments imaginable, where electrical safety and reliability are paramount concerns. Underground mining operations face unique challenges including explosive gas atmospheres, coal dust accumulation, mechanical stress from heavy machinery, and extreme environmental conditions. In these demanding circumstances, the electrical infrastructure must be both robust and meticulously engineered to ensure the safety of personnel and the continuity of operations.

The British Standard BS 6708 represents a cornerstone of mining electrical safety, establishing comprehensive requirements for flexible trailing cables specifically designed for mining and quarrying operations. This standard emerged from decades of experience in underground electrical systems and reflects the collective wisdom of mining engineers, electrical specialists, and safety professionals who understand the critical importance of reliable power distribution in hazardous environments.

Within the BS 6708 framework, the Type 307 cable stands out as a particularly sophisticated solution designed for heavy-duty mining applications. With its voltage rating of 1.9/3.3 kV, this cable serves as the electrical lifeline for some of the most powerful and essential equipment in modern mining operations. The Type 307 designation indicates a cable that has been specifically engineered to meet the demanding requirements of underground power distribution whilst maintaining the flexibility necessary for mobile mining equipment.

The purpose of this comprehensive examination is to provide mining professionals, electrical engineers, and safety specialists with a thorough understanding of the Type 307 mining cable. We shall explore its construction methodology, delve into its electrical characteristics, examine its practical applications, and address the common queries that arise during specification, installation, and operation. By building this knowledge systematically, we aim to enhance both safety and operational efficiency in mining electrical systems.

Applications of BS 6708 Type 307 Mining Cable

The Type 307 mining cable finds its primary application in powering the heavy machinery that forms the backbone of modern mining operations. These cables are specifically designed to supply electrical power to excavating equipment, including coal cutters, continuous miners, and longwall shearers that operate at the coal face. The demanding nature of these applications requires cables that can withstand not only electrical stress but also the mechanical forces generated by powerful mining machinery operating in confined spaces.

Crushing and processing equipment represents another critical application area for Type 307 cables. Underground crushing stations, conveyor systems, and material handling equipment all depend on reliable electrical power to maintain the continuous flow of extracted materials. The cable's robust construction ensures that power delivery remains stable even when subjected to the vibrations and mechanical stresses inherent in these heavy-duty operations.

The operational environments where Type 307 cables excel are particularly challenging and require careful consideration of both electrical and safety factors. Deep underground mines present a unique combination of hazards, including the potential accumulation of explosive gases such as methane, coal dust that can create combustible atmospheres, and the moisture and corrosive conditions that can compromise electrical integrity. The Type 307 cable has been engineered specifically to operate safely in these environments, with construction features that minimise the risk of electrical faults that could potentially ignite explosive atmospheres.

Surface mining operations also benefit from the robust construction of Type 307 cables, particularly in applications where equipment must operate in harsh weather conditions or where mechanical protection is essential. Open-pit mining operations, quarrying activities, and surface processing facilities all present environments where the cable's heavy-duty construction provides significant advantages over standard industrial cables.

The flexibility requirements of mining operations cannot be overstated. Mining equipment frequently requires repositioning, and the cables must accommodate this movement without compromising electrical integrity or safety. Type 307 cables are designed with sufficient flexibility to handle the dynamic requirements of mobile mining equipment whilst maintaining their protective characteristics and electrical performance.

Construction and Design Features

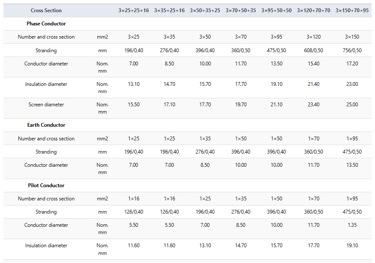

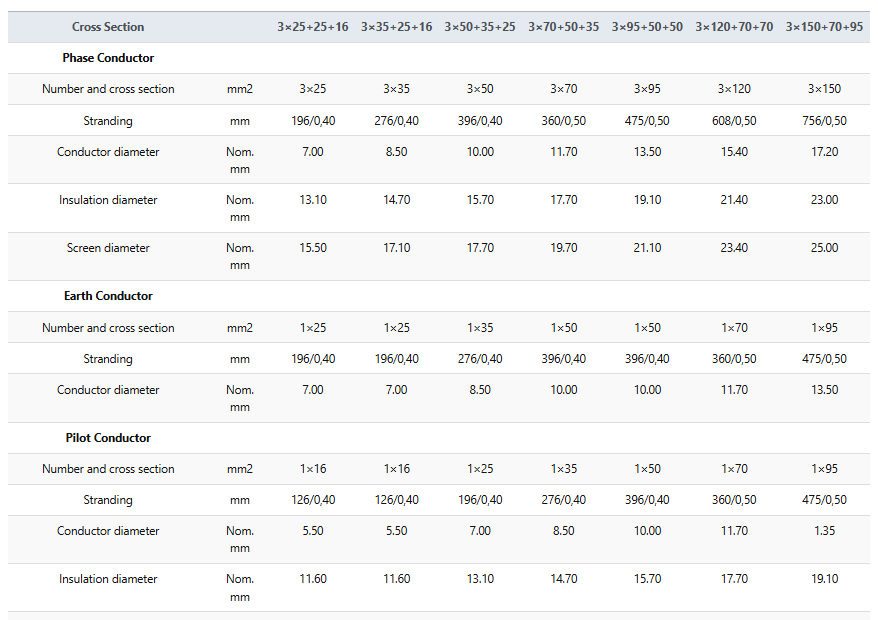

Understanding the construction of Type 307 mining cables requires examining each component layer systematically, as each element contributes to the cable's overall performance and safety characteristics. The construction begins with the conductor system, which utilises electrolytic copper that has been specifically processed to achieve the high conductivity essential for efficient power transmission. The copper is stranded rather than solid, creating flexibility whilst maintaining excellent electrical properties.

The stranding pattern follows IEC 60228 Class 5 specifications, which defines the precise arrangement of individual copper strands within each conductor. This stranding pattern is crucial because it determines both the cable's flexibility and its ability to withstand the mechanical stresses encountered in mining operations. Each individual strand is tinned, providing enhanced corrosion resistance that extends the cable's operational life in the challenging underground environment.

The insulation system employs Ethylene Propylene Rubber (EPR), a material specifically chosen for its excellent electrical properties and resistance to the environmental conditions found in mining operations. EPR insulation provides superior resistance to ozone, ultraviolet light, and the chemical contamination that can occur in mining environments. Notably, the earth conductor remains uninsulated, which is a deliberate design choice that facilitates effective earthing whilst reducing the overall cable diameter and weight.

The separator system utilises coloured textile tape to provide clear core identification, which is essential for safe installation and maintenance procedures. This identification system allows electricians to quickly and accurately identify individual conductors, reducing the risk of connection errors that could compromise safety or equipment performance. The colour coding follows established standards that are familiar to mining electrical personnel.

The screening system represents one of the most sophisticated aspects of Type 307 cable construction. The phase conductors are protected by a tinned copper and nylon braided screen that provides both electromagnetic shielding and mechanical protection. This screening system serves multiple purposes: it contains electromagnetic interference that could affect sensitive control equipment, provides additional mechanical protection for the conductors, and contributes to the overall electrical safety of the system. Interestingly, the pilot conductor remains unscreened, which reflects its different functional requirements and helps optimise the cable's overall construction.

The lay-up configuration ensures that all cores are positioned in contact with the bare copper earth conductor. This arrangement provides multiple safety benefits, including enhanced earth fault protection and improved electromagnetic compatibility. The contact between conductors and the earth conductor ensures that any insulation failure will immediately create a low-resistance path to earth, facilitating rapid fault detection and protection system operation.

The bedding compound utilises a rubber-based formulation that provides cushioning and protection for the internal components whilst maintaining the cable's flexibility. This bedding material must balance several requirements: it must provide adequate protection without significantly increasing the cable's stiffness, and it must be compatible with the other materials used in the cable construction to prevent degradation over time.

The outer sheath represents the cable's primary defence against the harsh mining environment. The heavy-duty chloroprene construction provides exceptional resistance to abrasion, chemical attack, and mechanical damage. Chloroprene was specifically chosen for its combination of toughness and flexibility, allowing the cable to withstand the mechanical stresses of mining operations whilst maintaining its protective characteristics throughout the cable's operational life.

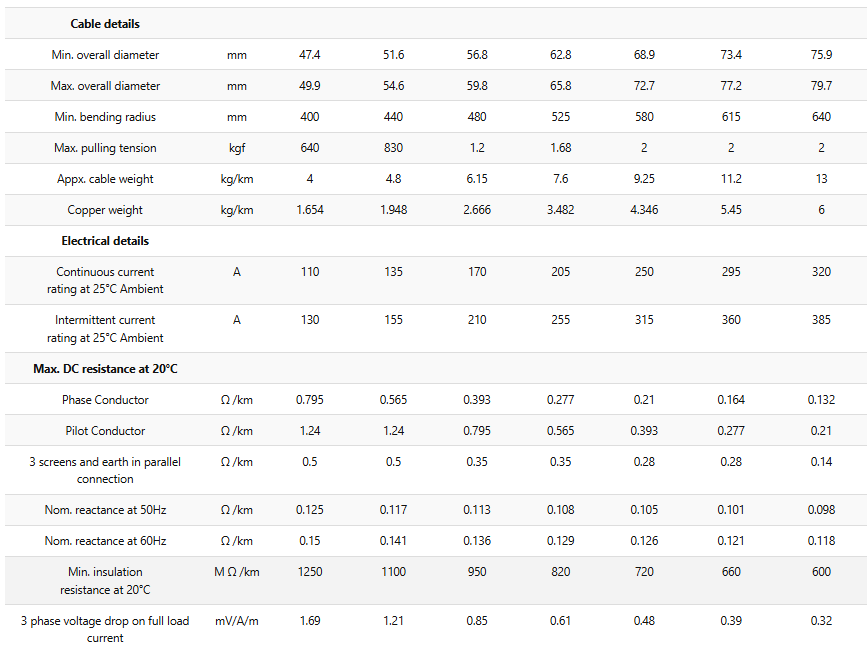

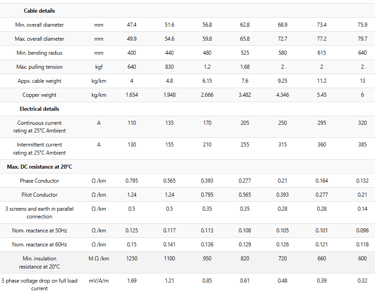

Electrical Specifications

The electrical characteristics of Type 307 mining cables are precisely defined to ensure safe and reliable operation in mining environments. The voltage rating of 1.9/3.3 kV represents a compromise between power transmission efficiency and safety considerations. This voltage level provides sufficient power for heavy mining equipment whilst remaining within safe limits for underground operations where personnel may encounter the cables during routine activities.

The test voltage of 7.5 kV provides a substantial safety margin above the operating voltage, ensuring that the cable can withstand electrical stress that might occur during fault conditions or system transients. This test voltage is applied during manufacturing to verify the integrity of the insulation system and provides confidence that the cable will perform reliably throughout its operational life.

Current carrying capacity varies significantly with conductor cross-sectional area, reflecting the fundamental relationship between conductor size and its ability to carry electrical current without excessive heating. For the smallest configuration (3x25 mm²), the continuous current rating is 110 amperes at 25°C ambient temperature, whilst the largest configuration (3x150 mm²) can carry 320 amperes continuously. The intermittent current ratings are higher, recognising that mining equipment often operates with varying load patterns that allow for temporary overcurrent conditions.

Temperature considerations are crucial in mining applications where ambient temperatures can vary significantly depending on depth, ventilation, and proximity to heat sources. The cables are designed to operate continuously at temperatures up to 85°C, providing substantial margin above typical mining environment temperatures. Installation temperatures must be maintained between 5°C and 60°C to ensure that the cable materials remain flexible and that the installation process does not damage the cable structure.

The DC resistance values provide essential information for calculating voltage drops and power losses in the distribution system. For example, a 3x25 mm² cable exhibits a phase conductor resistance of 0.795 ohms per kilometre at 20°C, whilst the pilot conductor resistance is 1.24 ohms per kilometre. These values increase with temperature, following well-established temperature coefficients that allow engineers to calculate performance under actual operating conditions.

Reactance values are equally important for AC systems, affecting both voltage regulation and power factor. The nominal reactance at 50Hz for a 3x25 mm² cable is 0.125 ohms per kilometre, with slightly higher values at 60Hz reflecting the frequency dependence of inductive reactance. These values are essential for calculating the impedance characteristics of the distribution system and ensuring proper coordination with protection equipment.

The insulation resistance specification of 1250 megohms per kilometre at 20°C provides a quantitative measure of the insulation system's integrity. This high resistance value ensures that leakage currents remain negligible under normal operating conditions, contributing to both safety and energy efficiency. Regular testing of insulation resistance provides an excellent indicator of cable condition and can help predict potential failures before they occur.

Voltage drop calculations are fundamental to proper system design, ensuring that equipment receives adequate voltage for proper operation. For a 3x25 mm² cable, the voltage drop is approximately 1.69 millivolts per ampere per metre of cable length. This specification allows engineers to calculate the voltage available at the load terminals and ensure that it remains within acceptable limits for proper equipment operation.

Detailed Technical Analysis

The relationship between conductor size and electrical performance reveals the engineering compromises inherent in cable design. As conductor cross-sectional area increases from 25 mm² to 150 mm², the current carrying capacity increases proportionally, but not linearly. This reflects the complex relationship between conductor heating, heat dissipation, and ambient temperature that governs current carrying capacity calculations.

The cable diameter specifications provide insight into the mechanical design considerations. The minimum cable diameter ranges from 47.4 mm for the smallest configuration to 75.9 mm for the largest, whilst maximum diameters account for manufacturing tolerances and slight variations in component dimensions. These diameter specifications are crucial for cable tray design, conduit selection, and installation planning.

Bending radius requirements reflect the mechanical limitations of the cable construction. The minimum bending radius varies from 400 mm for smaller cables to 640 mm for larger configurations, representing approximately 8-10 times the cable diameter. These requirements ensure that bending stresses do not damage the internal components or compromise the cable's electrical performance.

The maximum pulling tension specifications provide guidance for installation procedures, ensuring that excessive mechanical stress is not applied during cable installation. These values range from 640 kgf for the smallest cable to 2000 kgf for the largest configurations, reflecting both the cable's construction strength and the need to prevent damage during installation.

Weight considerations affect both installation procedures and ongoing operational costs. Cable weights range from 4,000 kg/km for the smallest configuration to 13,000 kg/km for the largest, with copper weights representing approximately 40-45% of the total cable weight. These specifications are essential for calculating transportation costs, installation equipment requirements, and structural support needs.

Frequently Asked Questions and Technical Solutions

Question: Why is the pilot core unscreened in Type 307 cables, and does this create any safety concerns?

The unscreened pilot core reflects a carefully considered design decision based on the specific functional requirements of mining cable systems. The pilot core typically carries control signals, monitoring information, or low-power auxiliary circuits rather than significant power currents. Screening these cores would add unnecessary complexity, weight, and cost without providing proportional benefits.

From a safety perspective, the unscreened pilot core does not create additional hazards because it operates at much lower power levels than the main phase conductors. The pilot core is still insulated and protected by the cable's overall construction, including the robust outer sheath that provides comprehensive protection against mechanical damage and environmental factors.

The electromagnetic interference considerations that might suggest screening are less critical for pilot cores because they typically carry DC signals or low-frequency control information that is less susceptible to electromagnetic interference than high-frequency communication signals. Where electromagnetic compatibility is critical, system designers can implement additional screening at the equipment level or use twisted pair configurations within the pilot core construction.

Question: Can Type 307 cables be safely used in environments with explosive gases, and what specific precautions must be observed?

Type 307 cables are specifically designed for use in potentially explosive atmospheres, including deep mines where methane and coal dust can create hazardous conditions. However, their safe use depends on proper installation, maintenance, and adherence to established safety protocols.

The cable's construction incorporates several features that enhance safety in explosive atmospheres. The heavy-duty chloroprene sheath provides excellent resistance to mechanical damage that could expose internal conductors. The screening system helps contain any electromagnetic emissions that could theoretically contribute to ignition risks. The robust earthing system ensures rapid fault clearance in the event of insulation failure.

Critical precautions include ensuring that all connections are made using approved explosion-proof equipment and techniques. Cable joints and terminations must be properly sealed and protected to prevent the ingress of explosive gases. Regular inspection and testing programmes must be maintained to detect any deterioration in the cable's condition that could compromise safety.

The cable must be used in conjunction with appropriate protection systems, including earth leakage protection, overcurrent protection, and where applicable, intrinsic safety barriers. The protection systems must be calibrated to provide rapid fault clearance whilst avoiding nuisance tripping that could disrupt mining operations.

Question: What are the critical installation considerations for Type 307 cables, and how do environmental factors affect installation procedures?

Installation of Type 307 cables requires careful attention to environmental conditions, particularly temperature, which significantly affects the cable's handling characteristics. The specified installation temperature range of 5°C to 60°C ensures that the cable materials remain sufficiently flexible for installation whilst preventing damage from excessive heat or cold.

Below the minimum temperature, the outer sheath and insulation materials become stiff and brittle, increasing the risk of cracking or other damage during installation. Above the maximum temperature, the materials may become excessively soft, making the cable difficult to handle and potentially causing deformation under its own weight.

The minimum bending radius specifications must be strictly observed during installation to prevent damage to the internal conductors and screening systems. Temporary bending during installation should not exceed these limits, and permanent installations must provide adequate support to prevent the cable from assuming tight bends under its own weight or external forces.

Cable support systems must be designed to accommodate the cable's weight and prevent excessive stress on the cable structure. Support spacing should be calculated based on the cable's weight and mechanical properties, with closer spacing required for vertical runs and areas subject to mechanical stress.

Question: How does the heavy-duty chloroprene sheath contribute to the cable's performance, and what are its limitations?

The chloroprene outer sheath represents a critical component of the Type 307 cable's protection system, providing exceptional resistance to the harsh conditions encountered in mining operations. Chloroprene offers superior abrasion resistance compared to standard PVC or rubber compounds, allowing the cable to withstand the mechanical stresses of mining environments where cables may be dragged across rough surfaces or subjected to impact from falling debris.

Chemical resistance is another key advantage of chloroprene, providing protection against the oils, lubricants, and chemical contamination that are common in mining operations. This chemical resistance extends the cable's operational life and maintains the integrity of the protection system throughout the cable's service life.

The flexibility characteristics of chloroprene allow the cable to maintain its handling properties across a wide temperature range, which is essential for mining operations where ambient temperatures can vary significantly. This flexibility is maintained even after extended exposure to mechanical stress and environmental conditions.

However, chloroprene does have limitations that must be considered in system design. Extended exposure to very high temperatures can cause degradation of the material properties, and certain chemical exposures may affect the sheath's performance. UV radiation can also cause surface degradation, although this is less critical in underground applications.

Question: What factors should be considered when selecting the appropriate conductor size for a specific mining application?

Conductor size selection for Type 307 cables involves balancing several technical and economic factors to achieve optimal system performance. The primary consideration is the current carrying capacity required by the connected equipment, which must be carefully calculated including normal operating currents, starting currents for motor loads, and any diversity factors that may apply.

Voltage drop considerations are equally important, particularly for longer cable runs where voltage drop can significantly affect equipment performance. The voltage drop calculations must account for both the resistive and reactive components of the cable impedance, and the calculations should be performed for the actual operating conditions including ambient temperature and loading patterns.

Economic factors include both the initial cable cost and the ongoing operational costs associated with power losses in the cable. Larger conductors have higher initial costs but lower resistance and therefore lower power losses over the cable's operational life. A proper economic analysis should consider the present value of energy losses over the expected cable life.

Mechanical factors include the cable's weight, diameter, and handling characteristics. Larger cables are more difficult to install and require more substantial support systems, which can significantly affect installation costs. The cable's flexibility and minimum bending radius also affect the routing options available in the mining environment.

Future expansion possibilities should also be considered, as upgrading cable systems in mining environments can be extremely expensive and disruptive. Selecting cables with some excess capacity can provide valuable flexibility for future equipment additions or modifications.

Question: How should maintenance and testing programmes be structured for Type 307 cables to ensure continued safe operation?

Effective maintenance and testing programmes for Type 307 mining cables require a systematic approach that addresses both the electrical and mechanical aspects of cable performance. Regular visual inspections should be conducted to identify signs of mechanical damage, such as cuts, abrasions, or deformation of the outer sheath. These inspections should pay particular attention to areas where cables are subject to mechanical stress, such as entry points to equipment and areas where cables are supported or routed.

Electrical testing should include regular insulation resistance measurements to monitor the condition of the insulation system. These measurements should be performed at consistent intervals and under standardised conditions to allow trending of the results over time. Decreasing insulation resistance values can provide early warning of potential insulation failures.

Earth loop impedance testing ensures that the earthing system continues to provide effective protection against earth faults. This testing is particularly critical in mining applications where earth fault protection is essential for personnel safety in potentially explosive atmospheres.

Thermal imaging can provide valuable information about the condition of cable connections and joints, identifying areas where resistance has increased due to corrosion or mechanical problems. Regular thermal surveys can detect problems before they result in failures or safety hazards.

Documentation of all testing and maintenance activities is essential for regulatory compliance and for tracking the long-term performance of the cable systems. This documentation should include test results, maintenance actions, and any modifications or repairs performed on the cable systems.

Conclusion

The BS 6708 Type 307 mining cable represents a sophisticated engineering solution to the challenging requirements of underground power distribution. Through careful consideration of conductor design, insulation systems, screening arrangements, and protective sheathing, these cables provide reliable and safe power delivery in some of the most demanding industrial environments.

Understanding the construction details and electrical specifications of Type 307 cables enables mining professionals to make informed decisions about cable selection, installation, and maintenance. The careful balance of electrical performance, mechanical durability, and safety features makes these cables particularly well-suited to the unique demands of mining operations.

The comprehensive approach to cable design, encompassing everything from conductor stranding patterns to outer sheath materials, demonstrates the level of engineering sophistication required to create electrical systems that can operate safely and reliably in potentially explosive atmospheres whilst providing the flexibility and durability needed for mobile mining equipment.

As mining operations continue to evolve with advancing technology and increasing safety requirements, the importance of well-designed electrical infrastructure becomes ever more critical. Type 307 cables, with their proven performance record and comprehensive safety features, continue to play a vital role in enabling safe and efficient mining operations around the world.

The investment in understanding these technical systems pays dividends in improved safety, reduced downtime, and enhanced operational efficiency. By maintaining high standards in cable selection, installation, and maintenance, mining operations can achieve the electrical system reliability that is essential for both safety and productivity in the challenging underground environment.
