BS 6708 TYPE 307M Mining Cable

Introduction: The Backbone of Mining Operations

In the depths of Britain's mining industry, where explosive gases mingle with dust and machinery operates under tremendous stress, the reliability of electrical infrastructure becomes a matter of life and death. The BS 6708 TYPE 307M mining cable represents a pinnacle of engineering excellence, specifically designed to meet the demanding requirements of underground and surface mining operations whilst adhering to stringent British Standards.

This robust electrical cable serves as the vital link between power sources and critical mining equipment, ensuring that drills, crushers, conveyor systems, and other essential machinery receive reliable electrical supply even in the most challenging environments. What sets the BS 6708 TYPE 307M apart from conventional industrial cables is its meticulous construction, which addresses the unique hazards present in mining operations, including the ever-present risk of explosive atmospheres, mechanical damage, chemical exposure, and extreme environmental conditions.

The cable's designation follows the British Standard BS 6708, which specifically governs cables for use in mining and similar hazardous environments. This standard ensures that every aspect of the cable's design, from the selection of materials to the testing procedures, meets rigorous safety and performance criteria that have evolved through decades of mining industry experience.

Understanding this cable requires appreciating the context in which it operates. Mining environments present a unique combination of challenges that would quickly destroy ordinary electrical cables. The presence of methane gas, coal dust, moisture, corrosive chemicals, and the constant threat of mechanical damage from heavy machinery creates an environment where only purpose-built equipment can survive and perform reliably.

Application Scenarios: Where Robust Performance Matters Most

The BS 6708 TYPE 307M mining cable finds its primary application in powering the heavy machinery that forms the backbone of modern mining operations. In underground coal mines, this cable supplies power to coal face equipment, including cutting machines that slice through coal seams, conveyor systems that transport materials to the surface, and drilling equipment that creates ventilation shafts and access tunnels.

Surface mining operations present their own unique challenges, where the cable must withstand exposure to weather extremes, from the freezing temperatures of winter to the intense heat of summer, all whilst maintaining electrical integrity. Open-pit mining operations rely on this cable to power massive excavators, crushers, and processing equipment that operate continuously in dusty, abrasive conditions.

The cable's suitability for explosive atmospheres makes it indispensable in environments classified under ATEX regulations, where the accumulation of methane gas and combustible dust particles creates constant ignition risks. The cable's construction includes features specifically designed to minimise the risk of electrical faults that could trigger explosions, making it compliant with mining safety regulations that protect both equipment and human lives.

One particularly critical application involves the powering of ventilation systems that maintain safe air quality in underground workings. These systems must operate continuously and reliably, as their failure could result in the accumulation of dangerous gases. The BS 6708 TYPE 307M cable's robust construction ensures that these life-critical systems receive uninterrupted power supply even when subjected to the mechanical stresses common in mining environments.

The cable also serves in mobile applications, where mining equipment moves frequently throughout a site. Its flexibility and resistance to repeated bending make it suitable for powering mobile crushers, portable drilling rigs, and other equipment that must be repositioned regularly. The cable's ability to withstand the mechanical stress of frequent movement whilst maintaining electrical integrity makes it invaluable in these dynamic applications.

Cable Structure: Engineering Excellence Layer by Layer

The construction of the BS 6708 TYPE 307M cable represents a masterclass in electrical engineering, with each layer serving a specific purpose in ensuring safe, reliable operation in harsh mining environments. Understanding this construction helps appreciate why this cable can perform reliably where others would fail within days or even hours.

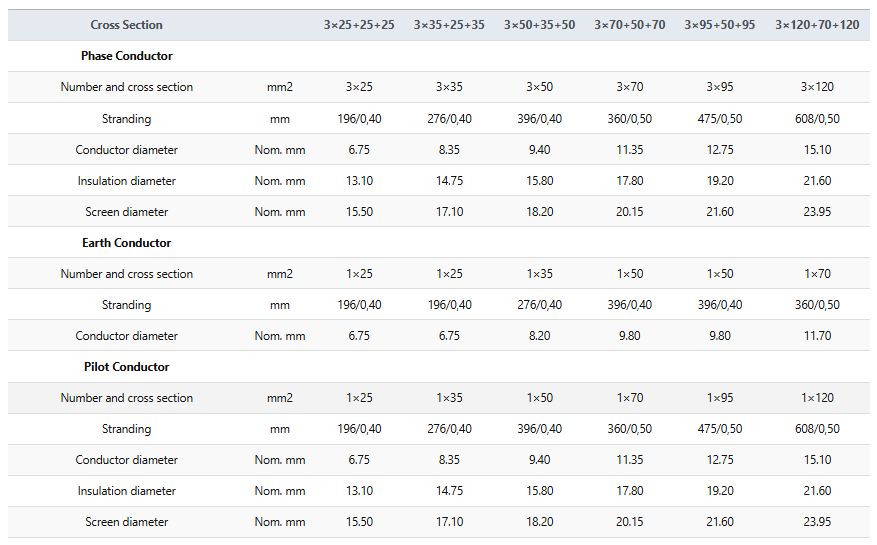

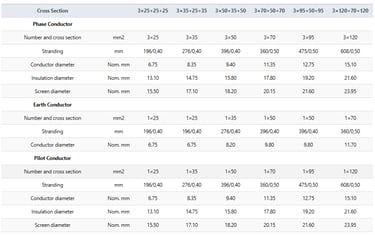

At the heart of the cable lies the conductor, manufactured from electrolytic copper that has been both stranded and tinned according to IEC 60228 Class 5 specifications. The choice of electrolytic copper ensures maximum conductivity, critical for minimising power losses over the long cable runs common in mining operations. The stranding provides flexibility essential for installation and movement, whilst the tinning process protects against corrosion from the moisture and chemicals present in mining environments. The Class 5 designation indicates a fine stranding that provides excellent flexibility whilst maintaining structural integrity.

Surrounding each conductor is EPR (Ethylene Propylene Rubber) insulation, chosen for its exceptional electrical properties and resistance to environmental degradation. EPR maintains its insulating properties across a wide temperature range and resists deterioration from exposure to oils, chemicals, and moisture commonly encountered in mining operations. Notably, the earth conductor remains uninsulated, a deliberate design choice that enhances the cable's safety characteristics by improving fault detection and ensuring reliable earthing connections.

The separator layer consists of coloured textile tape that serves multiple purposes beyond simple identification. This layer provides mechanical protection for the insulation during cable manufacture and installation, whilst the colour coding system enables quick identification of conductors during maintenance and troubleshooting operations. In the confined spaces and poor lighting conditions common in mining environments, this visual identification system proves invaluable for safe and efficient electrical work.

The screening system represents one of the cable's most sophisticated features, employing braided tinned copper wire combined with nylon fibres to create a comprehensive electromagnetic shield over the phase and pilot conductors. This screening serves multiple critical functions: it contains electromagnetic interference that could affect sensitive control systems, provides a path for fault currents that enhances safety, and helps maintain signal integrity in the pilot conductors used for equipment control and monitoring.

The layup configuration ensures that all conductors are positioned in contact with the bare earth conductor, creating multiple earthing paths that enhance safety and improve fault detection capabilities. This arrangement also contributes to the cable's mechanical stability, ensuring that the conductors maintain their relative positions even when the cable is subjected to the bending and twisting forces common during installation and operation.

The bedding layer, composed of rubber-based compounds, serves as both mechanical protection and space filler, ensuring that the cable maintains its circular cross-section under mechanical stress. This layer absorbs impact forces that could otherwise damage the conductors or insulation, whilst its rubber composition provides additional resistance to moisture and chemical penetration.

Finally, the heavy-duty chloroprene outer sheath provides the cable's primary defence against the hostile mining environment. Chloroprene offers exceptional resistance to abrasion, cuts, oils, chemicals, and flame, whilst maintaining flexibility across a wide temperature range. This sheath must withstand not only the normal wear and tear of industrial use but also the extreme conditions found in mining operations, including exposure to sharp rock surfaces, heavy machinery, and potentially corrosive chemicals.

Electrical Parameters: Precision in Power Delivery

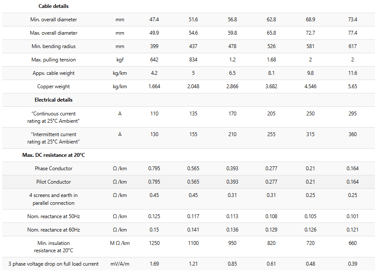

The electrical characteristics of the BS 6708 TYPE 307M cable reflect the precision engineering required for reliable power delivery in critical mining applications. The cable operates at a rated voltage of 1.9/3.3 kV, representing the line-to-earth and line-to-line voltages respectively. This voltage level provides an optimal balance between power transmission efficiency and safety considerations in mining environments, where lower voltages would require impractically large conductors and higher voltages would increase safety risks.

The test voltage of 7.5 kV, more than double the operating voltage, demonstrates the cable's robust insulation system. This substantial safety margin ensures reliable operation even when the cable experiences the voltage transients and surges common in mining electrical systems, where large motors starting and stopping create significant electrical disturbances.

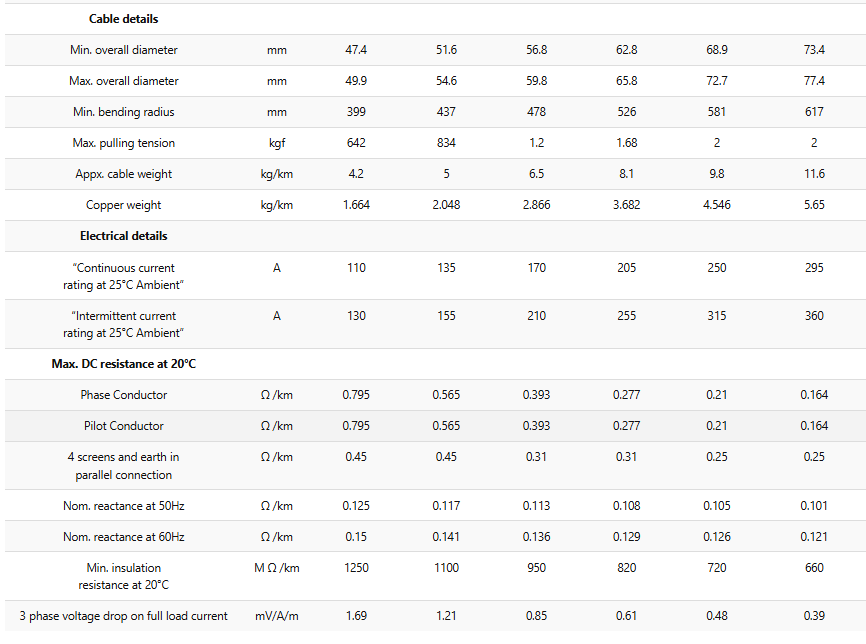

Current carrying capacity varies significantly across the range of available cross-sections, reflecting the diverse power requirements of mining equipment. The continuous current ratings range from 110 amperes for the smallest 3×25+25+25 mm² configuration to 295 amperes for the largest 3×120+70+120 mm² variant. The distinction between continuous and intermittent ratings acknowledges the varying duty cycles of mining equipment, with intermittent ratings approximately 15-20% higher than continuous ratings to accommodate equipment that operates with periodic high-load conditions.

Conductor resistance values, measured at the standard temperature of 20°C, range from 0.795 Ω/km for the smallest conductors to 0.164 Ω/km for the largest. These low resistance values minimise power losses during transmission, critical in mining operations where cable runs can extend for hundreds of metres underground. The precision of these resistance values enables accurate calculation of voltage drops and power losses, essential for proper electrical system design.

Voltage drop calculations, expressed in millivolts per ampere per metre, provide engineers with the data needed to ensure that equipment receives adequate voltage despite long cable runs. Values ranging from 1.69 mV/A/m for smaller cables to 0.39 mV/A/m for larger ones enable precise system design that maintains equipment performance whilst minimising copper usage and installation costs.

The minimum insulation resistance values, ranging from 660 to 1250 MΩ/km depending on cable size, demonstrate the excellent insulating properties of the EPR insulation system. These high values ensure that leakage currents remain negligible even in the damp conditions common in mining environments, maintaining both safety and system efficiency.

Inductive reactance values at both 50Hz and 60Hz accommodate the different power supply frequencies used in various mining operations worldwide. The relatively low reactance values, ranging from 0.101 to 0.125 Ω/km at 50Hz, minimise the reactive power consumption that could otherwise reduce system efficiency and complicate power factor correction.

Mechanical Characteristics: Built to Withstand Mining Rigours

The mechanical properties of the BS 6708 TYPE 307M cable reflect the demanding physical environment in which it must operate. Available cross-sections range from 3×25+25+25 mm² to 3×120+70+120 mm², providing options suitable for everything from small auxiliary equipment to major mining machinery. The designation system indicates the cross-sectional areas of the three phase conductors, earth conductor, and pilot conductor respectively, enabling precise matching of cable capacity to load requirements.

Cable diameters range from approximately 47.4 mm to 77.4 mm, with tolerance ranges that accommodate the variations inherent in manufacturing processes whilst ensuring consistent performance. These substantial diameters reflect the robust construction required for mining service, with multiple layers of protection surrounding the conductors. The diameter specifications include both minimum and maximum values, recognising that manufacturing tolerances must be controlled to ensure proper fit in cable glands, conduits, and support systems.

The minimum bending radius specifications, ranging from 399 mm to 617 mm, represent critical installation parameters that prevent damage to the cable's internal structure. These relatively large bending radii reflect the substantial diameter and multi-layer construction of mining cables, which require gentle curves to prevent stress concentration that could damage insulation or conductors. Installation teams must carefully plan cable routes to accommodate these bending requirements, often requiring special support systems and careful coordination with other underground infrastructure.

Maximum pulling tension ratings, reaching up to 2,000 kgf for larger cable sizes, enable installation through the long, tortuous routes common in mining operations. These substantial pulling forces require careful calculation and coordination during installation, often necessitating intermediate pulling points and specialised installation equipment. The pulling tension specifications also influence the design of cable support systems, which must distribute the cable's weight without exceeding stress limits.

Cable weight varies dramatically across the range, from 4.2 kg/m for the smallest configuration to 11.6 kg/m for the largest. These weights present significant challenges for installation and support system design, particularly in underground applications where every component must be transported through restricted access routes. The copper content, ranging from 1.664 to 5.65 kg/km, represents a substantial material investment that influences both cable cost and recycling value at end of life.

Frequently Asked Questions: Addressing Common Mining Cable Concerns

Why is the earth conductor left uninsulated, and doesn't this create safety risks?

The decision to leave the earth conductor uninsulated represents deliberate engineering rather than cost-cutting. In mining applications, the uninsulated earth conductor provides several critical safety advantages. Firstly, it enables immediate detection of insulation faults in other conductors, as any breakdown will create a visible and measurable fault current to earth. Secondly, the direct metallic contact with cable screens and metallic enclosures ensures the most reliable possible earthing connection, critical in explosive atmospheres where static electricity buildup poses ignition risks. Finally, the uninsulated earth conductor provides the lowest possible earth fault loop impedance, ensuring that protective devices operate quickly in fault conditions. The earth conductor's positioning within the cable's protective layers shields it from external damage whilst maintaining its deliberate exposure to other cable components.

What specific function does the braided screen over phase and pilot cores serve, and how does it enhance safety?

The braided screen system serves multiple sophisticated functions beyond simple electromagnetic shielding. In mining environments, electrical noise from variable frequency drives, switching equipment, and radio communications can interfere with sensitive control systems. The screen effectively contains this electromagnetic interference, ensuring reliable operation of programmable logic controllers, monitoring systems, and communication equipment. From a safety perspective, the screen provides a controlled path for fault currents, containing them within the cable structure and preventing them from seeking alternative paths through metallic infrastructure. The screen also contributes to the cable's mechanical integrity, providing additional strength against the crushing and impact forces common in mining operations. The combination of tinned copper wire and nylon fibres optimises both electrical performance and mechanical strength whilst resisting corrosion in the moist conditions typical of underground workings.

How does the chloroprene outer sheath perform in chemically aggressive mining environments?

Chloroprene represents the optimal choice for mining cable outer sheaths due to its exceptional resistance to the cocktail of chemicals encountered in mining operations. Unlike PVC or polyethylene, chloroprene maintains its properties when exposed to hydraulic fluids, cutting oils, diesel fuel, and the various chemicals used in ore processing. Its resistance to flame spread provides critical safety benefits in environments where ignition sources must be controlled. The material's flexibility at low temperatures ensures reliable performance in unheated underground areas, whilst its resistance to weathering enables surface use without degradation. Perhaps most importantly, chloroprene's resistance to ozone attack ensures long service life even in areas where electrical equipment generates ozone through sparking or corona discharge.

Why does the cable require such a large minimum bending radius, and how does this affect installation?

The substantial minimum bending radius requirements stem from the cable's complex multi-layer construction and the need to prevent internal damage that could compromise safety and reliability. The thick EPR insulation can suffer compression damage if bent too tightly, potentially creating weak points that could fail under electrical stress. The braided screens can distort if subjected to sharp bends, reducing their effectiveness and potentially creating high-resistance connections. The multiple conductors within the cable can shift position during tight bending, potentially causing damage at termination points. Installation teams must plan cable routes carefully, using gentle curves and adequate support spacing. This often requires coordination with civil engineering teams to ensure adequate space allocation and may necessitate larger excavations or wider cable galleries than would be required for conventional cables.

What design features make this cable suitable for potentially explosive atmospheres?

The cable's suitability for explosive atmospheres results from multiple integrated design features that work together to minimise ignition risks. The EPR insulation system provides exceptional electrical integrity, reducing the likelihood of insulation breakdown that could create sparks or hot spots. The comprehensive screening system contains any fault currents within controlled paths, preventing them from creating external sparks. The robust mechanical construction resists the physical damage that could expose live conductors or create high-resistance connections prone to overheating. The materials selection prioritises non-combustible or flame-retardant options that will not contribute fuel to any fire. Perhaps most critically, the cable's design enables rapid fault detection and protective device operation, ensuring that any electrical faults are cleared quickly before they can develop into ignition sources. The cable's compliance with mining safety standards ensures that it has undergone rigorous testing to verify its performance in explosive atmospheres.

How do you determine the correct cable size for a specific mining application?

Selecting the appropriate cable size requires careful consideration of multiple factors beyond simple current carrying capacity. The starting point involves calculating the full-load current of the connected equipment, including any motors that may draw higher starting currents. This must be adjusted for the ambient temperature in the installation location, as underground temperatures may differ significantly from the standard 25°C reference. The cable length becomes critical for voltage drop calculations, ensuring that equipment receives adequate voltage for proper operation. The installation method affects current carrying capacity, with cables in free air having higher ratings than those in enclosed spaces. Mechanical considerations include the cable's weight and bending requirements, which may favour smaller cables in difficult installation locations. The pilot conductor size must be adequate for any control or monitoring functions, whilst the earth conductor must provide sufficient fault current capacity for protective device coordination. Finally, future expansion possibilities should be considered, as installing oversized cable initially is often more economical than subsequent upgrades.

Conclusion: Excellence in Mining Electrical Infrastructure

The BS 6708 TYPE 307M mining cable represents the culmination of decades of experience in designing electrical infrastructure for one of the world's most challenging industrial environments. Its sophisticated construction addresses every aspect of mining operations, from the explosive atmosphere requirements that protect human life to the mechanical robustness needed for reliable equipment operation in harsh conditions.

The cable's electrical performance ensures efficient power transmission over the long distances common in mining operations, whilst its mechanical characteristics enable installation and operation in confined spaces and difficult conditions. The comprehensive screening system addresses the electromagnetic compatibility requirements of modern mining operations, where sophisticated electronic control systems must coexist with high-power electrical equipment.

Perhaps most importantly, the cable's design philosophy prioritises safety at every level, from materials selection through construction techniques to performance specifications. The compliance with British Standard BS 6708 ensures that every aspect of the cable's design has been validated through rigorous testing and industry experience, providing confidence that it will perform reliably when human lives depend on its integrity.

For mining operations seeking to balance safety, reliability, and economic efficiency, the BS 6708 TYPE 307M cable provides a proven solution that addresses the unique challenges of underground and surface mining environments. Its availability in multiple sizes enables precise matching to specific applications, whilst its standardised construction ensures compatibility with existing electrical infrastructure and maintenance procedures.

The investment in proper cable selection and installation pays dividends through reduced maintenance costs, improved equipment reliability, and enhanced safety performance. In an industry where downtime can cost thousands of pounds per hour and safety incidents can have catastrophic consequences, the BS 6708 TYPE 307M cable provides the electrical backbone that enables modern mining operations to function safely and efficiently. The cable's proven track record in British mining operations, combined with its compliance with recognised international standards, makes it an essential component of any well-designed mining electrical system.
