BS 6708 Type 307S Mining Cable

Introduction

Mining operations represent some of the most challenging environments on Earth, where electrical systems must function reliably under extreme conditions whilst maintaining the highest safety standards. The power supply infrastructure in these demanding environments requires specialised cables that can withstand not only the mechanical stresses of industrial machinery but also the unique hazards present in mining operations, including explosive gases, corrosive dust, and extreme temperature variations.

The BS 6708 standard stands as a cornerstone of mining electrical safety in the United Kingdom and many Commonwealth nations. This British Standard specifically addresses the requirements for cables used in mining applications, establishing rigorous criteria for construction, testing, and performance that ensure reliable operation in hazardous environments. The standard recognises that mining cables must serve dual purposes: they must deliver electrical power efficiently whilst simultaneously providing robust protection against the environmental hazards that could lead to catastrophic failures.

Within the BS 6708 framework, the Type 307S mining cable represents a sophisticated solution engineered specifically for medium-voltage applications in mining environments. This cable design incorporates decades of mining industry experience and technological advancement, resulting in a product that balances electrical performance with mechanical durability and safety considerations.

Understanding the intricacies of the BS 6708 Type 307S cable becomes essential for mining engineers, electrical contractors, and safety professionals who must make informed decisions about power distribution systems. This comprehensive guide aims to provide a thorough examination of every aspect of this critical mining component, from its fundamental construction principles through to its practical applications and maintenance requirements.

The complexity of modern mining operations demands electrical infrastructure that can adapt to diverse operational scenarios whilst maintaining consistent performance. The Type 307S cable addresses these requirements through its carefully engineered construction, which incorporates multiple layers of protection and specialised materials designed to withstand the unique challenges of mining environments.

Application Scenarios

The BS 6708 Type 307S mining cable finds its primary application in powering the heavy machinery that forms the backbone of modern mining operations. Understanding where and how this cable is employed helps illuminate why its specific design characteristics are so crucial to mining safety and efficiency.

Typical Use Cases

The most common application for Type 307S cables involves supplying electrical power to excavating equipment, which includes the massive hydraulic excavators, draglines, and bucket-wheel excavators that move enormous quantities of earth and ore. These machines operate continuously under demanding conditions, requiring reliable power delivery that can handle both the steady-state electrical loads and the sudden current surges that occur during heavy digging operations.

Crushing and processing equipment represents another critical application area for these cables. The primary crushers, secondary crushers, and screening equipment that process raw materials extracted from mines demand consistent power supply to maintain operational efficiency. The intermittent nature of crushing operations, with their characteristic high starting currents and variable load conditions, requires cables that can handle both continuous and intermittent current ratings effectively.

The cable's design makes it particularly suitable for mobile equipment applications, where flexibility and durability are paramount. This includes powering mobile drilling rigs, conveyor systems, and other equipment that must be repositioned regularly as mining operations progress. The ability to withstand repeated flexing and handling whilst maintaining electrical integrity makes the Type 307S ideal for these dynamic applications.

In underground mining operations, the cable serves as the primary power distribution medium for fixed installations such as ventilation systems, pumping stations, and lighting circuits. These applications require cables that can be installed in confined spaces whilst providing long-term reliability in challenging environmental conditions.

Environmental Considerations

The mining environment presents unique challenges that distinguish it from conventional industrial applications. The Type 307S cable's design specifically addresses these environmental factors through its construction materials and protective features.

Underground mining operations frequently encounter atmospheres containing explosive gases, particularly methane in coal mines and hydrogen sulphide in certain metal mining operations. The cable's construction incorporates features that minimise the risk of electrical faults that could serve as ignition sources for these hazardous atmospheres. The robust insulation system and screening arrangement work together to prevent electrical breakdown that could create sparks or dangerous heating.

Dust accumulation represents another significant environmental challenge in mining operations. The fine particulate matter present in mining environments can be both abrasive and conductive, potentially causing premature cable failure if not properly managed. The Type 307S cable's heavy-duty chloroprene outer sheath provides excellent resistance to dust ingress whilst maintaining flexibility under the temperature variations common in mining environments.

Surface mining operations expose cables to different but equally challenging conditions, including direct sunlight, temperature extremes, and weather exposure. The cable's materials are selected to withstand ultraviolet radiation degradation and temperature cycling without compromising electrical or mechanical performance.

The presence of corrosive chemicals, whether naturally occurring in ore bodies or introduced through processing operations, requires cable materials that can resist chemical attack. The Type 307S cable's construction materials are chosen for their chemical resistance properties, ensuring long service life even in chemically aggressive environments.

Electrical Parameters

Understanding the electrical characteristics of the BS 6708 Type 307S cable is fundamental to proper application and system design. These parameters define the cable's capabilities and limitations, providing the technical foundation for safe and efficient operation.

Voltage Ratings

The Type 307S cable operates at a rated voltage of 1.9/3.3 kV, which places it firmly in the medium-voltage category suitable for industrial power distribution. This voltage rating represents the maximum continuous operating voltage that the cable can safely handle under normal conditions. The dual voltage notation (1.9/3.3 kV) indicates the cable's suitability for both phase-to-neutral and phase-to-phase applications in three-phase power systems.

The test voltage requirements provide insight into the cable's insulation integrity and safety margins. Main conductors must withstand a test voltage of 7.5 kV, representing more than double the rated voltage, which provides a substantial safety margin for operation under fault conditions or voltage transients. Pilot conductors, being smaller and operating at lower voltages, are tested at 2.5 kV, which is appropriate for their control and instrumentation functions.

These voltage ratings are not arbitrary figures but are carefully calculated based on the insulation thickness, material properties, and expected operating conditions. The safety margins built into these ratings account for factors such as insulation ageing, temperature effects, and the presence of moisture or contaminants that might reduce insulation effectiveness over time.

Current Ratings

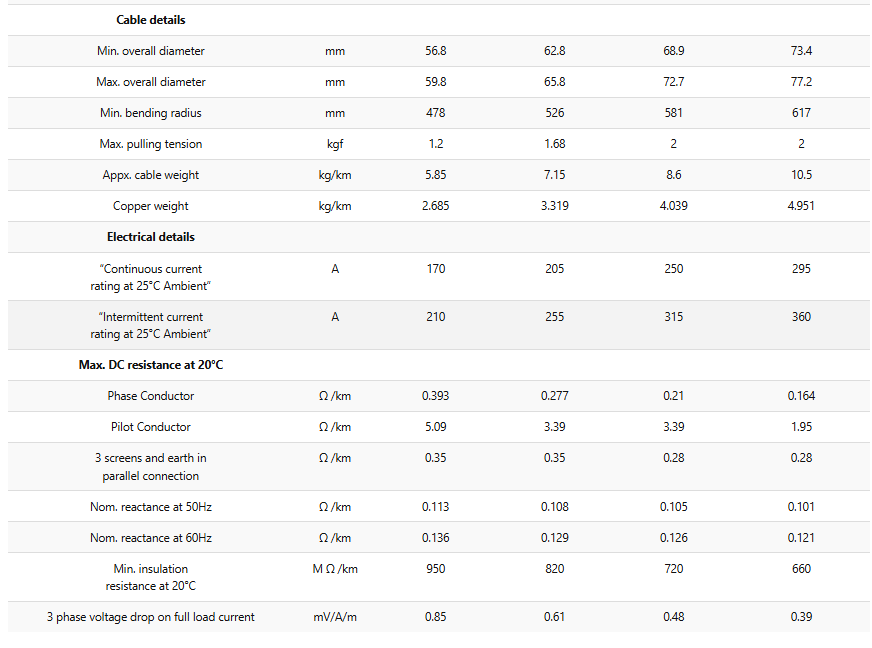

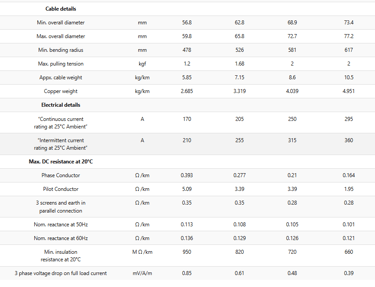

The current-carrying capacity of the Type 307S cable varies with conductor size, reflecting the fundamental relationship between conductor cross-sectional area and its ability to carry current without excessive heating. The continuous current ratings at 25°C ambient temperature range from 170 A for the smallest conductor size (50 mm²) to 295 A for the largest (120 mm²).

These continuous ratings assume steady-state operation under normal ambient conditions. In practice, mining operations often involve intermittent loads, such as those created by excavators during digging cycles or crushers processing variable material loads. To accommodate these applications, the cable specifications include intermittent current ratings that are approximately 25% higher than the continuous ratings, ranging from 210 A to 360 A depending on conductor size.

The current ratings are based on thermal considerations, as excessive current flow generates heat that can degrade insulation materials and reduce cable life. The calculation of these ratings takes into account factors such as conductor resistance, ambient temperature, installation method, and the thermal properties of the cable construction materials.

Understanding these current ratings is crucial for proper cable selection and protection system design. Operating a cable beyond its rated current capacity can lead to insulation failure, whilst significantly under-utilising the cable's capacity represents an inefficient use of resources.

Resistance and Reactance

The electrical resistance of the Type 307S cable varies with conductor size, as expected from fundamental electrical principles. The maximum DC resistance at 20°C for the phase conductors ranges from 0.393 Ω/km for the 50 mm² conductor to 0.164 Ω/km for the 120 mm² conductor. This inverse relationship between conductor size and resistance reflects the increased cross-sectional area available for current flow in larger conductors.

The pilot conductors, being much smaller in cross-section, exhibit correspondingly higher resistance values. These range from 5.09 Ω/km for the 4 mm² pilot conductors to 1.95 Ω/km for the 10 mm² pilot conductors. These higher resistance values are acceptable for pilot applications, as these conductors typically carry only control signals and small currents.

The nominal reactance at 50 Hz remains relatively consistent across conductor sizes, ranging from 0.113 Ω/km to 0.101 Ω/km. This consistency reflects the fact that reactance is more dependent on the geometric arrangement of conductors and the cable's overall construction than on individual conductor sizes.

Understanding resistance and reactance values is essential for calculating voltage drop in cable runs, determining fault current levels, and designing protection systems. In mining applications, where cable runs can be substantial, these parameters directly impact system efficiency and safety.

Insulation Resistance

The insulation resistance of the Type 307S cable provides a measure of the insulation system's integrity and its ability to prevent current leakage between conductors or from conductors to earth. The minimum insulation resistance at 20°C ranges from 950 MΩ·km for the smallest conductor configuration to 660 MΩ·km for the largest.

These high insulation resistance values are critical for safe operation in mining environments, where the consequences of insulation failure can be severe. The values are specified per kilometre of cable length, allowing for accurate calculation of expected insulation resistance for any given cable installation.

The temperature coefficient of insulation resistance means that these values will decrease as temperature increases, which is an important consideration in mining applications where cables may be exposed to elevated temperatures from machinery operation or ambient conditions.

Regular measurement of insulation resistance forms an important part of preventive maintenance programmes, as declining insulation resistance can indicate developing problems before they result in complete failure.

Cable Construction

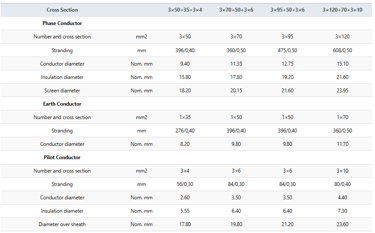

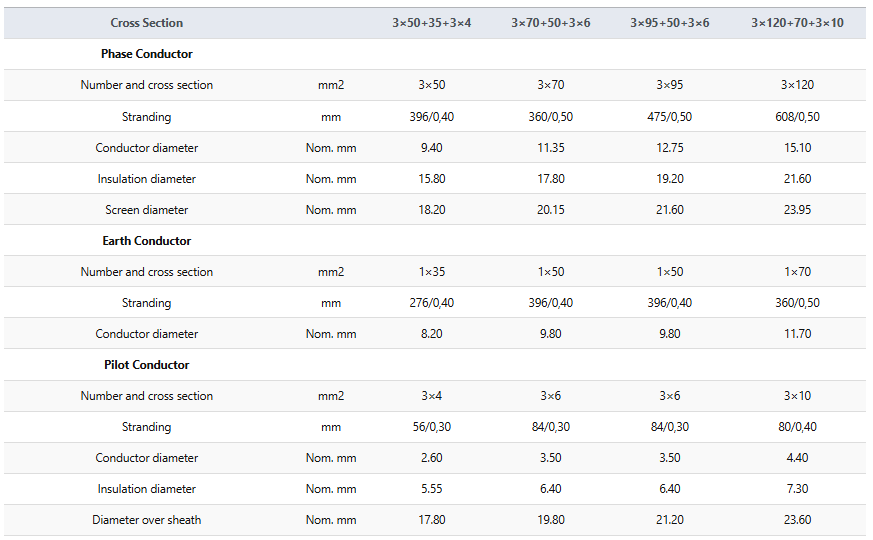

The construction of the BS 6708 Type 307S cable represents a sophisticated engineering solution that addresses the multiple challenges present in mining environments. Each component of the cable's construction serves specific purposes in ensuring reliable electrical performance whilst providing protection against environmental hazards.

Conductor Design

The heart of any electrical cable is its conductor system, and the Type 307S employs electrolytic copper conductors that conform to IEC 60228 Class 5 specifications. This classification indicates that the conductors are constructed from fine copper strands, providing the flexibility necessary for mining applications whilst maintaining excellent electrical conductivity.

The use of tinned copper strands provides additional protection against corrosion, which is particularly important in mining environments where moisture and corrosive gases may be present. The tinning process involves coating each copper strand with a thin layer of tin, which acts as a barrier against oxidation and chemical attack whilst maintaining the conductor's electrical properties.

The stranding arrangement varies with conductor size, with larger conductors employing more strands to maintain flexibility whilst providing the necessary current-carrying capacity. For example, the 50 mm² conductor comprises 396 strands of 0.40 mm diameter wire, whilst the 120 mm² conductor uses 608 strands of 0.50 mm diameter wire.

Insulation System

The insulation system employs Ethylene Propylene Rubber (EPR), a material specifically chosen for its excellent electrical properties and resistance to environmental degradation. EPR insulation provides superior performance compared to traditional rubber or PVC insulations, particularly in terms of temperature resistance, chemical resistance, and long-term stability.

The insulation thickness is carefully calculated to provide the necessary electrical strength whilst minimising overall cable diameter. The dielectric properties of EPR remain stable over a wide temperature range, ensuring consistent electrical performance under varying operating conditions.

One notable aspect of the Type 307S construction is that the earth conductor is not insulated, which is a deliberate design choice that provides enhanced fault protection. This bare earth conductor arrangement ensures that any insulation failure in the main conductors will create a direct path to earth, facilitating rapid fault detection and protection system operation.

Screening and Protection

The screening system of the Type 307S cable incorporates tinned copper and nylon braided screens over the phase conductors. This screening arrangement serves multiple purposes, including electromagnetic interference (EMI) protection, fault current distribution, and additional mechanical protection.

The braided construction provides flexibility whilst maintaining electrical continuity, which is essential for mobile equipment applications. The combination of copper and nylon in the braid provides both electrical conductivity and mechanical strength, ensuring that the screen remains intact under the mechanical stresses encountered in mining operations.

The pilot conductors are not screened, which is appropriate given their low-voltage, control circuit applications. This arrangement reduces cable complexity and cost whilst maintaining the necessary performance for control and instrumentation functions.

Protective Sheath

The outer sheath of the Type 307S cable employs heavy-duty chloroprene rubber, a material selected for its exceptional resistance to mechanical damage, chemical attack, and environmental degradation. Chloroprene provides excellent tear resistance and maintains flexibility over a wide temperature range, making it ideal for mining applications.

The sheath thickness is designed to provide protection against mechanical damage from handling, installation, and operation whilst maintaining cable flexibility. The material's resistance to ozone, ultraviolet radiation, and most industrial chemicals ensures long service life in demanding mining environments.

The flame-retardant properties of chloroprene provide an additional safety feature, reducing the risk of fire propagation in the event of electrical faults or external fire exposure.

Frequently Asked Questions

Mining professionals often encounter specific challenges and questions when working with BS 6708 Type 307S cables. Addressing these common concerns provides practical guidance for safe and effective cable application.

Question 1: What makes the Type 307S cable suitable for explosive environments?

The suitability of the Type 307S cable for explosive environments stems from several key design features that work together to minimise ignition risks. The EPR insulation system provides exceptional electrical integrity, reducing the likelihood of insulation breakdown that could create sparks or dangerous heating. The robust construction, including the heavy-duty chloroprene sheath, provides excellent resistance to mechanical damage that could compromise the cable's electrical integrity.

The screening arrangement over the phase conductors helps contain electromagnetic fields and provides a controlled path for fault currents, reducing the risk of dangerous electrical arcing. The flame-retardant properties of the construction materials help prevent fire propagation, whilst the chemical resistance of the materials ensures that the cable's protective properties are maintained even when exposed to corrosive environments.

The cable's construction also facilitates proper earthing arrangements, which are crucial for safe operation in explosive atmospheres. The bare earth conductor design ensures low-impedance fault paths that enable rapid protection system operation, minimising the duration and energy of any electrical faults.

Question 2: Can the Type 307S cable be used in both fixed and flexible applications?

The Type 307S cable is indeed designed to accommodate both fixed installations and flexible applications, though each application type requires specific consideration of installation practices and mechanical constraints. The flexible conductor construction, using fine stranded copper, provides the necessary flexibility for mobile equipment applications whilst maintaining excellent electrical conductivity.

For fixed installations, the cable can be installed in cable trays, conduits, or direct burial applications, depending on the specific environmental conditions and protection requirements. The robust outer sheath provides adequate protection for most fixed installation scenarios.

In flexible applications, such as supplying mobile excavators or draglines, the cable's construction allows for repeated flexing and handling. However, proper attention must be paid to minimum bending radius requirements to prevent damage to the internal construction. The cable specifications provide specific guidance on minimum bending radii, which must be observed to maintain cable integrity.

The key to successful flexible applications lies in proper cable management systems, including appropriate support and strain relief arrangements that prevent excessive mechanical stress on the cable construction.

Question 3: What are the limitations regarding the installation temperature of the Type 307S cable?

Temperature limitations for the Type 307S cable are primarily related to the physical properties of the construction materials and their behaviour under thermal stress. The cable should not be installed at temperatures below -40°C, as the materials may become brittle and susceptible to cracking during handling and installation.

At the upper temperature limit of 80°C, the installation restriction is designed to prevent thermal damage to the insulation and sheath materials during the installation process. Installation at elevated temperatures can cause materials to soften excessively, potentially leading to damage during cable pulling or handling operations.

These temperature limitations apply specifically to installation conditions and should not be confused with the cable's operating temperature capabilities, which are typically higher. Once installed, the cable can operate safely at temperatures up to its rated operating temperature, provided that the installation was completed within the specified temperature range.

In practice, mining operations should plan cable installations to occur during periods when ambient temperatures are within the acceptable range, or take special precautions such as pre-warming cables in cold conditions or providing temporary cooling in hot conditions.

Question 4: How does the cable's design contribute to safety in mining operations?

The safety features of the Type 307S cable are integrated throughout its design, creating multiple layers of protection against the various hazards present in mining environments. The tinned copper screening over phase conductors provides both electromagnetic protection and a controlled path for fault currents, enabling rapid fault detection and isolation.

The robust outer sheath design provides excellent protection against mechanical damage, chemical attack, and environmental degradation, reducing the likelihood of cable failure that could create safety hazards. The flame-retardant properties of the construction materials help prevent fire propagation, which is particularly important in confined underground spaces.

The bare earth conductor arrangement ensures low-impedance fault paths that facilitate rapid operation of protection systems, minimising the duration and energy of electrical faults. This design feature is particularly important in explosive atmospheres, where rapid fault clearance is essential for safety.

The cable's construction materials are selected for their resistance to the specific hazards present in mining environments, including resistance to corrosive gases, abrasive dust, and temperature extremes. This comprehensive approach to hazard mitigation ensures that the cable maintains its protective properties throughout its service life.

Question 5: What maintenance practices are recommended for the Type 307S cable?

Effective maintenance of Type 307S cables requires a comprehensive approach that addresses both preventive and predictive maintenance strategies. Regular visual inspections should be conducted to identify signs of mechanical damage, such as cuts, abrasions, or deformation of the outer sheath. Particular attention should be paid to areas where cables are subject to movement or mechanical stress.

Electrical testing forms a crucial component of maintenance programmes, with regular measurement of insulation resistance providing early warning of developing insulation problems. These measurements should be compared with baseline values established during commissioning to identify trends that might indicate deteriorating conditions.

The importance of maintaining proper bending radius during installation and service cannot be overstated. Cables that are bent beyond their minimum bending radius may suffer internal damage that is not immediately visible but can lead to premature failure. Regular inspection of cable support systems and strain relief arrangements helps ensure that mechanical stress is properly managed.

Environmental monitoring around cable installations can provide valuable information about conditions that might affect cable performance. This includes monitoring for the presence of corrosive gases, excessive moisture, or temperature extremes that could accelerate cable degradation.

Proper record-keeping of maintenance activities, including test results and inspection findings, enables the development of effective maintenance strategies and helps identify patterns that might indicate systematic problems or opportunities for improvement.

Conclusion

The BS 6708 Type 307S mining cable represents a sophisticated engineering solution that addresses the unique challenges of electrical power distribution in mining environments. Its carefully designed construction incorporates multiple layers of protection and performance features that ensure reliable operation under the demanding conditions typical of mining operations.

The cable's electrical parameters provide the foundation for safe and efficient power distribution, with voltage and current ratings that accommodate the requirements of modern mining equipment whilst maintaining substantial safety margins. The resistance and reactance characteristics enable accurate system design calculations, whilst the high insulation resistance values ensure safe operation in hazardous environments.

The construction details reveal the thought and engineering expertise that has gone into creating a cable capable of withstanding the mechanical, chemical, and environmental challenges of mining operations. From the flexible tinned copper conductors through to the heavy-duty chloroprene outer sheath, every component serves a specific purpose in ensuring reliable performance.

Understanding the proper application of the Type 307S cable, including its suitability for both fixed and flexible installations, enables mining operations to implement effective power distribution strategies that support operational efficiency whilst maintaining safety standards. The cable's design features specifically address the safety requirements of explosive atmospheres, making it an ideal choice for underground mining operations.

The importance of proper maintenance practices cannot be overstated, as even the best-designed cables require appropriate care to achieve their design life and maintain their protective properties. Regular inspection, testing, and environmental monitoring form the foundation of effective cable management programmes.

The mining industry's continued evolution towards larger, more powerful equipment and deeper, more challenging extraction operations demands electrical infrastructure that can adapt to these changing requirements. The BS 6708 Type 307S cable, with its robust construction and comprehensive safety features, provides a reliable foundation for these advanced mining operations.

Selecting appropriate cables that meet the specific environmental and operational requirements of mining applications represents a critical decision that impacts both safety and operational efficiency. The Type 307S cable's compliance with BS 6708 standards ensures that it meets the rigorous requirements established for mining applications, providing confidence in its performance and reliability.

As mining operations continue to push the boundaries of what is possible in terms of scale, depth, and automation, the electrical infrastructure that supports these operations must evolve to meet new challenges. The proven performance of the BS 6708 Type 307S cable in demanding mining environments makes it an excellent choice for both current applications and future developments in mining technology.

The comprehensive understanding of this cable's capabilities, limitations, and proper application practices provided in this guide serves as a valuable resource for mining professionals who must make informed decisions about electrical infrastructure. By selecting and applying the Type 307S cable correctly, mining operations can achieve the reliable, safe electrical power distribution that forms the foundation of modern mining success.
