BS 6708 Type 321 Mining Cable

Introduction to BS 6708 Type 321 Mining Cable

In the demanding world of mining operations, where equipment must withstand extreme conditions whilst maintaining absolute reliability, the selection of appropriate electrical cables becomes a critical safety and operational consideration. The BS 6708 Type 321 cable represents a sophisticated engineering solution specifically designed to meet the unique challenges of mining environments, where conventional cables would simply fail to perform adequately.

The British Standard BS 6708 establishes comprehensive specifications for flexible cables intended for mining applications, with each type number designating specific construction and performance characteristics. Type 321 cables occupy a particularly important position within this standard, as they are engineered as unscreened, flexible, armoured cables that provide robust power transmission capabilities whilst maintaining the flexibility essential for mobile mining equipment and trailing cable applications.

Understanding the intricacies of BS 6708 Type 321 cables requires appreciating the unique challenges that mining environments present. Unlike standard industrial applications, mining operations expose electrical equipment to extreme mechanical stress, potential explosive atmospheres, corrosive chemicals, temperature fluctuations, and constant movement. These conditions demand cables that not only deliver reliable electrical performance but also possess exceptional mechanical durability and safety characteristics that protect both equipment and personnel.

The development of Type 321 cables reflects decades of engineering refinement, incorporating lessons learned from mining operations worldwide. These cables represent a careful balance between electrical performance, mechanical strength, flexibility, and safety considerations, making them indispensable components in modern mining infrastructure.

Application Scenarios and Operating Environments

The versatility of BS 6708 Type 321 cables becomes evident when examining their diverse application scenarios within mining operations. These cables serve as the electrical lifelines for some of the most demanding equipment and environments in industrial applications, where failure is simply not an option.

In underground mining operations, Type 321 cables frequently power excavating machinery such as continuous miners, longwall shearers, and roadheaders. These massive machines require substantial electrical power to operate their cutting mechanisms, conveyor systems, and hydraulic components. The cables must withstand constant flexing as these machines manoeuvre through confined spaces, whilst simultaneously resisting the abrasive effects of coal dust, rock particles, and potentially corrosive mine atmospheres.

Surface mining applications present equally challenging scenarios, where Type 321 cables serve as trailing cables for mobile equipment such as draglines, electric shovels, and large-scale crushing equipment. In these applications, the cables must endure extreme weather conditions, from scorching heat in open-pit mines to freezing temperatures in northern climates, whilst maintaining their electrical and mechanical integrity throughout their operational life.

Quarrying operations represent another significant application area, where Type 321 cables power equipment used for extracting building stone, aggregates, and industrial minerals. The combination of high mechanical stress, exposure to silica dust, and the need for exceptional reliability makes these cables particularly well-suited for such demanding applications.

The operating environments for Type 321 cables encompass some of the most challenging conditions imaginable. In deep underground mines, these cables must function reliably in atmospheres where explosive gases such as methane may accumulate, requiring strict adherence to safety protocols and electrical standards that prevent ignition sources. The cables' construction specifically addresses these safety concerns through careful material selection and design features that minimise spark generation and provide robust earthing capabilities.

Temperature variations present another significant challenge, with underground environments potentially ranging from near-freezing conditions in some mines to elevated temperatures approaching 85°C in deep, geothermally active locations. Surface operations may experience even greater temperature extremes, particularly in desert mining operations or arctic conditions. Type 321 cables are engineered to maintain their electrical and mechanical properties throughout this entire temperature range, ensuring consistent performance regardless of environmental conditions.

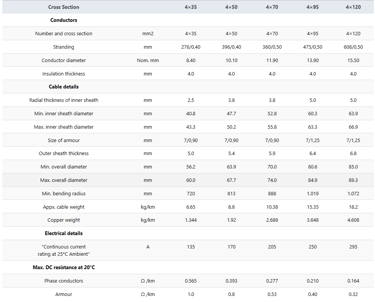

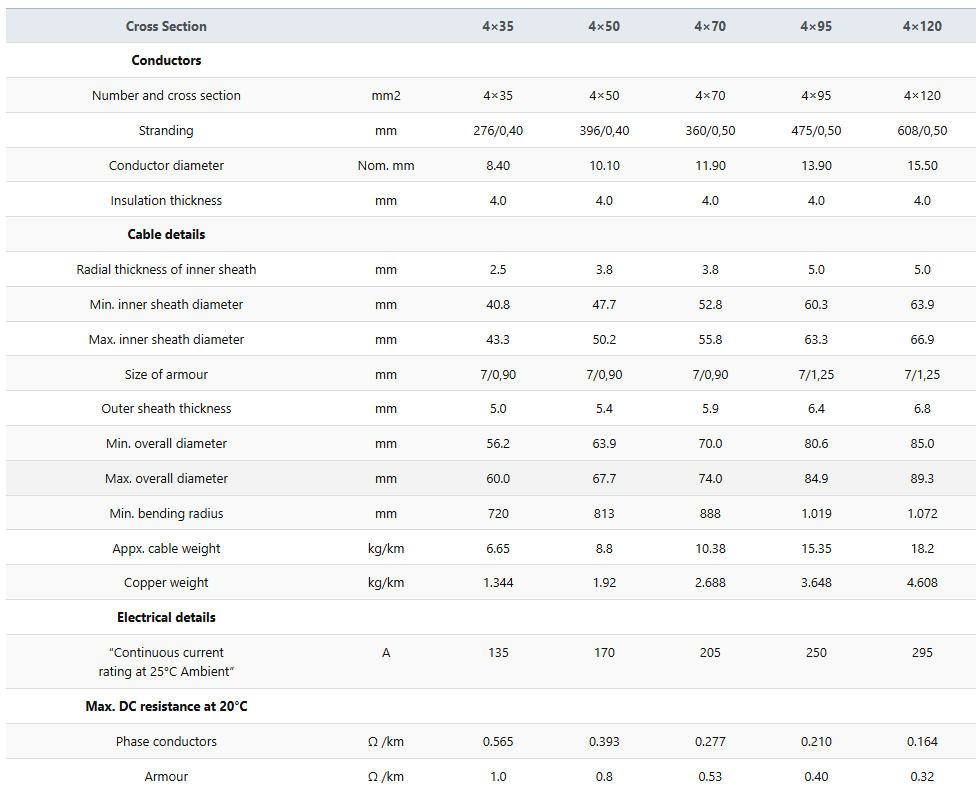

Detailed Electrical Parameters and Specifications

The electrical characteristics of BS 6708 Type 321 cables reflect careful engineering optimisation for mining applications, where power transmission efficiency, safety, and reliability form the foundation of effective operation. Understanding these parameters provides insight into why these cables perform so effectively in demanding mining environments.

The voltage rating of 1900/3300V represents a carefully selected specification that provides adequate power transmission capability whilst maintaining safety margins appropriate for mining applications. This voltage level, expressed as line-to-neutral and line-to-line voltages respectively, enables efficient power delivery to high-powered mining equipment whilst remaining within safety parameters that allow for proper protective equipment and procedures.

The test voltage specification of 7.5kV demonstrates the cable's ability to withstand electrical stress well beyond normal operating conditions. This substantial safety margin ensures that temporary voltage surges, which commonly occur during equipment starting or switching operations, do not compromise the cable's insulation integrity. This testing requirement provides confidence that the cables will maintain their dielectric properties throughout their operational life, even under adverse conditions.

Temperature specifications reveal the cable's remarkable environmental adaptability. The operational temperature range of -20°C to +85°C encompasses virtually all mining environments, from arctic surface operations to the depths of geothermally active mines. This wide temperature range is achieved through careful selection of insulation and sheathing materials that maintain their physical and electrical properties across these extremes.

The installation temperature range of 5°C to 60°C recognises the practical realities of cable installation in mining environments. This specification ensures that cables can be properly installed without risk of damage during cold weather conditions, whilst acknowledging that installation in extremely hot environments requires appropriate timing and precautions.

The conductor specifications utilise electrolytic, stranded, tinned copper wire conforming to IEC 60228 Class 5, representing the highest flexibility classification available. This construction provides maximum flexibility whilst maintaining excellent electrical conductivity. The tinning process provides additional corrosion resistance, particularly important in mining environments where moisture and potentially corrosive substances may be present.

Current-carrying capacities vary according to conductor cross-sectional area, with the 35mm² configuration rated at 135 amperes, whilst the largest 120mm² version carries 295 amperes. These ratings assume a 25°C ambient temperature and represent continuous operation capabilities. The substantial current-carrying capacity enables these cables to power large mining equipment efficiently whilst maintaining appropriate conductor temperatures.

The DC resistance values, specified at 20°C, provide important information for electrical system design and fault analysis. For instance, the 35mm² conductor exhibits a maximum resistance of 0.565 ohms per kilometre, whilst the 120mm² conductor reduces this to 0.164 ohms per kilometre. These low resistance values ensure efficient power transmission and enable accurate fault location calculations when necessary.

Cable Construction and Material Engineering

The construction of BS 6708 Type 321 cables represents sophisticated materials engineering, where each component serves specific functions whilst contributing to the overall performance characteristics essential for mining applications. Understanding this construction provides insight into why these cables perform so reliably in challenging environments.

The conductor construction utilises electrolytic copper, which provides the highest electrical conductivity available in commercial applications. The stranding configuration follows IEC 60228 Class 5 specifications, representing the most flexible stranding available. This fine stranding enables the cable to withstand repeated flexing without conductor fatigue, essential for trailing cable applications where the cable experiences constant movement.

The tinning process applied to the copper conductors serves multiple purposes beyond simple corrosion protection. In mining environments, where humidity levels may be high and potentially corrosive substances present, the tin coating provides a barrier that maintains conductor integrity over extended periods. Additionally, the tinning process facilitates reliable termination connections, ensuring low-resistance joints that maintain their integrity throughout the cable's operational life.

Ethylene Propylene Rubber (EPR) insulation represents a carefully selected material that provides excellent electrical properties whilst maintaining flexibility across the required temperature range. EPR offers superior resistance to electrical degradation compared to alternative insulation materials, particularly important in mining applications where cables may experience electrical stress from equipment starting currents and switching transients.

The cable's core configuration features three phase cores and one earth core, all unscreened and laid up around an elastomeric cradle without direct contact between cores. This construction approach provides several advantages, including improved heat dissipation, reduced electromagnetic interference between cores, and enhanced mechanical flexibility. The elastomeric cradle maintains core spacing whilst allowing individual core movement during cable flexing.

The rubber-based bedding compound serves as a protective barrier between the cores and the armour, preventing mechanical damage during cable movement whilst providing additional moisture protection. This bedding layer also accommodates differential movement between the inner cores and outer armour during cable flexing, reducing internal stress that could lead to premature failure.

The galvanised steel pliable armour represents one of the most critical design features for mining applications. This armour provides substantial mechanical protection against impact, crushing, and abrasion whilst maintaining sufficient flexibility for trailing cable applications. The galvanising process provides corrosion protection essential in mining environments where moisture and potentially corrosive substances may be present.

The heavy-duty chloroprene outer sheath provides the final layer of protection against environmental hazards. Chloroprene offers excellent resistance to oils, chemicals, and abrasion whilst maintaining flexibility across the required temperature range. This material selection ensures that the cable can withstand direct contact with mining equipment fluids and environmental contaminants without degradation.

Installation Considerations and Best Practices

Proper installation of BS 6708 Type 321 cables requires understanding both the technical specifications and practical realities of mining environments. The installation process significantly influences cable performance and operational life, making adherence to established procedures essential for achieving optimal results.

Temperature considerations during installation prove critical for maintaining cable integrity. The specified installation temperature range of 5°C to 60°C ensures that the cable materials remain sufficiently flexible for proper handling whilst avoiding thermal stress that could compromise long-term performance. In cold environments, cables may require pre-warming or conditioning before installation to prevent handling damage.

Minimum bending radius requirements represent perhaps the most critical installation parameter, as exceeding these limits can cause immediate or progressive damage to conductors, insulation, or armour. The bending radius specifications vary according to cable diameter, with larger cables requiring proportionally larger bending radii. For example, a 35mm² cable with a maximum diameter of 60mm requires a minimum bending radius of 720mm, whilst the 120mm² version requires 1,072mm.

Cable support systems in mining applications must accommodate both the substantial weight of these cables and their need for flexibility during equipment movement. Proper support spacing prevents excessive cable sag that could lead to mechanical stress, whilst avoiding overly rigid support that restricts necessary cable movement. Support systems must also consider the abrasive nature of mining environments, utilising materials and designs that prevent cable damage during normal operations.

Termination procedures require particular attention in mining applications, where reliable connections prove essential for both performance and safety. The tinned copper conductors facilitate excellent termination connections, but proper preparation and connection techniques remain crucial. Terminations must be completely sealed against moisture ingress, as mining environments frequently expose connections to high humidity or direct water contact.

Protection against mechanical damage during installation requires careful planning and execution. The substantial armour protection of Type 321 cables provides excellent service protection, but the cables remain vulnerable to damage during installation if proper precautions are not observed. Installation teams must use appropriate pulling techniques, avoid sharp edges or crushing points, and ensure adequate clearances around cable routes.

Maintenance Requirements and Service Life Optimisation

Maintaining BS 6708 Type 321 cables in mining environments requires systematic inspection and preventive maintenance procedures that address the unique challenges these cables face. Understanding maintenance requirements enables mining operations to maximise cable service life whilst maintaining safety and reliability standards.

Regular visual inspections form the foundation of effective cable maintenance programmes. These inspections should focus on identifying signs of mechanical damage, such as cuts, abrasions, or deformation of the outer sheath. In mining environments, where cables may contact sharp edges, moving equipment, or abrasive materials, early detection of mechanical damage prevents progression to more serious failures that could compromise safety or operations.

Electrical testing procedures provide critical information about cable condition that visual inspection cannot reveal. Insulation resistance testing, performed at regular intervals, can detect developing insulation problems before they result in failures. These tests should be conducted according to established procedures, with results compared to baseline measurements and industry standards to identify deteriorating conditions.

Environmental monitoring proves particularly important in mining applications, where cables may be exposed to chemicals, excessive moisture, or temperature extremes that accelerate degradation. Regular monitoring of environmental conditions enables proactive measures to protect cables from adverse conditions or adjust maintenance schedules to compensate for accelerated aging.

Termination maintenance requires special attention, as these locations often represent the most vulnerable points in cable installations. Regular inspection and testing of terminations can identify developing problems such as moisture ingress, corrosion, or loose connections before they result in failures. Termination areas should be kept clean and dry, with protective covers maintained in good condition.

Documentation of maintenance activities provides valuable information for optimising maintenance schedules and identifying patterns that may indicate systemic issues. Maintaining detailed records of inspections, tests, and repairs enables data-driven decisions about cable replacement timing and can identify opportunities for improving installation or operating procedures.

Frequently Asked Questions

What differentiates Type 321 from other BS 6708 cables?

Type 321 cables are specifically characterised by their unscreened power cores and construction optimised for applications requiring exceptional flexibility and durability. Unlike screened cable types that include metallic screening around individual cores or core groups, Type 321 cables rely on proper earthing through their dedicated earth core and armour system. This construction approach provides maximum flexibility for trailing cable applications whilst maintaining appropriate safety characteristics for mining environments. The unscreened design also reduces cable diameter and weight compared to equivalent screened cables, important considerations for mobile equipment applications.

Can Type 321 cables be used in explosive atmospheres?

Yes, Type 321 cables are specifically designed for use in mining environments where explosive gases and dust may accumulate, provided they are installed, operated, and maintained according to appropriate safety standards and regulations. The cable's construction includes features that minimise ignition risks, such as robust earthing capabilities through both the dedicated earth core and metallic armour. However, the complete electrical installation must comply with relevant explosive atmosphere regulations, including appropriate protective devices, earthing systems, and operational procedures. The cables themselves represent only one component of a comprehensive safety system required for explosive atmosphere applications.

What are the critical installation considerations for Type 321 cables?

Installation success depends on several critical factors, with temperature and bending radius representing the most important considerations. Installation must occur within the specified temperature range of 5°C to 60°C to ensure proper material flexibility and prevent installation damage. Strict adherence to minimum bending radius requirements prevents immediate or progressive damage to conductors, insulation, or armour. Additionally, proper cable support systems must accommodate both the substantial cable weight and flexibility requirements for mobile equipment applications. Termination procedures require particular attention to ensure moisture sealing and reliable electrical connections in challenging mining environments.

How does the armour contribute to cable performance?

The galvanised steel pliable armour serves multiple critical functions that directly impact cable performance and service life. Mechanically, the armour provides substantial protection against impact, crushing, and abrasion that cables inevitably encounter in mining environments. The flexible construction allows necessary cable movement whilst maintaining protective capabilities. Electrically, the armour provides an additional earthing path that enhances safety in fault conditions. The galvanising process provides corrosion protection essential for long-term performance in potentially corrosive mining atmospheres. The armour also contributes to cable pulling strength during installation, reducing stress on internal components.

Are there specific maintenance requirements for these cables?

Regular maintenance programmes should include systematic visual inspections focusing on mechanical damage detection, particularly cuts, abrasions, or deformation of the outer sheath. Electrical testing, including insulation resistance measurements, should be performed at regular intervals with results compared to baseline values and industry standards. Environmental monitoring helps identify conditions that may accelerate cable degradation, enabling proactive protective measures. Termination maintenance requires special attention, as these locations often represent the most vulnerable points in installations. Documentation of all maintenance activities provides valuable data for optimising maintenance schedules and identifying systemic issues that may require attention.

What factors influence cable service life in mining applications?

Cable service life depends on multiple interacting factors, with mechanical stress typically representing the primary limitation in mining applications. The severity and frequency of cable movement, contact with abrasive materials, and exposure to crushing or impact forces directly influence service life. Environmental conditions, including temperature extremes, chemical exposure, and moisture levels, affect material degradation rates. Electrical stress from equipment starting currents, switching transients, and fault conditions contributes to insulation aging. Installation quality significantly impacts service life, with proper installation techniques and adherence to specifications essential for achieving design life expectancy. Regular maintenance and prompt attention to developing problems can substantially extend cable service life.

Conclusion

BS 6708 Type 321 mining cables represent a sophisticated engineering solution specifically developed to meet the extraordinary demands of mining environments. Their unique construction, combining flexible unscreened cores with robust armoured protection, provides the optimal balance between electrical performance, mechanical durability, and operational flexibility essential for modern mining operations.

The comprehensive specifications covering voltage ratings, temperature ranges, conductor configurations, and construction materials reflect decades of experience in mining applications. Understanding these specifications enables informed cable selection decisions that ensure both immediate performance and long-term reliability in challenging mining environments.

Proper installation, maintenance, and operation of Type 321 cables require attention to specific requirements that differ significantly from conventional industrial applications. The investment in proper procedures and regular maintenance programmes pays substantial dividends through extended service life, reduced downtime, and enhanced safety performance.

As mining operations continue to evolve, with increasing depths, more challenging environments, and higher power requirements, BS 6708 Type 321 cables provide the reliable foundation upon which modern mining infrastructure depends. Their proven performance in the world's most demanding mining applications makes them an essential component of safe, efficient mining operations.
