Introduction

Mining operations present some of the most challenging environments for electrical equipment, where safety isn't merely a priority—it's a matter of life and death. The presence of explosive gases, corrosive chemicals, mechanical stress, and extreme environmental conditions demands electrical cables that can withstand these harsh realities whilst maintaining reliable power distribution. This is precisely where BS 6708 Type 331 mining cable demonstrates its exceptional value.

Think of mining cables as the circulatory system of underground and surface mining operations. Just as your body's circulatory system must continue functioning under stress, mining cables must deliver consistent electrical power regardless of the environmental challenges they face. The BS 6708 Type 331 standard represents the culmination of decades of engineering expertise, designed specifically to address the unique demands of mining environments.

These specialised cables serve as the electrical lifeline for critical mining equipment, from powerful drilling machines that penetrate solid rock to crushing equipment that processes tonnes of material daily. Without reliable power distribution, even the most sophisticated mining operation would grind to a halt, potentially putting workers at risk and causing significant financial losses. Understanding the technical specifications and proper applications of these cables is therefore essential for anyone involved in mining operations, electrical engineering, or industrial safety.

Applications of BS 6708 Type 331 Mining Cable

Underground Mining Operations

Underground mining environments present unique challenges that standard electrical cables simply cannot handle. Picture descending hundreds of metres below ground, where the air may contain methane gas, coal dust particles float in the atmosphere, and water constantly seeps through rock formations. In these conditions, BS 6708 Type 331 cables serve as the primary power supply for essential equipment.

The cable's design specifically addresses the risk of explosive atmospheres common in underground mines. When methane gas or coal dust reaches certain concentrations, even a small electrical fault could trigger a catastrophic explosion. The cable's robust screening and insulation systems work together to prevent electrical faults that could ignite these dangerous gases. This is rather like having a double-layer safety system—the first layer prevents problems from occurring, whilst the second layer contains any issues that might arise.

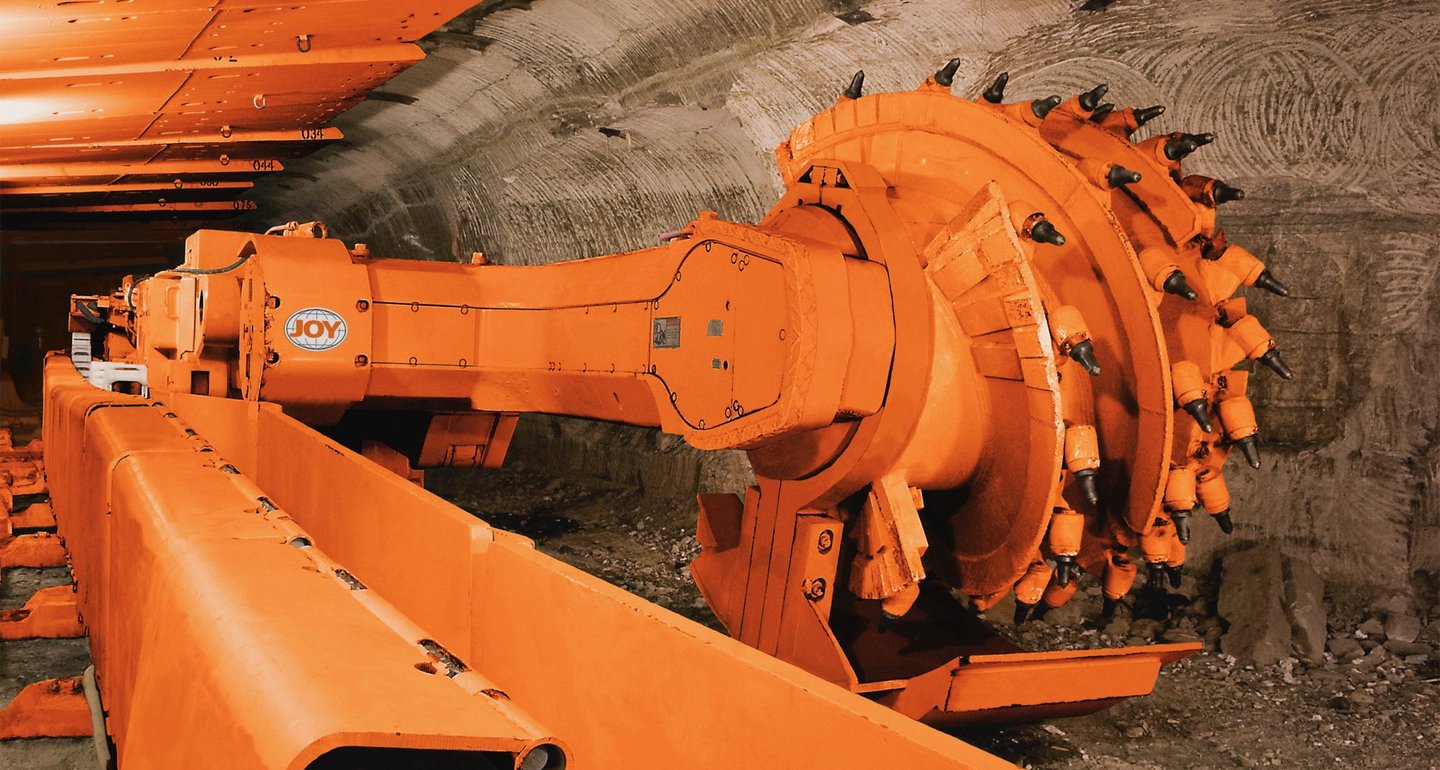

Deep underground, these cables power drilling equipment that creates tunnels and shafts, cutting machines that extract coal or ore, and crushing equipment that breaks down extracted materials into manageable sizes. The cables must remain flexible enough to allow equipment movement whilst maintaining their protective properties under the constant vibration and mechanical stress of mining operations.

Surface Mining and Quarry Applications

Surface mining operations, whilst not facing the same gas explosion risks as underground mines, present their own set of challenges. Open-pit mines and quarries subject electrical equipment to extreme weather conditions, from scorching summer heat to freezing winter temperatures, along with exposure to rain, snow, and UV radiation from sunlight.

In these environments, BS 6708 Type 331 cables frequently serve as trailing cables for mobile equipment. Imagine massive excavators and hauling trucks that must move freely across the mining site whilst maintaining constant electrical connection. These trailing cables must withstand being dragged across rough terrain, subjected to sharp rocks, and occasionally run over by heavy machinery. The cable's armoured construction provides the mechanical protection necessary for these demanding applications.

Quarry operations particularly benefit from these cables when extending power to remote areas of the site. As quarrying progresses and the working face moves deeper or further from the main power source, mine roadway extension cables become crucial for maintaining electrical supply to critical equipment and lighting systems.

Environmental Considerations and Adaptability

The true test of any mining cable lies in its ability to function reliably across a wide range of environmental conditions. BS 6708 Type 331 cables demonstrate remarkable adaptability to challenging environments that would quickly destroy standard electrical cables.

Consider the chemical challenges present in mining environments. Groundwater often contains dissolved minerals and acids that can rapidly corrode unprotected metals. The cable's chloroprene outer sheath provides excellent resistance to these chemical attacks, functioning rather like a chemical-resistant protective suit that shields the internal components from harm.

Moisture presents another significant challenge. Underground mines are typically humid environments with frequent water exposure, whilst surface operations must contend with rain and snow. The cable's multiple protective layers work together to prevent water ingress that could cause short circuits or ground faults. The rubber-based bedding compound and heavy-duty outer sheath create multiple barriers against moisture penetration.

Mechanical stress represents perhaps the most visible challenge these cables face. Mining equipment generates substantial vibration, cables may be subject to impact from falling rocks, and the constant movement of machinery creates ongoing flexing and stretching forces. The galvanised steel armour provides the mechanical backbone that allows these cables to withstand such punishment whilst maintaining electrical integrity.

BS 6708 Type 331 Mining Cable

Electrical and Mechanical Specifications

Electrical Characteristics and Performance Parameters

Understanding the electrical specifications of BS 6708 Type 331 cables requires thinking about them in terms of their practical applications rather than simply memorising numbers. The rated voltage of 1900/3300 V represents the cable's ability to safely handle the voltage levels commonly used in mining operations, with the dual rating reflecting both phase-to-neutral and phase-to-phase voltages in three-phase electrical systems.

The test voltage of 7.5 kV provides a substantial safety margin above the operating voltage. This is rather like testing a bridge to hold far more weight than it will ever carry in normal use—the higher test voltage ensures the cable will maintain its insulation integrity even under abnormal conditions such as voltage surges or temporary overvoltages that might occur during equipment startup or fault conditions.

Current-carrying capacity varies significantly with cable size, reflecting the relationship between conductor cross-sectional area and current-handling ability. The smallest configuration, 3x25+16 mm², can safely carry 110 amperes continuously at 25°C ambient temperature. As the conductor size increases to 3x35+25 mm², the current capacity rises to 135 amperes. This progression continues through the range, with the largest standard size, 3x120+70 mm², capable of handling 295 amperes.

These current ratings deserve careful consideration because they assume a 25°C ambient temperature. In the hot conditions often found in deep mines or under summer conditions in surface operations, the actual current-carrying capacity will be lower. This is because electrical conductors generate heat when carrying current, and if the surrounding environment is already hot, the cable cannot dissipate this heat as effectively.

The designation system, such as "3x25+16", tells us important information about the cable construction. The "3x25" indicates three main conductors, each with a 25 mm² cross-sectional area, used for the three phases of electrical supply. The "+16" indicates an additional conductor with 16 mm² cross-sectional area, used for equipment grounding—a critical safety feature that provides a path for fault currents to return safely to the electrical source.

Mechanical Construction and Material Properties

The mechanical construction of BS 6708 Type 331 cables follows a carefully engineered layered approach, with each layer serving specific protective functions whilst contributing to the overall performance of the cable system.

Beginning at the centre, the conductors consist of electrolytic copper wire that meets IEC 60228 Class 5 specifications. This classification indicates highly flexible stranded construction, rather like a rope made of many small wires twisted together. This stranding provides the flexibility necessary for installation and service whilst maintaining excellent electrical conductivity. The tinning process, where each copper strand receives a thin coating of tin, prevents corrosion and ensures reliable electrical connections throughout the cable's service life.

The insulation system uses Ethylene Propylene Rubber (EPR), chosen for its excellent electrical properties and resistance to environmental factors common in mining applications. EPR maintains its insulating properties across a wide temperature range and resists degradation from moisture, chemicals, and mechanical stress. Think of this insulation as the primary protective barrier that prevents electrical current from taking unintended paths.

The screening system represents a sophisticated approach to electromagnetic compatibility and fault protection. Each of the three main phase conductors receives individual screening using braided tinned copper wire and nylon. This screening serves multiple purposes: it contains electromagnetic fields generated by the current-carrying conductors, provides protection against external electromagnetic interference, and offers a controlled path for fault currents should the main insulation fail.

The decision to leave the ground conductor unscreened reflects practical engineering considerations. Since the ground conductor normally carries no current during normal operation, it doesn't generate electromagnetic fields requiring containment. The unscreened design simplifies cable construction and reduces cost whilst maintaining full functionality for safety grounding purposes.

The rubber-based bedding compound fills spaces between the screened conductors and provides mechanical cushioning. This bedding layer prevents the individual conductors from shifting position during cable movement and protects the screening from mechanical damage. It's rather like packaging material that keeps fragile items from moving around and hitting each other during transport.

The galvanised steel pliable armour represents the cable's primary mechanical protection system. Unlike rigid armour that might crack under repeated flexing, pliable armour consists of interlocked steel strips that can bend and flex whilst maintaining protection against mechanical damage. The galvanising process coats the steel with zinc, providing corrosion resistance in the harsh chemical environments common in mining operations.

Finally, the heavy-duty chloroprene outer sheath provides the cable's first line of defence against environmental hazards. Chloroprene offers excellent resistance to oils, chemicals, ozone, and weathering whilst maintaining flexibility across a wide temperature range. This outer sheath must withstand abrasion from rough surfaces, chemical attack from mining processes, and UV radiation in surface applications.

Physical Dimensions and Installation Considerations

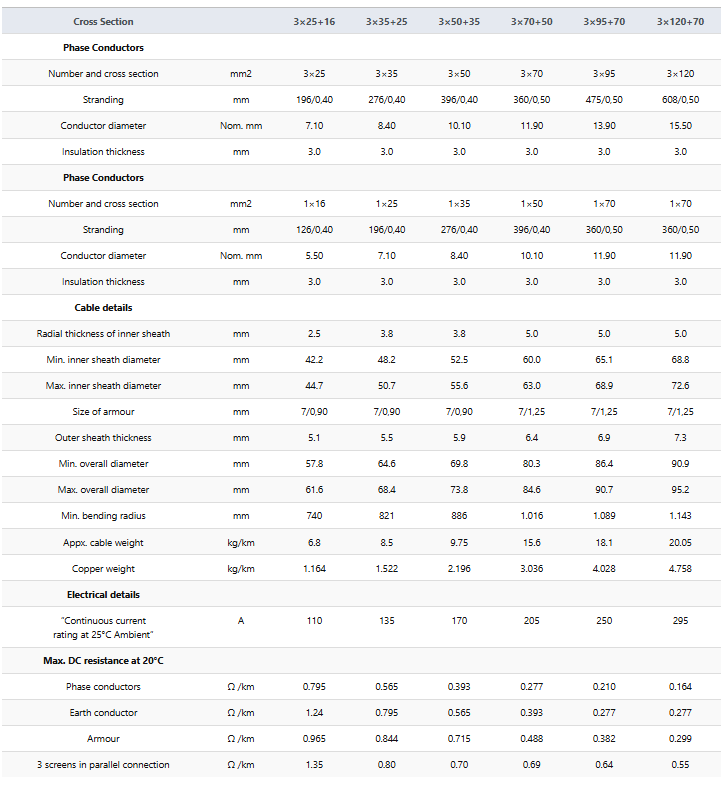

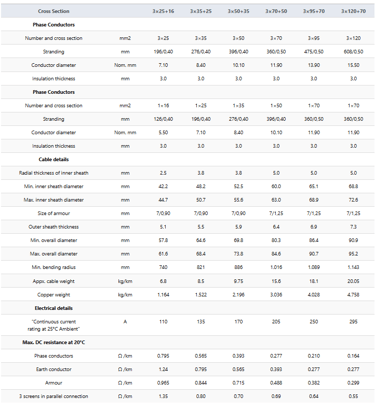

The physical dimensions of BS 6708 Type 331 cables reflect the substantial protection systems built into their construction. The smallest cable size, 3x25+16 mm², has an overall diameter ranging from 57.8 to 61.6 mm—roughly the size of a tennis ball in cross-section. This substantial diameter accommodates all the protective layers whilst maintaining flexibility for installation.

As cable sizes increase to handle higher currents, the overall dimensions grow proportionally. The largest standard size, 3x120+70 mm², reaches an overall diameter of 90.9 to 95.2 mm. While these large diameters might seem unwieldy, they're necessary to accommodate the substantial conductor sizes and protective systems required for high-current applications.

The minimum bending radius specifications prevent installation practices that could damage the cable's internal structure. Bending a cable too sharply can damage the armour, displace conductors, or stress the insulation system. For the smallest cable size, the minimum bending radius is 740 mm, whilst larger cables require proportionally larger bending radii to maintain their structural integrity.

Cable weight considerations affect both installation planning and ongoing support requirements. The 3x25+16 mm² cable weighs approximately 6,800 kg per kilometre, whilst the largest size reaches 20,050 kg per kilometre. These substantial weights reflect the robust construction necessary for mining applications but require careful consideration during installation and support system design.

Frequently Asked Questions About BS 6708 Type 331 Mining Cables

Environmental Suitability and Operating Conditions

Question: What specific environmental conditions make BS 6708 Type 331 cables suitable for mining applications?

The suitability of these cables for mining environments stems from their comprehensive design approach that addresses multiple environmental challenges simultaneously. Unlike standard industrial cables that might excel in one area whilst being vulnerable in others, BS 6708 Type 331 cables provide robust protection against the full spectrum of mining hazards.

The presence of explosive gases and dust represents perhaps the most critical environmental factor these cables must address. In underground coal mines, methane gas can accumulate in poorly ventilated areas, creating explosive atmospheres that could be ignited by electrical faults. The cable's screening system and robust insulation work together to prevent the electrical faults that could trigger such explosions. The screening contains electromagnetic fields and provides controlled fault current paths, whilst the EPR insulation maintains its integrity even under electrical stress.

Chemical exposure presents another significant challenge that these cables handle effectively. Mining operations often involve contact with acidic groundwater, chemical processing agents, and corrosive minerals. The chloroprene outer sheath provides excellent resistance to these chemical attacks, maintaining its protective properties even after years of exposure to harsh chemical environments.

Temperature extremes test the cable's material properties across their operational range. Deep underground mines may maintain relatively stable temperatures, but surface operations expose cables to seasonal temperature variations that can range from -20°C in winter to +60°C or higher in direct summer sunlight. The cable's material selection ensures reliable operation across this entire temperature range.

Question: How do these cables perform in wet or humid conditions?

Moisture management represents a critical aspect of mining cable design, as water ingress can cause immediate safety hazards and long-term reliability problems. BS 6708 Type 331 cables employ multiple barriers against moisture penetration, creating what engineers call "defence in depth."

The outer chloroprene sheath provides the first barrier against moisture ingress. Chloroprene's molecular structure makes it naturally resistant to water absorption whilst maintaining flexibility in wet conditions. This outer barrier prevents most moisture from reaching the cable's internal components.

Should moisture penetrate the outer sheath, the rubber-based bedding compound provides a second barrier. This bedding material not only fills voids between conductors but also resists water absorption and prevents moisture from travelling along the cable length.

The individual conductor insulation provides the final barrier against moisture reaching the electrical conductors themselves. EPR insulation maintains its electrical properties even when exposed to moisture, ensuring continued safe operation even if small amounts of water penetrate the outer protective layers.

Mechanical Protection and Durability

Question: Can these cables withstand the mechanical stresses common in mining operations?

The mechanical protection system built into BS 6708 Type 331 cables represents one of their most important features, designed to handle the extreme mechanical stresses that would quickly destroy standard electrical cables.

The galvanised steel pliable armour provides the primary mechanical protection. Unlike solid metal conduit that could crack under repeated flexing, pliable armour consists of interlocked steel strips that can bend and twist whilst maintaining protection against impact, crushing, and abrasion. This design allows the cable to withstand being dragged across rough surfaces, subjected to impact from falling rocks, and flexed repeatedly as connected equipment moves.

The heavy-duty outer sheath works in conjunction with the armour to provide comprehensive mechanical protection. While the armour handles major impacts and crushing forces, the outer sheath protects against abrasion and prevents sharp objects from working between armour strips.

The cable's overall construction considers the dynamic stresses of mining operations. The flexible stranded conductors can accommodate the stretching and compression forces that occur when cables are subjected to mechanical stress, whilst the bedding compound prevents individual conductors from shifting position and potentially damaging each other.

Question: What is the expected service life of these cables in mining applications?

Service life expectations for BS 6708 Type 331 cables depend heavily on application conditions and installation practices, but properly installed and maintained cables can provide reliable service for decades in mining applications.

The robust material selection contributes significantly to service life expectations. The galvanised steel armour resists corrosion that could weaken mechanical protection over time. The chloroprene outer sheath maintains its properties even after years of exposure to chemicals, UV radiation, and temperature cycling. The EPR insulation system provides long-term electrical reliability without the degradation problems that affect some other insulation materials.

Proper installation practices significantly impact service life. Cables installed within their specified bending radius limits and properly supported to prevent excessive mechanical stress will far outlast cables subjected to installation abuse. Regular inspection and maintenance, including checking for mechanical damage and ensuring proper support systems remain intact, can identify potential problems before they lead to cable failure.

Installation and Maintenance Considerations

Question: What are the critical installation requirements for these cables?

Successful installation of BS 6708 Type 331 cables requires careful attention to several critical factors that affect both immediate performance and long-term reliability.

Temperature conditions during installation significantly impact cable handling and long-term performance. The specified installation temperature range of -20°C to +85°C ensures the cable materials remain flexible enough for safe handling whilst avoiding temperatures that could damage the insulation or outer sheath. Installing cables below 5°C or above 60°C risks damaging the cable materials and should be avoided.

Bending radius limitations must be strictly observed during installation. The minimum bending radius specifications prevent installation practices that could damage the armour, displace conductors, or stress the insulation system. Using proper cable pulling equipment and techniques ensures these limitations are maintained throughout the installation process.

Support system design requires consideration of the cable's substantial weight and the dynamic forces it may encounter in service. Proper cable supports prevent excessive mechanical stress whilst allowing for the thermal expansion and contraction that occurs with temperature changes and electrical loading variations.

Question: How should these cables be maintained and inspected?

Regular maintenance and inspection programmes are essential for ensuring continued safe and reliable operation of mining cables throughout their service life.

Visual inspection should occur regularly, looking for signs of mechanical damage to the outer sheath, evidence of chemical attack or unusual wear patterns, and proper support system condition. Any damage to the outer sheath could allow moisture or chemical ingress that might compromise the cable's protective systems.

Electrical testing should be performed periodically to verify insulation integrity and conductor continuity. Insulation resistance testing can identify deterioration before it leads to failures, whilst continuity testing ensures all conductors and grounding systems remain intact.

Environmental monitoring around cable installations can identify conditions that might accelerate cable aging or create safety hazards. This might include checking for chemical spills, monitoring temperature conditions, and ensuring proper ventilation in areas where cables are installed.

Technical Specifications and Selection Criteria

Question: How do I select the appropriate cable size for my application?

Selecting the correct cable size for mining applications requires careful consideration of electrical load requirements, environmental conditions, and installation factors that affect current-carrying capacity.

Current requirement calculations must account for both normal operating loads and potential future expansion. The continuous current ratings provided for BS 6708 Type 331 cables assume 25°C ambient temperature, so applications in hotter environments will require derating calculations to ensure safe operation.

Voltage drop calculations become particularly important in mining applications where cable runs may be quite long. Longer cable runs and higher current loads result in voltage drops that could affect equipment performance. Selecting larger conductor sizes can minimize voltage drop, but this must be balanced against the increased cost and installation complexity of larger cables.

Environmental factors such as installation method, ambient temperature, and proximity to other heat sources all affect current-carrying capacity. Cables installed in areas with poor ventilation or high ambient temperatures will have reduced current-carrying capacity compared to cables in cooler, well-ventilated locations.

Question: What is the significance of the unscreened ground conductor design?

The decision to leave the ground conductor unscreened in BS 6708 Type 331 cables reflects both practical engineering considerations and the specific requirements of mining applications.

From a functional standpoint, the ground conductor normally carries no current during normal operation, so it doesn't generate electromagnetic fields requiring containment through screening. The primary function of the ground conductor is to provide a safe path for fault currents back to the electrical source, ensuring that equipment frames and enclosures remain at safe electrical potential.

The unscreened design simplifies cable construction and reduces manufacturing costs without compromising safety or functionality. In mining applications, where cables may be subject to mechanical damage, the simpler construction of the ground conductor can actually be advantageous, as there are fewer components that could be damaged by mechanical stress.

The screening on the phase conductors provides the necessary electromagnetic compatibility and fault protection for the current-carrying conductors, whilst the unscreened ground conductor fulfills its safety function effectively and economically.

Conclusion

BS 6708 Type 331 mining cables represent a sophisticated engineering solution designed specifically for the unique challenges of mining operations. Their comprehensive protection systems address the full spectrum of environmental hazards found in both underground and surface mining applications, from explosive gas atmospheres to extreme mechanical stress and chemical exposure.

The electrical specifications of these cables provide reliable power distribution capabilities across a range of current requirements, whilst their mechanical construction ensures long-term durability in demanding applications. The layered protection approach, from the flexible copper conductors at the core to the heavy-duty chloroprene outer sheath, creates multiple barriers against the various failure modes that could compromise cable performance in mining environments.

Understanding the proper application, installation, and maintenance of these cables is essential for anyone involved in mining operations. The substantial investment in robust cable systems pays dividends through improved safety, reduced downtime, and lower long-term maintenance costs compared to standard cables that might fail prematurely in mining environments.

The technical specifications and design features of BS 6708 Type 331 cables reflect decades of experience in mining applications, incorporating lessons learned from actual field conditions into a comprehensive solution that addresses real-world challenges. For mining operations requiring reliable, safe electrical power distribution, these cables provide a proven solution that balances performance, safety, and economic considerations effectively.

As mining operations continue to evolve and face new challenges, the robust design principles embodied in BS 6708 Type 331 cables ensure they will continue to provide reliable service in these demanding applications. Their comprehensive protection systems and proven track record make them an excellent choice for any mining operation where safety and reliability are paramount concerns.
