BS 6708 Type 43 Mining Cable

Introduction: The Critical Role of Mining Cables in Underground Operations

Mining environments present some of the most challenging conditions for electrical equipment anywhere in the industrial world. Deep beneath the earth's surface, where explosive gases can accumulate and mechanical stresses are constant, the cables that power essential equipment must meet extraordinary standards of safety and reliability. The BS 6708 Type 43 mining cable represents a pinnacle of engineering designed specifically to address these unique challenges.

A mining cable is far more than a simple electrical conductor. It serves as the lifeline that connects portable drilling machines, cutting equipment, and other hand-held tools to their power sources whilst operating in conditions that would quickly destroy conventional cables. These specialised cables must withstand crushing forces, resist chemical attack from mining fluids, maintain insulation integrity in the presence of explosive atmospheres, and continue functioning reliably when workers' lives depend upon them.

The BS 6708 Type 43 cable embodies decades of engineering evolution in mining safety technology. This particular cable type has been developed to meet the stringent requirements of British Standard 6708, which establishes comprehensive safety and performance criteria for cables used in mining operations. The standard addresses not only electrical performance but also mechanical durability, fire resistance, and environmental compatibility—all critical factors in preventing the catastrophic accidents that can occur when electrical equipment fails in mining environments.

Understanding why safe and reliable cables are paramount in mining operations requires appreciating the unique hazards present in these environments. Underground mines often contain methane gas, coal dust, or other explosive substances that can ignite from even the smallest electrical spark. Surface mining operations, whilst not facing the same explosive atmosphere risks, still subject cables to extreme mechanical abuse, exposure to harsh chemicals, and temperature variations that can quickly degrade inferior products. The consequences of cable failure extend far beyond simple equipment downtime—they can directly threaten worker safety and operational continuity.

Application Scenarios: Where BS 6708 Type 43 Cables Excel

Underground Mining Applications

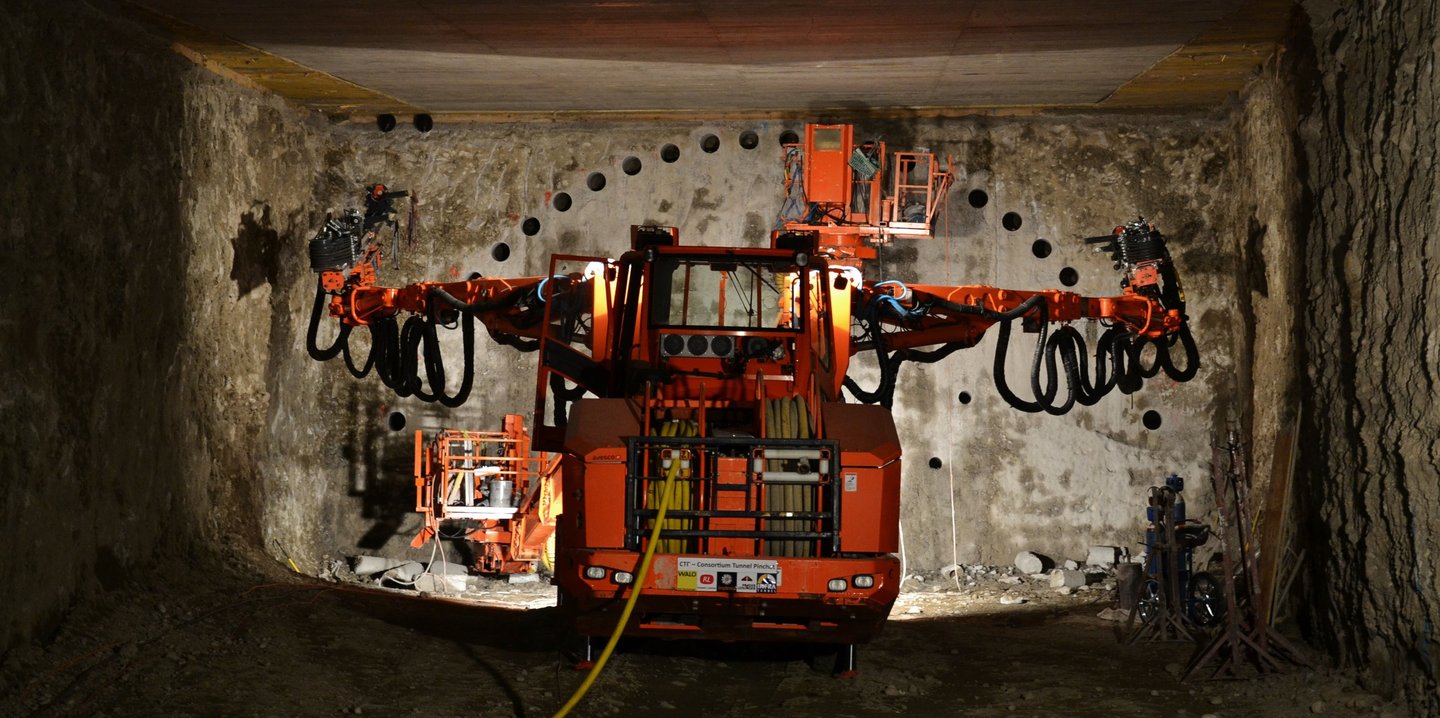

The primary application for BS 6708 Type 43 cables lies in supplying power to hand-held drilling and cutting machines used in underground mining operations. These environments present a particularly challenging combination of hazards that make cable selection absolutely critical. Underground mines frequently contain explosive gases such as methane, which can accumulate in poorly ventilated areas and create atmospheres where even the smallest electrical fault could trigger a devastating explosion.

In these underground applications, the cables must power pneumatic drills, hydraulic cutting tools, and other portable equipment that workers manoeuvre through confined spaces, around sharp rock edges, and over uneven surfaces. The cables face constant mechanical stress from being dragged across rough terrain, compressed under heavy equipment, and bent around tight corners as workers navigate the mine's passages. Additionally, the presence of groundwater, chemical solutions used in ore processing, and the corrosive atmosphere created by mining operations places extraordinary demands on the cable's protective systems.

The 125/72 volt rating of the BS 6708 Type 43 cable proves particularly well-suited to these underground applications. This relatively low voltage reduces the risk of dangerous arcing should the cable become damaged, whilst still providing sufficient power for effective operation of drilling and cutting equipment. The reduced voltage also minimises the energy available to ignite explosive atmospheres, creating an additional layer of safety in environments where such hazards are ever-present.

Surface Mining Operations

Surface mining operations, whilst not facing the same explosive atmosphere risks as underground mines, present their own unique challenges for cable systems. Open-pit mines, quarries, and strip mining operations expose cables to extreme temperature variations, intense ultraviolet radiation from direct sunlight, and mechanical abuse from heavy machinery operations. The BS 6708 Type 43 cable's robust construction makes it equally suitable for these demanding surface applications.

In surface mining, the cables typically power portable drilling equipment used for blast hole preparation, cutting tools for dimensioning stone blocks, and various maintenance equipment that must operate reliably in harsh outdoor conditions. The cables must withstand being driven over by heavy vehicles, exposure to rain and snow, contact with aggressive chemicals used in ore processing, and the constant vibration and shock associated with blasting operations and heavy machinery movement.

Why This Cable Design Excels in Mining Applications

The suitability of BS 6708 Type 43 cables for mining applications stems from several key design features that directly address the specific challenges of mining environments. The heavy-duty construction incorporates multiple layers of protection, each designed to counter specific threats present in mining operations.

The cable's resistance to mechanical stress comes from its robust stranded copper conductor design and the multiple protective layers surrounding it. The 84-strand construction of each 6mm² conductor provides excellent flexibility whilst maintaining current-carrying capacity, allowing the cable to bend and flex repeatedly without conductor breakage. This flexibility proves essential when cables must be routed through the confined spaces typical of mining operations.

Moisture resistance represents another critical design feature. Mining operations frequently involve water for dust suppression, equipment cooling, and ore processing. The cable's EPR insulation and chloroprene outer sheath provide excellent moisture resistance, preventing water ingress that could lead to dangerous electrical faults or equipment damage. This protection extends to resistance against the various chemical solutions encountered in mining, including acids used in ore processing and alkaline compounds present in many mining environments.

Fire and explosion safety compliance sets mining cables apart from conventional industrial cables. The materials and construction methods used in BS 6708 Type 43 cables have been specifically chosen to minimise fire propagation and reduce the emission of toxic gases should a fire occur. This characteristic proves particularly important in underground mining, where escape routes may be limited and smoke accumulation can quickly create life-threatening conditions.

Electrical and Mechanical Specifications: Engineering Excellence in Detail

Understanding the Electrical Parameters

The electrical specifications of the BS 6708 Type 43 cable reflect careful engineering to balance power delivery capability with safety requirements specific to mining applications. The rated voltage of 125/72 volts deserves particular attention, as this specification directly relates to mining safety requirements. The 125-volt rating refers to the voltage between any conductor and earth, whilst the 72-volt rating represents the voltage between conductors in a balanced three-phase system.

This voltage specification was chosen specifically for mining applications because it provides sufficient power for effective equipment operation whilst remaining below levels that could easily sustain dangerous arcs in the presence of explosive atmospheres. Higher voltages, whilst capable of delivering more power, create greater risks of ignition should cable damage or equipment faults occur. The relatively low voltage also reduces the severity of electrical shock hazards for workers who might accidentally contact damaged cables.

The test voltage specification of 1.5 kilovolts represents the electrical stress level that the cable's insulation system must withstand during manufacturing quality tests and periodic maintenance inspections. This test voltage, significantly higher than the operating voltage, ensures that the insulation system maintains adequate safety margins even after extended service in harsh mining conditions. The ability to pass high-voltage testing indicates that the insulation retains its integrity and continues to provide reliable protection against electrical faults.

Current rating specifications reveal the cable's power-handling capabilities under various operating conditions. The 150-ampere rating at 25°C ambient temperature indicates the continuous current that the cable can carry without exceeding safe conductor temperatures. This rating assumes specific installation conditions and ambient temperatures typical of mining operations. In practice, the actual current-carrying capacity may vary depending on factors such as ambient temperature, cable routing, and heat dissipation conditions.

The maximum DC resistance specification of 3.48 ohms per kilometre at 20°C provides important information for calculating voltage drops and power losses in mining cable installations. This relatively low resistance value, achieved through the use of high-quality electrolytic copper conductors, ensures efficient power transmission and minimises energy losses that could lead to equipment underperformance or excessive heating.

Physical Structure and Material Engineering

The physical construction of the BS 6708 Type 43 cable represents a sophisticated approach to protection against the multiple hazards present in mining environments. Each component has been selected and designed to address specific threats whilst contributing to the overall system's reliability and safety.

The conductor system utilises stranded, tinned electrolytic copper conforming to IEC 60228 Class 5 specifications. This construction provides several important advantages for mining applications. The stranded design, incorporating 84 individual 0.30mm diameter wires in each 6mm² conductor, provides excellent flexibility whilst maintaining low electrical resistance. The tinning process, which coats each copper wire with a thin layer of tin, provides enhanced corrosion resistance and improves the long-term reliability of electrical connections.

The choice of electrolytic copper ensures high conductivity and reliable performance over extended periods. Lower-grade copper alloys, whilst less expensive, can suffer from increased resistance and reduced current-carrying capacity over time, particularly when exposed to the corrosive conditions common in mining environments. The Class 5 flexibility rating indicates that these conductors can withstand repeated bending and flexing without strand breakage, a critical characteristic for cables that must be frequently repositioned during mining operations.

EPR (Ethylene Propylene Rubber) insulation surrounding each conductor provides excellent electrical insulation properties combined with outstanding resistance to environmental stresses. EPR maintains its insulation properties across a wide temperature range and exhibits superior resistance to ozone, ultraviolet radiation, and many of the chemicals encountered in mining operations. Unlike some insulation materials that become brittle with age or exposure to environmental stresses, EPR retains its flexibility and protective properties throughout the cable's service life.

The conducting elastomeric bedding layer serves multiple important functions in the cable's protective system. This layer provides a smooth, continuous surface over the assembled conductors, eliminating sharp edges or protrusions that could concentrate electrical stress and lead to insulation breakdown. The conducting properties of this layer help distribute electrical stress evenly across the insulation system, reducing the likelihood of localised failures that could compromise cable integrity.

The heavy-duty chloroprene outer sheath represents the cable's primary defence against the harsh physical environment of mining operations. Chloroprene, a synthetic rubber with exceptional resistance to oil, chemicals, abrasion, and weathering, provides robust protection against the multiple threats present in mining environments. This material maintains its protective properties when exposed to petroleum products, hydraulic fluids, and many of the chemical solutions used in ore processing operations.

Dimensional Specifications and Installation Considerations

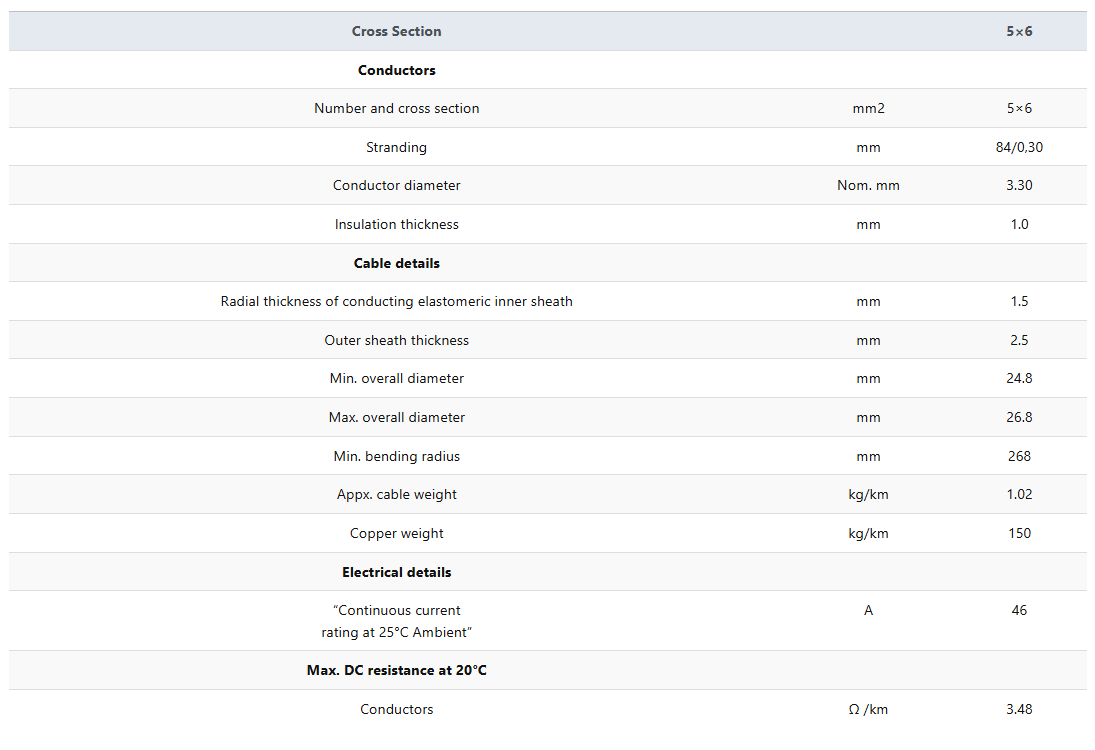

The dimensional specifications of the BS 6708 Type 43 cable reflect careful optimisation between protection, flexibility, and practical handling requirements. The overall diameter range of 24.8 to 26.8 millimetres provides substantial protection for the internal components whilst remaining manageable for workers who must handle these cables in confined mining environments.

The minimum bending radius specification of 268 millimetres represents a critical safety parameter that must be observed during cable installation and use. Exceeding this bending radius—that is, bending the cable more sharply than specified—can damage the internal conductor strands, compromise insulation integrity, or create stress concentrations that lead to premature failure. This specification becomes particularly important in mining applications where cables must often be routed around equipment, through confined spaces, or over irregular terrain.

Weight specifications provide important information for both installation planning and structural considerations. At approximately 1,020 kilograms per kilometre total weight, with 268 kilograms representing the copper content, these cables require substantial support systems when installed in permanent or semi-permanent installations. The weight also affects handling requirements during mobile applications, where workers must manage reasonable lengths of cable whilst operating drilling or cutting equipment.

Frequently Asked Questions: Addressing Common Mining Cable Concerns

Question 1: Why is the cable designed with a low voltage (125/72V)?

The decision to design the BS 6708 Type 43 cable for relatively low voltage operation reflects fundamental safety principles specific to mining environments. This voltage selection provides several critical safety advantages that become particularly important when operating electrical equipment in environments where explosive gases or combustible dust may be present.

Lower operating voltages significantly reduce the energy available to create ignition sources should cable damage or equipment faults occur. When electrical faults happen at higher voltages, the resulting arcs tend to be more energetic and longer-lasting, creating greater risk of igniting explosive atmospheres. By operating at 125/72 volts, the cable system minimises this ignition risk whilst still providing adequate power for effective operation of drilling and cutting equipment.

The reduced voltage also provides important worker safety benefits. Electrical shock hazards, whilst still serious at any voltage, are generally less severe at lower voltages. This consideration becomes particularly important in mining environments where workers may be in contact with grounded metal surfaces and where emergency medical response may be complicated by the remote location and confined spaces typical of mining operations.

Additionally, lower voltage systems typically exhibit more predictable behaviour when insulation systems begin to degrade. At higher voltages, partial discharge phenomena and tracking can create unpredictable failure modes that may not provide adequate warning before catastrophic failure occurs. The 125/72 volt system provides more predictable degradation patterns that can be detected through routine testing and maintenance procedures.

Question 2: Can the cable be used in wet or chemically aggressive environments?

The BS 6708 Type 43 cable has been specifically engineered to operate reliably in wet and chemically aggressive environments typical of mining operations. The cable's multi-layer protection system provides comprehensive defence against moisture ingress and chemical attack, making it well-suited to the harsh conditions encountered in both underground and surface mining applications.

The chloroprene outer sheath provides the primary barrier against environmental contaminants. This synthetic rubber material exhibits excellent resistance to water, oil, many acids and bases, and organic solvents commonly encountered in mining operations. Unlike natural rubber or some thermoplastic materials that may swell, crack, or degrade when exposed to these substances, chloroprene maintains its protective integrity over extended periods of exposure.

The EPR insulation system provides an additional layer of chemical resistance, particularly important should the outer sheath suffer mechanical damage. EPR's molecular structure makes it inherently resistant to many chemical attacks and provides excellent moisture barrier properties. This dual-layer protection system ensures that even if the outer sheath is compromised, the electrical integrity of the cable remains protected.

However, it's important to understand that no cable material is universally resistant to all chemicals. Specific chemical exposures should be evaluated based on concentration, temperature, and duration of contact. For applications involving unusual chemical exposures or extreme conditions, consultation with cable manufacturers or chemical compatibility specialists may be advisable to ensure optimal performance and safety.

Question 3: What happens if the cable is bent too tightly?

Exceeding the minimum bending radius specification represents one of the most common causes of premature cable failure in mining applications. Understanding the consequences of improper bending helps emphasise the importance of following installation and handling guidelines throughout the cable's service life.

When cables are bent more sharply than their minimum bending radius specification, several types of damage can occur. Conductor damage represents the most immediate concern, as excessive bending can cause individual copper strands to break or stretch beyond their elastic limits. This conductor damage increases electrical resistance, creates hot spots during operation, and ultimately leads to complete conductor failure. In mining applications, such failures can leave workers without power for critical equipment at potentially dangerous moments.

Insulation damage from excessive bending can be even more serious than conductor damage because it may not be immediately apparent. Sharp bends can create stress concentrations in the EPR insulation, leading to microscopic cracks that may not cause immediate failures but provide pathways for moisture ingress and eventual insulation breakdown. These failures can create dangerous electrical fault conditions that pose shock hazards to workers and potential ignition sources in explosive atmospheres.

The conducting elastomeric bedding layer can also be damaged by excessive bending, creating uneven electrical stress distribution across the insulation system. This damage may not cause immediate failures but can accelerate long-term degradation and reduce the cable's overall service life significantly.

Prevention of bending damage requires attention to cable routing during both installation and use. Permanent installations should incorporate appropriate cable supports and guides to maintain proper bending radii. For portable applications, worker training becomes critical to ensure that cables are handled properly during equipment setup and operation.

Question 4: What are signs of cable degradation in a mining setup?

Recognising early signs of cable degradation represents a critical safety skill for mining personnel, as early detection can prevent dangerous failures and protect both workers and equipment. Understanding what to look for and how to interpret various warning signs helps ensure that cables are replaced before they become safety hazards.

Visible sheath damage often provides the first indication of cable problems. Cracking, swelling, or discoloration of the outer chloroprene sheath may indicate chemical attack, excessive heat exposure, or mechanical damage that could compromise the cable's protective systems. Even minor sheath damage should be taken seriously in mining applications, as it can provide entry points for moisture or chemicals that may cause more serious internal damage over time.

Abnormal heating during operation typically indicates either conductor damage that has increased electrical resistance or insulation degradation that is allowing current leakage. Cables should remain only warm to the touch during normal operation, and any sections that become noticeably hot require immediate investigation. In mining environments, excessive heating not only indicates potential failure but could also create ignition hazards in explosive atmospheres.

Electrical symptoms such as increased resistance measurements, voltage drops, or intermittent power failures often indicate internal damage that may not be visible from external inspection. These symptoms may develop gradually as conductor strands break progressively or as insulation degradation allows increasing current leakage. Regular electrical testing can help detect these problems before they lead to complete failures.

Physical deformation of the cable, such as flat spots from crushing or sharp kinks from improper bending, indicates mechanical damage that may have compromised internal components. Even if the cable continues to function temporarily, such damage typically leads to premature failure and should prompt immediate replacement.

Question 5: What makes this cable compliant with BS 6708?

BS 6708 compliance represents far more than simply meeting a set of technical specifications; it demonstrates that the cable has been designed, manufactured, and tested to meet comprehensive safety and performance requirements specifically developed for mining applications. Understanding what this compliance means helps appreciate why specification compliance is so critical in mining environments.

The BS 6708 standard addresses multiple aspects of cable performance that are particularly important in mining applications. Mechanical durability requirements ensure that cables can withstand the crushing forces, repeated bending, and abrasion typical of mining operations without losing their protective integrity. These requirements go beyond simple tensile strength to include resistance to impact, compression, and the repetitive mechanical stresses that occur during normal mining operations.

Flame resistance specifications within BS 6708 ensure that cables will not contribute to fire propagation should ignition occur. This requirement is particularly critical in underground mining environments where fire represents an extreme hazard due to limited escape routes and the potential for smoke accumulation in confined spaces. The standard specifies both the materials that can be used and testing procedures that verify flame resistance performance.

Insulation integrity requirements ensure that the electrical protection provided by the cable system remains effective throughout its service life, even when exposed to the environmental stresses typical of mining operations. These requirements include not only initial insulation performance but also long-term stability when exposed to moisture, chemicals, temperature variations, and mechanical stress.

Electrical safety provisions within the standard address both normal operation and fault conditions. The standard specifies not only current-carrying capacity and voltage ratings but also requirements for behaviour during electrical faults that help minimise risks to workers and equipment. These requirements help ensure that cable failures, when they do occur, happen in predictable ways that minimise hazards.

Manufacturing quality requirements ensure that cables claiming BS 6708 compliance are produced using controlled processes and materials that consistently meet specification requirements. This includes requirements for material traceability, production testing, and quality management systems that help ensure reliable performance across all cables produced.

Conclusion: Ensuring Mining Safety Through Proper Cable Selection

The selection of appropriate cables for mining operations represents a critical decision that directly impacts both worker safety and operational reliability. The BS 6708 Type 43 mining cable exemplifies the sophisticated engineering required to meet the unique challenges present in mining environments, from explosive atmosphere safety to mechanical durability under extreme conditions.

Understanding the comprehensive nature of these challenges helps emphasise why generic industrial cables are inadequate for mining applications. The combination of explosive atmosphere risks, extreme mechanical stresses, chemical exposures, and the critical nature of equipment reliability in mining operations demands cables that have been specifically designed and tested for these conditions. The BS 6708 Type 43 cable addresses each of these challenges through careful material selection, robust construction techniques, and comprehensive testing to ensure reliable performance.

The electrical specifications of these cables, particularly the 125/72 volt rating and current-carrying capacity, reflect careful optimisation between power delivery requirements and safety considerations. The relatively low voltage reduces ignition risks whilst providing adequate power for effective equipment operation, whilst the robust current-carrying capacity ensures reliable operation even under the demanding conditions typical of mining operations.

The mechanical and environmental protection provided by the multi-layer construction system ensures that these electrical characteristics are maintained throughout the cable's service life, even when exposed to the crushing forces, chemical exposures, and environmental extremes common in mining operations. From the stranded copper conductors designed for flexibility and reliability, through the EPR insulation system that maintains its protective properties under stress, to the heavy-duty chloroprene outer sheath that provides the first line of defence against environmental hazards, every component contributes to the overall system's safety and reliability.

Perhaps most importantly, the comprehensive nature of BS 6708 compliance ensures that these cables have been designed, manufactured, and tested according to standards developed specifically for mining applications. This compliance provides assurance that the cables will perform reliably under the specific conditions encountered in mining operations and that they incorporate the safety features necessary to protect both workers and equipment.

Regular inspection and maintenance of mining cables represents an essential complement to proper initial selection. Even the most robust cables will eventually show signs of wear and degradation when exposed to the demanding conditions of mining operations. Understanding how to recognise early signs of cable problems and implementing appropriate maintenance procedures helps ensure that cables are replaced before they become safety hazards, maintaining the high levels of safety and reliability that mining operations require.

The investment in proper mining cables such as the BS 6708 Type 43 represents not merely a technical specification decision but a fundamental commitment to worker safety and operational reliability. In environments where equipment failure can have serious consequences and where workers depend on reliable electrical systems for their safety and productivity, the selection of appropriate cables becomes a critical element in overall mining safety management. Through proper selection, installation, and maintenance of mining cables, operators can help ensure that their electrical systems continue to provide safe and reliable service throughout their operational lives.
