BS 6708 Type 44 Mining Cable

Introduction

The mining industry operates under some of the most challenging conditions imaginable, where safety, reliability, and performance are not merely desirable qualities but absolute necessities. Within this demanding environment, the BS 6708 Type 44 mining cable stands as a critical component that bridges the gap between electrical power systems and the portable equipment that drives modern mining operations.

This specialised cable represents decades of engineering refinement, designed specifically to meet the unique demands of mining environments where explosive gases, corrosive dust, mechanical stress, and extreme operational conditions converge. Unlike standard industrial cables, the BS 6708 Type 44 has been meticulously engineered to address the specific challenges faced by mining operations, particularly in powering hand-held drilling equipment that forms the backbone of extraction activities.

The significance of this cable extends far beyond its basic function of power transmission. In mining operations, where a single electrical fault can result in catastrophic consequences ranging from equipment damage to loss of life, the BS 6708 Type 44 serves as a guardian of operational safety. Its robust construction, carefully selected materials, and adherence to stringent British Standards ensure that mining operations can maintain productivity whilst minimising the risks inherent in working with electrical equipment in potentially explosive atmospheres.

Understanding the intricacies of this cable system becomes essential for mining engineers, electrical technicians, safety officers, and procurement specialists who must make informed decisions about equipment selection and deployment. The cable's design philosophy encompasses not only immediate operational requirements but also long-term reliability, maintenance considerations, and compliance with evolving safety regulations that govern mining operations across the United Kingdom and internationally.

Application Scenarios and Operational Environments

The BS 6708 Type 44 mining cable finds its primary application in one of the most critical aspects of mining operations: powering hand-held drilling machines. These portable drilling systems represent the front line of mineral extraction, requiring reliable electrical power to operate efficiently in environments where traditional fixed installations would be impractical or impossible to implement.

Hand-held drilling equipment presents unique challenges for electrical supply systems. Unlike stationary machinery that can be connected to permanent electrical installations, portable drilling equipment must maintain electrical connection whilst being manoeuvred through confined spaces, around obstacles, and often in positions where the cable experiences significant mechanical stress. The drilling process itself generates substantial vibration and movement, which places additional demands on the electrical connection system.

The operational environments where this cable excels encompass both underground mining operations and surface mining activities, though each presents distinct challenges. In underground mining operations, the cable must contend with the presence of explosive gases and combustible dust particles that can accumulate in poorly ventilated spaces. These conditions create an environment where even the smallest electrical spark could trigger a catastrophic explosion, making the cable's design features crucial for maintaining operational safety.

Underground mining environments also present challenges related to humidity, temperature fluctuations, and exposure to various chemical substances that can degrade standard electrical components. The confined spaces typical of underground operations mean that cables are often routed through areas where they may come into contact with rough surfaces, sharp edges, or moving equipment, requiring exceptional mechanical protection.

Surface mining operations, whilst not typically involving explosive gas accumulation, present their own unique challenges. Open-cast mining operations expose equipment to weather extremes, from intense ultraviolet radiation and temperature fluctuations to moisture ingress from rain or snow. The larger scale of surface operations often means longer cable runs and increased exposure to mechanical damage from heavy machinery traffic.

The cable's design accommodates these varied operational scenarios through its multi-layered protection system and carefully selected materials. The heavy-duty chloroprene outer sheath provides protection against oil, chemicals, and mechanical damage, whilst the internal screening system ensures electrical integrity even in electromagnetically noisy environments typical of industrial mining operations.

Electrical Parameters and Technical Specifications

The electrical characteristics of the BS 6708 Type 44 mining cable reflect the careful balance between power delivery capability and safety requirements that define mining electrical systems. The cable operates at a rated voltage of 125/72 volts, a specification that represents a compromise between providing adequate power for drilling equipment whilst maintaining voltage levels that minimise the risk of serious electrical injury in the event of accidental contact.

This voltage rating deserves particular attention as it reflects the mining industry's approach to electrical safety. The 125/72 volt specification indicates that the cable can handle 125 volts between phases and 72 volts between any phase and earth. This relatively low voltage compared to industrial installations significantly reduces the risk of fatal electrical shock, whilst still providing sufficient power for the demanding requirements of drilling equipment.

The test voltage specification of 1.5 kilovolts demonstrates the cable's ability to withstand electrical stress well beyond its normal operating parameters. This test voltage ensures that the cable's insulation system can handle voltage spikes, transient conditions, and other electrical disturbances that commonly occur in mining electrical systems without breaking down or creating safety hazards.

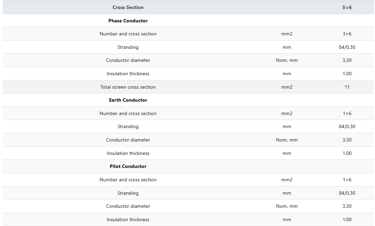

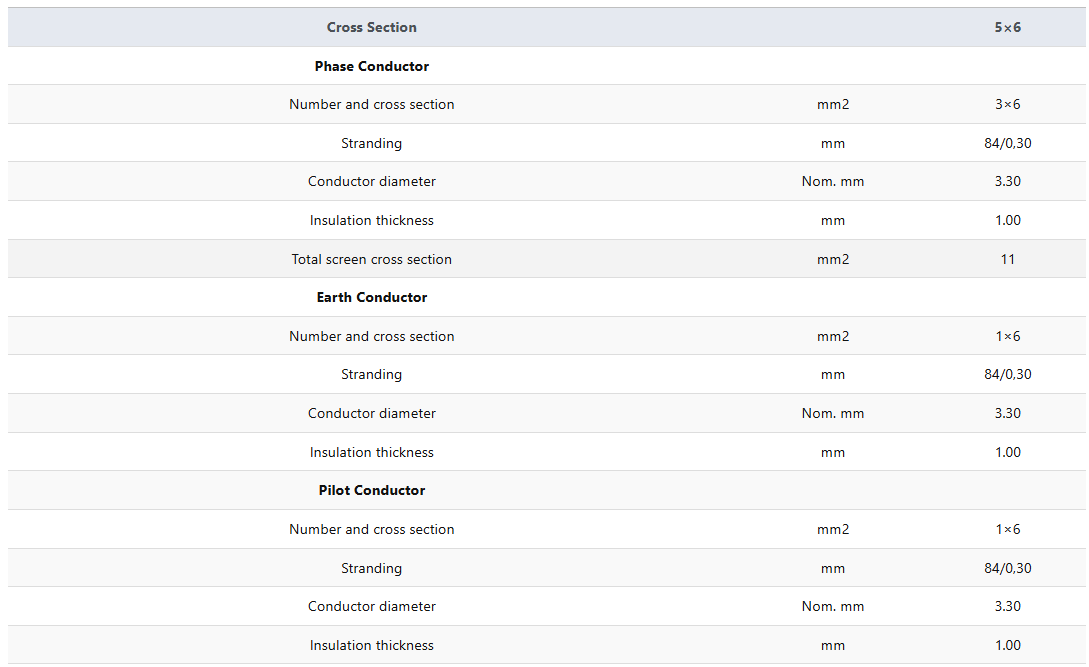

The conductor configuration represents a sophisticated approach to power distribution in portable applications. The cable incorporates three phase conductors, each with a cross-sectional area of 6 square millimetres, constructed from electrolytic copper that has been stranded and tinned according to IEC 60228 Class 5 specifications. This stranding class indicates extremely fine stranding that provides maximum flexibility whilst maintaining excellent electrical conductivity.

The inclusion of a separate earth conductor with identical 6 square millimetre cross-section ensures robust earthing, which is absolutely critical in mining applications where earth fault protection can mean the difference between a minor electrical fault and a serious safety incident. The earth conductor's generous sizing provides low resistance path to earth, ensuring that protective devices operate quickly and reliably in fault conditions.

Perhaps most intriguingly, the cable includes a pilot conductor with the same 6 square millimetre cross-section as the power conductors. This pilot conductor serves multiple functions, including equipment control signalling and monitoring applications that allow remote supervision of drilling operations. The substantial cross-section of the pilot conductor, unusual for control applications, provides reliability and reduces voltage drop even over extended cable runs.

The cable's current-carrying capacity of 46 amperes at 25 degrees Celsius ambient temperature provides substantial power delivery capability for hand-held drilling equipment. This rating takes into account the thermal properties of the EPR insulation system and the heat dissipation characteristics of the complete cable assembly, ensuring that the cable can deliver its rated current without thermal degradation.

The short-circuit current rating of 908 amperes for one second duration demonstrates the cable's ability to withstand fault conditions without damage. This specification is crucial in mining applications where fault currents can be substantial, and the cable must remain intact long enough for protective devices to operate and clear the fault.

Cable Construction and Material Selection

The construction of the BS 6708 Type 44 mining cable reflects decades of experience in designing electrical systems for hostile environments. Each layer of the cable's construction serves specific purposes, and the interaction between these layers creates a system that exceeds the sum of its individual components.

The conductor system utilises electrolytic copper, representing the highest grade of electrical copper available. This material choice ensures maximum conductivity whilst providing the mechanical properties necessary for repeated flexing applications. The stranding pattern follows IEC 60228 Class 5 specifications, which requires extremely fine individual wire strands that provide exceptional flexibility whilst maintaining structural integrity.

The tinning of the copper conductors serves multiple purposes beyond simple corrosion protection. In mining environments where moisture and chemical exposure are common, the tin coating provides a barrier that prevents copper oxidation and maintains electrical connection integrity over extended periods. The tin coating also facilitates superior electrical connections during installation and maintenance activities.

The EPR (Ethylene Propylene Rubber) insulation system represents a sophisticated choice for mining applications. EPR offers exceptional thermal stability, maintaining its electrical and mechanical properties across a wide temperature range. This thermal stability is crucial in mining applications where equipment may be subjected to temperature extremes or where heat generated by drilling operations could affect cable performance.

EPR also provides excellent resistance to moisture ingress, a critical consideration in mining environments where humidity levels can be extreme and where direct water contact may occur. The material's resistance to ozone and ultraviolet radiation makes it suitable for both underground applications and surface mining operations where exposure to atmospheric conditions is unavoidable.

The screening system applied to the phase conductors represents a sophisticated approach to electromagnetic compatibility. The tinned copper and nylon braided screen provides effective shielding against electromagnetic interference whilst maintaining the flexibility necessary for portable applications. This screening is particularly important in mining operations where multiple pieces of electrical equipment operate in close proximity, creating potential for electromagnetic interference.

The decision not to screen the pilot and earth conductors reflects careful engineering analysis. These conductors serve different functions than the power conductors and are less susceptible to electromagnetic interference. The omission of screening on these conductors reduces cable diameter and weight whilst maintaining necessary electrical performance.

The lay-up of all cores in contact with each other represents an important mechanical design decision. This arrangement provides mutual support between conductors, reducing mechanical stress on individual cores whilst maintaining a compact overall cable diameter. The rubber-based bedding compound fills voids between conductors, providing additional mechanical protection and moisture resistance.

The heavy-duty chloroprene outer sheath represents the cable's primary defence against the hostile mining environment. Chloroprene offers exceptional resistance to oils, chemicals, and mechanical damage whilst maintaining flexibility across a wide temperature range. The material's flame-retardant properties provide additional safety benefits in mining applications where fire prevention is paramount.

Detailed Analysis of Electrical Characteristics

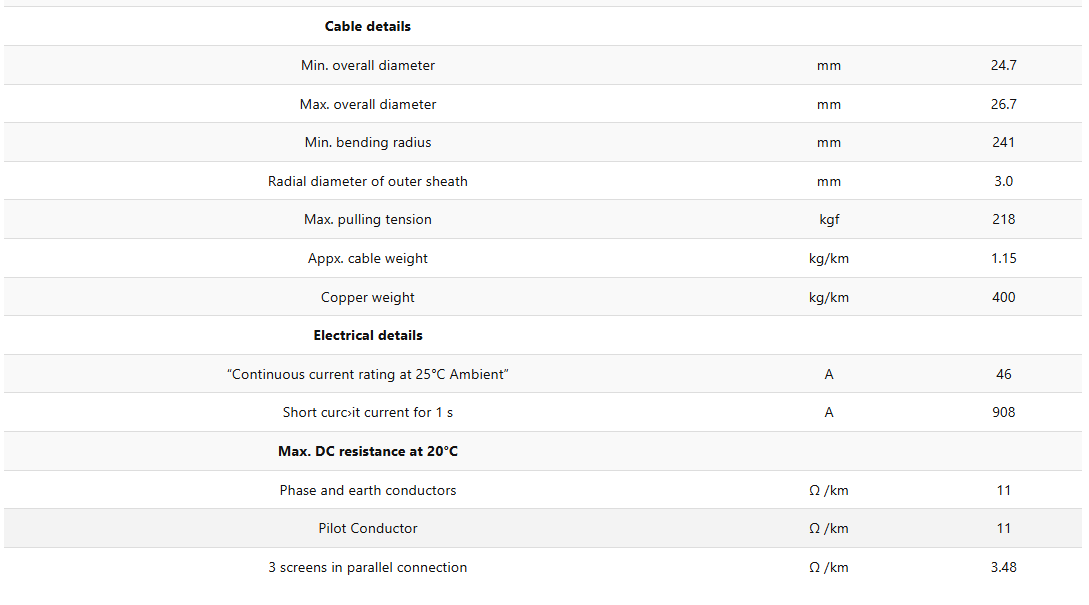

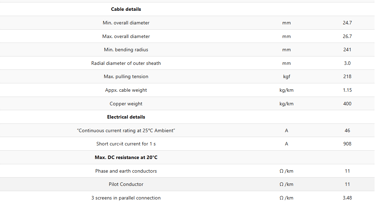

The electrical performance characteristics of the BS 6708 Type 44 mining cable reveal the sophisticated engineering that enables reliable operation in demanding mining environments. The maximum DC resistance specifications provide insight into the cable's efficiency and voltage drop characteristics, which directly impact the performance of connected drilling equipment.

The phase and earth conductor resistance of 11 ohms per kilometre represents excellent electrical performance for a 6 square millimetre conductor. This low resistance ensures minimal voltage drop over typical cable run lengths, maintaining adequate voltage at the drilling equipment for optimal performance. In mining applications where drilling equipment may be located hundreds of metres from power sources, this low resistance becomes critical for maintaining system efficiency.

The pilot conductor resistance specification of 11 ohms per kilometre demonstrates the substantial nature of this control circuit. Unlike typical control cables where higher resistance is acceptable, the pilot conductor's low resistance ensures reliable signalling and control even over extended distances. This specification enables sophisticated control systems that can monitor drilling operations remotely and provide feedback to operators.

The screen resistance specification of 3.48 ohms per kilometre when the three screens are connected in parallel provides insight into the electromagnetic compatibility performance of the cable. This low resistance ensures that the screens provide effective electromagnetic shielding whilst also serving as a supplementary earth return path in certain applications.

The continuous current rating of 46 amperes represents the cable's thermal equilibrium point where heat generation from current flow equals heat dissipation to the environment. This rating assumes a 25-degree Celsius ambient temperature and takes into account the thermal properties of all cable components. In mining applications where ambient temperatures may be elevated, derating factors must be applied to ensure thermal integrity.

The short-circuit current specification of 908 amperes for one second duration demonstrates the cable's ability to withstand fault conditions. This specification is calculated based on the thermal capacity of the copper conductors and ensures that the cable can carry fault currents without damage for sufficient time to allow protective devices to operate.

Mining-Specific Design Considerations

The design of the BS 6708 Type 44 mining cable incorporates numerous features specifically tailored to address the unique challenges of mining operations. These design considerations extend beyond basic electrical requirements to encompass safety, environmental, and operational factors that distinguish mining applications from other industrial uses.

The cable's flexibility represents a critical design parameter for mining applications. Hand-held drilling equipment requires cables that can bend and flex repeatedly without degradation, accommodating the dynamic movements inherent in drilling operations. The minimum bending radius specification of 241 millimetres ensures that the cable can be routed through tight spaces whilst maintaining structural integrity.

The maximum pulling tension specification of 218 kilograms-force provides guidance for installation procedures and ensures that the cable can withstand the mechanical stresses associated with deployment in mining operations. This specification encompasses not only initial installation forces but also the ongoing mechanical stresses that occur during normal operation.

The cable's weight characteristics, with an approximate total weight of 1,150 kilograms per kilometre and copper weight of 400 kilograms per kilometre, reflect the substantial construction necessary for mining applications. Whilst this weight is greater than that of standard industrial cables, it represents the necessary trade-off between durability and portability for mining applications.

The radial thickness of the outer sheath at 3.0 millimetres provides substantial mechanical protection whilst maintaining reasonable flexibility. This thickness represents careful optimisation between protection requirements and handling characteristics, ensuring that the cable can withstand the mechanical abuse typical of mining operations whilst remaining manageable for installation and maintenance personnel.

Environmental Resistance and Durability

The BS 6708 Type 44 mining cable's environmental resistance capabilities represent one of its most critical design features. Mining operations expose electrical equipment to environmental conditions that would quickly destroy standard electrical cables, making environmental resistance a fundamental requirement rather than a desirable characteristic.

The cable's resistance to explosive atmospheres stems from its construction materials and assembly methods. The absence of materials that could generate static electricity or create sparks during normal operation makes the cable suitable for use in environments where explosive gases or combustible dust may be present. This resistance is achieved through careful material selection and construction techniques that eliminate potential ignition sources.

Chemical resistance represents another critical aspect of the cable's environmental performance. Mining operations often involve exposure to various chemicals, from naturally occurring minerals to processing chemicals used in extraction operations. The chloroprene outer sheath provides excellent resistance to oils, acids, and alkalis commonly encountered in mining environments.

Moisture resistance is achieved through multiple layers of protection, from the EPR insulation system to the outer sheath. This multi-layer approach ensures that even if the outer protection is compromised, internal components remain protected from moisture ingress that could cause electrical failures or safety hazards.

Temperature performance encompasses both high and low temperature operation, reflecting the varied thermal conditions encountered in mining operations. The cable's materials maintain their properties across a wide temperature range, ensuring reliable operation whether in the heat of deep underground workings or the cold of surface operations in winter conditions.

Frequently Asked Questions

Why is the BS 6708 Type 44 cable specifically suitable for explosive environments?

The suitability of this cable for explosive environments stems from its comprehensive design approach that addresses multiple potential ignition sources. The cable's construction eliminates materials and configurations that could generate static electricity or sparks during normal operation. The tinned copper conductors, EPR insulation, and chloroprene sheath are all selected for their anti-static properties and inability to generate sparks through mechanical contact. Additionally, the cable's robust construction prevents internal faults that could create arcing or sparking within the cable structure itself. The screening system provides electromagnetic compatibility that reduces the risk of interference-induced heating or sparking, whilst the substantial earth conductor ensures rapid fault clearance if problems do occur.

What specific advantages does EPR insulation provide for mining cable applications?

EPR insulation offers several critical advantages that make it ideal for mining applications. The material's exceptional thermal stability ensures consistent electrical properties across the wide temperature ranges encountered in mining operations, from the heat generated by equipment operation to the thermal variations found in different mining environments. EPR's resistance to moisture ingress is particularly valuable in mining applications where humidity levels can be extreme and where direct water contact may occur during operations. The insulation's flexibility characteristics allow the cable to withstand the repeated bending and flexing required for portable drilling equipment without cracking or degrading. Additionally, EPR provides excellent resistance to ozone and chemical exposure, protecting against the various atmospheric contaminants found in mining environments.

Why are the pilot and ground cores not provided with screening?

The decision to omit screening from the pilot and ground cores reflects careful engineering analysis of their specific functions and electromagnetic requirements. The pilot conductor typically carries low-level control signals that are less susceptible to electromagnetic interference than the high-current power conductors. Ground conductors, by their nature, provide a reference point for the electrical system and do not require screening for electromagnetic compatibility purposes. The omission of screening on these conductors reduces overall cable diameter and weight whilst maintaining adequate electrical performance. The screening on the phase conductors provides the primary electromagnetic compatibility protection for the entire cable system, creating a shielded environment that benefits all conductors within the cable structure.

What makes the heavy-duty chloroprene sheath essential for mining applications?

The heavy-duty chloroprene sheath represents the cable's primary defence against the hostile mining environment, providing protection that standard cable sheaths cannot match. Chloroprene offers exceptional resistance to oils, hydraulic fluids, and chemicals commonly encountered in mining operations, preventing degradation that could compromise electrical safety. The material's mechanical properties provide protection against cuts, abrasions, and impacts that are inevitable in mining environments where cables may contact sharp surfaces or be subjected to mechanical stress. The flame-retardant properties of chloroprene provide additional safety benefits, reducing fire risk in environments where combustible materials may be present. The material's flexibility across a wide temperature range ensures that the cable remains manageable and safe to handle in various mining conditions.

How does the cable's design facilitate the flexibility required for hand-held equipment?

The cable's flexibility characteristics result from multiple design features working together to create a cable that can withstand the dynamic requirements of hand-held drilling equipment. The Class 5 stranding of the conductors provides maximum flexibility by using numerous fine wire strands rather than fewer thick strands, allowing the conductors to bend without work-hardening or breaking. The EPR insulation system maintains its flexibility across a wide temperature range, ensuring that the cable remains pliable even in extreme conditions. The lay-up of all cores in contact with each other provides mutual support that distributes bending stresses across multiple conductors rather than concentrating stress on individual cores. The rubber-based bedding compound provides cushioning between cores and fills voids that might otherwise allow cores to shift during bending, reducing internal mechanical stress.

What maintenance practices are recommended to ensure optimal performance and longevity?

Effective maintenance of BS 6708 Type 44 mining cable requires a systematic approach that addresses both preventive and corrective maintenance activities. Regular visual inspections should focus on identifying physical damage to the outer sheath, including cuts, abrasions, or areas where the sheath appears to be deteriorating. Particular attention should be paid to areas where the cable passes through openings or around corners, as these locations experience higher mechanical stress. Electrical testing should include insulation resistance measurements to verify that the insulation system maintains its integrity, and continuity testing to ensure that all conductors remain intact. The cable should be stored in a manner that prevents damage from environmental exposure, excessive bending, or mechanical stress when not in use. During installation and operation, the minimum bending radius should be observed to prevent internal damage to conductors or insulation. Regular inspection of connections and terminations is essential, as these areas are most susceptible to problems that could affect the entire cable system.

Conclusion

The BS 6708 Type 44 mining cable represents a sophisticated solution to the complex challenges of providing reliable electrical power in mining environments. Its comprehensive design approach addresses not only the basic requirements of power transmission but also the safety, environmental, and operational challenges that define mining applications.

The cable's electrical specifications demonstrate careful optimisation between power delivery capability and safety requirements, providing adequate power for demanding drilling operations whilst maintaining voltage levels that minimise safety risks. The substantial conductor cross-sections, robust insulation system, and comprehensive screening provide reliable performance even in the electromagnetically noisy environment of mining operations.

The mechanical design characteristics of the cable, from its flexible conductor construction to its heavy-duty outer sheath, reflect deep understanding of the physical demands placed on electrical equipment in mining applications. The cable's ability to withstand repeated flexing, mechanical stress, and environmental exposure ensures reliable service life even under demanding conditions.

The environmental resistance capabilities of the cable extend beyond basic protection to encompass the specific challenges of explosive atmospheres, chemical exposure, and extreme temperature variations. This comprehensive environmental protection ensures that the cable can operate safely and reliably across the full range of mining applications, from underground operations to surface mining activities.

The role of specialised cables such as the BS 6708 Type 44 in enhancing operational efficiency and safety in the mining industry cannot be overstated. These cables serve as the vital link between power generation systems and the portable equipment that drives modern mining operations, enabling productive mining activities whilst maintaining the high safety standards essential for protecting mining personnel and equipment.

As mining operations continue to evolve and face increasing demands for safety, efficiency, and environmental responsibility, the importance of carefully engineered electrical systems becomes ever more critical. The BS 6708 Type 44 mining cable stands as an example of how thoughtful engineering and adherence to rigorous standards can create solutions that meet the complex requirements of modern mining operations whilst providing the reliability and safety that the industry demands.
