BS 6708 Type 630 & Type 631 Mining Cables

Introduction

The mining industry operates in some of the most demanding environments on Earth, where electrical infrastructure must withstand extreme conditions whilst maintaining absolute safety standards. At the heart of these operations lie specialised power cables that connect massive machinery to electrical supplies, often hundreds of metres underground or across vast surface mining sites. These cables must not only deliver reliable power but also survive harsh physical abuse, chemical exposure, and potentially explosive atmospheres.

Mining cables represent a critical component of industrial infrastructure, serving as the electrical lifeline for equipment ranging from cutting machines and drilling rigs to crushers and conveyor systems. The failure of a mining cable can result in catastrophic consequences, including production shutdowns, equipment damage, and most importantly, serious safety risks to personnel working in hazardous environments.

The British Standard BS 6708 establishes the requirements for cables specifically designed for mining applications. Within this standard, Type 630 and Type 631 cables stand out as particularly robust solutions engineered to meet the unique challenges of mining operations. These cables represent decades of engineering evolution, incorporating lessons learned from real-world mining environments to create products that combine exceptional durability with reliable electrical performance.

Understanding the construction, capabilities, and proper application of these cables is essential for mining engineers, electrical contractors, and safety professionals who must ensure that mining operations maintain both productivity and safety standards. This comprehensive guide explores every aspect of BS 6708 Type 630 and Type 631 mining cables, from their multi-layered construction to their specific electrical characteristics and practical applications.

Application Scenarios and Operational Environments

Mining cables serve diverse roles across different operational contexts, each presenting unique challenges that influence cable design and selection. Understanding these scenarios helps explain why these cables incorporate such robust construction methods and stringent safety features.

Underground Mining Operations

Underground mining represents perhaps the most challenging environment for electrical equipment. Deep beneath the surface, cables must operate in confined spaces where explosive gases such as methane can accumulate, creating potentially lethal atmospheres. The presence of coal dust, rock particles, and moisture adds further complexity to the operational environment. In these conditions, cables experience constant physical stress from movement, vibration, and contact with rough surfaces.

Type 630 and Type 631 cables excel in these environments because their construction specifically addresses these hazards. The robust screening and insulation systems prevent electrical faults that could trigger explosions, whilst the armoured construction withstands the mechanical abuse inherent in underground operations. These cables typically supply power to cutting machines that carve through coal seams, drilling equipment that creates ventilation shafts, and conveyor systems that transport extracted materials to the surface.

The flexibility of these cables proves crucial in underground applications, where they must navigate tight corners, follow irregular tunnel profiles, and accommodate the movement of mobile equipment. Unlike rigid conduit systems, these flexible cables can be repositioned as mining operations progress, making them ideal for the dynamic nature of underground excavation.

Surface Mining Applications

Surface mining operations present different but equally demanding challenges for electrical infrastructure. Open-pit mines expose cables to extreme weather conditions, temperature variations, and intense ultraviolet radiation from sunlight. The scale of surface mining equipment often dwarfs underground machinery, requiring cables that can deliver enormous amounts of power whilst maintaining safety margins.

Large mobile equipment such as dragline excavators, electric shovels, and massive drilling rigs rely on these cables for their primary power supply. The cables must accommodate the movement of equipment across uneven terrain whilst maintaining electrical integrity. This requires exceptional mechanical strength combined with flexibility to prevent fatigue failure from repeated bending and stretching.

Chemical exposure represents another significant challenge in surface mining. Processing operations often involve acids, solvents, and other chemicals that can degrade conventional cable materials. The chloroprene outer sheath of Type 630 and Type 631 cables provides excellent resistance to these substances, ensuring long service life even in chemically aggressive environments.

Specialised Mining Applications

Beyond standard mining operations, these cables find application in specialised scenarios that demand their unique combination of properties. Rock crushing facilities require cables that can withstand intense vibration and mechanical shock. Ore processing plants need cables that resist chemical corrosion whilst delivering reliable power to complex machinery. Ventilation systems in underground mines depend on these cables to power fans that maintain breathable atmospheres for workers.

The versatility of Type 630 and Type 631 cables makes them suitable for temporary installations as well as permanent infrastructure. During mine development, cables may be repeatedly installed, relocated, and reinstalled as operations expand. Their robust construction ensures they can survive this handling whilst maintaining electrical performance.

Cable Construction and Electrical Parameters

The exceptional performance of BS 6708 Type 630 and Type 631 cables stems from their sophisticated multi-layer construction, where each component serves specific purposes in ensuring electrical reliability and mechanical durability. Understanding this construction helps explain why these cables can perform reliably in environments that would quickly destroy conventional electrical cables.

Physical Structure and Construction Details

The foundation of these cables lies in their conductors, which utilise electrolytic tinned copper wire conforming to IEC 60228 Class 5 specifications. This choice of conductor material and construction method represents a careful balance between electrical performance and mechanical flexibility. The copper provides excellent electrical conductivity, whilst the tinning process creates a protective barrier that prevents corrosion in harsh mining environments.

The Class 5 stranding specification ensures maximum flexibility by using numerous fine copper strands rather than fewer thick strands. This construction allows the cable to bend repeatedly without conductor fatigue, which is crucial for applications involving mobile equipment. The fine stranding also provides superior current-carrying capacity compared to solid conductors of equivalent cross-sectional area.

Surrounding each conductor, Ethylene Propylene Rubber (EPR) insulation provides exceptional electrical and thermal properties. EPR insulation offers superior performance compared to traditional materials, maintaining its insulating properties across wide temperature ranges whilst resisting degradation from ozone, chemicals, and moisture. This insulation system enables the cable to operate reliably at its rated voltage of 3800/6600V whilst providing safety margins for voltage transients and fault conditions.

The screening system represents a critical safety feature, particularly in explosive atmospheres. Each phase conductor receives individual screening using tinned copper wire combined with nylon braiding. This screening serves multiple purposes: it contains electromagnetic fields that could interfere with sensitive equipment, provides a path for fault currents, and helps prevent the buildup of static electricity. Notably, in Type 631 cables, the separate earth conductor remains unscreened, which allows it to function as an independent grounding path.

Mechanical Protection Systems

The bedding compound, manufactured from rubber-based materials, fills the spaces between conductors and provides mechanical stability to the cable structure. This bedding prevents the conductors from moving independently under mechanical stress, which could lead to fatigue failure or damage to the insulation system. The rubber composition also provides additional chemical resistance and helps maintain the cable's circular cross-section under external pressure.

The armour system represents perhaps the most distinctive feature of these mining cables. Galvanized steel wire armour provides exceptional protection against mechanical damage whilst maintaining sufficient flexibility for practical installation. The galvanization process creates a zinc coating that protects the steel from corrosion, ensuring long-term mechanical integrity even in wet or chemically aggressive environments.

This armour construction, typically utilising seven-strand galvanized steel wires, provides remarkable impact resistance. The cables can withstand being struck by falling rocks, crushed by heavy equipment, or dragged across rough surfaces without sustaining damage to the internal electrical components. The pliable nature of the armour allows the cable to bend whilst maintaining its protective function.

The outer sheath, manufactured from heavy-duty chloroprene, provides the final layer of protection against environmental hazards. Chloroprene offers excellent resistance to oils, chemicals, ozone, and weathering, making it ideal for mining applications where cables may be exposed to hydraulic fluids, processing chemicals, or extreme weather conditions. The heavy-duty construction ensures sufficient thickness to resist abrasion and tearing whilst maintaining flexibility.

Electrical Characteristics and Performance Parameters

The electrical performance of Type 630 and Type 631 cables reflects their sophisticated construction and quality materials. With a rated voltage of 3800/6600V, these cables can handle the high-voltage requirements of industrial mining equipment whilst providing adequate safety margins for system protection.

The test voltage specification of 15kV demonstrates the exceptional insulation integrity of these cables. This test voltage, significantly higher than the operating voltage, ensures that the cables can withstand voltage transients, switching surges, and other electrical disturbances common in mining operations. The high test voltage also provides confidence in the cable's ability to maintain insulation integrity throughout its service life.

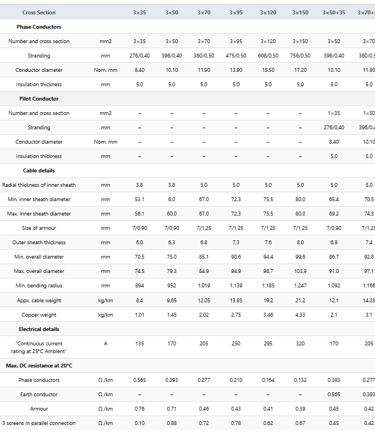

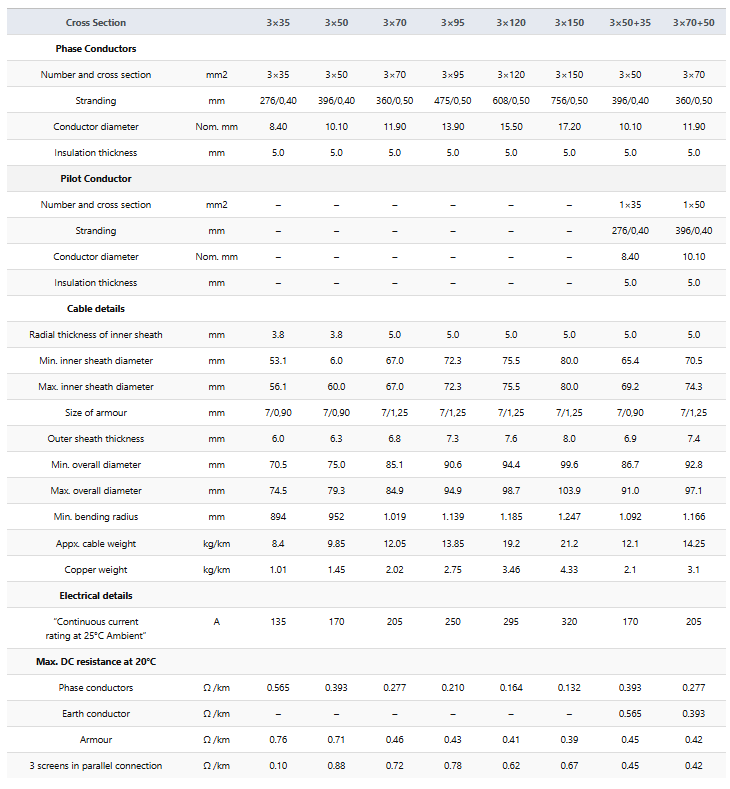

Current-carrying capacity varies significantly across the range of available conductor sizes, from 135 amperes for the smallest 3x35mm² configuration to 320 amperes for the largest 3x150mm² version. These ratings assume an ambient temperature of 25°C, which is typical for underground mining environments. The current ratings reflect not only the conductor size but also the thermal properties of the insulation and the cable's ability to dissipate heat generated by current flow.

The DC resistance characteristics provide important information for electrical system design and fault analysis. Phase conductor resistance ranges from 0.132 ohms per kilometre for the largest conductors to 0.565 ohms per kilometre for the smallest. These values, measured at 20°C, allow engineers to calculate voltage drops and power losses in cable runs, which is crucial for ensuring adequate voltage at equipment terminals.

The armour resistance, ranging from approximately 0.39 to 0.76 ohms per kilometre, becomes important for fault protection calculations. In certain fault conditions, the armour may carry significant current, and its resistance affects the operation of protective devices. The relatively low armour resistance also makes it suitable for use as an equipment grounding conductor in some applications.

Variations Between Type 630 and Type 631

Whilst Type 630 and Type 631 cables share similar basic construction, the key difference lies in the inclusion of a separate earth conductor in Type 631 cables. This earth conductor, constructed using the same high-quality copper as the phase conductors, provides a dedicated path for fault currents and equipment grounding.

The earth conductor in Type 631 cables remains unscreened, which allows it to function independently from the phase conductors. This design enables the earth conductor to carry fault currents without interference from the screening system, which is particularly important in applications where precise fault detection and protection coordination are required.

The availability of configurations with separate earth conductors, such as 3x50+35 and 3x70+50, provides flexibility in system design. These asymmetric configurations allow engineers to size the earth conductor appropriately for the specific application, potentially reducing overall cable cost whilst maintaining safety standards.

Physical Characteristics and Installation Considerations

The physical properties of these cables directly impact their installation requirements and operational performance. Understanding these characteristics helps ensure proper cable selection, installation practices, and maintenance procedures.

Cable weights range from 8,400 kilograms per kilometre for the smallest configuration to over 21,000 kilograms per kilometre for the largest. These substantial weights reflect the robust construction but also create significant installation challenges. Proper cable handling equipment becomes essential for installation, and cable routes must be designed to accommodate the weight without creating excessive stress on support structures.

Bending radius requirements, typically around ten times the cable diameter, ensure that the cable can be installed without damage to the internal structure. Minimum bending radii range from approximately 894 millimetres for smaller cables to over 1,200 millimetres for larger versions. These requirements must be considered during route planning to ensure adequate space for cable installation and maintenance access.

The substantial copper content of these cables, ranging from over 1,000 kilograms per kilometre to more than 4,000 kilograms per kilometre, represents significant material value. This copper content also affects the cable's thermal characteristics and fault current capability, making it an important consideration for electrical system design.

Common Issues and Frequently Asked Questions

Understanding the practical challenges and concerns associated with mining cable applications helps ensure successful installations and operations. The following questions address the most common issues encountered by mining professionals.

Can these cables be used in explosive environments?

Absolutely, and this represents one of their primary design objectives. Type 630 and Type 631 cables specifically target underground mining environments where explosive gases and combustible dust create potentially lethal atmospheres. The comprehensive screening system prevents electromagnetic radiation that could ignite explosive mixtures, whilst the robust insulation system ensures that electrical faults cannot create sparks or excessive heat.

The cables' compliance with BS 6708 includes specific requirements for use in hazardous locations. The screening system not only contains electromagnetic fields but also provides a controlled path for fault currents, preventing uncontrolled arcing that could trigger explosions. The EPR insulation maintains its integrity even under fault conditions, minimising the risk of electrical breakdown that could create ignition sources.

However, proper installation and maintenance remain crucial for maintaining explosive atmosphere protection. Cable connections must be made using appropriate techniques and materials, and regular inspection should verify that the screening system remains intact. Any damage to the cable structure could compromise its suitability for explosive atmospheres.

What distinguishes Type 630 from Type 631 cables?

The fundamental difference between these cable types lies in the earth conductor configuration. Type 630 cables contain only the three phase conductors, each individually screened, making them suitable for applications where equipment grounding is provided through other means or where the armour serves as the equipment grounding conductor.

Type 631 cables include a separate earth conductor that provides a dedicated grounding path independent of the armour. This earth conductor, notably, remains unscreened, which allows it to function as an independent grounding system. This configuration proves particularly valuable in applications requiring precise fault detection, where the earth conductor must carry fault currents without interference from the screening system.

The choice between Type 630 and Type 631 depends on the specific grounding requirements of the electrical system. Applications requiring high-integrity grounding systems, such as those involving sensitive electronic equipment or precise protective relay coordination, often benefit from the separate earth conductor provided by Type 631 cables.

What makes these cables particularly suitable for mining equipment?

Mining equipment presents unique challenges that these cables address through their comprehensive design approach. The combination of high mechanical strength, exceptional flexibility, and robust electrical performance makes them ideal for mining applications.

Flexibility stems from the fine-stranded conductor construction, which allows the cables to bend repeatedly without conductor fatigue. This flexibility enables the cables to follow the movement of mobile mining equipment whilst maintaining electrical integrity. The EPR insulation remains flexible across wide temperature ranges, ensuring that the cables can operate in both the cool depths of underground mines and the temperature extremes of surface operations.

Durability comes from the multiple protection layers, including the rubber bedding, steel wire armour, and chloroprene outer sheath. These layers work together to protect the electrical components from mechanical damage, chemical exposure, and environmental hazards common in mining operations. The cables can withstand being dragged across rough surfaces, struck by falling debris, or exposed to hydraulic fluids without sustaining damage.

Safety features include the comprehensive screening system, high-voltage insulation, and robust construction that prevents electrical faults from creating hazardous conditions. The high test voltage specification ensures that the cables can withstand electrical disturbances without breakdown, whilst the screening system contains electromagnetic fields and provides controlled fault current paths.

What are the bending radius requirements and weight considerations?

Bending radius requirements directly impact installation planning and cable routing design. The minimum bending radius, typically ten times the cable diameter, ensures that the cable can be installed without damage to the conductor stranding, insulation system, or armour structure. For the range of available cable sizes, minimum bending radii extend from approximately 894 millimetres to over 1,200 millimetres.

These requirements must be considered during the design phase to ensure adequate space for cable installation, particularly in underground mining operations where space may be limited. Cable routes should avoid sharp corners or obstacles that would force the cable to bend beyond its minimum radius. Installation equipment must also accommodate these bending requirements to prevent damage during cable pulling operations.

Cable weights present significant logistical challenges that affect installation planning and support structure design. Weights ranging from 8,400 to over 21,000 kilograms per kilometre require substantial handling equipment and carefully designed support systems. Cable trays, conduits, and support structures must be sized appropriately to handle these weights without creating excessive stress on the cable structure.

The substantial weight also affects transportation and storage requirements. Cable reels must be appropriately sized and handled with suitable equipment to prevent damage during delivery and installation. Storage areas must provide adequate support to prevent cable deformation during long-term storage periods.

How do these cables prevent mechanical damage?

Mechanical damage prevention represents a critical aspect of mining cable design, given the harsh environments in which they operate. The multi-layer protection system provides comprehensive defence against various types of mechanical hazards.

The galvanized steel wire armour provides the primary mechanical protection, offering exceptional resistance to impact, crushing, and abrasion. The armour construction using seven-strand galvanized steel wires provides flexibility whilst maintaining protective capability. The galvanization process creates a corrosion-resistant coating that ensures long-term mechanical integrity even in wet or chemically aggressive environments.

The heavy-duty chloroprene outer sheath provides the first line of defence against mechanical damage whilst offering excellent resistance to chemicals, oils, and environmental hazards. The thickness and material properties of this sheath allow it to resist tearing, abrasion, and puncture damage that could compromise the underlying protection systems.

The rubber-based bedding compound provides internal mechanical stability, preventing the conductors from moving independently under external stress. This stability reduces the risk of insulation damage from conductor movement and helps maintain the cable's structural integrity under mechanical loading.

The EPR insulation system itself provides mechanical protection for the conductors whilst maintaining electrical integrity. The material properties of EPR include excellent resistance to mechanical stress, ensuring that the insulation can withstand the forces transmitted through the cable structure without electrical breakdown.

Regular inspection and maintenance practices enhance the mechanical protection provided by the cable construction. Visual inspection can identify potential damage before it compromises cable performance, whilst proper installation techniques ensure that the protection systems function as intended throughout the cable's service life.

Conclusion

BS 6708 Type 630 and Type 631 mining cables represent the culmination of decades of engineering development focused on meeting the unique challenges of mining operations. Their sophisticated multi-layer construction addresses every aspect of mining cable requirements, from electrical performance and safety to mechanical durability and environmental resistance.

The comprehensive design approach ensures that these cables can operate reliably in the most demanding environments, providing the electrical infrastructure necessary for modern mining operations. The combination of high-quality materials, robust construction methods, and adherence to international standards creates cables that mining professionals can trust for critical applications.

Understanding the construction details, electrical characteristics, and application requirements of these cables enables mining engineers, electrical contractors, and safety professionals to make informed decisions about cable selection and installation. Proper application of these cables contributes to the overall safety, reliability, and efficiency of mining operations.

The investment in high-quality mining cables pays dividends through reduced maintenance requirements, fewer operational disruptions, and enhanced safety margins. In an industry where downtime can cost thousands of pounds per hour and safety remains paramount, the reliability provided by BS 6708 Type 630 and Type 631 cables represents essential infrastructure for successful mining operations.

As mining operations continue to evolve and expand, these cables will remain crucial components of the electrical infrastructure that powers the industry. Their proven performance in demanding applications and compliance with international standards ensure that they will continue to serve the mining industry's needs for years to come, providing the reliable power delivery that modern mining operations require.
