BS 6708 TYPE FS4 Mining Cable

Introduction: The Critical Role of Specialised Cables in Mining Operations

In the demanding world of mining operations, where explosive gases, corrosive chemicals, and extreme mechanical stresses are commonplace, the choice of electrical infrastructure can literally mean the difference between life and death. Standard electrical cables that might suffice in typical industrial applications simply cannot withstand the harsh realities of mining environments, where coal dust mingles with methane gas, and equipment operates under crushing loads whilst navigating tight underground passages.

This is precisely where the BS 6708 TYPE FS4 mining cable emerges as an engineering marvel, specifically designed to address the unique challenges posed by both underground and surface mining operations. Unlike conventional power cables that might fail catastrophically when exposed to explosive atmospheres or mechanical abuse, the FS4 represents a carefully engineered solution that balances electrical performance with the robust construction necessary to survive in some of the most challenging industrial environments on Earth.

The significance of this cable extends far beyond its technical specifications. In mining operations, cable failure can result in production shutdowns costing thousands of pounds per hour, potential safety hazards for workers, and in worst-case scenarios, catastrophic incidents in explosive atmospheres. Therefore, understanding the construction, capabilities, and proper application of the BS 6708 TYPE FS4 cable becomes essential for mining engineers, electrical contractors, and safety professionals working in this critical industry.

Application Scenarios: Where the BS 6708 TYPE FS4 Excels

Overhead Catenary Systems: The Primary Application Domain

The BS 6708 TYPE FS4 cable finds its primary application in overhead catenary systems, which represent the backbone of electrical power distribution in modern mining operations. Think of these systems as the mining equivalent of railway overhead lines, but designed to operate in far more challenging conditions. In underground mines, these catenary systems must navigate through confined spaces whilst maintaining reliable power delivery to mobile equipment such as shuttle cars, continuous miners, and conveyor systems.

The flat parallel core arrangement of the FS4 cable proves particularly advantageous in catenary applications. Unlike traditional round cables that might twist or rotate when suspended, the flat configuration maintains consistent orientation and reduces the likelihood of phase imbalance, which could otherwise lead to motor heating and premature equipment failure. This design characteristic becomes increasingly important as mining operations extend deeper underground, where power transmission distances increase and electrical efficiency becomes paramount.

Deep Underground Mining: Navigating Extreme Conditions

In deep underground mining operations, the FS4 cable must contend with a unique combination of challenges that would quickly destroy conventional electrical cables. The confined nature of underground workings means that cables often experience repeated flexing as mining equipment manoeuvres through tight spaces. Additionally, the presence of water ingress, chemical exposure from mining processes, and the constant threat of mechanical damage from falling rocks or equipment contact creates an environment that demands exceptional cable resilience.

The cable's EPR (Ethylene Propylene Rubber) insulation system proves particularly valuable in these applications. Unlike PVC insulation that can become brittle at low temperatures or soft at elevated temperatures, EPR maintains consistent performance across the wide temperature ranges encountered in underground mining. Furthermore, the material's excellent resistance to ozone and chemical attack ensures reliable performance even when exposed to the various gases and chemicals present in mining atmospheres.

Surface Mining Operations: Weathering the Elements

Surface mining operations present their own unique set of challenges for electrical infrastructure. Here, the FS4 cable must withstand not only the mechanical stresses associated with mobile mining equipment but also the full range of weather conditions, from blazing summer heat to winter frost, whilst maintaining electrical integrity throughout varying humidity levels.

The chloroprene outer sheath proves its worth in surface applications through its exceptional resistance to UV radiation, ozone, and thermal cycling. This synthetic rubber compound maintains flexibility across extreme temperature ranges whilst providing superior resistance to oils and fuels that are commonplace around surface mining equipment. The flame-retardant properties of the chloroprene sheath also provide an additional safety margin in environments where sparks from mining equipment or lightning strikes could potentially ignite cable materials.

Explosive Atmosphere Compliance: Safety in Hazardous Zones

Perhaps the most critical application scenario for the BS 6708 TYPE FS4 cable involves its use in explosive atmospheres, where the presence of methane gas, coal dust, or other combustible materials creates the potential for catastrophic explosions. In these environments, any electrical equipment, including cables, must be designed and constructed to prevent the ignition of surrounding explosive mixtures.

The cable's construction incorporates several features specifically designed for explosive atmosphere compliance. The tinned copper conductors prevent corrosion that could lead to high-resistance connections and potential hot spots. The EPR insulation system maintains its integrity even under mechanical stress, preventing the formation of tracking paths that could lead to electrical arcing. Most importantly, the overall construction meets the stringent requirements for use in explosive gas and dust environments, providing mining operators with confidence that their electrical infrastructure will not become an ignition source.

Cable Construction and Features: Engineering Excellence in Every Layer

Conductor Design: The Foundation of Performance

At the heart of the BS 6708 TYPE FS4 cable lies its conductor system, which represents a masterclass in electrical engineering optimisation. The use of electrolytic copper ensures maximum conductivity, whilst the tinning process provides long-term protection against corrosion in harsh mining environments. The stranded construction, conforming to IEC 60228 Class 5 specifications, deserves particular attention for its engineering sophistication.

Class 5 stranding represents the finest level of stranding available in power cable construction, utilising 50 individual wires of 0.25mm diameter for the 2.5mm² variant and 50 wires of 0.30mm diameter for the 4mm² version. This extremely fine stranding provides several critical advantages in mining applications. Firstly, the increased flexibility allows the cable to withstand repeated bending cycles without conductor fatigue, essential for mobile mining equipment applications. Secondly, the large surface area created by the fine stranding improves current distribution and reduces skin effect losses at higher frequencies.

The tinning process applied to each individual conductor wire provides a metallurgical barrier against corrosion whilst also improving the mechanical properties of the overall conductor. In mining environments, where hydrogen sulphide and other corrosive gases may be present, untinned copper conductors would gradually deteriorate, leading to increased resistance, heating, and eventual failure. The tin coating prevents this degradation whilst also facilitating easier termination and jointing procedures.

Insulation System: EPR Technology Explained

The choice of EPR (Ethylene Propylene Rubber) as the insulation material represents a carefully considered engineering decision based on the specific requirements of mining applications. EPR belongs to the family of thermoset materials, meaning that once cured, it cannot be re-melted or reformed, providing inherent stability under thermal stress conditions.

The molecular structure of EPR consists of ethylene and propylene monomers arranged in a random copolymer configuration. This structure provides several advantages over alternative insulation materials such as PVC or polyethylene. The absence of chlorine in the molecular structure means that EPR does not produce corrosive gases when exposed to flame or elevated temperatures, a critical safety consideration in confined mining environments where personnel evacuation may be difficult.

The dielectric properties of EPR remain stable across a wide range of temperatures and frequencies, ensuring consistent electrical performance regardless of the operating conditions encountered in mining applications. The material's excellent resistance to ozone and corona discharge prevents the formation of conducting tracks on the insulation surface, which could otherwise lead to insulation breakdown and cable failure.

Separation and Identification: The Textile Tape System

The coloured textile tape separator system employed in the FS4 cable serves multiple critical functions that extend far beyond simple core identification. These separators, constructed from high-quality textile materials, provide mechanical separation between individual cores, preventing abrasion and potential short circuits during cable flexing.

The colour-coding system facilitates rapid identification during installation and maintenance procedures, reducing the likelihood of connection errors that could lead to equipment damage or safety hazards. In underground mining environments, where lighting conditions may be poor and time pressures intense, the ability to quickly and accurately identify individual cores becomes invaluable.

The textile material choice provides advantages over alternative separator materials such as plastic films. The textile construction allows for limited moisture transmission, preventing the accumulation of water between cores that could otherwise lead to tracking and insulation failure. Additionally, the textile material maintains its integrity under mechanical stress, continuing to provide core separation even when the cable experiences severe bending or compression.

Electromagnetic Screening: Managing Interference

The tinned copper braided screen incorporated into the FS4 cable construction serves multiple purposes in mining applications, where electromagnetic interference can pose significant challenges to sensitive control and communication systems. Modern mining operations increasingly rely on sophisticated electronic systems for equipment control, environmental monitoring, and communication, all of which can be adversely affected by electromagnetic interference from power cables.

The braided screen construction provides excellent electromagnetic shielding whilst maintaining the flexibility necessary for mobile mining applications. The tinning of the individual screen wires prevents corrosion and ensures long-term screening effectiveness, even in the harsh chemical environments encountered in mining operations.

Beyond electromagnetic shielding, the braided screen also provides an additional safety function by serving as an earth return path in the event of insulation failure. This capability proves particularly important in explosive atmosphere applications, where the rapid and reliable operation of protective devices becomes critical for preventing ignition of surrounding explosive mixtures.

Flat Parallel Layup: Optimising for Application

The flat parallel core arrangement represents one of the most distinctive features of the FS4 cable design, and understanding its benefits requires consideration of the specific requirements of catenary system applications. In overhead installations, traditional round cables tend to rotate and twist under their own weight and wind loading, potentially leading to phase imbalance and mechanical stress on terminations.

The flat configuration maintains consistent conductor spacing and orientation, ensuring balanced electrical characteristics throughout the installation. This stability proves particularly important in three-phase power systems, where phase imbalance can lead to motor heating, reduced efficiency, and premature equipment failure.

The parallel layup also facilitates installation procedures by providing a natural bend axis, allowing the cable to flex preferentially in one plane whilst maintaining structural integrity. This characteristic proves valuable in catenary installations, where the cable must accommodate thermal expansion and contraction whilst maintaining consistent electrical performance.

Chloroprene Outer Sheath: The Ultimate Protection

The chloroprene outer sheath represents the final line of defence protecting the internal cable components from the harsh realities of mining environments. Chloroprene, also known as polychloroprene or by the trade name Neoprene, was specifically chosen for its unique combination of properties that make it ideally suited for demanding industrial applications.

The chemical structure of chloroprene provides inherent flame resistance without the need for additional flame-retardant additives that might compromise other material properties. This characteristic proves critical in mining applications, where the potential for fire represents a constant concern, particularly in underground operations where escape routes may be limited.

The oil and fuel resistance of chloroprene ensures that the cable maintains its integrity even when exposed to hydraulic fluids, diesel fuel, and lubricating oils that are commonplace around mining equipment. Traditional rubber compounds would swell and deteriorate when exposed to these substances, leading to cracking and eventual failure of the protective sheath.

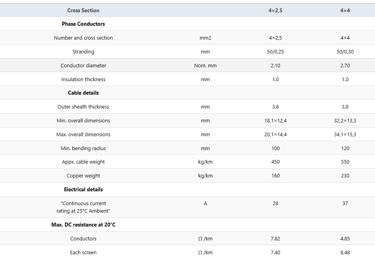

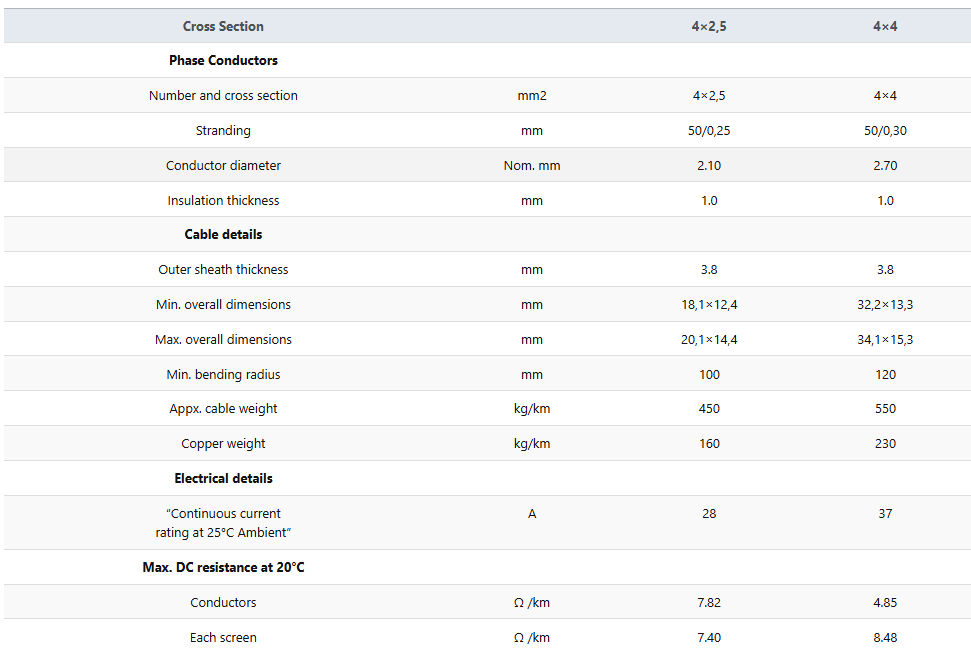

Electrical Parameters: Understanding the Technical Specifications

Voltage Ratings: Meeting Industrial Standards

The BS 6708 TYPE FS4 cable carries a rated voltage of 640/1100V, which deserves careful explanation to understand its significance in mining applications. The dual voltage rating follows the European convention where the first figure (640V) represents the voltage between any conductor and earth, whilst the second figure (1100V) represents the voltage between any two conductors in a three-phase system.

This voltage rating places the FS4 cable firmly in the low voltage category for industrial applications, making it suitable for the majority of mining equipment including motors, lighting systems, and control circuits. The 1100V rating provides adequate safety margin above the standard 690V and 1000V system voltages commonly employed in mining operations, ensuring reliable performance with appropriate safety factors.

The test voltage of 3kV represents the voltage level applied during routine testing to verify insulation integrity. This test voltage, being nearly three times the rated voltage, provides confidence that the cable insulation system can withstand not only normal operating voltages but also the transient overvoltages that may occur during switching operations or fault conditions in mining power systems.

Current Carrying Capacity: Thermal Considerations

The continuous current ratings of 160A for the 4x2.5mm² variant and 230A for the 4x4mm² version are based on careful thermal analysis considering the specific construction and installation conditions typical of mining applications. These ratings assume an ambient temperature of 25°C, which may seem optimistic for underground mining applications where temperatures can be significantly higher due to geothermal heating and equipment operation.

Understanding current carrying capacity requires consideration of the heat generation and dissipation processes within the cable. When current flows through the conductor, I²R losses generate heat that must be dissipated to prevent the conductor and insulation from exceeding their maximum operating temperatures. The stranded conductor construction aids this heat dissipation by providing increased surface area for thermal transfer to the surrounding insulation.

The EPR insulation system can operate at higher temperatures than alternative materials such as PVC, allowing for higher current ratings in equivalent conductor sizes. However, the flat parallel construction may require derating factors in certain installation conditions where heat dissipation is restricted, such as in tightly confined underground workings.

Resistance Characteristics: Minimising Power Losses

The maximum DC resistance values specified for the FS4 cable provide insight into the cable's efficiency in power transmission applications. For the 4x2.5mm² variant, the maximum conductor resistance of 7.82 Ω/km compares favourably with theoretical values calculated from the resistivity of copper, indicating high-quality conductor materials and manufacturing processes.

The screen resistance values of 7.40 Ω/km and 8.48 Ω/km for the respective variants demonstrate the effectiveness of the braided screen construction in providing low-resistance earth return paths. In mining applications, where earth fault currents must be quickly detected and cleared to prevent hazards in explosive atmospheres, the low resistance of the screen circuit ensures reliable operation of protective devices.

Power loss calculations become particularly important in mining applications where power transmission distances may be substantial, especially in large surface mining operations or deep underground workings. The resistance values allow engineers to calculate voltage drop and power losses accurately, ensuring that mining equipment receives adequate voltage for proper operation whilst minimising energy waste.

Cable Weight and Mechanical Properties

The approximate cable weights of 450 kg/km and 550 kg/km for the respective variants may initially appear high compared to standard industrial cables, but this weight represents the robust construction necessary for mining applications. The substantial weight includes significant contributions from the tinned copper conductors, the heavy-duty chloroprene sheath, and the braided screen system.

In catenary installations, cable weight becomes a critical design parameter affecting support structure requirements and span limitations. The flat configuration helps distribute this weight more evenly than round cables, reducing stress concentrations at support points. However, installation procedures must account for the substantial weight when designing pulling systems and support structures.

The copper content, representing approximately 28 kg/km and 37 kg/km for the respective variants, indicates the substantial conductor cross-sectional area available for current carrying capacity. This copper content also represents significant material value, making proper cable management and theft prevention important considerations in mining operations.

Frequently Asked Questions: Addressing Common Mining Cable Concerns

Can this cable be used in areas with flammable gases?

This question strikes at the heart of mining safety concerns, as the presence of explosive gases, particularly methane in coal mining operations, poses one of the most serious hazards in the industry. The BS 6708 TYPE FS4 cable has been specifically designed and constructed to meet the stringent requirements for use in explosive atmospheres, but understanding exactly what this means requires deeper exploration.

The cable's suitability for explosive gas environments stems from several design features working in combination. The EPR insulation system maintains its integrity under mechanical stress and thermal cycling, preventing the formation of conducting paths that could lead to electrical arcing. The tinned copper conductors resist corrosion that could create high-resistance connections and associated heating. Most importantly, the overall construction philosophy prioritises the prevention of ignition sources through robust design rather than attempting to contain potential explosions.

However, it's crucial to understand that cable selection represents only one element of explosive atmosphere safety. The complete electrical installation, including terminations, junction boxes, and connected equipment, must all be rated for the specific explosive atmosphere classification present. Additionally, proper installation practices, including adequate cable support, protection from mechanical damage, and appropriate earthing arrangements, remain essential for maintaining the safety integrity of the system.

Mining operators should also be aware that explosive atmosphere classifications can vary within a single mining operation, depending on factors such as ventilation effectiveness, gas monitoring results, and the specific mining processes being conducted. Regular assessment of these classifications, combined with ongoing monitoring of cable condition, ensures that the electrical installation continues to meet safety requirements throughout its operational life.

Is the cable flexible enough for tight installations?

Flexibility represents one of the most critical performance characteristics for mining cables, as they must often navigate through confined spaces whilst maintaining electrical integrity under repeated flexing cycles. The BS 6708 TYPE FS4 cable's flexibility derives from several carefully engineered design features that work together to provide the mechanical performance necessary for demanding mining applications.

The Class 5 stranded conductor construction provides the foundation for the cable's flexibility. With 50 individual wires comprising each conductor, the stranding arrangement allows individual wires to move relative to each other during bending, distributing mechanical stress throughout the conductor cross-section rather than concentrating it at specific points. This stress distribution dramatically improves fatigue resistance compared to solid or coarsely stranded conductors.

The flat parallel core arrangement contributes to flexibility by providing a preferential bending axis. Rather than attempting to bend equally in all directions like a round cable, the FS4 naturally flexes in the plane of its flat configuration, reducing internal stress and improving long-term reliability. This characteristic proves particularly valuable in catenary installations, where the cable must accommodate thermal expansion and wind loading whilst maintaining consistent electrical performance.

The EPR insulation system maintains its flexibility across the wide temperature ranges encountered in mining operations. Unlike PVC insulation that becomes stiff at low temperatures, EPR retains its elasticity, ensuring that the cable remains manageable during installation even in cold conditions. The chloroprene outer sheath similarly maintains flexibility whilst providing protection against mechanical damage.

However, flexibility must be balanced against the need to respect minimum bending radius limitations. The specified minimum bending radii of 100mm for the 4x2.5mm² variant and 120mm for the 4x4mm² version represent the tightest curves that the cable can accommodate without risking internal damage. Exceeding these limits can lead to conductor distortion, insulation damage, or screen continuity problems that may not become apparent until the cable has been in service for some time.

How resistant is it to mechanical damage?

Mechanical damage resistance represents perhaps the most demanding requirement for mining cables, as they must survive in environments where falling rocks, equipment contact, and abrasive conditions are commonplace. The BS 6708 TYPE FS4 cable's mechanical protection strategy employs multiple layers of defence, each contributing to the overall durability of the installation.

The chloroprene outer sheath provides the primary mechanical protection, offering excellent resistance to abrasion, impact, and penetration. The material's tough, resilient nature allows it to absorb impact energy without cracking or splitting, whilst its resistance to cutting and gouging helps protect the internal cable components from sharp objects that might be encountered in mining environments. The flame-retardant properties of chloroprene also ensure that mechanical damage doesn't compromise fire safety performance.

Beneath the outer sheath, the braided tinned copper screen provides additional mechanical protection whilst serving its primary electromagnetic shielding function. The woven construction of the screen distributes mechanical loads across multiple wires, preventing localised stress concentrations that could lead to screen failure. The tinning of individual screen wires prevents corrosion that could weaken the mechanical structure over time.

The cable's internal construction contributes to mechanical damage resistance through careful attention to stress distribution. The textile separators between cores prevent abrasion during cable flexing, whilst the flat parallel arrangement reduces internal stress compared to traditional round cable constructions. The EPR insulation system maintains its properties under mechanical stress, preventing the formation of weak points that could lead to premature failure.

Despite these protective features, it's important to recognise that no cable is immune to mechanical damage if subjected to sufficient abuse. Proper installation practices, including adequate cable support, protection in high-risk areas, and regular inspection procedures, remain essential for maximising cable service life. Mining operators should also consider the economic trade-offs between cable protection costs and potential replacement costs when designing their electrical installations.

What happens if the cable is bent too sharply?

Understanding the consequences of exceeding minimum bending radius requirements helps explain why these specifications exist and emphasises the importance of proper installation procedures. When the BS 6708 TYPE FS4 cable is bent beyond its specified limits, several forms of damage can occur, ranging from immediate visible damage to progressive degradation that may not become apparent for months or years.

The most immediate consequence of excessive bending involves conductor damage. When the minimum bending radius is exceeded, the individual wires within the stranded conductor experience uneven stress distribution, with wires on the outside of the bend subjected to tensile stress whilst those on the inside experience compression. If this stress exceeds the elastic limit of the copper wire, permanent deformation occurs, leading to reduced conductor cross-sectional area and increased resistance.

Insulation damage represents another significant concern when bending limits are exceeded. The EPR insulation system, whilst flexible, has finite elongation capabilities. Excessive bending can create stress concentrations within the insulation that lead to micro-cracking or delamination from the conductor surface. These defects may not cause immediate failure but can provide pathways for moisture ingress or tracking, leading to insulation breakdown over time.

The braided screen system is particularly vulnerable to damage from excessive bending. The woven construction relies on proper wire positioning to maintain both mechanical integrity and electromagnetic shielding effectiveness. Sharp bends can cause screen wires to shift position, creating gaps in the shielding coverage or high-stress points that may lead to wire breakage. Once screen continuity is compromised, both electromagnetic performance and safety earthing capability are affected.

Progressive damage represents perhaps the most insidious consequence of exceeding bending radius limits. While the cable may appear to function normally immediately after installation, the internal damage caused by excessive bending creates stress concentrations that accelerate fatigue failure under normal service conditions. This can lead to unexpected cable failures that occur weeks or months after installation, often at times when replacement is most difficult and costly.

Can the cable be used above ground?

The versatility of the BS 6708 TYPE FS4 cable extends to both underground and surface mining applications, but understanding the specific considerations for above-ground installations helps ensure optimal performance and longevity. Surface mining operations present their own unique set of challenges that differ significantly from underground applications, requiring careful consideration of environmental factors and installation practices.

Solar radiation represents one of the primary concerns for above-ground cable installations. The chloroprene outer sheath provides excellent resistance to UV degradation, maintaining its mechanical properties and appearance even after extended exposure to direct sunlight. This UV resistance proves particularly important in surface mining operations that may continue for decades, as cable replacement in active mining areas can be both difficult and expensive.

Temperature cycling presents another significant challenge for surface installations. The cable must accommodate not only the daily temperature variations but also seasonal extremes that may range from well below freezing to elevated temperatures exceeding 50°C in direct sunlight. The EPR insulation system maintains its electrical properties across this entire temperature range, whilst the chloroprene sheath retains flexibility even at low temperatures.

Moisture exposure, including direct rainfall and humidity variations, requires careful consideration in surface installations. The cable construction provides excellent moisture resistance through the chloroprene sheath and the sealed nature of the EPR insulation system. However, termination and jointing procedures become critical for maintaining this moisture protection, as any compromise to the cable sheath integrity can allow water ingress that may lead to insulation failure.

Wind loading presents unique mechanical challenges for overhead catenary installations in surface mining operations. The flat configuration of the FS4 cable provides some advantage in wind loading compared to round cables, as the reduced cross-sectional area perpendicular to wind direction decreases the forces transmitted to support structures. However, installation designers must still account for wind loading in their support structure calculations and span limitations.

The electromagnetic environment in surface mining operations may differ significantly from underground installations. Above-ground installations may be subject to lightning-induced transients and radio frequency interference from communication systems. The braided screen system provides protection against these electromagnetic disturbances, but proper earthing arrangements become even more critical for surface installations to ensure effective lightning protection.

Conclusion: Excellence in Mining Cable Engineering

The BS 6708 TYPE FS4 mining cable represents a triumph of engineering optimisation, where every design decision has been carefully considered to address the specific challenges encountered in mining applications. From the Class 5 stranded tinned copper conductors that provide exceptional flexibility and corrosion resistance, through the EPR insulation system that maintains performance across extreme temperature and chemical exposure conditions, to the heavy-duty chloroprene outer sheath that provides the ultimate protection against mechanical damage, each component contributes to a cable system that exceeds the performance of conventional industrial cables.

The flat parallel core arrangement exemplifies the thoughtful approach taken throughout the cable design, providing benefits in installation flexibility, electrical balance, and mechanical stress distribution that specifically address the requirements of overhead catenary systems. The braided tinned copper screen system similarly demonstrates the integration of multiple functions within a single component, providing electromagnetic shielding, mechanical protection, and safety earthing capabilities within a construction that maintains the overall flexibility necessary for mobile mining applications.

Perhaps most importantly, the FS6708 TYPE FS4 cable's certification for use in explosive atmospheres addresses one of the most critical safety concerns in mining operations. The combination of robust construction, high-quality materials, and careful attention to detail in manufacturing processes ensures that this cable can be deployed with confidence in the most hazardous mining environments, where equipment failure could have catastrophic consequences.

The electrical parameters of the cable, from its 640/1100V voltage rating through to its impressive current carrying capacities of 160A and 230A for the respective variants, demonstrate that safety and reliability need not come at the expense of electrical performance. The low resistance characteristics ensure efficient power transmission even over the substantial distances encountered in large mining operations, whilst the substantial copper content provides the current carrying capacity necessary for high-power mining equipment.

For mining engineers, electrical contractors, and safety professionals working in this demanding industry, the BS 6708 TYPE FS4 cable offers a comprehensive solution that addresses the full spectrum of challenges encountered in mining electrical installations. Its proven performance in explosive atmospheres, combined with its mechanical robustness and electrical excellence, makes it an ideal choice for both new installations and replacement projects where reliability cannot be compromised.

The investment in high-quality cable systems such as the FS4 pays dividends throughout the operational life of mining installations through reduced maintenance requirements, improved safety performance, and minimised production disruptions due to electrical failures. In an industry where downtime costs can be measured in thousands of pounds per hour and safety concerns can literally be matters of life and death, the choice of electrical infrastructure becomes one of the most critical decisions in the entire mining operation.

As mining operations continue to evolve, with increasing depths, more challenging geological conditions, and ever-greater emphasis on safety and environmental responsibility, the role of specialised electrical equipment becomes increasingly important. The BS 6708 TYPE FS4 mining cable stands ready to meet these challenges, providing the robust, reliable, and safe electrical connections that modern mining operations demand.
