Cable Selection in Mining Operations: A Comprehensive Guide

Executive Summary

The selection of appropriate cables in mining operations is a critical but often overlooked aspect of operational efficiency and safety. Mining environments present unique challenges that demand specialized cable solutions capable of withstanding harsh conditions while maintaining reliable power and data transmission. This article explores the crucial factors for matching cable types to specific mining environments, electrical loads, and safety requirements. Proper cable selection not only ensures operational continuity but also contributes significantly to personnel safety and equipment longevity in one of the world's most demanding industrial sectors.

Introduction to Mining Cables

Role of Cables in Mining Operations

Mining operations rely heavily on an extensive network of cables that serve as the operation's lifelines. These cables power everything from massive draglines and excavators to delicate monitoring equipment. They transmit power to essential systems such as:

• Heavy machinery (drills, continuous miners, longwall systems)

• Transportation equipment (conveyors, shuttle cars, locomotives)

• Pumping systems for mine dewatering

• Ventilation fans and air quality control systems

• Lighting networks throughout tunnels and working areas

• Safety and monitoring systems

Beyond power transmission, specialized cables carry critical data and control signals that enable automation, real-time monitoring, and emergency response capabilities. Modern mining increasingly depends on these communication networks for everything from equipment coordination to worker safety tracking.

Unique Challenges in Mining Environments

Mining cables face a multitude of environmental challenges that standard industrial cables cannot withstand:

Mechanical Stresses: Mining cables endure severe physical punishment including constant abrasion against rock surfaces, crushing forces from equipment, impacts from falling debris, and frequent flexing as mobile equipment moves. These conditions rapidly destroy standard cables.

Environmental Extremes: Depending on the location, cables may be subjected to temperatures ranging from below freezing in deep underground mines to scorching heat in desert operations. High humidity, standing water, mud, and direct exposure to corrosive dust or chemicals further compound these challenges.

Extended Installations: Mining cables often run for extremely long distances, sometimes several kilometers, through variable terrain with significant elevation changes. This creates unique voltage drop concerns and requires careful consideration of tensile strength and installation methods.

Safety Imperatives: Mine environments may contain explosive gases or dust, requiring cables with specific flame-retardant properties. In the event of fire, cables must not emit toxic fumes that could endanger miners in confined spaces.

Application Scenarios

Surface (Open-Pit) Mining

Surface mining operations utilize some of the largest mobile equipment in the industry, requiring robust power solutions:

Equipment Profile: Massive electric draglines, shovels, and haul trucks operate continuously in exposed environments. These machines draw enormous power loads, with some draglines requiring up to 6,000 volts to operate effectively.

Cable Requirements:

• UV and ozone resistance for prolonged sunlight exposure

• Large-gauge conductors to handle high current demands

• Excellent abrasion resistance as cables are dragged across rough terrain

• Weather-resistant jacketing to withstand precipitation and temperature variations

• Trailing cable designs that allow flexibility while maintaining durability

For example, the trailing cables used on large electric shovels in copper mines must handle both power transmission requirements and constant movement while resisting damage from sharp rock fragments.

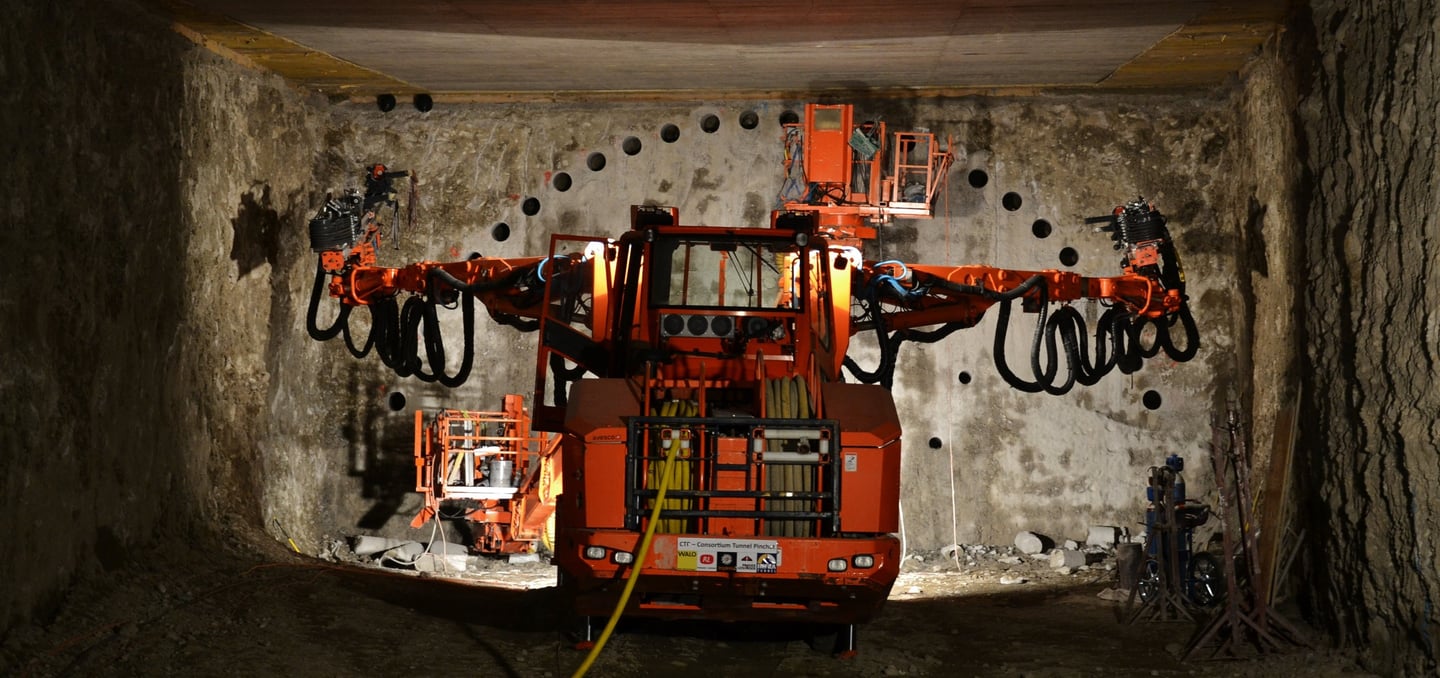

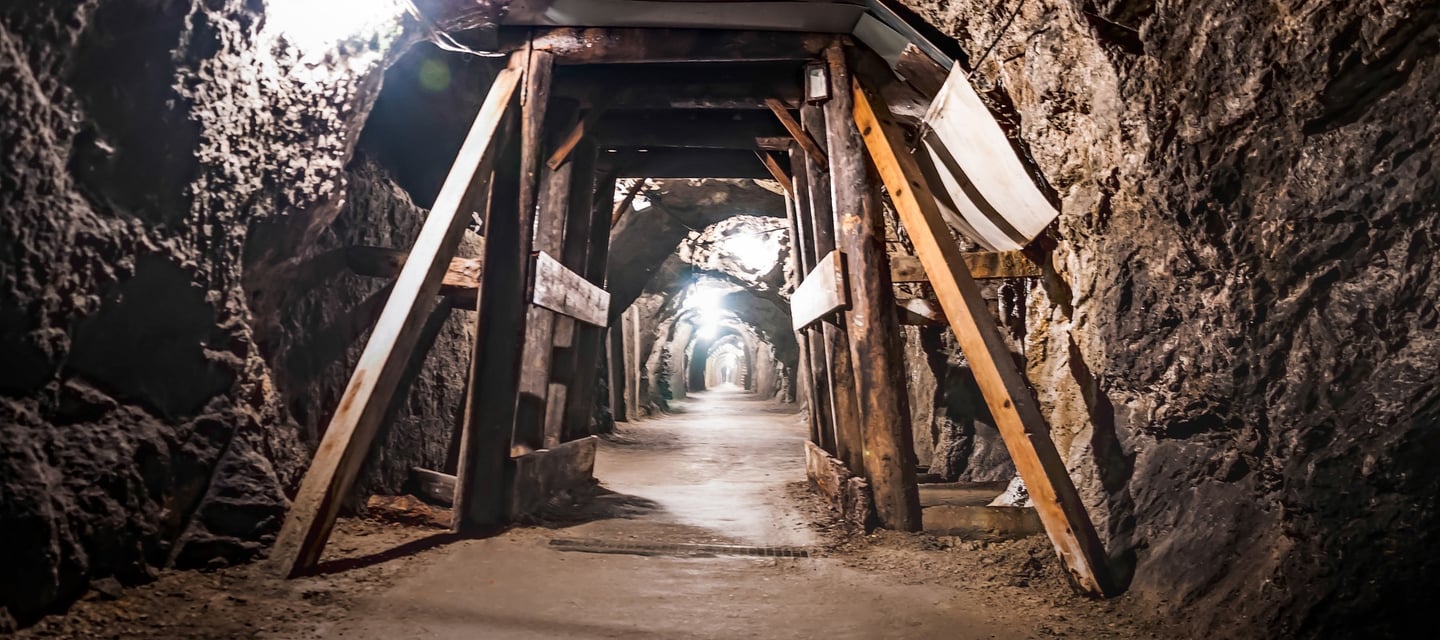

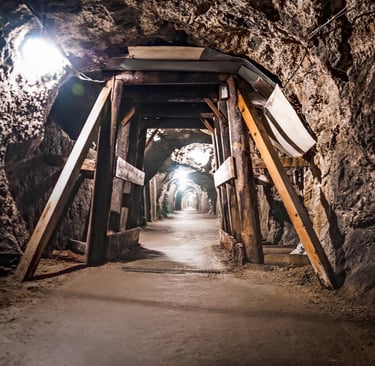

Underground Mining

Underground environments present a different set of challenges, with restricted spaces and higher safety concerns:

Equipment Profile: Load-haul-dump (LHD) vehicles, continuous miners, bolting machines, and fixed infrastructure such as ventilation and pumping systems.

Cable Requirements:

• Superior flame retardance properties to prevent fire propagation

• Low smoke/zero halogen (LSZH) materials that don't emit toxic gases when heated

• Compact yet robust designs for limited space installations

• Extra-flexible constructions for equipment that navigates tight corners

• Moisture and chemical resistance for wet mine conditions

In coal mines, the cables supplying power to continuous mining machines must comply with stringent safety standards while remaining flexible enough to follow the machine's movements and withstand frequent reeling operations.

Conveyor Systems and Crushing Plants

Conveyor systems form the backbone of material transport in mining operations:

Equipment Profile: Belt conveyors spanning kilometers, transfer points, crushers, and screening plants that operate under varying loads.

Cable Requirements:

• Resistance to pulsed loads and motor starting currents

• Oil and chemical resistance at transfer and maintenance points

• Flexibility to accommodate equipment vibration

• Abrasion resistance where cables contact moving parts

• Temperature resistance near motors and drive components

Modern conveyor systems also incorporate sophisticated monitoring cables that track belt alignment, speed, and material flow, requiring signal integrity in electromagnetically noisy environments.

Control and Instrumentation

The increasing automation of mining operations has expanded the role of control and instrumentation cables:

Equipment Profile: Environmental sensors, programmable logic controllers (PLCs), communication networks, safety systems, and monitoring equipment.

Cable Requirements:

• Effective shielding against electromagnetic interference (EMI)

• Twisted-pair or fiber optic constructions for data integrity

• Moisture-resistant barriers to protect sensitive signals

• Redundant designs for safety-critical systems

• Compatibility with intrinsically safe barriers in hazardous areas

For instance, modern methane detection systems in coal mines rely on specialized instrumentation cables that must maintain signal integrity while meeting intrinsic safety requirements in potentially explosive atmospheres.

Key Electrical Parameters

Conductor Material and Size

The selection of conductor material and size fundamentally affects cable performance and cost:

Copper vs. Aluminum:

• Copper offers superior conductivity (approximately 40% better than aluminum), smaller size for equivalent current capacity, and better flexibility

• Aluminum provides significant weight savings (approximately 50% lighter) and lower material cost, but requires larger cross-sections and special termination methods

• In mining, copper predominates in mobile equipment and critical applications, while aluminum may be used in fixed installations where weight savings are valuable

Sizing Considerations:

• American Wire Gauge (AWG) or square millimeter (mm²) specifications determine current-carrying capacity

• Proper sizing must account for voltage drop over distance, particularly in long cable runs

• Larger conductors reduce resistance losses but increase cable weight, stiffness, and cost

For a 300-meter cable run to a 200kW pump in an underground mine, calculations might indicate a minimum 120mm² copper conductor is needed to limit voltage drop to acceptable levels under starting conditions.

Insulation and Jacket Materials

The materials surrounding conductors determine a cable's environmental resilience and safety characteristics:

Common Insulation Materials:

• Cross-linked polyethylene (XLPE): Excellent electrical properties, temperature resistance to 90°C

• Ethylene propylene diene monomer (EPDM): Superior flexibility and moisture resistance

• Polyvinyl chloride (PVC): Cost-effective but limited temperature range and flexibility

Jacket Compound Considerations:

• Neoprene (polychloroprene): Excellent resistance to oils, chemicals, abrasion

• Thermoplastic elastomers (TPE): High flexibility, good environmental resistance

• Low smoke zero halogen (LSZH) compounds: Critical for underground applications to reduce toxic emissions during fires

Mining-specific compounds incorporate flame-retardant additives, antioxidants for extended service life, and special formulations for resistance to cutting oils, hydraulic fluids, and mine-specific chemicals.

Voltage Rating

Voltage rating determines insulation thickness and influences overall cable construction:

Low Voltage Applications (≤1 kV):

• Typical for most mobile equipment, lighting, and control circuits

• Insulation thickness generally 0.8-1.5mm depending on conductor size

• Often designed for flexibility and ease of handling

Medium Voltage Applications (>1 kV to 35 kV):

• Used for powering large draglines, shovels, and main distribution networks

• Requires thicker insulation (typically 2.3mm and above)

• Usually incorporates semiconductor shields and additional protective layers

• Often subject to more stringent testing requirements

A dragline operating at 6.6kV requires specialized medium voltage trailing cables with multiple shielding layers and reinforced construction to maintain safety under extreme mechanical stress.

Current-Carrying Capacity and Derating Factors

The maximum safe current a cable can carry depends on installation conditions:

Base Ampacity:

• Determined by conductor size and material under standardized conditions

• Published in tables according to IEC 60364, NEC Article 310, or mining-specific standards

Derating Factors:

• Ambient temperature: Higher temperatures reduce current capacity (up to 40% reduction at 60°C)

• Grouping: Bundled cables generate mutual heating, requiring derating by 20-60%

• Installation method: Buried cables dissipate heat differently than those in open air

• Harmonic content: Non-linear loads create additional heating requiring derating

For example, a cable with a nominal rating of 200 amperes might be derated to just 120 amperes when installed in a hot underground environment in proximity to other cables.

Grounding and Shielding

Proper grounding and shielding are essential for electrical safety and signal integrity:

Grounding Systems:

• Equipment grounding conductors sized according to fault current levels

• Ground check monitors in trailing cables for continuous safety verification

• Equipotential bonding to prevent dangerous voltage differences

Shielding Approaches:

• Braided copper shields provide excellent flexibility and coverage

• Aluminum/polyester foil shields offer economic coverage for fixed installations

• Combination shields for both power and signal integrity protection

In underground coal mines, continuous ground monitoring systems verify the integrity of the ground path in trailing cables, automatically disconnecting power if the ground connection is broken.

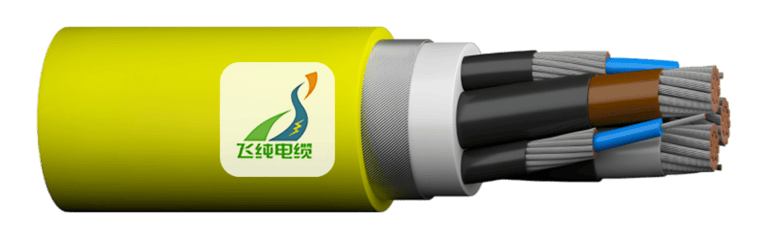

Cable Construction Types

Armored vs. Non-Armored

The inclusion of armor layers significantly affects cable properties and applications:

Armored Constructions:

• Steel wire armor (SWA): Provides excellent crush resistance and tensile strength

• Corrugated aluminum or steel tape: Offers moderate protection with better flexibility

• Interlocked armoring: Maintains flexibility while providing mechanical protection

Non-Armored Alternatives:

• Reinforced rubber jackets with high tensile strength

• Multi-layer designs with rip cords and cut-resistant materials

• Specialized flexible designs for mobile equipment

The choice between armored and non-armored cables involves trade-offs between mechanical protection, flexibility, weight, and cost. For example, fixed underground main feeders typically use armored constructions, while mobile equipment relies on specially reinforced non-armored cables designed for flexibility.

Multi-Core and Single-Core Designs

Cable core configuration affects installation efficiency and electrical performance:

Multi-Core Advantages:

• Single installation process reduces labor

• Built-in phase spacing maintains consistent electrical characteristics

• Often more economical for smaller conductor sizes

• Better space utilization in constrained areas

Single-Core Benefits:

• Easier handling of large conductor sizes

• Better heat dissipation for high-current applications

• Simpler repair when damage occurs to individual conductors

• Flexibility in circuit modifications and expansions

Main distribution feeders in underground mines often utilize single-core cables for their superior current-carrying capacity and ease of installation in phases, while mining equipment typically uses multi-core designs for operational efficiency.

Specialty Cables

Mining operations frequently require cables with specialized characteristics:

Flame-Resistant Mining Cables:

• Designed to self-extinguish when fire source is removed

• Meet stringent flame propagation tests per IEC 60332 or MSHA requirements

• Critical for underground applications to prevent fire spread

Fire-Survival Cables:

• Maintain circuit integrity during fires for critical safety systems

• Mineral insulated or specially formulated compounds for extreme temperature resistance

• Used for evacuation lighting, pumping, and ventilation systems

High-Flex Mining Cables:

• Engineered for repetitive movement cycles (up to millions of cycles)

• Fine-stranded conductors with special lay patterns

• Reinforced constructions at stress points

• Used in reeling applications, draglines, and mobile equipment

For example, the cables connecting safety systems in underground mines must maintain functionality even during fire conditions to ensure emergency lighting, communication, and ventilation systems remain operational during evacuation.

Selection Criteria and Decision Flow

Environmental Assessment

A systematic environmental assessment should precede cable selection:

Moisture Exposure:

• Constant submersion requires continuous underwater-rated cables

• Occasional splashing needs water-resistant designs

• Condensation requires moisture barriers

Chemical Environment:

• Presence of cutting oils, hydraulic fluids, or mine-specific chemicals

• pH levels of groundwater and soil for buried installations

• Exposure to diesel fuel, cleaning solvents, or process chemicals

Mechanical Hazards:

• Abrasion severity and frequency

• Crushing risk from equipment or falling material

• Required bend radius based on installation constraints

• Tensile loads during installation and operation

Temperature Profile:

• Maximum and minimum ambient temperatures

• Additional heating from adjacent equipment

• Temperature spikes during peak operation periods

An underground mine with wet conditions, diesel equipment, and temperatures ranging from 10°C to 40°C requires fundamentally different cables than a surface operation in an arid climate with extreme UV exposure and temperature fluctuations.

Electrical Load Analysis

Understanding the electrical demand profile is essential for proper sizing:

Load Characterization:

• Peak vs. continuous loads (duty cycle analysis)

• Starting current requirements for motors (potentially 6-8 times running current)

• harmonic content from variable frequency drives and electronic equipment

• Growth projections for future equipment additions

Voltage Drop Calculations:

• Maximum allowable drop under normal and starting conditions

• Impact of power factor on required conductor size

• Consideration of emergency overload conditions

Fault Current Analysis:

• Maximum short-circuit currents at various points in the system

• Required withstand times for overcurrent protection coordination

• Thermal and mechanical effects of fault currents on cable construction

For mining pumps that cycle on and off, cables must be sized for both the continuous running current and the higher starting currents, while maintaining acceptable voltage drop to prevent nuisance tripping of protective devices.

Regulatory and Safety Standards

Mining cables must comply with numerous standards specific to the industry:

Common Mining Cable Standards:

• MSHA (Mine Safety and Health Administration) requirements in the US

• IEC 61892 series for mining electrical installations

• IEEE 841 for mining motors and associated wiring

• AS/NZS 2802 for Australian mining cable specifications

• National mining regulations that may exceed general electrical codes

Safety Certification Requirements:

• Third-party testing and certification

• Special markings indicating compliance

• Documentation requirements for inspection authorities

In the US, trailing cables for use in underground coal mines must meet MSHA flame-resistance standards and undergo periodic inspections to verify continued compliance and mechanical integrity.

Lifecycle and Total Cost of Ownership

Cable selection should consider complete lifecycle costs:

Initial Investment Considerations:

• Material costs (conductor, insulation, armoring)

• Installation labor and specialized equipment requirements

• Testing and commissioning expenses

Operational Impact:

• Energy losses through resistance (particularly significant in 24/7 operations)

• Maintenance requirements and inspection frequency

• Expected service life under actual operating conditions

Replacement Economics:

• Downtime costs associated with cable failures

• Emergency replacement premiums

• Production losses during repair periods

A mining operation might justify a 30% premium for higher-quality cables when analysis shows that the improved service life and reduced downtime will deliver a positive return on investment within 18 months.

Installation Best Practices

Routing and Support

Proper cable routing significantly impacts performance and longevity:

Route Planning:

• Separation from other utilities and potential hazards

• Avoidance of sharp bends (maintaining minimum bend radius)

• Protection at crossing points with vehicle traffic

• Accessibility for inspection and maintenance

Support Structures:

• Cable trays with appropriate loading calculations

• Conduit systems for areas requiring additional protection

• Specialized support systems for vertical runs

• Strain relief at termination points

Movement Accommodation:

• Expansion loops for thermal cycling

• Festooning arrangements for moving equipment

• Stress relief at transition points between fixed and mobile sections

Underground mine installations often incorporate overhead messenger wires to support cables along haulage routes, preventing damage from mobile equipment while maintaining accessibility for inspection.

Jointing and Termination

Connection points require careful attention to maintain system integrity:

Cable Terminations:

• Appropriately rated cable glands for environmental sealing

• Proper conductor preparation (cleaning, stripping techniques)

• Correct lug selection and crimping procedures

• Heat-shrink or cold-shrink materials compatible with cable compounds

Splicing Methods:

• Heat-shrink splice kits with appropriate insulation thickness

• Resin-filled splice systems for wet environments

• Specialized mining-grade tape methods for emergency repairs

• Factory-equivalent splice requirements for main power feeders

Accessory Selection:

• IP/NEMA rating appropriate to the environment

• Corrosion-resistant materials for connection hardware

• Strain relief appropriate to the application

• Grounding accessories that maintain system integrity

In high-vibration areas near crushing equipment, specially designed vibration-resistant terminations with additional mechanical clamping may be required to prevent termination failure.

Testing and Commissioning

Thorough testing ensures installation quality and operational readiness:

Pre-Installation Testing:

• Verification of correct cable type and specifications

• Drum testing for shipping damage

• Insulation resistance baseline measurements

Post-Installation Verification:

• Insulation resistance (megger) testing at appropriate voltage

• High-potential (hipot) testing for medium voltage installations

• Phase identification and rotation verification

• Continuity testing of all conductors including grounds

Documentation Requirements:

• Test results with date and environmental conditions

• Benchmark readings for future comparison

• GPS mapping of underground cable routes

• Termination details and splice locations

Modern mining operations increasingly employ time-domain reflectometry (TDR) to create baseline signatures of newly installed cables, facilitating future fault location if problems develop.

Operation, Maintenance, and Troubleshooting

Routine Inspections

Regular inspection protocols extend cable service life:

Visual Inspection Schedule:

• Daily checks of exposed trailing cables for mobile equipment

• Weekly inspections of cable support systems

• Monthly comprehensive inspection of fixed installations

• Quarterly thermographic surveys of terminations and heavily loaded sections

Mechanical Assessment:

• Jacket abrasion measurement against replacement thresholds

• Flexibility testing at stress points

• Support system integrity verification

• Tension verification at suspended installations

Electrical Testing Program:

• Periodic insulation resistance trending

• Partial discharge testing for medium voltage cables

• Ground continuity verification

• Load current measurement and comparison to design values

A proactive maintenance program for dragline trailing cables might include rotation of high-stress sections, scheduled replacement before failure, and weekly dielectric testing.

Common Failure Modes

Understanding typical failure mechanisms guides maintenance priorities:

Physical Damage Patterns:

• Abrasion from rock surfaces or repeated movement

• Crushing from equipment or falling material

• Tensile failure from excessive pulling force

• Impact damage from falling objects or equipment contact

Environmental Deterioration:

• UV degradation of outer jackets

• Chemical attack from oils, fuels, or process chemicals

• Thermal aging accelerated by overloading

• Water ingress leading to insulation breakdown

Electrical Failures:

• Insulation breakdown from transient overvoltages

• Thermal runaway from sustained overloading

• Corona damage in medium voltage applications

• Localized heating at poor connections

A mining cable failure analysis program might reveal that 60% of failures occur at termination points, 25% result from mechanical damage, and 15% stem from manufacturing defects or installation errors, guiding targeted improvement efforts.

Repair vs. Replacement Guidelines

Clear decision frameworks optimize maintenance resources:

Repair Considerations:

• Maximum number of splices permitted per length

• Repair methods approved for the application

• Performance expectations for repaired sections

• Documentation requirements for repairs

Replacement Triggers:

• Insulation resistance below threshold values

• Visual damage exceeding specified parameters

• Age beyond recommended service life in critical applications

• Economic analysis showing repair costs approaching replacement value

Emergency Procedures:

• Approved temporary repair methods

• Maximum operating time with temporary repairs

• Required inspection frequency for temporary solutions

• Mandatory follow-up permanent repairs

Many mining operations implement a "three strikes" policy for mobile equipment cables, where a cable is permanently retired after three failure incidents, recognizing the increasing risk and diminishing returns of multiple repairs.

Conclusion

The selection of appropriate cables for mining applications represents a critical engineering decision with far-reaching implications for operational efficiency, safety, and cost management. By systematically evaluating environmental conditions, electrical requirements, and safety standards, mining engineers can identify cable solutions that deliver optimal performance throughout their service life.

The harsh realities of mining environments demand specialized cable designs that go beyond standard industrial specifications. From massive draglines traversing open pits to delicate instrumentation monitoring air quality in underground tunnels, each application presents unique challenges that must be addressed through careful selection and installation practices.

As mining operations continue to advance technologically, the importance of reliable power and data transmission grows correspondingly. Investing in proper cable selection, installation, and maintenance not only prevents costly downtime but also contributes significantly to personnel safety in one of the world's most demanding industrial sectors.

Mining professionals are encouraged to leverage manufacturer expertise, industry standards, and operational experience when making cable selection decisions. The initial investment in appropriate high-quality cables almost invariably delivers substantial returns through extended service life, reduced maintenance, and prevention of production interruptions.
