Flame-Retardant Power Cables for Coal Mining: Ensuring Safety and Reliability in Underground Operations

Introduction

Coal mining operations present some of the most challenging environments for electrical infrastructure, where safety and reliability are not just preferences but absolute necessities. Flame-retardant power cables represent a critical component in underground coal mining systems, serving as the lifeline that delivers electrical power safely through hazardous subterranean environments.

Flame-retardant power cables in coal mining are specialized electrical conductors designed to resist ignition and limit flame propagation in the event of fire or electrical fault. These cables are engineered with advanced materials and construction techniques that prioritize safety while maintaining reliable power transmission capabilities. Unlike standard electrical cables, mining-specific flame-retardant cables must withstand extreme conditions including high humidity, chemical exposure, mechanical stress, and potential explosive atmospheres.

The importance of safety and reliability in mining environments cannot be overstated. Underground coal mines present unique hazards including methane gas accumulation, coal dust particles, moisture infiltration, and confined spaces that can amplify the consequences of electrical failures. A single cable failure can result in power outages affecting critical ventilation systems, lighting, communication networks, and life-safety equipment. More critically, electrical faults in mining environments can trigger fires or explosions, potentially causing catastrophic loss of life and property.

The mining industry's commitment to worker safety has driven continuous innovation in cable technology, leading to the development of specialized flame-retardant cables that meet stringent international standards while providing the durability and performance required for demanding underground applications. These cables serve as the foundation for safe and efficient mining operations, enabling the extraction of coal resources while protecting human lives and valuable equipment.

Product Applications

The primary application of flame-retardant power cables in coal mining is power transmission throughout underground mine networks. These cables form the electrical backbone of mining operations, delivering power from surface installations to various underground locations including working faces, equipment stations, ventilation systems, and safety installations.

Underground coal mines require extensive electrical infrastructure to support modern mining operations. Flame-retardant power cables are specifically designed for fixed installations in tunnels, shafts, and areas with explosion hazards where traditional cables would pose unacceptable safety risks. The cables must navigate through complex underground pathways, often spanning considerable distances while maintaining electrical integrity and safety standards.

These specialized cables are engineered to perform reliably in both dry and humid conditions commonly encountered in underground mining environments. The variable moisture levels in mines, ranging from completely dry areas to water-saturated zones, require cables with robust insulation and sheathing materials that maintain their protective properties regardless of environmental conditions.

The applications extend beyond simple power transmission to include support for critical mining infrastructure such as conveyor belt systems, pumping stations, lighting networks, communication systems, and emergency equipment. Each application demands specific cable characteristics including appropriate voltage ratings, current-carrying capacity, and mechanical protection to ensure safe and reliable operation.

Modern mining operations increasingly rely on sophisticated electrical equipment including automated mining machinery, computerized monitoring systems, and advanced safety devices. Flame-retardant power cables provide the reliable electrical foundation necessary to support these technologies while maintaining the safety standards essential for underground operations.

Usage Scenarios

Underground coal mining operations present diverse scenarios where flame-retardant power cables play crucial roles in maintaining safe and efficient operations. These scenarios encompass the full spectrum of mining activities from initial development through active extraction and ongoing maintenance operations.

In active mining areas, flame-retardant cables provide power to cutting equipment, drilling machinery, and material handling systems. These high-power applications require cables capable of handling substantial electrical loads while maintaining safety characteristics in environments where coal dust and methane gas may be present. The cables must be positioned and protected to avoid damage from mining equipment while remaining accessible for maintenance and inspection.

Ventilation systems represent another critical usage scenario where flame-retardant cables ensure continuous operation of fans and air circulation equipment essential for maintaining safe atmospheric conditions underground. The failure of ventilation power systems can quickly lead to dangerous accumulations of methane or carbon monoxide, making cable reliability a matter of life and death.

Transportation corridors within mines require lighting and communication systems powered by flame-retardant cables. These installations must provide consistent illumination and communication capabilities while withstanding the mechanical stresses associated with vehicle traffic and material transport. The cables are typically installed in protective conduits or cable trays designed to prevent damage while allowing for expansion and maintenance.

Emergency systems including escape route lighting, communication networks, and pumping systems rely on flame-retardant cables to maintain functionality during crisis situations. These applications demand the highest levels of reliability and safety, as cable failures during emergencies can have catastrophic consequences for trapped workers or flood control systems.

Support facilities within mines including workshops, storage areas, and personnel facilities require standard electrical services delivered through flame-retardant cables that meet mining safety standards. Even these seemingly routine applications must comply with stringent safety requirements due to their underground location and potential exposure to mining hazards.

Electrical Parameters

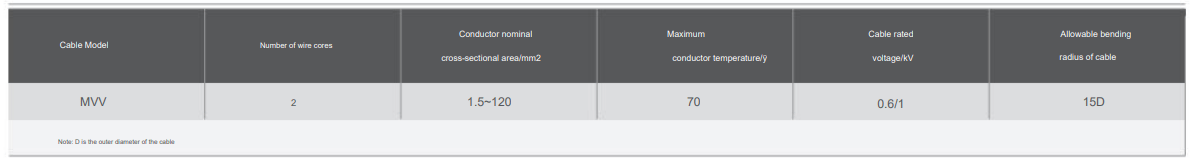

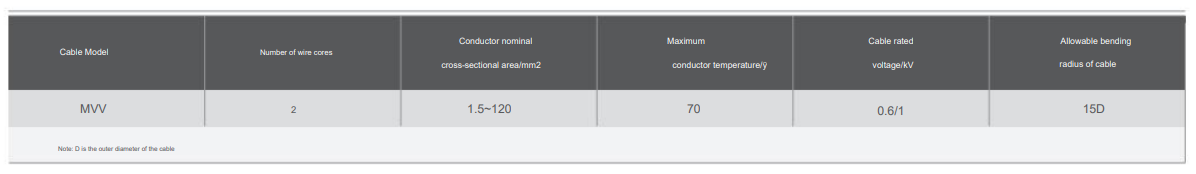

The MVV cable model represents a standard configuration for flame-retardant power cables used in coal mining applications, with specific electrical parameters designed to meet the demanding requirements of underground operations while maintaining safety and reliability standards.

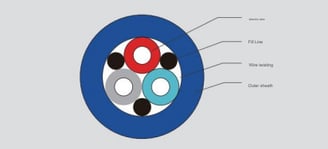

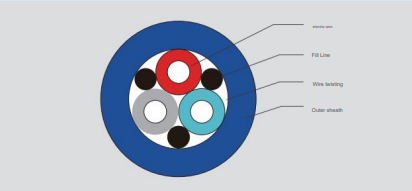

Cable Model Specifications: The MVV designation indicates a multi-core cable with PVC insulation and PVC sheathing, specifically engineered for mining applications. This configuration provides excellent flame-retardant properties while maintaining flexibility and durability required for underground installations.

Conductor Cross-Sectional Area Range: Available in sizes from 1.5 to 120 mm², these cables accommodate a wide range of power requirements from small control circuits to high-capacity power distribution systems. The smaller cross-sections (1.5-4 mm²) are typically used for control and instrumentation applications, while larger sizes (35-120 mm²) handle main power distribution and heavy equipment connections.

Voltage Ratings: The rated voltage of 0.6/1 kV makes these cables suitable for low to medium voltage applications common in mining operations. The dual rating indicates the cable can operate at 0.6 kV between conductor and ground, or 1 kV between conductors, providing flexibility in system design and installation configurations.

Temperature Characteristics: With a maximum conductor temperature rating of 70°C, these cables can safely operate in the elevated temperatures commonly encountered in underground mining environments. This temperature rating accounts for both ambient heat and the heat generated by electrical current flow, ensuring safe operation under normal and emergency conditions.

Installation Requirements: The minimum bending radius specification of 15 times the cable diameter (15D) ensures that cables can be installed in confined spaces without compromising their electrical or mechanical integrity. This parameter is critical in underground installations where space constraints often require cables to navigate tight bends and confined pathways.

Current Carrying Capacity: The current rating varies with conductor cross-sectional area and installation conditions, with larger conductors capable of carrying higher currents. Typical ratings range from approximately 15 amperes for 1.5 mm² conductors to over 200 amperes for 120 mm² conductors under standard installation conditions.

Insulation Properties: The PVC insulation system provides excellent electrical insulation properties while maintaining flame-retardant characteristics essential for mining applications. The insulation system is designed to withstand the electrical stresses associated with the rated voltage while providing long-term reliability in harsh underground environments.

Potential Mining Issues and Technical Solutions

Underground coal mining environments present numerous challenges that can compromise the performance and safety of electrical cable systems. Understanding these challenges and implementing appropriate solutions is essential for maintaining safe and reliable mining operations.

High Ambient Temperatures

Issue Analysis: Elevated temperatures in underground mines can result from various factors including geothermal heating, equipment operation, poor ventilation, and solar heating of surface installations. These elevated temperatures can degrade cable insulation materials, reduce current-carrying capacity, and accelerate aging of cable components, potentially leading to premature failure or safety hazards.

High temperatures affect different cable components in various ways. The conductor temperature increases due to both ambient heat and resistive heating from current flow, while insulation materials may soften, crack, or lose their dielectric properties when exposed to excessive heat. The cumulative effect can significantly reduce cable service life and compromise safety.

Technical Solutions: The primary solution involves selecting cables with appropriate thermal ratings that exceed expected operating temperatures with adequate safety margins. This includes choosing insulation materials with higher temperature ratings and implementing proper ventilation systems to maintain acceptable ambient temperatures around cable installations.

Installation techniques play a crucial role in temperature management. Cables should be routed away from heat sources when possible, and adequate spacing should be maintained between cables to allow heat dissipation. In areas with consistently high temperatures, active cooling systems or heat-resistant cable types may be necessary to ensure safe operation.

Regular temperature monitoring helps identify potential problems before they become critical. Thermal imaging and temperature sensors can provide early warning of excessive heating, allowing for preventive maintenance or system modifications to address temperature issues before cable failure occurs.

Mechanical Stress and Abrasion

Issue Analysis: Underground mining operations subject cables to various forms of mechanical stress including impact from falling rocks, abrasion from rough surfaces, tension from cable weight and installation forces, and vibration from mining equipment. These mechanical forces can damage cable sheaths, compromise conductor integrity, and create safety hazards through exposed conductors or compromised insulation.

The confined spaces and active nature of mining operations make cables vulnerable to damage from vehicles, equipment, and personnel movement. Additionally, the settling and shifting of underground structures can create ongoing mechanical stresses that gradually damage cable installations over time.

Technical Solutions: Armored cable constructions provide enhanced mechanical protection through steel wire or tape armor layers that resist impact and abrasion while maintaining cable flexibility. These armored designs are particularly important in high-traffic areas or locations where mechanical damage is likely.

Protective conduits and cable trays offer additional mechanical protection while organizing cable installations for easier maintenance and inspection. These protection systems should be designed to withstand the mechanical forces present in mining environments while providing secure cable support and routing.

Proper installation techniques including appropriate cable supports, strain relief, and routing can significantly reduce mechanical stress on cable systems. Cables should be secured at regular intervals and protected at points where they pass through walls, floors, or other structural elements that could cause abrasion or stress concentration.

Moisture and Chemical Exposure

Issue Analysis: Underground mines frequently contain high moisture levels, standing water, and various chemicals that can compromise cable integrity. Water infiltration can degrade insulation materials, cause corrosion of conductors and armor, and create electrical safety hazards through ground faults or short circuits.

Chemical exposure from groundwater, mining chemicals, or industrial processes can attack cable materials, causing swelling, cracking, or dissolution of protective sheaths and insulation. The combination of moisture and chemicals creates particularly aggressive environments that can rapidly degrade standard cable materials.

Technical Solutions: Moisture-resistant and chemical-resistant sheathing materials provide the primary defense against environmental degradation. Modern cable designs incorporate specialized polymer compounds that resist water absorption and chemical attack while maintaining mechanical and electrical properties.

Proper cable sealing at terminations and joints prevents moisture infiltration at vulnerable connection points. High-quality sealing compounds, gaskets, and environmental enclosures ensure that cable systems remain protected even in wet environments.

Drainage systems and environmental controls help manage moisture levels around cable installations. Proper mine drainage, ventilation, and waterproofing can significantly reduce the exposure of cables to harmful moisture and chemicals.

Limited Space and Bending Requirements

Issue Analysis: Underground mining operations often require cable installations in extremely confined spaces with tight bending requirements that can exceed the capabilities of standard cables. Excessive bending can damage conductors, compromise insulation, and create stress points that lead to premature failure.

The three-dimensional nature of underground spaces combined with the need to route cables around existing structures, equipment, and other utilities creates complex installation challenges that require careful planning and specialized cable designs.

Technical Solutions: Cables with smaller bending radii and enhanced flexibility allow installation in confined spaces without compromising electrical or mechanical integrity. These designs typically incorporate stranded conductors, flexible insulation materials, and specialized sheath constructions that maintain performance under bending stress.

Installation planning and design optimization help minimize bending requirements through careful route selection and the use of appropriate installation techniques. Computer modeling and three-dimensional planning tools can identify optimal cable routing that minimizes bending while meeting all operational requirements.

Modular installation approaches using junction boxes and connection points can break long cable runs into shorter segments, reducing the cumulative effects of bending and allowing for easier installation and maintenance in confined spaces.

Technical Standards and Certifications

Flame-retardant power cables for coal mining applications must comply with rigorous international standards that ensure safety, reliability, and performance in hazardous underground environments. These standards represent the collective knowledge and experience of the mining industry in developing safe electrical systems for underground operations.

IEC 60502-1 Compliance forms the foundation for cable electrical performance standards, specifying requirements for construction, electrical properties, and testing procedures for power cables with extruded insulation. This standard ensures that cables meet minimum performance criteria for voltage rating, current capacity, and electrical integrity under various operating conditions.

The standard addresses critical aspects including conductor materials and construction, insulation thickness and properties, sheath materials and construction, and testing procedures for electrical, mechanical, and environmental performance. Compliance with IEC 60502-1 provides assurance that cables will perform reliably under specified operating conditions.

Flame-Retardant Performance Standards as defined by IEC 60332-1 establish requirements for flame propagation resistance, ensuring that cables will not contribute to fire spread in the event of ignition. This standard includes specific test procedures that simulate fire conditions and measure flame propagation characteristics.

The flame-retardant testing involves exposing cable samples to standardized flame sources and measuring the extent of flame propagation, burn time, and material consumption. Cables must demonstrate that flames will not spread beyond specified limits and will self-extinguish when the ignition source is removed.

Mining-Specific Standards address the unique requirements of underground coal mining applications, including explosion protection, mechanical durability, and environmental resistance. These standards recognize that mining environments present hazards not encountered in general industrial applications and require enhanced safety measures.

Quality Assurance and Testing procedures ensure that manufactured cables consistently meet specification requirements through comprehensive testing programs including electrical testing, mechanical testing, environmental testing, and flame-retardant verification. These testing programs provide confidence in cable performance and safety characteristics.

Certification Bodies provide independent verification of compliance with applicable standards through testing and inspection programs. Recognized certification bodies ensure that cables meet international standards and provide documentation for regulatory compliance and insurance requirements.

Installation and Maintenance Considerations

Proper installation and maintenance of flame-retardant power cables in coal mining applications are essential for achieving the safety and reliability benefits these specialized cables are designed to provide. The challenging underground environment requires careful attention to installation techniques and ongoing maintenance practices.

Installation Planning must consider the unique characteristics of underground mining environments including space constraints, accessibility limitations, environmental conditions, and operational requirements. Detailed planning helps ensure that cable installations meet both immediate needs and long-term operational requirements while maintaining safety standards.

Route selection should minimize exposure to mechanical damage, excessive heat, moisture, and chemical contamination while providing adequate access for inspection and maintenance. The installation design must also accommodate future expansion and modification requirements as mining operations evolve.

Installation Techniques specific to mining applications include proper cable support systems that accommodate ground movement and settlement, appropriate bend radius management to prevent cable damage, and secure termination practices that maintain environmental protection and electrical integrity.

Cable pulling and installation forces must be carefully controlled to prevent damage to conductors or insulation systems. Specialized installation equipment and techniques may be required for long cable runs or installations in confined spaces.

Maintenance Programs should include regular inspection schedules, testing procedures to verify continued electrical integrity, and documentation systems to track cable condition and performance over time. Preventive maintenance helps identify potential problems before they become critical failures that could compromise safety or operations.

Inspection procedures should address both visual examination for physical damage and electrical testing to verify insulation integrity and conductor continuity. Thermal imaging can help identify overheating conditions that may indicate impending failures or overload conditions.

Future Developments and Innovations

The mining industry continues to drive innovation in flame-retardant cable technology through advancing materials science, improved manufacturing techniques, and enhanced understanding of underground environmental challenges. These developments promise to deliver even safer and more reliable cable systems for future mining operations.

Advanced Materials including improved polymer compounds, enhanced flame-retardant additives, and hybrid construction techniques offer the potential for cables with superior performance characteristics including higher temperature ratings, improved chemical resistance, and enhanced mechanical durability.

Smart Cable Technology incorporating condition monitoring sensors, communication capabilities, and diagnostic systems may provide real-time information about cable condition and performance, enabling predictive maintenance and improved system reliability.

Environmental Considerations are driving development of more sustainable cable materials and manufacturing processes while maintaining the safety and performance characteristics essential for mining applications.

Conclusion

Flame-retardant power cables represent a critical safety component in underground coal mining operations, providing the reliable electrical infrastructure necessary for safe and efficient resource extraction. The specialized design and construction of these cables address the unique challenges of underground mining environments while meeting stringent safety standards that protect both personnel and equipment.

The MVV cable configuration with its specific electrical parameters including 0.6/1 kV voltage rating, 1.5-120 mm² conductor range, and 70°C temperature rating provides a versatile solution for a wide range of mining applications. The 15D minimum bending radius specification ensures installation flexibility while maintaining cable integrity in confined underground spaces.

Understanding and addressing potential mining issues including high ambient temperatures, mechanical stress, moisture exposure, and space limitations through appropriate technical solutions ensures that flame-retardant cables can perform reliably throughout their service life. The implementation of proper installation techniques, maintenance programs, and compliance with international standards further enhances the safety and reliability benefits these specialized cables provide.

The mining industry's continued commitment to safety drives ongoing innovation in cable technology, promising even more advanced solutions for future underground operations. As mining operations become increasingly sophisticated and safety requirements continue to evolve, flame-retardant power cables will remain an essential component in protecting lives and ensuring operational continuity in one of the world's most challenging industrial environments.

Proper selection, installation, and maintenance of flame-retardant power cables mitigate potential hazards and ensure operational reliability, making them an indispensable element of safe and efficient coal mining operations. The investment in these specialized cable systems represents a commitment to worker safety and operational excellence that continues to drive improvements in mining industry safety performance.
