NSHCGEÖU KON+ST+UL Tunneling Cable

Introduction

In the demanding world of underground mining operations, electrical infrastructure must withstand extreme conditions while maintaining absolute reliability. The NSHCGEÖU KON+ST+UL tunneling cable represents a sophisticated engineering solution designed specifically for these challenging environments. This comprehensive guide provides mining engineers, electrical technicians, and industry professionals with detailed insights into this specialized cable system's construction, capabilities, and practical applications.

Understanding the technical specifications and proper implementation of tunneling cables is crucial for ensuring both operational efficiency and safety in mining environments. These cables serve as the vital nervous system connecting mobile machinery, monitoring equipment, and auxiliary circuits throughout underground operations. The NSHCGEÖU KON+ST+UL cable's unique design addresses the specific challenges encountered in mining applications, from extreme mechanical stress to environmental hazards.

This article examines every aspect of the NSHCGEÖU KON+ST+UL tunneling cable, from its fundamental construction principles to practical troubleshooting techniques. We will explore how this cable system integrates monitoring capabilities with robust power transmission, enabling operators to maintain continuous oversight of their electrical infrastructure while delivering reliable power to critical mining equipment.

Application Scenarios and Use Cases

The NSHCGEÖU KON+ST+UL tunneling cable finds its primary application in underground mining operations where conventional cables would fail under extreme mechanical stress. These environments demand electrical solutions that can withstand constant movement, abrasion, and dynamic loading while maintaining electrical integrity.

In coal mining operations, these cables typically connect mobile cutting and loading machines that operate continuously in confined spaces. The cable must flex repeatedly as equipment navigates through tunnels, changes direction, and operates at various positions throughout the mining face. Unlike surface applications where cables remain relatively stationary, mining cables experience constant dynamic stress as they follow equipment movement patterns.

The cable's design specifically accommodates the connection of mobile machinery subjected to very high mechanical loads. Coal cutting machines, continuous miners, and shuttle cars all require flexible power connections that can withstand the rigorous demands of underground operation. These machines often operate in tight spaces where cable routing becomes challenging, requiring cables that can bend repeatedly without degrading performance.

Beyond primary machinery connections, the NSHCGEÖU KON+ST+UL cable serves auxiliary electrical circuits throughout mining installations. Ventilation systems, lighting networks, and environmental monitoring equipment all depend on reliable power distribution. The cable's multi-core design allows simultaneous power transmission and control signal distribution, reducing the complexity of underground electrical installations.

The integrated monitoring capabilities represent a significant advancement in mining safety technology. The concentric phase monitoring screen and overall concentric earth conductor work together to provide continuous insulation monitoring when connected to appropriate monitoring equipment. This feature enables real-time detection of insulation degradation, mechanical damage, or moisture ingress that could lead to dangerous fault conditions.

Monitoring systems connected to these cables can detect ground faults, insulation breakdowns, and physical damage before they escalate into serious safety hazards. In underground environments where explosive gases may be present, early fault detection becomes critical for preventing ignition sources that could trigger catastrophic explosions.

The cable's construction also supports sophisticated ground fault monitoring systems that can pinpoint the location of insulation failures. This capability significantly reduces downtime during maintenance operations, as technicians can locate problems quickly rather than conducting extensive cable testing throughout the installation.

Electrical Parameters and Performance Characteristics

The electrical specifications of the NSHCGEÖU KON+ST+UL tunneling cable reflect careful engineering to balance power transmission capabilities with safety requirements in hazardous mining environments. Understanding these parameters is essential for proper system design and safe operation.

The cable operates at a rated voltage of 0.6/1 kV, which represents the voltage between phases and between phases and earth respectively under normal operating conditions. This voltage level provides an optimal balance between power transmission capability and safety in underground environments where personnel work in close proximity to electrical equipment.

Maximum permissible operating voltages extend these limits to accommodate voltage variations and transient conditions. For alternating current applications, the cable can safely operate at 0.7/1.2 kV, while direct current applications allow operation up to 0.9/1.8 kV. These extended voltage ratings provide operational margin for system voltage fluctuations and emergency operating conditions.

The alternating current test voltages demonstrate the cable's insulation integrity under stress conditions. Power cores must withstand 3 kV test voltage, while control cores are tested at 2 kV. These test voltages, significantly higher than operating voltages, ensure reliable insulation performance throughout the cable's service life even under adverse conditions.

Current carrying capacity follows DIN VDE 0298, Part 4 specifications, which account for installation conditions, ambient temperature, and thermal considerations specific to underground environments. The actual current rating depends on factors including cable cross-sectional area, installation method, ambient temperature, and thermal interaction with adjacent cables.

Operating temperature ranges accommodate both fixed installation and mobile applications. Fixed installations can operate from -40°C to +80°C, while mobile applications operate within -25°C to +80°C. The reduced low-temperature limit for mobile applications reflects the dynamic stress considerations where extremely cold conditions combined with flexing could affect cable performance.

The minimum bending radius, specified according to DIN VDE 0298 Part 3, ensures that cable flexing does not damage internal components or compromise electrical performance. For S-type directional changes, the minimum distance requirement of 20 times the cable diameter prevents stress concentration that could lead to premature failure.

These electrical parameters work together to define safe operating envelopes for various mining applications. Understanding these limits enables engineers to design systems that operate reliably while maintaining safety margins appropriate for hazardous underground environments.

Cable Structure and Construction Details

The sophisticated construction of the NSHCGEÖU KON+ST+UL tunneling cable reflects decades of experience in mining cable design, incorporating multiple layers of protection and functionality to meet the demanding requirements of underground applications.

The foundation of the cable's performance lies in its conductor design. Tinned copper conductors manufactured to DIN VDE 0295 Class 5 specifications provide optimal conductivity while offering superior corrosion resistance in the humid, chemically aggressive environment typical of underground mines. The Class 5 specification ensures maximum flexibility through fine wire stranding, essential for applications requiring repeated flexing.

Tinning of the copper conductors serves multiple purposes beyond corrosion protection. The tin coating prevents copper oxidation that could increase resistance over time, ensures reliable connections at termination points, and provides a barrier against chemical attack from gases and moisture present in mining environments.

Power core insulation utilizes 3C3 EPR (Ethylene Propylene Rubber) compound combined with semiconductive rubber layers. This insulation system provides excellent electrical properties while maintaining flexibility under mechanical stress. The semiconductive layers ensure uniform electric field distribution around the conductor, preventing stress concentration that could lead to insulation breakdown.

Control cores employ 3C13 type EPR compound with semiconductive layers, optimized for low-voltage control signals while maintaining compatibility with the overall cable construction. The different insulation formulation for control cores reflects their different electrical stress requirements while ensuring mechanical compatibility with power cores.

The cable's lay-up configuration represents a careful balance between electrical performance and mechanical durability. Three power cores are laid up with double concentric control cores and a monitoring core positioned in the outer interstices. This arrangement minimizes electromagnetic interference while providing optimal mechanical protection for all conductors.

When three control cores are required, the monitoring core is concentrically wrapped over the insulation of control cores. This configuration maintains the monitoring capability while accommodating additional control functions required in complex mining equipment installations.

The inner sheath constructed from GM1b type EPR compound provides additional mechanical protection while maintaining flexibility. This intermediate layer prevents damage to individual cores from the outer armor while allowing the cable to flex repeatedly without internal component damage.

The armor system combines tinned copper and galvanized steel wires in a helical configuration, providing flexible yet robust mechanical protection. This hybrid approach balances electromagnetic shielding properties of copper with the mechanical strength of steel, creating armor that protects against both electrical interference and physical damage.

The outer sheath utilizes heavy-duty 5GM5 type elastomer rubber compound available in yellow or red colors. This final protective layer resists abrasion, chemicals, and environmental conditions while providing high visibility for safety purposes. The color coding assists in cable identification and routing in complex underground installations.

Standards and Compliance Framework

The NSHCGEÖU KON+ST+UL tunneling cable's design and manufacturing processes adhere to a comprehensive framework of international standards that ensure safety, reliability, and performance in demanding mining applications. Understanding this standards framework provides insight into the cable's capabilities and appropriate applications.

Construction standards begin with DIN VDE 0250-812, which specifically addresses cables for mining applications. This standard establishes requirements for materials, construction methods, and performance characteristics specifically tailored to underground mining environments. Compliance with this standard ensures that the cable can withstand the unique challenges of mining operations.

DIN VDE 0250-1 provides general requirements that establish fundamental safety and performance criteria applicable across various cable types. These requirements form the foundation upon which specific mining cable standards build, ensuring consistency with broader electrical safety principles.

Usage guidelines follow DIN VDE 0298-3, which provides detailed guidance on proper installation, routing, and application of power cables in various environments. This standard is particularly important for mining applications where improper installation could compromise both electrical performance and safety.

Electrical testing standards encompass DIN VDE 0472-501, 503, and 508, which establish comprehensive testing protocols for electrical performance verification. These tests validate insulation integrity, conductor resistance, and electrical performance under various stress conditions that the cable may encounter during service.

Non-electrical testing standards include DIN VDE 0472-401, 402, 602, 303, and 615, covering mechanical, environmental, and durability testing. These standards ensure that the cable can withstand the physical stresses, environmental conditions, and aging effects encountered in mining applications.

Fire condition testing standards DIN VDE 0472-803 and 804 address the cable's behavior under fire conditions. In underground mining environments where fire poses extreme hazards due to confined spaces and potential explosive atmospheres, these standards ensure that cables do not contribute to fire propagation or produce toxic gases.

Flame retardant compliance encompasses multiple standards including VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1. These standards verify that the cable materials resist ignition and limit flame propagation, critical safety features in environments where fire poses severe risks.

Oil resistance testing follows HD/EN/IEC 60811-2-1 and DIN VDE 0473-81T1-2-1 standards. Mining equipment often operates with hydraulic fluids and lubricants that could contact cables, making oil resistance essential for maintaining insulation integrity and preventing premature failure.

This comprehensive standards framework ensures that every aspect of the cable's design, construction, and performance meets rigorous safety and reliability requirements appropriate for mining applications. Compliance with these standards provides confidence in the cable's suitability for demanding underground environments.

Frequently Asked Questions and Troubleshooting

Mining operations present unique challenges that generate specific questions about cable performance, installation, and maintenance. Understanding these common concerns and their solutions helps ensure optimal cable performance and safety.

What makes this cable suitable for high mechanical load applications? The cable's suitability for high mechanical loads results from its sophisticated multi-layer construction that distributes stress across multiple protective elements. The flexible armor system combines tinned copper and galvanized steel wires in a helical configuration that provides mechanical protection while maintaining flexibility. The EPR insulation compounds maintain their properties under repeated flexing, while the cable's lay-up configuration prevents stress concentration on individual conductors. The heavy-duty outer sheath resists abrasion and puncture, protecting internal components from physical damage. This construction allows the cable to withstand the constant movement, vibration, and mechanical stress typical of mobile mining equipment without compromising electrical performance.

How does the monitoring system work and what advantages does it provide? The monitoring system utilizes the concentric phase monitoring screen and overall concentric earth conductor to create a comprehensive insulation monitoring network. When connected to appropriate monitoring equipment, these conductors enable continuous surveillance of the cable's electrical integrity. The system can detect insulation degradation before it reaches dangerous levels, identifying problems such as moisture ingress, mechanical damage, or aging effects. Ground fault monitoring capabilities can pinpoint the location of insulation failures, significantly reducing troubleshooting time and maintenance costs. This monitoring capability is particularly valuable in mining environments where cable failures could create safety hazards or cause expensive equipment downtime.

What are the key safety features and how do they protect personnel and equipment? The cable incorporates multiple safety features designed specifically for hazardous mining environments. Flame retardant materials prevent fire propagation, critical in confined underground spaces where evacuation may be difficult. The insulation monitoring system provides early warning of potential fault conditions before they become dangerous. Oil-resistant materials prevent degradation from hydraulic fluids and lubricants commonly present in mining operations. The robust construction prevents mechanical damage that could create electrical hazards. Compliance with multiple safety standards ensures that the cable meets rigorous safety requirements for underground use. The color-coded outer sheath provides visual identification that helps prevent accidental damage during maintenance operations.

Can this cable be used in both fixed and mobile applications, and what are the considerations for each? The cable is designed for both fixed installation and mobile applications, with specifications tailored to each use case. Fixed installations can operate over a wider temperature range (-40°C to +80°C) since they experience less mechanical stress. Mobile applications operate within -25°C to +80°C, reflecting the additional considerations for dynamic stress in cold conditions. Mobile applications require careful attention to cable routing to prevent excessive bending stress, with minimum bending radius requirements strictly observed. S-type directional changes require minimum spacing of 20 times the cable diameter to prevent stress concentration. Fixed installations focus on proper support systems and protection from environmental hazards. Both applications benefit from the monitoring capabilities, though mobile applications may require more frequent monitoring due to higher stress levels.

What maintenance practices ensure optimal cable performance and longevity? Regular maintenance practices should include periodic insulation testing using the integrated monitoring system to detect degradation before it becomes critical. Visual inspection of the outer sheath should identify signs of abrasion, cracking, or chemical attack that could compromise protection. Cable routing should be regularly checked to ensure proper support and prevent excessive bending stress. Termination points require periodic inspection and maintenance to ensure reliable connections that won't create hot spots or voltage stress points. Environmental conditions around the cable should be monitored to identify potential sources of chemical attack or mechanical damage. Documentation of maintenance activities helps identify patterns that could indicate developing problems or areas requiring design improvements.

How should installation teams handle the cable's specific bending requirements? Proper handling of bending requirements starts with understanding that the minimum bending radius specifications are absolute limits that should not be exceeded under any circumstances. Installation teams should use proper cable-pulling techniques that distribute stress evenly along the cable length rather than concentrating forces at specific points. Cable support systems must be designed to maintain proper bending radii even under the dynamic conditions present in mobile applications. S-type directional changes require careful planning to ensure adequate spacing between bends. Installation tools should be selected to prevent damage to the outer sheath during installation. Training for installation personnel should emphasize the importance of these requirements and the consequences of improper installation practices.

What troubleshooting steps help identify and resolve common cable problems? Troubleshooting should begin with the integrated monitoring system to identify the general location and nature of any insulation problems. Visual inspection can identify external damage such as cuts, abrasions, or chemical attack on the outer sheath. Electrical testing of individual conductors can isolate problems to specific cores within the cable. Mechanical stress analysis may be required if problems appear related to improper installation or excessive bending. Environmental factor analysis should consider temperature extremes, chemical exposure, or unusual mechanical stresses that might contribute to cable problems. Documentation of problem patterns helps identify whether issues result from installation problems, environmental factors, or normal aging processes.

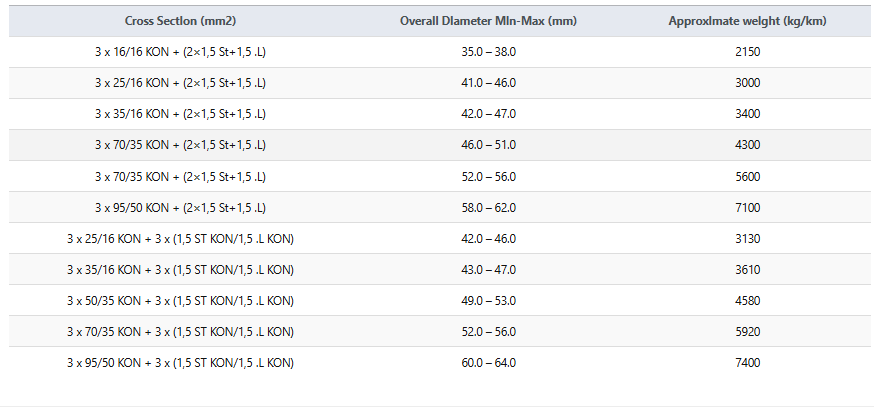

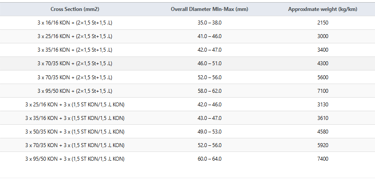

Technical Specifications and Cross-Sectional Options

The NSHCGEÖU KON+ST+UL tunneling cable is available in multiple cross-sectional configurations to accommodate various power requirements and installation constraints common in mining applications. Understanding these options enables proper cable selection for specific applications while ensuring optimal performance and cost-effectiveness.

The cable configurations follow a systematic naming convention where the first number group indicates power conductor cross-sections, the second indicates earth conductor cross-sections, and the additional designations specify control and monitoring core arrangements. The KON designation indicates the concentric monitoring capability, while ST and UL refer to control and monitoring functions respectively.

Standard configurations begin with 3x16/16 KON+(2x1.5 ST+1.5 UL), providing three 16mm² power conductors with 16mm² earth conductor, plus two 1.5mm² control cores and one 1.5mm² monitoring core. This configuration suits smaller mining equipment with moderate power requirements. The overall diameter ranges from 35.0 to 38.0mm with an approximate weight of 2150 kg/km.

The 3x25/16 KON+(2x1.5 ST+1.5 UL) configuration increases power capacity with 25mm² power conductors while maintaining the same earth and control conductor sizes. This arrangement provides higher current capacity for equipment with increased power demands. The diameter increases to 41.0-46.0mm with proportional weight increase to approximately 3000 kg/km.

Medium power applications utilize 3x35/16 KON+(2x1.5 ST+1.5 UL) configuration, offering 35mm² power conductors suitable for larger mining machinery. The earth conductor remains at 16mm² while control and monitoring cores maintain 1.5mm² cross-sections. Overall diameter ranges from 42.0 to 47.0mm with weight approximately 3400 kg/km.

Higher power requirements are met by 3x50/35 KON+(2x1.5 ST+1.5 UL) configuration, utilizing 50mm² power conductors with increased 35mm² earth conductor. This configuration provides substantial current capacity for heavy-duty mining equipment while maintaining monitoring capabilities. The diameter increases to 46.0-51.0mm with weight of approximately 4300 kg/km.

The largest standard configurations include 3x70/35 KON+(2x1.5 ST+1.5 UL) and 3x95/50 KON+(2x1.5 ST+1.5 UL), designed for the highest power mining applications. These configurations feature 70mm² or 95mm² power conductors respectively, with proportionally sized earth conductors. Diameters range from 52.0-56.0mm for the 70mm² version to 58.0-62.0mm for the 95mm² version, with weights from 5600 to 7100 kg/km.

Enhanced control capabilities are available through three control core configurations. The 3x25/16 KON+3x(1.5 ST KON/1.5 UL KON) configuration provides three control cores each with integrated monitoring capability. This arrangement suits complex mining equipment requiring multiple control functions with individual monitoring of each control circuit.

Similar enhanced configurations are available across the range, including 3x35/16 KON+3x(1.5 ST KON/1.5 UL KON), 3x50/35 KON+3x(1.5 ST KON/1.5 UL KON), 3x70/35 KON+3x(1.5 ST KON/1.5 UL KON), and 3x95/50 KON+3x(1.5 ST KON/1.5 UL KON). These configurations maintain the same power conductor sizes while adding comprehensive control monitoring capabilities.

The maximum tensile load specification of 15 N/mm² establishes the mechanical stress limits during installation and operation. This specification ensures that cable-pulling operations and dynamic stress during mobile applications remain within safe limits that won't damage internal components or compromise electrical performance.

Weight considerations become important for mobile applications where cable weight affects equipment mobility and operator handling. The progressive weight increase from 2150 kg/km for the smallest configuration to 7400 kg/km for the largest affects cable management strategies and support system requirements.

Diameter specifications influence installation planning, particularly for applications requiring cable passage through confined spaces or protective conduits. The range from 35mm minimum diameter to 64mm maximum diameter affects routing decisions and mechanical protection requirements.

Conclusion and Future Considerations

The NSHCGEÖU KON+ST+UL tunneling cable represents a sophisticated solution engineered specifically for the demanding requirements of underground mining operations. Through its comprehensive design approach combining robust mechanical construction with advanced monitoring capabilities, this cable system addresses the critical challenges of power distribution in hazardous underground environments.

The cable's multi-layered construction philosophy demonstrates how modern engineering approaches mining challenges through systematic solutions. Each component, from the tinned copper conductors to the heavy-duty outer sheath, serves specific functions while contributing to overall system reliability. The integration of monitoring capabilities directly into the cable structure represents a significant advancement in proactive maintenance and safety management.

Understanding the electrical parameters and their relationship to mining applications enables engineers to make informed decisions about cable selection and system design. The careful balance between power transmission capability and safety requirements reflects the complex considerations necessary in mining applications where electrical failures can have serious consequences.

The comprehensive standards compliance framework provides confidence in the cable's suitability for demanding applications while ensuring consistency with international safety requirements. This standards-based approach facilitates global application and provides clear performance benchmarks for system designers.

As mining operations continue to evolve toward increased automation and remote monitoring, the integrated monitoring capabilities of cables like the NSHCGEÖU KON+ST+UL become increasingly valuable. The ability to continuously monitor cable health and predict maintenance requirements supports the trend toward predictive maintenance strategies that reduce downtime and improve safety.

Future developments in mining cable technology will likely focus on enhanced monitoring capabilities, improved environmental resistance, and integration with digital mining systems. The foundation provided by current cable designs like the NSHCGEÖU KON+ST+UL establishes the platform upon which these advances will build.

For mining professionals working with these cable systems, success depends on understanding not just the technical specifications but also the practical considerations of installation, maintenance, and troubleshooting. The investment in proper training and adherence to established procedures pays dividends in system reliability and operational safety.

The NSHCGEÖU KON+ST+UL tunneling cable exemplifies how specialized engineering solutions can address specific industry challenges while maintaining the flexibility to adapt to evolving operational requirements. As mining operations become more sophisticated and safety requirements more stringent, such engineered solutions become increasingly essential for successful operations.

Through proper selection, installation, and maintenance of these cable systems, mining operations can achieve the electrical infrastructure reliability necessary for safe, efficient underground operations while supporting the advanced monitoring and control systems that characterize modern mining technology.
