Introduction

The mining and tunneling industries present some of the most demanding environments for electrical infrastructure, where conventional cables simply cannot withstand the extreme conditions encountered deep underground or in open-cast operations. The NTSKCGECWÖU tunneling cable represents a pinnacle of German engineering excellence, specifically designed to address these challenging requirements with uncompromising reliability and performance.

This specialized cable solution emerges from decades of engineering experience in harsh industrial environments, combining advanced materials science with proven construction techniques. The cable serves as a critical lifeline for power transmission and control signal communication in applications where failure is not an option. Its development reflects the German approach to engineering: thorough analysis of requirements, meticulous attention to detail, and robust construction that prioritizes long-term reliability over short-term cost savings.

The fundamental purpose of the NTSKCGECWÖU cable extends beyond simple power transmission. It functions as an integrated system component that ensures continuous operation of essential mining equipment while providing the monitoring capabilities necessary for safe and efficient operations. In environments where equipment downtime can cost thousands of euros per hour and safety concerns are paramount, this cable represents a critical investment in operational continuity and worker protection.

Understanding the technical specifications and capabilities of this cable becomes essential for mining engineers, electrical contractors, and safety managers who must make informed decisions about infrastructure investments. The complexity of modern mining operations demands electrical solutions that can adapt to changing conditions while maintaining consistent performance over extended operational periods.

Applications in Mining and Tunneling Operations

The primary applications of the NTSKCGECWÖU cable center around mobile equipment operations that form the backbone of modern mining and tunneling projects. Tunnel boring machines, which represent some of the most sophisticated and expensive equipment in underground construction, require reliable power supplies that can handle the continuous mechanical stresses associated with their operation. These machines generate enormous cutting forces while simultaneously managing spoil removal, often operating continuously for months at a time.

Coal cutting equipment presents another critical application area where the cable's robust construction proves essential. Coal cutters must operate in environments where methane gas, coal dust, and moisture create particularly challenging conditions. The cable's flame-retardant properties and chemical resistance become crucial safety features in these applications, where any electrical failure could potentially trigger dangerous situations.

Crushing equipment in both underground and surface mining operations subjects electrical cables to severe mechanical abuse through constant vibration, impact loading, and exposure to abrasive materials. The NTSKCGECWÖU cable's reinforced construction and anti-torsion features enable it to withstand these conditions while maintaining electrical integrity.

The cable excels in reeling and trailing applications, where traditional cables often fail due to repeated flexing and extension cycles. Mining equipment frequently requires cable systems that can extend and retract hundreds of times during normal operations, creating fatigue stresses that would quickly destroy conventional cables. The specialized conductor construction and flexible insulation materials in the NTSKCGECWÖU cable address these specific requirements.

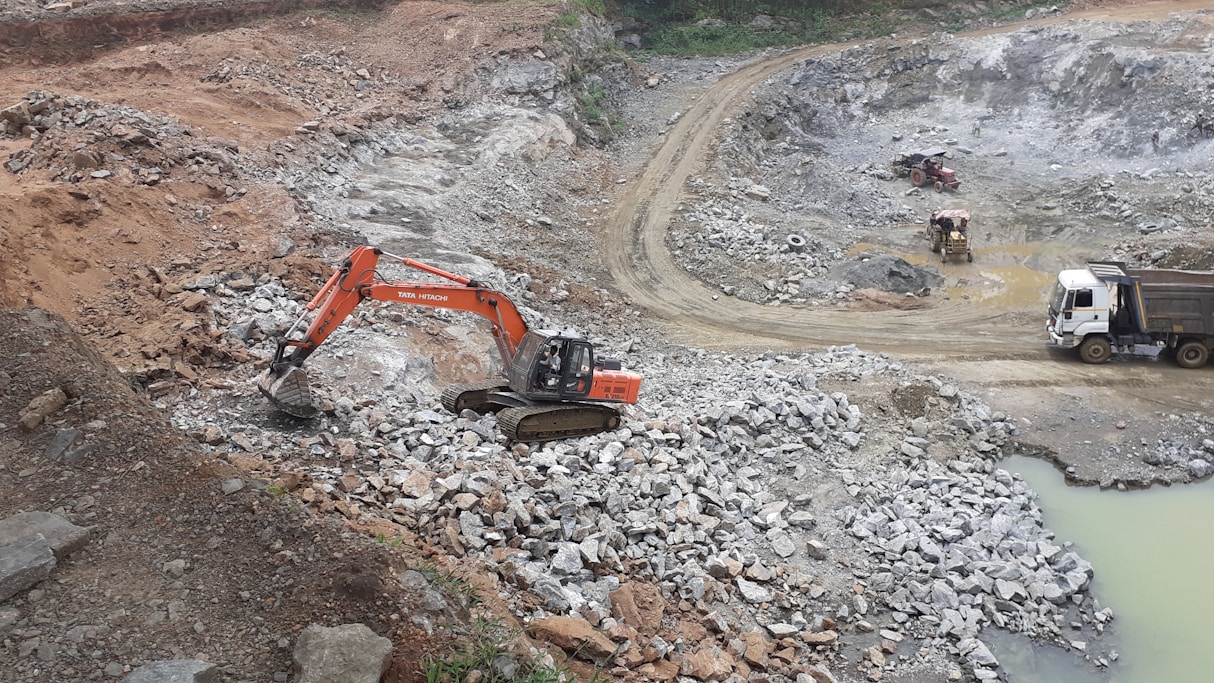

Environmental suitability extends across diverse mining scenarios, from deep underground operations where cables must resist chemical attack from groundwater and geological formations, to open-cast mining where extreme temperature variations and UV exposure create different but equally challenging conditions. The cable's construction incorporates materials specifically selected for their resistance to oils, hydraulic fluids, and the various chemicals commonly encountered in mining operations.

Underground mining environments present unique challenges including limited ventilation, high humidity, and potential exposure to corrosive gases. The cable's outer sheath materials resist degradation from these environmental factors while maintaining flexibility at low temperatures that might be encountered in deep mining operations or during winter conditions in surface applications.

NTSKCGECWÖU Tunneling Cable

Electrical Specifications and Performance Characteristics

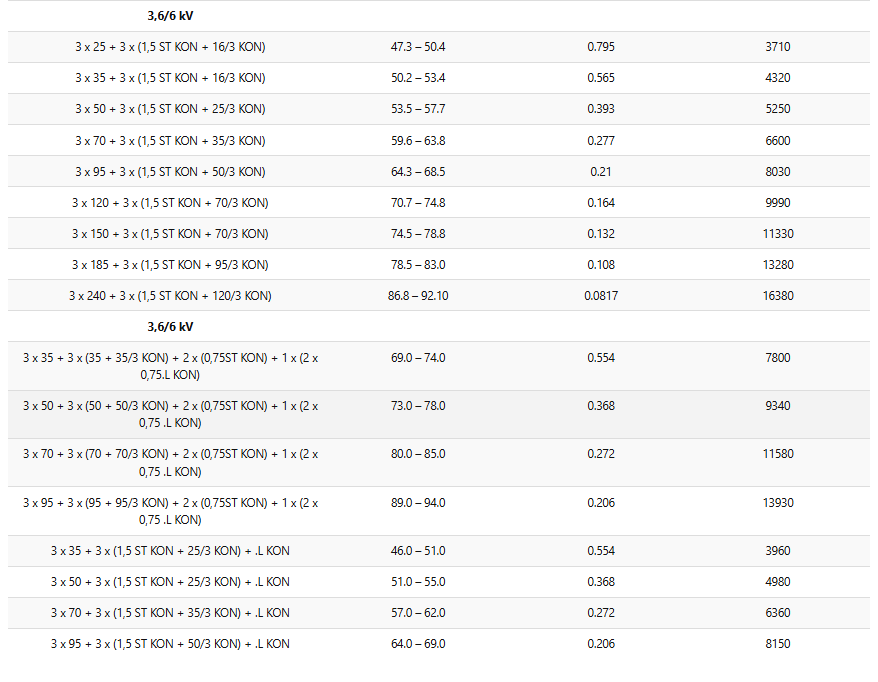

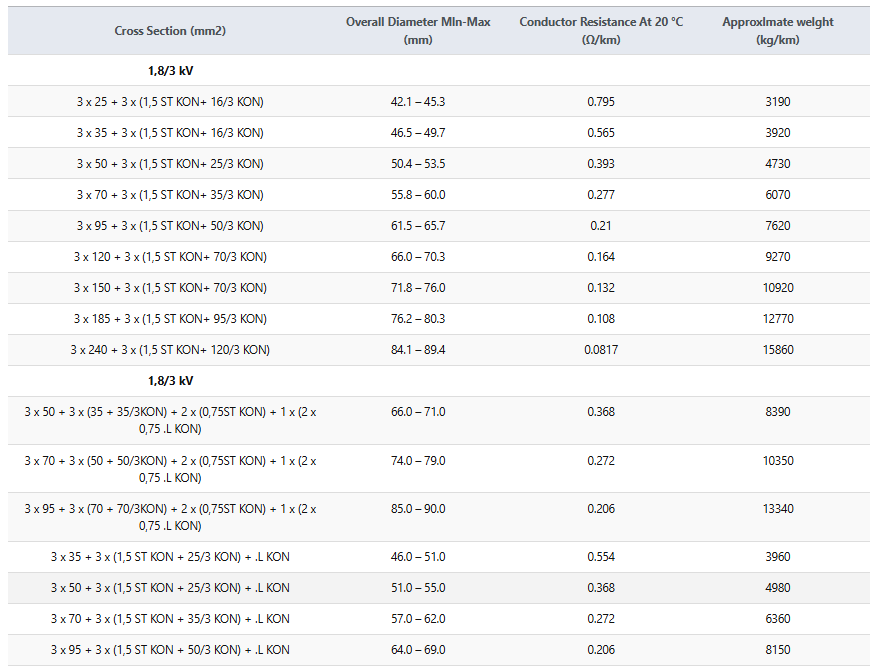

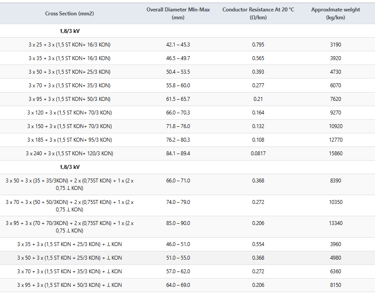

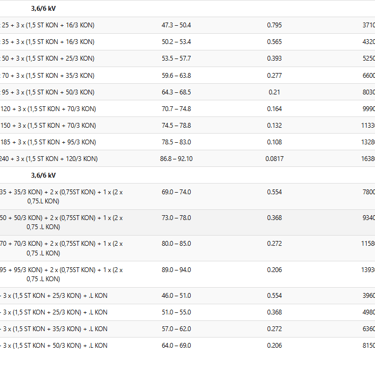

The voltage ratings available for the NTSKCGECWÖU cable reflect the diverse power requirements of modern mining equipment. The medium voltage ranges of 1.8/3kV and 3.6/6kV accommodate different equipment classes and installation requirements. Lower voltage ratings typically serve smaller mobile equipment and control systems, while higher voltage applications support large tunnel boring machines and major crushing equipment that require substantial power delivery.

Understanding these voltage classifications becomes crucial when planning electrical installations. The 1.8/3kV rating indicates the cable can operate continuously at 1.8kV to ground with the ability to withstand 3kV test voltages, providing appropriate safety margins for industrial applications. Similarly, the 3.6/6kV rating supports higher power applications while maintaining adequate insulation coordination for safe operation.

The conductor specifications reveal the sophisticated engineering behind the cable's performance. Tinned copper conductors manufactured to DIN VDE 0295 Class 5 standards provide optimal electrical conductivity while offering enhanced corrosion resistance through the tin coating. Class 5 designation indicates maximum flexibility through fine stranding, essential for applications involving repeated flexing and movement.

Cross-sectional areas ranging from 25mm² to 240mm² accommodate diverse current-carrying requirements. Smaller cross-sections support control circuits and lighter equipment, while larger conductors handle the substantial power demands of major mining machinery. The conductor resistance values, measured at 20°C, provide essential data for voltage drop calculations and thermal management considerations.

The insulation system employs Ethylene Propylene Rubber (EPR) type 3GI3, selected for its exceptional electrical properties and environmental resistance. EPR insulation offers superior performance compared to traditional materials, maintaining flexibility at low temperatures while resisting degradation from oils, ozone, and other environmental stressors common in mining applications.

Semiconductive compounds play crucial roles in electrical field control, preventing partial discharge phenomena that could lead to insulation failure over time. The inner and outer semiconductive layers create smooth electrical field distributions around the conductors, eliminating field concentrations that might otherwise cause premature aging or breakdown.

The cable's impedance characteristics and capacitance values affect power transmission efficiency and system protection coordination. These parameters become particularly important in longer cable runs common in mining applications, where proper impedance matching ensures optimal power transfer while supporting protective relay operation.

Current-carrying capacity varies with installation conditions, ambient temperature, and grouping factors. Mining installations often involve multiple cables in confined spaces, requiring careful thermal analysis to ensure safe operation without exceeding conductor temperature limits.

Detailed Cable Construction Analysis

The sophisticated construction of the NTSKCGECWÖU cable reflects decades of experience in harsh environment applications. The core configuration integrates three power cores with comprehensive control and monitoring systems, creating a unified solution that simplifies installation while providing complete functionality.

Power cores feature individual screening that provides electromagnetic compatibility and reduces interference between phases. This screening becomes particularly important in mining applications where sensitive control systems must operate alongside high-power equipment that generates significant electromagnetic fields.

The control cores incorporate 1.5mm² conductors for standard control functions, with larger control conductors up to 95mm² available for applications requiring higher control power. These control circuits support equipment operation, safety systems, and communication functions essential for coordinated mining operations.

Monitoring cores provide continuous system diagnostics, enabling operators to detect developing problems before they result in equipment failures. These monitoring systems can track cable temperature, insulation condition, and mechanical stress levels, supporting predictive maintenance programs that minimize unexpected downtime.

The cradle separator represents an innovative design element that provides mechanical support while maintaining proper core spacing. This component, manufactured from semiconductive elastomeric material, fills the cable's center interstice while supporting the core assembly during bending and flexing operations.

Inner sheathing utilizes GM1b type EPR compound that provides additional mechanical protection while maintaining electrical insulation properties. This intermediate sheath creates a barrier against moisture infiltration while providing cushioning that protects individual cores from mechanical damage.

The flexible armor system incorporates both tinned copper and galvanized steel wires arranged in helical configuration. This hybrid approach combines the electrical continuity provided by copper elements with the mechanical strength of steel components, creating armor that can withstand severe mechanical abuse while maintaining electrical safety.

The outer sheath employs 5GM5 type elastomer compound formulated for extreme service conditions. This specialized material resists abrasion, cuts, and chemical attack while maintaining flexibility across wide temperature ranges. The red coloration provides high visibility for safety purposes and equipment identification.

Anti-torsion elements integrated throughout the cable construction prevent twisting damage during installation and service. These elements become particularly important in reeling applications where cables experience complex stress patterns during extension and retraction cycles.

Comprehensive Standards Compliance and Testing

The NTSKCGECWÖU cable meets rigorous German and international standards that ensure consistent quality and performance. DIN VDE 0250-813 governs construction requirements, specifying materials, dimensions, and manufacturing processes that guarantee reliability in demanding applications.

General requirements under DIN VDE 0250-1 address fundamental safety and performance criteria that apply across all cable types. These requirements establish minimum standards for electrical properties, mechanical characteristics, and environmental resistance that must be maintained throughout the cable's service life.

Electrical testing according to DIN VDE 0472-501, 503, and 508 verifies insulation integrity, conductor resistance, and electrical performance under various operating conditions. These tests simulate long-term service conditions to ensure the cable will perform reliably throughout its expected lifetime.

Non-electrical testing per DIN VDE 0472 standards evaluates mechanical properties, environmental resistance, and physical characteristics. These comprehensive tests include tensile strength measurements, flexibility testing, and environmental exposure simulation that validates the cable's ability to withstand mining conditions.

Fire performance testing according to DIN VDE 0472-803 and 804 demonstrates the cable's behavior under fire conditions. These tests ensure that the cable will not contribute to fire propagation while maintaining circuit integrity for emergency systems operation.

Flame retardancy compliance with VDE 0482-332-1-2 and IEC 60332-1 standards ensures the cable meets international safety requirements for fire-prone environments. These standards specify maximum flame spread rates and smoke generation limits that protect personnel during emergency situations.

Oil resistance testing per HD/EN/IEC 60811-2-1 validates the cable's performance in environments where exposure to hydraulic fluids, lubricants, and other petroleum products is inevitable. This testing ensures long-term reliability in typical mining applications where such exposure is routine.

Frequently Asked Questions and Technical Solutions

What specific features make the NTSKCGECWÖU cable uniquely suitable for the extreme conditions encountered in mining applications?

The cable's suitability for mining applications stems from its comprehensive design approach that addresses multiple environmental challenges simultaneously. The combination of flexible tinned copper conductors with EPR insulation provides excellent electrical performance while resisting the chemical attack common in mining environments. The specialized armor system incorporating both copper and steel elements creates mechanical protection that withstands severe abuse while maintaining electrical safety. Additionally, the anti-torsion construction prevents the twisting damage that frequently destroys conventional cables in reeling applications.

How does the cable perform in environments with high moisture content, chemical exposure, and potential corrosive gas presence?

The cable's multi-layer protection system specifically addresses these challenging environmental conditions. The outer sheath utilizes 5GM5 type elastomer compound that provides exceptional resistance to moisture penetration, chemical attack, and corrosive gas exposure. The inner GM1b sheath creates an additional barrier against moisture infiltration, while the tinned copper conductors resist corrosion even if moisture does penetrate the outer protection layers. The EPR insulation maintains its electrical properties even when exposed to various chemicals commonly found in mining operations.

What flame retardancy characteristics does the cable possess, and how do these features contribute to mining safety?

The cable meets stringent flame retardancy standards including IEC 60332-1-2, which specifies maximum flame spread rates when the cable is exposed to fire. The specialized compound formulations used in both the insulation and sheathing systems are designed to resist ignition and limit flame propagation if exposed to fire sources. In mining environments where methane gas or coal dust may be present, these characteristics become critical for preventing electrical equipment from contributing to fire or explosion hazards.

What are the recommended operating temperature ranges, and how does temperature variation affect cable performance?

The NTSKCGECWÖU cable typically operates efficiently within a temperature range of -40°C to +90°C, accommodating the extreme temperature variations encountered in mining operations. The EPR insulation system maintains flexibility at low temperatures while resisting degradation at elevated temperatures. Temperature variations affect current-carrying capacity, with higher ambient temperatures requiring current derating to prevent overheating. The cable's construction materials are specifically selected to minimize performance degradation across this wide temperature range.

How do the semiconductive layers contribute to electrical field control and long-term reliability?

The inner and outer semiconductive layers create smooth electrical field distributions around the conductors, eliminating field concentrations that could cause partial discharge activity. Partial discharges gradually degrade insulation materials over time, eventually leading to cable failure. By controlling electrical field distribution, the semiconductive layers significantly extend cable life while improving reliability. This becomes particularly important in mining applications where cable replacement is expensive and disruptive to operations.

What installation considerations are specific to mining and tunneling applications?

Mining installations require careful attention to cable routing, support systems, and protection from mechanical damage. The cable should be installed with adequate bend radius to prevent stress concentration, typically ten times the cable diameter for stationary installations and fifteen times for mobile applications. Support systems must accommodate the cable's weight while allowing for thermal expansion and equipment movement. Protection from sharp edges, falling objects, and equipment traffic becomes critical in mining environments where physical damage risks are elevated.

How should maintenance and inspection programs be structured for optimal cable performance?

Effective maintenance programs should include regular visual inspections for physical damage, periodic electrical testing to verify insulation integrity, and monitoring of operating temperatures and mechanical stresses. The integrated monitoring conductors enable continuous condition assessment, allowing maintenance teams to identify developing problems before they result in failures. Thermal imaging can detect hot spots that might indicate loose connections or overloading conditions, while insulation resistance testing verifies continued electrical integrity.

Conclusion and Engineering Recommendations

The NTSKCGECWÖU tunneling cable represents the culmination of German engineering expertise applied to one of the most demanding applications in industrial electrical systems. Its sophisticated construction integrates advanced materials science with proven design principles to create a solution that addresses the comprehensive requirements of modern mining and tunneling operations.

The cable's compliance with rigorous international standards provides assurance of consistent quality and performance, while its comprehensive construction details demonstrate the thorough engineering approach necessary for extreme service conditions. From the tinned copper conductors that ensure reliable electrical performance to the specialized armor system that provides mechanical protection, every component reflects careful consideration of real-world operating requirements.

For mining engineers and electrical contractors, the NTSKCGECWÖU cable offers a solution that balances initial investment with long-term operational costs. While premium construction commands higher initial prices, the extended service life and reduced maintenance requirements typically provide favorable life-cycle economics. The cable's reliability becomes particularly valuable in applications where downtime costs significantly exceed cable replacement expenses.

The integrated approach combining power transmission, control circuits, and monitoring capabilities simplifies installation while providing comprehensive functionality. This integration reduces the number of separate cable runs required, minimizing installation labor and support system requirements while improving system reliability through reduced connection points.

Future developments in mining technology will likely demand even higher performance from electrical infrastructure, making the sophisticated engineering embodied in cables like the NTSKCGECWÖU increasingly valuable. As mining operations extend deeper underground and equipment becomes more sophisticated, the reliability and performance characteristics of specialized cables become critical factors in operational success.

The investment in properly specified cable systems represents insurance against the catastrophic costs associated with equipment failures in critical mining operations. Understanding the technical capabilities and limitations of specialized cables enables informed decision-making that supports safe, efficient, and profitable mining operations in increasingly challenging environments.
