Powering Australia's Gold Rush: The Critical Role of AS/NZS 2802 Type 455 Mining Cables in Modern Mining Operations

Introduction: The Backbone of Modern Mining Power Systems

In the vast expanse of Australia's mining landscape, where massive excavators carve through earth and towering stacker-reclaimers move mountains of ore, reliable electrical power delivery remains the invisible force that keeps operations running around the clock. At the heart of this power infrastructure lies a specialised category of electrical cables designed specifically for the demanding conditions of mining environments: the AS/NZS 2802 Type 455 cables.

The AS/NZS 2802 standard represents Australia and New Zealand's comprehensive approach to mining cable specifications, establishing rigorous requirements for cables that must withstand the unique challenges of mobile mining equipment. Type 455 cables, specifically designed for Class 1 applications with voltage ratings from 3.3 kilovolts to 33 kilovolts, serve as the electrical lifeline for reeling and trailing applications where equipment mobility and reliability are paramount.

Understanding the significance of these cables requires appreciating the sheer scale and complexity of modern mining operations. Picture a dragline excavator with a bucket capacity of 100 cubic metres, operating continuously in an open-pit mine. This massive machine requires not just enormous amounts of electrical power, but power delivered through cables that can flex, bend, and move thousands of times per day without failure. The Type 455 cable system addresses this challenge through innovative design features including reduced insulation thickness, specialised sheath materials, and strategic placement of earth and pilot conductors.

The importance of these cables extends far beyond mere power transmission. In mining operations where equipment downtime can cost hundreds of thousands of dollars per hour, the reliability of electrical infrastructure becomes a critical factor in operational success. Type 455 cables incorporate multiple design elements specifically engineered to minimise failure rates and extend service life in the harsh conditions typical of Australian mining environments.

Australia's Gold Mining Landscape: Where Giants Roam

Australia's position as the world's second-largest gold producer stems from its remarkable geological diversity and the presence of several world-class mining operations. These mines represent some of the most technologically advanced and productive gold extraction facilities globally, each presenting unique challenges that demand sophisticated electrical infrastructure solutions.

Major Gold Mining Operations

Boddington Gold Mine in Western Australia stands as the country's premier gold producer, consistently yielding over 590,000 ounces annually. This massive operation combines open-pit and underground mining methods, requiring an extensive network of mobile equipment including some of the world's largest haul trucks, each weighing over 400 tonnes when fully loaded. The electrical power demands of such equipment necessitate robust cable systems capable of delivering high-voltage power while maintaining flexibility for equipment movement.

The mine's challenging operational environment, characterised by extreme temperature variations, dust exposure, and continuous equipment movement, creates the perfect testing ground for Type 455 cables. The cables must withstand not only the mechanical stresses of constant flexing but also the chemical exposure from mining processes and the abrasive conditions created by fine particulate matter in the air.

Cadia-Ridgeway in New South Wales represents another flagship operation, utilising both underground and open-cut mining techniques to extract approximately 561,000 ounces of gold annually. The complexity of this operation, with its combination of mining methods, creates particularly demanding requirements for electrical infrastructure. Underground operations require cables that can navigate confined spaces while maintaining full electrical integrity, while surface operations demand cables capable of withstanding exposure to weather extremes and mechanical abuse.

The Kalgoorlie Super Pit, managed by Kalgoorlie Consolidated Gold Mines, holds iconic status as one of Australia's most recognisable mining operations. Measuring 3.5 kilometres long and 1.5 kilometres wide, this massive open-pit operation requires a vast network of mobile equipment, each unit dependent on reliable electrical power delivery. The scale of operations at the Super Pit creates unique challenges for cable management, as the enormous distances involved require cables capable of maintaining electrical performance over extended lengths while withstanding the constant movement of heavy machinery.

Beyond these flagship operations, Australia hosts numerous other significant gold mining ventures including Tropicana and Tanami operations, each contributing to the country's gold production while presenting their own unique electrical infrastructure challenges. The diversity of these operations, from the red dirt of the Pilbara to the underground complexities of Victorian gold fields, demonstrates the versatility required of mining cable systems.

Mining Environment Characteristics

The Australian mining environment presents a unique combination of challenges that distinguish it from mining operations in other parts of the world. The continent's vast distances, extreme weather conditions, and geological diversity create operating conditions that push equipment and infrastructure to their limits.

Temperature extremes represent one of the most significant challenges. Mining operations in Western Australia routinely experience surface temperatures exceeding 45 degrees Celsius during summer months, while underground operations may encounter temperatures approaching 60 degrees Celsius due to geothermal activity. These temperature extremes place enormous stress on cable insulation systems, requiring materials and designs capable of maintaining electrical integrity across wide temperature ranges.

Dust and particulate matter present another major challenge. The fine, abrasive particles generated by mining operations can infiltrate electrical systems, causing gradual degradation of cable sheaths and potentially leading to electrical failures. The red iron oxide dust common in many Australian mining regions proves particularly problematic, as its conductive properties can create electrical tracking paths if it accumulates on cable surfaces.

The scale of modern mining equipment continues to grow, with some haul trucks now exceeding 400-tonne capacity and excavators capable of moving over 100 cubic metres of material per cycle. This equipment requires correspondingly large amounts of electrical power, often delivered at high voltages to minimise transmission losses. The combination of high power requirements and equipment mobility creates unique demands for cable systems that must deliver megawatts of power while maintaining flexibility for constant equipment movement.

Application Scenarios: Where Flexibility Meets Power

The application of Type 455 cables in Australian gold mining operations encompasses a wide range of scenarios, each presenting unique technical challenges that demonstrate the versatility and robust design of these specialised electrical systems.

Stacker-Reclaimer Operations

Stacker-reclaimers represent some of the most demanding applications for mining cables. These massive machines, often exceeding 100 metres in length, move continuously along stockpile areas, simultaneously stacking incoming ore and reclaiming material for processing. The electrical power requirements for these machines are substantial, typically requiring hundreds of kilowatts for the various drive motors, conveyor systems, and auxiliary equipment.

The Type 455 cable system excels in this application due to its optimised design for reeling operations. The reduced insulation and sheath thickness, combined with the elimination of traditional cable bedding materials, results in a cable that maintains flexibility while delivering the high-voltage power required for these massive machines. The incorporation of two earth conductors and one pilot conductor in the outer interstices provides additional safety measures and allows for advanced monitoring systems that can detect cable integrity issues before they result in equipment failure.

Dragline and Shovel Applications

Electric draglines and shovels represent the backbone of many open-pit mining operations, with some units capable of moving over 100 cubic metres of material per cycle. These machines require enormous amounts of electrical power, often delivered at voltages up to 33 kilovolts to minimise transmission losses and reduce cable size requirements.

The trailing cable application for draglines presents unique challenges, as the cable must withstand not only the mechanical stresses of constant movement but also the dynamic loads created by the machine's operational cycle. During each digging cycle, the cable experiences tension variations, bending stresses, and potential impact from falling debris. The Type 455 cable construction, with its flexible tinned copper conductors and robust sheath design, provides the mechanical resilience required for these demanding applications.

Mobile Crusher and Conveyor Systems

Modern mining operations increasingly utilise mobile crushing and conveying systems that can be relocated as mining progresses. These systems require flexible electrical connections that can accommodate equipment movement while maintaining continuous power delivery. The Type 455 cable system's design philosophy of reduced weight and diameter while maintaining electrical performance makes it ideally suited for these applications.

The challenge in mobile crusher applications lies in the combination of high power requirements and frequent equipment repositioning. Traditional cable systems often prove too heavy or inflexible for easy relocation, leading to increased setup times and potential safety hazards. The Type 455 system addresses these concerns through its optimised construction that provides excellent power delivery capabilities while maintaining the flexibility required for regular equipment moves.

Electrical and Mechanical Characteristics: Engineering Excellence in Action

The technical specifications of Type 455 cables represent a sophisticated balance between electrical performance, mechanical durability, and operational practicality. Understanding these characteristics provides insight into why these cables have become the preferred choice for demanding mining applications.

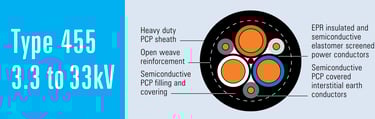

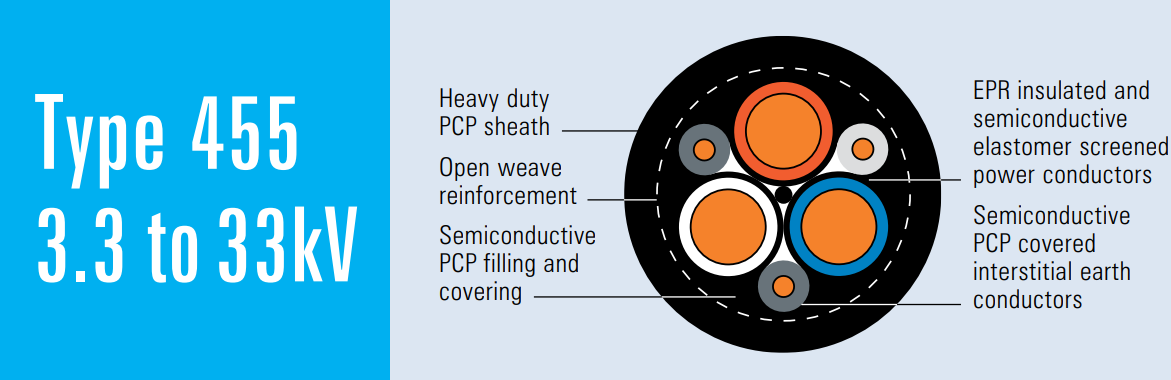

Construction Philosophy and Design Elements

The construction of Type 455 cables reflects decades of evolution in mining cable design, incorporating lessons learned from failures and successes in the field. The cable's architecture begins with flexible stranded tinned annealed copper conductors, chosen for their excellent electrical conductivity and resistance to corrosion in harsh mining environments. The use of tinned copper provides superior protection against oxidation, particularly important in applications where cables may be exposed to moisture and chemical contaminants.

The conductor screening system employed in Type 455 cables represents a critical design element for high-voltage applications. Semiconductive compounds applied over the conductor create a uniform electric field distribution, preventing the formation of electrical stress concentrations that could lead to insulation breakdown. This screening becomes particularly important in mining applications where cables may be subject to mechanical deformation that could otherwise create electrical stress points.

The insulation system utilises Ethylene Propylene Rubber (EPR), selected for its excellent electrical properties and mechanical resilience. EPR insulation provides superior performance across wide temperature ranges, maintaining flexibility at low temperatures while resisting degradation at elevated temperatures. This characteristic proves particularly valuable in Australian mining operations where equipment may operate in underground environments with elevated temperatures or surface operations with extreme temperature variations.

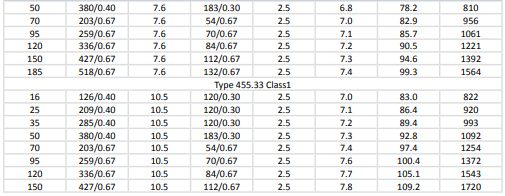

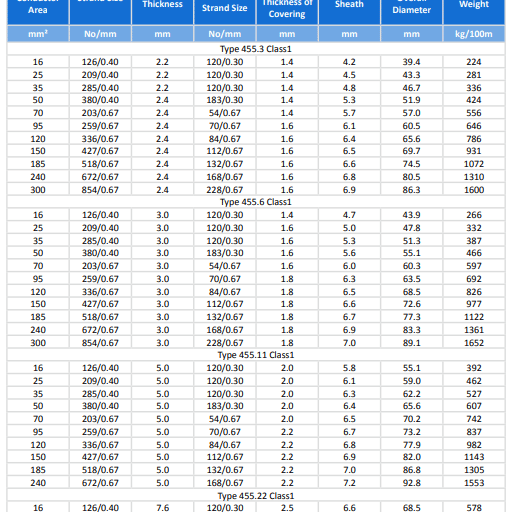

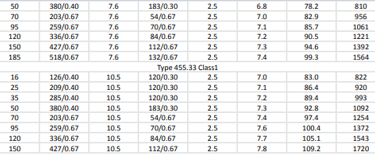

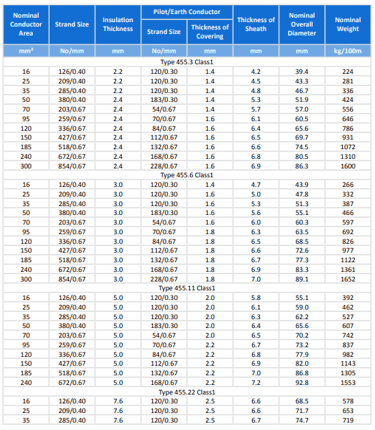

Voltage Rating Classifications and Applications

The Type 455 cable system encompasses multiple voltage classifications, each optimised for specific applications within mining operations. The classification system, denoted by decimal designations such as 455.3, 455.6, 455.11, 455.22, and 455.33, corresponds to different voltage ratings and insulation thickness requirements.

Type 455.3 cables, designed for 3.3 kilovolt applications, represent the entry level of the high-voltage mining cable range. These cables find application in smaller mobile equipment and auxiliary systems where moderate power requirements can be met at lower voltages. The relatively thin insulation system, at 2.2 millimetres thickness, provides excellent flexibility while maintaining adequate electrical performance for the specified voltage rating.

Type 455.6 cables, rated for 6.6 kilovolt operation, represent a significant step up in power handling capability. The increased insulation thickness of 3.0 millimetres provides the additional electrical integrity required for higher voltage operation while maintaining the flexibility characteristics essential for mobile equipment applications. These cables commonly find use in medium-sized excavators and auxiliary mining equipment.

Type 455.11 cables, designed for 11 kilovolt applications, incorporate 5.0 millimetre insulation thickness and represent the workhorse category for many mining operations. This voltage level provides an excellent balance between power transmission capability and cable practicality, making it suitable for larger excavators, draglines, and processing equipment.

Type 455.22 and Type 455.33 cables represent the high-voltage end of the spectrum, designed for 22 kilovolt and 33 kilovolt applications respectively. These cables incorporate the thickest insulation systems, with Type 455.33 featuring 10.5 millimetre insulation thickness. The high-voltage capability of these cables makes them essential for the largest mining equipment, where power requirements may exceed several megawatts.

Mechanical Performance Characteristics

The mechanical performance of Type 455 cables extends far beyond simple tensile strength, encompassing a comprehensive range of characteristics essential for mining applications. The cable's resistance to flexing fatigue represents one of its most critical performance parameters, as mining cables may experience millions of flex cycles during their service life.

The incorporation of textile reinforcement in the form of open-weave braid provides crucial mechanical protection while maintaining cable flexibility. This reinforcement system distributes mechanical loads across the cable structure, preventing localised stress concentrations that could lead to premature failure. The open-weave design allows for cable flexing while providing protection against external mechanical damage.

The sheath system represents the cable's primary defense against environmental hazards. The standard extra-heavy duty PCP (Polychloroprene) sheath provides excellent resistance to oil, chemicals, and abrasion while maintaining flexibility across wide temperature ranges. For applications requiring enhanced chemical resistance, CPE/CSP (Chlorinated Polyethylene/Chlorosulfonated Polyethylene) sheath options are available, providing superior performance in chemically aggressive environments.

Temperature performance represents another critical mechanical characteristic. Type 455 cables maintain their flexibility and electrical performance across temperature ranges from -25 degrees Celsius to +90 degrees Celsius, encompassing the extreme conditions encountered in Australian mining operations. This temperature performance ensures reliable operation whether the cable is deployed in the frigid conditions of underground mines or the scorching heat of surface operations.

Conductor and Auxiliary Systems

The conductor system of Type 455 cables employs sophisticated design principles to optimise both electrical performance and mechanical resilience. The flexible stranded construction, utilising numerous small-diameter wires, provides excellent flexibility while maintaining low electrical resistance. The specific strand configurations, such as 126/0.40 for 16 square millimetre conductors or 854/0.67 for 300 square millimetre conductors, represent optimised designs that balance electrical performance with mechanical flexibility.

The auxiliary conductor system represents a unique feature of Type 455 cables, incorporating two earth conductors and one pilot conductor in the outer interstices. This arrangement provides multiple benefits including enhanced safety through redundant grounding systems and the capability for advanced monitoring through the pilot conductor. The earth conductors, constructed with CSP (Chlorosulfonated Polyethylene) covering, provide excellent protection against environmental degradation while maintaining electrical continuity.

The pilot conductor, featuring EPR insulation, serves multiple functions including structural reinforcement and electrical monitoring capabilities. Advanced mining operations utilise the pilot conductor for touch detection systems, cable integrity monitoring, and communication purposes. This capability allows for predictive maintenance approaches that can identify potential cable problems before they result in equipment failure.

Frequently Asked Questions: Addressing Real-World Mining Challenges

The implementation of Type 455 cables in Australian mining operations generates numerous questions from engineers, maintenance personnel, and operations managers. Understanding these common concerns and their solutions provides valuable insight into the practical aspects of mining cable deployment.

Q1: How do Type 455 cables withstand the extreme mechanical wear typical of mining environments?

The mechanical resilience of Type 455 cables results from multiple design features working in concert to resist wear and damage. The extra-heavy duty sheath system provides the primary defense against abrasion, utilising specialised polymer compounds that resist cutting and gouging from contact with rough surfaces. The PCP sheath material incorporates additives that enhance its resistance to mechanical damage while maintaining flexibility.

The open-weave textile reinforcement beneath the sheath provides crucial backup protection, distributing mechanical loads across the cable structure to prevent localised damage from propagating through the cable. This reinforcement system proves particularly valuable in applications where cables may experience impact loading from falling debris or contact with sharp edges.

The conductor system itself contributes to mechanical resilience through its flexible stranded construction. The use of numerous small-diameter wires allows the conductor to flex repeatedly without experiencing the fatigue failures common in solid conductor designs. The tinned copper construction provides additional protection against corrosion-related weakening that could compromise mechanical integrity.

Regular inspection and maintenance protocols play a crucial role in maximising cable service life. Mining operations typically implement visual inspection schedules that identify early signs of sheath damage, allowing for protective measures or cable replacement before catastrophic failure occurs. The incorporation of pilot conductors enables electrical monitoring that can detect integrity issues before they become visible externally.

Q2: Can Type 455 cables maintain electrical integrity under extreme temperature conditions and water exposure?

The temperature performance of Type 455 cables represents one of their most impressive characteristics, with designed operation across temperature ranges from -25 degrees Celsius to +90 degrees Celsius. This performance stems from careful material selection and construction techniques that maintain electrical and mechanical integrity across these extremes.

The EPR insulation system proves particularly valuable for temperature performance, maintaining its electrical properties and flexibility across wide temperature ranges. Unlike some alternative insulation materials that become brittle at low temperatures or soft at high temperatures, EPR maintains consistent performance characteristics throughout the specified temperature range.

Water resistance represents another critical performance parameter, achieved through multiple design elements. The sheath system provides the primary barrier against water ingress, utilising materials and construction techniques that resist water penetration even under pressure. The semiconductive screening systems maintain their electrical properties even when exposed to moisture, preventing the formation of electrical tracking paths that could compromise cable integrity.

For applications where water exposure represents a significant concern, proper cable installation and support systems become crucial. Cable entry points into equipment should incorporate appropriate sealing systems, and cable support arrangements should prevent water accumulation in low points where hydrostatic pressure could force water into the cable structure.

Q3: What specific functions does the pilot conductor serve in mining applications?

The pilot conductor incorporated in Type 455 cables serves multiple critical functions that enhance both safety and operational efficiency in mining applications. The most fundamental function involves providing a monitoring path for cable integrity assessment, allowing maintenance personnel to detect developing problems before they result in equipment failure.

Touch detection represents one of the most important pilot conductor applications, particularly in dragline operations where the cable may come into contact with the ground or other conductive surfaces. The pilot conductor monitoring system can detect when the cable sheath integrity has been compromised, triggering immediate shutdown procedures to prevent more serious damage or safety hazards.

Communication capabilities represent another valuable pilot conductor function, enabling data transmission between mobile equipment and central control systems. This communication capability proves particularly valuable in automated mining operations where equipment positioning and operational data must be transmitted continuously to optimise mining efficiency.

The pilot conductor also provides structural reinforcement to the cable assembly, helping to maintain the cable's geometric integrity during flexing operations. This reinforcement function becomes particularly important in applications where cables experience high tension loads or complex bending patterns that could otherwise compromise the cable's internal structure.

Q4: How do Type 455 cables address electrical interference and grounding challenges in mining environments?

The electrical interference and grounding challenges in mining environments result from the combination of high-power electrical systems, extensive metallic structures, and the presence of multiple electrical and electronic systems operating in close proximity. Type 455 cables address these challenges through sophisticated design features that minimise interference generation and provide robust grounding systems.

The semiconductive screening systems incorporated in Type 455 cables play a crucial role in electromagnetic interference suppression. These screens create uniform electric field distributions around the conductors, preventing the formation of electrical discharge phenomena that could generate electromagnetic interference. The grounded nature of these screens also provides effective shielding against external electromagnetic fields that could interfere with cable operation.

The dual earth conductor system provides redundant grounding paths that ensure electrical safety even if one earth conductor fails. This redundancy proves particularly valuable in mining applications where a single grounding failure could create serious safety hazards. The earth conductors also provide effective paths for fault current flow, enabling protective relay systems to operate correctly in the event of electrical faults.

Proper cable installation and support systems contribute significantly to interference suppression and grounding effectiveness. Cable routes should be planned to minimise proximity to high-interference sources, and grounding connections should be made using appropriate techniques that ensure low-resistance connections that will remain effective throughout the cable's service life.

Q5: What specific considerations apply to installation and support of Type 455 cables on large mobile mining equipment?

The installation of Type 455 cables on large mobile mining equipment requires careful attention to multiple factors that influence both cable performance and operational safety. The massive scale of modern mining equipment creates unique challenges for cable management, as cables must accommodate equipment movement while maintaining electrical integrity and avoiding interference with equipment operation.

Cable drum systems represent the most common approach for managing trailing cables on large equipment. These systems must be carefully sized to accommodate the cable diameter and weight while providing smooth cable payout and retraction. The drum design must account for the cable's minimum bend radius requirements, ensuring that the cable does not experience damage during winding and unwinding operations.

The cable support system between the equipment and the drum requires careful design to prevent cable damage from dragging on the ground or contact with obstacles. Cable handling systems often incorporate guide wheels or sliding supports that maintain cable elevation while allowing for equipment movement. These support systems must be designed to accommodate the cable's weight and the dynamic loads generated by equipment operation.

Proper cable termination techniques prove crucial for long-term reliability. High-voltage cable terminations require specialised techniques and materials to ensure electrical integrity and mechanical durability. The termination system must accommodate the mechanical stresses generated by equipment movement while maintaining electrical performance under all operating conditions.

Q6: How should mining operations approach lifecycle management and maintenance of Type 455 cables?

Effective lifecycle management of Type 455 cables requires a comprehensive approach that encompasses predictive maintenance, condition monitoring, and systematic replacement planning. The harsh conditions typical of mining environments make proactive maintenance essential for maximising cable service life and minimising unplanned downtime.

Visual inspection represents the foundation of any effective cable maintenance program. Regular inspection schedules should be established based on equipment utilisation and environmental conditions, with particular attention paid to areas where cables experience high mechanical stress or environmental exposure. Early detection of sheath damage, conductor exposure, or termination problems allows for corrective action before catastrophic failure occurs.

Electrical testing provides valuable insight into cable condition that may not be apparent through visual inspection alone. Insulation resistance testing, conducted at appropriate intervals, can detect degradation of the insulation system before it reaches critical levels. The pilot conductor system enables continuous monitoring of cable integrity, providing real-time feedback on cable condition during equipment operation.

Replacement planning should consider both the cable's service life and the operational impact of cable failure. Cables operating in demanding applications may require more frequent replacement than those in less severe service, and replacement scheduling should account for equipment availability and operational requirements. Maintaining adequate spare cable inventory ensures that replacement operations can be conducted without extended equipment downtime.

The economic analysis of cable lifecycle management should consider not only the cable replacement costs but also the operational impact of cable failures. In mining operations where equipment downtime can cost hundreds of thousands of dollars per day, investing in premium cable systems and comprehensive maintenance programs often provides significant economic benefits through reduced downtime and improved operational reliability.

Summary and Recommendations: Powering the Future of Australian Mining

The AS/NZS 2802 Type 455 cable system represents a sophisticated solution to the demanding electrical infrastructure requirements of modern Australian mining operations. Through careful balance of electrical performance, mechanical resilience, and operational practicality, these cables enable the reliable power delivery essential for the massive mobile equipment that drives Australia's mining industry.

The technical excellence embodied in Type 455 cables stems from decades of evolution in mining cable design, incorporating lessons learned from both successes and failures in the field. The cable's construction philosophy prioritises the unique requirements of mining applications, resulting in a system that delivers high-voltage power while maintaining the flexibility essential for mobile equipment operation.

The diversity of Australian mining operations, from the massive open-pit operations of Western Australia to the complex underground mines of other regions, demonstrates the versatility required of mining electrical infrastructure. Type 455 cables meet this challenge through their comprehensive range of voltage ratings and construction options, enabling optimised solutions for specific applications while maintaining commonality in design principles and installation practices.

For mining operations planning electrical infrastructure upgrades or expansions, several key recommendations emerge from this analysis. First, careful consideration should be given to voltage level selection, balancing the benefits of higher voltage transmission against the increased complexity and cost of high-voltage systems. Second, proper cable support and handling systems prove essential for maximising cable service life and minimising operational disruptions. Third, comprehensive maintenance programs that incorporate both visual inspection and electrical testing provide the best approach for optimising cable lifecycle performance.

The future of Australian mining will undoubtedly bring new challenges and opportunities, with continued growth in equipment size and automation creating new demands for electrical infrastructure. Type 455 cables, with their proven performance and ongoing development, position Australian mining operations to meet these challenges while maintaining the reliability and safety standards essential for successful mining operations.

The success of Type 455 cables in Australian mining operations serves as a testament to the value of specialised engineering solutions designed specifically for demanding applications. As mining operations continue to evolve and expand, the electrical infrastructure that powers these operations must evolve as well, building upon the solid foundation established by systems like the AS/NZS 2802 Type 455 cable family.

For equipment manufacturers, mine planners, and electrical engineers involved in mining operations, understanding the capabilities and limitations of Type 455 cables provides essential knowledge for designing effective electrical systems. The comprehensive specifications and proven performance of these cables offer confidence in their ability to meet the demanding requirements of modern mining operations while providing the reliability essential for successful mining ventures.

The investment in quality electrical infrastructure, exemplified by Type 455 cables, represents a crucial component of mining operation success. While the initial cost of premium cable systems may exceed that of standard alternatives, the long-term benefits in terms of reliability, safety, and operational efficiency typically provide compelling economic justification for their selection. In an industry where operational continuity directly impacts profitability, the value of reliable electrical infrastructure cannot be overstated.
