Introduction

Mining operations represent some of the most challenging environments for electrical systems, yet their success depends entirely on reliable power infrastructure. From illuminating vast underground networks to powering massive excavation equipment, electrical systems form the backbone of modern mining. The design and implementation of these systems must balance two critical factors: uncompromising safety standards and maximum operational efficiency. In environments where conditions can rapidly change and hazards are numerous, a robust electrical foundation becomes not just an operational necessity but a lifeline for workers below and above ground.

Key Components of Mine Electrical Systems

Power Generation and Substations

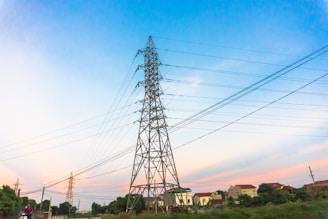

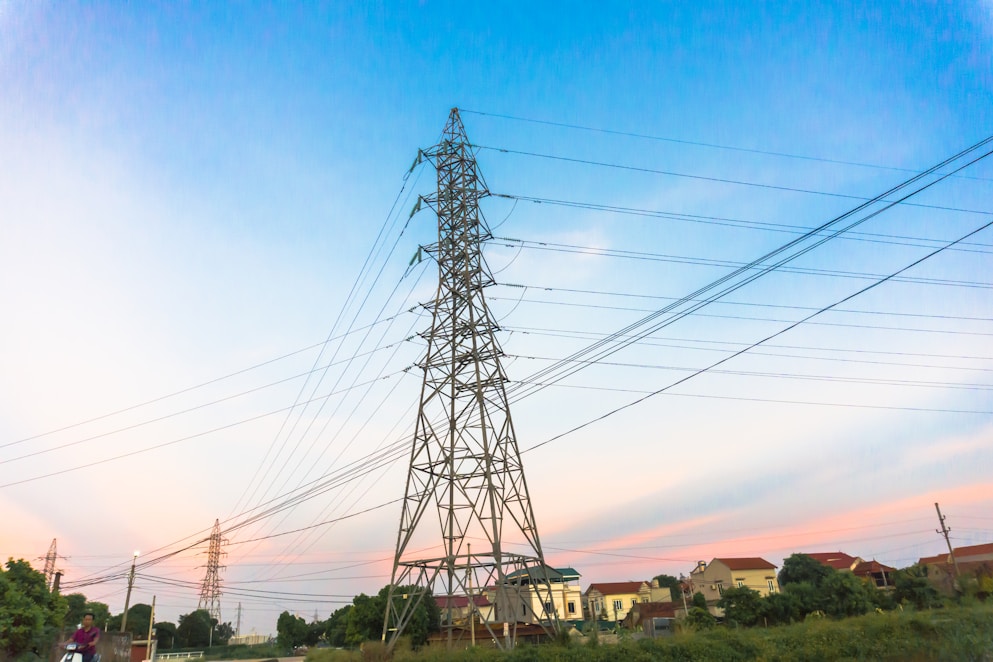

Mining operations typically rely on two primary approaches to power generation. Large-scale mines often connect to external power grids, bringing high-voltage transmission lines to the mining site. These connections require substantial infrastructure but provide reliable and consistent power. In remote locations, on-site power generation using diesel generators or, increasingly, hybrid renewable systems offers independence from external sources.

Once power reaches the mine site, a network of substations transforms high-voltage electricity to more manageable levels. Primary substations reduce transmission voltages (often 110kV or higher) to distribution voltages (typically 11-33kV), while secondary substations further step down power to utilization voltages (typically 400-690V) suitable for mining equipment.

Power Distribution Networks

Distribution networks within mines follow a hierarchical structure. Primary distribution systems carry medium-voltage power throughout the mining complex, while secondary networks deliver lower-voltage electricity to individual equipment and operational areas.

Protection systems are central to these networks, with sophisticated switchgear isolating faults before they can cause widespread outages or safety incidents. Modern mining operations employ vacuum circuit breakers, load-break switches, and intelligent protection relays that continuously monitor system conditions and respond automatically to abnormalities.

Powering the Depths: Modern Electrical Systems in Mining Operations

Electrical Equipment Used in Mines

Drilling and Cutting Machinery

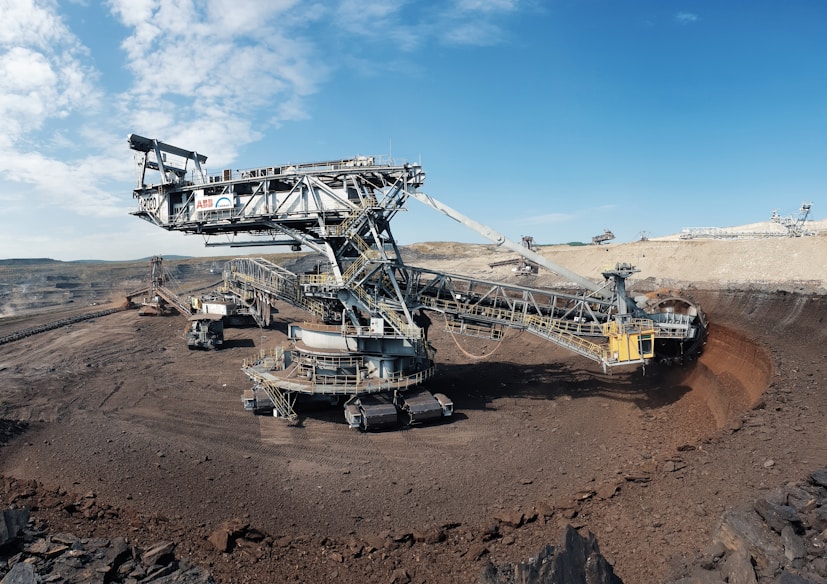

The core activities of any mining operation—breaking and extracting mineral resources—rely on specialized electrical equipment. Electric-powered drilling rigs deliver precise performance with higher efficiency than pneumatic alternatives. In coal mining, electric shearers cut along the face of coal seams, while roadheaders carve development tunnels through rock with rotating cutting heads. These machines typically operate on 1000V systems, delivering massive torque through specialized electric motors designed to withstand harsh mining conditions.

Conveying Systems

Once material is extracted, electrical conveyor systems become the primary means of transport. These systems use heavy-duty electric motors, often with variable frequency drives (VFDs) that allow for precise speed control and energy optimization. Modern conveyor systems can span kilometers, moving thousands of tons of material per hour while consuming less energy than truck haulage alternatives.

Ventilation and Pumping Equipment

Maintaining breathable air and controlling water ingress represent critical safety functions in underground mines. Large ventilation fans, often exceeding 1MW in power rating, continuously circulate fresh air through complex ventilation networks. Similarly, electrical pumping systems control groundwater, with multi-stage centrifugal pumps moving thousands of gallons per minute to keep working areas dry and safe.

Control and Monitoring Systems

The integration of digital technology has revolutionized mining electrical systems. SCADA (Supervisory Control and Data Acquisition) networks monitor everything from air quality to equipment performance. Protection relays provide real-time analysis of electrical conditions, preventing equipment damage and electrical hazards. These systems increasingly incorporate automation capabilities, allowing equipment to operate with minimal human intervention in hazardous areas.

Mining Cables: Types and Applications

Role of Mining Cables in Power Supply

Mining cables represent specialized solutions for uniquely demanding conditions. Unlike standard electrical cables, mining cables must withstand abrasion, crushing, tension, moisture, chemicals, and extreme temperatures while maintaining electrical integrity. These cables serve as the lifelines of mining operations, connecting power sources to both fixed installations and mobile equipment.

Types of Mining Cables

Several specialized cable types serve different mining applications:

Flame-retardant cables incorporate materials that self-extinguish when exposed to fire, preventing flame propagation in the confined spaces of underground mines. These cables often use cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) insulation with low-smoke, zero-halogen outer jackets.

Armored cables feature protective metal wrapping—typically steel wire or tape armor—that shields the conductors from mechanical damage. This armor provides crucial protection in environments where cables may be exposed to falling rock, heavy equipment traffic, or other physical hazards.

High-voltage cables designed for mining applications combine excellent electrical properties with mechanical durability. These cables transmit power over longer distances with minimal losses, often connecting surface substations to underground distribution networks.

Feichun cables designed for mining, comply with highest industry standards.

Typical Applications

Mining cables serve numerous specialized functions throughout mining operations. Trailing cables connect mobile equipment—such as continuous miners, shuttle cars, and loading machines—to power sources while allowing for movement. These cables must combine flexibility with exceptional durability.

Underground substations and switchgear rely on specialized feeder cables designed for permanent installation in harsh conditions. These cables often incorporate additional shielding against electromagnetic interference and moisture ingress.

Mobile equipment cables must withstand constant movement and flexing while maintaining electrical integrity. Special reeling systems manage these cables, preventing excessive strain during equipment operation.

Safety Considerations

Safety represents the paramount concern in mining electrical systems. Comprehensive grounding networks protect against step and touch potentials, while insulation monitoring systems continuously check for deterioration that could lead to shock hazards.

In potentially explosive atmospheres, intrinsically safe and explosion-proof equipment prevents electrical systems from becoming ignition sources. These specialized systems limit energy storage and release, ensuring that even under fault conditions, they cannot trigger explosive gas or dust mixtures.

Emergency power and lighting systems provide crucial backup during main power interruptions. These systems automatically activate to maintain critical functions and illumination along evacuation routes, giving workers safe passage during emergency situations.

Challenges and Future Trends

The mining industry stands at a technological crossroads, with several emerging trends reshaping electrical systems:

The electrification of mining fleets represents perhaps the most significant shift. Battery-electric haul trucks, loaders, and other vehicles are beginning to replace diesel equipment, dramatically reducing emissions and ventilation requirements while introducing new charging infrastructure challenges.

Renewable energy integration is gaining momentum at mine sites worldwide. Solar arrays, wind turbines, and energy storage systems are increasingly supplementing or replacing fossil fuel generation, particularly at remote locations where fuel transport costs are prohibitive.

Digital transformation continues to advance, with smart grid technologies allowing for precise power management and condition monitoring. These systems optimize energy use, predict equipment failures before they occur, and automatically adjust operations based on changing conditions.

Conclusion

Modern mining operations depend entirely on sophisticated electrical systems that have evolved to meet the unique challenges of extracting resources from the earth. From specialized cables that withstand crushing forces to intelligent protection systems that react in milliseconds to dangerous conditions, these electrical networks represent remarkable engineering achievements.

As mining continues to advance technologically, electrical systems will play an even more central role in improving safety, efficiency, and environmental performance. The ongoing development of specialized equipment and cables designed specifically for mining applications ensures that these critical systems will continue to meet the demands of one of the world's most challenging industries.
