PVC vs. XLPE Cable Insulation Explained

1. Introduction

In modern electrical and data networks—from home appliances and lighting to city grids and massive data centers—the insulation surrounding conductors is more than mere plastic: it’s a critical barrier that ensures safety, longevity and optimal performance. This article unpacks the two most common insulation materials, Polyvinyl Chloride (PVC) and Cross-Linked Polyethylene (XLPE). You’ll learn why insulation matters, how PVC and XLPE differ in chemical structure, heat resistance, mechanical strength and installation practices, and which applications favor each material. Through side-by-side comparisons, practical case studies and a look at emerging trends, you’ll gain the insight needed to choose the right cable insulation for any project.

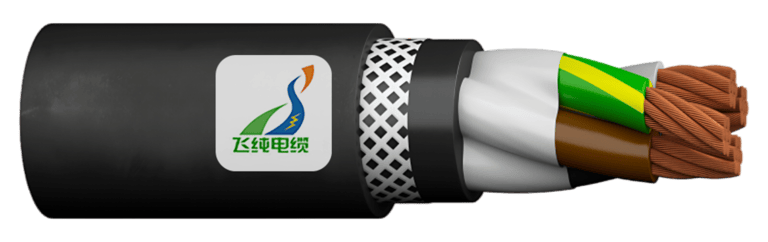

2. Basics of Cable Insulation

2.1. Role of Insulation

Cable insulation serves multiple critical functions:

• Electrical Isolation: The primary purpose of insulation is to confine electrical current to the conductor, preventing leakage, short circuits, and potential hazards.

• Mechanical Protection: Insulation shields the conductor from physical damage during installation and service.

• Environmental Shielding: It protects against moisture, chemicals, UV radiation, and other environmental factors that could compromise the cable's integrity.

• Thermal Management: Quality insulation helps manage heat generated during operation, preventing overheating and maintaining performance.

• Signal Integrity: In data and communication cables, insulation properties directly impact signal quality and transmission speeds.

2.2. Common Insulating Materials

Insulating materials generally fall into two major categories:

• Thermoplastics: Materials that soften when heated and harden when cooled, allowing them to be remolded multiple times. PVC is a classic example of a thermoplastic insulator.

• Thermosets: Materials that undergo irreversible chemical changes during processing, resulting in a permanently set structure that cannot be remolded with heat. XLPE belongs to this category.

This fundamental difference in molecular structure creates distinct performance characteristics that make each material suitable for different applications.

3. PVC (Polyvinyl Chloride) Insulation

3.1. Chemical Structure & Manufacturing

PVC is a synthetic plastic polymer made from repeating vinyl chloride monomers. Its basic formula is (C₂H₃Cl)n, with chlorine atoms comprising about 57% of its weight. The manufacturing process involves polymerization of vinyl chloride monomers, followed by the addition of plasticizers to enhance flexibility and other additives to improve specific properties.

PVC cable insulation typically contains:

• Base PVC resin

• Plasticizers (phthalates, adipates, or trimellitates)

• Stabilizers to prevent degradation

• Flame retardants

• Fillers and colorants

The mixture is compounded, extruded around the conductor, and cooled to form the finished insulation layer.

3.2. Key Properties

Electrical Rating

• Dielectric Strength: 15-50 kV/mm (varies with formulation)

• Volume Resistivity: 10¹²-10¹⁵ Ω·cm

• Suitable for Low to Medium Voltage: Commonly used up to 600-1000V applications

Thermal Limits

• Continuous Operating Temperature: 70-105°C (depending on formulation)

• Emergency Overload: Up to 130°C for short durations

• Low Temperature Flexibility: Remains workable down to -15°C with standard plasticizers, or -40°C with special formulations

Flexibility and Mechanical Strength

• Tensile Strength: 10-25 MPa

• Elongation at Break: 150-400%

• Highly Flexible: Excellent bend radius properties, especially with higher plasticizer content

• Abrasion Resistance: Moderate

Flame Retardancy

• Inherently Flame Retardant: The chlorine content naturally suppresses combustion

• Self-Extinguishing: Typically stops burning when ignition source is removed

• Low Smoke Variants: Special formulations available for reduced smoke emission

• Meets Various Standards: UL, IEC, and EN fire safety requirements

3.3. Typical Applications

• Building Wiring: Electrical installations in residential and commercial buildings

• Appliance Wiring: Internal connections in household and industrial equipment

• Control Cables: Industrial automation and control systems

• Power Cords: Flexible connections for portable equipment

• Automotive Wiring: Vehicle electrical systems (non-engine compartment)

• Low-Voltage Power Distribution: Indoor commercial and industrial settings

3.4. Pros & Cons

Advantages

• Cost-Effective: Lower material and processing costs

• Easy Processing: Can be extruded at relatively low temperatures

• Excellent Flexibility: Good handling characteristics during installation

• Inherent Flame Retardancy: Reduced need for additional fire-inhibiting additives

• Color Versatility: Easily colored for circuit identification

• Good Chemical Resistance: Particularly against acids and alkalis

Disadvantages

• Limited Temperature Range: Lower thermal endurance than alternatives

• Environmental Concerns: Chlorine content raises end-of-life disposal issues

• Plasticizer Migration: Can harden over time as plasticizers leach out

• Moderate Electrical Properties: Lower voltage ratings than XLPE

• Potential for Hydrogen Chloride Release: Can produce corrosive gases when burned

4. XLPE (Cross-Linked Polyethylene) Insulation

4.1. Cross-Linking Process & Chemistry

XLPE begins as standard polyethylene (PE), a simple polymer with the formula (C₂H₄)n. The cross-linking process transforms this thermoplastic into a thermoset material by creating three-dimensional molecular bonds between adjacent PE chains.

There are three primary methods for achieving cross-linking:

1. Peroxide Cross-Linking: Organic peroxides decompose at high temperatures, creating free radicals that form bonds between PE chains.

2. Silane Cross-Linking: PE is grafted with silane compounds, then exposed to moisture which triggers the cross-linking reaction.

3. Irradiation Cross-Linking: High-energy electron beams or gamma radiation create free radicals that form inter-chain bonds.

The resulting material maintains the basic PE structure but with a three-dimensional network that significantly enhances thermal and electrical properties.

4.2. Key Properties

Higher Thermal Rating

• Continuous Operating Temperature: 90-110°C (standard XLPE)

• Emergency Overload: Up to 140°C for short periods

• Short-Circuit Rating: Can withstand up to 250°C for very brief durations

• Low Temperature Performance: Maintains flexibility down to -40°C

Improved Dielectric Performance

• Dielectric Strength: 22-35 kV/mm

• Volume Resistivity: 10¹⁶-10¹⁸ Ω·cm

• Low Dielectric Losses: Lower dissipation factor than PVC

• Suitable for Medium to High Voltage: Commonly used from 600V up to 500kV

Moisture and Chemical Resistance

• Water Tree Resistance: Special formulations resist water treeing phenomenon

• Hydrophobic Surface: Naturally repels water

• Chemical Stability: Excellent resistance to oils, chemicals, and solvents

• Low Water Absorption: Typically below 0.1%

Mechanical Robustness

• Tensile Strength: 12-25 MPa

• Elongation at Break: 200-500%

• Abrasion Resistance: Good to excellent

• Environmental Stress Crack Resistance: Superior to non-cross-linked PE

4.3. Typical Applications

• Medium and High Voltage Power Distribution: Underground and overhead power lines

• Renewable Energy: Solar farm and wind turbine connections

• Submarine Cables: Undersea power transmission

• Oil and Gas Industry: Downhole pumps and offshore platform wiring

• Railway Systems: Trackside power distribution

• Nuclear Facilities: Where radiation resistance is required

• Data Centers: Power distribution in mission-critical facilities

4.4. Pros & Cons

Advantages

• Superior Thermal Performance: Withstands higher operating temperatures

• Excellent Electrical Properties: Higher voltage capability and lower losses

• Long Service Life: Typically 30+ years under proper conditions

• No Plasticizers: Does not harden or become brittle with age

• Chemical and Environmental Resistance: Performs well in harsh conditions

• Low Smoke Zero Halogen Options: Available for critical installations

Disadvantages

• Higher Cost: More expensive than PVC both in materials and processing

• More Complex Processing: Requires additional cross-linking step

• Less Flexible: Generally stiffer than PVC, requiring larger bending radii

• Installation Challenges: More difficult to terminate and joint

• Limited Flame Retardancy: Requires flame-retardant additives

• Recycling Difficulties: Thermoset nature complicates end-of-life recycling

5. Comparative Analysis

5.1. Electrical Performance

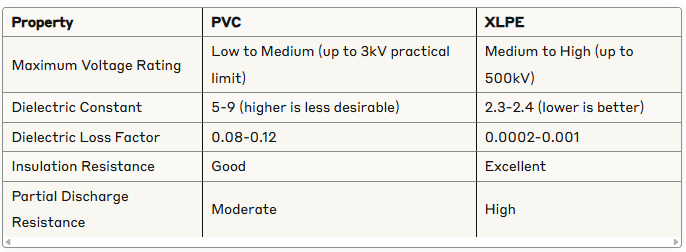

When comparing electrical properties, XLPE demonstrates clear advantages for high-performance applications:

XLPE's superior dielectric properties make it the preferred choice for high-voltage applications and situations where electrical efficiency is critical. PVC remains adequate and cost-effective for lower voltage requirements where its other properties (flexibility, flame retardance) may be more valuable.

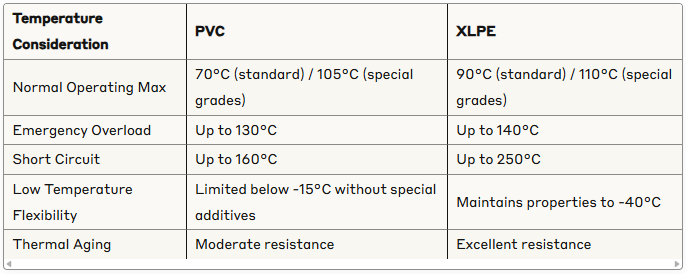

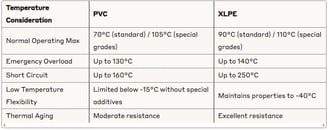

5.2. Thermal Endurance

Temperature handling capability represents one of the most significant differences between these materials:

XLPE's superior thermal endurance derives from its cross-linked structure, which prevents the material from melting even at temperatures well above its crystalline melting point. This characteristic is particularly valuable in applications with cyclic loading or potential overload conditions.

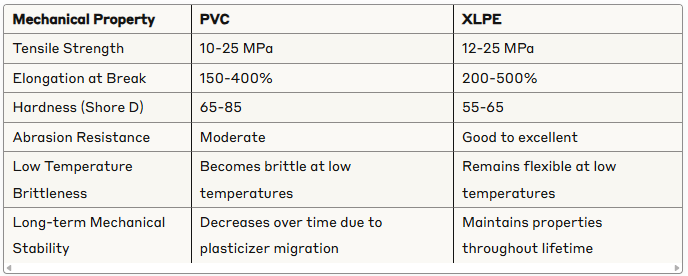

5.3. Mechanical Durability

Both materials offer distinct mechanical characteristics suited to different applications:

PVC's initial flexibility can be an advantage during installation, but XLPE offers better long-term mechanical stability without the concerns of plasticizer migration or environmental stress cracking.

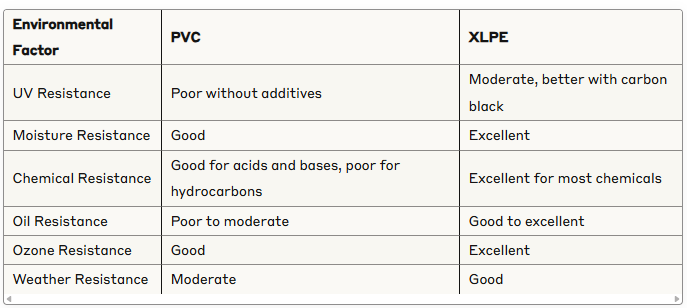

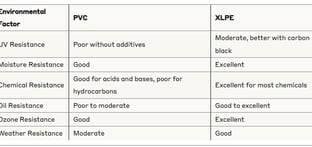

5.4. Environmental Resistance

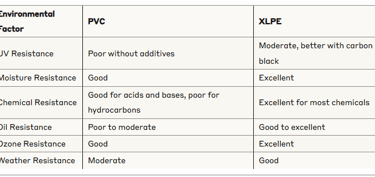

Environmental factors can significantly impact cable performance and longevity:

XLPE generally offers superior environmental resistance across most categories, making it especially suitable for outdoor and harsh environment installations. However, both materials can be formulated with additives to enhance specific resistance properties.

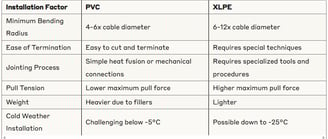

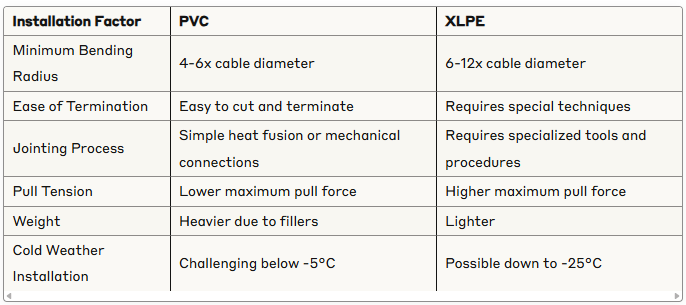

5.5. Installation Considerations

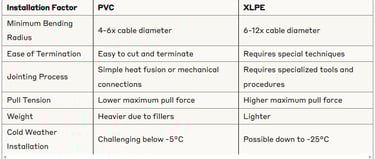

Practical installation factors often impact material selection:

PVC's superior flexibility and ease of termination make it advantageous for installations with space constraints or frequent bends. XLPE's stiffness requires more careful handling but provides advantages in pulling strength and cold-weather installation.

5.6. Cost & Lifecycle

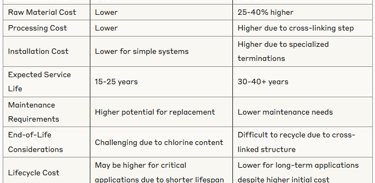

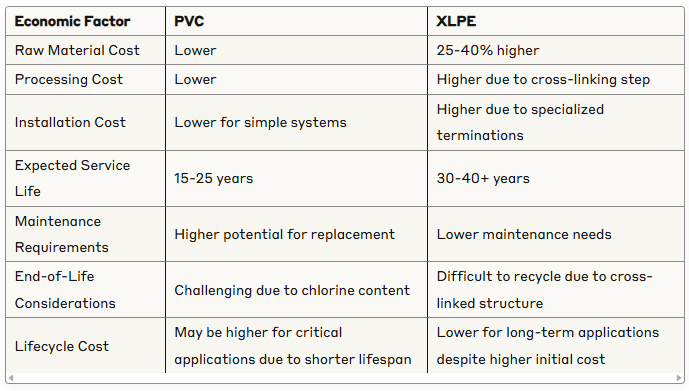

Economic considerations often drive the final decision:

While PVC offers lower upfront costs, XLPE often provides better lifetime value for critical installations or difficult-to-access locations where replacement costs would be significant.

6. Application Scenarios & Selection Guide

6.1. Low-Voltage vs. Medium-Voltage vs. High-Voltage

Low-Voltage Applications (≤1kV)

• PVC Recommended For: Residential wiring, appliance connections, control circuits, temporary installations, cost-sensitive projects

• XLPE Recommended For: Industrial environments with thermal stress, outdoor installations, critical infrastructure, harsh chemical environments

Medium-Voltage Applications (1kV-33kV)

• PVC Limited Applications: Indoor distribution up to 3kV in non-critical settings

• XLPE Recommended For: Power distribution networks, industrial plants, commercial buildings, renewable energy collection systems

High-Voltage Applications (>33kV)

• PVC Not Suitable

• XLPE Standard Choice: Transmission lines, grid infrastructure, large renewable projects, interconnectors

6.2. Indoor vs. Outdoor vs. Subterranean

Indoor Applications

• PVC Advantages: Cost-effective, flame-retardant, sufficient for controlled environments

• XLPE Applications: Data centers, industrial facilities with high ambient temperatures, critical infrastructure

Outdoor Applications

• PVC Limitations: Degrades with UV exposure, temperature fluctuations challenging

• XLPE Advantages: Weather resistance, thermal stability across seasons, UV resistance with proper additives

Subterranean Applications

• PVC Considerations: Limited current carrying capacity, potential plasticizer leaching

• XLPE Advantages: Moisture resistance, higher ampacity, chemical stability, long service life

6.3. Special Environments

Marine Applications

• PVC: Limited to above-deck non-critical applications

• XLPE: Preferred for underwater cables, ship-to-shore connections, offshore platforms due to moisture and salt resistance

Petrochemical Industry

• PVC: Generally unsuitable due to hydrocarbon exposure

• XLPE: Standard for hazardous areas, excellent chemical resistance, higher temperature rating

Renewable Energy

• PVC: Limited to balance-of-system wiring in protected areas

• XLPE: Solar interconnects, wind turbine connections, exposed array wiring, long-distance collection systems

6.4. Decision Flowchart

When selecting between PVC and XLPE, consider the following decision path:

1. Voltage Requirement

   • Above 3kV? → XLPE

   • Below 3kV? → Continue to next factor

2. Operating Temperature

   • Above 70°C continuous? → XLPE

   • Below 70°C continuous? → Continue to next factor

3. Installation Environment

   • Outdoor/Underground/Harsh? → XLPE preferred

   • Controlled indoor? → Continue to next factor

4. Flexibility Requirements

   • Frequent bending/tight spaces? → PVC advantage

   • Static installation? → Either suitable

5. Fire Performance Required

   • High flame retardance needed? → PVC advantage (or special XLPE formulation)

   • Low smoke/zero halogen needed? → Special XLPE or PVC formulations

6. Expected Service Life

   • 25+ years required? → XLPE preferred

   • Shorter term installation? → PVC may be more cost-effective

7. Budget Constraints

   • Tight initial budget? → PVC

   • Lifecycle cost focus? → XLPE often better long-term value

7. Future Trends in Cable Insulation

7.1. Emerging Polymers and Nanocomposites

The future of cable insulation is being shaped by innovative materials research:

• Polypropylene-Based Insulation: Offering excellent electrical properties with lower environmental impact than traditional materials

• Thermoplastic Elastomers (TPEs): Combining the processing ease of thermoplastics with rubber-like elasticity

• Nanocomposites: Adding nanoparticles (silica, zinc oxide, carbon nanotubes) to enhance specific properties:

  • Improved thermal conductivity

  • Enhanced partial discharge resistance

  • Reduced water tree growth

  • Increased mechanical strength

• Bio-Based Polymers: Developing insulation materials from renewable sources to reduce petrochemical dependence

These innovations aim to address limitations in current materials while maintaining or improving performance characteristics.

7.2. Sustainability & Recycling

Environmental concerns are driving significant changes in the cable industry:

• Halogen-Free Formulations: Moving away from halogenated compounds like PVC to reduce toxic emissions during fires

• Recyclable Cross-Linked Systems: Developing thermally reversible cross-links that allow thermoset recycling

• Eco-Design Approaches: Life-cycle assessment driving material selection and design

• End-of-Life Management: Improved techniques for separating and processing cable materials

• Reduced Heavy Metal Content: Eliminating lead, cadmium, and other harmful stabilizers

• Energy-Efficient Manufacturing: Lower temperature processes and reduced energy consumption

These efforts reflect the industry's response to increasing regulatory pressure and market demand for sustainable solutions.

7.3. Smart Cables with Embedded Sensors

Cable technology is evolving beyond passive power transmission to incorporate active monitoring capabilities:

• Distributed Temperature Sensing: Fiber optics embedded within cable construction to monitor temperature along entire length

• Partial Discharge Detection: Built-in sensors to identify insulation degradation before failure

• Mechanical Strain Monitoring: Technology to detect excessive pulling or crushing forces

• Water Ingress Detection: Systems that alert to moisture penetration

• Load Monitoring: Real-time current measurement capabilities

• Predictive Maintenance: AI-based systems using sensor data to forecast potential failures

These "smart cable" technologies promise to revolutionize grid management and maintenance strategies, potentially extending service life while reducing catastrophic failures.

8. Conclusion

8.1. Recap of Key Differences

PVC and XLPE represent different approaches to cable insulation, each with distinct advantages:

• PVC excels in: Cost-effectiveness, flexibility, flame retardancy, ease of processing and termination

• XLPE dominates in: Thermal performance, electrical properties, long-term stability, environmental resistance

The fundamental molecular difference—PVC as a thermoplastic versus XLPE as a thermoset—drives many of these performance distinctions and determines their appropriate applications.

8.2. Practical Recommendations

When selecting between these insulation materials:

• Choose PVC when: Initial cost is critical, installation involves tight bends, flame retardancy is essential, and operating conditions are moderate

• Choose XLPE when: Long service life is required, operating temperatures are elevated, installation environment is harsh, or voltage requirements exceed 3kV

• Consider Special Formulations: Both materials are available in enhanced versions (e.g., low-smoke PVC, flame-retardant XLPE) that may address specific application needs

• Look Beyond Initial Cost: Calculate total lifecycle expenses including potential replacement and downtime when making selections

• Consult Standards: Reference applicable national and international standards (IEC, ASTM, UL) for specific application requirements

8.3. Final Thoughts on Evolving Industry Needs

The electrical cable industry continues to evolve in response to changing technology demands and environmental considerations. While PVC and XLPE remain the dominant insulation materials today, ongoing research into nanocomposites, eco-friendly alternatives, and smart cable technologies will likely reshape the landscape in coming decades.

For engineers and end-users alike, staying informed about these developments will be crucial to making optimal decisions as applications become more demanding and sustainability requirements more stringent. The "battle of the sleeves" between PVC and XLPE illustrates a broader principle in engineering: material selection always involves balancing competing priorities—cost versus performance, flexibility versus durability, and traditional solutions versus emerging technologies.

By understanding the fundamental properties and appropriate applications of these insulation materials, decision-makers can ensure safe, efficient, and cost-effective electrical systems that meet both current needs and future challenges.
