SANS 1507-3 Steel Wired Armoured PVC-PVC 0.6/1kV Mining Cables Mynkabel

Introduction: The Backbone of South African Mining Operations

In the demanding world of South African mining, where operations extend deep underground and face some of the harshest industrial conditions on Earth, the reliability of electrical infrastructure can mean the difference between successful operations and costly downtime. At the heart of this electrical infrastructure lies a critical component that many take for granted: the humble yet sophisticated mining cable.

SANS 1507-3 Steel Wired Armoured PVC-PVC 0.6/1kV cables represent a pinnacle of engineering designed specifically for these challenging environments. These cables are not merely copper conductors wrapped in plastic; they are carefully engineered systems that must withstand crushing forces, temperature extremes, chemical exposure, and mechanical stress whilst maintaining reliable electrical performance for decades.

Understanding these cables becomes particularly important when we consider South Africa's position as a global mining powerhouse. From the gold mines of the Witwatersrand to the platinum operations of the Bushveld Complex, these cables form the electrical nervous system that keeps our mining operations running safely and efficiently.

Application Scenarios: Where Engineering Meets Reality

Mining Industry Environments

The primary application of SANS 1507-3 cables lies within South Africa's extensive mining sector, where they serve as the electrical lifeline for both underground and surface operations. In underground mining environments, these cables must navigate through cramped spaces, endure constant vibration from heavy machinery, and resist the corrosive effects of groundwater and chemical compounds naturally present in rock formations.

Surface mining operations present their own unique challenges. Here, cables face extreme temperature variations, from the scorching heat of the Karoo summer to the freezing conditions of highveld winters. The cables must maintain their electrical integrity whilst being subjected to the mechanical stresses of heavy earth-moving equipment and the chemical exposure from processing operations.

The direct burial capability of these cables makes them particularly valuable for fixed installations where power distribution networks need to be established quickly and reliably. The "free-draining soil" requirement is particularly relevant in South African conditions, where many mining operations are located in regions with well-draining soils that allow proper cable installation without water accumulation concerns.

Industrial Applications Beyond Mining

Whilst mining remains the primary application, these robust cables find extensive use in other industrial sectors across South Africa. Construction sites in major urban developments benefit from the mechanical protection these cables provide, especially in environments where heavy machinery operates continuously.

Tunnel construction projects, such as those for urban infrastructure development or transportation networks, rely heavily on these cables for temporary and permanent electrical installations. The armoured construction provides the necessary protection against the mechanical stresses encountered during tunnel boring and construction activities.

Quarrying operations, which are widespread across South Africa's varied geological landscape, present similar challenges to mining operations but often with greater exposure to weather elements. The temperature rating of -20°C to +70°C ensures reliable operation across South Africa's diverse climate zones, from the hot, arid Northern Cape to the cooler highland regions.

Electrical Parameters and Performance: The Technical Foundation

Voltage Rating and System Compatibility

The voltage rating of Uo/U 0.6/1kV (600/1000 Volts) positions these cables perfectly within South Africa's low-voltage power distribution framework. This rating means the cable can safely operate in systems where the voltage between any conductor and earth does not exceed 600V, whilst the voltage between any two conductors does not exceed 1000V.

This voltage range makes the cables ideal for feeding mining equipment, lighting systems, and control circuits that form the backbone of modern mining operations. The rating also aligns well with the voltage levels commonly used in South African industrial installations, ensuring compatibility with existing electrical infrastructure.

Current Carrying Capacity: Understanding Load Capabilities

The current carrying capacity, or ampacity, of these cables varies significantly based on conductor size and the number of cores, following well-established electrical engineering principles. For a 2-core cable configuration, the progression is quite remarkable: a 1.5mm² conductor can safely carry 22 amperes, whilst a 240mm² conductor can handle an impressive 516 amperes.

This wide range of current capacities allows electrical engineers to select the appropriate cable size based on the specific load requirements of their application. For instance, a lighting circuit in a mining operation might require only a 2.5mm² cable (31A capacity), whilst a large conveyor motor might necessitate a 120mm² cable (336A capacity).

The current ratings provided are based on specific installation conditions and ambient temperatures. In practice, South African mining operations must consider factors such as ambient temperature in deep mines, grouping effects when multiple cables are installed together, and the thermal characteristics of the surrounding soil or air.

Conductor Resistance and Efficiency Considerations

The relationship between conductor cross-sectional area and resistance follows fundamental electrical principles, with larger conductors offering lower resistance per kilometre. A 1.5mm² conductor exhibits 12.1 ohms per kilometre, whilst a 240mm² conductor shows merely 0.0754 ohms per kilometre.

This resistance characteristic directly impacts system efficiency and voltage drop calculations. In mining operations where cables may run for considerable distances underground, proper conductor sizing becomes crucial for maintaining adequate voltage levels at equipment terminals. The lower resistance of larger conductors not only reduces energy losses but also minimises heating effects that could impact cable longevity.

Temperature Performance and Environmental Resilience

The operating temperature range of -20°C to +70°C reflects careful consideration of South African environmental conditions. The lower limit ensures reliable operation during cold highveld winters, whilst the upper limit accommodates the heat generated by electrical losses combined with high ambient temperatures found in many mining regions.

This temperature range also considers the thermal effects of electrical loading. As current flows through the conductor, I²R losses generate heat that must be dissipated to maintain safe operating temperatures. The PVC insulation system is designed to handle these thermal stresses whilst maintaining its electrical properties over the cable's operational lifetime.

Mechanical Flexibility and Installation Considerations

The minimum bending radius specifications reveal important installation considerations. Smaller cables (1.5mm² to 16mm²) require a bending radius of six times the overall diameter, whilst larger cables (25mm² and above) need eight times the overall diameter.

These requirements protect the cable's internal structure during installation. Excessive bending can damage the steel wire armour, compromise the insulation system, or create stress points that could lead to premature failure. In mining applications, where cables often navigate through complex routes, understanding and respecting these bending limitations is crucial for long-term reliability.

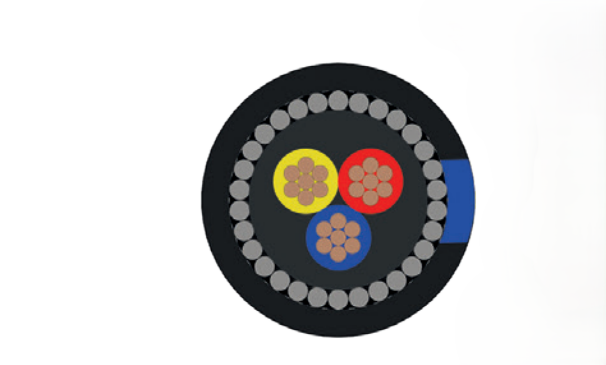

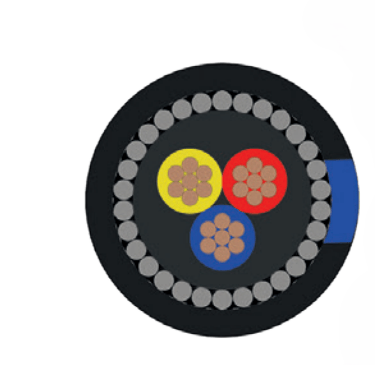

Construction Details: Engineering Layer by Layer

The Conductor: The Heart of Electrical Performance

At the core of every SANS 1507-3 cable lies a high-conductivity copper conductor. Copper's excellent electrical properties, combined with its resistance to corrosion and mechanical durability, make it the ideal choice for demanding mining applications. The conductor's design follows precise specifications to ensure consistent electrical performance and mechanical strength.

The conductor construction utilises stranded copper wire rather than solid copper, providing flexibility whilst maintaining excellent electrical characteristics. This stranded construction allows the cable to flex during installation and service without compromising the electrical connection, a critical feature in dynamic mining environments.

Primary Insulation: The Electrical Safety Barrier

The PVC (Polyvinyl Chloride) insulation system provides the primary electrical safety barrier, preventing electrical current from flowing where it shouldn't. PVC was chosen for its excellent dielectric properties, resistance to moisture and many chemicals, and its ability to maintain these properties over a wide temperature range.

The insulation thickness varies with conductor size, reflecting the higher voltage stresses that can occur with larger conductors. This graduated approach ensures optimal electrical performance whilst avoiding unnecessary bulk that could complicate installation.

Bedding Layer: Protecting the Inner Components

The PVC bedding layer serves as a protective cushion between the insulation system and the steel wire armour. This layer prevents the sharp edges of the armour wires from damaging the insulation during cable movement or thermal cycling.

The bedding also provides a smooth, uniform surface over which the armour can be applied, ensuring consistent mechanical protection around the cable's circumference. This attention to detail in construction contributes significantly to the cable's long-term reliability.

Steel Wire Armour: The Mechanical Protection Shield

The galvanised steel wire armour represents the cable's primary defence against mechanical damage. Each steel wire is galvanised to provide corrosion resistance, extending the cable's service life in challenging environments. The armour is applied in a helical pattern that distributes mechanical stresses evenly whilst maintaining cable flexibility.

This armour system can withstand crushing forces, impact damage, and rodent attack – all common hazards in mining environments. The steel construction also provides some degree of electromagnetic shielding, which can be beneficial in electrically noisy industrial environments.

Outer Sheath: The Final Protection Layer

The outer PVC sheath provides the final barrier against environmental hazards. Its black colour with blue stripe not only aids in cable identification but also provides UV resistance for outdoor applications. The sheath formulation is designed to resist oils, acids, alkalis, and other chemicals commonly encountered in mining operations.

The sheath thickness is carefully calculated to provide adequate protection whilst maintaining flexibility. Too thin, and the cable becomes vulnerable to damage; too thick, and installation becomes unnecessarily difficult.

Core Identification: Ensuring Safe Connections

The colour coding system follows international conventions whilst accommodating practical installation requirements. Two-core cables use red and yellow, three-core cables add blue, and four-core cables include black as the fourth colour. This standardised approach reduces installation errors and simplifies maintenance procedures.

The colour coding remains stable throughout the cable's service life, ensuring that electrical connections can be verified safely even years after installation. This reliability is particularly important in mining environments where incorrect connections could have serious safety implications.

Compliance and Safety Standards: Meeting International Benchmarks

SANS 1507-3: The South African Framework

The SANS 1507-3 standard represents South Africa's commitment to electrical safety and performance in challenging industrial applications. This standard incorporates international best practices whilst addressing the specific requirements of South African mining and industrial operations.

Compliance with SANS 1507-3 ensures that cables meet rigorous testing requirements for electrical performance, mechanical strength, and environmental resistance. This standardisation provides confidence to engineers and installers that the cables will perform as expected in their intended applications.

Flame Retardance: Critical Safety Feature

The IEC 60332-1-2 flame retardant compliance ensures that cables will not propagate fire under defined test conditions. In mining environments, where escape routes may be limited and fire suppression challenging, this characteristic can be literally life-saving.

The flame retardant properties are built into the cable materials themselves, not applied as a coating. This approach ensures that the fire resistance remains effective throughout the cable's service life, even if the outer sheath becomes damaged.

Environmental and Regulatory Compliance

Compliance with the RoHS Directive 2015/65/EU demonstrates the manufacturer's commitment to environmental responsibility by restricting hazardous substances. The REACH EC 1907/2006 compliance ensures that chemical substances used in cable manufacture are properly registered and evaluated for safety.

The Low Voltage Directive 2014/35/EU compliance provides additional assurance of electrical safety and performance. These international standards ensure that cables meet global best practices for safety and environmental protection.

Frequently Asked Questions: Addressing Common Concerns

Question: Can these cables withstand the heavy mechanical impacts commonly encountered in underground mining operations?

The steel wire armour construction specifically addresses this concern. The galvanised steel wires are designed to distribute mechanical loads across the cable's structure, preventing damage from impacts, crushing forces, and abrasion. The armour can withstand the weight of rockfall, the pressure from heavy equipment, and the constant vibration associated with mining operations. However, it's important to note that whilst the armour provides excellent protection, proper installation practices, including adequate support and protection from sharp edges, remain essential for maximising cable life.

Question: How do these cables perform when exposed to water and chemicals commonly found in mining environments?

The PVC sheath system provides robust protection against water ingress and chemical attack. PVC demonstrates excellent resistance to water, most acids, alkalis, and oils typically encountered in mining operations. The material maintains its protective properties even when subjected to continuous moisture exposure. However, for applications involving highly aggressive chemicals or continuous immersion in contaminated water, additional protection measures or specialised cable designs might be warranted. The "free-draining soil" installation requirement helps ensure that cables are not subjected to waterlogged conditions that could compromise long-term performance.

Question: What are the installation requirements for direct burial applications, and how do soil conditions affect performance?

Direct burial installation requires careful attention to soil conditions and installation practices. The soil must be free-draining to prevent water accumulation around the cable, which could lead to thermal performance issues or accelerated ageing. The installation depth should provide adequate protection from mechanical damage whilst allowing for proper heat dissipation. Rocky or abrasive soils may require additional protective measures, such as sand cushioning or protective ducting. Soil thermal resistivity affects the cable's current-carrying capacity, so in applications with high thermal resistivity soils, derating may be necessary.

Question: How do I select the correct cable size for specific mining equipment applications?

Cable selection involves several critical considerations. First, determine the full-load current of the equipment, including starting currents for motors. Next, calculate the cable length to assess voltage drop requirements – longer runs may require larger conductors to maintain adequate voltage at the equipment terminals. Consider the installation method, as cables in ducts or grouped installations may require derating. Environmental factors such as ambient temperature and soil thermal properties also influence the selection. Always consult current-carrying capacity charts and apply appropriate derating factors for your specific installation conditions.

Question: What factors influence the service life of SANS 1507-3 cables in mining applications, and how can longevity be maximised?

Service life typically ranges from 15 to 30 years, depending on several factors. Operating temperature significantly affects cable ageing – higher temperatures accelerate insulation degradation. Mechanical stress from vibration, movement, or impact can cause cumulative damage over time. Chemical exposure, particularly to aggressive compounds, can affect sheath and armour integrity. Proper installation is crucial – respecting bending radius limits, providing adequate support, and protecting from sharp edges all contribute to longevity. Regular inspection and maintenance, including thermal imaging to detect hot spots and visual inspection for physical damage, can identify potential issues before they cause failure.

Question: Are there any special considerations for high-altitude mining operations in South Africa?

High-altitude operations present unique challenges that affect cable performance. Reduced air density at altitude affects heat dissipation, potentially requiring derating of current-carrying capacity. UV radiation is more intense at altitude, making proper sheath formulation important for outdoor installations. Temperature extremes can be more severe, testing the cable's -20°C to +70°C rating. Lightning activity may be increased, making proper earthing and surge protection more critical. Despite these challenges, SANS 1507-3 cables are designed to handle these conditions when properly installed and protected.

Question: How do these cables compare to alternative armoured cable designs for mining applications?

Steel wire armoured cables offer several advantages over alternatives. Compared to tape armoured cables, wire armour provides superior flexibility and resistance to crushing forces. The galvanised steel construction offers excellent corrosion resistance compared to aluminium wire armour, particularly important in the chemical environments found in mining operations. The PVC sheath system provides good chemical resistance and mechanical toughness, though specialized applications might benefit from polyethylene or other materials. The 0.6/1kV rating makes these cables ideal for low-voltage applications, though higher voltage operations would require different cable designs.

Technical Specifications: Understanding the Numbers

The comprehensive technical specifications reveal the engineering precision behind these cables. The dimensional progression from 1.5mm² to 240mm² conductors demonstrates how cable construction scales to meet different power requirements. A 2-core 1.5mm² cable measures just 12.6mm in overall diameter and weighs 313kg per kilometre, whilst a 4-core 240mm² cable reaches 65.6mm diameter and weighs nearly 13 tonnes per kilometre.

These specifications guide practical considerations such as cable pulling requirements, support spacing, and conduit sizing. The weight progression is particularly important for underground installations where cable support becomes critical for maintaining system integrity.

The current carrying capacities reflect conservative ratings that ensure safe operation under defined conditions. The slight reduction in capacity for 3-core and 4-core configurations compared to 2-core cables reflects the additional heat generated by the extra conductors in the same cable structure.

Installation Best Practices: Ensuring Long-Term Success

Successful cable installation begins with proper planning and site preparation. The direct burial application requires careful excavation to the correct depth, typically 600mm to 800mm depending on local regulations and site conditions. The trench bottom should be prepared with a sand bed to provide uniform support and prevent damage from sharp stones.

Cable pulling requires attention to the maximum pulling tension to avoid damaging the conductor or armour. The steel wire armour provides excellent tensile strength, but excessive force can still cause damage. Proper pulling techniques, including the use of cable socks and appropriate lubricants, help ensure successful installation.

Jointing and termination require specialised techniques and materials designed for armoured cables. The steel wire armour must be properly terminated to provide mechanical continuity and electrical safety. Gland selection and installation are critical for maintaining the cable's environmental protection.

Conclusion: Engineering Excellence for South African Mining

SANS 1507-3 Steel Wired Armoured PVC-PVC 0.6/1kV cables represent a sophisticated engineering solution designed specifically for the demanding requirements of South African mining and industrial applications. These cables embody decades of development in materials science, electrical engineering, and manufacturing technology to create a product that can reliably serve in some of the world's most challenging environments.

The comprehensive design approach, from the high-conductivity copper conductor through the multiple protection layers to the robust outer sheath, demonstrates how modern cable engineering addresses the multifaceted challenges of industrial power distribution. The steel wire armour provides mechanical protection that allows these cables to survive in environments that would quickly destroy conventional cables, whilst the PVC insulation and sheathing systems ensure electrical safety and environmental protection.

The extensive range of sizes and configurations available ensures that engineers can select the optimal cable for their specific application, whether it's a small control circuit or a high-power motor feed. The standardised construction and performance characteristics provide confidence in system design and long-term reliability.

As South Africa's mining industry continues to evolve, incorporating new technologies and facing increasing demands for efficiency and safety, the reliable power distribution provided by cables like the SANS 1507-3 series becomes ever more critical. These cables form the foundation upon which modern mining operations are built, providing the electrical infrastructure that keeps our mines operating safely and efficiently.

The investment in quality cable infrastructure pays dividends through reduced maintenance costs, improved system reliability, and enhanced safety performance. By understanding the technical characteristics and proper application of these cables, engineers and technicians can ensure that South Africa's mining operations continue to set global standards for safety, efficiency, and reliability.

Whether installed in the depths of a gold mine or providing power to surface processing equipment, SANS 1507-3 cables represent the marriage of engineering excellence with practical reliability that South African industry demands. Their continued development and refinement ensure that our mining operations have the electrical infrastructure necessary to meet the challenges of the future whilst maintaining the highest standards of safety and performance.
