SANS Type 611/611-ECC 6.35/11 kV Mining Cables

Introduction: Why Mining Cables Are Different From Ordinary Power Cables

Imagine trying to power a massive dragline or section feeder with the same cable you'd use in your home. Within hours, the cable would fail catastrophically, potentially causing fires, equipment damage, or worse - putting miners' lives at risk. This fundamental difference between domestic and industrial applications becomes even more critical in mining environments, where cables must withstand conditions that would destroy conventional power cables within days.

Mining operations in South Africa face unique challenges that demand specialised electrical infrastructure. Underground mines present hazardous gas environments where a single spark could trigger an explosion. Surface operations expose cables to intense UV radiation, temperature extremes ranging from the frigid Highveld winters to scorching summer heat, and constant mechanical abuse from heavy machinery movements. These conditions require cables engineered specifically for mining applications, and this is where SANS Type 611 and 611-ECC cables prove their worth.

SANS Type 611/611-ECC cables represent the gold standard for medium voltage power distribution in South African mining operations. These cables are specifically designed to meet the stringent requirements of SANS (South African National Standards) while providing the reliability and safety margins essential for mining applications. The designation "6.35/11 kV" indicates their voltage rating, making them suitable for medium voltage distribution systems that power everything from conveyor systems to processing equipment.

Understanding these cables is crucial for mining engineers, electrical technicians, and safety managers who need to make informed decisions about power infrastructure. The difference between standard industrial cables and mining-specific cables like SANS Type 611 can mean the difference between smooth operations and costly downtime, or more importantly, between a safe workplace and a dangerous one.

Application Scenarios: Where SANS Type 611/611-ECC Cables Excel

Surface Mining Operations: The Workhorses of Open-Pit Mines

Surface mining operations present a unique set of challenges that test every component of the electrical system. SANS Type 611 cables are extensively used in medium-sized draglines, which are among the most demanding applications in mining. These massive machines can weigh over 8,000 tonnes and require enormous amounts of electrical power to operate their bucket wheels, conveyor systems, and movement mechanisms.

The constant movement of draglines means their power cables must be exceptionally flexible while maintaining electrical integrity. Traditional cables would crack and fail under the repeated bending and stretching required as these machines traverse the mining site. SANS Type 611 cables are specifically constructed with Class 5 flexible stranded tinned copper conductors that can withstand thousands of flex cycles without degradation.

Similarly, mining shovels and drills used in surface operations benefit from the robust construction of these cables. The electrical power required to break through hard rock formations creates significant electrical loads, while the mobile nature of these machines demands cables that can handle continuous movement without failure. The reinforcement braid and multiple sheathing layers in SANS Type 611 cables provide the mechanical protection necessary for these demanding applications.

Section feeders, which distribute power throughout mining operations, represent another critical application. These systems often span considerable distances across mining sites and must maintain reliable power delivery despite exposure to weather, dust, and mechanical stress from nearby operations. The UV and sunlight resistance of SANS Type 611 cables ensures they maintain their properties even after years of exposure to the harsh South African sun.

Underground Mining: Safety in Hazardous Environments

Underground mining operations present perhaps the most challenging environment for electrical cables. The combination of moisture, corrosive gases, mechanical stress, and the ever-present risk of explosive atmospheres creates conditions that demand the highest levels of cable performance and safety.

In underground coal mines, methane gas accumulation creates explosive atmospheres where any electrical fault could trigger a catastrophic explosion. SANS Type 611 cables are designed with multiple layers of screening and insulation to prevent electrical faults and minimise the risk of sparking. The earthing continuity provided by the screening system ensures that any fault current is safely conducted away, preventing dangerous voltage buildups that could lead to arcing.

The ECC (Earth Continuity Conductor) variant of SANS Type 611 cables provides enhanced safety for underground applications. By replacing one of the pilot cores with a dedicated earthing conductor, the ECC variant ensures redundant earth paths and faster fault detection. This redundancy is critical in underground environments where rapid fault clearing can prevent explosions and save lives.

Portable mining equipment used underground, such as continuous miners and shuttle cars, requires cables that can withstand the mechanical abuse of underground operations while maintaining electrical safety. The multiple sheathing layers and reinforcement braid in SANS Type 611 cables provide protection against the sharp rocks, abrasive surfaces, and crushing forces common in underground mining.

Environmental Resilience: Handling South African Conditions

South African mining operations must contend with some of the world's most challenging environmental conditions. The high-altitude locations of many mines subject cables to intense UV radiation and temperature extremes. Summer temperatures can exceed 40°C, while winter nights can drop below -10°C, creating thermal cycling that stresses cable materials.

The oil resistance of SANS Type 611 cables proves invaluable in mining applications where hydraulic systems are commonplace. Hydraulic fluid leaks are inevitable in heavy mining equipment, and cables that cannot resist oil degradation will fail prematurely, leading to costly replacements and potential safety hazards.

Dust and particulate matter in mining environments can be highly abrasive, gradually wearing away cable sheaths that lack adequate protection. The polychloroprene rubber outer sheath of SANS Type 611 cables provides excellent abrasion resistance, ensuring long service life even in dusty conditions.

Electrical and Mechanical Characteristics: The Engineering Behind Reliability

Voltage and Current Specifications: Meeting Power Demands

The voltage rating of 6.35/11 kV places SANS Type 611 cables firmly in the medium voltage category, making them suitable for distribution systems that require more power than low voltage systems can provide, but don't need the complexity and cost of high voltage infrastructure. This voltage level is particularly well-suited to mining applications where substantial power must be transmitted over moderate distances.

The dual voltage rating (6.35/11 kV) provides flexibility in system design. The lower voltage rating allows for use in systems with lower insulation requirements, while the higher rating accommodates systems that need to transmit more power or cover greater distances with acceptable voltage drop. This flexibility is valuable in mining operations where electrical systems often evolve as operations expand or change.

Current carrying capacity varies significantly with conductor size, ranging from 105 amperes for 25 mm² conductors to 400 amperes for 240 mm² conductors at 30°C ambient temperature. These ratings are conservative and account for the harsh operating conditions typical in mining applications. The current ratings assume installation conditions that may include elevated ambient temperatures, multiple cables in proximity, and less than ideal ventilation.

Understanding these current ratings is crucial for system design. Overloading cables can lead to excessive heating, which accelerates insulation degradation and can ultimately result in cable failure. The consequences of cable failure in mining operations extend far beyond simple replacement costs, potentially including equipment damage, production delays, and safety hazards.

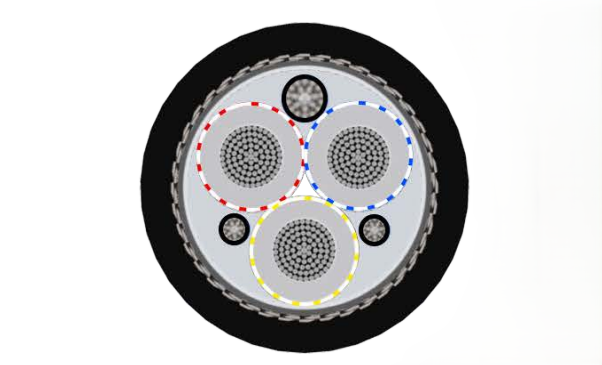

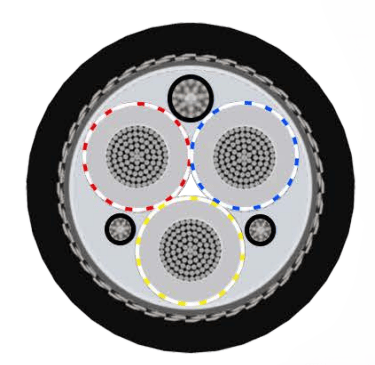

Conductor Technology: The Heart of Power Transmission

The Class 5 flexible stranded tinned copper conductors represent sophisticated engineering designed to balance electrical performance with mechanical flexibility. Class 5 stranding means the conductor consists of many small wires twisted together, providing maximum flexibility while maintaining low electrical resistance. The tinning process applies a thin layer of tin to each copper wire, providing protection against corrosion and improving the long-term reliability of connections.

Conductor sizes range from 25 mm² to 240 mm², providing options for applications ranging from control circuits to main power feeds. The selection of conductor size depends on several factors including the current load, the length of the cable run, and the acceptable voltage drop. Larger conductors carry more current and have lower resistance, but they are also heavier, more expensive, and less flexible.

The maximum wire diameter specifications ensure that the stranding remains fine enough to provide the necessary flexibility. For example, the 25 mm² conductor uses wires no larger than 0.41 mm in diameter, while the largest conductors may use wires up to 0.51 mm. This careful control of wire size ensures that the cable can withstand the repeated flexing required in mobile applications.

Insulation System: Protection in Hostile Environments

The insulation system of SANS Type 611 cables employs EPR (Ethylene Propylene Rubber), a thermosetting compound that provides excellent electrical properties across a wide temperature range. Unlike thermoplastic insulation materials that can soften and flow under heat, thermosetting materials maintain their shape and properties even at elevated temperatures.

The triple extrusion process used to apply the insulation ensures intimate contact between the conductor and insulation, eliminating voids that could lead to electrical breakdown. The semi-conducting core screen provides a smooth interface between the conductor and insulation, eliminating stress concentrations that could cause premature failure.

Individual screening of each power core with tinned copper and textile braid provides several important functions. The screening contains the electric field within the cable, reducing electromagnetic interference with nearby equipment. It also provides a path for capacitive charging current and helps detect insulation faults before they become dangerous.

Temperature Performance: Operating in Extremes

The temperature rating of -25°C to +90°C covers the full range of conditions encountered in South African mining operations. The lower limit ensures that cables remain flexible even during cold Highveld winters, when temperatures can drop well below freezing. Cables that become brittle in cold weather are prone to cracking when moved or subjected to mechanical stress.

The upper temperature limit of +90°C provides substantial margin above typical ambient temperatures, accounting for the additional heating caused by electrical current and solar radiation. This margin is important because insulation life decreases exponentially with temperature. Operating at the maximum rated temperature would significantly reduce cable life, while operating with adequate temperature margin ensures long service life.

The relationship between temperature and cable performance extends beyond simple material properties. Higher temperatures increase conductor resistance, reducing current carrying capacity and increasing power losses. They also accelerate chemical reactions that degrade insulation materials, leading to premature failure if not properly managed.

Mechanical Properties: Built for Abuse

The minimum bending radius specification of nine times the overall cable diameter reflects the robust construction of SANS Type 611 cables while acknowledging the physical limitations of any flexible cable. Attempting to bend the cable beyond this radius can damage the internal structure, leading to conductor breakage or insulation failure.

For a typical 50 mm overall diameter cable, the minimum bending radius would be 450 mm. This specification is particularly important for mobile equipment installations where cables must navigate tight spaces and sharp turns. Proper cable routing and support are essential to ensure that bending radius limits are not exceeded during installation or operation.

The maximum tension specifications provide guidance for cable pulling operations during installation. Exceeding these limits can stretch the cable, damaging internal components and reducing service life. The values range from 1.1 kN for the smallest cables to 10.8 kN for the largest, reflecting the increasing mechanical strength of larger cables.

Earth Continuity Conductor (ECC) Technology: Enhanced Safety

The ECC variant of SANS Type 611 cables provides enhanced earthing capability by replacing one of the pilot cores with a dedicated earthing conductor. This modification provides several safety advantages in mining applications where reliable earthing is critical for both equipment protection and personnel safety.

The dedicated ECC provides a low-resistance path for fault currents, ensuring rapid operation of protective devices. This rapid fault clearing is essential in hazardous environments where prolonged faults can lead to explosions or fires. The ECC also provides redundancy, ensuring that earthing remains effective even if the primary earthing system is compromised.

In underground mining applications, the ECC helps ensure equipotential bonding of all equipment, preventing dangerous voltage differences that could create shock hazards for personnel. The conductor sizes for ECC variants range from 16 mm² to 120 mm², providing adequate capacity for fault current while maintaining cable flexibility.

Frequently Asked Questions: Solving Real-World Mining Cable Challenges

Why Choose SANS Type 611/611-ECC Over Standard Industrial Cables?

The temptation to use standard industrial cables in mining applications often stems from their lower initial cost, but this approach invariably proves false economy. Standard industrial cables are designed for benign environments with stable temperatures, minimal mechanical stress, and absence of corrosive substances. Mining environments violate every one of these assumptions.

Consider the mechanical stress alone: mining equipment subjects cables to constant flexing, tension, compression, and abrasion. Standard cables will develop stress cracks within months, leading to moisture ingress and eventual failure. The cost of unplanned downtime in mining operations typically exceeds R50,000 per hour, making cable reliability a critical economic factor.

The chemical resistance of SANS Type 611 cables protects against the oils, acids, and other chemicals common in mining operations. Standard cables may swell, crack, or dissolve when exposed to these substances, creating safety hazards and requiring premature replacement. The initial cost savings disappear rapidly when factoring in replacement costs, downtime, and potential safety incidents.

Environmental factors further differentiate mining cables from standard industrial types. The UV resistance of SANS Type 611 cables prevents degradation from South Africa's intense sunlight, while standard cables may become brittle and crack within a year of outdoor exposure. Similarly, the temperature rating ensures reliable operation across the full range of South African mining conditions.

Temperature Extremes: What Happens When Limits Are Exceeded?

Operating SANS Type 611 cables outside their rated temperature range of -25°C to +90°C can have serious consequences that extend far beyond simple performance degradation. Understanding these failure modes helps explain why temperature ratings exist and must be respected.

Below the minimum temperature of -25°C, the cable materials become increasingly rigid and brittle. The insulation and sheathing materials lose their flexibility, making them prone to cracking when the cable is moved or subjected to mechanical stress. These cracks create entry points for moisture, leading to insulation breakdown and potential equipment damage or personnel hazards.

The conductor itself also becomes less flexible at low temperatures, increasing the risk of strand breakage during handling. Broken conductor strands reduce the effective cross-sectional area, increasing resistance and potentially causing overheating during normal operation. This creates a progressive failure mode where initial damage leads to further deterioration.

At temperatures above +90°C, different failure mechanisms come into play. The insulation materials begin to soften and may flow under mechanical stress, creating thin spots that are prone to electrical breakdown. More significantly, elevated temperatures accelerate chemical degradation processes that permanently reduce insulation strength.

The relationship between temperature and insulation life follows an exponential relationship, with every 10°C increase roughly halving the expected service life. Operating at 100°C instead of the rated 90°C could reduce cable life from 20 years to 10 years, while operation at 110°C might reduce life to just 5 years.

Pilot Cores and ECC: Understanding Enhanced Safety Systems

The pilot cores and ECC (Earth Continuity Conductor) systems in SANS Type 611 cables provide sophisticated safety and monitoring capabilities that are often misunderstood but are crucial for safe mining operations. These systems work together to provide early warning of developing problems and ensure safe shutdown in fault conditions.

Pilot cores are small conductors that run parallel to the main power conductors and serve multiple functions. They can be used for control circuits that operate equipment contactors and protective devices. They also provide a means for monitoring the integrity of the cable screening system, detecting developing faults before they become dangerous.

In many installations, pilot cores are connected to earth fault monitoring systems that continuously check the insulation resistance of the main conductors. If insulation begins to deteriorate, these systems can detect the problem and shut down equipment before a dangerous fault develops. This predictive capability is invaluable in mining operations where unplanned shutdowns can be extremely costly.

The ECC variant replaces one pilot core with a larger earthing conductor, providing enhanced fault current capacity and redundant earthing paths. This redundancy is particularly important in underground mining where a single earthing failure could create dangerous conditions. The ECC also improves the speed of fault detection and clearing, reducing the risk of arc flash and explosion in hazardous environments.

The sizing of ECC conductors is carefully calculated to handle the maximum fault currents expected in the system while maintaining cable flexibility. The conductor sizes range from 16 mm² for smaller cables to 120 mm² for larger ones, providing fault current capacity ranging from several hundred amperes to several thousand amperes depending on the application.

Cable Sizing: Balancing Performance, Cost, and Safety

Selecting the appropriate cable size for mining applications requires balancing multiple factors including current carrying capacity, voltage drop, short circuit rating, mechanical requirements, and cost. This multi-faceted decision process often confuses engineers who are accustomed to simpler residential or commercial applications.

Current carrying capacity forms the foundation of cable sizing, but the calculations are more complex in mining applications due to varying ambient temperatures, installation methods, and grouping effects. The published ratings assume specific installation conditions, and derating factors must be applied when actual conditions differ from these assumptions.

Voltage drop calculations become critical in mining applications where cable runs may extend for hundreds of metres. Excessive voltage drop can cause motors to draw higher currents, leading to overheating and reduced efficiency. The voltage drop calculation must account for both the resistive and reactive components of cable impedance, with reactive effects becoming more significant at higher voltages.

Short circuit rating ensures that cables can withstand fault currents without damage until protective devices operate. Mining systems often have high fault current levels due to large transformers and generators, requiring cables with adequate short circuit withstand capability. The fault current calculations must consider both the magnitude and duration of fault currents.

Mechanical requirements often drive cable selection in mobile applications where flexibility, bend radius, and tensile strength are critical. A cable that meets electrical requirements but cannot survive the mechanical environment will fail prematurely, negating any initial cost savings.

Chemical and Environmental Resistance: Surviving Harsh Conditions

Mining environments expose cables to a cocktail of chemicals that would quickly destroy ordinary cables. Understanding how SANS Type 611 cables resist these challenges helps explain their superior performance and justifies their specification for critical applications.

Oil resistance is perhaps the most commonly encountered chemical challenge in mining applications. Hydraulic systems are ubiquitous in mining equipment, and hydraulic fluid leaks are inevitable. Standard cable sheaths may swell, crack, or dissolve when exposed to hydraulic oils, creating safety hazards and requiring cable replacement.

The polychloroprene rubber (CR) sheath used in SANS Type 611 cables provides excellent resistance to a wide range of oils and chemicals. This synthetic rubber maintains its properties even after prolonged exposure to hydraulic fluids, gear oils, and fuel oils commonly found in mining operations. The resistance extends beyond simple contact to include resistance to vapours that might otherwise penetrate and degrade standard cable materials.

Acid resistance becomes important in certain mining operations, particularly those involving ore processing or coal mining where acid gases may be present. The CR sheath provides good resistance to weak acids, while the EPR insulation is highly resistant to most chemicals encountered in mining operations.

UV resistance prevents degradation from South Africa's intense sunlight, which can break down polymer chains in cable sheaths and cause them to become brittle and crack. The UV resistance of SANS Type 611 cables ensures they maintain their flexibility and mechanical properties even after years of outdoor exposure.

Damage Response: When Things Go Wrong Underground

Despite their robust construction, SANS Type 611 cables can be damaged by the extreme conditions encountered in mining operations. Understanding how to respond to cable damage is crucial for maintaining safe operations and preventing secondary incidents that could be far worse than the initial damage.

Immediate response to suspected cable damage should always prioritise safety over production concerns. Any cable that shows visible damage, has triggered protective devices, or is suspected of being compromised should be immediately de-energised and isolated. The temptation to continue operating damaged cables to maintain production has led to numerous serious incidents in mining operations worldwide.

Visual inspection can reveal obvious damage such as cuts, crushing, or burning, but many forms of cable damage are not immediately visible. Insulation damage may not be apparent from external inspection, while conductor damage may not become evident until the cable is subjected to full load. Professional testing using insulation resistance measurements, high voltage testing, and conductor continuity checks is essential for proper damage assessment.

Repair versus replacement decisions should consider both technical and safety factors. While it may be technically possible to repair certain types of cable damage, repairs in mining environments often prove less reliable than the original cable. The harsh operating conditions that caused the initial damage will continue to stress any repair, potentially leading to premature failure.

Emergency repair procedures should be established before they are needed, with appropriate materials and equipment pre-positioned for rapid response. However, these emergency repairs should be considered temporary solutions, with permanent replacement planned as soon as practical. The goal is to restore safe operation quickly while minimising exposure to the risks associated with compromised cables.

Environmental Compliance: Meeting Modern Standards

Modern mining operations must comply with increasingly stringent environmental regulations, and cable selection plays a role in meeting these requirements. SANS Type 611 cables are designed to meet RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) directives, ensuring they comply with international environmental standards.

The RoHS compliance means the cables do not contain prohibited substances such as lead, mercury, cadmium, or certain flame retardants that can be harmful to human health and the environment. This compliance is particularly important for mining operations that export products to European markets, where RoHS compliance is mandatory.

REACH compliance ensures that all chemical substances used in cable manufacture have been properly registered and evaluated for their impact on human health and the environment. This comprehensive approach to chemical safety helps protect both manufacturing workers and end users from potentially harmful exposures.

The sustainability commitment extends beyond regulatory compliance to include carbon footprint reduction and end-of-life recycling. The copper conductors in SANS Type 611 cables retain their value and can be recycled indefinitely, reducing the environmental impact of cable replacement. Proper recycling programs can recover valuable materials while preventing harmful substances from entering landfills.

Life cycle assessment of cables includes not only manufacturing impacts but also the energy losses during operation and the environmental costs of premature failure. SANS Type 611 cables' superior reliability and efficiency help minimise the total environmental impact over their service life, making them an environmentally responsible choice for mining operations.

Testing, Certification, and Standards: Ensuring Quality and Compliance

South African National Standards: The Foundation of Safety

The compliance of SANS Type 611/611-ECC cables with SANS 1520-2, SANS 1411-1, and SANS 1411-3 standards represents more than mere regulatory compliance; it demonstrates a commitment to safety and performance that has been developed specifically for South African conditions. These standards were developed through extensive consultation with industry experts, mining companies, and safety authorities to address the unique challenges of South African mining operations.

SANS 1520-2 specifically addresses cables for use in explosive atmospheres, a critical consideration for many mining applications. This standard defines the construction requirements, testing procedures, and performance criteria necessary to ensure cables can operate safely in potentially explosive environments. The standard recognises that different mining operations present different levels of risk, with appropriate cable specifications for each application.

SANS 1411-1 covers the general requirements for mining cables, establishing baseline performance criteria for mechanical strength, electrical properties, and environmental resistance. This standard recognises that mining applications subject cables to stresses far beyond those encountered in normal industrial applications, requiring enhanced specifications across all performance parameters.

SANS 1411-3 addresses specific requirements for flexible mining cables, acknowledging that many mining applications require cables that can withstand repeated flexing without degradation. The standard defines testing procedures that simulate the actual conditions cables will encounter in service, ensuring that laboratory test results translate to real-world performance.

The Cable Lab: World-Class Testing Capabilities

The accreditation of The Cable Lab to ISO/IEC 17025 and IECEE CBTL standards represents the highest level of technical competence in cable testing. ISO/IEC 17025 is the international standard for testing and calibration laboratories, ensuring that test results are accurate, reliable, and internationally recognised. IECEE CBTL accreditation allows The Cable Lab to issue test certificates that are accepted worldwide, facilitating international trade and ensuring global recognition of cable quality.

The testing regime employed by The Cable Lab goes far beyond simple compliance testing to include comprehensive performance verification under conditions that simulate actual mining applications. Environmental testing subjects cables to temperature cycling, UV exposure, chemical immersion, and mechanical stress that replicates years of service in compressed time periods.

Electrical testing includes not only standard voltage and current tests but also sophisticated measurements of insulation resistance, capacitance, and impedance under various conditions. These measurements help ensure that cables will perform reliably throughout their expected service life, even as operating conditions change over time.

Mechanical testing evaluates flex life, tensile strength, crush resistance, and abrasion resistance under conditions that often exceed those encountered in actual service. This testing provides confidence that cables will survive the harsh mechanical environment of mining operations without compromising electrical or safety performance.

Continuous Quality Assurance: Beyond Initial Testing

The commitment to continuous testing and quality assurance reflects an understanding that cable performance in mining applications depends not only on initial quality but on consistency over time. Manufacturing processes can drift, raw material properties can vary, and environmental conditions can change, all potentially affecting cable performance.

Statistical process control techniques are employed to monitor key performance parameters and detect any trends that might indicate developing problems. This proactive approach allows corrective action to be taken before non-conforming products reach customers, ensuring that every cable meets the high standards required for mining applications.

Batch testing protocols ensure that every production run meets specifications, with testing frequency increased for critical parameters or when operating conditions change. This comprehensive approach to quality assurance provides confidence that cables purchased today will perform as well as those purchased years ago, despite changes in manufacturing processes or raw materials.

Field performance monitoring involves tracking the performance of cables in actual mining applications, identifying any trends or failure modes that might not be apparent from laboratory testing alone. This feedback loop allows continuous improvement of both cable design and manufacturing processes, ensuring that SANS Type 611 cables continue to meet the evolving needs of modern mining operations.

Sustainability and Environmental Responsibility: Mining for the Future

Carbon Footprint Reduction: More Than Compliance

The commitment to achieving net-zero carbon emissions represents a fundamental shift in how mining cable manufacturers approach their environmental responsibilities. This commitment extends beyond simple regulatory compliance to encompass the entire life cycle of cable products, from raw material extraction through manufacturing, use, and eventual recycling or disposal.

The Science Based Targets initiative provides a framework for setting emission reduction targets that are consistent with limiting global temperature rise to 1.5°C above pre-industrial levels. This alignment with climate science ensures that emission reduction efforts are meaningful and contribute to global climate goals rather than simply representing incremental improvements.

Near-term emission reduction targets focus on immediate opportunities to reduce the carbon footprint of cable manufacturing. These might include transitioning to renewable energy sources for manufacturing facilities, improving energy efficiency in production processes, and optimising logistics to reduce transportation emissions.

The net-zero target recognises that some emissions may be unavoidable in the near term but commits to achieving overall net-zero emissions through a combination of direct emission reductions and carbon offset projects. This comprehensive approach ensures that the cable industry contributes to global climate goals while maintaining the quality and performance required for mining applications.

Circular Economy Principles: Minimising Waste

The implementation of comprehensive recycling services reflects a commitment to circular economy principles that minimise waste and maximise resource utilisation. Copper, the primary conductor material in SANS Type 611 cables, is infinitely recyclable without loss of performance, making cable recycling both environmentally and economically attractive.

Cable recycling programs typically recover not only copper conductors but also other valuable materials such as steel reinforcement wires and certain plastic compounds. The recovered copper retains full electrical and mechanical properties, making it suitable for use in new cable manufacture without any performance compromise.

The recycling process itself has been optimised to minimise environmental impact, with energy-efficient separation techniques and responsible handling of any materials that cannot be recycled. This comprehensive approach ensures that end-of-life cables contribute minimal waste to landfills while maximising resource recovery.

Extended producer responsibility programs take the concept further by making cable manufacturers responsible for the entire life cycle of their products, including end-of-life management. This approach creates economic incentives for designing products that are easier to recycle and encourages the development of more efficient recycling processes.

United Nations Global Compact: Broader Social Responsibility

Signatory status to the United Nations Global Compact represents a commitment to broader social and environmental responsibilities that extend well beyond the immediate scope of cable manufacturing. The Global Compact's ten principles cover human rights, labour standards, environmental protection, and anti-corruption, providing a comprehensive framework for corporate responsibility.

The human rights principles ensure that cable manufacturing operations respect basic human dignity and do not contribute to human rights violations anywhere in the supply chain. This commitment is particularly important in mining-related industries where raw material extraction can sometimes be associated with poor labour practices or community displacement.

Labour standards principles ensure fair treatment of workers throughout the supply chain, including safe working conditions, fair wages, and the right to organise. These standards are particularly relevant in the mining industry where worker safety is paramount and labour relations can significantly impact operational success.

Environmental principles go beyond carbon emissions to include broader environmental protection measures such as water conservation, waste minimisation, and biodiversity protection. These comprehensive environmental commitments ensure that cable manufacturing contributes to sustainable development rather than environmental degradation.

Conclusion: Powering South African Mining Safely and Sustainably

The selection of appropriate cables for mining applications represents far more than a simple procurement decision; it embodies a commitment to safety, reliability, and operational excellence that extends throughout the entire mining operation. SANS Type 611/611-ECC cables have evolved to meet the unique challenges of South African mining through decades of development, testing, and real-world application.

The harsh conditions encountered in South African mines demand cables that can perform reliably under stresses that would quickly destroy ordinary industrial cables. From the UV-intense surface operations of the Karoo to the explosive atmospheres of underground coal mines, SANS Type 611 cables provide the electrical integrity and mechanical durability necessary for safe, reliable operation.

The sophisticated construction of these cables, with their Class 5 flexible conductors, EPR insulation systems, and multiple protective sheaths, represents the culmination of materials science and electrical engineering knowledge specifically applied to mining challenges. The ECC variants provide additional safety margins that can mean the difference between a manageable fault and a catastrophic incident.

Understanding the electrical characteristics, mechanical properties, and environmental resistances of SANS Type 611 cables enables mining professionals to make informed decisions that balance performance, safety, and cost considerations. The current ratings, voltage capabilities, and temperature ranges must be properly matched to application requirements to ensure reliable service throughout the expected cable life.

The comprehensive testing and certification regime employed in cable manufacture provides assurance that performance claims are backed by rigorous verification under conditions that simulate actual mining applications. The continuous quality assurance programs ensure that this performance is maintained consistently over time, regardless of changes in manufacturing processes or raw materials.

Perhaps most importantly, the commitment to sustainability and environmental responsibility ensures that current mining operations do not compromise the ability of future generations to meet their own needs. The transition to more sustainable mining practices requires electrical infrastructure that supports both current operational requirements and future environmental goals.

For mining operations throughout South Africa, SANS Type 611/611-ECC cables represent an investment in safety, reliability, and sustainability that pays dividends through reduced downtime, improved safety performance, and environmental compliance. The decision to specify these cables demonstrates a commitment to excellence that extends from the engineering office to the coal face, ensuring that South African mining continues to set global standards for safety and performance.

The mining industry's continued evolution toward more automated, efficient, and environmentally responsible operations will require electrical infrastructure that can adapt to changing requirements while maintaining the highest standards of safety and reliability. SANS Type 611/611-ECC cables provide the foundation for this evolution, ensuring that South African mining operations remain competitive, safe, and sustainable for decades to come.
