SANS Type 622 / 622-ECC 12.7/22 kV Mining Cables Mynkabel

Introduction: The Backbone of Modern Mining Operations

In the demanding world of mining, where equipment operates under extreme conditions and safety is paramount, the choice of electrical infrastructure can make or break an operation. Medium voltage mining cables serve as the lifeline connecting power sources to the massive machinery that drives South Africa's mining industry forward. Among these critical components, the SANS Type 622 and 622-ECC 12.7/22 kV mining cables stand out as exemplary solutions designed specifically for the harsh realities of mining environments.

These cables represent more than just electrical conduits; they embody decades of engineering expertise focused on addressing the unique challenges faced by mining operations across South Africa. From the copper mines of the Northern Cape to the gold fields of the Witwatersrand, these cables must withstand not only electrical demands but also the punishing physical conditions that characterise mining environments. The importance of selecting reliable, durable cables cannot be overstated, as cable failures can result in costly downtime, safety hazards, and significant operational disruptions.

Understanding the technical specifications, applications, and maintenance requirements of these cables is essential for mining engineers, electrical technicians, and operations managers who are responsible for maintaining the electrical integrity of mining operations. This comprehensive guide will explore every aspect of SANS Type 622 / 622-ECC cables, providing the knowledge necessary to make informed decisions about cable selection, installation, and maintenance.

Application Scenarios: Where SANS Type 622 Cables Excel

The versatility of SANS Type 622 / 622-ECC cables makes them suitable for a wide range of mining and industrial applications. Understanding these applications helps us appreciate why these cables are engineered with such robust specifications and how they contribute to operational efficiency and safety.

Mining Industry Applications

In the heart of South Africa's mining operations, these cables serve multiple critical functions. Open-cast mining operations, which are prevalent in coal and iron ore extraction, present unique challenges that these cables are specifically designed to address. The cables must withstand constant exposure to harsh weather conditions, including the intense ultraviolet radiation of the South African sun, temperature fluctuations that can range from freezing winter nights to scorching summer days, and the mechanical stresses associated with mobile equipment operations.

Draglines, those massive excavation machines that can move hundreds of tons of overburden with each cycle, rely on these cables for their electrical power. The cables must handle not only the steady-state current requirements but also the significant starting currents that occur when these machines begin operation. Similarly, electric shovels and drills, which form the backbone of material handling and exploration activities, depend on the reliable power delivery that these cables provide.

Section feeders represent another critical application where these cables demonstrate their value. These installations require cables that can reliably distribute power across significant distances while maintaining voltage stability and providing protection against electrical faults. The robust construction of SANS Type 622 cables ensures that power distribution remains stable even under varying load conditions.

One of the most demanding applications for these cables is in reeling operations. Mining equipment often requires mobile power connections, and cables must be designed to withstand the constant winding and unwinding associated with cable reels. The flexible construction and carefully engineered bending radius specifications of these cables make them ideal for such applications, where inferior cables would quickly fail due to fatigue and mechanical stress.

Hazardous Area Applications

South African mining operations frequently involve hazardous areas where the presence of combustible gases, dust, or other dangerous substances creates additional safety requirements. SANS Type 622 cables are specifically designed for use with electrically driven machines in these explosive zones. The robust insulation system and screening provide enhanced protection against electrical faults that could potentially ignite hazardous atmospheres.

Movable electric apparatus in hazardous areas presents particular challenges, as the cables must maintain their protective properties while being subjected to mechanical stresses associated with equipment movement. The polychloroprene rubber sheathing provides excellent protection against chemical exposure while maintaining flexibility necessary for mobile applications.

Portable power distribution systems in mining operations often require rapid deployment and reliable operation in challenging environments. These cables provide the durability and electrical performance necessary for temporary power installations that may be subjected to rough handling and harsh environmental conditions.

Industrial Applications Beyond Mining

While primarily designed for mining applications, SANS Type 622 cables find extensive use in other industrial sectors where UV resistance, oil resistance, and abrasion resistance are critical requirements. Petrochemical facilities, marine applications, and heavy industrial manufacturing operations all benefit from the robust construction and environmental resistance of these cables.

Technical Characteristics and Electrical Parameters

Understanding the electrical parameters and technical characteristics of SANS Type 622 / 622-ECC cables is essential for proper selection and application. These parameters reflect the careful engineering that goes into creating cables capable of withstanding the demanding conditions of mining operations while delivering reliable electrical performance.

Voltage Rating and Temperature Specifications

The voltage rating of Uo/U 12.7/22 kV represents the fundamental electrical specification that defines the cable's application range. The notation Uo/U indicates the relationship between the voltage between conductor and earth (Uo) and the voltage between conductors (U). This rating of 12.7/22 kV makes these cables suitable for medium voltage distribution systems commonly found in mining operations, where voltage levels are high enough to efficiently transmit power over long distances while remaining manageable from a safety and installation perspective.

The temperature rating of -25°C to +90°C reflects the cable's ability to operate across the wide temperature range encountered in South African mining operations. The lower temperature limit ensures reliable operation during cold winter conditions, particularly important for operations in the higher altitude regions of South Africa. The upper temperature limit of +90°C provides significant margin above typical ambient temperatures while accounting for the temperature rise that occurs in conductors carrying current.

Mechanical Design Parameters

The minimum bending radius specification of nine times the overall cable diameter is a critical parameter that directly impacts installation practices and cable longevity. This specification ensures that the cable can be bent during installation and operation without damaging the internal structure or compromising electrical performance. Understanding this parameter is essential for proper cable routing and installation planning.

The black outer sheath colour serves both practical and safety purposes. The black coloration provides enhanced UV resistance, which is particularly important for cables that may be exposed to direct sunlight during installation or operation. Additionally, the standardised black colour aids in cable identification and helps maintain visual consistency in electrical installations.

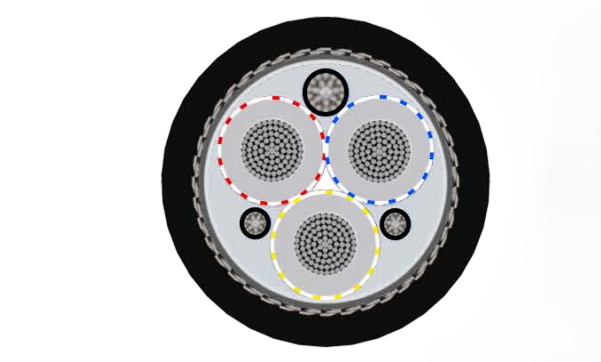

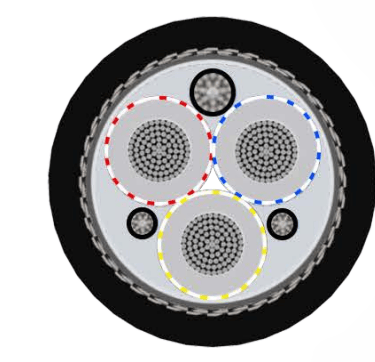

Construction Details and Materials Engineering

The conductor design utilises Class 5 flexible stranded tinned annealed copper, which represents an optimal balance between electrical performance and mechanical flexibility. The Class 5 designation indicates the degree of stranding, with higher numbers indicating greater flexibility. This level of flexibility is essential for applications involving cable movement or reeling operations while maintaining excellent electrical conductivity.

The use of tinned copper provides enhanced corrosion resistance compared to bare copper, which is particularly important in mining environments where cables may be exposed to moisture, chemicals, or corrosive atmospheres. The annealing process ensures that the copper maintains its flexibility and electrical properties over the cable's operational lifetime.

The insulation system utilises EPR (Ethylene Propylene Rubber), a thermosetting compound that provides excellent electrical properties across a wide temperature range. The triple extrusion process that creates the insulation system includes a strippable semi-conducting core screen, which facilitates proper electrical stress distribution and simplifies cable termination procedures.

Individual screening of each power core with tinned copper and textile braid provides comprehensive protection against electrical interference and ensures proper earth fault current handling. This screening system is essential for maintaining power quality and protecting equipment from electrical disturbances that could cause operational problems or equipment damage.

The pilot cores, insulated with EPM (Ethylene Propylene Monomer), serve critical functions in mining applications. These smaller conductors are typically used for control signals, monitoring systems, or communication purposes, allowing a single cable installation to handle both power and control functions.

ECC Variant Specifications

The ECC (Earth Continuity Conductor) variant represents an enhanced version of the standard cable design, where one pilot core is replaced with a dedicated tinned copper conductor specifically designed for earth continuity purposes. This design enhancement provides improved safety characteristics by ensuring reliable earth fault current paths and faster protective device operation in the event of ground faults.

The ECC conductor sizes vary with the main conductor size, ranging from 16 mm² for 25 mm² main conductors up to 95 mm² for 150 mm² main conductors. This scaling ensures that the earth continuity conductor can handle the fault currents that may occur in various system configurations while maintaining mechanical compatibility with the overall cable design.

Sheath Design and Environmental Protection

The inner and outer sheath construction utilises CR (Polychloroprene Rubber), which provides exceptional resistance to environmental factors commonly encountered in mining operations. This material offers excellent resistance to UV radiation, oil, abrasion, and a wide range of chemicals, making it ideal for harsh industrial environments.

The reinforcement system includes both nylon and tinned copper wire braids, which provide mechanical strength while maintaining flexibility. The open nylon braid reinforcement, with a minimum of 16 strings, provides additional mechanical protection and helps distribute mechanical stresses across the cable structure.

Electrical Performance Data and Current Ratings

The electrical performance characteristics of SANS Type 622 / 622-ECC cables reflect the careful balance between current-carrying capacity, mechanical flexibility, and environmental resistance that defines their suitability for mining applications.

Current Rating Analysis

The current ratings at 30°C ambient temperature range from 105 amperes for 25 mm² conductors to 300 amperes for 150 mm² conductors. These ratings are established through careful thermal analysis that considers the heat generated by current flow, the thermal resistance of the insulation and sheath materials, and the ambient temperature conditions.

Understanding these current ratings is essential for proper cable selection, as operating cables above their rated current can lead to excessive temperature rise, insulation degradation, and eventual cable failure. The ratings provide a safety margin that accounts for variations in installation conditions and ambient temperature fluctuations commonly encountered in mining environments.

Short Circuit Performance

The short circuit ratings, ranging from 3.1 kA for 25 mm² conductors to 18.3 kA for 150 mm² conductors with a one-second duration, demonstrate the cable's ability to withstand fault currents without damage. These ratings are critical for system protection coordination, as they ensure that cables can survive fault conditions long enough for protective devices to operate and clear the fault.

The short circuit performance is determined by the thermal capacity of the conductor and insulation system, which must be sufficient to absorb the energy generated during fault conditions without reaching temperatures that would cause permanent damage. This characteristic is particularly important in mining applications where fault currents can be substantial due to the large electrical systems involved.

Resistance and Reactance Characteristics

The DC resistance values provided at both 20°C and 90°C reflect the temperature coefficient of copper and provide the information necessary for calculating voltage drops and power losses under various operating conditions. The resistance values decrease with increasing conductor size, following the expected relationship between conductor cross-sectional area and resistance.

The reactance values, which remain relatively constant across different conductor sizes, are important for AC power system calculations and help determine the overall impedance characteristics of the cable. These values are essential for power system studies and protective device coordination calculations.

Earth Fault Current Handling

The screen resistance values and combined screen and ECC resistance values are critical parameters for earth fault protection. These resistances determine the fault current magnitude that will flow during earth fault conditions and directly impact the speed and reliability of protective device operation.

The ECC variant provides significantly improved earth fault current handling capability, with combined screen and ECC resistance values that ensure adequate fault current flow for reliable protection. This enhanced capability is particularly important in mining applications where personnel safety depends on rapid fault clearing.

Standards Compliance and Quality Assurance

Compliance with relevant standards ensures that SANS Type 622 / 622-ECC cables meet the rigorous requirements necessary for safe and reliable operation in mining environments. The applicable standards represent the accumulated knowledge and experience of the electrical industry in designing and manufacturing cables for demanding applications.

South African National Standards

Compliance with SANS 1520-2, SANS 1411-1, and SANS 1411-3 ensures that these cables meet the specific requirements established for the South African market. These standards address various aspects of cable design, manufacturing, and testing, providing assurance that the cables will perform reliably in local conditions.

SANS 1520-2 specifically addresses medium voltage cables and establishes requirements for electrical, mechanical, and environmental performance. Compliance with this standard ensures that the cables meet the expectations of South African electrical professionals and regulatory authorities.

International Environmental Compliance

Compliance with the RoHS Directive 2015/65/EU and REACH Directive EC 1907/2006 demonstrates the manufacturer's commitment to environmental responsibility and product safety. These directives restrict the use of hazardous substances and require comprehensive assessment of chemical risks associated with cable materials.

This compliance is increasingly important as mining companies adopt more stringent environmental policies and seek to minimise their environmental impact. The ability to demonstrate compliance with international environmental standards can be a significant factor in cable selection decisions.

Testing and Quality Assurance

The involvement of an ISO/IEC 17025 and IECEE CBTL accredited testing facility ensures that cable performance claims are verified through rigorous testing procedures. This accreditation provides confidence that test results are accurate and that cables will perform as specified in actual applications.

Continuous testing regimes help identify potential quality issues before cables are delivered to customers, reducing the risk of field failures and ensuring consistent performance across production batches.

Sustainability and Environmental Considerations

Modern mining operations increasingly focus on sustainability and environmental responsibility, making the environmental characteristics of electrical infrastructure an important consideration in equipment selection.

Carbon Footprint and Net Zero Commitments

The manufacturer's commitment to net zero emissions and participation in science-based target initiatives reflects the growing importance of environmental considerations in industrial decision-making. This commitment encompasses not only the manufacturing process but also the entire lifecycle of the cable, including raw material sourcing, manufacturing, transportation, and end-of-life disposal.

Embodied carbon reduction initiatives help minimise the environmental impact of cable manufacturing, while comprehensive recycling services ensure that cables can be properly disposed of at the end of their operational life. These considerations are becoming increasingly important as mining companies work to reduce their overall environmental footprint.

Material Selection and Environmental Impact

The selection of materials for SANS Type 622 cables considers not only performance requirements but also environmental impact. The use of materials that can be recycled and the avoidance of substances restricted under environmental directives help minimise the long-term environmental impact of cable installations.

FAQ: Addressing Common Mining Cable Challenges

Understanding the common challenges encountered with mining cables and their solutions helps ensure successful cable installations and long-term reliability.

Environmental Resistance Questions

How does the cable handle harsh outdoor environments including UV radiation, oil exposure, and mechanical abrasion?

The outer sheath constructed from CR (Polychloroprene Rubber) provides exceptional resistance to the environmental factors commonly encountered in mining operations. UV resistance is achieved through both the material properties of the polychloroprene rubber and the black pigmentation, which absorbs UV radiation before it can penetrate into the cable structure. This protection is essential for cables that may be exposed to direct sunlight during installation or operation, particularly important in South Africa's high UV environment.

Oil resistance is provided by the chemical properties of the polychloroprene rubber, which does not degrade when exposed to hydraulic fluids, lubricating oils, or fuel oils commonly found in mining environments. This resistance ensures that accidental oil spills or routine equipment maintenance activities will not compromise cable integrity.

Mechanical abrasion resistance results from both the material properties of the outer sheath and the reinforcement system that includes nylon and tinned copper wire braids. This construction allows the cable to withstand the scraping and rubbing that may occur when cables are pulled through conduits, routed around sharp edges, or subjected to vibration from nearby equipment.

Mechanical Installation Questions

What happens if the cable is exposed to bending beyond its specified radius?

Exceeding the minimum bending radius of nine times the overall cable diameter can cause several types of damage that may not be immediately apparent but can lead to long-term reliability problems. When cables are bent too sharply, the insulation system can be damaged through compression on the inside of the bend and tension on the outside of the bend. This mechanical stress can create microscopic cracks in the insulation that may not cause immediate failure but can provide paths for moisture ingress or electrical stress concentration.

The screening system can also be damaged by excessive bending, with individual screen wires potentially breaking or becoming displaced. This damage can compromise the cable's ability to handle earth fault currents and may affect the overall electrical performance of the installation.

To prevent such damage, proper cable routing must be planned during installation, with adequate provision for cable supports and guides that maintain the required bending radius. When existing installations must be modified, careful attention to bending radius requirements is essential to prevent cable damage.

Electrical Performance Questions

Can the cable withstand the high starting currents associated with large mining equipment?

The high starting currents associated with draglines, electric shovels, and other large mining equipment present significant challenges for electrical systems. These machines can draw several times their normal operating current during startup, creating both thermal and mechanical stresses in the electrical system.

SANS Type 622 cables are specifically designed to handle these conditions through several design features. The short-circuit ratings, which range up to 18.3 kA for the largest conductor sizes, provide substantial margin above typical starting currents. The thermal capacity of the insulation system allows the cable to absorb the energy generated during high current conditions without exceeding safe temperature limits.

The conductor design, utilising flexible stranded construction, helps accommodate the magnetic forces that occur during high current conditions. These forces can cause conductors to move within the cable, and the flexible construction helps prevent damage from these movements.

Temperature-Related Questions

How does the cable perform when exposed to sudden temperature fluctuations?

Mining operations often involve equipment that moves between different temperature environments, such as equipment that operates both underground and on the surface, or mobile equipment that may be exposed to direct sunlight and then moved into shaded areas. The temperature rating of -25°C to +90°C provides substantial margin for these temperature variations.

The materials used in cable construction are selected for their ability to accommodate thermal expansion and contraction without compromising electrical or mechanical properties. The EPR insulation system maintains its electrical properties across the entire temperature range, while the polychloroprene sheath provides protection against environmental factors at both temperature extremes.

Rapid temperature changes can create thermal stresses within the cable structure, but the flexible construction and material selection help accommodate these stresses without damage. Proper installation practices, including adequate cable supports and allowance for thermal movement, help ensure long-term reliability under varying temperature conditions.

Safety and Protection Questions

How does the ECC (Earth Continuity Conductor) variant enhance safety in mining operations?

The ECC variant provides enhanced safety through improved earth fault protection, which is critical in mining environments where personnel safety depends on rapid fault clearing. The additional tinned copper conductor provides a dedicated path for earth fault currents, ensuring that protective devices will operate quickly and reliably when ground faults occur.

In standard cable designs, earth fault currents must flow through the cable screens, which have higher resistance than dedicated conductors. This higher resistance can limit fault current magnitude and slow protective device operation. The ECC design provides a lower resistance path that ensures adequate fault current flow for reliable protection.

The enhanced earth fault protection is particularly important in mobile mining equipment, where cables may be subjected to mechanical damage that could create ground fault conditions. The ECC design helps ensure that such faults are quickly detected and isolated, protecting both personnel and equipment.

Maintenance and Inspection Questions

What maintenance practices are recommended to ensure long-term cable reliability?

Effective maintenance of mining cables requires a comprehensive approach that addresses both preventive measures and condition monitoring. Regular visual inspections should focus on identifying early signs of sheath damage, such as cuts, abrasions, or areas where the outer sheath appears to be hardening or cracking. These inspections should pay particular attention to areas where cables are routed around sharp edges or where they may be exposed to mechanical abuse.

Periodic electrical testing, including insulation resistance measurements, helps identify developing problems before they result in cable failures. These tests should be performed using appropriate test voltages and procedures to avoid damaging cable insulation while providing meaningful information about cable condition.

The pilot cores included in the cable design serve multiple purposes beyond their primary control functions. These conductors can be used for monitoring cable condition, as changes in their electrical characteristics may indicate developing problems with the main cable structure. Regular testing of pilot core continuity and insulation resistance can provide early warning of cable deterioration.

Proper cable support and routing are essential maintenance considerations. Cable supports should be inspected regularly to ensure they are providing adequate support without creating stress concentration points. Any changes in cable routing or support requirements should be evaluated to ensure they do not compromise cable integrity.

Environmental monitoring around cable installations can help identify conditions that may accelerate cable degradation. This includes monitoring for oil leaks, chemical spills, or other environmental factors that could affect cable performance over time.

Conclusion: Ensuring Reliable Power for South African Mining

The SANS Type 622 / 622-ECC 12.7/22 kV mining cables represent a sophisticated solution to the complex challenges faced by South African mining operations. Their robust construction, comprehensive environmental protection, and excellent electrical performance make them ideal for the demanding conditions encountered in modern mining applications.

The careful engineering that goes into these cables reflects decades of experience in mining applications and a deep understanding of the unique requirements of South African mining operations. From the harsh ultraviolet radiation of the Karoo to the challenging underground conditions of deep mines, these cables provide the reliability and safety that mining operations require.

Proper selection, installation, and maintenance of these cables are essential for realising their full potential. Understanding the technical specifications, application requirements, and maintenance needs helps ensure that cable installations provide years of reliable service while maintaining the highest standards of safety.

As South African mining operations continue to evolve and face increasing demands for efficiency, safety, and environmental responsibility, the role of reliable electrical infrastructure becomes ever more critical. SANS Type 622 / 622-ECC cables provide the foundation for electrical systems that can meet these challenges while supporting the continued growth and development of South Africa's vital mining industry.

The investment in quality cable infrastructure pays dividends through reduced downtime, improved safety, and enhanced operational efficiency. By understanding and properly applying the capabilities of these cables, mining operations can ensure that their electrical systems continue to provide reliable power for years to come, supporting the productivity and profitability that drive South Africa's mining sector forward.
