SANS Type 63 1.9/3.3 kV Mining Cables Mynbou kabel

Introduction

In the challenging environment of South African mining operations, reliable electrical infrastructure forms the backbone of safe and efficient mineral extraction. Among the critical components that keep our mines operational are the specialized cables that deliver power to essential equipment hundreds of metres underground or across expansive opencast operations.

SANS Type 63 cables represent a sophisticated solution engineered specifically for the demanding conditions found in South African mining environments. These medium-voltage flexible trailing cables are manufactured according to the rigorous SANS 1520-2 standard, which governs trailing medium-voltage mining cables used throughout the country. With a voltage rating of 1.9/3.3 kV, these cables bridge the gap between low-voltage distribution systems and the higher voltage requirements of substantial mining machinery.

The significance of proper cable selection cannot be overstated in mining operations. A single cable failure can halt production, endanger worker safety, and result in costly downtime that ripples through the entire operation. This is why understanding the technical specifications, proper applications, and maintenance requirements of SANS Type 63 cables becomes crucial for mining engineers, safety managers, procurement teams, and maintenance personnel working across South Africa's diverse mining landscape.

This comprehensive guide will take you through every aspect of these cables, from their fundamental construction principles to practical installation considerations. We'll explore how these cables perform in real-world mining scenarios, examine their electrical and mechanical characteristics in detail, and address the common challenges that mining professionals encounter when specifying, installing, and maintaining these critical power transmission components.

Typical Application Scenarios in South African Mining

Understanding where and how SANS Type 63 cables perform optimally requires examining the specific demands of South African mining operations. These cables have been designed to excel in environments where standard industrial cables would quickly fail, making them indispensable for various mining applications.

Portable Mining Machinery Applications

The backbone of modern mining operations consists of numerous pieces of portable machinery that must operate reliably in harsh conditions. SANS Type 63 cables provide the vital power connection for conveyor systems that transport ore from deep underground workings to surface processing facilities. These conveyors often operate continuously for months at a time, subjecting their power cables to constant vibration, temperature fluctuations, and mechanical stress.

Underground drilling equipment represents another critical application where these cables demonstrate their value. Whether powering percussion drills for blast hole preparation or rotary drills for exploration activities, the cables must withstand the intense vibrations generated by drilling operations while maintaining electrical integrity. The flexible construction of Type 63 cables allows them to flex and bend as drilling equipment manoeuvres through confined underground spaces without suffering mechanical damage.

Ventilation fans constitute perhaps one of the most safety-critical applications for these cables. Underground ventilation systems require absolute reliability, as any interruption in airflow can create dangerous conditions for workers. Type 63 cables powering these fans must operate flawlessly in environments with high humidity, temperature extremes, and potential exposure to corrosive gases that naturally occur in mining environments.

Water management systems, including dewatering pumps and water treatment equipment, rely heavily on Type 63 cables for their power supply. These applications often involve installation in wet conditions where standard cables would suffer insulation degradation. The specialized insulation materials used in Type 63 construction provide superior moisture resistance, ensuring continued operation even when exposed to water infiltration common in mining operations.

Reeling System Applications

Mobile mining equipment presents unique challenges for power delivery systems. Equipment such as continuous miners, shuttle cars, and mobile crushers require power cables that can withstand the constant winding and unwinding action of cable reels. This is where the superior mechanical properties of SANS Type 63 cables become evident.

The reinforced construction of these cables, featuring bonded inner and outer sheaths with nylon reinforcement, provides exceptional resistance to the torsional stresses encountered in reeling applications. Unlike standard power cables that might develop internal conductor fatigue or sheath cracking after repeated reeling cycles, Type 63 cables maintain their integrity through thousands of wind and unwind cycles.

Cable reeling systems in mining operations must also contend with contamination from coal dust, ore particles, and industrial lubricants. The polychloroprene rubber outer sheath of Type 63 cables provides excellent resistance to these contaminants, preventing premature degradation that could lead to electrical faults or safety hazards.

Hazardous Area Compliance and Safety Considerations

South African mining operations must comply with stringent safety regulations governing electrical installations in potentially explosive atmospheres. Many mining environments contain combustible dusts or gases that create explosion risks if proper electrical safety measures are not implemented.

SANS Type 63 cables are specifically designed to meet the requirements for use in these hazardous locations. The screening system incorporated into each power core provides effective electromagnetic interference suppression while ensuring proper earthing continuity essential for explosion protection systems. When combined with appropriately certified explosion-proof connection equipment, these cables form part of a comprehensive safety system that protects both equipment and personnel.

The cable construction also addresses the unique grounding requirements found in mining installations. The tinned copper braiding on each power core, combined with the pilot core arrangement, provides multiple paths for fault currents to return safely to the electrical system's earthing point. This redundancy is crucial in mining applications where a single point of failure could have catastrophic consequences.

Underground mining environments often require cables to traverse areas with varying ground conditions, from dry rock faces to areas with significant water infiltration. The dual-sheath construction of Type 63 cables provides multiple barriers against moisture ingress, ensuring that electrical safety is maintained even if the outer sheath suffers minor damage during installation or operation.

Electrical and Mechanical Characteristics

To fully appreciate the engineering sophistication of SANS Type 63 cables, we must examine their electrical and mechanical specifications in detail. These characteristics determine not only the cable's performance capabilities but also its suitability for specific mining applications.

Voltage Rating and Temperature Performance

The voltage rating of 1.9/3.3 kV represents the cable's capability to safely handle 1,900 volts between any conductor and earth, and 3,300 volts between any two conductors. This rating aligns with common medium-voltage distribution systems used throughout South African mining operations, making these cables ideal for connecting mining equipment to local distribution transformers.

The temperature performance characteristics of these cables reflect the extreme conditions encountered in mining environments. With an operational temperature range extending from -25°C to +90°C, Type 63 cables can function reliably from the coldest winter conditions on South African highveld mine sites to the elevated temperatures found in deep underground workings.

The lower temperature limit of -25°C addresses the harsh winter conditions experienced at high-altitude mining operations, particularly in the Witwatersrand and Free State goldfields where overnight temperatures can drop significantly below freezing. The cable's insulation and sheathing materials maintain their flexibility and electrical properties even at these low temperatures, preventing the brittleness that could lead to mechanical failure during handling or installation.

At the upper temperature extreme, the +90°C rating accommodates the elevated ambient temperatures found in deep underground mines where geothermal heating becomes significant. As mining operations extend to greater depths, particularly in South Africa's deep gold mines, ambient temperatures can approach or exceed 40°C. When combined with the additional heating from electrical losses within the cable during normal operation, conductor temperatures can rise substantially above ambient levels.

Detailed Construction Analysis

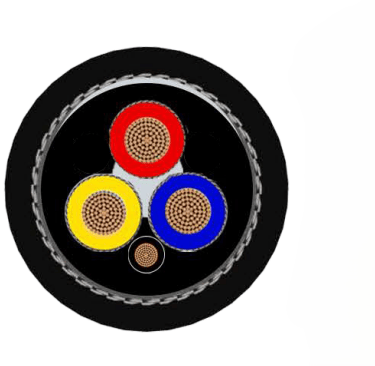

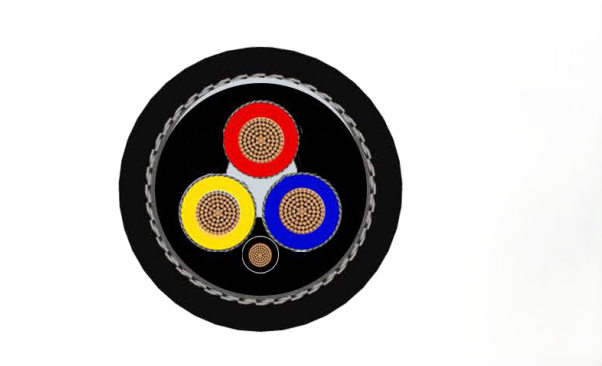

The construction of SANS Type 63 cables represents a carefully engineered balance between electrical performance, mechanical durability, and manufacturing practicality. Each component serves specific purposes that contribute to the cable's overall performance in mining applications.

Conductor System Design

The conductor system utilizes Class 5 flexible stranded construction manufactured from tinned, annealed copper conforming to SANS 1411-1 specifications. This construction approach provides several advantages critical to mining applications. The fine stranding ensures maximum flexibility, allowing the cable to bend repeatedly without conductor fatigue that could lead to strand breakage and eventual conductor failure.

The tinning of individual copper strands serves multiple purposes in the mining environment. Tin coating prevents oxidation of the copper conductors, which is particularly important in the high-humidity conditions often encountered underground. This oxidation resistance maintains low conductor resistance over the cable's service life, ensuring consistent electrical performance and preventing the increased heating that could result from oxidized connections.

The annealing process applied to the copper conductors optimizes their mechanical properties for flexible applications. Annealed copper provides the ideal combination of electrical conductivity and mechanical flexibility needed for cables that will experience repeated bending and flexing during installation and operation.

Insulation System Engineering

The ethylene propylene rubber (EPR) insulation system represents state-of-the-art technology for medium-voltage mining cables. EPR insulation provides superior electrical properties compared to traditional rubber compounds, including higher dielectric strength and lower dielectric losses. This translates to improved electrical efficiency and reduced heating during operation.

The thermoset nature of EPR insulation provides excellent thermal stability, maintaining its electrical and mechanical properties even when subjected to the elevated temperatures that can occur during overload conditions or in high ambient temperature environments. Unlike thermoplastic insulation materials that can soften and flow under thermal stress, EPR maintains its structural integrity throughout its rated temperature range.

The chemical resistance of EPR insulation proves particularly valuable in mining applications where cables may be exposed to various industrial chemicals, cleaning solvents, and naturally occurring corrosive substances. This chemical resistance prevents insulation degradation that could lead to electrical faults or reduced service life.

Screening and Shielding System

The screening system employed in SANS Type 63 cables serves multiple critical functions in mining applications. Each power core incorporates a screen consisting of nylon tape underlying a tinned copper wire braid. This dual-layer approach provides both mechanical protection and electrical performance benefits.

The nylon tape layer provides a smooth, uniform surface that prevents the copper braid from embedding into the underlying insulation during cable flexing. This mechanical separation is crucial for maintaining the integrity of both the insulation system and the screening conductors throughout the cable's service life.

The tinned copper braid serves as both an electrostatic shield and a fault current return path. In mining applications, the electrostatic shielding function helps prevent electromagnetic interference that could affect sensitive control and monitoring equipment. The fault current return capability provides a low-impedance path for ground fault currents, ensuring rapid operation of protective devices in the event of an insulation failure.

The pilot core construction differs from the power cores, being unscreened to optimize its function as a control and monitoring conductor. This design approach recognizes that pilot core applications typically involve low-level signals that do not require the same level of electromagnetic shielding as power conductors.

Advanced Sheathing System

The dual-sheath construction of SANS Type 63 cables represents a sophisticated approach to providing mechanical protection and environmental sealing. The inner polychloroprene rubber sheath provides the primary barrier against moisture ingress and chemical attack, while the nylon reinforcement braid adds mechanical strength and abrasion resistance.

The bonding between the inner and outer sheaths creates a unified mechanical system that resists delamination under the twisting and flexing encountered in reeling applications. This bonded construction prevents the formation of air pockets or void spaces between sheath layers that could lead to moisture accumulation or mechanical weakness.

The outer polychloroprene rubber sheath provides the final barrier against environmental hazards while offering excellent resistance to oils, greases, and other contaminants common in mining operations. The black coloration of the outer sheath provides UV resistance for cables that may be exposed to sunlight during transport or temporary installations.

Mechanical Performance Specifications

The mechanical performance characteristics of SANS Type 63 cables determine their suitability for the demanding physical environment of mining operations. These specifications represent the result of extensive testing and development to ensure reliable performance under real-world conditions.

Bending Radius Considerations

The minimum bending radius specification of 6 times the overall cable diameter reflects the careful balance between flexibility and mechanical integrity required in mining applications. This specification ensures that the cable can be routed around obstacles and through confined spaces without exceeding the mechanical limits of any internal component.

Understanding the practical implications of bending radius limitations is crucial for proper installation planning. For example, a 50mm² Type 63 cable with an overall diameter of approximately 50.5mm requires a minimum bending radius of 303mm. This means that any permanent bend in the cable installation must follow a curve with a radius of at least 303mm to avoid potential damage to internal components.

The bending radius specification becomes particularly important in underground installations where cables must navigate around rock formations, structural supports, and other mining equipment. Proper planning of cable routes during the design phase can prevent installation difficulties and ensure compliance with mechanical limitations.

Tensile Strength and Load Distribution

The maximum tensile load specifications for SANS Type 63 cables vary significantly with conductor size, ranging from approximately 1.1 kN for 25mm² conductors to 10.8 kN for 240mm² conductors. These values represent the maximum pulling force that can be safely applied to the cable during installation without causing mechanical damage.

The tensile strength characteristics are particularly important for vertical installations common in mining shaft applications. When cables must support their own weight over significant vertical distances, the tensile loading calculations become critical to prevent mechanical failure. The cable's construction distributes tensile loads across multiple components, including the conductor strands, reinforcement elements, and sheathing materials.

Proper installation techniques must account for tensile limitations during cable pulling operations. The use of appropriate pulling grips, tension monitoring equipment, and staged pulling techniques helps ensure that tensile limits are not exceeded during installation in challenging mining environments.

Electrical Performance Parameters

The electrical performance characteristics of SANS Type 63 cables directly impact their ability to deliver power efficiently and safely to mining equipment. Understanding these parameters is essential for proper cable selection and system design.

Conductor Resistance and Power Losses

The DC resistance values specified for Type 63 cables at 20°C provide the baseline for calculating power losses under various loading conditions. For example, the 25mm² conductor exhibits a maximum DC resistance of 0.859 Ω/km at 20°C, which increases to 1.10 Ω/km at 90°C due to the positive temperature coefficient of copper resistance.

These resistance values allow engineers to calculate the voltage drop that will occur across cable lengths under specific loading conditions. In mining applications where cables may extend several hundred metres from distribution points to end-use equipment, voltage drop calculations become crucial to ensure adequate voltage at the equipment terminals.

The power loss calculations derived from resistance values also impact thermal management considerations. Higher resistance values result in increased heating during operation, which must be accounted for in cable sizing and installation planning to prevent thermal overload conditions.

Current Carrying Capacity

The current rating specifications for Type 63 cables assume specific installation conditions, including 30°C ambient temperature and straight laying without cable grouping effects. These ratings range from 130 amperes for 25mm² conductors to 520 amperes for 240mm² conductors under the specified conditions.

Real-world mining installations often deviate from these ideal conditions, requiring derating calculations to determine actual current carrying capacity. Factors such as elevated ambient temperatures in underground workings, grouping of multiple cables in the same raceway, and installation in enclosed conduit systems all reduce the effective current carrying capacity below the tabulated values.

The current rating specifications also provide the foundation for protective device coordination. Circuit breakers and other protective equipment must be sized to protect the cable from overload conditions while allowing normal operational currents to flow without interruption.

Short-Circuit Performance

The short-circuit ratings specified for Type 63 cables indicate their ability to withstand fault currents for limited durations without suffering permanent damage. These ratings are specified for both symmetrical fault currents and earth fault currents, with values ranging from 3.1 kA to 29 kA for one-second duration depending on conductor size.

Understanding short-circuit performance is crucial for electrical system design and protective device coordination. The cable's short-circuit rating must exceed the maximum available fault current at its installation location to prevent cable damage during fault conditions. This requires careful analysis of the electrical system's fault current characteristics and proper coordination with upstream protective devices.

The short-circuit performance specifications also impact the cable's ability to serve as part of the electrical system's earthing arrangement. During earth fault conditions, the cable's screening system must safely carry fault currents back to the system earthing point without suffering damage that could compromise safety or reliability.

Standards and Compliance Framework

The regulatory framework governing SANS Type 63 cables reflects South Africa's commitment to electrical safety and performance standards in mining operations. Understanding these standards and their implications is essential for anyone involved in specifying, purchasing, or installing these cables in mining applications.

SANS 1520-2 Standard Requirements

SANS 1520-2 represents the definitive South African standard for trailing medium-voltage mining cables. This standard establishes comprehensive requirements covering everything from conductor materials and construction methods to testing procedures and performance criteria. The standard's development involved extensive consultation with mining industry stakeholders, electrical manufacturers, and safety experts to ensure its relevance to actual mining conditions.

The standard specifies detailed requirements for conductor construction, including strand size limitations, tinning requirements, and flexibility criteria. These specifications ensure that conductors will maintain their electrical and mechanical properties throughout the demanding service life expected in mining applications. The standard also establishes minimum requirements for conductor cross-sectional area accuracy, ensuring that cables will carry their rated currents safely.

Insulation requirements under SANS 1520-2 address both electrical performance and environmental resistance. The standard specifies minimum insulation thickness values for different voltage ratings, dielectric strength requirements, and resistance to various environmental factors including moisture, temperature extremes, and chemical exposure. These requirements ensure that cables will maintain electrical safety throughout their service life.

The mechanical construction requirements established by SANS 1520-2 address the unique stresses encountered in mining applications. Screen construction specifications ensure adequate electromagnetic shielding and fault current capacity, while sheathing requirements provide protection against mechanical damage and environmental hazards commonly encountered in mining operations.

Material Standards Integration

The integration of multiple material standards within the SANS Type 63 specification ensures consistency and quality across all cable components. SANS 1411-1 governs conductor materials and construction methods, establishing requirements for copper purity, stranding methods, and tinning processes that directly impact cable performance and longevity.

SANS 1411-3 addresses elastomeric insulation and sheathing compounds, specifying material properties including dielectric strength, thermal stability, chemical resistance, and mechanical properties. These material standards ensure that insulation and sheathing materials will perform consistently across different manufacturing batches and suppliers.

The integration of these material standards with the overall cable construction requirements creates a comprehensive quality framework that addresses every aspect of cable performance. This integrated approach helps ensure that cables from different manufacturers will exhibit consistent performance characteristics when installed in similar applications.

Safety and Environmental Compliance

Modern SANS Type 63 cables must comply with contemporary environmental and safety regulations that extend beyond traditional electrical performance requirements. RoHS (Restriction of Hazardous Substances) compliance ensures that cables do not contain prohibited substances such as lead, mercury, cadmium, and specific flame retardants that could pose environmental or health risks.

REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) compliance addresses the broader chemical content of cable materials, ensuring that potentially harmful substances are properly managed throughout the cable's lifecycle. This compliance framework becomes particularly important in mining operations where cable disposal and recycling must be managed responsibly.

The environmental compliance framework also addresses the cable's performance in fire situations. While mining cables must resist ignition and flame propagation, they must also minimize the generation of toxic gases that could endanger personnel during emergency situations. The material selection and construction methods specified for Type 63 cables balance fire resistance with low toxicity requirements.

FAQ: Common Mining Challenges and Solutions

The practical application of SANS Type 63 cables in mining operations generates numerous questions from engineers, maintenance personnel, and safety managers. These frequently asked questions address the most common challenges encountered in real-world mining applications.

Can Type 63 cables be used on reeling drums without damage?

The short answer is yes, but with important considerations that determine long-term reliability. Type 63 cables are specifically designed for reeling applications, with their reinforced bonded sheath construction and EPR insulation system providing excellent resistance to the mechanical stresses encountered during repeated winding and unwinding cycles.

The key to successful reeling applications lies in maintaining the specified minimum bending radius of 6 times the cable's overall diameter. This means that the drum diameter must be sized appropriately for the cable being used. For example, a cable with a 60mm overall diameter requires a drum with a minimum diameter of 720mm to avoid mechanical stress that could lead to internal damage.

The bonded sheath construction of Type 63 cables provides crucial advantages in reeling applications. Unlike cables with separate inner and outer sheaths that can delaminate under torsional stress, the bonded construction maintains structural integrity throughout repeated reeling cycles. This prevents the formation of air pockets or moisture ingress points that could compromise the cable's long-term reliability.

Proper drum design and maintenance also play critical roles in reeling application success. The drum surface must be smooth and free from sharp edges or debris that could damage the cable sheath during winding operations. Regular inspection of both the drum and cable condition helps identify potential problems before they result in cable failure.

Temperature considerations become particularly important in reeling applications where cables may be stored on drums in varying environmental conditions. The cable's temperature rating must accommodate both storage conditions and operational requirements to prevent thermal stress that could affect mechanical properties.

What happens if ambient temperature drops below -25°C?

When ambient temperatures drop below the cable's rated minimum of -25°C, several performance degradation mechanisms can occur that potentially compromise both electrical and mechanical performance. The most immediate concern involves the mechanical properties of the cable's sheathing and insulation materials, which can become brittle at extremely low temperatures.

At temperatures below -25°C, the polychloroprene rubber sheathing may lose flexibility, making the cable more susceptible to mechanical damage during handling or installation. The EPR insulation also experiences reduced flexibility, though typically to a lesser extent than the sheathing materials. This reduced flexibility increases the risk of cracking or other mechanical damage if the cable is subjected to bending or mechanical stress.

For mining operations that regularly experience temperatures below -25°C, such as high-altitude surface operations during winter months, alternative cable designs may be more appropriate. SANS Type 41 cables, for example, are specifically designed for extreme cold weather applications with temperature ratings extending down to -40°C.

The electrical performance of Type 63 cables at low temperatures generally improves due to reduced conductor resistance and improved insulation properties. However, these electrical benefits are typically overshadowed by the mechanical property concerns that could lead to cable damage and subsequent electrical faults.

When Type 63 cables must be used in applications where temperatures occasionally drop below -25°C, special handling procedures become essential. These include avoiding mechanical stress on the cable when temperatures are below rated minimums, allowing cables to warm gradually before installation or maintenance activities, and implementing additional physical protection to prevent mechanical damage.

How should cables be sized for different mining machinery?

Proper cable sizing for mining machinery requires consideration of multiple factors beyond simple current carrying capacity. The process begins with accurate determination of the equipment's electrical requirements, including full load current, starting current characteristics, and any special operating modes that might affect loading patterns.

The first step involves calculating the continuous current requirements of the connected equipment. This calculation must account for not only the nameplate ratings of individual motors but also their actual operating conditions, duty cycles, and any diversity factors that might apply when multiple loads operate simultaneously.

Voltage drop calculations form a critical part of the sizing process, particularly in mining applications where cable runs can extend several hundred metres from distribution points to end-use equipment. The cable size must be sufficient to maintain adequate voltage at the equipment terminals under all operating conditions, including motor starting when voltage drops are typically highest.

Short-circuit considerations also influence cable sizing decisions. The selected cable must be capable of withstanding the maximum available fault current at its installation location for the time required for protective devices to operate. This requires coordination between cable short-circuit ratings and the characteristics of upstream protective devices.

Mechanical considerations including tensile strength, bending radius, and installation methods can also influence cable size selection. Longer cable runs or installations involving significant vertical routing may require larger cable sizes to meet mechanical strength requirements even if electrical requirements could be satisfied with smaller conductors.

Environmental factors specific to the installation location must also be considered in the sizing process. High ambient temperatures, cable grouping effects, and installation in enclosed raceways all require derating calculations that may necessitate larger cable sizes to maintain adequate current carrying capacity.

What protection is required in hazardous mining areas?

Electrical installations in hazardous mining areas require comprehensive protection systems that address both explosion prevention and personnel safety. The protection strategy begins with proper classification of the hazardous area according to relevant standards, which determines the types of electrical equipment and installation methods that may be used.

Cable systems in hazardous areas must maintain electrical continuity of earthing and bonding systems that are essential for explosion protection. The screening system in Type 63 cables provides an effective earthing path, but proper connection to earthing systems at both ends of the cable run is essential. This typically requires specialized cable glands and connection hardware certified for use in hazardous locations.

Explosion-proof or intrinsically safe connection hardware must be used at all cable termination points in hazardous areas. Standard industrial plugs and sockets are not suitable for these applications and must be replaced with properly certified equipment that prevents ignition of explosive atmospheres even under fault conditions.

The cable installation methods in hazardous areas often require additional mechanical protection to prevent damage that could create ignition sources. This may include installation in rigid conduit systems, cable trays with covers, or burial in trenches depending on the specific hazard classification and installation environment.

Regular inspection and testing of cable systems in hazardous areas becomes even more critical than in normal industrial applications. Insulation resistance testing, earth continuity verification, and visual inspection for mechanical damage must be performed on scheduled intervals to ensure continued compliance with explosion protection requirements.

Documentation and certification requirements for hazardous area installations typically exceed those for normal industrial applications. Complete records of equipment certifications, installation methods, inspection results, and maintenance activities must be maintained to demonstrate ongoing compliance with safety regulations.

What maintenance procedures are essential for reliable operation?

Effective maintenance of SANS Type 63 cables requires a systematic approach that addresses both preventive maintenance activities and diagnostic testing procedures. The maintenance program should be tailored to the specific operating environment and application requirements while addressing the unique challenges of mining operations.

Visual inspection forms the foundation of any effective cable maintenance program. These inspections should focus on identifying mechanical damage to the cable sheath, including cuts, abrasions, kinks, or other signs of physical stress. Particular attention should be paid to areas where cables pass through walls, around sharp corners, or near moving equipment where mechanical damage is most likely to occur.

The inspection process should also examine cable support systems, including cable trays, hangers, and protective conduits. Damaged or inadequate support systems can create stress concentrations that lead to cable damage over time. Cable routing should be verified to ensure compliance with minimum bending radius requirements and adequate clearance from heat sources or moving equipment.

Electrical testing procedures provide essential diagnostic information about cable condition and performance. Insulation resistance testing using appropriate high-voltage test equipment can identify insulation degradation before it progresses to complete failure. These tests should be performed according to established schedules and compared to baseline measurements to identify trends that might indicate developing problems.

Earth continuity testing of the cable screening system ensures that fault current paths remain intact and capable of safely carrying fault currents. This testing becomes particularly important in mining applications where the screening system serves as part of the electrical safety system for both equipment protection and personnel safety.

Thermal monitoring of cable connections and heavily loaded cable sections can identify developing problems before they result in failure. Infrared thermography provides an effective method for identifying hot spots that might indicate poor connections, overloading, or insulation problems that increase electrical losses.

Documentation of all maintenance activities, including inspection results, test measurements, and any corrective actions taken, provides essential information for trending analysis and maintenance program optimization. This documentation also supports warranty claims and regulatory compliance requirements.

Are spares and custom lengths readily available?

The availability of spare cables and custom lengths represents a critical consideration for mining operations where equipment downtime can have significant operational and safety implications. Most major cable suppliers maintain inventory of common Type 63 cable configurations in standard lengths, but custom requirements often require longer lead times and minimum order quantities.

Standard cable configurations typically include the most common conductor sizes ranging from 25mm² to 240mm² in lengths suitable for typical mining applications. These standard products are usually available from supplier stock or with relatively short lead times, making them suitable for emergency replacement situations.

Custom cable lengths and configurations require manufacturing to order, which typically involves lead times ranging from several weeks to several months depending on the specific requirements and manufacturer scheduling. This extended lead time makes advance planning essential for major maintenance projects or new installations.

The economic considerations of custom cable orders often favour purchasing longer lengths than immediately required, allowing the excess to be stored as spare inventory for future maintenance needs. This approach must be balanced against storage costs and the risk of cable degradation during extended storage periods.

Some mining operations establish blanket purchase agreements with cable suppliers that guarantee availability of specific cable types and provide priority scheduling for emergency orders. These agreements often include provisions for custom cable configurations and can significantly reduce procurement lead times during critical maintenance situations.

The availability of temporary cable solutions, including portable cable systems and temporary connections, can provide operational flexibility when permanent cable repairs or replacements require extended lead times. These temporary solutions must meet the same safety and performance requirements as permanent installations while providing the operational flexibility needed to maintain production schedules.

Summary and Best Practices

SANS Type 63 1.9/3.3 kV mining cables represent a sophisticated engineering solution designed specifically for the demanding requirements of South African mining operations. Their success in these applications results from careful attention to both electrical performance and mechanical durability requirements that reflect the unique challenges of mining environments.

The electrical design of these cables provides reliable medium-voltage power transmission with excellent electrical efficiency and safety characteristics. The EPR insulation system offers superior electrical properties combined with excellent thermal and chemical resistance, while the screening system provides effective electromagnetic interference suppression and fault current return paths essential for mining safety systems.

The mechanical construction addresses the harsh physical environment of mining operations through reinforced sheathing systems, flexible conductor construction, and bonded sheath designs that resist delamination under repeated flexing. These mechanical properties enable reliable operation in reeling applications, underground installations, and portable equipment connections that would quickly destroy standard industrial cables.

Proper installation practices form a crucial component of achieving reliable performance from Type 63 cables. Adherence to minimum bending radius requirements, proper support system design, and appropriate connection hardware selection all contribute to long-term reliability. The investment in proper installation techniques pays dividends through reduced maintenance requirements and improved operational reliability.

Regular maintenance and inspection procedures provide early warning of developing problems and help ensure continued safe operation throughout the cable's service life. The combination of visual inspections, electrical testing, and thermal monitoring creates a comprehensive maintenance approach that addresses both safety and reliability concerns.

The integration of Type 63 cables into mining electrical systems requires careful consideration of protective device coordination, earthing system design, and hazardous area requirements. When properly integrated into well-designed electrical systems, these cables provide reliable service for many years even under the demanding conditions of mining operations.

Success with SANS Type 63 cables ultimately depends on understanding their capabilities and limitations, proper application selection, and implementation of appropriate installation and maintenance practices. When these factors are properly addressed, Type 63 cables provide reliable and safe power transmission solutions that support the operational requirements of modern mining operations while maintaining the high safety standards essential for protecting both equipment and personnel.

The continued evolution of mining operations toward deeper workings, larger equipment, and more demanding operational requirements ensures that high-quality cable systems like SANS Type 63 will remain essential components of mining electrical infrastructure. By understanding and applying the technical information presented in this guide, mining professionals can make informed decisions that support both operational efficiency and safety in their electrical system designs and maintenance programs.
