SANS Type 66 / 66-ECC 3.8/6.6 kV Mining Cables Mynkabel

Introduction

In the heart of South Africa's mining industry, where massive draglines carve through earth and underground machinery operates in challenging conditions, reliable electrical power transmission forms the backbone of every operation. Mining cables represent far more than simple electrical conductors; they serve as lifelines that must withstand extreme mechanical stress, harsh environmental conditions, and the demanding safety requirements of hazardous mining environments.

The SANS Type 66 and 66-ECC 3.8/6.6 kV mining cables represent a sophisticated engineering solution specifically designed for South African mining conditions. These cables bridge the gap between robust industrial performance and the exacting safety standards required in mining operations, where a single electrical failure can halt production, endanger lives, or cause environmental damage.

Understanding these cables requires appreciating the unique challenges of mining environments. Unlike standard industrial applications, mining operations demand cables that can flex repeatedly as equipment moves, resist oil and chemical exposure, withstand extreme temperature variations, and maintain electrical integrity in the presence of dust, moisture, and mechanical vibration. The SANS Type 66 series addresses these challenges through carefully engineered construction and materials selection.

The significance of proper cable selection in mining cannot be overstated. Consider a large dragline operation where hundreds of kilowatts flow through cables that must bend and flex thousands of times daily. A cable failure in such an application doesn't merely interrupt power; it can damage expensive equipment, create safety hazards, and result in costly downtime while repairs are conducted in challenging field conditions.

Application Scenarios

Typical Mining Environments

The SANS Type 66 cable family finds its primary application across diverse mining scenarios, each presenting distinct challenges that the cable's design addresses. Surface mining operations, including large-scale dragline excavations, represent perhaps the most demanding applications for these cables. In these environments, cables must withstand constant flexing as massive equipment maneuvers across mining sites, while simultaneously resisting the effects of sunlight, temperature extremes, and mechanical abrasion from contact with earth and rock.

Draglines, those towering giants of surface mining, exemplify the extreme demands placed on mining cables. These machines can weigh thousands of tonnes and operate continuously, with their cables experiencing constant bending cycles as the boom moves through its operational arc. The cable must maintain electrical integrity while withstanding tensile loads that would destroy conventional industrial cables. The SANS Type 66's construction, with its Class 5 flexible conductors and reinforced sheathing, addresses these challenges directly.

Medium-sized shovels and drilling equipment present different but equally demanding requirements. These machines often operate in confined spaces where cables must navigate around obstacles while maintaining their electrical performance. The cable's minimum bending radius of six times the overall diameter ensures that even tight routing doesn't compromise the conductor integrity or insulation performance.

Underground mining environments introduce additional complexity to cable applications. Section feeders, which distribute power throughout underground mining operations, must function reliably in environments characterized by high humidity, potential water ingress, and the presence of corrosive gases. The polychloroprene rubber sheathing provides essential protection against these environmental factors while maintaining flexibility for installation and service.

Portable mining apparatus represents another critical application category. These machines, which may include mobile crushers, conveyor systems, and auxiliary equipment, require cables that can withstand frequent connection and disconnection cycles while maintaining safety ratings. The pilot cores integrated into the SANS Type 66 design enable control and monitoring functions essential for safe operation of such equipment.

Hazardous Area Applications

Perhaps the most critical application scenario involves mining operations in hazardous areas where explosive gases or combustible dust may be present. Coal mining operations, certain metalliferous mining environments, and areas where hydrocarbon deposits may be encountered all fall into this category. In these environments, cable selection becomes a matter of safety compliance as well as operational efficiency.

The SANS Type 66 cable's design incorporates several features that make it suitable for hazardous area applications. The individual screening of each power core with tinned copper and textile braid provides electromagnetic shielding that helps prevent electrical interference that could potentially ignite explosive atmospheres. The robust outer sheathing system creates multiple barriers against moisture ingress and mechanical damage that could compromise the cable's safety integrity.

Why This Cable Type is Chosen for Mining

The selection of SANS Type 66 cables for mining applications stems from their unique combination of electrical performance, mechanical durability, and environmental resistance. Unlike standard industrial cables, these mining-specific designs address the multifaceted challenges of mining environments through integrated engineering solutions.

Flexibility represents perhaps the most crucial characteristic for mining cable applications. The Class 5 flexible stranded conductors allow the cable to withstand the constant bending and flexing required in mobile mining equipment. This flexibility doesn't come at the expense of electrical performance; the conductors maintain low resistance characteristics essential for efficient power transmission.

The cable's resistance to oil, ultraviolet radiation, and sunlight exposure makes it uniquely suited to mining environments where these factors are prevalent. Mining equipment operates with hydraulic systems that can create oil-contaminated environments, while surface operations expose cables to intense sunlight and UV radiation that would degrade conventional cable materials.

Mechanical stress resistance extends beyond simple flexibility to encompass the cable's ability to withstand tensile loads, compression forces, and abrasion. The open nylon braid reinforcement provides mechanical protection while allowing the cable to maintain its flexibility characteristics. This construction enables the cable to survive the harsh mechanical environment of mining operations while maintaining its electrical integrity.

Electrical Characteristics

Voltage Rating and System Integration

The voltage rating of Uo/U 3.8/6.6 kV defines the fundamental electrical parameters of the SANS Type 66 cable system. Understanding these voltage specifications requires appreciation of how they relate to typical mining electrical systems and safety requirements.

The Uo rating of 3.8 kV represents the maximum voltage that can exist between any conductor and earth under normal operating conditions. This specification ensures that the cable's insulation system can safely handle the electrical stress that occurs between energized conductors and grounded equipment or structures. In mining operations, where equipment frequently comes in contact with earth or grounded structures, this rating provides essential safety margins.

The U rating of 6.6 kV specifies the maximum voltage that can exist between any two conductors in the cable. This rating accommodates the line-to-line voltages common in mining electrical systems while providing appropriate safety factors for system voltage variations and transient conditions that may occur during switching operations or fault conditions.

These voltage ratings align with common mining electrical system voltages, making the SANS Type 66 cable suitable for integration into existing mining infrastructure. The 6.6 kV rating particularly suits medium-voltage mining distribution systems that require higher power levels than can be economically transmitted at lower voltages.

Current Carrying Capacity and Thermal Performance

The current carrying capacity of SANS Type 66 cables varies significantly based on conductor size, ranging from 105 amperes for 25 mm² conductors to 400 amperes for 240 mm² conductors at 30°C ambient temperature. These ratings reflect careful thermal design that balances current carrying capacity with the cable's ability to dissipate heat generated by conductor resistance.

Understanding current ratings requires appreciating the thermal environment in which mining cables operate. The 30°C ambient temperature rating acknowledges that mining equipment often operates in elevated temperature environments, whether due to solar heating in surface operations or elevated temperatures in underground workings. The cable's thermal design ensures safe operation even under these challenging conditions.

The relationship between conductor size and current capacity follows established electrical engineering principles, but the specific ratings for SANS Type 66 cables reflect the thermal properties of the EPR insulation system and the heat dissipation characteristics of the overall cable construction. The EPR insulation can withstand continuous operating temperatures up to 90°C, providing substantial thermal margins for overload conditions.

Consider a practical example: a 120 mm² conductor with a current rating of 260 amperes operating at full load will generate heat due to conductor resistance. The cable's thermal design ensures that this heat can be safely dissipated without compromising the insulation integrity or reducing the cable's service life. This thermal performance proves essential in mining applications where cables may experience varying load conditions and ambient temperatures.

Short Circuit Performance and Safety

Short circuit performance represents a critical safety parameter for mining cables, as electrical faults in mining environments can have severe consequences. The SANS Type 66 cable's short circuit ratings, reaching up to 29 kA for one second in larger conductor sizes, demonstrate the cable's ability to safely handle fault conditions until protective devices can operate.

Short circuit currents in mining electrical systems can reach extremely high values due to the low impedance paths present in robust mining electrical infrastructure. When a fault occurs, the cable must withstand both the thermal effects of high current flow and the mechanical forces generated by electromagnetic interactions between conductors.

The cable's short circuit rating reflects the thermal capacity of the conductor to absorb fault energy without reaching temperatures that would damage the insulation or compromise the cable's integrity. The one-second rating acknowledges that modern protective devices should clear faults within this timeframe, limiting the thermal stress on the cable.

Earth fault current capacity represents another crucial safety parameter, particularly in mining environments where personnel safety depends on rapid fault clearing. The combined screen and ECC (Earth Continuity Conductor) resistance values ensure that earth fault currents can flow with sufficient magnitude to operate protective devices quickly and reliably.

Conductor Resistance and System Efficiency

The electrical resistance characteristics of SANS Type 66 cables directly impact system efficiency and voltage regulation in mining electrical systems. The maximum DC resistance values specified for different conductor sizes at both 20°C and 90°C provide essential data for system design and performance analysis.

Conductor resistance increases with temperature according to well-established physical principles. The resistance values at 20°C represent the cable's performance under standard conditions, while the 90°C values reflect resistance under full load thermal conditions. This temperature coefficient of resistance must be considered when calculating system losses and voltage drops.

Consider a 185 mm² conductor with a maximum DC resistance of 0.108 Ω/km at 20°C, increasing to 0.145 Ω/km at 90°C. In a mining installation with several hundred meters of cable length, these resistance values significantly impact system efficiency and voltage regulation. Proper system design must account for these losses to ensure adequate voltage at equipment terminals.

The reactance values provided for each conductor size account for the electromagnetic effects that occur in AC systems. These values, combined with resistance, determine the cable's impedance characteristics that affect voltage regulation and system power factor. In mining applications with significant cable lengths and variable loads, these impedance characteristics can significantly impact system performance.

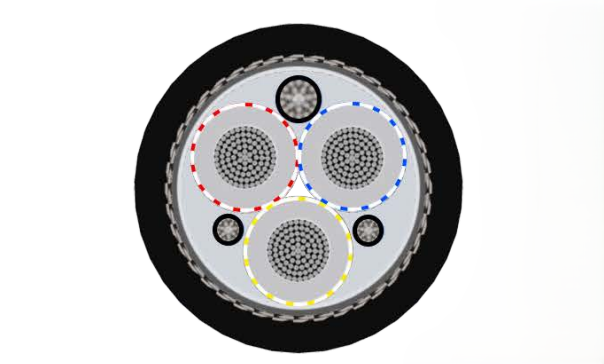

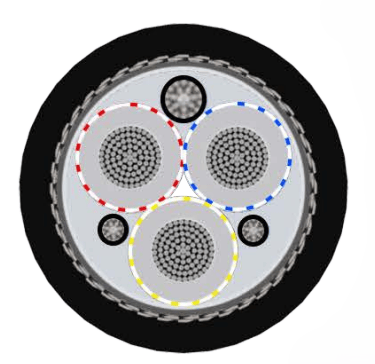

Construction Details

Conductor Design and Flexibility

The conductor design of SANS Type 66 cables represents a sophisticated balance between electrical performance, mechanical flexibility, and long-term reliability. The Class 5 flexible stranded construction uses multiple small-diameter wires twisted together to create conductors that can withstand the constant flexing required in mining applications while maintaining excellent electrical characteristics.

Tinned annealed copper provides the conductor material, combining copper's excellent electrical conductivity with tin plating that prevents corrosion and enhances the conductor's longevity in challenging mining environments. The annealing process ensures that the copper maintains its flexibility characteristics even after repeated bending cycles, while the stranding pattern distributes mechanical stress across multiple wire elements.

The flexibility classification of Class 5 represents the finest level of stranding typically used in power cables. This construction enables the cable to withstand the constant flexing required by mobile mining equipment while maintaining low electrical resistance. The individual wire diameters, specified as maximum values in the technical specifications, ensure consistent electrical and mechanical performance across production batches.

Understanding the conductor's construction helps appreciate its performance in mining applications. When a dragline cable flexes during operation, the individual strands within each conductor slide past each other, distributing the mechanical stress and preventing fatigue failure that would occur in solid conductors. This design enables the cable to withstand millions of flex cycles over its service life.

Insulation System and Thermal Performance

The EPR (Ethylene Propylene Rubber) insulation system represents a carefully selected material that addresses the diverse challenges of mining cable applications. EPR provides excellent electrical insulation properties combined with superior thermal stability, chemical resistance, and mechanical durability essential for mining environments.

EPR's thermosetting characteristics mean that the insulation undergoes chemical cross-linking during manufacture, creating a three-dimensional molecular structure that maintains its properties even under thermal stress. This cross-linking provides thermal stability up to 90°C continuous operating temperature while maintaining flexibility at low temperatures down to -25°C.

The insulation system's dielectric properties ensure reliable electrical performance under the voltage stresses present in 6.6 kV systems. EPR's high dielectric strength and low dielectric losses minimize power losses within the insulation while providing substantial safety margins against electrical breakdown.

Chemical resistance represents another crucial characteristic of the EPR insulation system. Mining environments often involve exposure to oils, fuels, and other chemicals that could degrade conventional insulation materials. EPR's molecular structure provides inherent resistance to these contaminants, ensuring long-term reliability in challenging chemical environments.

Screening and Electromagnetic Performance

The individual screening of each power core with tinned copper and textile braid represents a sophisticated approach to electromagnetic compatibility and electrical safety. This screening system serves multiple functions: reducing electromagnetic emissions, minimizing susceptibility to external interference, and providing a low-impedance path for earth fault currents.

The tinned copper component of the screen provides excellent electrical conductivity for fault current paths while resisting corrosion in mining environments. The textile component adds mechanical strength and helps maintain screen integrity during cable flexing. Together, these materials create a robust screening system that maintains its effectiveness throughout the cable's service life.

Electromagnetic screening becomes particularly important in mining applications where cables may run in close proximity to communication systems, control circuits, and sensitive electronic equipment. The individual screening of power cores minimizes electromagnetic coupling between conductors and reduces the cable's electromagnetic signature.

The screen's electrical characteristics, including maximum resistance values, ensure effective operation during earth fault conditions. When an earth fault occurs, the screen provides a low-impedance return path that enables protective devices to detect and clear the fault quickly, minimizing equipment damage and safety risks.

Pilot Cores and ECC Integration

The integration of pilot cores within the SANS Type 66 cable design addresses the modern mining industry's need for integrated control, monitoring, and communication capabilities. These smaller conductors, insulated with EPM (Ethylene Propylene Monomer), provide dedicated circuits for functions that complement the main power transmission capability.

Pilot cores serve various functions in mining applications, including equipment control circuits, status monitoring systems, communication links, and safety interlocks. By integrating these functions within the main power cable, mining operations can reduce installation complexity and improve system reliability while maintaining the flexibility required for mobile equipment.

The ECC (Earth Continuity Conductor) variant represents a specialized configuration where one pilot core is replaced with a tinned conductor specifically designed to enhance earth fault protection. This conductor provides a dedicated low-impedance path for earth fault currents, improving the reliability and speed of fault detection and clearance.

Understanding the ECC's function requires appreciating the challenges of earth fault protection in mining environments. Standard earth fault protection relies on detecting fault currents through cable screens and equipment grounding systems. The dedicated ECC provides a parallel path that reduces overall earth fault impedance and ensures reliable operation of protective devices even if screen integrity is compromised.

Sheathing System and Environmental Protection

The dual-sheath construction of SANS Type 66 cables provides comprehensive protection against the diverse environmental challenges of mining operations. The inner polychloroprene rubber (CR) sheath creates the primary barrier against moisture ingress and chemical contamination, while the outer CR sheath provides mechanical protection and weather resistance.

Polychloroprene rubber was selected for its exceptional combination of properties relevant to mining applications. This synthetic rubber maintains flexibility across wide temperature ranges while providing excellent resistance to oils, fuels, ozone, and weathering. The material's inherent flame resistance adds an important safety characteristic for mining applications.

The open nylon braid reinforcement between the inner and outer sheaths provides mechanical protection against abrasion, crushing, and cutting forces common in mining environments. This reinforcement distributes mechanical loads across the cable's surface, preventing localized damage that could compromise the sheath integrity.

The black outer sheath color provides both practical and safety benefits. The dark color absorbs heat efficiently, helping to dissipate thermal loads generated by conductor losses. Additionally, the black color provides excellent UV resistance and helps the cable blend with mining equipment and structures, reducing visual impact in surface operations.

Standards and Compliance

South African National Standards Compliance

The SANS Type 66 cable's compliance with SANS 1520-2, SANS 1411-1, and SANS 1411-3 standards ensures that the cable meets the specific requirements and safety expectations of the South African mining industry. These standards represent the culmination of decades of experience in mining cable applications and incorporate lessons learned from challenging South African mining conditions.

SANS 1520-2 specifically addresses mining cables and establishes requirements for electrical performance, mechanical characteristics, and environmental resistance relevant to mining applications. This standard recognizes the unique demands of mining environments and establishes testing protocols that verify cable performance under realistic operating conditions.

SANS 1411-1 and SANS 1411-3 provide broader specifications for power cables that complement the mining-specific requirements of SANS 1520-2. These standards ensure that the cable meets general electrical safety requirements while maintaining the specialized characteristics needed for mining applications.

Compliance with these standards provides mining operators with confidence that the cable will perform reliably in their specific applications. The standards establish minimum performance criteria that cable manufacturers must meet, ensuring consistent quality and performance across different suppliers and production batches.

International Environmental Compliance

The cable's compliance with RoHS Directive 2015/65/EU and REACH Directive EC 1907/2006 demonstrates commitment to environmental responsibility and international market access. These European directives establish restrictions on hazardous substances and registration requirements for chemicals used in manufactured products.

RoHS compliance ensures that the cable contains restricted levels of substances such as lead, mercury, cadmium, and certain flame retardants that could pose environmental or health risks. This compliance becomes increasingly important as mining companies adopt corporate sustainability policies and seek to minimize environmental impact throughout their supply chains.

REACH compliance requires registration and evaluation of chemical substances used in cable manufacture. This directive ensures that chemical risks are properly assessed and managed throughout the product lifecycle. For mining cables with long service lives, this compliance provides assurance that environmental considerations have been addressed in material selection and manufacturing processes.

Resistance Characteristics and Durability

The cable's specified resistance to UV radiation, sunlight, and oil represents critical performance parameters for mining applications. UV and sunlight resistance ensure that surface-installed cables maintain their integrity despite prolonged exposure to South African sunshine conditions, which can be particularly intense and sustained.

Oil resistance addresses the reality of mining equipment operations, where hydraulic systems, fuel systems, and lubrication requirements create environments where cable contact with petroleum products is inevitable. The cable's construction materials maintain their properties despite such exposure, ensuring long-term reliability.

These resistance characteristics undergo rigorous testing to verify compliance with applicable standards. Accelerated aging tests simulate years of environmental exposure in compressed time periods, while chemical resistance testing verifies performance in the presence of specific contaminants likely to be encountered in mining operations.

Sustainability and Corporate Responsibility

The cable manufacturer's commitment to Net Zero emissions and alignment with United Nations Sustainable Development Goals reflects the growing importance of environmental responsibility in the mining industry. This commitment encompasses both the manufacturing processes used to produce the cables and considerations for end-of-life recycling and disposal.

Science-based emissions reduction targets provide measurable benchmarks for environmental performance improvement. These targets address both direct manufacturing emissions and indirect emissions throughout the product lifecycle, including raw material extraction, transportation, and end-of-life management.

The United Nations Global Compact participation demonstrates commitment to broader principles of sustainable business practices, including human rights, labor standards, environmental protection, and anti-corruption measures. For mining companies with their own sustainability commitments, supplier alignment with these principles becomes an important procurement consideration.

Common Mining Cable Challenges (FAQ Section)

Q1: How does the cable withstand harsh underground conditions?

Underground mining environments present unique challenges that the SANS Type 66 cable addresses through comprehensive design considerations. The combination of high humidity, potential water ingress, corrosive gases, and mechanical stress creates conditions that would quickly compromise conventional cables.

The polychloroprene rubber sheathing system provides the primary defense against these environmental factors. CR rubber maintains its sealing properties even when subjected to flexing, preventing moisture ingress that could compromise electrical performance. The material's resistance to hydrogen sulfide and other corrosive gases commonly found in mining environments ensures long-term integrity.

Temperature variations in underground environments can be extreme, from freezing conditions in shaft areas to elevated temperatures in deep workings. The cable's temperature rating of -25°C to +90°C accommodates these variations while maintaining electrical and mechanical performance. The EPR insulation system particularly excels in these conditions, maintaining flexibility at low temperatures while providing thermal stability at high temperatures.

The open nylon braid reinforcement protects against abrasion from contact with rock surfaces, mine supports, and equipment while allowing the cable to maintain its flexibility characteristics. This protection proves essential in underground installations where cables may be subjected to falling debris, contact with rough surfaces, and movement of mining equipment.

Mechanical stress in underground applications includes not only bending and flexing but also potential compression from rock movement, tensile loads from equipment movement, and impact from falling objects. The cable's construction distributes these loads across multiple protective layers, preventing localized damage that could compromise performance.

Q2: What happens if the cable is exposed to mechanical stress like bending and pulling?

Mechanical stress represents perhaps the most significant challenge for mining cables, as equipment movement and installation requirements subject cables to forces that would destroy conventional electrical cables. The SANS Type 66 cable's design specifically addresses these challenges through integrated mechanical protection systems.

The minimum bending radius specification of six times the overall diameter ensures that installation and operational bending doesn't exceed the cable's mechanical capabilities. This specification prevents excessive stress on individual conductors and maintains the integrity of the insulation and screening systems. For example, a cable with a 70mm overall diameter can safely bend to a 420mm radius without compromising its performance.

Class 5 flexible conductors distribute mechanical stress across multiple small-diameter strands, preventing the fatigue failures that would occur in solid or less flexible conductors. When the cable bends, individual strands slide past each other, accommodating the bending motion without creating stress concentrations that could lead to conductor failure.

The cable's tensile strength, specified as maximum tension values ranging from 1.1 kN for smaller cables to 10.8 kN for larger sizes, accommodates the pulling forces encountered during installation and operation. These ratings ensure that the cable can withstand the forces required to route it through conduits, around obstacles, and in mobile equipment applications.

Repeated flexing, common in mobile mining equipment, requires special consideration of fatigue resistance. The cable's construction materials and design parameters address this challenge through material selection and construction techniques that minimize stress concentrations and distribute loads evenly across cable components.

Q3: How does the ECC improve safety?

The Earth Continuity Conductor (ECC) represents a sophisticated safety enhancement that addresses the critical importance of reliable earth fault protection in mining environments. Understanding the ECC's safety benefits requires appreciating the role of earth fault protection in preventing electrical accidents and equipment damage.

When an earth fault occurs in a mining electrical system, protective devices must detect the fault current and disconnect the faulty circuit quickly to prevent equipment damage and minimize safety risks. The ECC provides a dedicated low-impedance path for earth fault currents, ensuring that sufficient current flows to operate protective devices reliably and quickly.

Standard earth fault protection relies on fault current flow through cable screens and equipment grounding systems. If screen integrity is compromised due to mechanical damage or corrosion, the fault current path impedance increases, potentially preventing reliable operation of protective devices. The ECC provides a parallel path that maintains fault detection capability even if primary earth paths are compromised.

The ECC's conductor size is specifically selected to handle anticipated earth fault currents while maintaining low resistance characteristics. This sizing ensures that earth fault currents reach sufficient magnitude to operate protective devices within their designed time parameters, typically clearing faults within milliseconds to prevent equipment damage and safety hazards.

In mining environments where personnel may be in contact with grounded equipment, rapid fault clearing becomes critical for personnel safety. The ECC's enhanced fault clearing capability reduces the duration of fault conditions, minimizing the risk of electrical accidents and ensuring compliance with safety regulations governing mining electrical installations.

Q4: What if the cable overheats due to overload?

Thermal overload represents a significant concern in mining applications where equipment may be operated at high capacity factors for extended periods. The SANS Type 66 cable's thermal design addresses overload conditions through comprehensive thermal management and safety margins built into the cable's construction.

The EPR insulation system provides the primary thermal protection, with a continuous operating temperature rating of 90°C that provides substantial margin above normal operating temperatures. This thermal capacity allows the cable to handle temporary overload conditions without compromising insulation integrity or reducing service life.

When overload conditions occur, the cable's thermal design ensures that heat generation from increased conductor losses is safely dissipated through the cable's construction. The polychloroprene sheathing system provides effective heat dissipation while maintaining protective characteristics, and the overall cable construction distributes thermal loads to prevent localized overheating.

Short-term overload capability is built into the cable's design through thermal mass considerations. The conductor and insulation system can absorb thermal energy during brief overload periods while the cable's external environment provides heat dissipation capacity. This capability accommodates the variable load conditions common in mining operations where equipment may experience temporary high-demand periods.

Thermal monitoring and protection systems in mining electrical installations provide additional safety layers. These systems can detect developing overload conditions and provide warnings or automatic load reduction before cable thermal limits are approached. The cable's thermal characteristics provide the foundation for effective thermal protection system design.

Long-term effects of thermal stress are addressed through the cable's material selection and construction techniques. The cross-linked EPR insulation maintains its properties even after repeated thermal cycling, ensuring that the cable's performance characteristics remain stable throughout its service life despite variable thermal conditions.

Q5: Can this cable be used in areas with potential explosive gases?

Hazardous area applications represent the most demanding safety requirements for mining cables, as electrical equipment in such environments must not create ignition sources that could cause explosions. The SANS Type 66 cable's design incorporates several features that make it suitable for hazardous area applications, though specific installation requirements must be carefully considered.

The cable's individual power core screening provides electromagnetic shielding that helps prevent electrical interference and reduces the potential for spark generation that could ignite explosive atmospheres. The tinned copper screening elements provide excellent electrical conductivity for fault current paths while maintaining shielding effectiveness.

Robust construction prevents mechanical damage that could create electrical faults or expose energized conductors. The dual-sheath system with nylon braid reinforcement provides mechanical protection against impacts, abrasion, and crushing forces that could compromise cable integrity in hazardous environments.

Temperature ratings ensure that the cable operates well below temperatures that could create ignition sources in explosive atmospheres. The cable's thermal design prevents surface temperatures from reaching levels that could ignite gases or dust, even under overload conditions.

However, hazardous area installations require comprehensive risk assessment and compliance with specific standards governing electrical equipment in explosive atmospheres. Factors such as installation methods, termination techniques, protection systems, and maintenance procedures must all be designed to maintain hazardous area safety integrity.

The cable's suitability for hazardous areas should be verified through consultation with hazardous area classification studies and electrical safety experts familiar with the specific conditions present in each mining operation. Different hazardous area classifications may have different requirements that must be individually assessed.

Q6: Is UV and sunlight exposure a problem for surface applications?

Surface mining operations expose cables to intense sunlight and UV radiation that can rapidly degrade conventional cable materials. South African mining operations face particularly challenging solar exposure conditions, with high-intensity sunlight and elevated ambient temperatures that can accelerate cable aging processes.

The SANS Type 66 cable's outer sheath incorporates UV stabilizers and polymer formulations specifically designed to resist UV degradation. These additives absorb harmful UV radiation and prevent the photochemical reactions that cause polymer degradation, cracking, and mechanical property loss in conventional materials.

Sunlight resistance extends beyond UV protection to include thermal effects of solar heating. The black outer sheath color provides efficient heat absorption and dissipation characteristics that prevent excessive temperature buildup while maintaining material integrity. The sheath material maintains its flexibility and mechanical properties despite repeated thermal cycling from solar heating.

Long-term exposure testing verifies the cable's performance under accelerated aging conditions that simulate years of sunlight exposure. These tests demonstrate that the cable maintains its electrical and mechanical properties despite prolonged UV and sunlight exposure, ensuring reliable service life in surface applications.

Surface installation techniques can further enhance the cable's resistance to environmental effects. Proper cable support, protection from mechanical damage, and consideration of thermal expansion during installation help maximize the cable's service life in challenging surface environments.

The cable's environmental resistance characteristics are backed by comprehensive testing and compliance with applicable standards. This testing ensures that the cable will perform reliably throughout its design service life despite exposure to South African environmental conditions.

Conclusion

The SANS Type 66 and 66-ECC 3.8/6.6 kV mining cables represent sophisticated engineering solutions that address the unique challenges of South African mining operations. Through careful integration of electrical performance, mechanical durability, and environmental resistance, these cables provide the reliable power transmission essential for safe and efficient mining operations.

The cable's construction reflects decades of experience in mining applications, incorporating lessons learned from challenging operating conditions and evolving safety requirements. From the Class 5 flexible conductors that withstand constant flexing to the robust sheathing system that resists environmental degradation, every aspect of the cable's design contributes to its overall performance and reliability.

Understanding the electrical characteristics, construction details, and application requirements enables mining professionals to make informed decisions about cable selection and installation. The comprehensive specifications and standards compliance provide confidence that the cable will perform reliably in demanding mining environments while meeting safety and environmental requirements.

The importance of proper cable selection in mining operations cannot be overstated. Reliable electrical power transmission forms the foundation of mining productivity and safety, making cable selection a critical decision that affects operational efficiency, equipment reliability, and personnel safety. The SANS Type 66 cable family provides mining operations with proven solutions that address these requirements through integrated design and comprehensive performance characteristics.

As mining operations continue to evolve with advancing technology and increasing environmental awareness, the role of reliable, sustainable electrical infrastructure becomes ever more critical. The SANS Type 66 cable's combination of performance, durability, and environmental responsibility positions it as an essential component of modern mining electrical systems, supporting the industry's continued development while meeting the highest standards of safety and environmental stewardship.
