The Backbone of Australian Underground Mining: Understanding AS/NZS 1802 Type 245 Cables

Introduction: The Unsung Heroes of Underground Power

Deep beneath the Australian landscape, where the sun never shines and the air is thick with dust and moisture, a critical component keeps the wheels of industry turning. These are the AS/NZS 1802 Type 245 mining cables—robust, flexible power lifelines that feed electricity to the massive machinery extracting coal, gold, zinc, and other precious resources from the earth's depths.

To understand why these cables are so crucial, imagine trying to power your home with an extension cord that must withstand being dragged across concrete, splashed with water, exposed to extreme temperatures, and bent thousands of times without breaking. Now multiply that challenge by a thousand, and you begin to appreciate the engineering marvel that is the Type 245 mining cable.

The AS/NZS 1802 standard represents a joint Australian and New Zealand specification that governs heavy-duty, elastomer-insulated trailing and reeling cables specifically designed for underground coal and metalliferous mines. Within this standard, Type 245 cables stand out as the workhorses of the industry, featuring a sophisticated design that includes semiconductive-screened 3-core power conductors, 3 earth conductors, and 3 central pilot cores, all rated for voltages ranging from 1.1/1.1 kV up to 6.6/6.6 kV.

Think of these cables as the nervous system of an underground mine. Just as your nervous system carries electrical signals throughout your body to coordinate movement and function, Type 245 cables carry the electrical power that enables massive longwall shearers to slice through coal seams, continuous miners to advance through rock faces, and conveyor systems to transport tonnes of material to the surface. Without these cables, Australia's underground mining operations would quite literally grind to a halt.

Australia's Underground Mining Landscape: Where Type 245 Cables Shine

Australia's underground mining industry represents one of the most challenging electrical environments on Earth, and it's here that Type 245 cables prove their worth daily. To truly appreciate these cables' importance, we need to understand the diverse and demanding environments where they operate.

The Hunter Valley in New South Wales stands as perhaps the most iconic example of where Type 245 cables demonstrate their capabilities. Here, longwall coal mining operations like those at HVO (Hunter Valley Operations) rely on these cables to power enormous shearer machines that can weigh over 100 tonnes and require thousands of kilowatts of power. These shearers must move continuously along coal faces that can stretch for hundreds of metres, all while maintaining reliable power connections through cables that are constantly being wound and unwound on massive reeling systems.

The unique challenge in the Hunter Valley lies in the combination of factors these cables must endure. The underground environment is humid and dusty, with temperatures that can fluctuate dramatically. The longwall mining method requires cables to be in constant motion, creating a perfect storm of mechanical stress, environmental exposure, and electrical demands that would destroy conventional cables within days.

Moving north to Queensland, the Mt Isa mining complex presents an entirely different set of challenges for Type 245 cables. Here, zinc and lead extraction operations extend deep underground, with some workings reaching depths of over 1,800 metres. The deeper you go, the hotter it gets, and the more challenging the environment becomes for electrical equipment. Mt Isa's operations require cables that can handle not just the extreme temperatures but also the corrosive environments created by mineral processing and the constant presence of groundwater.

The geological complexity of Mt Isa means that mining equipment must be highly mobile, constantly repositioning as new ore bodies are discovered and developed. This mobility places enormous demands on the power cables, which must be robust enough to handle frequent disconnection and reconnection, dragging across rough surfaces, and coiling and uncoiling thousands of times throughout their service life.

In the Norwest region of New South Wales, metalliferous mining operations present yet another variation on the theme of challenging cable applications. Here, the focus shifts to versatility and reliability in powering diverse mining equipment, from drilling rigs to ventilation systems, all operating in environments where a power failure could have serious safety implications.

Perhaps nowhere are the demands on mining cables more extreme than in the deep gold mines around Kalgoorlie, Western Australia. Some of these operations extend more than 4,000 metres below the surface, creating environments where temperatures can exceed 60°C and humidity approaches 100%. The combination of heat, moisture, and the constant vibration from mining equipment creates conditions that would challenge any electrical system.

What makes Kalgoorlie particularly demanding is the sheer scale of the operations. Modern gold mining requires enormous amounts of power to operate crushers, hoists, ventilation systems, and processing equipment. The cables must not only deliver this power reliably but do so over considerable distances through shaft systems and underground tunnels that can stretch for kilometres.

In each of these environments, Type 245 cables serve as the critical link between power sources and the machinery that makes mining possible. Their design must accommodate not just the electrical requirements but also the physical demands of constant movement, environmental exposure, and the need for absolute reliability in safety-critical applications.

Application Scenarios: Where Engineering Meets Reality

Understanding how Type 245 cables are actually used in mining operations helps illustrate why their sophisticated design is necessary. Each application scenario presents unique challenges that have driven the evolution of these remarkable cables.

Longwall shearer circuits represent perhaps the most demanding application for Type 245 cables. In this scenario, imagine a machine the size of a small building that must move along a coal face, cutting through rock and coal while remaining connected to electrical power. The shearer moves back and forth along faces that can be 300 metres or more in length, cutting a strip of coal that might be 1.5 to 3 metres high. As it moves, the power cable must feed out from a reeling system, maintain its electrical integrity under constant motion, and then be wound back up as the shearer returns.

The challenge here isn't just mechanical. The electrical demands are enormous—these machines can draw 1,000 kilowatts or more of power, meaning the cables must handle hundreds of amperes of current while being flexed, twisted, and dragged across the mine floor. Traditional cables would fail within hours under these conditions, but Type 245 cables are specifically engineered to handle thousands of such cycles.

Continuous miner and drilling machine applications present a different but equally challenging scenario. These machines must advance through rock faces, creating new tunnels and excavations. Unlike longwall operations, where the movement is relatively predictable, continuous miners must navigate around obstacles, change direction frequently, and operate in spaces that are constantly changing shape and size.

The cables feeding these machines must be flexible enough to accommodate the complex movements while maintaining their electrical and mechanical integrity. They often trail behind the equipment through rough, rocky terrain where sharp edges and abrasive surfaces are constant threats. The semiconductive screening in Type 245 cables becomes crucial here, as it helps prevent electrical failures caused by damage to the insulation.

Pump, conveyor, and support equipment applications might seem less demanding, but they present their own unique challenges. These systems often operate continuously for months at a time, meaning the cables must maintain their performance over extended periods without maintenance opportunities. Pumps, in particular, are often located in the wettest, most corrosive parts of the mine, where standard cables would quickly fail due to water ingress and chemical attack.

Conveyor systems present the challenge of both continuous operation and constant movement. Modern mining conveyors can be kilometres long, with multiple drive points and control systems. The cables must not only carry the power for the drive motors but also the control signals that coordinate the entire system. This is where the pilot cores in Type 245 cables prove their worth, carrying the communication and control signals that keep complex mining systems operating in harmony.

Peripheral and temporary power setups near advancing faces represent one of the most overlooked but critical applications for Type 245 cables. As mining operations advance, new electrical infrastructure must be constantly installed and relocated. This requires cables that can be quickly deployed, handle temporary installations, and then be easily relocated as the mining operation progresses.

These temporary installations often operate in the most challenging conditions, as they're typically located at the advancing edge of mining operations where environmental conditions are at their most extreme. The cables must be robust enough to handle rough treatment during installation and flexible enough to accommodate the temporary and often improvised mounting systems used in these applications.

Electrical and Physical Specifications: The Science Behind the Solution

To truly understand why Type 245 cables excel in mining applications, we need to examine their electrical and physical specifications in detail. Each element of their design represents a carefully engineered solution to specific challenges encountered in underground mining operations.

The voltage rating system for Type 245 cables follows a logical progression that reflects the diverse power requirements of mining equipment. Type 245.1 cables, rated at 1.1 kV, serve as the workhorses for lower-power applications and shorter cable runs. These might power smaller mining equipment, lighting systems, or auxiliary machinery where the electrical demands are more modest. However, even at this seemingly low voltage, the cables must maintain the same mechanical robustness as their higher-voltage counterparts.

Type 245.3 cables, rated at 3.3 kV, represent the middle ground for many mining applications. This voltage level provides an excellent balance between power transmission capability and safety considerations. At 3.3 kV, cables can efficiently power medium-sized mining equipment over moderate distances while still remaining within voltage ranges that are familiar to most mining electricians and technicians.

Type 245.6 cables, rated at 6.6 kV, are the heavy-duty champions of the mining cable world. These cables can transmit enormous amounts of power over considerable distances, making them ideal for the largest mining equipment and longest cable runs. However, with this increased voltage capability comes additional complexity in the form of enhanced insulation systems and more sophisticated screening arrangements.

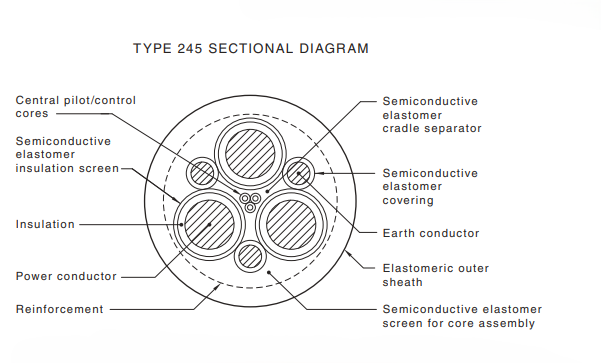

The conductor design of Type 245 cables reflects decades of experience in understanding what works in mining environments. The use of Class-6 flexible stranded tinned copper represents a carefully optimized solution to the challenge of creating conductors that are both highly conductive and extremely flexible. Class-6 stranding means that each conductor consists of hundreds of individual copper strands, each fine enough to flex easily but collectively capable of carrying substantial currents.

The tinning of these copper strands might seem like a minor detail, but it's crucial for long-term reliability. In the corrosive environment of underground mines, untreated copper would quickly oxidize, leading to increased resistance, heat generation, and eventual failure. The tin coating provides a protective barrier that maintains the electrical properties of the copper while adding minimal cost or complexity to the manufacturing process.

The range of conductor sizes from 16 mm² to 150 mm² for power cores reflects the diverse current-carrying requirements of mining equipment. Smaller conductors are perfectly adequate for auxiliary equipment and control systems, while the largest conductors can handle the enormous current demands of major mining machinery. The three interstitial earth cores and three central pilot cores add functionality without significantly increasing the overall cable diameter.

The insulation system of Type 245 cables represents one of the most sophisticated aspects of their design. The use of R-EP-90 EPR (Ethylene Propylene Rubber) insulation provides excellent electrical properties combined with outstanding resistance to heat, moisture, and chemical attack. This material can maintain its insulating properties across the wide temperature range encountered in mining operations, from the near-freezing conditions that might be found in some mine shafts to the extreme heat of deep workings or equipment compartments.

The semiconductive conductor screens used in 3.3 kV and higher voltage cables serve a critical function that's often overlooked. These screens help control the electric field distribution around the conductor, preventing the formation of corona discharge and partial discharge that could eventually lead to insulation failure. In the dusty, humid environment of underground mines, this field control becomes even more important as contaminants on the cable surface can create localized stress concentrations.

The insulation screens and cradle separators made from semiconductive PCP (Polychloroprene) provide additional protection and mechanical support. These components help maintain the geometry of the cable under the mechanical stresses of mining applications while providing additional barriers against moisture ingress and physical damage.

The sheath and reinforcement system represents the cable's first line of defense against the harsh mining environment. The heavy-duty PCP sheath provides excellent resistance to abrasion, chemicals, oils, and moisture while maintaining flexibility across a wide temperature range. The optional CPE (Chlorinated Polyethylene) or CSP (Chlorosulfonated Polyethylene) alternatives offer enhanced chemical resistance for particularly challenging applications.

The open-weave braid reinforcement serves multiple functions simultaneously. It provides mechanical protection against cuts and abrasion, adds tensile strength for applications where the cable might be subjected to pulling forces, and helps maintain the cable's shape under the bending and flexing stresses of mobile equipment operation.

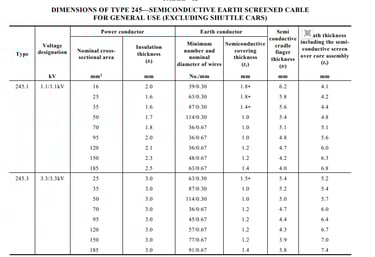

The physical dimensions of Type 245 cables tell a story of engineering optimization. Taking Type 245.1 as an example, the progression from 16 mm² conductors with a 42.6 mm overall diameter and 235 kg per 100 metres to 150 mm² conductors with a 70.5 mm diameter and 915 kg per 100 metres illustrates how the cable design scales to meet different power requirements while maintaining the same fundamental construction principles.

The operating temperature range of -25°C to +90°C, with some specifications allowing down to -40°C, reflects the extreme conditions these cables might encounter. The low-temperature capability is crucial for equipment that might be stored in unheated areas or operated in mine shafts where temperatures can drop significantly. The high-temperature capability is essential for equipment operating in hot, deep mines or in confined spaces where heat dissipation is limited.

Mining Industry Challenges: Real Problems, Practical Solutions

The Australian mining industry presents a unique set of challenges that go far beyond simple electrical power transmission. Understanding these challenges and how Type 245 cables address them provides insight into why these seemingly expensive cables represent excellent value in mining applications.

Question 1: Can these cables be used safely in gassy and dusty underground coal mines?

This question strikes at the heart of mining safety concerns. Underground coal mines, particularly those in Australia's Hunter Valley, can contain methane gas and coal dust that create potentially explosive atmospheres. Any electrical equipment used in these environments must meet strict safety standards to prevent ignition of these dangerous mixtures.

Type 245 cables are specifically designed to meet AS/NZS 1802 requirements for use in hazardous zones. The earth-continuity monitoring system, which utilizes the three earth conductors and three pilot cores, provides continuous monitoring of the electrical integrity of the grounding system. This monitoring is crucial because a loss of ground continuity could create sparking or arcing conditions that might ignite explosive gases.

The flame-resistant sheath materials used in Type 245 cables are formulated to resist ignition and to self-extinguish if exposed to flame. This characteristic is tested rigorously during cable certification, with samples subjected to direct flame application to ensure they won't contribute to fire propagation in underground environments.

The semiconductive screening system also contributes to safety in gassy environments by controlling electrical field distributions that could otherwise create partial discharge or corona effects. These electrical phenomena, while not necessarily dangerous in normal environments, could potentially provide ignition sources in explosive atmospheres.

Question 2: How do these cables handle water ingress and sustained submersion?

Water management represents one of the most persistent challenges in underground mining operations. Groundwater infiltration, condensation from temperature differentials, and process water from mining operations create environments where electrical equipment is constantly exposed to moisture.

The PCP sheath used in Type 245 cables provides excellent water resistance under normal mining conditions. The material is formulated to resist water absorption while maintaining flexibility and mechanical properties. For applications involving splash and condensation, which represent the majority of mining scenarios, this protection is generally adequate for the entire service life of the cable.

However, sustained submersion presents a more challenging scenario. While PCP sheaths can handle brief submersion or standing water contact, prolonged underwater operation requires additional protection measures. In these applications, proper drainage systems and cable protection measures become crucial for maximizing cable lifespan.

The key to managing water exposure lies in understanding the difference between water resistance and waterproofing. Type 245 cables are water-resistant, meaning they can handle the wet conditions commonly found in mining operations, but they're not designed for continuous underwater operation like submarine cables.

Question 3: How flexible are these cables, and can they withstand the repeated movement required in mining applications?

Flexibility represents one of the most critical performance characteristics for mining cables, as they must accommodate the constant movement of mobile mining equipment. The flexibility of Type 245 cables results from several design elements working together.

The Class-6 stranded conductors, with their hundreds of fine copper strands, provide the fundamental flexibility needed for the current-carrying components. However, conductor flexibility alone isn't sufficient—the insulation, screening, and sheath systems must also be designed to flex without degrading their protective properties.

The semiconductive cradle system used in Type 245 cables represents an innovative solution to the challenge of maintaining cable geometry under flexing conditions. These cradles help maintain proper spacing between conductors and earth cores while accommodating the complex bending patterns encountered in mining applications.

The braid reinforcement system is specifically designed as an open weave to allow flexing while providing mechanical protection. Closed reinforcement systems, while offering better protection against puncture, would create stiff points that could lead to fatigue failures under repeated bending.

Testing data indicates that properly installed Type 245 cables can withstand tens of thousands of flex cycles under appropriate bending radius conditions. This performance is achieved through careful attention to the cable's minimum bend radius requirements, which are typically specified as 12 times the cable's overall diameter.

Question 4: What are the critical installation best practices for maximizing cable performance and lifespan?

Proper installation represents the foundation of reliable cable performance in mining applications. Even the best-designed cable can fail prematurely if installation practices don't account for the unique demands of the mining environment.

Maintaining the minimum bend radius represents perhaps the most critical installation consideration. When cables are bent beyond their minimum radius, the internal components can be damaged in ways that aren't immediately apparent but lead to premature failure. In mining applications, where space is often constrained and installation conditions are challenging, careful attention to bend radius requirements during installation and service is essential.

Sharp edge protection is another crucial consideration. Mining environments are full of sharp edges from structural steel, rock formations, and equipment edges. These can cause gradual damage to cable sheaths that eventually leads to moisture ingress and electrical failures. Proper edge protection using appropriate guards and padding materials is a small investment that can dramatically extend cable life.

Strain relief systems are particularly important in mining applications where cables may be subjected to tensile forces from equipment movement or improper handling. The strain relief system must transfer mechanical loads to the cable's reinforcement system rather than to the electrical conductors, which aren't designed to carry mechanical loads.

Adequate cable length and slack management is often overlooked but critically important in mobile equipment applications. Insufficient cable length forces the cable to operate under constant tension, while excessive length creates hazards from cable loops and tangles. Proper slack management systems allow the cable to accommodate equipment movement while protecting it from mechanical damage.

Question 5: How do the earth fault monitoring and pilot circuit systems enhance mining safety and operations?

The earth fault monitoring system in Type 245 cables represents a sophisticated safety feature that goes well beyond simple grounding. The three earth conductors provide redundant grounding paths, ensuring that even if one conductor is damaged, the equipment remains safely grounded.

The continuous earth continuity monitoring possible with this system allows mining operations to detect grounding problems before they become safety hazards. This monitoring can be integrated with mine-wide safety systems to automatically shut down equipment or alert operators when grounding integrity is compromised.

The three pilot cores serve multiple functions beyond earth monitoring. They can carry control signals for remote equipment operation, instrumentation signals for condition monitoring, and communication signals for coordination between different pieces of equipment. This multi-functionality reduces the number of separate cables needed for complex mining operations.

In sophisticated mining operations, these pilot cores can be used for cable condition monitoring systems that track cable temperature, insulation resistance, and other parameters that indicate cable health. This predictive maintenance capability allows operators to schedule cable replacement before failures occur, reducing downtime and safety risks.

Question 6: How should operators choose between 1.1 kV, 3.3 kV, and 6.6 kV versions?

Voltage selection for mining cables involves balancing several factors including power requirements, transmission distance, safety considerations, and economic factors. The choice isn't simply about matching the equipment's voltage rating—it requires understanding the entire power distribution system.

For shorter cable runs and lower-power equipment, 1.1 kV cables often provide the most economical solution. The lower voltage reduces insulation requirements and overall cable size, making installation easier and reducing material costs. However, for the same power transmission, lower voltage requires higher current, which can lead to increased power losses and larger conductor requirements.

3.3 kV cables represent the sweet spot for many mining applications. This voltage level provides good power transmission efficiency while remaining within the comfort zone of most mining electrical personnel. The voltage is high enough to reduce current requirements and power losses but not so high as to require specialized handling procedures or equipment.

6.6 kV cables are typically reserved for high-power applications or long cable runs where power losses would be prohibitive at lower voltages. These cables require more sophisticated insulation systems and installation procedures, but they can transmit very large amounts of power efficiently over considerable distances.

The selection process should always include consultation of AS/NZS 1802 current-carrying capacity tables, which provide definitive guidance on matching cable cross-sections to current loads under various installation conditions. These tables account for factors like ambient temperature, grouping with other cables, and installation methods that can significantly affect current-carrying capacity.

Future Outlook: Innovation in Underground Power Solutions

The future of mining cables like the Type 245 series is being shaped by several technological trends that promise to make underground mining operations even more efficient and safe. Advanced materials science is developing new insulation and sheath compounds that offer improved performance in extreme temperatures and harsh chemical environments. These materials may allow future cables to operate in conditions that would challenge today's designs.

Condition monitoring integration represents another frontier for mining cable development. Future Type 245 cables may incorporate fiber optic elements or other sensing technologies that can provide real-time monitoring of cable temperature, strain, and electrical parameters. This capability would enable predictive maintenance strategies that could virtually eliminate unexpected cable failures.

The integration of communication capabilities into power cables is also advancing rapidly. Future mining operations may rely on cables that simultaneously carry power, control signals, and high-speed data communications, reducing the cable infrastructure required for increasingly automated mining equipment.

Conclusion: The Foundation of Australian Mining Success

Type 245 cables represent far more than simple electrical components—they embody decades of engineering innovation specifically focused on meeting the unique challenges of underground mining operations. From the coal mines of the Hunter Valley to the deep gold workings of Kalgoorlie, these cables provide the reliable power transmission that makes Australia's mining industry possible.

Their sophisticated design, combining advanced materials, innovative construction techniques, and rigorous testing standards, creates electrical products that can withstand conditions that would destroy conventional cables within hours. The investment in these specialized cables pays dividends through reduced downtime, improved safety, and the reliable operation of the expensive mining equipment they serve.

As Australia's mining industry continues to evolve, pushing deeper underground and extracting resources in increasingly challenging conditions, the importance of robust, reliable power transmission solutions like Type 245 cables will only continue to grow. They truly represent the backbone of Australian underground mining—invisible to most, but absolutely essential to the continued success of one of Australia's most important industries.

Understanding these cables provides insight not just into electrical engineering, but into the broader challenges and solutions that characterize modern mining operations. They demonstrate how seemingly simple components can embody sophisticated engineering solutions and represent the culmination of decades of practical experience in some of the world's most demanding industrial environments.
