The Complete Guide to NBR 9655 WM Mining Cables: Powering Mobile Equipment in the World's Harshest Environments

Introduction: Understanding the Critical Role of NBR 9655 in Modern Mining

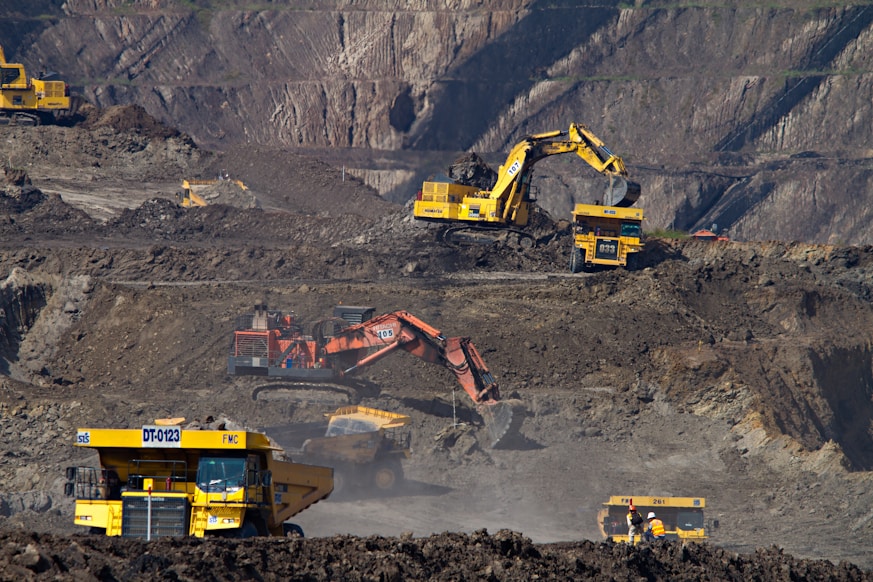

When you witness a massive excavator effortlessly lifting tons of earth or watch a drill bore through solid rock, you're observing the result of countless engineering innovations working in harmony. Yet beneath the surface of these impressive machines lies a network of specialized cables that must endure some of the most punishing conditions on Earth. This is where the NBR 9655 standard becomes absolutely critical to mining operations worldwide.

The Brazilian ABNT NBR 9655 standard represents a comprehensive specification for cables designed specifically for mobile mining equipment. Think of it as the gold standard for electrical conductors that must perform reliably while being constantly flexed, exposed to extreme temperatures, splashed with corrosive chemicals, and subjected to the relentless vibrations of heavy machinery. Among the various manufacturers producing cables to this exacting standard, INNOVCABLE has developed their WM series, rated for 750 volts and capable of continuous operation at temperatures up to 130°C.

To truly appreciate why this matters, consider that a single cable failure in a mining operation can halt production worth hundreds of thousands of dollars per day. The NBR 9655 standard doesn't just ensure cables work—it ensures they work reliably in conditions that would destroy conventional electrical cables within hours. The INNOVCABLE WM 750V 130°C represents the culmination of decades of materials science research and real-world testing in mining environments across the globe.

Electrical and Thermal Parameters: The Foundation of Reliable Power Transmission

Understanding the electrical characteristics of the INNOVCABLE WM cable requires examining each parameter through the lens of practical mining applications. The 750-volt rating might seem modest compared to high-voltage transmission lines, but in mobile mining equipment, this voltage level represents the sweet spot between power delivery capability and safety considerations for equipment operators.

The voltage rating of 750V nominal means the cable can safely handle this electrical potential continuously without insulation breakdown. However, the real magic happens when we consider the cable's ability to maintain this performance while being flexed thousands of times daily. Traditional cables often fail at connection points or develop hot spots under such mechanical stress, but the NBR 9655 specification ensures consistent electrical performance throughout the cable's service life.

Temperature capability represents perhaps the most critical aspect of mining cable performance. The continuous operating temperature of 130°C might not seem extraordinary until you consider that this temperature must be maintained while the cable is simultaneously being bent, twisted, and exposed to external heat sources. In mining operations, cables often run near diesel engines, hydraulic systems, and other heat-generating equipment. The INNOVCABLE WM's ability to operate continuously at 130°C provides crucial safety margins that prevent catastrophic failures.

The flexibility classification under IEC 60228 and DIN VDE 0295 Class 5 deserves special attention because it directly impacts equipment design and maintenance costs. Class 5 represents the highest level of flexibility in the international standard, meaning individual conductor strands are fine enough to allow exceptional bending without work hardening. To put this in perspective, a typical building wire might use Class 1 or Class 2 conductors, which would crack and fail within days if subjected to the constant flexing experienced in mobile mining equipment.

Current carrying capacity varies with conductor cross-sectional area, but the relationship isn't simply linear due to the complex thermal dynamics in mining environments. For example, a 1 mm² conductor might carry approximately 10 amperes under laboratory conditions, but in a dusty mining environment where heat dissipation is compromised, the practical current rating might be significantly lower. The NBR 9655 standard accounts for these real-world conditions, providing conservative ratings that ensure reliable operation even under adverse circumstances.

Insulation resistance and dielectric withstand voltage represent the cable's ability to prevent electrical leakage and withstand voltage spikes. Mining equipment frequently encounters electrical transients from motor starting, switching operations, and electromagnetic interference from nearby equipment. The NBR 9655 specification ensures cables can withstand these electrical stresses without compromising safety or performance. Additionally, flame resistance to IEC 60332-1 provides crucial fire safety protection in environments where combustible materials and ignition sources are unfortunately common.

Cable Structure: Engineering Excellence from Core to Sheath

The construction of the INNOVCABLE WM cable represents a masterclass in materials engineering, where each component is carefully selected and optimized for the specific challenges of mining environments. Understanding this construction helps explain why these cables can perform reliably where others fail catastrophically.

The conductor forms the heart of any electrical cable, and the INNOVCABLE WM uses bare or tinned electrolytic copper wires in soft temper with Class 5 stranding. The choice of electrolytic copper ensures maximum conductivity, while the soft temper provides flexibility that prevents work hardening during repeated flexing. The Class 5 stranding specification means the conductor consists of many fine wire strands rather than fewer thick strands, dramatically improving flexibility without sacrificing current carrying capacity.

Tinning of the copper conductors represents an optional but valuable upgrade that provides additional corrosion protection. In mining environments where moisture, chemicals, and temperature cycling can accelerate conductor corrosion, tinned copper provides an extra layer of protection that can extend cable life significantly. The decision between bare and tinned copper often depends on the specific chemical environment and expected service life requirements.

The insulation system utilizes INNOVCABLE's proprietary CECO™ elastomeric compound, engineered specifically for continuous operation at temperatures up to 130°C. This isn't simply a matter of choosing a high-temperature plastic; the CECO™ compound must maintain its electrical properties, flexibility, and mechanical strength across the entire temperature range while resisting chemical attack from oils, hydraulic fluids, and cleaning agents commonly encountered in mining operations.

The inner covering of CECO™ compound serves multiple critical functions beyond simple insulation. It provides mechanical protection for individual conductors, prevents moisture ingress that could cause conductor corrosion, and maintains the cable's electrical properties even if the outer sheath is damaged. This redundant protection philosophy reflects the harsh realities of mining environments where equipment protection systems must have multiple failure modes before catastrophic failure occurs.

Textile braid reinforcement represents one of the most ingenious aspects of the cable construction. Unlike metallic armor, which adds weight and reduces flexibility, textile reinforcement provides exceptional mechanical strength while maintaining the cable's flexibility characteristics. The braid distributes mechanical loads across the entire cable circumference, preventing stress concentration that could lead to jacket failure. This construction allows the cable to withstand the pulling forces, compression loads, and abrasion that would quickly destroy cables designed for stationary installations.

The outer sheath of CEAC™ elastomer in black represents the cable's first line of defense against the mining environment. The black color isn't merely aesthetic—it provides UV protection that prevents degradation from sunlight exposure. The CEAC™ compound is formulated to resist not only mechanical damage but also chemical attack from the vast array of substances encountered in mining operations, including diesel fuel, hydraulic oil, acids, bases, and various cleaning agents.

The flame resistance to IEC 60332-1 ensures that if the cable is exposed to an ignition source, it will not propagate flame along its length. This characteristic is absolutely critical in mining environments where fire represents one of the most serious safety hazards. The cable's ability to self-extinguish prevents small incidents from becoming major disasters.

Applicable Standards: A Framework for Reliability

The INNOVCABLE WM cable's compliance with multiple international standards reflects the global nature of modern mining operations and the need for consistent performance regardless of geographic location. The primary standard, Brazilian ABNT NBR 9655 (2016), represents the most comprehensive specification for mobile mining equipment cables, incorporating lessons learned from decades of mining experience in some of the world's most challenging environments.

The NBR 9655 standard is particularly significant because it addresses the unique challenges of mobile mining equipment that aren't covered by conventional cable standards. Traditional cable specifications often assume relatively static installations with predictable environmental conditions. Mining cables must perform reliably while being constantly moved, exposed to extreme temperature variations, and subjected to mechanical stresses that would quickly destroy conventional cables.

Compliance with DIN VDE 0295 and IEC 60228 Class 5 ensures the cable meets rigorous international standards for conductor flexibility and construction. These standards provide detailed specifications for conductor stranding, ensuring consistent performance across different manufacturers and geographic regions. The Class 5 designation represents the highest level of flexibility in these standards, reflecting the demanding requirements of mobile mining applications.

The IEC 60332-1 flame resistance standard provides crucial fire safety protection by ensuring cables will not propagate flame along their length when exposed to an ignition source. ABNT NBR 6251 governs various aspects of cable construction and testing, while RAL 9005 specifies the exact black color formulation for the outer sheath, ensuring consistent appearance and UV protection characteristics.

Real-World Mining Applications: A Case Study in Extreme Performance

To truly understand the capabilities of the INNOVCABLE WM cable, we must examine its performance in actual mining environments where theoretical specifications meet practical reality. Consider a large copper mine where massive dragline excavators operate continuously, moving millions of tons of overburden to expose valuable ore deposits.

In this environment, the dragline's power and control cables must span distances of several hundred meters while the machine pivots, lifts, and swings through its operational cycle. The cables experience constant flexing as the dragline boom moves up and down, while simultaneously being subjected to torsional forces as the entire machine rotates. Traditional cables would fail within weeks under these conditions, but the INNOVCABLE WM cable's Class 5 stranding and specialized compound formulation allow it to perform reliably for years.

The thermal challenges in this application are equally demanding. The dragline's diesel generators produce significant heat, while the electrical motors themselves generate additional thermal loads. Ambient temperatures can exceed 40°C in many mining regions, and direct sunlight exposure can drive surface temperatures even higher. The cable's 130°C temperature rating provides crucial safety margins that prevent thermal degradation and maintain electrical performance even under extreme conditions.

Chemical exposure represents another critical challenge in this environment. Hydraulic oil leaks from the dragline's boom and bucket systems can coat cables with petroleum-based fluids that would quickly degrade conventional cable jackets. Diesel fuel spills from refueling operations create additional chemical hazards, while various lubricants and maintenance chemicals contribute to a complex chemical environment that demands exceptional material resistance.

The mine's haul trucks present a different but equally challenging application. These massive vehicles carry hundreds of tons of ore and overburden over roads that would be considered impassable for conventional vehicles. The constant vibration and shock loading from traveling over rough terrain subjects cables to mechanical stresses that can cause fatigue failures in inadequately designed cables.

Installation practices in mining environments reflect the harsh operational realities. Cables must be routed to avoid sharp edges and pinch points while maintaining adequate bend radii even when equipment is in motion. Protective routing often involves specially designed cable guides and support systems that distribute mechanical loads and prevent stress concentration. Regular inspection protocols identify potential problems before they become critical failures, but the cable's robust construction reduces the frequency and severity of maintenance requirements.

The economic impact of cable reliability in mining operations cannot be overstated. A single cable failure can halt production worth hundreds of thousands of dollars per day, while the cost of emergency repairs in remote mining locations can be astronomical. The superior reliability of cables meeting the NBR 9655 standard translates directly into improved operational efficiency and reduced maintenance costs.

Technical Advantages: Why Engineering Excellence Matters

The exceptional flexibility of Class 5 stranding represents perhaps the most critical advantage of the INNOVCABLE WM cable in mining applications. To understand why this matters, consider that mobile mining equipment often requires cables to bend through tight radii hundreds of times per day. Conventional cables with fewer, larger conductor strands would quickly develop stress fractures and fail, but the fine stranding of Class 5 conductors distributes mechanical stress across many individual wire strands, preventing fatigue failures.

Resistance to abrasion, torsion, and crushing reflects the cable's ability to withstand the mechanical punishment inherent in mining operations. The textile braid reinforcement provides exceptional strength-to-weight ratio, while the specialized elastomer compounds maintain their protective properties even after repeated mechanical stress. This combination allows the cable to survive in environments where conventional cables would be destroyed within hours.

The high heat tolerance of 130°C continuous operation provides crucial safety margins in mining applications. Equipment designers can route cables near heat sources without fear of thermal degradation, while operators can rely on consistent performance even during peak operational demands. This thermal capability also provides important safety margins that prevent catastrophic failures during equipment malfunctions or extreme environmental conditions.

UV resistance and weather protection ensure reliable performance in outdoor mining environments where equipment operates under intense sunlight and extreme weather conditions. The specialized compound formulation prevents degradation from ultraviolet radiation, while the black color provides additional UV protection that extends service life significantly compared to conventional cables.

Chemical resistance to greases, oils, hydrocarbons, and various chemical agents reflects the complex chemical environment typical of mining operations. From diesel fuel and hydraulic oil to cleaning agents and process chemicals, mining cables must resist degradation from a vast array of potentially harmful substances. The INNOVCABLE WM's specialized compound formulation provides broad-spectrum chemical resistance that maintains cable integrity even after prolonged exposure.

The flame resistance to IEC 60332-1 provides crucial fire safety protection in environments where ignition sources and combustible materials are unfortunately common. The cable's ability to self-extinguish prevents small incidents from becoming major disasters, while the non-propagating characteristics ensure that fires cannot spread along cable pathways.

Mining-Specific Frequently Asked Questions

Can the INNOVCABLE WM cable withstand diesel fuel and hydraulic oil spills that are common in mining operations?

The CEAC™ outer sheath and CECO™ insulation compounds are specifically formulated to resist petroleum-based fluids including diesel fuel, hydraulic oil, and various lubricants. These specialized elastomeric compounds maintain their protective properties even after prolonged exposure to hydrocarbon-based fluids. However, it's important to clean spills promptly to prevent accumulation of contaminants that could affect heat dissipation or create safety hazards.

How does the cable perform when exposed to the constant abrasion from rock dust and debris?

The textile braid reinforcement combined with the tough CEAC™ outer sheath provides exceptional abrasion resistance. The textile reinforcement distributes mechanical loads across the entire cable circumference, preventing stress concentration that could lead to jacket failure. The elastomeric outer sheath maintains its protective properties even after surface abrasion, providing multiple layers of protection against environmental hazards.

Are there concerns about rodent damage in mining environments?

While the INNOVCABLE WM cable doesn't include specific rodent protection, the tough elastomeric sheath provides some resistance to gnawing damage. In areas where rodent activity is known to be problematic, additional protective measures such as rigid conduit or cable trays should be considered. The cable's robust construction means that minor surface damage from rodents is less likely to cause immediate failure compared to conventional cables.

How does the cable perform in extremely cold temperatures common in some mining regions?

The CECO™ and CEAC™ compounds are formulated to remain flexible at subzero temperatures, but specific low-temperature ratings should be confirmed with the manufacturer for extreme cold applications. In general, the specialized elastomeric compounds maintain their flexibility and electrical properties at temperatures well below freezing, but installation practices may need to be modified in extreme cold conditions to prevent handling damage.

What about voltage drop over the long cable runs common in large mining equipment?

Voltage drop is primarily a function of conductor size and current load rather than cable construction. The INNOVCABLE WM's copper conductors provide excellent conductivity, but proper conductor sizing is essential for long cable runs. For mobile mining equipment, voltage drop calculations should consider not only the steady-state current requirements but also the starting currents of large motors and other transient loads.

How should the cable be grounded in mining applications?

Proper grounding is absolutely critical in mining applications both for safety and equipment protection. The INNOVCABLE WM can be supplied with an optional green earth conductor, or separate grounding conductors can be installed. All grounding installations must comply with local mining electrical codes and regulations, which often have more stringent requirements than general industrial applications. The grounding system must be capable of safely carrying fault currents and providing personnel protection.

What is the expected service life of the cable in typical mining applications?

Service life depends heavily on the specific application and environmental conditions, but the INNOVCABLE WM is designed for extended service in harsh mining environments. Proper installation, routing, and maintenance can result in service lives measured in years rather than months. Regular inspection and preventive maintenance programs can identify potential problems before they become critical failures, maximizing the cable's service life and reliability.

Can the cable be repaired if damaged, or must it be completely replaced?

Minor damage to the outer sheath can often be repaired using appropriate cable repair techniques and materials. However, any damage to the insulation or conductors typically requires cable replacement. The cable's robust construction means that damage severe enough to affect the electrical integrity is usually immediately apparent, making it easy to identify cables that require replacement rather than repair.

Ordering Details and Customization Options

The INNOVCABLE WM cable system offers extensive customization options to meet the specific requirements of different mining applications. Understanding these options helps ensure optimal cable selection for each unique application.

Core count and color coding follow industry standards while providing flexibility for specific applications. Single conductor cables use black insulation, while multi-conductor cables follow the standard color sequence of black, blue, white, and red for two, three, and four conductor configurations respectively. This standardization ensures consistency across different equipment manufacturers and simplifies installation and maintenance procedures.

The optional earth conductor with green insulation provides dedicated grounding capability that may be required by local electrical codes or preferred for specific applications. The earth conductor is typically sized smaller than the power conductors since it only carries current during fault conditions, but it must be adequate to safely carry the maximum available fault current without damage.

Custom sheath colors and designs are available for applications requiring special identification or environmental compatibility. While black remains the standard color for UV protection, special applications might require different colors for identification purposes or to meet specific customer requirements. Custom marking and identification systems can also be incorporated to meet particular documentation or traceability requirements.

The standard external identification marking includes all critical information needed for proper cable identification and traceability. The marking "INNOVCABLE WM n(x) or (G) mm² 750V OF: XXXX/YEAR NBR 9655" provides conductor configuration, cross-sectional area, voltage rating, manufacturing date, and applicable standard. This comprehensive marking ensures proper cable identification throughout its service life and facilitates maintenance and replacement activities.

Special conductor sizes and configurations beyond the standard offerings can often be accommodated for unique applications. However, such customizations typically require longer lead times and may involve minimum order quantities. Early consultation with the manufacturer during the equipment design phase can help identify opportunities for standardization that reduce costs and delivery times.

Conclusion: The Foundation of Reliable Mining Operations

The INNOVCABLE WM 750V 130°C NBR 9655 cable represents far more than a simple electrical conductor—it embodies decades of materials science research, engineering innovation, and real-world testing in some of the most demanding environments on Earth. Its exceptional electrical ratings, robust thermal performance, and superior mechanical characteristics make it the ideal choice for mobile mining equipment where reliability is not just important but absolutely critical.

The cable's ability to maintain consistent electrical performance while being subjected to constant flexing, extreme temperatures, chemical exposure, and mechanical stress reflects the sophisticated engineering that goes into every aspect of its construction. From the Class 5 stranded copper conductors that provide exceptional flexibility to the specialized elastomeric compounds that resist chemical attack and thermal degradation, every component is optimized for the unique challenges of mining applications.

The real-world performance of these cables in harsh mining environments validates the importance of investing in properly engineered solutions rather than attempting to use conventional cables in demanding applications. The superior reliability translates directly into reduced maintenance costs, improved operational efficiency, and enhanced safety for mining personnel.

As mining operations continue to evolve with larger equipment, more demanding operating conditions, and increased automation, the role of reliable electrical infrastructure becomes even more critical. The INNOVCABLE WM cable's compliance with international standards ensures compatibility with global mining operations while providing the performance characteristics needed for future mining technologies.

For mining engineers, equipment designers, and maintenance professionals, understanding the capabilities and proper application of NBR 9655 compliant cables represents an essential component of successful mining operations. The investment in proper cable selection and installation pays dividends through improved reliability, reduced maintenance costs, and enhanced operational safety.

When specifying cables for mobile mining equipment, consultation with qualified engineers and cable manufacturers ensures optimal selection for specific applications. Proper conductor sizing, installation practices, and maintenance procedures are essential for realizing the full potential of these sophisticated electrical systems. The INNOVCABLE WM 750V 130°C NBR 9655 cable provides the foundation for reliable electrical power in the world's most demanding industrial environment—the modern mining operation.
